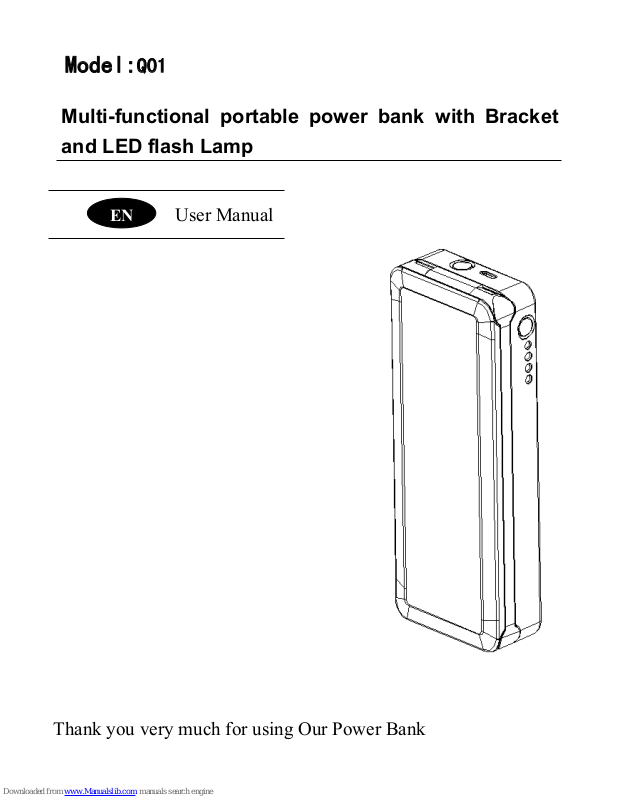

Page 1
Model:
Q01
Multi-functional portable power bank with Bracket
and LED flash Lamp
User Manual
Thank you very much for using Our Power Bank
Page 2
User Instructions:
1.Charging Output：Charging your portable devices by pressing the charging button,The
LED lights will instructing the battery capacitive
（Totally 4 levels）。
Capacitive
Instructing
lights
Level One
One light
Level Two
Two lights
Level Three
Three lights
Level Four
Four lights
Q01Capacitive <25% 25-50% 50-75% 75-100%
2.Input：Please use Micro USB to charge Q01,We supply 5 kinds of different connecting
interface for giving your as convenient as we can
。
Below photo is showing how to use Q01 to charge Iphone 4
Page 3
User Instructions:
Charging Output Compatible Devices
USB 1.0A
Iphone、Samsung、Sony、Nokia、HTC、LG、Blackberry
etc… are using DC5V-1.0A.
USB 2.1A Ipad or other kinds of tablet pc use DC5V-2.1A
Q01 can be used to charge most of the digital products that using DC-5V,We supply 5
kinds of interfaces which compatible for most of the mobile phones and other
telecommunication devices.
How to charge Q01
1.Please use Micro USB for charging Q01.
Page 4
2.We recommend to use AC adaptor to charge Q01，See Photo 1
3.You can also use computer USB interface to charge Q01,See photo 2
Attention:
1.Q01 have larger battery capacity, to charging it takes about 10 hours,
specific to the actual subject. 2. If Q01 cannot be charged please check
the cable, ports and other accessories.3 mobile power conversion
efficiency exists, so the mobile power capacity not Equivalent to
rechargeable capacity.
When Q01 charging other devices：
■
Battery capacitive Instructing lights will be on.
When Q01 be charging
：
■ Battery capacitive instructing lights will blink。
Safety Information:
Warming:Failure to follow these safety instructions may cause a fire, electric shock,
damage or other injuries。
Q01 use high quality Li-On battery Please rest assured to use.
Do not throw, Do not remove or pierce, Do not exposed to fire, high temperature
or water; suggested the use of the the formal power adapter to charge Q01
charging equipment or expansion, or other undesirable phenomena expansion
phenomenon, please stop using Q01.
This device is not for physiological, perception, and poor mental abilities of
persons (including children), nor does it apply to the lack of experience and
knowledge, unless specifically responsible for their personal safety of those who
supervise or instruct them to use this equipment. Children should be supervised
to ensure that they do not use this device as a toy.
State of charge
How to use it as LED Lamp
Using LED lamp: shown as picture on left hand,
first, press and hold 3sec on the button
switcher ,the light will start on its brightest
configuration, to adjust the brightness, just
press the button again without holding it. There
is a total of five adjustable brightness. Switch
on/off is the same.
Page 5
1.Q01 Portable power bank with
LED lamp and Bracket
X1
10.MiNi USB X1
11.AC Adaptor X1
12.User manual X1
2.DC3.5 Cable X1 13. Anti-skid pads X1
3.Apple Interface X1 14.Anti-skid Cover X1
4.PSP Interface X1
5.Micro USB X1
6.Nokia DC2.0 Interface X1
Input DC：5V/500mA-1A
Double Output DC：5V/1A DC:5V/2.1A(MAX)
Battery Capacity 8000mAh
Colour Temperature 6000-6500K
Brightness 30-300LM
Size 145×55×27MM
Net weight
Operating Standard GB 4706.18-2005
The names and contents of toxic and hazardous substances or elements in the product
Name
Toxic and hazardous substances or elements
Lead
(Pb)
Mercury
（Hg）
Cadmium
（Cd）
Hexavalent
Chromium
（Cr6+）
polybrominated
biphenyls（PBB）
Polybrominated
Diphenyl
Ethers（PBDE）
Q01 ×
○
○ ○ ○ ○
Accessories
Technical Specifications:
How to use it as a Portable devices bracket
Using bracket： Please set Q01 as
shown on left hand side, and then
put the portable devices on it.
Page 6
○： The following indicates the hazardous substance in all homogeneous materials of the part of
the content of the limit requirement in SJ/T11363-2006 standards.
× : That this toxic or hazardous substance content beyond SJ/T11363-2006 standard limit
requirement, at least in the parts of a homogeneous material.
Note：The reason that our products have “× ”：There're no alternative technology or components at the
present stage。
