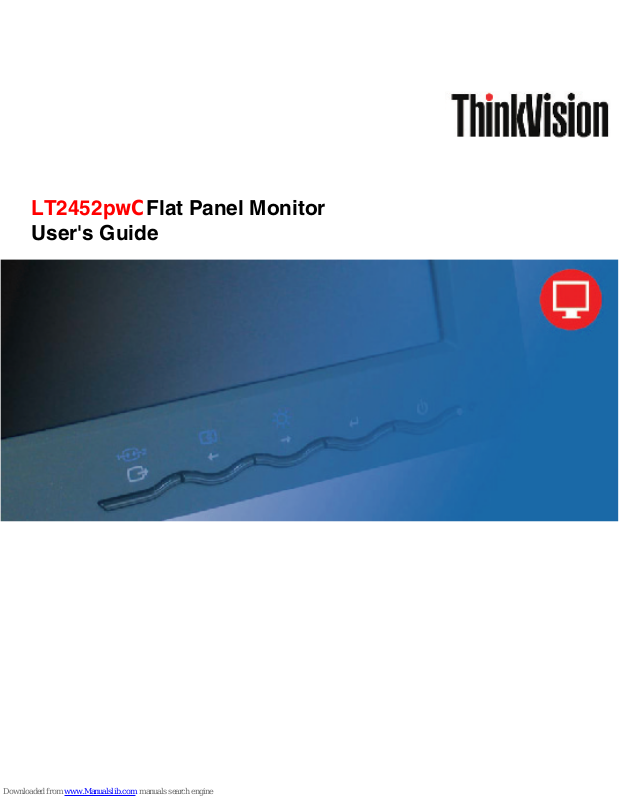

ThinkVision LT2452pwC User Manual
LT2452pwCFlat Panel Monitor
User's Guide
Product numbers
60A6-MAR2-WW
First Edition (December 2012)
© Copyright Lenovo 2012.
All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are
sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use,
reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
© Copyright Lenovo 2012. i
Contents
Safety information......................................................................................................
Chapter 1. Getting started 1-1
Shipping contents.........................................................................................................................................................
Product overview 1-2
Types of adjustments 1-2
............................................................................................................................................................................
Tilt 1-2
Swivel......................................................................................................................................................................
Height Adjustment 1-3
Monitor Pivot 1-3
User controls 1-3
Cable lock slot..........................................................................................................................................................
Setting up your monitor 1-4
Connecting and turning on your monitor 1-4
Registering your option 1-11
..........................................................................................................................................................
................................................................................................................................................
....................................................................................................................................................
...........................................................................................................................................................
............................................................................................................................................................
.................................................................................................................................................
...............................................................................................................................................
.......................................................................................
.................................................................................................................
Chapter 2. Adjusting and using your monitor........................................................
Comfort and accessibility 2-1
Arranging your work area....................................................................................................................................... 2-1
Positioning and viewing your monitor................................................................................................................2-1
Quick tips for healthy work habits.........................................................................................................................
Accessibility information 2-3
Adjusting your monitor image.....................................................................................................................................
Using the direct access controls 2-3

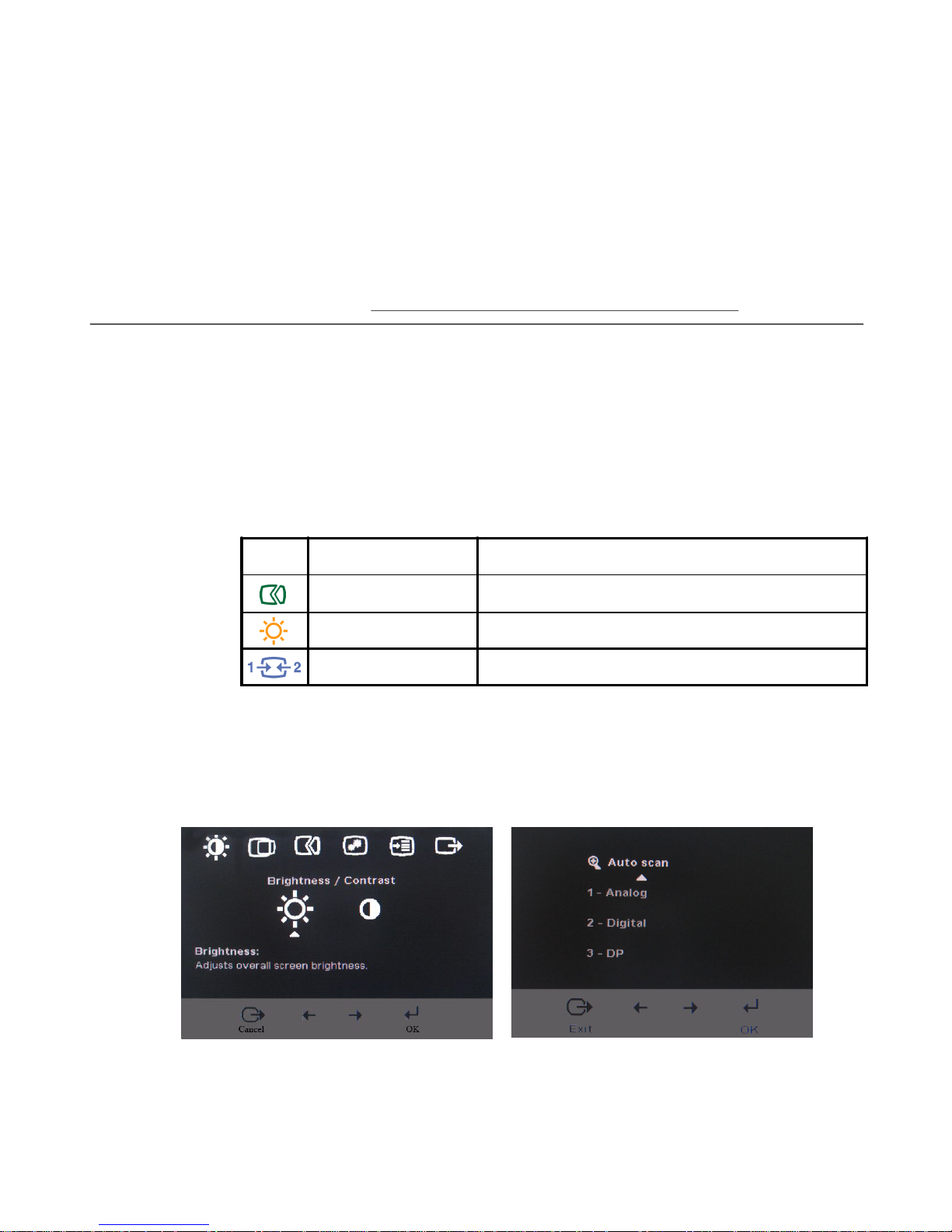

Using the On-Screen Display (OSD) controls 2-3
Selecting a supported display mode 2-6
Image rotation..............................................................................................................................................................
Understanding power management 2-7
Caring for your monitor 2-8
Detaching the monitor stand.........................................................................................................................................2-9
Wall Mounting (Optional)............................................................................................................................................2-9
............................................................................................................................................
........................................................................................................................................
.............................................................................................................................
.......................................................................................................
............................................................................................................................
.............................................................................................................................
...............................................................................................................................................
iii
1-1
1-2
1-4
2-1
2-2
2-3
2-7
Chapter 3. Reference information..........................................................................3-1
Monitor specifications.................................................................................................................................................3-1
Troubleshooting............................................................................................................................................................3-3
Manual image setup.................................................................................................................................................3-4
Manually installing the monitor driver....................................................................................................................3-5
Getting further help..............................................................................................................................................3-8
Service information..................................................................................................................................................3-8
Product numbers..................................................................................................................................................3-8
Customer responsibilities......................................................................................................................................3-8
Service parts.........................................................................................................................................................3-9
Appendix A. Service and Support..........................................................................A-1
Appendix B. Notices.................................................................................................B-1
© Copyright Lenovo 2012. ii
Safety information
í
General Safety guidelines
For tips to help you use your computer safety, go to:
http://www.lenovo.com/safety
Before installing this product, read the Safety Information.
íí
© Copyright Lenovo 2012. iii
Chapter 1. Getting started
This User’s Guide contains detailed information on the ThinkVision®LT2452pwC Flat
Panel Monitor. For a quick overview, please see the Setup Poster that was shipped
with your monitor.
Shipping contents
The product package should include the following items:
· Information flyer
· ThinkVision LT2452pwC Flat Panel Monitor
· Power Cord
· Digital Cable
· Analog Signal Cable
· USB Cable
· Cable Cover
· Cable Wrapper
Note: To attach a VESA mount, please see
“Detaching the monitor stand” on page 2-9.
© Copyright Lenovo 2012.
1-1
Product overview
This section will provide information on adjusting monitor positions, setting user
controls, and using the cable lock slot.
Types of adjustments
Tilt
Please see the illustration below for an example of the tilt range.
Swivel
With the built-in pedestal, you can tilt and swivel the monitor for the most
comfortable viewing angle.
-45o 45
1-2 LT2452pwC Flat Panel Monitor User’s Guide
o
Height Adjustment
After pressing the top of the monitor, remove the fixed pin and adjust the height of the
monitor.
Monitor Pivot
110mm
- Adjust height to the top position before rotation the monitor.
- Rotate clockwise until the monitor stops at 90°
User controls
Your monitor has controls on the front which are used to adjust the display.
For information on how to use these controls, please see
“Adjusting your monitor image” on page 2-3.
.
Chapter 1. Getting started 1-3
Cable lock slot
Your monitor is equipped with a cable lock slot located on the rear of your monitor (in
the lower left corner). Please follow the instructions that came with the cable lock to
attach it.
Setting up your monitor
This section provides information to help you set up your monitor.
Connecting and turning on your monitor
Note: Be sure to read the Safety Information located in the information flyer
before carrying out this procedure.
1.Power off your computer and all attached devices, and unplug the computer power
cord.
2.Connect the analog signal cable to the D-SUB port on the back of the computer.
1-4 LT2452pwC Flat Panel Monitor User’s Guide
Connect the digital signal cable to the DVI connector of the monitor and the
other end on the back of the computer.
noisiVknihT 91L0x
Connect one end of the DP cable to the DP connector on the back of the computer, and
the other end to the DP connector on the monitor.
DisplayPort* * This port does not support being connected to any AV equipment.
Lenovo recommends that customers who require to use the Display Port input on their
monitor purchase the "Lenovo Display Port to Display Port cable 0A36537".For more
information, go to one of the following:
www.lenovo.com/support/accessories
www.lenovo.com/support/displayport-cables
www.lenovo.com/accessoriesguide
Chapter 1. Getting started 1-5
Connect one end of the USB hub cable to the USB connector on the back of the
computer, and the other end to the upstream USB connector on the monitor.
Plug the monitor power cord and the computer cord into grounded electrical outlets.
Note: A certified power supply cord has to be used with this equipment. The relevant
national installation and/or equipment regulations shall be considered. A certified
power supply cord not lighter than ordinary polyvinyl chloride flexible cord
according to IEC 60227 (designation H05VV-F 3G 0.75mm2 or H05VVH2-F2 3G
0.75mm2) shall be used. Alternative a flexible cord be of synthetic rubber according
to IEC 60245 (designation H05RR-F 3G 0.75mm2) shall be used.
1-6 LT2452pwC Flat Panel Monitor User’s Guide
Rotate the head of the monitor into portrait view.
Chapter 1. Getting started 1-7
Place the cables through the Main Clip. Then fasten the clip.
Wrap the Cable Wrapper around the cables.
1-8
LT2452pwC Flat Panel Monitor User’s Guide
Remove the Rubber Cover from the back of the stand.
Replace the Cable Cover.
Chapter 1. Getting started 1-9
