ThinkRF R5700, R5500, R5750 Programmer's Manual

ThinkRF R5700
Real-Time Spectrum Analyzer
with GNSS
Programmer's Guide
Version 1.0.0
October 20, 2018 Document no. 75-0033-181020 Copyright © 2018 ThinkRF Corporation, all rights reserved. All product names are trademarks of their respective companies. This document contains information that is proprietary to ThinkRF Corporation.
Important notice
The information in this guide is furnished for informational use only and is subject to change without notice. ThinkRF Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.
No part of this publication may be reproduced, published, stored in an electronic database, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, for any purpose, without the prior written permission of ThinkRF Corporation.
Trademarks
ThinkRF, the ThinkRF logo and R5700 are trademarks of ThinkRF Corporation.
HARDWARE WARRANTY AND LIMITATION OF LIABILITY
Read this warranty carefully before you use the product.
R5700 Real Time Spectrum Analyzers with GNSS are warranted for workmanship and materials for a period of one (1) year from the date of shipment as identified by the Customer’s packing slip or carrier waybill. ThinkRF reserves the right to void the warranty on any equipment that has been altered or damaged due to Customer negligence, unauthorized repair, misuse of equipment, evidence of physical or environmental damage, transportation abuse or removal of any ThinkRF identification labels or serial numbers.
It will remain the responsibility of the Customer, having obtained a Return Material Authorization (RMA) and shipping instructions from ThinkRF, to return, at the Customer's expense, the defective unit to ThinkRF’s repair facilities. ThinkRF will incur shipping charges for the return of warranty repaired equipment. The RMA number can be secured by calling ThinkRF Customer Service and Support (1-613­369-5104). If the product does not fall within ThinkRF’s warranty period or the product is found to be functioning as designed, then under the terms of ThinkRF’s warranty policy, all costs of repairs and shipping will be charged directly to the Customer. ThinkRF will warrant repaired units for a period of 90 days from date of shipment from ThinkRF to the Customer. If the remaining period on the original hardware warranty is greater than 30 days, then ThinkRF will honor this remaining warranty period.
THINKRF EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, WHETHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES, CONDITIONS OR REPRESENTATIONS OF WORKMANSHIP, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, DURABILITY, OR THAT THE OPERATION OF THE HARDWARE OR LICENSED SOFTWARE WILL BE ERROR FREE. IN NO EVENT WILL THINKRF BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
All other brand or product names are trademarks or registered trademarks of their respective companies or owners.
ThinkRF Corp
390 March Road Kanata, ON K2K 0G7 (613) 369-5104
USE OF PRODUCTS IN HIGH RISK ACTIVITIES
THINKRF PRODUCTS ARE INTENDED FOR STANDARD INDOOR COMMERCIAL USE. WITHOUT THE APPROPRIATE NETWORK DESIGN ENGINEERING, THEY MUST NOT BE USED FOR ANY “HIGH RISK ACTIVITY”, as described in this paragraph. Customer acknowledges and agrees that the products supplied hereunder are not fault-tolerant and are not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environments requiring fail safe performance including but not limited to the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of products could lead directly to death, personal injury, or severe physical or environmental damage, all of which are examples of “High Risk Activity”. THINKRF AND ITS SUPPLIERS EXPRESSLY DISCLAIM ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES.
GNU General Public License
This device contains free firmware: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. GNU General Public License is available at http://www.gnu.org/licenses.
Table of Contents
Abbreviations ................................................................................................................................... 7
List of Figures .................................................................................................................................. 8
List of Tables .................................................................................................................................... 9
Preface ............................................................................................................................................... 10
Audience ................................................................................................................................... 10
Conventions ............................................................................................................................ 10
Obtaining Documentation and Releases .......................................................................... 10
Document Feedback .............................................................................................................. 11
Obtaining Technical Assistance ......................................................................................... 11
R5700 Functional Overview .................................................................................................... 12
System Overview .................................................................................................................... 12
The Architecture ..................................................................................................................... 15
RF Receiver Front-End .......................................................................................................... 17
Direct-Conversion Receiver Technology ............................................................................. 17
DC Offset Correction ..................................................................................................... 17
IQ Offset Correction ....................................................................................................... 18
Digital Signal Processing ..................................................................................................... 19
Digital Down Converter ........................................................................................................ 19
Triggers .................................................................................................................................... 20
Frequency Domain Triggering ............................................................................................. 20
Periodic Triggering ............................................................................................................... 21
External Triggering .............................................................................................................. 21
Capture Controller ................................................................................................................. 22
Trace Capture Control ......................................................................................................... 22
Sweep Capture Control ....................................................................................................... 23
Synchronized Sweep ........................................................................................................... 24
VITA-49 Radio Transport Protocol ...................................................................................... 26
Purpose .................................................................................................................................... 26
R5700's VRT Overview .......................................................................................................... 26
Packet Classes and Streams ............................................................................................... 27
Receiver Context Packet Class ........................................................................................... 27
Context Field Change Indicator ..................................................................................... 29
RF Reference Frequency .............................................................................................. 29
Gain ............................................................................................................................... 29
Temperature .................................................................................................................. 29
Digitizer Context Packet Class ............................................................................................ 30
Context Field Change Indicator ..................................................................................... 31
Bandwidth ...................................................................................................................... 31
RF Frequency Offset ..................................................................................................... 31
Reference Level ............................................................................................................ 32
Formatted GPS Geolocation .......................................................................................... 32
Extension Context Packet Class .......................................................................................... 34
Context Field Change Indicator ..................................................................................... 35
IQ Swapped Indicator .................................................................................................... 35
New Stream Start ID ...................................................................................................... 36
New Sweep Start ID ...................................................................................................... 36
IF Data Packet Class ........................................................................................................... 36
Picosecond Timestamp Words Format .......................................................................... 37
Data Payload Format ..................................................................................................... 37
Trailer Word Format ...................................................................................................... 39
SCPI Command Set ..................................................................................................................... 42
SCPI Language Overview ..................................................................................................... 42
IEEE Mandated SCPI Commands ....................................................................................... 43
*CLS .................................................................................................................................... 43
*ESE/*ESE? ........................................................................................................................ 43
*ESR? .................................................................................................................................. 44
*IDN? ................................................................................................................................... 44
*OPC/*OPC? ....................................................................................................................... 44
*RST .................................................................................................................................... 44
*SRE/*SRE? ........................................................................................................................ 45
*STB? .................................................................................................................................. 45
*TST? .................................................................................................................................. 45
*WAI .................................................................................................................................... 46
SYSTem Commands .............................................................................................................. 46
:SYSTem:ABORt ................................................................................................................. 46
:SYSTem:CAPTure:MODE? ................................................................................................ 46
:SYSTem:COMMunicate:HISLip:SESSion? ........................................................................ 46
:SYSTem:COMMunicate:LAN:APPLy .................................................................................. 47
:SYSTem:COMMunicate:LAN:CONFigure .......................................................................... 47
:SYSTem:COMMunicate:LAN:DNS ..................................................................................... 48
:SYSTem:COMMunicate:LAN:GATEway ............................................................................ 48
:SYSTem:COMMunicate:LAN:IP ......................................................................................... 49
:SYSTem:COMMunicate:LAN:MTU ..................................................................................... 49
:SYSTem:COMMunicate:LAN:NETMask ............................................................................. 50
:SYSTem:COMMunicate:NTP ............................................................................................. 50
:SYSTem:ERRor[:NEXT]? ................................................................................................... 50
:SYSTem:ERRor:ALL? ........................................................................................................ 51
:SYSTem:ERRor:CODE[:NEXT]? ........................................................................................ 51
:SYSTem:ERRor:CODE:ALL? ............................................................................................. 52
:SYSTem:ERRor:COUNt? ................................................................................................... 52
:SYSTem:FLUSh ................................................................................................................. 52
:SYSTem:LOCK:HAVE? ...................................................................................................... 53
:SYSTem:LOCK:REQuest? ................................................................................................. 53
:SYSTem:OPTions? ............................................................................................................ 54
:SYSTem:SYNC:MASTer .................................................................................................... 54
:SYSTem:SYNC:WAIT ........................................................................................................ 55
:SYSTem:VERSion? ............................................................................................................ 55
:SYSTem:DATE ................................................................................................................... 55
:SYSTem:TIME .................................................................................................................... 56
:SYSTem:TIME:ADJust ....................................................................................................... 56
:SYSTem:TIME:SYNC ......................................................................................................... 56
STATus Commands ............................................................................................................... 58
:STATus:OPERation[:EVENt]? ............................................................................................ 59
:STATus:OPERation:CONDition? ........................................................................................ 59
:STATus:OPERation:ENABle .............................................................................................. 60
:STATus:OPERation:NTRansition ....................................................................................... 60
:STATus:OPERation:PTRansition ....................................................................................... 60
:STATus:PRESET ............................................................................................................... 61
:STATus:QUEStionable[:EVENt]? ....................................................................................... 61
:STATus:QUEStionable:CONDition? ................................................................................... 61
:STATus:QUEStionable:ENABle .......................................................................................... 62
:STATus:QUEStionable:NTRansition .................................................................................. 62
:STATus:QUEStionable:PTRansition ................................................................................... 62
:STATus:TEMPerature? ...................................................................................................... 63
INPut Commands ................................................................................................................... 63
:INPut:ATTenuator ............................................................................................................... 63
:INPut:ATTenuator:VARiable ............................................................................................... 63
:INPut:GAIN ......................................................................................................................... 64
:INPut:GAIN:HDR ................................................................................................................ 65
:INPut:MODE ....................................................................................................................... 65
SOURce Commands .............................................................................................................. 66
:SOURce:REFerence:PLL ................................................................................................... 66
:SOURce:REFerence:PPS .................................................................................................. 66
SENSe Commands ................................................................................................................. 67
[:SENSe]:DECimation .......................................................................................................... 67
[:SENSe]:FREQuency:CENTer ........................................................................................... 68
[:SENSe]:FREQuency:IF? ................................................................................................... 69

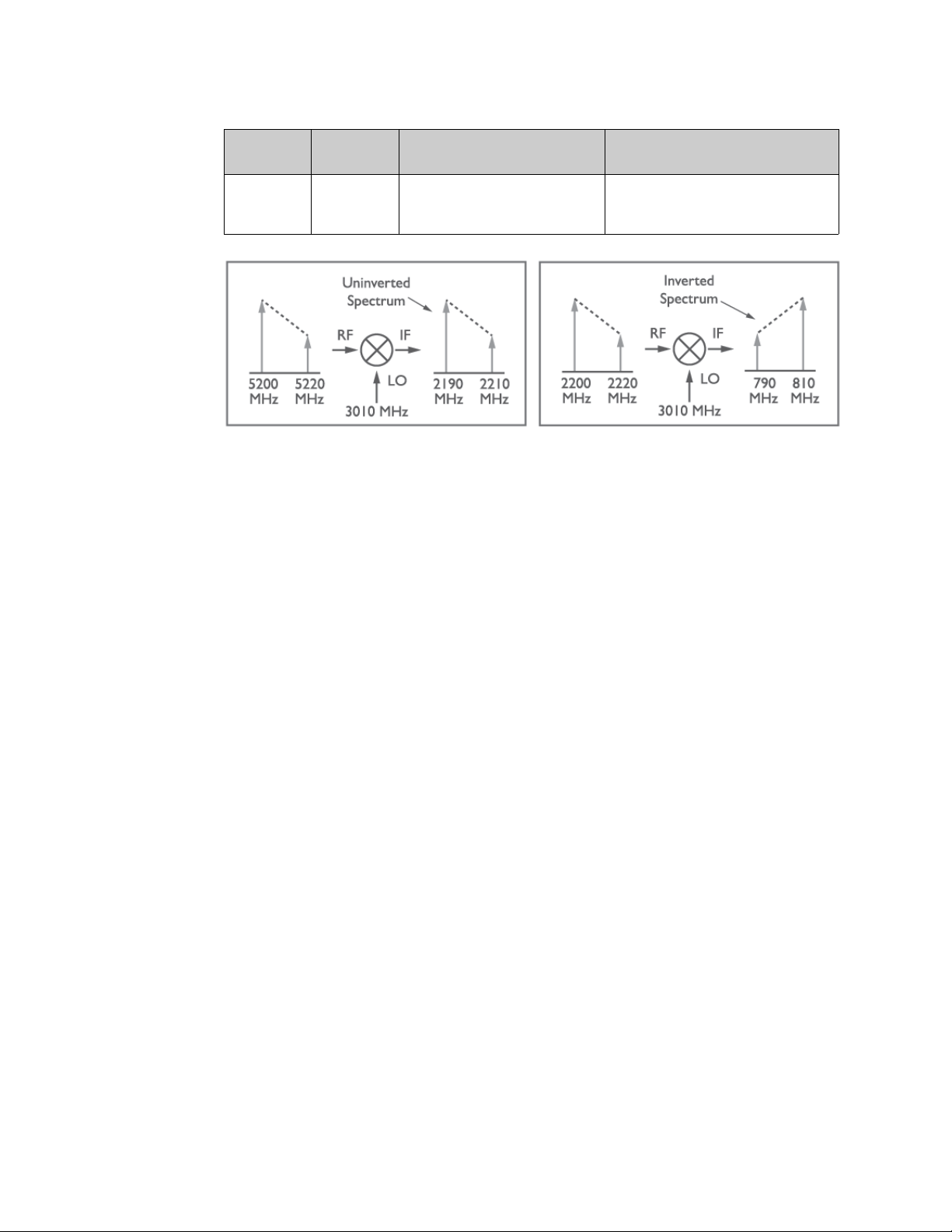

[:SENSe]:FREQuency:INVersion? ....................................................................................... 69
[:SENSe]:FREQuency:LOSCillator? .................................................................................... 69
[:SENSe]:FREQuency:SHIFt ............................................................................................... 70
[:SENSe]:LOCK:REFerence? .............................................................................................. 70
[:SENSe]:LOCK:RF? ........................................................................................................... 71
GNSS Commands ................................................................................................................... 71
:GNSS[:ENABle] .................................................................................................................. 71
:GNSS:POSition .................................................................................................................. 72
:GNSS:REFerence? ............................................................................................................ 72
TRIGger Commands .............................................................................................................. 72
:TRIGger:TYPE .................................................................................................................... 73
:TRIGger:LEVel ................................................................................................................... 73
:TRIGger:PERiodic .............................................................................................................. 74
TRACe Commands ................................................................................................................. 74
:TRACe:BLOCk:DATA? ....................................................................................................... 75
:TRACe:BLOCk:PACKets .................................................................................................... 76
:TRACe:SPPacket ............................................................................................................... 76
:TRACe:STReam:STARt ..................................................................................................... 77
:TRACe:STReam:STOP ...................................................................................................... 78
SWEep Commands ................................................................................................................ 78
:SWEep:LIST:ITERations .................................................................................................... 79
:SWEep:LIST:STARt ........................................................................................................... 79
:SWEep:LIST:STATus? ....................................................................................................... 80
:SWEep:LIST:STOP ............................................................................................................ 80
:SWEep:ENTRy:COPY ........................................................................................................ 80
:SWEep:ENTRy:COUNt? .................................................................................................... 81
:SWEep:ENTRy:DELETE .................................................................................................... 81
:SWEep:ENTRy:NEW .......................................................................................................... 81
:SWEep:ENTRy:READ? ...................................................................................................... 82
:SWEep:ENTRy:SAVE ........................................................................................................ 82
:SWEep:ENTRy:ATTenuator ............................................................................................... 82
:SWEep:ENTRy:ATTenuator:VARiable ............................................................................... 83
:SWEep:ENTRy:DECimation ............................................................................................... 83
:SWEep:ENTRy:FREQuency:CENTer ................................................................................. 83
:SWEep:ENTRy:FREQuency:STEP .................................................................................... 83
:SWEep:ENTRy:FREQuency:SHIFt .................................................................................... 84
:SWEep:ENTRy:GAIN:HDR ................................................................................................ 84
:SWEep:ENTRy:MODE ....................................................................................................... 84
:SWEep:ENTRy:DWELl ....................................................................................................... 84
:SWEep:ENTRy:PPBlock .................................................................................................... 85
:SWEep:ENTRy:SPPacket .................................................................................................. 85
:SWEep:ENTRy:TRIGger:LEVel .......................................................................................... 85
:SWEep:ENTRy:TRIGger:TYPE .......................................................................................... 85
Appendix A: Connecting to RTSA ...................................................................................... 86
Simple 2-port TCP/IP Connection ....................................................................................... 86
Connection Using HiSLIP ..................................................................................................... 87
Appendix B: Protocols for Discovering RTSA ............................................................. 90
Discovery Using mDNS/DNS-SD ........................................................................................ 90
Discovery Using Broadcast UDP ........................................................................................ 90
Appendix C: SCPI Command Syntax ................................................................................ 92
Entering Commands .............................................................................................................. 92
Notation .................................................................................................................................... 93
Parameter types ...................................................................................................................... 93
Default Units ............................................................................................................................ 93
Appendix D: SCPI Status and Event Registers ........................................................... 95
Status Byte Register (SBR) .................................................................................................. 95
Standard Event Status Register (ESR) .............................................................................. 95
Operational Status Register (OSR) .................................................................................... 96
Questionable Status Register (QSR) ................................................................................. 96
Output Queue .......................................................................................................................... 97
Error and Event Queue ......................................................................................................... 97
Appendix E: SCPI Error Codes Used ................................................................................ 98
Appendix F: SCPI Commands Quick Reference ......................................................... 99
R5500 vs. R5700 List of Changes ...................................................................................... 105
References ..................................................................................................................................... 106
Document Revision History ................................................................................................. 107

Abbreviations

ADC Analog-to-Digital Converter
API Application Programming Interface
CIC Cascaded Integrator-Comb
DC Direct Current
DD Direct Digitizer
DDC Digital Down Converter
DDS Direct Digital Synthesizer
DSP Digital Signal Processing
FFT Fast Fourier Transform
FIR Finite Impulse Response
FPGA Field-Programmable Gate Array
GNSS Global Navigation Satellite System
GPIO General Purpose Input/Output
GPS Global Positioning System
GUI Graphical User Interface
HDR High Dynamic Range
IBW Instantaneous Bandwidth
IEEE Institute of Electrical and Electronics Engineers
IF Intermediate Frequency
IQ In-phase and Quadrature
LAN Local Area Network
MB Mega-Bytes
MSB Most Significant Byte
MSa Mega-Samples
NB Narrowband
NCO Numerically Controlled Oscillator
NTP Network Time Protocol
NTPD Network Time Protocol Daemon
PLL Phase-Locked Loop
RF Radio Frequency
RFE Receiver Front-End
RTSA Real Time Spectrum Analyzer
Sa/s Samples-per-Second
SCPI Standard Commands for Programmable Instruments
SH Super-Heterodyne
SHN Super-Heterodyne with narrower bandwidth
TCP/IP Transmission Control Protocol/Internet Protocol
TD Time Domain
TSF TimeStamp-Fractional
TSI TimeStamp-Integer
TSM TimeStamp Mode
UTC Coordinated Universal Time
VCO Voltage Control Oscillator
VRT VITA-49 Radio Transport
WB Wideband
ZIF Zero Intermediate Frequency
List of Figures
Figure 1: R5700 Functional Block Diagram ............................................................................................. 13
Figure 2: RF Receiver Front-end and Capture Controller Functional Block Diagram ............................... 16
Figure 3: DC Offset with Amplitude Roll-Off at +50MHz .......................................................................... 18
Figure 4: IQ Offset Correction .................................................................................................................. 18
Figure 5: DDC Functional Block Diagram ................................................................................................ 20
Figure 6: Association between Time and Frequency Domain .................................................................. 21
Figure 7: Synchronized Sweep using Sync-Word .................................................................................... 25
Figure 8: Synchronized Sweep with a Missed Capture ............................................................................ 25
Figure 9: Connectivity and 4 Different Packet Streams Supported by R5700 .......................................... 26
Figure 10: An Example Illustrating Uninverted and Inverted Spectrums .................................................. 41
Figure 11: SCPI Language Hierarchical or Tree Structure Example ........................................................ 42
Figure 12: SCPI Measurement Function Block ........................................................................................ 43
Figure 13: Status Reporting Structure with Status & Enable Registers .................................................... 58
Figure 14: 2-port TCP/IP connection to RTSA ......................................................................................... 86
Figure 15: HiSLIP and TCP connections to RTSA ................................................................................... 88
List of Tables
Table 1: System Level Control/Status Commands with GNSS ................................................................ 14
Table 2: Radio RFE Modes and DSP Data Output Formats .................................................................... 16
Table 3: RF Front-End Control/Status Commands .................................................................................. 18
Table 4: Trigger Control/Status Commands ............................................................................................. 21
Table 5: Trace Capture Control Commands ............................................................................................ 23
Table 6: Sweep Capture Control/Status Interface .................................................................................... 23
Table 7: The Categories of VRT Packet Streams Supported by ThinkRF's R5700 ................................. 26
Table 8: A List of Stream Identifiers As Used by ThinkRF for Different Packet Classes .......................... 27
Table 9: Receiver Context Packet Class Structure .................................................................................. 28
Table 10: Receiver Context Indicator Field Positions ............................................................................... 28
Table 11: Receiver Context Field Definition and Values .......................................................................... 28
Table 12: RF Reference Frequency Word Format ................................................................................... 29
Table 13: Gain Field Format .................................................................................................................... 29
Table 14: Temperature Field Format ....................................................................................................... 29
Table 15: Digitizer Context Packet Class Structure ................................................................................. 30
Table 16: Digitizer Context Indicator Field Bit Positions ........................................................................... 30
Table 17: Digitizer Context Field Values .................................................................................................. 31
Table 18: Bandwidth Word Format .......................................................................................................... 31
Table 19: RF Frequency Offset Word Format .......................................................................................... 32
Table 20: Reference Level Field Format .................................................................................................. 32
Table 21: Formatted GPS Geolocation Fields ......................................................................................... 33
Table 22: Geolocation Angle (Degrees) Format ...................................................................................... 33
Table 23: Altitude Subfield Format ........................................................................................................... 34
Table 24: Speed Over Ground Subfield Format ....................................................................................... 34
Table 25: Extension Context Packet Class Structure ............................................................................... 34
Table 26: Extension Context Indicator Field Positions ............................................................................. 35
Table 27: Extension Context Field Definition and Values ........................................................................ 35
Table 28: New Stream Start ID Field Format ........................................................................................... 36
Table 29: New Sweep Start ID Field Format ............................................................................................ 36
Table 30: Output Data Width and Packing Method for Different Data Formats ........................................ 36
Table 31: IF Data Class Field Values ....................................................................................................... 37
Table 32: Stream Identifier Values for Different Data Output Formats ..................................................... 37
Table 33: 64-bit or Two Words Picosecond Timestamp Format .............................................................. 37
Table 34: {I14Q14} Data Payload Arrangement with Upper 2-bit Signed Extended to {I
Table 35: {I14} Data Payload Arrangement with Upper 2-bit Signed Extended to {I16} .............................. 38
Table 36: {I24} Data Payload Arrangement with Upper 8-bit Signed Extended to {I32} .............................. 39
Table 37: Trailer Word Format ................................................................................................................. 39
Table 38: Trailer Indicator and Enable Bits .............................................................................................. 39
Table 39: Conditions Causing Abnormal Indicator State and Suggested Resolution ............................... 40
Table 40: RTSA Option Codes and the Corresponding Description ........................................................ 54
Table 41: Performance of The Gain Settings of R5700-418, 427 and Their Variants .............................. 64
Table 42: Maximum Threshold Level Where +/-3 dBm Error or Less Still Hold For A Given Attenuation
Level ....................................................................................................................................... 74
Table 43: Max, Min, and Required Multiples for SPP and Samples-per-word for Different Data Output
Format .................................................................................................................................... 77
Table 44: HiSLIP Message Header Format ............................................................................................. 88
Table 45: ThinkRF Vendor Specific Message Type Value Definitions ..................................................... 89
Table 46: ThinkRF Data Channel Initialization Transaction ..................................................................... 89
} .................... 38
16 Q16

Preface

This preface describes the audience for, the organization of, and conventions used in this document. It also identifies related documentation and explains how to access electronic documentation.

Audience

This document is written for software developers wishing to develop and/or maintain a software interface to the R5700 and who have a basic understanding, familiarity and experience with network test and measurement equipment.

Conventions

This section describes the conventions used in this document.
Grayed-out Font
Indicates a command or a feature is not yet available in the current release.
Courier Font
Illustrates this is an example for a command or a concept.
Light Blue Font
Contains hyperlink to the referenced source that can be clicked on.
Normal Bold Font
When used within a sentence or a paragraph, it emphasizes an idea to be paid attention to particularly.
Red Font
Conveys special information of that section.
Note: This symbol means take note. Notes contain helpful suggestions or references to additional information and material.
Caution: This symbol means be careful. In this situation, you might do something that could result in equipment damage or loss of data.
Warning: This symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with the standard practices for preventing accidents.

Obtaining Documentation and Releases

You can access the most current ThinkRF documentation and the latest release bundles at http://www.thinkrf.com/resources.

Document Feedback

Please send your comments about this document or our other documentation to
support@thinkrf.com.
Thank you, we appreciate your comments.

Obtaining Technical Assistance

The ThinkRF Support website provides online documents for resolving technical issues with ThinkRF products at www.thinkrf.com/resources.
For all customers who hold a valid end-user license, ThinkRF provides technical assistance 9 AM to 5 PM Eastern Time, Monday to Friday. Contact us at
www.thinkrf.com/support/ or by calling +1.613.369.5104.
Before contacting Support, please have the following information available:
R5700's serial number and product version, which are located on the identification
label on the R5700's underside.
The firmware version running on the R5700.
Versions of ThinkRF software you are using, potentially including the S240, API
libraries to third-party applications.
The operating system and version you are using.

R5700 Functional Overview

This section overviews the R5700's functionality and protocols used, and summarizes the SCPI command sets for controlling the individual functions.
Note: This is a living and evolving document. We welcome your feedback.
The features and functionality described in this section may exist in the current product firmware release or are scheduled for a future product firmware release (grayed out commands and/or text). Please refer to Appendix F: SCPI Commands Quick Reference for the complete list of commands and the availability information. No hardware upgrade is required at each feature release (unless specified though unlikely).

System Overview

The R5700 Real Time Spectrum Analyzer (RTSA) with GNSS (Global Navigation Satellite System) provides the benefits of a high-performance software-defined RF receiver, digitizer and analyzer along with integrated GNSS technology offering location and time information in one package. With patent-pending software-defined RF receiver technology, the RTSA provides industry leading combined sensitivity, tuning range, wide instantaneous bandwidth (IBW) and scan rate. Additionally, it provides real-time sophisticated triggering and capture control. Figure 1 illustrates an RTSA solution system example.
R5700 Functional Overview
The R5700 is designed for stand-alone, remote and/or distributed wireless signal analysis. Whether using as a single unit or a network of radio sensors, R5700 is ideal for monitoring, management and surveillance of transmitters, whether they are in-building or spread across a geographic area. Applications include, but are not limited to:
5G wireless technology;
test and measurement;
monitoring and surveillance;
research;
OEM integration.
The R5700 hardware largely consists of:
a hybrid super-heterodyne, direct-conversion and direct-digitization RF receiver
front-end (RFE);
receiver front end inputs and outputs to support clock synchronization, and IF
outputs for high-end digitization;
a 125 MSample/sec 14-bit wideband (WB) ADC with a dynamic range of greater
than 70 dB;
a 325 kSample/sec 24-bit narrowband (NB) ADC with a dynamic range in excess of
100 dB;
a GNSS module with embedded 10MHz reference clock source for further RTSA’s
time synchronization;
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 12
R5700 Functional Overview
a Xilinx's Zynq FPGA with built-in dual-core ARM®-based processor, Gigabit
Ethernet interface and custom embedded digital signal processing (DSP) logic;
1 GB of DDR3 shared between firmware and real-time caching of digitized data;
a general purpose input/output (GPIO) port.
Figure 1: R5700 Functional Block Diagram
ThinkRF's products conform with standardized protocols for interoperability. ThinkRF provides application programming interfaces (APIs) designed for easy integration with third-party applications. Standard protocols include the Standard Commands for Programmable Instruments (SCPI) protocol (page 42) for controlling and obtaining status from the RTSA and the VITA-49 Radio Transport (VRT) protocol (page 26) for digitized data and its associated context information.
In addition, API libraries, written in C/C++, Python, MATLAB and/or NI LabVIEW, are provided for quick interfacing, data acquisition and as well as for spectral analysis. The Python API is built within the PyRF development framework and is open-source under BSD licensing. PyRF handles the low-level details of real-time acquisition, signal processing and visualization, and provides feature rich libraries, example applications and source code, all specific to the requirements of signal analysis. Usage examples are provided through the available source codes of the Graphical User Interfaces (GUIs) or any applications included in each release package.
Refer to Appendix A for how to connect to an RTSA and Appendix B for the protocol on how to find any RTSAs available on the local network. The source code provided for the aforementioned APIs and GUIs/applications would serve as examples.
The R5700 provides system level control and status commands as defined in Table 1.
13 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
R5700 Functional Overview
Table 1: System Level Control/Status Commands with GNSS
SCPI Command Description
:SYSTem Page 46
:ABORt Aborts the current data capturing process and puts the RTSA system into
a normal manual mode (i.e. sweep, trigger, and streaming will be aborted)
:CAPTure
:MODE? Gets the current capture mode of the RTSA (i.e. sweeping, streaming or
block mode)
:COMMunicate
:HISLip
:SESSion? Returns the HiSLIP connection’s session ID
:LAN<commands> Subset of commands for configuring/querying RTSA's LAN settings
:ERRor
[:NEXT]? Returns the next error code and message from the SCPI error/event
queue
:ALL? Returns all the error codes and messages from the SCPI error/event
queue
:CODE
[:NEXT]? Returns next the error code from the SCPI error/event queue
:ALL? Returns all the error codes from the SCPI error/event queue
:COUNt? Returns the number of errors in the SCPI error/event queue
:FLUSh Clears the R5700's internal data storage buffer of any remaining data that
has not transferred out of the RTSA
:LOCK
:HAVE? Returns the current lock state of the task specified
:REQuest? Requests the R5700 to provide a lock on a specific task such that only the
application that has the lock can perform the task
:OPTions? Returns comma separated 3-digit values to represent the hardware
option(s) or features available with a particular RTSA model
:SYNC
:MASTer[?] Sets an RTSA unit to be the master or slave for a synchronization trigger
system with multiple units. Affects :TRIGger:TYPE PULSe or WORD.
:WAIT[?] Sets the delay time in nanoseconds that the system must wait after
receiving the trigger signal before performing data capture
:VERSion? Returns the SCPI version number that the instrument complies with
:DATE[?] Sets/reads date
:TIME[?] Sets/reads time
:SYNC[?] Sets/ gets the System time synchronization source via network or SCPI,
or disable
:STATus Page 57
:OPERation
[:EVENt]? Queries the Operation Status Register for any operation event
:CONDition? Queries the Operation Condition Register for any operation event
:ENABle[?] Enables or queries bits in the Operation Enable Register
:NTRansition[?] Enables or queries bits in the Operation Negative Transition Register
:PTRansition[?] Enables or queries bits in the Operation Positive Transition Register
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 14
R5700 Functional Overview
SCPI Command Description
:PRESET Presets the R5500 (similar to *RST)
:QUEStionable
[:EVENt]? Queries the Questionable Status Register for any questionable event
:CONDition? Queries the Questionable Condition Register for any questionable event
:ENABle[?] Enables or queries bits in the Questionable Enable Register
:NTRansition[?] Enables or queries bits in the Questionable Negative Transition Register
:PTRansition[?] Enables or queries bits in the Questionable Positive Transition Register
:TEMPerature? Returns the R5700's internal ambient temperature
:GNSS
[:Enable][?] Enables or queries the status of the GNSS module
:POSition Queries the last known GNSS position in degrees latitude, degrees
:REFerence? Queries which timing reference source used to discipline the 10 MHz
See SCPI Command Set section (page 42 onward) for further details on the commands.
longitude and altitude in meters
GNSS reference oscillator
Caution pertaining to multi-users: See Appendix A: Connecting to RTSA for important notes on this caution.

The Architecture

The R5700 is an integrated wireless radio receiver, digitizer/analyzer and GNSS technology. It has an embedded capture controller that enables users to:
define and execute real-time and sophisticated triggers, traces and sweeps;
configure the radio RFE and DSP in association with those traces or sweeps;
obtain device’s location position and time as provided by the GNSS through VRT
packets (page 32); and
have time-stamped with data output.
Traces and sweeps are controlled by the capture controller as illustrated in the Digitizer portion of Figure 2. A trace and a sweep are defined as a single (block or continuously streamed) capture and a series of captures, respectively, each with their associated hardware configurations.
When the GNSS module is enabled, GNSS position and time information is sent to users through VRT context packets roughly every second (see VRT’s Formatted GPS
Geolocation section). Besides two existing internal and external 10 MHz reference clock
sources, the GNSS module also provides a third 10MHz reference clock source option to provide synchronized time-stamp for VRT packets (see SOURce Commands).
15 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
R5700 Functional Overview
Figure 2: RF Receiver Front-end and Capture Controller Functional Block Diagram
(Note: The GPS (GNSS) option is included in this model)
The R5700 supports different RFE modes of operation and subsequent DSP capabilities as per Table 2 and as described in the following subsections.
Table 2: Radio RFE Modes and DSP Data Output Formats
Mode Description Freq Range
(MHz)
ZIF SH
SHN
HDR
DD
1
For SH and SHN modes, when the decimation is used, a frequency shift of 35MHz will be applied
automatically to bring the R5700's center frequency back to the zero IF. Thus, the data output will be I and Q.
2
In DD mode, there is no frequency tuning except for performing frequency shift. When
decimation is applied, the decimation will be around the zero frequency.
Zero-IF Receiver 50 - max 100 I14 Q Super-Heterodyne
50 - max 40 I Receiver SH Receiver with
50 - max 10 I narrower BW
High Dynamic Range
50 - max
Receiver
Direct Digitization
0.009 - 50
Receiver
2
IBW
(MHz)
0.1 I
50 I
DSP Data Output Format
None CIC/Dec Frequency Shift
14I14 Q14
14
I14 Q
14
I14 Q
24
14
I
14 Q14
1
14
1
14
- -
1
I14 Q I14 Q
I14 Q
I14 Q
14
14
14
14
R5700 complies to VRT protocol for sending digitized IF data packets and their associated context information depending on the capture mode. It is very important to follow the VRT's IF Data Packet Class section (page 36) for the exact VRT data output formats as well as packing method.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 16
R5700 Functional Overview

RF Receiver Front-End

The Receiver portion of Figure 2 shows a block diagram of the RFE within the R5700. The architecture consists of a super-heterodyne (SH) front-end with a back-end that utilizes an I/Q mixer similar to that in a direct-conversion (or zero-IF) receiver.
Depending on the frequency of the signals being analyzed, one of the three receiver signal processing paths is selected. Signals in the frequency range 9kHz to 50MHz are directly digitized, while all other signals are translated to the frequencies of the first IF block via one of the other two signal processing paths. The IF block consists of a bank of multiple SAW filters. SAW filter selection depends on the frequency of the input signal. The output of the SAW filter feeds the I/Q mixer.
The three signal processing paths are further classified into different modes of operation for the capture engine as shown in Table 2. The radio modes ZIF, SH, SHN and HDR support tuning the center frequency from 50MHz to the maximum frequency supported by the particular product model (ex. 8GHz, 18GHz, and 27GHz for R5700-x08, -x18, and
-x27, respectively, where x is a model number variant).
The ZIF, SH and SHN radio modes support a tuning resolution of 10Hz. Digital frequency shifting is then used to enhance the tuning resolution to the nearest 1Hz (±0.23Hz). The frequency shifting technology used is an embedded Numerically Controlled Oscillator (NCO) based Direct Digital Synthesizer (DDS) as described in the
Digital Down Converter subsection.
The HDR radio mode supports a tuning resolution of 10Hz. No further fine tuning is available.
The remaining radio mode, DD, supports 50MHz IBW Direct Digitization of the baseband from the external RF IN. Hence, this mode does not support frequency tuning of the radio although the DSP's frequency shift mode may be applied.

Direct-Conversion Receiver Technology

Direct-conversion (or ZIF) receivers are ideal for signal analysis of wideband waveforms, such as 4G/LTE, Wi-Fi and Bluetooth. With that benefit comes the drawback of both IQ and DC offsets which are inherent to direct-conversion technology.
DC Offset Correction
The R5700's WB ADC sampling rate is 125 MSa/s, intermediate frequency (IF) is 0 and the entire IF bandwidth is 125MHz. The analog filter results in an amplitude roll-off at approximately +50MHz around the center frequency Fc, as illustrated in Figure 3.
Direct-conversion receivers have a DC offset at the center of the band. The offset is primarily compensated for in real-time in the receiver hardware but there always is some residual offset that (depending on the application and bandwidth of interest) might need to be compensated for in software. Several options such as calibration or dynamic offset compensation in software have been described in the open literature.
17 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
R5700 Functional Overview
D C O f f s e t
F c - 5 0 M H z
F c + 5 0 M H z
1 2 5 M H z
F c
A n a l o g f i l t e r
S i g n a l
I m a g e
X d B
F r e q u e n c y
F
c
F r e q u e n c y
F
c
F c + F s
F c - F s
c a l i b r a t e I Q
Figure 3: DC Offset with Amplitude Roll-Off at +50MHz
If the application only needs to utilize up to 50MHz of IBW, a simple alternative to DC offset compensation is to use the SH mode of operation.
IQ Offset Correction
Direct-conversion receivers have phase and/or amplitude offsets between in-phase (I) and quadrature (Q) components of the baseband signal. Due to this, when an FFT is performed on digitized baseband data where there is a signal tone present, there will be an ‘image’ at the same frequency offset from the center frequency as the tone itself. This is illustrated in Figure 4.
A correction algorithm would be needed to adjust this offset necessary for signal analysis, especially for the ZIF mode. The ThinkRF's APIs have included a correction.
Figure 4: IQ Offset Correction
Table 3: RF Front-End Control/Status Commands
SCPI Command Description
:INPut Page 63
:ATTenuator[?]
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 18
Enables/disables the front-end's attenuation for R5700-408 & their variants only
R5700 Functional Overview
SCPI Command Description
:VARiable[?]
:GAIN[?]
:HDR[?]
:MODE[?]
:SOURce Page 66
:REFerence
:PLL[?]
:PPS[?]
[:SENSe] Page 67
:DECimation[?] Sets the decimation rate as an exponent of 2 (i.e. rate = 2
:FREQuency
:CENTer[?] Sets the center frequency of the RFE
:IF? Queries the IF frequencies that are used for the current input mode and
:INVersion? Queries if a spectral inversion is required at a given frequency
:LOSCillator? Gets the frequency of the external LO 1, 2 or 3 in corresponding to
:SHIFt[?] Sets the frequency shift value (not available for HDR mode)
:LOCK
:REFerence? Queries the lock status of the PLL reference clock
:RF? Queries the lock status of the RFE's PLL
Sets the variable attenuation for R5700-418 and -427 & their variants
Sets the input gain stage for R5700-418, -427 & their variants
Sets gain level for the NB ADC of of the HDR signal path
Selects the receiver mode of operation
Selects the 10MHz reference clock source
Selects the PPS input source
level
where level =
0, 1, 2 - 10)
center frequency
current the RTSA's center frequency
See SCPI Command Set section (page 42 onward) for further details on each set of commands.

Digital Signal Processing

The R5700 has embedded DSP blocks to provide further signal processing capabilities, such as DDC with up to 10 levels of decimation and FFT computation.

Digital Down Converter

The DDC block takes the frequency band of interest and shifts it down in frequency, then provides decimation of the sampling rate to one that is lower and consistent with the bandwidth of the signal of interest. This enables channelization of signals having bandwidth smaller than the IBW.
Referring to Figure 5, the DDC has two major elements, an NCO (DDS) and a down sampling with filtering. The NCO generates a complex sinusoid, which is mixed with the IQ input using a complex multiplier, to shift or offset the signal spectrum from the selected carrier frequency. This process provides the frequency fine-tuning (and shifting) feature as mentioned in the previous subsections.
19 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
R5700 Functional Overview
I
Q
in
in
fs
fsfs
I
Q
out
out
NCO (DDS)
Figure 5: DDC Functional Block Diagram
The complex multiplication is then followed by either a finite impulse response (FIR) filter or cascaded integrator-comb (CIC) filters with a FIR filter combined. The CIC filter has a ‘droop’ associated with it in the passband. In order to compensate for this droop, the CIC filter is followed by a compensating FIR filter. Each filter type has its own decimator. This whole process effectively reduces the sample rate and filters the signal to remove adjacent channels, minimize aliasing, and maximize the received signal-to-noise ratio.
Note: The use of the NCO converts the in-phase signal (I data) input of the receiver's DD, SH and SHN processing paths to complex I and Q data output. See Table 2.

Triggers

Triggers provide a means of qualifying the storage of captured time domain IQ data based on an external, periodic or frequency domain event. Triggering can be considered a means of filtering signals of interest for the purposes of subsequent visualization and/or analysis.
The following describes the different types of triggers and their common controls. Selection of different types is mutually exclusive.

Frequency Domain Triggering

Frequency domain triggering relies on the embedded real-time FFT mechanism to transform the sampled signal from the time domain to the frequency domain. The R5700 uses a 1024 point real-time FFT core embedded within the FPGA to transform 1024 time domain IQ samples to 1024 frequency domain FFT bins. Each bin is an average of the spectral activity over a range of 125MHz divided by the DDC decimation rate divided by the 1024 FFT points.
The frequency domain triggering supported by R5700 is a level trigger type, used to capture any signal above the noise floor within a specified frequency range. The user defines a single amplitude level within a frequency range. The frequency range encompasses all FFT bins with center frequencies within the range defined by START and STOP. If the sampled signal amplitude exceeds the defined trigger level at any
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 20
R5700 Functional Overview
single sample within the defined frequency range, the trigger will occur and the subsequent IQ data capture will proceed.
Figure 6 illustrates the association of the time domain and the frequency domain. The internal frequency domain data lags the time domain data by 1024 samples at the rate of 125 MSa/s. After a trigger event is detected, the subsequent time domain IQ data is then stored to memory.
Figure 6: Association between Time and Frequency Domain
The measurable range of the input signal, and the corresponding allowable trigger level range, varies depending on the selected center frequency, the calibrated reference level and the attenuation setting. The threshold level error is approximately ±3 dBm or less when the trigger level is set within the range mentioned in the :TRIGger:LEVel command.
See TRIGger Commands (page 72) or SWEep's trigger (page 85) for further details.

Periodic Triggering

Periodic triggering provides a means of capturing a defined amount of IQ data on a periodic basis. Periodic triggering is typically used for statistical analysis of the captured signal.

External Triggering

External triggering provides a means of synchronized triggering based on the receiving of a trigger signal provided via the R5700's GPIO. The trigger “signal” could be a single pulse, PPS or a sync-word. See Synchronized Sweep (page 24) for additional details.
Caution: The pulse and sync-word is applied to the GPIO's TRIG IN pin, while PPS is through PPS pin. Contact ThinkRF's Support for details on how to use the GPIO port prior to connecting anything to the port.
Table 4: Trigger Control/Status Commands
SCPI Command Description
:TRIGger Page 72
21 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Description
:TYPE[?] Sets or disable the trigger type including LEVel | PERiodic | PPS | PULSe
:LEVel[?] Sets the frequency range and amplitude of a frequency domain level
:PERiodic[?] Sets the time period of a periodic trigger
See TRIGger Commands (page 72) or SWEep's trigger (page 85) for further details.

Capture Controller

The Capture Controller provides a means of defining and performing simple traces and complex sweeps. For example, it allows for:
the definition and execution of a complex sweep;
the interruption of that sweep;
the execution of a specific trace; and
the resumption of the previous sweep.
Caution: The configurations of the capture engine associated with :TRACe and :SWEep commands are fully independent of each other. A :TRACe command uses the configurations of the capture engine based on the root :INPut, :SENSe and :TRIGger commands. It does not use the configurations based on the :SWEep command subset.
R5700 Functional Overview
| WORD | NONE
trigger
Note: Besides the information provided in the following sections, refer to appnotes “74­0050 Data Acquisition” and “74-0071 Sweep Synchronization with I and Q output” for more information, including examples.

Trace Capture Control

The :TRACe capture control initiates the capture, storage and conditionally the sending of IQ data through triggering when used. It supports both streaming and block mode capture.
The :TRACe:BLOCk (page 75) command initiates a block capture of continuous IQ data (available to be "pulled" from the R5700 per command issued). Once it is issued, data will be stored instantly (conditional on triggering), contiguously and reliably and are available to be read. The maximum size of a block is limited by the memory device in the RTSA.
The :TRACe:STReam (page 77) command initiates the streaming of IQ data (which is "pushed" from the R5700). Once it is issued, data packets will be sent instantly (conditional on triggering) and continuously on best effort basis (in other words, data might not be continuous from one packet to the next once the internal buffer is full).
The execution of the trace capture could be conditioned by the triggering. The triggering may be enabled or disabled via the :TRIGger:TYPE command, thereby, supporting free­run or triggered signal searches.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 22
R5700 Functional Overview
Table 5: Trace Capture Control Commands
SCPI Command Description
:TRACe Page 74
:BLOCk
:DATA? Initiates the sending of the IQ data captured
:PACKets[?] Sets the number of IQ data packets to be captured per block (a block =
:SPPacket[?] Defines the number of samples per VRT packet
:STReam
:STARt Initiates the capture, storage and streaming of IQ data
:STOP Stops streaming
See TRACe Commands section (page 74) for further details.

Sweep Capture Control

The :SWEep capture control provides the ability to define and execute simple or complex sweeps. A sweep setup consists of defining a list or multiple lists and executing one of the defined lists, with each list consisting of one or more entries storing different capture engine configurations. A list may be edited, deleted and/or executed using the :SWEep:LIST command set.
:PACKets * SPP)
The :SWEep:ENTRy commands provide the ability to define the capture engine configurations equivalent to most of :INPut, :SENSe, :TRACe and :TRIGger commands for each sweep entry. Sweep entries are identified by an index number and may be inserted, edited and/or deleted like rows in a table or spreadsheet.
There are slight differences between the configuration options for trace versus sweep captures. The sweep allows for definition of a range of center frequencies whereby the center frequency is incremented in frequency by a step value. Level triggers may be defined over the entire range of center frequencies. Sweeping does not support time delayed triggers.
In addition, sweep mode data packets, whether VRT context or digitized data, are “streamed” or “pushed” from the RTSA (similar to :TRACe:STReam).
Table 6: Sweep Capture Control/Status Interface
SCPI Command Description
:SWEep Page 78
:LIST
:ITERations[?] Defines the number of times the list is repeated during execution
:STARt Begins execution of the current sweep list from the first entry
:STATus? Get the current sweep status
:STOP Stops execution of the current sweep list
:ENTRy All entry commands operate on the current list
:COPY Copies the settings of an existing sweep entry into the current settings for
quick editing
:COUNt? Gets the number of entries available in the list
:DELETE Deletes the specified entry or all entries
23 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
R5700 Functional Overview
SCPI Command Description
:NEW Sets the sweep entry settings to default values
:READ? Gets the settings of an existing sweep entry
:SAVE Saves the current editing entry to the end of the list or before the specified
ID location in the list when the integer value is given
:ATTenuator As defined in :INPut:ATTenuator, page 63
:VAR[?] As defined in :INPut:ATTenuator:VARiable, page 63
:DECimation[?] As defined in [:SENSe]:DECimation, page 67
:FREQuency
:CENTer[?] Defines the center frequency of the RFE or a range of frequencies that
are stepped by the value defined by the :FREQuency:STEP
:STEP[?] Defines the amount of frequency that the center frequency is stepped by
:SHIFt[?] As defined in [:SENSe]:FREQuency:SHIFt, page 70
:GAIN
:HDR[?] As defined in :INPut:GAIN:HDR, page 65
:MODE As defined in :INPut:MODE, page 65
:DWELl[?] Sets the maximum amount of time waited for a trigger to occur after which
the trigger is aborted
:PPBlock[?] Same as :TRACe:BLOCk:PACKets, page 76
:SPPacket[?] As defined in :TRACe:SPPacket, page 76
:TRIGger
:TYPE[?] As defined in :TRIGger:TYPE, page 73
:LEVel[?] As defined in :TRIGger:LEVel, page 73
:PERiodic[?] As defined in :TRIGger:PERiodic, page 74
See SWEep Commands section (page 78) for further details.

Synchronized Sweep

The R5700 supports a synchronized sweep function for the purposes of comparing the same signal received via multiple R5700s.
Synchronized sweep is an extension of the external trigger capability. One of the R5700s in a network is configured to be the master (:SYSTem:SYNC:MASTer ON) and the other R5700s are configured as slaves (:SYSTem:SYNC:MASTer OFF). The master and slaves are configured with a sweep list, in which each sweep entry has a synchronization trigger type (:SWEep:ENTRy:TRIGger:TYPE PULSE | WORD). The synchronization trigger is generated and delivered from the master's GPIO to that of the slaves to indicate the beginning of a capture.
Figure 7 provides a synchronization trigger example using sync-word. The master sends the sync-word when the setup of its front-end has been completed. Master and slaves are also individually configured with a delay variable (:SYSTem:SYNC:WAIT <nsec> with a resolution of 8 nsec). This delay wait time accounts for the typical worst-case front-end setup time and for differences in the synchronization cable length. Master and slaves then begin the capture upon the expiration of the wait (or delay).
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 24
R5700 Functional Overview
front end setup
capture...........
syncpreamble
front end setup capture...........
sweep step
MASTER
sent
syncword
received
syncword
delay
delay
setup
and
capture
setup
and
capture
SLAVE
syncpreamble
syncpreamble
front end setup
front end setup
capture...........
missed capture
sweep step
MASTER
sent
syncword
received
syncword
delay
delay
setup
and
capture
setup
and
capture
SLAVE
syncpreamble
The front-end setup time is typically of approximately 200 usec but is variable due to the embedded running processes. Referring to Figure 8, if the front-end setup time on one (or more) of the slaves is longer than the combined duration of the master's setup time plus the sync-word plus the slave's delay, then the slave will miss the beginning of the capture. The host-side application that is collating the capture data may recognize the missed capture by noting the timestamps and/or frequency of the capture data within the associated VRT Receiver Context packets. The rate of sweep versus the amount of missed captures may be balanced by adjusting the delay values.
Figure 7: Synchronized Sweep using Sync-Word
Figure 8: Synchronized Sweep with a Missed Capture
See SWEep Commands section (page 78) for further interface details or contact ThinkRF's Support for more information.
25 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

VITA-49 Radio Transport Protocol

VITA-49 Radio Transport Protocol
The section describes the R5700's VRT Information Class as per the "VITA Radio Transport (VRT) Draft Standard" Specification VITA-49.0 – 2007 Draft 0.21.

Purpose

Convey an arbitrary 100MHz of IF data and associated information from the R5700 to another equipment using an industrial standard.

R5700's VRT Overview

ThinkRF's VRT supports four different packet streams of information defined and organized as shown in Figure 9 and Table 7. The streams of packets are sent when the data capture is started. The context packets carry the R5700 settings information associated with the immediate following IF data packets.
Receiver Context Stream
Reference Point
Digitizer Context Stream
Extension Context Stream
RECEIVER DIGITIZER
IF Data Stream
Figure 9: Connectivity and 4 Different Packet Streams Supported by R5700
Table 7: The Categories of VRT Packet Streams Supported by ThinkRF's R5700
Standard Formats Custom Formats
Contents
Context
Data
IF Context Packet Stream
conveys metadata concerning IF Data
Packet Stream and the settings
- Digitizer Context Packet Class Stream
- Receiver Context Packet Class Stream
IF Data Packet Stream
conveys discrete time sampled signal
data
Extension Context Packet Stream
conveys additional Context concerning IF
or Extension Data Packet Stream
- Extension Context Packet Class Stream
Extension Data Packet Stream
conveys any signal or data derived from a
signal
- IF Data Packet Class Stream
- Currently not used
Receiver Context Packet Class Stream
26 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
The Receiver Context Packet Class Stream is used to convey informational messages about changes in the configuration and status of the RF receiver in the R5700.
Digitizer Context Packet Class Stream
The Digitizer Context Class Stream is used to convey information messages about changes in the configuration and status of the IF digitizer in the R5700.
Extension Context Packet Class Stream
The Extension Context Packet Class Stream is used to convey metadata for the IF Data Packet Stream, which no provision has been made in the IF Context Packet Stream.
IF Data Packet Class Stream
The IF Data Packet Stream is used to convey complex IQ samples from the digitizer to devices external to the R5700.
Table 8 summarizes numerically the list of Stream Identifiers used by ThinkRF for
different Packet Class Stream. Each ID will be mentioned in the subsequent corresponding Packet Class sections.
Table 8: A List of Stream Identifiers As Used by ThinkRF for Different Packet Classes
Stream Identifier Packet Class
0x90000001 Receiver Context
0x90000002 Digitizer Context
0x90000003 IF Data – {I14Q14} Format
0x90000004 Extension Context
0x90000005 IF Data – {I14} Format
0x90000006 IF Data – {I24} Format

Packet Classes and Streams

This section describes in details the rules and structure of those Packet Classes and Streams. By definition, a series of packets instantiated from the same Packet Class form a Packet Stream. See Table 8 for the list of Stream Identifiers used to identify these different Packet Classes.
Note: All data words in each VRT packets are in big-endian order, and sent MSB first.

Receiver Context Packet Class

This Packet Class is a type of IF Context Packet Class. The packet information conveys changes in the configuration and status of the R5700's RF receiver.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 27
VITA-49 Radio Transport Protocol
Table 9: Receiver Context Packet Class Structure
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Pkt Type
0 1 0 0
C R T
1. Pkt Type is 0100 to indicate this is a context packet.
2. C is set to 0 to indicate there is no Class Identifier in the packet.
3. R is 00 as they are reserved bits.
4. TSM (TimeStamp Mode) is 0, indicating that context packet timestamps are precise.
5. TSI (TimeStamp-Integer) field is 01, indicating that integer (seconds) part of the timestamps are in Coordinated Universal Time (UTC).
6. TSF (TimeStamp-Fractional) field is 10, indicating that the fractional part of the timestamp measures in real time picosecond resolution.
7. Pkt Count starts at 0000 and increments once for each context packet, until reaching 1111 (or 15), where it shall rollover to 0000 on the next count.
8. Pkt Size indicates the total number of 32-bit words in the entire context packet, including all headers, the context indicator field and context sections.
9. Stream Identifier is the 32-bit word, 0x90000001
10. Timestamp - Integer Seconds is in UTC format and represents the number of seconds occurred since Midnight, January 1, 1970, GMT.
11. Timestamp - Integer Picoseconds counts the number of picoseconds past since the last increment of the Timestamp seconds field. See the Picosecond Timestamp Words Format section for the format.
12. The Context Indicator Field follows the format indicated in Table 10.
TSI TSF Pkt Count Pkt Size S M
Stream Identifier (1 word)
Timestamp - Integer Seconds (1 word)
Timestamp - Integer Picoseconds (2 words)
Context Indicator Field (1 word)
Context Fields (Variable Size, see Table 11, 3rd column)
Table 10: Receiver Context Indicator Field Positions
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
I R - F - G - T -
13. The Context Fields section contains a context field for every field that is indicated to be present in the Context Indicator Field. The fields is arranged in the identical order of their occurrence in the Context Indicator Field. See Table 11 for the definition and associated value of each field.
Table 11: Receiver Context Field Definition and Values
Indicator
Bit Name
Bit
Position
Context Field Type # of Words in
Context Fields
Period of
Validity
I 31 Context Field Change Indicator 0 N/A
R 30 Reference Point 1 Persistent
F 27 RF Reference Frequency 2 Persistent
G 23 Gain 1 Persistent
T 18 Temperature 1 Persistent
28 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
Context Field Change Indicator
The Context Field Change Indicator is used to indicate when some context value of the system has changed. One or more of the other bits in the indicator field will be also set, indicating which values have been changed and have their updated values in the context fields that follow. It is possible that a context packet may be sent where the Context Field Change Indicator is set to 0, indicating that no change has occurred.
RF Reference Frequency
The RF Reference Frequency communicates the frequency of origin for the signal. The value of the RF Reference Frequency is expressed in units of Hertz. The RF Reference Frequency sub-field uses the 64-bit, two’s-complement format as shown in Table 12. This field has an integer and a fractional part, with the radix point to the right of bit 20 in the second 32-bit word. This gives the RF Reference Frequency a range of ±8.79THz with a resolution of 0.95μHz.
Table 12: RF Reference Frequency Word Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer RF Reference Value (43..12), Hz
Integer RF Ref. Value (11..0), Hz Fractional RF Reference Value(19..0)
Gain
The gain is a 32-bit value that is split into two 16-bit values, representing the Stage 1 and Stage 2 gain values. The Stage 1 gain represents the amount of gain in the front-end system, the RF gain. The Stage 2 gain represents the amount of gain in the back-end system, the IF gain.
Each gain value is a signed two's-complement number, having two sub-fields, bits 15:7 being the integer value, and 6:0 being the fractional value. This gives each gain figure a range of ±256dB with a resolution of 1/128dB (0.0078125dB).
Table 13: Gain Field Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer IF Fractional IF Integer RF Fractional RF
Temperature
This field is not yet available.
The R5700 has a temperature sensor and will report changes in temperature to the system. The value of the Temperature field is expressed in units of degrees Celsius (°C). The Temperature field uses the 32-bit format shown in Table 14 with the upper 16 bits reserved and is set to zero. The Temperature value is expressed in signed two’s­complement format in the lower 16 bits of this field. This field has an integer and a fractional part, with the radix point to the right of bit 6.
Table 14: Temperature Field Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Reserved Integer Temperature Fractional Temp.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 29
VITA-49 Radio Transport Protocol
The valid range of the Temperature field is -273.15 °C to +511.984375 °C. The resolution of the Temperature field is 0.015625 °C (1/64 °C).
For examples, a Temperature field value of:
0x0040 represents +1 °C,
0xFFC0 represents -1 °C,
0x0001 represents +0.015625 °C, and
0xFFFF represents -0.015625 °C.

Digitizer Context Packet Class

This Packet Class is a type of IF Context Packet Class. The packet information conveys changes in the configuration and status of the R5700's IF digitizer.
Table 15: Digitizer Context Packet Class Structure
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Pkt Type
0 1 0 0
C R T
TSI TSF Pkt Count Pkt Size S M
Stream Identifier (1 word)
Timestamp - Integer Seconds (1 word)
Timestamp - Integer Picoseconds (2 words)
Context Indicator Field (1 word)
Context Fields (Variable Size, see Table 17, 3rd column)
1. Pkt Type is 0100 to indicate this is a context packet.
2. C is 0 to indicate there is no Class Identifier in the packet.
3. R is 00 as they are reserved bits.
4. TSM is 0, indicating that context packet timestamps are precise.
5. TSI field is 01, indicating that integer (seconds) part of the timestamps are in UTC.
6. TSF field is 10, indicating that the fractional part of the timestamp measures real time picosecond resolution.
7. Pkt Count starts at 0000 and increments once for each context packet, until reaching 1111 (or 15), where it shall rollover to 0000 on the next count.
8. Pkt Size indicates the size of the entire context packet, including all headers, the context indicator field and context sections.
9. Stream Identifier is the 32-bit word, 0x90000002.
10. Timestamp - Integer Seconds is in UTC format and will represent the number of seconds occurred since Midnight, January 1, 1970 GMT.
11. Timestamp - Integer Picoseconds counts the number of picoseconds past since the last increment of the Timestamp seconds field. See the Picosecond Timestamp Words Format section for the format.
12. The Context Indicator Field follows the format indicated in Table 16.
Table 16: Digitizer Context Indicator Field Bit Positions
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
I B O R G
13. The Digitizer Context Fields section contains a context field for every field that is indicated to be present in the Context Indicator Field. The fields is arranged in the
30 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
identical order of their occurrence in the Context Indicator Field. See Table 17 for the definition and associated value of each field.
Table 17: Digitizer Context Field Values
Indicator Bit Name
Bit
Position
Context Field Type # of Words in
I 31 Context Field Change Indicator 0 N/A
B 29 Bandwidth 2 Persistent
O 26 RF Frequency Offset 2 Persistent
R 24 Reference Level 1 Persistent
G 14 Formatted GPS Geolocation 11 Persistent
Context Field Change Indicator
The Context Field Change Indicator is used to indicate when some context value of the system has changed. One or more of the other bits in the indicator field will be also set, indicating which values have been changed and have their updated values in the context fields that follow. It is possible that a context packet may be sent where the Context Field Change Indicator is set to 0, indicating that no change has occurred.
Bandwidth
The Bandwidth is used to indicate that the amount of spectrum that is currently view-able due to decimation settings.
The Bandwidth field has the 64-bit, two’s-complement format as shown in Table 18. This field has an integer and a fractional part, with the radix point to the right of bit 20 in the second 32-bit word. This gives the RF Reference Frequency a range of ±8.79THz with a resolution of 0.95μHz.
Context Fields
Period of
Validity
Table 18: Bandwidth Word Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer Bandwidth (43..12), Hz
Integer Bandwidth (11..0), Hz Fractional Bandwidth (19..0)
RF Frequency Offset
The RF Frequency Offset specifies the amount of frequency in Hz the received data has been shifted.
The RF Frequency Offset field has the 64-bit, two’s-complement format as shown in
Table 19. This field has an integer and a fractional part, with the radix point to the right of
bit 20 in the second 32-bit word. This gives the RF Reference Frequency a range of ±8.79THz with a resolution of 0.95μHz.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 31
VITA-49 Radio Transport Protocol
P=R+ 20log(IQ
measured
)
IQ
measured
=√(I
fft
2
+ Q
fft
2
)
Table 19: RF Frequency Offset Word Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer RF Ref. Value (11..0), Hz Fractional RF Reference Value(19..0)
Reference Level
The Reference Level provides a power level reference so that the magnitude of the received data can be calculated by a user. The reference level provided in the context packet is adjusted according to the RFE's gain setting. However, the reference levels must also be adjusted accordingly any other conditions that might applied.
The absolute power level P (in dBm) is then computed using the following formula:
with
where:
R = the reference level provided in the VRT context packet, dBm IQ simplified example as it doesn't include any corrections, such as IQ imbalance, DC offset or windowing I
fft
on the VRT I data, which is normalized by dividing each Q by 2
Q
= as shown in the formula above. The IQ
measured
= the real component of the FFT (Fast Fourier Transform) computation applied
= the imaginary component of the FFT computation applied on the VRT Q
fft
data (when used), which is normalized by dividing each Q by 2
Integer RF Reference Value (43..12), Hz
measured
formula, however, is a
bit_size – 1
bit_size – 1
The Reference Level field uses the 32-bit format shown in Table 20 with the upper 16 bits reserved and is set to zero. The Reference Level field value is expressed in signed two’s-complement format in the lower 16 bits of this field. This field has an integer and a fractional part, with the radix point to the right of bit 7.
Table 20: Reference Level Field Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Reserved Integer Ref. Level Frac. Ref. Level
The value of the Reference Level field has a range of nearly ±256dBm with a resolution of 1/128dBm (0.0078125dBm).
For examples, a Reference Level field value of:
0x0080 represents a reference level of +1dBm,
0xFF80 represents -1dBm,
0x0001 represents +0.0078125dBm, and
0xFFFF represents -0.0078125dBm.
Formatted GPS Geolocation
Note: For legacy specification reasons, such as with ANSI/VITA 49, the term GPS, instead of GNSS, is used in this section to refer generically to Global Navigation Systems.
32 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
The Formatted GPS Geolocation field communicates the location and time of the RTSA. The field uses eleven 32-bit words format as shown in Table 21 with the upper 16 bits reserved and is set to zero. The Reference Level field value is expressed in signed two’s-complement format in the lower 16 bits of this field. This field has an integer and a fractional part, with the radix point to the right of bit 7.
Table 21: Formatted GPS Geolocation Fields
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Reserved TSI TSF GPS Manufacturer OUI
Integer-second Timestamp of Position Fix (31..0)
Upper Fractional-second Timestamp of Position Fix (63..32)
Lower Fractional-second Timestamp of Position Fix (31..0)
Latitude (31..0), degrees
Longitude (31..0), degrees
Altitude (31..0), meters
Speed over Ground (31..0), meters/second
Heading Angle (31..0), degrees
Track Angle (31..0), degrees
Magnetic Variation (31..0), degrees
1. TSI field is 10, indicating that Integer-second part of the timestamps are in GNSS time.
2. TSF field is 10, indicating that the fractional part of the timestamp measures in real time picosecond resolution.
3. The GPS Manufacturer OUI subfield contains the 24-bit field for the IEEE­assigned Organizationally Unique Identifier of the GPS manufacturer.
4. The Timestamp of Position Fix subfields may differ from the Timestamp fields in the Digitizer Context packet that contains them. Note that the Timestamp of Position Fix fields refer to the time of the most recent GPS Position Fix, which may not be the current time or the Timestamp of the Digitizer/IF Context packet itself. These fields are useful for indicating the loss of the GPS signal.
5. The Geolocation Angle Format describes angles in units of degrees. The format uses the 32-bit, two’s-complement format shown in Table 22. This field has an integer and a fractional part with the radix point to the right of bit 22. Hence, it has a possible range of ±512 degrees and a resolution of 2.38x10-7 degrees. Particular angular measurements allow various ranges such as 0 to 360 degrees, ±180 degrees, or ±90 degrees.
This format is used for several other subfields within the GPS Geolocation field including Latitude, Longitude, Heading Angle, Track Angle, and Magnetic Variation subfields, which will be described further in the following points.
Table 22: Geolocation Angle (Degrees) Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer Angle, degrees Fractional Angle, degrees
6. The Latitude subfield uses the Geolocation Angle Format shown in Table 22 with value ranging from -90.0 (South) to +90.0 (North) degrees.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 33
VITA-49 Radio Transport Protocol
7. The Longitude subfield uses the Geolocation Angle Format shown in Table 22 with value ranging from -180.0 (West) to +180.0 (East) degrees.
8. The Altitude subfield uses the 32-bit, two’s-complement format shown in Table
23 with value expressed in units of meters. This subfield has an integer and a
fractional part with the radix point to the right of bit 5. Hence, the subfield has a range of ±67108 kilometers and a resolution of 3.1 centimeters. In addition, the Altitude subfield references the height above the WGS-84 ellipsoid.
Table 23: Altitude Subfield Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
9. The Speed Over Ground subfield uses the 32-bit, two’s-complement format shown in Table 24 with value expressed in units of meters per second. It has an integer and a fractional part with the radix point to the right of bit 16. Thus, the subfield has a range of 0 to 65636 m/s and a resolution of 1.5e-5 m/s.
Table 24: Speed Over Ground Subfield Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Integer Speed, m/s Fractional Speed, m/s
10. The Heading Angle subfield uses the Geolocation Angle Format shown in Table
22. It expresses the platform’s orientation with respect to true North in decimal
degrees. Its value ranges from 0.0 to +359.999999761582 degrees.
11. The Track Angle subfield uses the Geolocation Angle Format shown in Table
22. It conveys the platform’s direction of travel with respect to true North in
decimal degrees. Its value ranges from 0.0 to +359.999999761582 degrees.
12. The Latitude, Longitude, Altitude, Speed Over Ground, Heading, Track Angle, and Magnetic Variation subfields take the value 0x7FFFFFFF when unspecified.
Integer Altitude, meters Fractional Alt.

Extension Context Packet Class

This Packet Class conveys metadata concerning IF Data Packet Class that cannot be communicated in the IF Context Packet Class. See Table 25 for the organization of this context packet class.
Table 25: Extension Context Packet Class Structure
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Pkt Type
0 1 0 1
1. Pkt Type is 0101 to indicate this is an extension packet.
2. C is 0 to indicate there is no Class Identifier in the packet.
3. R is 00 because they are reserved bits.
4. TSM is 0, indicating that context packet timestamps are precise.
34 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
C R T
TSI TSF Pkt Count Pkt Size
S
M
Stream Identifier (1 word)
Timestamp - Integer Seconds (1 word)
Timestamp - Integer Picoseconds (2 words)
Context Indicator Field (1 word)
Context Fields (Variable Size)
VITA-49 Radio Transport Protocol
5. TSI field is 01, indicating that integer (seconds) part of the timestamps are in UTC.
6. TSF field is set to 10, indicating that the fractional part of the timestamp measures in real time picosecond resolution.
7. Pkt Count starts at 0000 and increments once for each context packet, until reaching 1111, where it shall rollover to 0000 on the next count.
8. Pkt Size indicates the total number of 32-bit words in the entire context packet, including all headers, the context indicator field and context sections.
9. Stream Identifier is set to be 0x90000004
10. Timestamp - Integer Seconds is in UTC format and represents the number of seconds occurred since Midnight, January 1, 1970, GMT.
11. Timestamp - Integer Picoseconds counts the number of picoseconds past since the last increment of the Timestamp seconds field. See the Picosecond Timestamp Words Format section for the format.
12. The Context Indicator Field follows the format indicated in Table 26.
Table 26: Extension Context Indicator Field Positions
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
I IQ Sc St Sw
13. The Context Fields section contains a context field for every field that is indicated to be present in the Context Indicator Field. The fields is arranged in the identical order of their occurrence in the Context Indicator Field. See Table 27 for the definition and associated value of each field.
Table 27: Extension Context Field Definition and Values
Indicator Bit Name
Bit
Position
Context Field # of Words
in Field
I 31 Context Field Change Indicator 0 N/A
IQ 3 IQ Swapped Indicator 0 Persistent
Sc 2 N/A N/A N/A
St 1 New Stream Start ID 1 Persistent
Sw 0 New Sweep Start ID 1 Persistent
Context Field Change Indicator
The Context Field Change Indicator is used to indicate when some context value of the system has changed. One or more of the bits in the indicator field will then be set, indicating which values have been changed and have their updated values in the context field(s) that follow. It is possible that a context packet may be sent where the Context Field Change Indicator is set to 0, indicating that no change has occurred.
IQ Swapped Indicator
The IQ Swapped Indicator is used to indicate whether the two ADC data channels has been swapped due to the mixing of a high-side or low-side LO injection at a given center frequency. When the value is 1, the channels are swapped and 0 if not. This swapping is necessary to maintain the data output format to always be {I,Q} such that the spectral inversion is not required at the user-end during data processing.
Period of
Validity
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 35
VITA-49 Radio Transport Protocol
This information, however, matters only when operating in the ZIF mode. The ZIF mode is a direct conversion receiver architecture that typically creates some artifacts, mainly due to IQ gain and phase imbalances. The artifacts are compensated by using a specific correction algorithm, which incorporates both time- and frequency-domain corrections.
Further information on the algorithm and its usage will be provided in a future release. Contact ThinkRF's Support for more information if necessary.
New Stream Start ID
The New Stream Start ID indicator indicates a new stream capture has started, any packets following this Context Packet belong to this new stream capture.
The value of the New Stream Start ID field uses the 32-bit unsigned integer format shown in Table 28.
Table 28: New Stream Start ID Field Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
New Sweep Start ID
The New Sweep Start ID indicator indicates a new sweep has started, any packets following this Context Packet belong to this new sweep.
New Stream Start ID
The value of the New Sweep Start ID field uses the 32-bit unsigned integer format shown in Table 29.
Table 29: New Sweep Start ID Field Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
New Sweep Start ID

IF Data Packet Class

The IF Data Packet Class conveys digitized IF Data from the digitizer to devices external to the R5700. The payload data and its output format is dependent on the RFE modes of operation (:INPut:MODE or :SWEep:ENTRy:MODE). In addition to Table 2 (page 16), the following Table 30 describes the output data width and packing method for the different data type in order comply with VRT's 32-bit word output format:
Table 30: Output Data Width and Packing Method for Different Data Formats
Original Data
Format
{I14Q14} Signed 2-complement {I16Q16} {I16Q16}
{I14} Signed 2-complement {I16} {I116I216}
{I24} Signed 2-complement {I32} {I32}
The different Stream Identifier values will be used to indicate these different formats.
Binary Format Per
Data Component
Signed
Extension
Per 32-bit Word Packing Method
The order of the fields in an IF Data packet is organized as shown in Table 31. Packets is transmitted in big-endian byte order.
36 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
Table 31: IF Data Class Field Values
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Pkt Type C T - TSI TSF Pkt Count Pkt Size
Stream Identifier (1 word)
Timestamp - Integer Seconds (1 word)
Timestamp - Integer Picoseconds (2 words)
Data Payload (Variable Size)
Trailer (1 word)
1. Pkt Type is 0001, indicating that an IF stream identifier is present.
2. C is set to 0, indicating that there is no class identifier present.
3. T is set to 1, indicating there is a trailer word in the packet.
4. TSI field is set to 01, indicating that integer (seconds) part of the timestamps is in UTC.
5. TSF field is set to 10, indicating that the fractional part of the timestamp measures in real time picosecond resolution.
6. Pkt Count starts at 0000, and increments once for each IF Data packet that is received, until reaching 1111, when it then wraps back to 0000 on the next count.
7. Pkt Size is the number of 32-bit words that are present in the packet, including all headers, data payload and trailer if available.
8. Stream Identifier has the values as shown in the following Table 32.
Table 32: Stream Identifier Values for Different Data Output Formats
Data Output Format Stream Identifier
{I14Q14} 0x90000003
{I14} 0x90000005 {I24} 0x90000006
9. Timestamp - Integer Seconds is in UTC format and will represent the number of seconds occurred since Midnight, January 1st, 1970, GMT.
10. Timestamp - Integer Picoseconds counts the number of picoseconds past since the last increment of the Timestamp seconds field. See Table 33.
11. Data Payload contains the IF data from the R5700, arranged in the format indicated in Table 34 to Table 36.
12. Trailer is included and arranged in the format described in Table 37.
Picosecond Timestamp Words Format
The two 32-bit words timestamp allotted for picoseconds are arranged as below.
Table 33: 64-bit or Two Words Picosecond Timestamp Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Timestamp – picoseconds, Word 1 (63..32)
Timestamp – picoseconds, Word 2 (31..0)
Data Payload Format
The data payload of an IF Data packet contains a contiguous sequence of the Data Samples from an IF Data Sample stream. The number of words in the data payload is
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 37
VITA-49 Radio Transport Protocol
variable from packet to packet, and can be determined at the receiving end of the link from the Packet Size by subtracting the number of words dedicated to the header, trailer, and other additional fields. The presence or absence of these fields can be determined entirely from information in the header.
1. The maximum number of data payload 32-bit words is 216-16 and must be a multiple of 32. Limitation due to embedded data transferring engine.
2. The data payload consists of an integer number of contiguous 32-bit words.
3. IF Data Packets convey either the time domain in-phase (I or real) and/or quadrature (Q or imaginary) components forming the Complex Cartesian samples.
{I14Q14} Data Payload Format
4. Each I or Q data is a signed two's-complement 14-bit data with signed extended into 16-bit. Thus, each component is an integer ranging from -8192 to +8191 (or ±213).
5. The I-component is in the upper 16-bit of each data word followed by the Q­component in the lower 16-bit, as seen in Table 34.
Table 34: {I14Q14} Data Payload Arrangement with Upper 2-bit Signed Extended to {I
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0bxx
0bxx
0bxx
. . .
Item 1 (Sample 1 I14)
Item 3 (Sample 2 I14)
Item 5 (Sample 3 I14)
. . .
0bxx
0bxx
0bxx
. . .
Item 2 (Sample 1 Q14)
Item 4 (Sample 2 Q14)
Item 6 (Sample 3 Q14)
. . .
16 Q16
Example conversion, given the big-endian bytes 0x0018FFFE received:
Split into two data items (i = 0x0018, q = 0xFFFE)
Parse signed two's complement (i = 24, q = -2)
Compute fractional value if needed: i/213 and q/2
13
{I14} Data Payload Format
6. Each I data is a signed two's-complement 14-bit sample with signed extended into 16-bit. Thus, each component is an integer ranging from -8192 to +8191 (or ±213).
7. The first I sample is in the upper 16-bit of each data word follows by the second I sample in the lower 16-bit, as seen in Table 35.
Table 35: {I14} Data Payload Arrangement with Upper 2-bit Signed Extended to {I16}
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0bxx
0bxx
0bxx
. . .
Item 1 (Sample 1 I14)
Item 3 (Sample 3 I14)
Item 5 (Sample 5 I14)
. . .
0bxx
0bxx
0bxx
. . .
Item 2 (Sample 2 I14)
Item 4 (Sample 4 I14)
Item 6 (Sample 6 I14)
. . .
}
Same conversion example as {I14Q14}.
{I24} Data Payload Format
8. Each data word is one I-component as seen in Table 36.
38 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
9. Each I data is a signed two's-complement 24-bit sample with signed extended into 32-bit. Thus, each component is an integer ranging from -8388608 to +8388607 (or ±223).
Table 36: {I24} Data Payload Arrangement with Upper 8-bit Signed Extended to {I32}
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0bxxxxxxxx
0bxxxxxxxx
0bxxxxxxxx
. . .
Item 1 (Sample 1 I24)
Item 2 (Sample 2 I24)
Item 3 (Sample 3 I24)
. . .
Examples conversion:
Given the big-endian bytes 0x0018FFFE, then I24 = 0x18FFFFE.
Given the big-endian bytes 0xFF800034, then I24 = 0x800034 (or -8388556).
Compute fractional value if needed: i/223.
Trailer Word Format
Table 37: Trailer Word Format
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Enables State and Event Indicators E Associated Context
DV RL SI OR SL DV RL SI OR SL
Packet Count
State and Event Indicators and the associated Enable bits are positions as indicated in
Table 38.
1. For each Indicator bit in the State and Event Indicators field, there is a corresponding Enable bit at the same position in the Enables field.
2. When an Enable bit is set to 1, the corresponding indicator functions as shown in
Table 38. Otherwise, the corresponding indicator shall not be considered valid.
3. Unused bits in the Enables field and the Indicators field is set to 0.
4. The E field is set to 0 to specify the Associated Context Packet Count field as undefined.
5. The Associated Context Packet Count field is unused and is set to 0.
Table 38: Trailer Indicator and Enable Bits
Enable Bit Position Indicator Bit Position Indicator Name
30 18 Valid Data Indicator
29 17 Reference Lock Indicator
26 14 Spectral Inversion Indicator
25 13 Over-range Indicator
24 12 Sample Loss Indicator
6. The Valid Data Indicator, when set to 1, indicates that the data in the packet is valid. When set to zero, it indicates that some condition exists that may invalidate the data.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 39
VITA-49 Radio Transport Protocol
7. The Reference Lock Indicator, when set to 1, indicates all PLLs in the system are locked and stable, and when set to 0, indicates one or all of the PLLs is not locked or unstable. It is very crucial to check this indicator bit.
8. The Spectral Inversion Indicator, when set to 1, indicates that the signal conveyed in the data payload has an inverted spectrum with respect to the spectrum of the signal at the system Reference Point (such as the antenna). When processing the data payload, for plotting purpose for instance, follow the suggested solution in Table 39 to properly display the spectrum.
Note: The Spectral Inversion Indicator does not apply to R5700 models as the I/Q output connectors are not available. Information is listed here for general knowledge only.
9. The Over-range Indicator isset to 1 if any data value in the packet has reached full scale at the input of the digitizer.
10. The Sample Loss Indicator, when set to 1, indicates that data overflow has occurred before the current captured VRT packet, not within that current packet. In other words, there are data dropped between the previous packet and the current packet which has the sample loss indicator. The data between those two packets are not continuous and contiguous.
Table 39 lists the conditions in which an indicator would signal an abnormal state and the
suggested resolutions.
Table 39: Conditions Causing Abnormal Indicator State and Suggested Resolution
Indicator
Name
Valid Data 0 1) One or more PLLs failed to
Reference
Lock
Spectral
Inversion
Over-range 1 The over-range threshold is
Abnormal
Conditions Suggested Resolution
State
lock.
2) In HDR mode, the NB ADC's filter has not settled.
0 One or more PLLs failed to
lock.
1 Spectral inversion occurs
when the frequency of the local oscillator exceeds that of the RF input signal being processed. At some signal frequency ranges input to the R5500, the IF output spectrum is inverted. Figure 10 illustrates an example.
the absolute full-scale of I or Q data. For WB ADC, the over­range threshold is at Vpeak =
1.0 V; and for NB ADC, Vpeak = 1.6 V.
1) Try to reset the frequency or restart the RTSA. If the condition persists, contact ThinkRF's Support.
2) Discard the data packet and re­acquire the data. This condition is unlikely as the settle time is within hundred of nanoseconds.
Same as 1) above
When this indicator is 1, either swap each {I,Q} data point when both {I,Q} components are available or invert the output data bins of the computed spectral power when have {I} only data.
- Enable the :ATTentuator if it is not yet on.
- If :ATTentuator is already on, reduce the input level or the gain settings.
40 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
VITA-49 Radio Transport Protocol
Indicator
Name
Sample
Loss
Abnormal
Conditions Suggested Resolution
State
1 This condition occurs only in
Stream mode when the internal buffer is full.
Use a decimation value such that the transfer rate matches that of the capture rate.
Figure 10: An Example Illustrating Uninverted and Inverted Spectrums
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 41

SCPI Command Set

SCPI Command Set
This section is a SCPI reference guide for controlling the ThinkRF R5700 Real Time Spectrum Analyzer. The R5700 supports the Standard Commands for Programmable Instruments (SCPI) standard version 1999.0 as described in the following sections. SCPI lends itself to a command line interface and scripting, is supported by the major instrument vendors and provides a high level of familiarity for instrument users.
Note: ThinkRF's version of SCPI does not provide commands for network connection. The R5700 receives SCPI commands and sends query responds over port 37001. See
Appendix A: Connecting to RTSA for more details.

SCPI Language Overview

In the early 1990s, a group of instrument manufacturers developed Standard Commands for Programmable Instrumentation (SCPI) for controlling programmable instruments via a communication link, such as RS232, USB, LAN, etc. SCPI specifies the command structure and syntax using ASCII characters to provide some basic standardization and consistency to the control commands. SCPI commands, hence, lend themselves to communications with equipments via command line interface, scripting and/or programming languages such as C/C++, MATLAB®, Python, etc.
The SCPI language is based on a hierarchical or tree structure as illustrated in Figure 11 an example command set. The top level of the tree is the root node, which is followed by one or more lower-level nodes.
TRACe
BLOCk STReam SPPacket
STARt
Figure 11: SCPI Language Hierarchical or Tree Structure Example
SCPI defines a measurement function block that is directly applicable to the ThinkRF RTSA. The measurement function converts a physical signal into an internal data form that is available for formatting into bus data. It may perform the additional tasks of signal conditioning and post-conversion calculation. The measurement function box is subdivided into three distinct parts: INPut, SENSe, and CALCulate as seen in Figure 12.
STATus?STOP
42 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
INPut SENSeINPut CALCulate
Measurement Function
SCPI Command Set

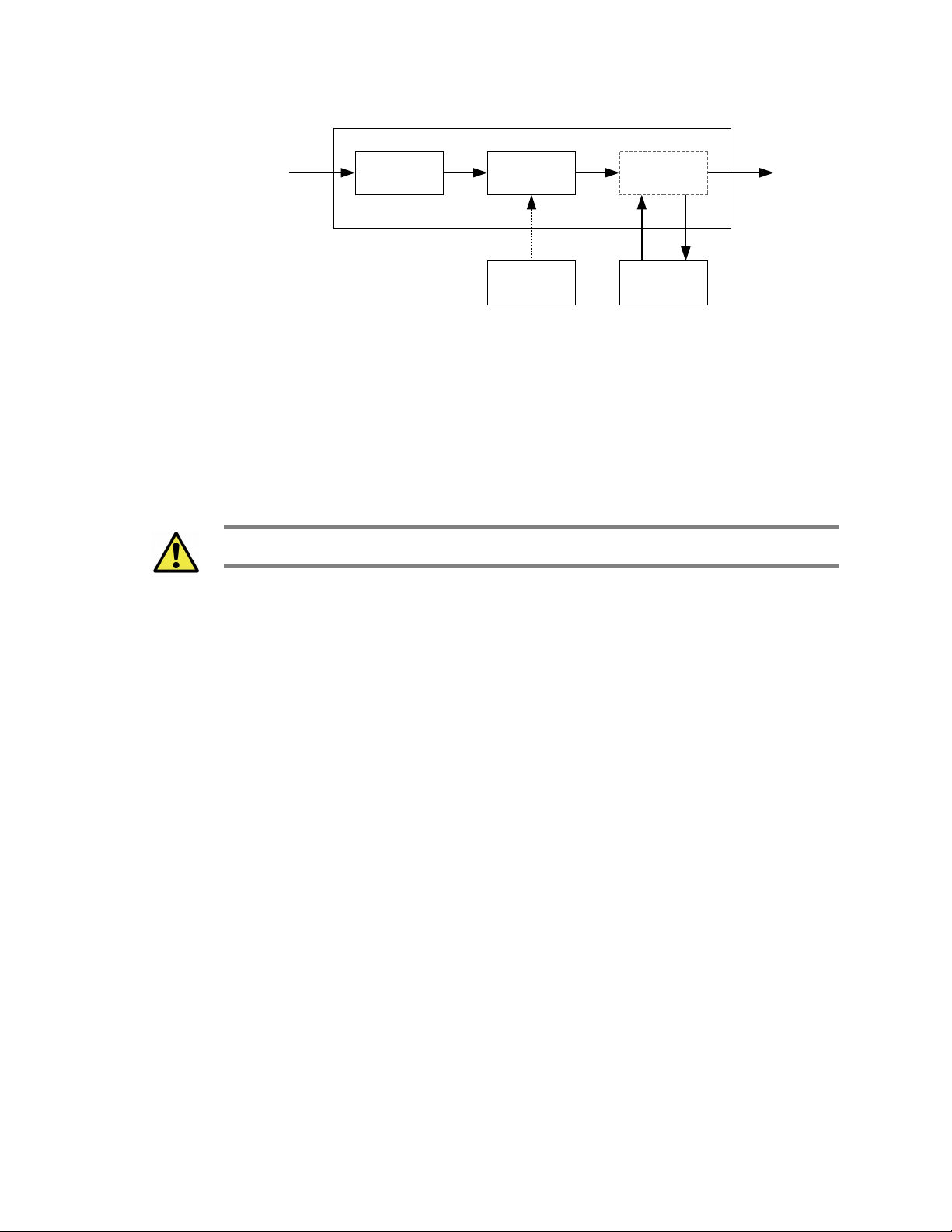

Figure 12: SCPI Measurement Function Block
Refer to the Appendix C: SCPI Command Syntax section for the general SCPI command syntax format and usage details.

IEEE Mandated SCPI Commands

These commands control and query the communication event/error and status registers as defined in the Appendix D: SCPI Status and Event Registers section. They are mandated by the IEEE.
Caution: The mandated IEEE SCPI commands are not affected by *RST command.

*CLS

The Clear Status (CLS) command clears the Status Byte register (STB), the standard Event Status register (ESR), the standard Questionable status register, the standard Operation Status register, and the error/event queue.
Syntax *CLS
Parameter/Response None
TRIGger
TRACe and
SWEep

*ESE/*ESE?

*ESE command enables bits in the ESE register. The decimal integer value entered is the binary equivalent of the desired 8-bit mask. Bits enabled in ESE and set in ESR register will result in the Standard Event Status Summary bit (bit 5) in the STB register being set. This then allows the reading of ESR by using the *ESR? query command to determine the cause.
*ESE? query returns the decimal sum of the enabled bits in the ESE register. The decimal sum is the binary equivalent of the 8-bit mask.
See Figure 13 for the ESE/ESR register bits mapping.
Syntax *ESE <integer>
*ESE?
Parameter/Response <integer>
Allowable Values 0 - 255
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 43
SCPI Command Set

*ESR?

Query the standard Event Status Register (ESR), which returns the decimal sum of the bits set in the ESR. The decimal sum is the binary equivalent of the 8-bit mask. Any specific bit in the ESR will only appear set if and only if its event has occurred and the corresponding bit in the ESE is also enabled.
See Figure 13 for the ESR register bits mapping.
Caution: This is a destructive read. Once queried, the register is cleared.

*IDN?

Returns the R5700's identification information string.
Syntax *ESR?
Parameter None
Response <integer>
Description Refer to the Appendix D: SCPI Status and Event Registers section
for the ESR register bit definition
Note: The model string returned will not include the option code. To find out which options a model has, use :SYSTem:OPTions? command.
Syntax *IDN?
Parameter None
Response “<Manufacturer>,<Model>,<Serial number>,<Firmware version>”
Data Type string

*OPC/*OPC?

*OPC (Operation Complete) command sets to confirm bit 0 in the ESR to 1 when all commands received before *OPC or *OPC? have been completed.
*OPC? returns the ASCII character 1 in the Standard Event register indicating completion of all pending operations. The query also stops any new commands from being processed until the current processing is complete.
Syntax *OPC
*OPC?
Parameter None
Query Response 1

*RST

Resets the R5700 to its default settings. This includes stopping any running capture mode and trigger mode, and also performs :SYSTem:FLUSh.
44 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
*RST does not affect the registers or queues associated with the IEEE mandated commands. Each non-IEEE mandated command description in this reference shows the *RST value when affected.
Syntax *RST
Parameter/Response None

*SRE/*SRE?

The *SRE (Service Request Enable) command enables bits in the SRE register. The decimal integer value entered is the binary equivalent of the desired 8-bit mask to be enabled. Bits enabled in this register allow accessing the equivalent bits status in the STB register.
*SRE? query returns the decimal sum of the enabled bits in the SRE register. The decimal sum is the binary equivalent of the 8-bit mask.
See Figure 13 for the SRE/STB register bits mapping.
Syntax *SRE <integer>
*SRE?
Parameter/Response <integer>

*STB?

*STB? (Status Byte) query returns the decimal sum of the bits set in the STB register without erasing its content. The decimal sum is the binary equivalent of the 8-bit mask. Any specific bit in the STB will only appear set if and only if its event has occurred and the corresponding bit in the SRE is also enabled.
See Figure 13 for the ESE/ESR register bits mapping and the Status Byte Register (SBR) section of the Appendix D for the bits definition.
Syntax *STB?
Parameter None
Response <integer>

*TST?

*TST? (self-test) query initiates the device's internal self-test and returns one of the following results:
0 - all tests passed.
1 - one or more tests failed.
Syntax *TST?
Parameter None
Response 0 | 1
Output Data Type Integer
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 45
SCPI Command Set

*WAI

*WAI (Wait-to-Continue) command suspends the execution of any further commands or queries until all operations for pending commands are completed.
Parameter/Response None

SYSTem Commands

These commands control and query the communication event and status registers as defined in the Appendix D: SCPI Status and Event Registers. They are the minimal :SYSTem sets required in all SCPI instruments.

:SYSTem:ABORt

This command will cause the R5700 to stop the data capturing, whether in the manual trace block capture, triggering or sweeping mode. The R5700 will be put into the manual mode; in other words, process such as streaming, trigger and sweep will be stopped. The capturing process does not wait until the end of a packet to stop, it will stop immediately upon receiving the command.
Syntax *WAI
Syntax :SYSTem:ABORt
Parameter/Response None
*RST State N/A
Example
:SYST:ABORT

:SYSTem:CAPTure:MODE?

This command returns what the current RTSA data capture mode is (i.e. sweeping, streaming or block mode).
When stream or sweep mode is stopped, block mode will resume.
Syntax :SYSTem:CAPTure:MODE?
Parameter None
Response BLOCK | STREAMING | SWEEPING
Output Data Type Character
*RST State BLOCK
Example
:SYST:CAPTURE:MODE?

:SYSTem:COMMunicate:HISLip:SESSion?

When connected over HiSLIP, this command returns the HiSLIP Session ID, which is used to establish the associated data connection. See Connection Using HiSLIP section of Appendix A for more information.
46 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
Syntax :SYSTem:COMMunicate:HISLip:SESSion?
Parameter None
Response <integer>
Output Data Type 16-bit Integer
*RST State N/A
Examples
:SYST:COMM:HISL:SESS?
Note: Connection types other than HiSLIP do not have a Session ID. In these cases, the response is undefined.

:SYSTem:COMMunicate:LAN:APPLy

This command will apply the changes to the LAN settings and the embedded system will automatically reconfigure the Ethernet to put in effect the new LAN setting. Once the LAN settings are applied, they are not affected by power-on, :STATus:PRESET, or *RST.
Caution: When changing from DHCP to STATIC mode, this command should to be sent only when all the required LAN settings are set using the appropriate :SYSTem:COMMunicate:LAN commands.
Syntax :SYSTem:COMMunicate:LAN:APPLy
Parameter/Response None
*RST State N/A
Examples
:SYST:COMM:LAN:APPLY

:SYSTem:COMMunicate:LAN:CONFigure

The set command will store the new LAN configuration type to be applied to the RTSA. This command does not take effect until :SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the :APPLy command). Once the option is applied, it is not affected by power-on, :STATus:PRESET, or *RST.
The query will return the option set or that of the actual current configuration if one is not set. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
Note: *RST command cannot be used to set the box to its manufacturing default state of DHCP. To set the box back to DHCP from a working STATIC mode, use this command or the web-browser as mentioned in the RTSA User's Guide.
Syntax SYSTem:COMMunicate:LAN:CONFigure DHCP | STATIC
SYSTem:COMMunicate:LAN:CONFigure? [CURRENT]
Parameter Set: DHCP | STATIC
Query: [CURRENT]
Response DHCP | STATIC
I/O Data Type Character
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 47
SCPI Command Set

:SYSTem:COMMunicate:LAN:DNS

The set command will store the new LAN DNS server address(es) to be applied to the RTSA. This command does not take effect until :SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the :APPLy command). Once the setting is applied, it is not affected by power-on, :STATus:PRESET, or *RST.
The query will return the LAN DNS address(es) set or that of the actual current configuration if one is not issued. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
*RST State N/A
Examples
:SYST:COMM:LAN:CONF DHCP :SYST:COMM:LAN:CONF? CURRENT
Syntax SYSTem:COMMunicate:LAN:DNS <main DNS>[,alternative DNS]
SYSTem:COMMunicate:LAN:DNS? [CURRENT]
Parameter Set: D.D.D.D[,D.D.D.D] where D = 0 – 255
Query: [CURRENT]
Response D.D.D.D[,D.D.D.D]
I/O Data Type String
*RST State N/A
Examples
SYSTEM:COMMUNICATE:LAN:DNS 208.67.110.0 SYST:COMM:LAN:DNS 208.67.110.0,208.67.100.10 SYSTEM:COMMUNICATE:LAN:DNS? SYST:COMM:LAN:DNS? CURRENT

:SYSTem:COMMunicate:LAN:GATEway

The set command will store the new LAN gateway to be applied to the RTSA. This command does not take effect until :SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the :APPLy command). Once the setting is applied, it is not affected by power-on, :STATus:PRESET, or *RST.
The query will return the gateway address set or that of the actual current configuration if one is not issued. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
Syntax SYSTem:COMMunicate:LAN:GATEway <IPv4 address>
SYSTem:COMMunicate:LAN:GATEway? [CURRENT]
Parameter Set: D.D.D.D where D = 0 – 255
Query: [CURRENT]
Response D.D.D.D
I/O Data Type String
*RST State N/A
Examples
SYST:COMM:LAN:GATEWAY 102.101.0.13 SYSTEM:COMMUNICATE:LAN:GATEWAY? SYST:COMM:LAN:GATE? CURRENT
48 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:SYSTem:COMMunicate:LAN:IP

The set command will store the new LAN IP to be applied to the RTSA. This command does not take effect until :SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the :APPLy command). Once the setting is applied, it is not affected by power-on, :STATus:PRESET, or *RST.
The query will return the IP address set or that of the actual current configuration if one is not issued. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
Syntax SYSTem:COMMunicate:LAN:IP <IPv4 address>
SYSTem:COMMunicate:LAN:IP? [CURRENT]
Parameter Set: D.D.D.D where D = 0 – 255
Query: [CURRENT]
Response D.D.D.D
I/O Data Type String
*RST State N/A
Examples
SYST:COMM:LAN:IP 101.125.1.16 SYSTEM:COMM:LAN:IP? SYST:COMM:LAN:IP? CURRENT

:SYSTem:COMMunicate:LAN:MTU

The set command will store the new LAN MTU (maximum transfer unit, in bytes) to be applied to the RTSA. This command does not take effect until
:SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the
:APPLy command). Once the setting is applied, it is not affected by power-on,
:STATus:PRESET, or *RST. The factory default value is 1500 bytes.
The query will return the MTU set or that of the actual current configuration if one is not issued. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
Note: Use this command to change the maximum network packet or frame size in a transaction;
however, changing the MTU value could affect the transfer rate or causing lost of network packets if the packets have an MTU value larger than that permitted by your network. Check with your network administrator before changing this value.
Syntax SYSTem:COMMunicate:LAN:MTU <valid MTU value in bytes>
SYSTem:COMMunicate:LAN:IP? [CURRENT]
Parameter Set: 576 – 1500 bytes
Query: [CURRENT]
Response Integer
I/O Data Type Integer
*RST State N/A
Examples
SYST:COMM:LAN:MTU 1400 SYSTEM:COMM:LAN:MTU? SYST:COMM:LAN:MTU? CURRENT
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 49
SCPI Command Set

:SYSTem:COMMunicate:LAN:NETMask

The set command will store the new LAN netmask address to be applied to the RTSA. This command does not take effect until :SYSTem:COMMunicate:LAN:APPLy is sent (please refer to the Caution note of the :APPLy command). Once the setting is applied, it is not affected by power-on, :STATus:PRESET, or *RST.
The query will return the mask address set or that of the actual current configuration if one is not issued. The CURRENT query will return what is currently and actually used by the RTSA's LAN interface.
Syntax SYSTem:COMMunicate:LAN:NETMask <address>
SYSTem:COMMunicate:LAN:NETMask? [CURRENT]
Parameter Set: D.D.D.D where D = 0 – 255
Query: [CURRENT]
Response D.D.D.D
I/O Data Type String
*RST State N/A
Examples
SYST:COMM:LAN:NETMASK 255.255.255.0 SYSTEM:COMMUNICATE:LAN:NETM? SYST:COMM:LAN:NETM? CURRENT

:SYSTem:COMMunicate:NTP

This command sets or queries the NTP configuration server address(es) of up to three IP addresses. When set, this command will accept server IP address(es) in the form of D.D.D.D only, comma separated. However, the query response will return the IP address(es) set through this command or domain/IP address(es) set through R5700's web administrative page.
Syntax SYSTem:COMMunicate:NTP <address>
SYSTem:COMMunicate:NTP?
Parameter <IP Address D.D.D.D>, where D = 0 – 255
Response <web/IP addr>[,<web/IP addr>[,<web/IP addr>]]
I/O Data Type String
*RST State N/A
Examples
SYSTEM:COMMUNICATE:NTP 132.163.96.4 SYST:COMM:NTP?
Note: This feature could also be set through R5700's administrative web page, with up to 3 domain/IP addresses can be entered.

:SYSTem:ERRor[:NEXT]?

This query returns the oldest uncleared error code and message from the SCPI error/event queue. When there are no error messages, the query returns 0,"No error".
*RST does not affect the error queue.
50 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
Note: It is recommended to do this query command after each non-query command is
sent to ensure that the non-query command is executed without error. Since each error message is queued into a buffer, if multiple commands have been sent follow by this command, it would be uncleared which command has resulted in which error.
Syntax :SYSTem:ERRor[:NEXT]?
Parameter None
Response <error code>,<description>
Output Data Type <integer>,<string>
Description Refer to the Appendix E: SCPI Error Codes Used section
*RST State N/A
Example
:SYST:ERR?

:SYSTem:ERRor:ALL?

This query returns all the uncleared error codes and messages from the SCPI error/event queue. If there are no error messages, the query returns 0,"No error". *RST does not affect the error queue.
Syntax :SYSTem:ERRor:ALL?
Parameter None
Response <error code>,<description>{,<error code>,<description>}
Output Data Type <integer>,<string>{,<integer>,<string>}
Description Refer to the Appendix E: SCPI Error Codes Used section
*RST State N/A
Example
:SYST:ERR:ALL?

:SYSTem:ERRor:CODE[:NEXT]?

This query is similar to :SYSTem:ERRor[:NEXT]? but returns only the error code from the SCPI error/event queue. When there are no errors, the query returns 0. *RST does not affect the error queue.
Note: Similarly, it is recommended to do this query command (or
:SYSTem:ERRor[:NEXT]?) after each non-query command is sent to ensure that the
non-query command is executed without error.
Syntax :SYSTem:ERRor:CODE[:NEXT]?
Parameter None
Response <error code>
Output Data Type <integer>
Description Refer to the Appendix E: SCPI Error Codes Used section
*RST State N/A
Example
:SYST:ERR:CODE?
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 51
SCPI Command Set

:SYSTem:ERRor:CODE:ALL?

This query is similar to :SYSTem:ERRor:ALL? but returns error codes only from the SCPI error/event queue. If there are no errors, the query returns 0. *RST does not affect the error queue.

:SYSTem:ERRor:COUNt?

This query returns the number of errors/events in the error/event queue.
Syntax :SYSTem:ERRor:CODE:ALL?
Parameter None
Response <error code>{,<error code>}
Output Data Type <integer>{,<integer>}
Description Refer to the Appendix E: SCPI Error Codes Used section
*RST State N/A
Example
Syntax :SYSTem:ERRor:COUNt?
Parameter None
Response <count>
Output Data Type <integer>
*RST State N/A
Example
:SYST:ERR:CODE:ALL?
:SYST:ERR:CODE:ALL?

:SYSTem:FLUSh

This command clears the R5700's internal data storage buffer of any data that is waiting to be sent.
IMPORTANT Note: It is highly recommended that the flush command (after issuing
:SYSTem:ABORt) should be used before start of any data capture or when switching
between different capture modes to clear up the remnants of data in the RTSA.
Caution: Issuing :SYSTem:FLUSh any time during streaming or sweeping mode will cause the stream or sweep capture to stop (abort) and switch automatically to block capture mode.
Note: Flush command only handles the RTSA's internal buffer storage. The host application should ensure that the socket buffer is also cleared up of any potential data in the socket buffer. This can be done by calling the receive socket (non-blocking) until no data is returned. With Streaming or Sweeping, the start ID in a VRT extension packet marks the beginning of packets belonging to the new stream or sweep. This helps to distinct old packets from new packets.
52 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Syntax :SYSTem:FLUSh
Parameter/Response None
*RST State N/A
Examples
:SYST:FLUSH

:SYSTem:LOCK:HAVE?

This query returns the current lock state of the specified task.
Syntax :SYSTem:LOCK:HAVE? ACQuisition
Parameter ACQuisition
Input Data Type Character
Response 1 | 0
1 – Have the lock 0 – Does not have the lock
Output Data Type Boolean
*RST State N/A
Examples
:SYST:LOCK:HAVE? ACQ
SCPI Command Set

:SYSTem:LOCK:REQuest?

This query attempts to attain the lock on the R5700 for a specific task, such as data acquisition. The query returns 1 when lock is successful or 0 if it fails.
Attaining a lock is equivalent to having the sole ownership for that task. This prevents multiple connected applications from doing the same task that would result in an erroneous operation or feedback from the R5700. The R5700's system lock ownership works in the following manner:
The first application to connect to R5700 will automatically have the lock. The next
application will need to perform this query request to attain the lock.
When there is only one application connected (or the last one remaining), that
application will automatically have the lock.
The last application that requested successfully has the lock until another
application requests it.
Any application that doesn't have the specific lock will not be able to perform that task.
Note: When a TCP/IP socket connection is not exited properly, that socket might continue to exist in the R5700 server for a few minutes. This could affect a situation when only one application is used to connect to the R5700 as re-connection by that application might not get the lock. This application would then need to request the lock.
Note: HiSLIP defines a more comprehensive instrument locking mechanism that locks out SCPI operations for sessions that do not have the instrument lock. This effectively prevents other HiSLIP clients from grabbing the data stream.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 53
SCPI Command Set
For HiSLIP connections, the HiSLIP lock request should immediately be followed by :SYST:LOCK:REQ? ACQ to ensure that the application regains the data stream.
A mixture of HiSLIP and non-HiSLIP connections will cause issues as the non-HiSLIP connections are unaware of HiSLIP instrument locks.

:SYSTem:OPTions?

This command queries the hardware option(s) or features that a particular RTSA model supported. The response string contains comma separated 3-digit values to represent the options. See Table 40 for the translated list of available codes (when available).
Syntax :SYSTem:LOCK:REQuest? ACQuisition
Parameter ACQuisition
Input Data Type Character
Response 1 | 0
1 – Successfully locked 0 – Failed to lock
Output Data Type Boolean
*RST State N/A
Example
:SYST:LOCK:REQ? ACQ
Syntax :SYSTem:OPTions?
Parameter None
Response <xxx>{,<xxx>}
Output Data Type Comma separated 3-digit value (ex: 000, 001, 002)
*RST State None
Example
:SYST:OPT?
Table 40: RTSA Option Codes and the Corresponding Description
Option Code Description Related SCPI Command
000 No Special Option/Feature

:SYSTem:SYNC:MASTer

This command sets the RTSA unit to be the master or slave for a synchronization trigger system with multiple units, in which only one unit can be the master.
The master sends a sync-word or pulse (set through :TRIGger:TYPE or
:SWEep:ENTRy:TRIGger:TYPE) via its GPIO to that of the slaves to indicate the
beginning of a capture. The master RTSA itself will has an internal loop-back of the synchronization signal it sent out.
Syntax :SYSTem:SYNC:MASTer <Boolean>
:SYSTem:SYNC:MASTer?
Parameter ON | OFF | 1 | 0
Input Data Type Integer | Character
54 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
Query Response 0 | 1
Output Data Type Integer
*RST State 0
Examples
:SYSTem:SYNC:MASTER ON :SYSTem:SYNC:MAST?

:SYSTem:SYNC:WAIT

This command sets the delay time in nanoseconds that an RTSA system must wait after receiving the satisfying trigger signal and before performing data capture. The delay time should be a multiple of 8 nsec as the RTSA system runs with a 125MHz clock.
Syntax :SYSTem:SYNC:WAIT <integer>
:SYSTem:SYNC:WAIT?
Parameter/Response
Allowable Values 0 – 4294967295 (or 2
*RST State 0
Examples
<integer>
32
-1)
:SYSTem:SYNC:WAIT 120 :SYSTem:SYNC:WAIT?

:SYSTem:VERSion?

This query returns the SCPI version number that the instrument software complies with.
Syntax :SYSTem:VERSion?
Parameter None
Response <NR2>
Output Data Type String (decimal number YYYY.V)
Example :SYST:VERS

:SYSTem:DATE

This command sets or queries the current date of the R5700. When the date is set, the change is applied to the real time clock (RTC) of the R5700 system, and the
:SYSTem:TIME:SYNC field is changed to DISable automatically. The date returned is
representative of the current time mode that is UTC.
This command is not affected by a power-on, factory reset, or *RST command.
Syntax :SYSTem:DATE <integer>,<integer>,<integer>
:SYSTem:DATE?
Parameters/Response <year>,<month>,<date>
I/O Data Type String (comma separated integers)
Allowable Values Year: YYYY - requires a four digit integer, 1900 - 9999
Month: 1 - 12 Date: 1 - 31
*RST State N/A
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 55
SCPI Command Set
Examples
:SYST:DATE 2017,12,2 :SYSTEM:DATE?

:SYSTem:TIME

This command sets or queries the current time of the R5700. When the time is set, the change is applied to the RTC of the R5700 system, and the :SYSTem:TIME:SYNC field is changed to DISable automatically. The time returned is representative of the current
time mode that is UTC.
This command is not affected by a power-on, factory reset, or *RST command.
Syntax :SYSTem:TIME <integer>,<integer>,<integer>[,<integer>]
:SYSTem:TIME?
Parameters <hour>,<minute>,<second>[,<millisecond>]
Response <hour>,<minute>,<second>[,<millisecond>] in UTC
I/O Data Type String (comma separated integers)
Allowable Values Hour: 0 - 23
Minute: 0 - 59 Second: 0 – 59 Millisecond: 0 - 999
*RST State N/A
Examples
:SYST:TIME 10,30,15 :SYSTEM:TIME?

:SYSTem:TIME:ADJust

This command adjusts the system time relative to its current time.
Further information will be provided in a future revision of this document.
Syntax :SYSTem:TIME:ADJust <integer> [unit]
:SYSTem:TIME:ADJust?
Parameters <second or sub-second> [unit]
Allowable Values 0 – 4294967295 (or 232 - 1)
Response <integer>
Default I/O unit ns
*RST State 0
Examples
:SYST:TIME:ADJUST 10 ns :SYSTEM:TIME:ADJUST?

:SYSTem:TIME:SYNC

This command selects the time synchronization source for R5700 and the query returns the source selected. Choosing NTP (Network Time Protocol) as the synchronization source will impact the system real time clock (RTC), causing it to update either at a continuous interval or one time only. When :SYSTem:DATE and/or :SYSTem:TIME commands are used to change the time, the source will automatically be changed to DISable.
56 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
*RST does not affect this command. At factory install, the synchronization is defaulted to
disabled.
I/O Data Type Character | String (comma separated characters)

STATus Commands

SCPI Command Set
Syntax :SYSTem:TIME:SYNC DISable | NTP,{ONCE | CONTinuous}
:SYSTem:TIME:SYNC?
Parameter DISable | NTP,{ONCE | CONTinuous}
Response DISabled | NTP,{ONCE | CONTinuous}
*RST State DISable
Examples
:SYST:TIME:SYNC NTP,ONCE :SYST:TIME:SYNC DISABLE :SYSTEM:TIME:SYNC?
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 57
SCPI Command Set
N/ A
N/ A
TI ME
PO Wer
TE MPer at ure
FRE Quenc y
N/ A
N/ A
CA LI brat ion
TB D
TB D
TB D
TB D
N/ A
N/ A
No t used
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L
o
g
i
c
a
l
O
R
Co ndi tion S tatu s Ena ble
QUE S tion abl e Reg iste rs
CA LIb rat ing
SE TTling
N/A
TB D
N/A
TR IGger ing
N/A
CO RRect ing
TB D
N/A
N/A
N/A
N/A
N/A
PR OG ram R unning
No t Use d
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L
o
g
i
c
a
l
O
R
OPE R ation R egister s
Op eratio n Com plete (OP C)
N/ A
Qu ery Er ro r (QY E)
De vice Depe nde nt Er ro r ( DDE )
Ex ecu tion E rror (EXE )
Co mma nd Er ro r (CM E)
No t Use d
Po wer O N (P ON )
0
1
2
3
4
5
6
7
L
o
g
i
c
a
l
O
R
*E SR ? *E SE
Sta n da r d E ve nt Sta tus R egister (E SR)
0
1
2
3
4
5
6
7
N/ A
N/ A
Er ro r/E vent Q ueue (E AV)
Qu estiona ble Reg ister
Me ssag e Available ( MAV)
Sta ndard ESR
Req uest Service (R QS)
Op eratio n R egister
0
1
2
3
4
5
6
7
L
o
g
i
c
a
l
O
R
*S TB? *S R E
Sta tu s B yte (S T B) Serv ic e Req uest E n able (SRE)
0
1
2
3
4
5
6
7
. . .
Er ro r/E ven t Queue
Su mma ry of IEEE 488 .2 S ta tu s Structure R egister s
Co ndi tion S tatu s Ena ble
58 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
The STATus commands control the SCPI-defined status-reporting structures as illustrated in Figure 13.
SCPI defines the QUEStionable, OPERation, Instrument SUMmary and INSTrument registers in addition to those in IEEE 488.2. These registers conform to the IEEE 488.2 specification and each may be comprised of a condition register, an event register, an enable register, and negative and positive transition filters.
SCPI also defines an IEEE 488.2 queue for status. The queue provides a human readable record of instrument events. The application programmer may individually
Figure 13: Status Reporting Structure with Status & Enable Registers
SCPI Command Set
enable events into the queue. :STATus:PRESET enables errors and disables all other events. If the summary of the queue is reported, it shall be reported in bit 2 of the status byte register. A subset of error/event numbers is defined by SCPI.

:STATus:OPERation[:EVENt]?

This command queries the standard Operation Status Register (OSR, page 96) for any operation event. The query returns the decimal sum of the bits set in the OSR. The decimal sum is the binary equivalent of the 16-bit mask. The last bit is unused.
A bit set in the OSR when an enabled transition on the condition is detected (refer to
Appendix D: SCPI Status and Event Registers). Transitions are enabled using the
Operation Transition Registers (see :STATus:OPERation:NTRansition and
:STATus:OPERation:PTRansition).
Caution: This query clears all bits in the register to 0. However, new events may occur concurrently and are guaranteed not to be missed.
See Figure 13 for the Operation Status register bits mapping.
Syntax :STATus:OPERation[:EVENt]?
Parameter None
Response <integer>
Output Values 0 – 32767 (2
*RST State None
Example
:STAT:OPER?
15
-1)

:STATus:OPERation:CONDition?

This command queries the standard Operation Condition Register (OCR) for any operation condition. The query returns the decimal sum of the bits set in the OCR. The decimal sum is the binary equivalent of the 16-bit mask. The last bit is unused. The content of the OCR remains unchanged after it is read.
The data in this register is continuously updated to reflect the most current conditions.
See Figure 13 for the Operation Condition Register bits mapping.
Syntax :STATus:OPERation:CONDition?
Parameter None
Response <integer>
Output Values 0 – 32767 (2
*RST State None
Example
:STAT:OPER:COND?
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 59
15
-1)
SCPI Command Set

:STATus:OPERation:ENABle

This command enables or queries bits in the Operation Enable Register (OER). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in this register allow the equivalent bit status in the OSR (see page 96) to propagate up through the Service Request (SRQ) chain.
Bits enabled in the OER and set in the OSR will result in the Standard Operation Status Summary bit (bit 7) in the STB register being set. See Figure 13.
Parameter/Response <integer>

:STATus:OPERation:NTRansition

This command enables or queries bits in the Operation Negative Transition Register (ONTR). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in ONTR will allow a negative transition in the corresponding condition to set the bit in the OSR (see page 96).
Syntax :STATus:OPERation:ENABle <integer>
:STATus:OPERation:ENABle?
Allowable Values 0 – 32767 (2
*RST State 0
Examples
:STAT:OPER:ENAB 256 :STAT:OPER:ENAB?
15
-1)
Syntax :STATus:OPERation:NTRansition <integer>
:STATus:OPERation:NTRansition?
Parameter/Response <integer>
Allowable Values 0 – 32767 (2
*RST State 0
Examples
:STAT:OPER:NTR 256
15
-1)
:STAT:OPER:NTR?

:STATus:OPERation:PTRansition

This command enables or queries bits in the Operation Positive Transition Register (OPTR). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in OPTR will allow a positive transition in the corresponding condition to set the bit in the OSR (see page 96).
Syntax :STATus:OPERation:PTRansition <integer>
:STATus:OPERation:PTRansition?
Parameter/Response <integer>
Allowable Values 0 – 32767 (2
*RST State 0
Examples
:STAT:OPER:PTR 256 :STAT:OPER:PTR?
15
-1)
60 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:STATus:PRESET

This command presets the R5500 (similar to *RST), and OSE and QSE to zero.
Syntax :STATus:PRESET
Parameter/Response None

:STATus:QUEStionable[:EVENt]?

This command queries the standard Questionable Status Register (QSR, page 96) for any event. The query returns the decimal sum of the bits set in the QSR. The decimal sum is the binary equivalent of the 16-bit mask. The last bit is unused.
A bit set in the QSR when an enabled transition on the condition is detected (refer to
Appendix D: SCPI Status and Event Registers). Transitions are enabled using the
Questionable Transition Registers (see :STATus:QUEStionable:NTRansition and
:STATus:QUEStionable:PTRansition).
Caution: This query clears all bits in the register to 0. However, new events may occur concurrently and are guaranteed not to be missed.
See 13 for the Questionable Status register bits mapping.
Syntax :STATus:QUEStionable[:EVENt]?
Parameter None
Response <integer>
Output Values 0 – 32767 (2
*RST State None
Example
:STAT:QUES?
15
-1)

:STATus:QUEStionable:CONDition?

This command queries the standard Questionable Condition Register (QCR) for any questionable condition. The query returns the decimal sum of the bits set in the QCR. The decimal sum is the binary equivalent of the 16-bit mask. The last bit is unused. The content of the QCR remains unchanged after it is read. The data in this register is continuously updated to reflect the most current conditions.
See Figure 13 for the QCR bits mapping.
Syntax :STATus:QUEStionable:CONDition?
Parameter None
Response <integer>
Output Values 0 – 32767 (2
*RST State None
Example
:STAT:QUES:COND?
15
-1)
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 61
SCPI Command Set

:STATus:QUEStionable:ENABle

This command enables bits in the Questionable Enable Register (QER). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in this register allow the equivalent bit status in the QSR to propagate up through the Service Request (SRQ) chain.
Bits enabled in QER and set in QSR will result in the Standard Questionable Status Summary bit (bit 3) in the STB register being set. See Figure 13.

:STATus:QUEStionable:NTRansition

This command enables or queries bits in the Questionable Negative Transition Register (QNTR). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in QNTR will allow a negative transition in the corresponding condition to set the bit in the QSR (see page 96).
Syntax :STATus:QUEStionable:ENABle <integer>
:STATus:QUEStionable:ENABle?
Parameter/Response <integer>
Output Values 0 – 32767 (2
*RST State 0
Examples
:STAT:QUES:ENAB 256 :STAT:QUES:ENAB?
15
-1)
Syntax :STATus:QUEStionable:NTRansition <integer>
:STATus:QUEStionable:NTRansition?
Parameter/Response <integer>
Allowable Values 0 – 32767 (2
*RST State 0
Examples
:STAT:QUES:NTR 256
15
-1)
:STAT:QUES:NTR?

:STATus:QUEStionable:PTRansition

This command enables or queries bits in the Operation Positive Transition Register (QPTR). The decimal integer value entered is the binary equivalent of the desired 16-bit mask to be enabled. Bits enabled in QPTR will allow a positive transition in the corresponding condition to set the bit in the QSR (see page 96).
Syntax :STATus:QUEStionable:PTRansition <integer>
:STATus:QUEStionable:PTRansition?
Parameter/Response <integer>
Allowable Values 0 – 32767 (2
*RST State 0
Examples
:STAT:QUES:PTR 256 :STAT:QUES:PTR?
15
-1)
62 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

:STATus:TEMPerature?

This command queries the RTSA's internal temperature provided by one or more temperature sensors. The response field varies depending on how many sensors are available in an RTSA model. The R5700 model, for instance, returns comma separated values for the sensors at the RF, Mixer and Digital sections.
Output Data Type Float

INPut Commands

:INPut:ATTenuator

SCPI Command Set
Syntax :STATus:TEMPerature?
Parameter None
Response <NRf>{,<NRf>}
For R5700: <RF>,<Mixer>,<Digital>
Unit degrees Celsius
*RST State None
Example :STATUS:TEMP?
This command sets or queries the fix attenuation of the R5700's RFE.
Note: This command applies to R5700-308, -408 and their variants only. It is not applicable for -418 and -427 and their variants, see :INPut:ATTenuator:VARiable command instead.
Syntax :INPut:ATTenuator <integer>
:INPut:ATTenuator?
Parameter 0 | 10 | 20 | 30 [dB]
Input Data Type Integer, optional character unit
Query Response 0 | 10 | 20 | 30
Output Data Type Integer
*RST State 30
Examples
:INP:ATT 20 :INPUT:ATT?

:INPut:ATTenuator:VARiable

This command sets or queries the variable attenuation of the R5700's RFE.
Notes:
- This command applies to R5700-418, -427, and their variants only. For R5700-408 and their variants, see :INPut:ATTenuator command instead.
- Recommend setting the attenuation to 0 dB for best performance
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 63
SCPI Command Set

:INPut:GAIN

This command sets or queries the input gain stage for an RTSA. The number of gain stages is dependent on the models as listed below. Any out of range index will result in an Execution Error response (see Error and Event Queue section). Contact ThinkRF's Support for further details and the gain ranges of each stage.
Syntax :INPut:ATTenuator:VARiable <Integer [dB]>
:INPut:ATTenuator?
Parameter 0 | 10 | 20 | 30 [dB]
Input Data Type Integer, optional character unit
Query Response 0 | 10 | 20 | 30
Output Data Type Integer
*RST State 30
Examples
:INP:ATT:VAR 0 :INPUT:ATT:VAR?
Syntax :INPut:GAIN <Index> <Boolean>
:INPut:GAIN? <Index>
Parameter <Integer> <ON | OFF | 1 | 0>
Input Data Type <Integer> <Character | Integer>
Allowable Values Index: Varies depending on the product model
- R5700-408 & its variant: No controllable gain stage
- R5700-418, 427 & their variants: 1, 2. See Table 41 for the gain settings' performance
Boolean: ON | OFF | 1 | 0
Query Response 1 | 0
Output Data Type Integer
*RST State 1 for all available stages
Examples
:INPUT:GAIN 2 ON :INP:GAIN? 1 :INP:GAIN 1 0
Note: The reference level context information (see page 32) is only valid when all the gain stages are enabled for R5700-418, 427 and their variants.
Table 41: Performance of The Gain Settings of R5700-418, 427 and Their Variants
Stage 1 Stage 2 Gain Level Performance
0 (OFF) 0 (OFF) Low High Saturation Level
0 (OFF) 1 (ON) -- Not Optimal*
1 (ON) 0 (OFF) Medium Good DANL and Saturation Level
1 (ON) 1 (ON) High Best DANL
(Reference Level context data
provided)
* This setting is not recommended.
64 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:INPut:GAIN:HDR

This command sets or queries variable NB IF gain of the HDR signal path, and thus, the command is to be used with HDR input mode only (i.e. set :INPut:MODE HDR).
Note: The HDR gain is a gain block at the receiver back-end. It will not, therefore, impact the signal-to-noise ratio (SNR). The HDR gain is used in particular for optimizing the third order intercept point (IP3) by determining the most linear spot of the cumulative amplification I/O characteristics in the receiver chain.
Since the IP3 measurement relies on the relative signal-to-3rd order product ratio and not on the absolute signal value nor the SNR, the R5700 product is not calibrated for the different HDR gain levels. The only HDR gain value that is calibrated and optimized is
the default 25 dB gain.
Syntax :INPut:GAIN:HDR <NR1 [unit]>
:INPut:GAIN:HDR? [MAX | MIN]
Parameter <NR1 [unit]>
Input Data Type Signed integer [character]
Allowable Values -10 to 34
Query Response <NR1>
Output Data Type Signed integer
Default I/O unit dB
*RST State 25
Examples
:INPUT:GAIN:HDR -5 :INP:GAIN:HDR 20 dB :INP:GAIN:HDR?

:INPut:MODE

This command sets or queries the R5700's RFE mode of operation.
Notes: The different RFE modes (in combination with any DSP applied) affect the VRT IF data packing method due to the different output data type width. For example, SH mode is I14 data format, but with decimation, it would change to I14Q14 data output. The VRT's Stream ID would identify the data format accordingly. See Table 2: Radio RFE
Modes and DSP Data Output Formats and VRT's IF Data Packet Class for more details.
- It is also important to see Table 2 for the IBW of each mode and the related notes.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 65
SCPI Command Set
Parameter/Response ZIF | DD | HDR | SH | SHN
I/O Data Type Character
1
The RFE mode availability is product dependent. Hence, the *RST state and the initial power-up
default would be different depending on the product version.

SOURce Commands

:SOURce:REFerence:PLL

This command selects and queries the 10MHz PLL reference clock source, whether it be via the internal free-run clock source, the embedded GNSS module’s clock, or through the external SMA connector.
To see which timing reference source used to discipline the 10 MHz GNSS reference oscillator, with or without a GNSS fix, refer to :GNSS:REFerence? query command.
Syntax :INPut:MODE ZIF | DD | HDR | SH | SHN
:INPut:MODE?
*RST State
Examples
Product version dependent
:INP:MODE SH
1
:INPUT:MODE?
Caution: When the external 10MHz reference is used, its reference level must be
between -10dBm and 0dBm. Exceeding the level of 0dBm will result in permanent
damage to the internal clock circuit. Additionally, the 10MHz reference must be powered down prior to powering down the R5700.
Note: :GNSS[:ENABle] must be set to ON before selecting the GNSS option for this command; otherwise, an error of “-221 Settings Conflict” will be returned.
Syntax :SOURce:REFerence:PLL INT | EXT | GNSS
:SOURce:REFerence:PLL?
Parameter/Response INT | EXT | GNSS
I/O Data Type Character
*RST State GNSS
Examples
:SOURCE:REF:PLL INT :SOUR:REF:PLL?

:SOURce:REFerence:PPS

This command selects and queries the PPS source for synchronizing the NTPD (NTP daemon) and the VRT timestamp system, whether it be via the external GPIO source, or through the GNSS’s module.
Note: :GNSS[:ENABle] must be set to ON before selecting the GNSS option for this command; otherwise, an error of “-221 Settings Conflict” will be returned.
66 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Parameter/Response EXT | GNSS

SENSe Commands

[:SENSe]:DECimation

This command sets or queries the rate of decimation of samples in a trace capture. When the rate is set to 1 (or OFF), no decimation is performed on the trace capture. The decimation range varies depending on the RFE modes as described below.
In HDR mode, the decimation is done directly by the on-board NB ADC. The decimation value supported by this mode is 1, 2 and 4.
Syntax :SOURce:REFerence:PPS EXT | GNSS
:SOURce:REFerence:PPS?
I/O Data Type Character
*RST State EXT
Examples
:SOURCE:REF:PPS GNSS :SOUR:REF:PPS?
SCPI Command Set
In the remaining RFE modes, R5700 uses DDC to provide 10 levels of decimation of values 4, 8, 16, 32, 64, 128, 256, 512, 1024 (i.e. decimation rate = 2
level
where level = 2 –
10). The decimation process consists of CIC and FIR filters, each type of filters with its own decimator. The decimator captures one sample at every <integer> number of samples. The filters are arranged in the following manner:
For the decimation rate of 4, only a FIR filter with a fixed decimation by 4 is used,
CIC filter is bypassed.
For the decimation rates of 8 to 1024, a 4-stage CIC of rate 4 to 512 is applied first
for each I and/or Q data. The resulting I and/or Q data pipes are then passed to a FIR filter with a fixed decimation of 2 to arrive at the rate set. For example, for a rate of 16, I and Q data will first pass-through the CIC filters with a decimation rate of 8. The CIC output will be further decimated by 2 by the FIR filter which has a fixed decimation rate of 2.
Note: When in SH/SHN mode and a decimation is on, the R5700 will automatically be shifted by 35MHz to the zero IF before decimation is applied. This implies the VRT data
output will be {I,Q} for SH/SHN with decimation.
Syntax :SENSe:DECimation OFF | <integer>
:SENSe:DECimation? [MAX | MIN]
Parameter OFF | <decimation value>
Input Data Type Integer | Character
Allowable Values In HDR mode:
OFF, 1, 2, 4
For ZIF, SH, SHN modes: OFF, 1, 4, 8, 16, 32, 64, 128, 256, 512 and 1024
1 Equivalents to decimation off.
Query Response In HDR mode:
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 67
SCPI Command Set

[:SENSe]:FREQuency:CENTer

This command sets or queries the center frequency of the RTSA with one exception as mentioned in the following note.
Note: For the DD mode, this command does not apply as DD mode is not tune-able (however, [:SENSe]:FREQuency:SHIFt command is still applicable to those modes). To use the frequency range below 50 MHz, use :INPut:MODE DD command instead.
The frequency resolution varies depending on the RFE modes of operation. ZIF, SH and SHN signal paths utilize the WB ADC; thus, the frequency tuning resolution is 10Hz. For those receiver modes, the resolution can be down to the nearest 1Hz resolution (±0.23Hz) using [:SENSe]:FREQuency:SHIFt command. While for HDR receiver mode, the frequency resolution is 10Hz without further frequency shifting capability. Refer to RF
Receiver Front-End (page 17) for more details.
1, 2, 4
For ZIF, SH, SHN modes: 1, 4, 8, 16, 32, 64, 128, 256, 512 and 1024
Output Data Type Integer
*RST State 1
Examples
:DEC 16 :SENSE:DEC OFF
For example, the system is in ZIF mode, to tune to a frequency of 2441.16MHz require the sending of two commands: [:SENSe]:FREQuency:CENTer 2441.1MHz and
[:SENSe]:FREQuency:SHIFt 60kHz. The set values can be verified by querying. If a
valid frequency with an inappropriate resolution is set, the frequency value will be rounded down to the nearest valid resolution, no error is set.
In addition, depending on the product models, the allowable range of programmable frequencies varies. Check with your product's data sheet. For example, R5700-408 has a range of 0.1 to 8GHz, while R5700-427 has 0.1 to 27GHz.
Syntax [:SENSe]:FREQuency:CENTer <NRf [unit]>
[:SENSe]:FREQuency:CENTer? [MAX | MIN]
Parameters <center frequency [unit]>
Input Data Type NRf [character]
Allowable Values Varies depending on the product model
Query Response <integer>
Default I/O Unit Hz
*RST State 2400000000
Examples
:FREQ:CENTER 2441.5 MHz SENSE:FREQ:CENT 200000000 :FREQ:CENT 2.01 GHZ SENSe:FREQ:CENTer?
68 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

[:SENSe]:FREQuency:IF?

This command queries the IF frequencies that are used for the current input mode and center frequency.
This command works in all R5700 models but the number and significance of the IF frequencies will vary depending on the model and configured options (see
:SYSTem:OPTions? command). The IF index can be specified either as a positive
number (1 to N) where 1 indicates the first IF mixing stage after the input from the front end, or as a negative number (-1 to -N) where -1 indicates the last IF before the digitizer input. If the input index is beyond the number of available IFs, Error: Reference source
not found will return a -222,“Data out of range” response.
Syntax [:SENSe]:FREQuency:IF? <non-zero integer>
Parameters <IF index>
Input Data Type Non-zero Integer
Allowable Values Varies depending on RFE input mode, frequency, model and options
Query Response IF frequency
Output Data Type <integer>
Default Output Unit Hz
*RST State N/A
Examples
SENSE:FREQ:IF? -1

[:SENSe]:FREQuency:INVersion?

This query only command is used to determine if a spectral inversion is required on the data output at the IQ OUT connector at a given frequency, regardless of the DSP mode enabled. See Table 39 for more information on spectral inversion.
This command is not available for the sweep entry subset of commands. However, this command can be used iteratively during say initialization stage to query the frequency range of interest. The results can than be stored in a look-up table, for example.
Syntax [:SENSe]:FREQuency:INVersion? [NRf [unit]]
Parameters Optional [center frequency [unit]]
Input Data Type [Double [character]]
Default Input Unit Hz
Allowable Values Varies depending on the product model
Query Response 1 | 0
where 1 is equivalent to the inversion is required
Output Data Type Integer
*RST State N/A
Examples
SENSE:FREQ:INV? 2441.5 MHz FREQ:INV?

[:SENSe]:FREQuency:LOSCillator?

This command queries the frequency of the local oscillator (LO) 1, 2 or 3 in corresponding to current the RTSA's center frequency set.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 69
SCPI Command Set

[:SENSe]:FREQuency:SHIFt

This command sets or queries the frequency shift value. A negative shift value corresponds to a left shifting.
This command is also used in additional to [:SENSe]:FREQuency:CENTer to fine tune the RTSA down to 1Hz resolution.
Note: Frequency shift mode is not available for some RFE modes of operation. Also, when enabled, it would affect the data output format of some RFE modes. See Table 2:
Radio RFE Modes and DSP Data Output Formats (page 16).
Syntax [:SENSe]:FREQuency:LOSCillator? <1 | 2 | 3>
Parameter None
Query Response <integer>
0 := LO Off
*RST State 1
Example
:FREQ:LOSC? 2
Syntax [:SENSe]:FREQuency:SHIFt <NRf [unit]>
[:SENSe]:FREQuency:SHIFt? [MAX | MIN]
Parameters <Frequency [unit]>
Input Data Type Float [character]
Allowable Values -62.5 – 62.5MHz
Query Response <integer>
Default I/O Unit Hz
*RST State 0
Examples
:FREQ:SHIF -10.5 MHz SENSE:FREQ:SHIFT 20000000.0 SENSe:FREQ:SHIFT? FREQ:SHIFT? MAX

[:SENSe]:LOCK:REFerence?

This command queries the lock status of the PLL reference clock in the digital card.
Syntax [:SENSe]:LOCK:REFerence?
Parameter None
Query Response 0 | 1
1 Reference PLL is locked 0 Reference PLL is not locked
Output Data Type Integer
*RST State N/A
Example
LOCK:REF?
70 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

[:SENSe]:LOCK:RF?

This command queries the lock status of the RF VCO (Voltage Control Oscillator) in the RFE.
Query/Response 0 | 1
Output Data Type Integer

GNSS Commands

The following set of commands are used for configuring the GNSS module as well as query its related information. Other GNSS related configurations could be found in
SOURce Commands section.

:GNSS[:ENABle]

Syntax [:SENSe]:LOCK:RF?
Parameter None
1 RF PLL is locked 0 RF PLL is not locked
*RST State N/A
Example
LOCK:RF?
SCPI Command Set
This command turns on or off, or queries the state of the GNSS module. Turning the module on would result in GNSS data being sent back from the RTSA as VRT context packets. The GNSS VRT packets are sent one every second. See Formatted GPS
Geolocation section for more information.
Note: When turned on from the off state, the GNSS module will subject to Time To First Fix (TTFF) or Time to Subsequent Fix(TTSF), which is a measure of the time required for a GNSS receiver after switching on to acquire sufficient satellite signals and navigation data, and calculate an accurate position solution.
The module is defaulted to ON at powered up.
Syntax :GNSS[:ENABle] ON | OFF | 1 | 0
:GNSS[:ENABle]?
Parameter ON | OFF | 1 | 0
Input Data Type Integer | Character
Query Response 0 | 1
Output Data Type Integer
*RST State 1
Examples
:GNSS ON :GNSS:ENABLE?
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 71
SCPI Command Set

:GNSS:POSition

This command returns the last known GNSS position in degrees latitude, degrees longitude and altitude in meters, such as:
In the absence of GNSS fix, the command returns invalid data, corresponding to all ones values in the GPS VRT context packet definition, or:

:GNSS:REFerence?

45.421500,75.697200,70.000000
512.000000,512.000000,67108863.968750
Syntax :GNSS:POSition?
Query Response latitude (degrees),longitude (degrees),altitude (meters)
Output Data Type Comma separated floats
*RST State N/A
Example
Output Example
:GNSS:POS?
45.421500,75.697200,70.000000
This command returns the timing reference source used to discipline the 10 MHz GNSS reference oscillator. A value of "GNSS" is returned if a GNSS fix is obtained and is being used as the disciplining source for the GNSS reference oscillator. A value of "INT" is returned in the absence of a GNSS fix, in which case the 10 MHz GNSS reference oscillator is in a holdover state until a GNSS fix is obtained.
The GNSS reference oscillator is a valid reference source regardless of GNSS fix status.
Note: If GNSS is selected as the PLL reference source, the REF LED indicator flashes green in the presence of GNSS fix or flashes yellow otherwise.
The absence of GNSS fix is also reflected in bit 9 of the IEEE488 Questionable Status
Register (QSR), with a 1 indicating absence of a GNSS fix.
Query Response GNSS | INT
Output Data Type character

TRIGger Commands

Syntax :GNSS:REFerence?
*RST State GNSS
Examples
:GNSS:REF?
Note: Trigger is not supported with HDR input mode.
72 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:TRIGger:TYPE

This command sets or queries the type of trigger event. Setting the :TRIGger:TYPE to NONE is equivalent to disabling the trigger execution, while setting to any other type will enable the trigger engine.
The LEVel trigger type is condition by the start and stop frequencies range and the amplitude level. See the :TRIGger:LEVel command.
The PULSe and WORD trigger types belong to the external synchronization trigger through a GPIO port (see External Triggering, page 21). This external trigger type uses
the TRIG IN pin of the GPIO port.
The PPS trigger type is similar to the PULSE type with the pulse occurs at every second and hence, the capture. Therefore, it is important that the total data capture size should be less than one second. This external trigger type uses the PPS pin of the GPIO port.
Syntax :TRIGger:TYPE LEVel | PERiodic | PPS | PULSe | WORD | NONE
:TRIGger:TYPE?
Parameter/Response
I/O Data Type Character
*RST State NONE
Examples
LEVEL | PERIODIC | PPS | PULSE | WORD | NONE
:TRIG:TYPE LEVEL :TRIG:TYPE?

:TRIGger:LEVel

This command sets or queries the frequency range and amplitude of a frequency domain level trigger. If the sampled signal amplitude exceeds the defined trigger level at any single sample within the defined frequency range then the trigger will occur and the associated IQ data will be stored.
The frequency range encompasses all FFT bins of which their center frequencies are within the range defined by START and STOP. The defined START and STOP frequencies may exceed, but only affect, the range defined by the IBW (with consider of the DDC decimation) centered around the [:SENSe]:FREQuency:CENTer value. The threshold error is ±3 dBm or less when the trigger level is set
at or below the maximum level mentioned in Table 42 and
~20 dBm or higher above the noise floor.
When the level is set higher and further away from the maximum level or within ~20 dBm of and closer to the noise floor, the threshold error increases. Recommend adjusting the attenuation level (using :INPut:ATTenuator:VARiable or :INPut:ATTenuator) accordingly to achieve detection at the desired level with error within ±3 dBm range.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 73
SCPI Command Set
Table 42: Maximum Threshold Level Where +/-3 dBm Error or Less Still Hold For A Given Attenuation Level
Refer to the Frequency Domain Triggering section for more information.
Parameters/Response
Attenuation (dB) ZIF Mode (dBm) SH / SHN Mode (dBm)
0 -35 -25
10 -25 -15
20 -15 -5
30 -5 5
Syntax :TRIGger:LEVel <NRf [unit]>,<NRf [unit]>,<NR1 [unit]>
:TRIGger:LEVel?
<start>,<stop>,<level>
Input Data Type Comma separated values with:
Frequency: Double [character] Level: signed integer value
Allowable Values Frequency: See [:SENSe]:FREQuency:CENTer
Levels: Dependent on the attenuation setting. See Table 42.
Output Data Type <integer>,<integer>,<signed integer>
Default I/O Units Hz,Hz,dBm
*RST State N/A (Trigger is off)
Examples
:TRIG:LEVEL 2000 MHZ,2100 MHZ,-70 DBM :TRIG:LEVEL 15000000,15050000,-50 :TRIG:LEVEL?

:TRIGger:PERiodic

Further information will be provided in a future revision of this document.

TRACe Commands

A "trace capture" consists of a set of continuous data samples, ranging from 128 samples to a maximum determined by the R5700 version (see :TRACe:BLOCk:PACKets and
:TRACe:SPPacket). Each data word is 32-bit wide, arranged differently depending on
the :INPut:MODE and see VRT's Data Payload Format, page 37.
ThinkRF's R5700 data packet returned through a network is complied with the industry standard VRT protocol. Therefore, every data packet returned is encapsulated with a VRT header and a VRT trailer. In addition, the VRT packet format sets a limit on the maximum number of samples per packet. Refer to the “Receiver Context Class” subsection of the VITA-49 Radio Transport Protocol section for further details on the VRT packet organization.
To do a single block capture of continuous data, the total number of samples captured is determined by the number of samples per packet (:TRACe:SPPacket) and the number of packets per block (:TRACe:BLOCk:PACKets). When the block data capture command (:TRACe:BLOCk:DATA?) is issued, the R5700 will capture and store the total number of samples into a buffer. Hence, the samples within a single block capture is continuous
74 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
from one packet to the other, but not necessary between successive block capture commands issued.
In streaming mode, the number of samples per packet (:TRACe:SPPacket) must be set to determine the size of each packet coming back. The samples from one packet to another will be continuous until the sample loss indicator (aka overflow indicator) is detected within the trailer of the data packet. When this indicator is high in the current VRT packet, it indicates that data overflow occurs after the current captured packet, not within the packet. In other words, the samples of the immediate packet following after the current packet that has the sample loss indicator bit high are not continuous from those of the current packet.
Note: The :DECimation command can be used to slow down the capture rate, thus, effectively lowers the rate of discontinuity between packets to provide contiguous data stream of data.
The R5700 can stored up to 32 MSa of ZIF or 64 MSa of SH continuous data.

:TRACe:BLOCk:DATA?

This command will start the single block capture and the return of all trace packets set by
:TRACe:BLOCk:PACKets command, with each packet of the size set through :TRACe:SPPacket command. The data within a single block capture trace is continuous
from one packet to the other, but not necessary between successive block capture commands issued.
Syntax :TRACe:BLOCk:DATA?
Parameter None
Response Control port 37001: empty string
Data port 37000: <NRr>
Output Data Type Hexadecimal bytes
*RST State N/A
Examples
:TRACE:BLOCK:DATA?
Note: The status of the query will be return through the control port 37001 as usual, however the data will be returned through the data port 37000. Once the :TRACe:BLOCk:DATA? command is issued, a block of SPP * PACKets of data will be returned. In other words, :TRACe:BLOCk:DATA? needs to be sent only once to get SPP * PACKets block of data.
The returned data in each VRT packet is presented in continuous hexadecimal chunk, as shown here:
Response <NRr> ::= <VRT header bytes>{<data payload bytes>}
[<4 bytes VRT trailer>]
Further description on the VRT data output formats can be found in the VRT's IF Data
Packet Class section, page 36.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 75
SCPI Command Set

:TRACe:BLOCk:PACKets

This command sets or queries the total number of packets set in the RTSA. The maximum is limited by the storage capacity of a R5700 and the samples per packet (SPP) size set through :TRACe:SPPacket. Therefore, when :TRACe:BLOCk:PACKets? MAX query command is sent, the returned value will vary depending on the SPP value of an RTSA and the data output format. For example, the R5700 has 128 MBytes storage capacity, if SPP is 32768 with I14Q14 output format, then the maximum packet size is 1023 (or 128 MB / (4 bytes-per-sample * (32768 + 6))). If I14 is the output format, then the maximum is 2047 (or 128 MB * / (2 bytes-per-sample * (32768 + 6))).
In single block capture mode, this command is used in conjunction with the
:TRACe:SPPacket command to set the total number of samples to capture. In other
words, the data from one packet to the next within a single block capture mode is continuous.
Syntax :TRACe:BLOCk:PACKets <integer>
:TRACe:BLOCk:PACKets? [MAX | MIN]
Parameter <input packet value>
[MAX | MIN] for query1 – (RTSA's max storage storage capacity ÷ (# bytes-per-sample * (SPP value + 6 Header and trailer words)))
Input Data Type Integer | Character
Allowable Values 1 – (RTSA's max storage storage capacity ÷ (# bytes-per-sample *
(SPP value + 6 Header and trailer words)))
Query Response <integer>
*RST State 1
Examples
:TRACE:BLOC:PACK 100 :TRACE:BLOCK:PACK?

:TRACe:SPPacket

This command sets or queries the number of Samples Per Packet (SPPacket). In block capture mode, it is used in conjunction with the :TRACe:BLOCk:PACKets command to set the total number of (continuous and contiguous) samples to capture.
The upper bound of the SPP is limited by the VRT's 16-bit Packet Size field less the VRT's headers and any optional fields (see IF Data Packet Class for more details). The 16-bit Packet Size defines the total number of 32-bit words in each packet, not samples which could have different bits per sample. However, the total samples must be a multiple of 32 due to the use of burst transfer method of the capture engine. The maximum SPP is, therefore, simplified to 65504 or (216 – 32) for all data format.
The lower bound of the SPP is limited by the capture engine's minimal transfer requirement of 256 samples. Table 43 summarizes the SPP boundary sizes and the required multiple values for different data output format.
76 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
Table 43: Max, Min, and Required Multiples for SPP and Samples-per-word for Different Data Output Format
Format Samples-per-word Min SPP Size Max SPP Size Required Multiples
{I14Q14} 1
256 65504 32{I14} 2
{I24} 1
Syntax :TRACe:SPPacket <integer>
:TRACe:SPPacket? [MAX | MIN]
Parameter <integer>
[MAX | MIN] for query
Input Data Type Integer | Character
Allowable Values 256 – 65504, must be a multiple of 32
Query Response <integer>
*RST State 1024
Examples
:TRACE:SPP 4096 :TRAC:SPP?

:TRACe:STReam:STARt

This command begins the execution of the real time stream capture. It will also initiate data capturing. Data packets will be streamed (or pushed) from the R5700 whenever data is available.
Through the sending of a VRT Extension Context Packet carrying the ID value, the use of an ID in this command is to indicate the beginning of new data packets belonging to a new stream start. Even though the start ID value is optional, a VRT Extension Context Packet with the New Stream Start ID (page 36) value will always be sent out after this command is received and before data packets of the new stream become available. When no ID value is provided, the default ID value 0 is returned in the Context Packet.
Note: Once :TRACe:STReam:STARt is issued, the RTSA will not accept any setting changes. Changes can be sent after :TRACe:STReam:STOP command is issued.
Syntax :TRACe:STReam:STARt [ID]
Parameter <Stream ID value>
Input Data Type Unsigned 32-bit integer
Response None
*RST State 0 (Stream stopped)
Examples
:TRAC:STREAM:START 1 :TRACE:STR:START
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 77
SCPI Command Set

:TRACe:STReam:STOP

This command stops the stream capture. After receiving the command, the RTSA system will stop when the current capturing VRT packet is completed with the required samples (as opposed to :SYSTem:ABORt).
Note: After this command is issued, :SYSTem:FLUSh command should be issued as well as to clear up any data remained in the internal memory.
Parameter/Response None

SWEep Commands

Note: Currently, only one single sweep list is supported. Thus, some description on list
in this section might not apply. For example, the string identifier is not needed yet, neither is list editing as there is only one list. The entries, however, can be configured as described.
Syntax :TRACe:STReam:STOP
*RST State N/A (Stream stopped)
Examples
:TRACE:STREAM:STOP :TRAC:STREAM:STOP
A sweep control setup consists of defining one or more sweep lists and one or more entries for each list. The sweep execution is controlled by issuing the commands (such as start, stop or resume) listed under :LIST.
A sweep list can be thought of as being similar to a spreadsheet or table where the columns define the different specific capture engine configurations (such as :ATTenuator, :FREQuency and :DECimation), and the rows as sweep entries with each consisting of a sweep frequency or range and its associated capture engine configurations.
A :SWEep:LIST is created and identified using a unique string identifier set by the user. A list may be edited, deleted and/or executed using the :SWEep:LIST command set. Each list is executed indefinitely or a finite number of time as determined by the :ITERations command.
More information will be provided in the future revision of this document for multiple lists handling.
The :SWEep:ENTRy commands provide the ability to define the capture engine configurations for each sweep entry including the equivalent of :INPut, :SENSe and :TRIGger commands. There may be any number of entries in a sweep list for up to 500. Sweep entries are identified by an index number and may be inserted, edited and/or deleted like rows in a table or spreadsheet. A sweep entry is created by using either :NEW or :COPY and :SAVE command. The entry will not be part of a list until :SAVE is issued.
If trigger is defined for an entry, captured data is returned only if a trigger event occurred. Otherwise, when the :DWEll time is reached, the trigger is aborted and the next sweep entry will be executed.
78 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set
During sweeping, the RTSA internal buffer might become full, at which point the sweep engine will pause. The engine will resume sweeping once the buffer is freed up.
The engine will stop when the iterations have been reached or either a :SYSTem:ABORt or :SWEep:LIST:STOP command has been issued.
Notes:
- Unlike with [:SENSe]:FREQuency:CENTer, the center frequency command of a sweep entry can take a frequency range and the step size as the parameters.
- Unlike :TRACe:BLOCk capture, sweep mode data packets, whether VRT context or digitized data, are “streamed” (similar to :TRACe:STReam). As soon as
:SWEep:LIST:STARt command is issued, this will initiate also the data capturing and
data packets will be “pushed” from the R5700 when available.
- When sweep is stopped, the RTSA will retain the settings of the last performed sweep entry when :STOP command is received and executed. Any non-sweep commands can then be operated on the RTSA. When the :SWEep is resumed (:STARt), the settings as per the sweep entries are executed.
- When the RTSA is sweeping, any non-sweep commands sent will resulted in an error and are not executed. The sweep will not be affected and keep on running. However, sweep related settings can still be changed while sweep is running.

:SWEep:LIST:ITERations

This command sets or queries the number of times the sweep list is repeated.
Syntax :SWEep:LIST:ITERations <integer>
:SWEep:LIST:ITERations?
Parameter <integer>
Allowable Values 0 – 4294967295 (or 2
0 := infinity
Query Response <integer>
I/O Data Type Integer
*RST State 0
Examples
:SWEEP:LIST:ITER 10
32
-1)
:SWE:LIST:ITER?

:SWEep:LIST:STARt

This command begins the execution of the current sweep list from the first entry.
This command will also initiate data capturing. Data packets will be streamed (or pushed) from the R5700 whenever it is available.
Through the sending of a VRT Extension Context Packet carrying the ID value, the use of an ID in this command is to indicate the beginning of new data packets belonging to a new sweep start. Even though the start ID value is optional, a VRT Extension Context Packet with the New Sweep Start ID (page 36) value will always be sent out after this
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 79
SCPI Command Set
command is received and before data packets of the new sweep become available. When no ID value is provided, the default ID value 0 is returned in the Context Packet.

:SWEep:LIST:STATus?

This query returns the current status of the sweep engine.
Syntax :SWEep:LIST:STARt [ID]
Parameter <List ID>
Input Data Type Unsigned 32-bit integer
Response None
*RST State 0 (Sweep stopped)
Examples
:SWEEP:LIST:STAR :SWE:LIST:START
Syntax :SWEep:LIST:STATus?
Parameter None
Query Response RUNNING | STOPPED
Output Data Type Character
*RST State STOPPED
Examples
:SWEEP:LIST:STATUS? :SWE:LIST:STAT?

:SWEep:LIST:STOP

This command stops the sweeping and stores the entry index where it is stopped. The RTSA retains the settings of the last performed sweep entry when :STOP command is executed.
Syntax :SWEep:LIST:STOP
Parameter/Response None
*RST State N/A (Sweep stopped)
Examples
:SWEEP:LIST:STOP :SWE:LIST:STOP
Note: This command should be issued to clear the R5700's data buffer of any data that has not been sent from the R5700 prior to setting up the next capturing process.

:SWEep:ENTRy:COPY

This commands will copy and populate all the capture engine configurations under :SWEep:ENTRy with values from the sweep entry of the specified index. No new entry is created until :SWEep:ENTRy:SAVE command is issued and any changes will not affect the existing entry.
80 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Syntax :SWEep:ENTRy:COPY <integer>
Parameter <Sweep entry integer index>
Input Data Type Unsigned integer
Allowable Values If :COUNt? returns non-zero, 1 to :COUNt? value
If :COUNt? returns zero, an execution error is returned
Query Response None
*RST State N/A
Examples
:SWEEP:ENTR:COPY :SWE:ENTRY:COPY

:SWEep:ENTRy:COUNt?

This query command returns the number of entries available in a list.
Syntax :SWEep:ENTRy:COUNt?
Parameter None
Query Response <integer>
Output Data Type Integer
*RST State N/A
Examples
:SWEEP:ENTR:COUNT?
SCPI Command Set

:SWEep:ENTRy:DELETE

This commands delete one or all the entries. When an entry is deleted, the following indexes if existed will be reduced by one accordingly, just as rows in a spreadsheet.
Syntax :SWEep:ENTRy:DELETE <integer> | ALL
Parameter <Entry index value> | ALL
Input Data Type Integer | Character
Allowable Values 1 to COUNt? value
*RST State N/A
Examples
:SWEEP:ENTR:DELETE 5 :SWE:ENTR:DELETE ALL

:SWEep:ENTRy:NEW

This commands will populate all the capture engine configurations under :SWEep:ENTRy with default values. No new entry is created until :SWEep:ENTRy:SAVE command is issued.
Syntax :SWEep:ENTRy:NEW
Parameter/Response None
*RST State N/A
Examples
:SWEEP:ENTRY:NEW
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 81
SCPI Command Set

:SWEep:ENTRy:READ?

This query command returns the current configuration settings of a sweep entry.

:SWEep:ENTRy:SAVE

Syntax :SWEep:ENTRy:READ? <integer>
Parameter [Entry index value]
Input Data Type Integer
Allowable Values 1 to COUNt? value
Query Response <integer>,<{ingeger | char}>
:== <RFE mode>,<freq start>,<freq stop>,<freq step>,<freq shift>, <decimation>, <attenuator>,<IF gain>,<HDR gain>, <SPPacket>,<packets>,<dwell:second>,<dwell:microsecond>, <trigger type: NONE | PULSe | WORD | <LEVel,freq start,freq stop, amplitude> | PPS>
Output Data Type Comma separated integer and character values
*RST State N/A
Examples
:SWEEP:ENTR:READ? 5 :SWE:ENTR:READ? 1
This command saves a new entry into the current editing list with all the current capture engine configurations under :SWEep:ENTRy. The saving is done by inserting either the new entry before the specified index value or to the end of the list when no index value is given.
When saved, a new entry is given an index value. Index value starts from 1. When an index value is specified along with the :SAVE command, the new entry will take the index of that value and all other following indexes will be incremented by one accordingly, just as rows in a spreadsheet. Otherwise, the new index will be one up from the index of the last sweep entry in the list.
When there are no existing entries and an index value other than 1 is specified, an error will be returned. Similarly for non-existing index location except if the index value is equal to the value returned by :SWEep:ENTRy:COUNt? plus one.
Syntax :SWEep:ENTRy:SAVE [integer]
Parameter [Entry index value]
Input Data Type Integer
Allowable Values :COUNt? value + 1
*RST State N/A
Examples
:SWEEP:ENTR:SAVE :SWE:ENTR:SAVE 5

:SWEep:ENTRy:ATTenuator

Refers to the :INPut:ATTenuator section (page 63) for the definition of this command.
Examples
:SWEEP:ENTRY:ATTENUATOR 20 :SWEEP:ENTR:ATT?
82 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:SWEep:ENTRy:ATTenuator:VARiable

Refers to the :INPut:ATTenuator:VARiable section (page 63) for the definition of this command.
Examples
:SWEEP:ENTRY:ATT:VAR 10 :SWEEP:ENTR:ATT:VAR?

:SWEep:ENTRy:DECimation

Refers to the [:SENSe]:DECimation section (page 67) for the definition of this command.
Examples
:SWEEP:ENTR:DEC 16 :SWEEP:ENTRY:DEC?

:SWEep:ENTRy:FREQuency:CENTer

This command or query defines the center frequency or a range of center frequencies to sweep. When a range is provided, the sweep will step through the center frequencies with the value provided by :SWEep:ENTRy:FREQuency:STEP.
Syntax :SWEep:ENTRy:FREQuency:CENTer <NRf [unit]>[,<NRf [unit]>]
:SWEep:ENTRy:FREQuency:CENTer?
Parameter <start freq [unit]>[,<stop freq [unit]>]
Input Data Type Double [character] | Comma separated doubles [character]
Allowable Values Varies depending on the product model
Query Response <integer>,<integer>
Default I/O Units Hz
*RST State 2400000000,2480000000
Examples
:SWEEP:ENTRY:FREQ:CENT 0,10 GHZ :SWE:ENTRY:FREQ:CENT 2400 MHZ,6 GHZ :SWE:ENTR:FREQ:CENT 2400000000 :SWEEP:ENTRY:FREQ:CENTER?

:SWEep:ENTRy:FREQuency:STEP

This command or query defines the frequency step size for the sweep center frequency range specified by :SWEep:ENTRy:FREQuency:CENTer command. If a range is not given, the step size is ignored.
Syntax :SWEep:ENTRy:FREQuency:STEP <NRf [unit]>
:SWEep:ENTRy:FREQuency:STEP?
Parameter <freq [unit]>
Input Data Type Double [character]
Allowable Values 0 – Maximum frequency of the R5700 model used
Query Response <integer>
Default I/O Units Hz
*RST State 100000000
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 83
SCPI Command Set
Examples
:SWEEP:ENTRY:FREQ:STEP 10.5 MHZ :SWE:ENTRY:FREQ:STEP 4000 KHZ :SWEEP:ENTR:FREQ:STEP 10000000 :SWEEP:ENTR:FREQ:STEP?

:SWEep:ENTRy:FREQuency:SHIFt

Refers to the [:SENSe]:FREQuency:SHIFt section (page 70) for the definition of this command.
Examples
:SWEEP:ENTR:FREQ:SHIFT 25 MHZ :SWEEP:ENTRY:FREQ:SHIF?

:SWEep:ENTRy:GAIN:HDR

Refers to the :INPut:GAIN:HDR section (page 65) for the definition of this command.
Examples
:SWEEP:ENTR:GAIN:HDR -10 :SWEEP:ENTRY:GAIN:HDR?

:SWEep:ENTRy:MODE

Refers to the :INPut:MODE section (page 65) for the definition of this command.
Examples
:SWEEP:ENTRY:MODE ZIF :SWE:ENTR:MODE?

:SWEep:ENTRy:DWELl

This command or query defines the maximum amount of time to wait for the trigger of a sweep entry to occur, after which the trigger is aborted and the next sweep entry, if existed, will run. However, when the required amount of data has been captured before the dwell time has been reached, the sweep engine will move onto the next entry.
Note that, the default dwell time is 0 second, 0 microsecond. This is equivalent to an infinite dwell time. In this case, the sweep engine will move on as soon as the current data capture amount has been met (as explained in the previous paragraph).
When the trigger type is NONE, dwell time is ignored.
Syntax :SWEep:ENTRy:DWELl <integer>[,<integer>]
:SWEep:ENTRy:DWELl?
Parameter <second>[,<microsecond>]
Allowable Values 0 – 4294967295 (or 232 – 1)
0,0 := infinity
Query Response <integer>,<integer>
I/O Data Type Integer | Comma separated integers
*RST State 0,0 (infinite dwell time)
Examples
:SWEEP:ENTR:DWEL 5,30 :SWEEP:ENTR:DWELL 2 :SWEEP:ENTR:DWELL?
84 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
SCPI Command Set

:SWEep:ENTRy:PPBlock

This command (where PPBlock is defined as Packets per block) has the same functionality as the :TRACe:BLOCk:PACKets command since at each sweep frequency step of an entry, a block of data can be captured.
Refers to the :TRACe:BLOCk:PACKets section (page 76) for the definition of this command.
Examples
:SWEEP:ENTR:PPB 10 :SWEEP:ENTRY:PPB?

:SWEep:ENTRy:SPPacket

Refers to the :TRACe:SPPacket section (page 76) for the definition of this command.
Examples
:SWEEP:ENTR:SPP 16384 :SWEEP:ENTRY:SPP?

:SWEep:ENTRy:TRIGger:LEVel

Refers to the :TRIGger:LEVel section (page 73) for the definition of this command.
Examples
:SWEEP:ENTR:TRIG:LEV 2400 MHZ,2900 MHZ,-60 :SWEEP:ENTRY:TRIGGER:LEVEL?

:SWEep:ENTRy:TRIGger:TYPE

Refers to the :TRIGger:TYPE section (page 73) for the definition of this command.
Note: For PPS (as well as PULSE) trigger type, it is important that the total data capture size should take into account this PPS (or pulse range) time frame, the sweep step tuning time, and the decimation rate. For safe measure, it should be less than 500 ms for PPS type. A large capture size could cause missing the pulse.
Examples
:SWEEP:ENTR:TRIG:TYPE LEVEL :SWEEP:ENTRY:TRIG:TYPE?
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 85

Appendix A: Connecting to RTSA

Network
Remote Host
<IP>:37000
<IP>:37001
RTSA
<IP>:37000
<IP>:37001
RTSA
<IP>:37000
<IP>:37001
SCPI
SCPI
SCPI
VRT pkts
VRT pkts
VRT pkts
Appendix A: Connecting to RTSA
ThinkRF RTSA supports two different methods of device connection, which will be explained in the following sections.
Caution pertaining to multi-users:
ThinkRF RTSA allows multiple applications to connect to a unit simultaneously or concurrently, however, each connection method to be mentioned in this Appendix will behave differently.
Simple 2-port TCP/IP Connection method does not support independent sessions.
Therefore, the actions of one user may over-write those of another. If multiple applications are connecting to the unit, it is advised that only one of those is controlling the unit at any time.
Connection Using HiSLIP method, on the other hand, provides both exclusive and share
locks. Refers to “Locking Mechanism” section of the IVI HiSLIP document for more information. However, the HiSLIP locking mechanism is only effective when all simultaneous connections are of HiSLIP type. If any other connection methods are used, HiSLIP locking mechanism does not apply and the same caution mentioned above applied.

Simple 2-port TCP/IP Connection

Note: We recommend using the HiSLIP connection method described in the next section
as the standard HiSLIP method provides many features not available with this simple connection, particularly lock handling during multi-user access.
ThinkRF RTSAs are network ready devices conveying control commands and data using TCP/IP protocol. Each RTSA receives SCPI commands and sends query responds over port 37001, and sends VRT context and data packets over port 37000, as illustrated in Figure 14.
Figure 14: 2-port TCP/IP connection to RTSA
86 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
An RTSA, when powered up, will have a dynamic or preassigned static IP address, which when bind with a port will form a network socket. To successfully establish a connection to an RTSA, both <IP>:37000 and <IP>:37001 sockets must be created one right after the other. The order is not important.
In addition, refer to the “Connecting to the R5700” of the R5700 User Guide (v4.0 or higher) for more information on how to connect to R5700 and to determine its IP address.

Connection Using HiSLIP

Note: The HiSLIP connection method is highly recommended over the other connection
methods given its many beneficial features as listed below that the others lack.
High-Speed LAN Instrument Protocol (HiSLIP) is an industry standard developed by the Interchangeable Virtual Instruments (IVI) Foundation (www.ivifoundation.org). It is designed as a modern emulation of the IEEE-488 instrumentation bus standard and provides more sophisticated capabilities to instruments, including:
instrument locking (shared and exclusive locks),
service request from the instrument,
multiple sessions, even from the same client.
Appendix A: Connecting to RTSA
Refer to the HiSLIP documentation, IVI-6.1 (www.ivifoundation.org/specifications/default.aspx), for further details.
ThinkRF RTSA acts as a HiSLIP server, listening on a TCP port 4880. Two TCP connections to the same port are established in a single HiSLIP connection using the initialization sequence described in the standard. The two connections are linked together with a common Session ID, with one connection serves as a synchronous channel and the other an asynchronous channel.
The synchronous channel primarily carries the command-response SCPI channel and all communication is controlled from the client (controller). The asynchronous channel is truly bidirectional, allowing either the client (controller) or the server (instrument) to signal each other at any time. This capability avoids unnecessary polling, allowing event driven applications to be developed.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 87
Appendix A: Connecting to RTSA
Network
Remote Host
<IP>:4880
<IP>:4880
R5500
<IP>:4880
<IP>:4880
HiSLIP
HiSLIP
HiSLIP
SCPI
SCPI
Async Channel
Async Channel
HiSLIP
HiSLIP
R5500
<IP>:4880
<IP>:4880
SCPI
Async Channel
HiSLIP
Data (VRT) Channel
<IP>:4881
<IP>:4881
<IP>:4881
Data (VRT) Channel
Data (VRT) Channel
HiSLIP port 4880 only addresses the control channel of the R5700, similar to the role that TCP socket 37001 plays in the 2-port TCP/IP connection mentioned in the previous section. A third TCP connection at port 4881 to RTSA is required to carry the VRT data stream. The Session ID used to associate the synchronous and asynchronous channels during connection establishment is also used outside of HiSLIP to further associate the data channel to the HiSLIP connection.
Figure 15: HiSLIP and TCP connections to RTSA
The following steps summarize how a VRT stream connection is associated with a HiSLIP connection:
1. The host establishes a HiSLIP connection with the instrument on port 4880.
2. The host establishes a TCP connection with the instrument on port 4881.
3. The host queries the HiSLIP connection's Session ID via SCPI using the
:SYSTem:COMMunicate:HISLip:SESSion? command.
4. The host sends a message to the instrument with the HiSLIP Session ID. This method is similar to how HiSLIP associates the asynchronous channel to the synchronous channel.
5. The instrument searches the Session ID among its established connections. The instruments acknowledges the association if the Session ID is found.
The message sent over the data connection is derived from HiSLIP. For reference, the following table describes the HiSLIP message format. All values are in network order (big-endian).
Table 44: HiSLIP Message Header Format
Field Octets Field Offset
Prologue (ASCII “HS”) 2 0
Message Type 1 2 Control Code 1 3
Message Parameter 4 4 Payload Length 8 8
Data (optional) Payload Length 16
88 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Appendix A: Connecting to RTSA
This message pair used to establish the data channel is modeled after the HiSLIP AsyncInitialize and AsyncInitializeResponse messages used to establish the asynchronous channel on port 4880.
Table 45: ThinkRF Vendor Specific Message Type Value Definitions
Designation Channel Numerical Value
ThinkRFDataInitialize Data 128
ThinkRFDataInitializeResponse Data 129
Table 46: ThinkRF Data Channel Initialization Transaction
Step Initiator Message Content Action
1 Client Opens the data TCP connection Client does an active TCP open on
port 4881.
2 Client <ThinkRFDataInitialize><0>
<SessionID><0>
3 Server <ThinkRFDataInitializeResponse>
<0><SessionID><0> (successful)
3 Server <ThinkRFDataInitializeResponse>
<0><0x80000000><0> (unsuccessful)
4 Once the transaction completes
successfully, the TCP connection is ready to transmit the VRT stream from the server to the client.
The client sends the SessionID of the HiSLIP connection to associate this data channel with it.
Server acknowledges and echoes back the Session ID.
Server did not find the Session ID. It sends back an error code (MSB = 1).
Once the data connection is associated, it is free to carry the VRT stream.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 89

Appendix B: Protocols for Discovering RTSA

Appendix B: Protocols for Discovering RTSA
This section explains the two different protocols for discovering any RTSA devices available on the same local network as the host computer(s). These protocols cannot be used to find any RTSAs on a different network.

Discovery Using mDNS/DNS-SD

The LAN eXtensions for Instrumentation (LXI) Consortium (www.lxistandard.org) has standardized the use of multicast DNS (mDNS) and DNS-based service discovery (DNS­SD) protocols as the discovery protocols for network-connected instruments. These protocols, commonly referred to as Zero Configuration Networking or Zeroconf, were originally developed by Apple Computer for discovering local network services such as printers but have been expanded to support any network service.
Conforming with the industry standard, R5700 supports device discovery using the mDNS/DNS-SD protocols. Industry standard tools and applications supporting these protocols are now able to discover the R5700 with the said firmware version. Refer to the following resources for more information about mDNS/DNS-SD protocols:
http://www.lxistandard.org/Specifications/Specifications.aspx
https://tools.ietf.org/html/rfc6762 for mDNS
https://tools.ietf.org/html/rfc6763 for DNS-SD

Discovery Using Broadcast UDP

ThinkRF also provides a simple broadcast UDP protocol for discovering RTSA devices. The remote host computer would first send out a UDP message of broadcast type to port
18331. The message contains a query request code followed by query discovery version in big-endian order as follows:

where each field is:
Name Data Type Length Required Value


The discovery version is used to determine how to parse the response message. Note that the <> bracket is for clarity of the explanation purpose only, not to be included in the message.
An RTSA with the discovery version 2 would respond with the following data:
32-bit unsigned integer 1 0x93315555
32-bit unsigned integer 1 2

where each field is:
90 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Appendix B: Protocols for Discovering RTSA
Name Data Type Length Response Value





The IP address of an RTSA can be retrieved from the responding socket. The RTSA may be identified by matching the serial number (S/N) in the response message with the S/N on the label of the RTSA.
32-bit unsigned integer 1 0x93316666
32-bit unsigned integer 1 2
ASCII character, nul-padded 16 RXXXX-XXX
(ex: R5700-427)
ASCII character, nul-padded 16 XXXXXX-XXX
(ex: 120600-020)
ASCII character, nul-padded 20 vX.X.X
(ex: v1.0.0)
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 91

Appendix C: SCPI Command Syntax

:SENSE:FREQ:CENTER 2441500000 Hz
Root node Level 1 Level 2 Single space separator Parameter Single space separator Optional unit
Appendix C: SCPI Command Syntax
Each SCPI command consists of a root node, one or more lower level nodes, follow by applicable parameters and separators:

Entering Commands

SCPI commands have both a long and short version, such as :SOURCE and :SOUR. The SCPI interface responds to either version, but will not respond to variations of either version. The interface does not differentiate between upper-case and lower-case letters but only the long or short form of a command.
An example correct and incorrect SCPI entry format for :SOURce command:
Command Entry
Correct Entry :SOURCE :SOURce :source
:SOUR :sour
Incorrect Entry :SOU :SOURC
:sourc
Note: At the end of each SCPI command string, whether a single command or multiple commands separated by semicolons “;”, a new line-feed or carriage return is required. Example in C: “:FREQ:CENTER 2400 MHZ\n” or “FREQ:CENT 2400 MHZ;INP:ATT 0\n”.
92 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

Notation

Notation Description
: Links command keywords together ; Separates multiple commands entered together on a single
single space Uses to separate a parameter from a command or unit from a
, Uses to separate multiples parameters of a command [] Uses to optionally enclose zero or more parameters {.} or {.}* The enclosed item maybe included zero or more times {.}+ The enclosed items occurs one or more times {.|.|.} One and only one of the two or more enclosed items separated
<> Uses to enclose required parameter descriptions ? Indicates query command, use where applicable | Indicates “or” and is used to separate alternative parameter
::= Means “is defined as”

Parameter types

Appendix C: SCPI Command Syntax
program message
parameter
by | maybe included
options
This section defines different SCPI parameter data type.
<boolean> ON | OFF | 1 | 0
<integer> <int> <NR1> Signed integer without a decimal point (implied radix point)
<NR2> Signed number with an explicit radix point
<NR3> Scaled explicit decimal point numeric value with and an exponent
<NRf> <NR1>|<NR2>|<NR3> <NRr> Non-decimal numeric value such as hexadecimal, octal or binary <char> <character> <string> ASCII string surrounded by single or double quotes

Default Units

frequency Hz time s or ns where applicable voltage V absolute amplitude dBm relative amplitude dB
Parameter Type Description
Boolean parameters are always returned as 1 or 0 in NR1 format by query commands Unsigned integer of NR1 format Ex: 1 or 3432
Ex: -25 or 0
Ex: -1.234 or 1.0 or 0.0
Ex: 2.73e+2 or 2.351e2
Character program data Ex: MAXimum or MEDium
Ex: “This is an example”
Parameter Default Unit
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 93
Appendix C: SCPI Command Syntax
Units other than the default may be specified. If units are not specified then the default units apply. Note the following examples, which are all equivalent.
Example
is equivalent to
is equivalent to
is equivalent to
is equivalent to
:FREQ:CENTer 2441.5 MHz
:FREQ:CENTer 2441500000
:FREQ:CENTer 2441500000 Hz
:FREQ:CENTer 2441500 kHz
:FREQ:CENTer 2441.5e6
94 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

Appendix D: SCPI Status and Event Registers

Appendix D: SCPI Status and Event Registers
The RTSA's SCPI interface has a status and event reporting system that enables the user to handle device events. The interface conforms to IEEE Std 488.2-1987 and SCPI
1999.0. This section discusses these status registers, status register enable masks, event queues and event handling.

Status Byte Register (SBR)

The SBR is used to determine the specific nature of the event or condition. It is read by issuing a *STB? command. The contents of the SBR are clear by issuing either a *STB? or *CLS command.
Bit Name Description
0 not used This bit is not used and always 0.
1 not used This bit is not used and always 0.
2 Error / Event Available
(EAV)
3 Questionable Register
Summary
4 Message Available (MAV) This bit is set if there is any unread data in the Output
5 Standard Event Status Bit
(ESB)
6 Master Summary Status This bit is set when any of the other bits are set.
7 Operation Register
Summary
This bit is set if there are any unread error or event in the System Error queue. It is read using the
:SYSTem:ERRor[:NEXT]? command.
Summary of the Questionable Status register
queue.
This bit is set if there is any unread or non-cleared data in the Standard Event Status register.
Summary of the Operation Status register

Standard Event Status Register (ESR)

The ESR is used to determine the nature of the status and error conditions. It is read by issuing a *ESR? command. The contents of the ESR are cleared by issuing either a
*ESR? or *CLS command.
Bits in the ESR will cause a Service Request only when the corresponding bits in the Standard Events Status Enable Register are set.
Bit Name Description
0 Operation Complete
(OPC)
1 Request Control (RQC) This bit is not used and always 0.
2 Query Error (QYE) Set to indicate that a query has been made for which
95 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
Set to indicate that all pending operations are complete and R5500 is ready to accept another command, or that query results are available.
no response is available. Query errors have SCPI error codes from -499 to
-400.
Bit Name Description
3 Device Dependent Error
(DDE)
4 Execution Error (E) Set to indicate that a parameter exceeds its allowed
5 Command Error (CME) Set to indicate that a command error has occurred.
6 not used This bit is always 0.
7 Power ON (PON) Set once upon power-up.

Operational Status Register (OSR)

The OSR is a 16-bit register that is used to determine the state of operation. It is read by issuing a :STATus:QUEStionable[:EVENt]? command.
Bit Name Description
0 CALibrating This bit is currently not used and always 0.
1 SETTling This bit is set when the device is tuning or is
2 RANGing This bit is currently not used and always 0.
3 SWEeping This bit is currently not used and always 0.
4 MEASuring This bit is currently not used and always 0.
5 Waiting for TRIG This bit indicates that the device is armed and waiting
6 Waiting for ARM This bit indicates that the device is configured for
7 CORRecting This bit is currently not used and always 0.
8 Data Available This bit indicates that new data is available to be
9-12 not used These bits are not used and always 0.
13 INSTrument summary This bit is currently not used and always 0.
14 PROGram running This bit is currently not used and always 0.
15 not used This bit is not used and always 0.
Appendix D: SCPI Status and Event Registers
Set to indicate that a device-dependent error has occurred. Device-dependent errors have SCPI error codes from
-399 to -300.
range. Execution errors have SCPI error codes from -299 to -200.
Command errors have SCPI error codes from -199 to -100.
otherwise not yet ready to capture data.
for a trigger event.
triggering but has not been armed.
read. Note that this bit may toggle momentarily so transition detection should be used.

Questionable Status Register (QSR)

The QSR is a 16-bit register that is used to indicate conditions that may cause the measurement results to be of questionable quality. It is read by issuing a
:STATus:QUEStionable[:EVENt]? command.
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 96
Appendix D: SCPI Status and Event Registers
Bit Name Description
0 VOLTage This bit is currently not used and always 0.
1 CURRent This bit is currently not used and always 0.
2 TIME This bit is currently not used and always 0.
3 POWer This bit is currently not used and always 0.
4 TEMPerature This bit is currently not used and always 0.
5 FREQuency This bit is currently not used and always 0.
6 PHASe This bit is currently not used and always 0.
7 MODulation This bit is currently not used and always 0.
8 CALibration This bit is currently not used and always 0.
9 POSition This bit is used by GNSS-equipped RTSA products to
10-12
not used
13 INSTrument summary This bit is currently not used and always 0.
14 Command Warning This bit is currently not used and always 0.
15 not used This bit is not used and always 0.

Output Queue

indicate GNSS out-of-lock.
These bits are not used and always 0.
The R5700 has an Output FIFO Queue that is structured as a FIFO and holds the response messages to queries. The SBR's MAV bit is set when there are messages in the queue. The unread results of a previous command are cleared from the queue when a new command or query is received.

Error and Event Queue

The R5700 has an Error and Event FIFO Queue that holds up to 16 errors and events. It is queried using the :SYSTem:ERRor[:NEXT]? command. The *CLS command clears all entries from the queue.
97 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

Appendix E: SCPI Error Codes Used

Appendix E: SCPI Error Codes Used
Code Message Description
0 No error
Command error, range [-199, -100]
-144 Character data too long The character data contained more than 12 characters.
-171 Invalid expression The command syntax was incorrect.
Execution error, range [-299, -200]
-200 Execution error A generic execution error for which more specific information is not available.
-210 Trigger error
-220 No matched module The specific operation is not installed.
-221 Settings conflict Indicates that a legal program data element was parsed but could not be executed due to the current device state
-222 Data out of range A parameter was of the proper type but outside of the defined range for the specific command.
-223 Too much data A parameter was received that contained more data than the device could handle.
-224 Illegal parameter value A parameter was received that is NOT allowed for the particular command.
-230 Data corrupt or stale Possibly invalid data; new reading started but not completed since last access.
-240 Hardware error Indicates that a legal program command or query could not be executed because of a hardware problem in the device.
-241 Hardware missing Indicates that a legal program command or query could not be executed because of missing device hardware. For example, an option is not installed.
Device specific error, range [-399, -300]
-310 System error
-321 Out of memory An internal operation needed more memory than that was available.
-330 Self test failed
-340 Calibration failed
-350 Query overflow The SCPI remote interface error queue overflowed.
Query error, range [-499, -400]
-410 Query INTERRUPTED A condition causing an INTERRUPTED query error occurred.
ThinkRF's RTSA Specific, range [-999, -900]
-901 No data Read trace command issued while there is no data available.
-911 Need firmware upgrade The current firmware needs upgrading.
-912 Invalid option license The option could not be installed because of invalid license.
98 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide

Appendix F: SCPI Commands Quick Reference

Appendix F: SCPI Commands Quick Reference
This section summarizes the SCPI commands available for interfacing with R5700. The commands are listed alphabetically based on the main node, then sub-nodes, so on. The sub-nodes are grouped and listed alphabetically based on functionality.
See Appendix C's Notation section for details on notations used in the Parameter column.
The Release column indicates from which firmware release version that the commands are available. Grayed-out commands are not yet implemented.
Keyword Parameter Description Release
IEEE Mandated
*CLS Clear all status registers v1.0 *ESE <integer> Event Status Enable register v1.0 *ESE? Query ESE register v1.0 *ESR? Query Event Status Register v1.0 *IDN? Query device identification v1.0 *OPC Operation Complete v1.0 *OPC? Query OC v1.0 *RST Reset to factory default v1.0 *SRE <integer> Service Request Enable bits v1.0 *SRE? Query SRE register v1.0 *STB? Query Status Byte register v1.0 *TST? Query self-test status v1.0 *WAI Wait-to-Continue v1.0
:GNSS
[:Enable] ON | OFF | 1 | 0 Enables the status of the GNSS module v1.0 [:Enable]? :POSition? Queries the last known GNSS position in
:REFerence? Queries which timing reference source used to
Page 43
Page 71
degrees latitude, degrees longitude and altitude in meters
discipline the 10 MHz GNSS reference oscillator
v1.0
v1.0
:INPut
:ATTenuator 0 | 10 | 20 | 30 Set the fix attenuation for R5700-308 and -408
:ATTenuator?
:VARiable 0 | 10 | 20 | 30 Set the variable attenuation for R5700-418 and
:VARiable?
:GAIN <index> <ON | OFF | 1 | 0>
:GAIN? <index>
:HDR Set gain level for the narrow-band ADC of the
Page 63
models and their variants
-427 models and their variants
Set an input gain stage to be on or off. The index range is model dependent
HDR signal path
v1.0
v1.0
v1.0
v1.0
ThinkRF R5700 Real Time Spectrum Analyzer Programmer's Guide 99
Appendix F: SCPI Commands Quick Reference
Keyword Parameter Description Release
:HDR? [MAX | MIN]
:MODE ZIF | DD | HDR | SH | SHN Select the receiver mode of operation.
See the complete command description section for special notes.
:MODE?
v1.0
[:SENSe]
:DECimation OFF | <integer> Set the decimation rate as an exponent of 2 (i.e.
:DECimation? [MAX | MIN] :FREQuency
:CENTer <NRf [unit]> Set the center frequency of the RFE v1.0 :CENTer? [MAX | MIN] :IF? <non-zero integer> Query the IF frequencies that are used for the
:INVersion? [NRf [unit]] Query if spectral inversion is required at a given
:LOSCillator? <1 | 2 | 3> Get the frequency of the external LO 1, 2, or 3
:SHIFt <NRf [unit]> Set the frequency shift value (not available for
:SHIFt? [MAX | MIN] v1.0
:LOCK
:REFerence? Query the lock status of the PLL reference clock v1.0 :RF? Query the lock status of the RFE's RF PLL v1.0
:SOURce
:REFerence
:PLL INT | EXT | GNSS :PLL? :PPS EXT | GNSS :PPS?
Page 67
rate = 2
current input mode and center frequency
frequency
in corresponding to current the RTSA's center frequency
HDR mode)
Page 66
Select the 10MHz reference clock source
Select the PPS synchronization source
level
where level = 0, 1, 2 - 10)
v1.0
v1.0
v1.0
v1.0
v1.0
v1.0
v1.0
:STATus
:OPERation
[:EVENt]? Return the standard Operation Status Register
:CONDition? Queries the Operation Condition Register for
:ENABle <integer> Enables bits in the Operation Enable Register v1.0 :ENABle?
:NTRansition Enables bits in the Operation Negative
:NTRansition? :QTRansition Enables bits in the Operation Positive Transition
:QTRansition?
:PRESET Presets the R5700 (similar to *RST) v1.0 :QUEStionable
Page 57
v1.0
(OSR) for any event
v1.0
any operation event
v1.0
Transition Register
v1.0
Register
100 ThinkRF R5700 Real Time Spectrum Analyzer Programmer’s Guide
