Thinkrace TK109 User Manual

1

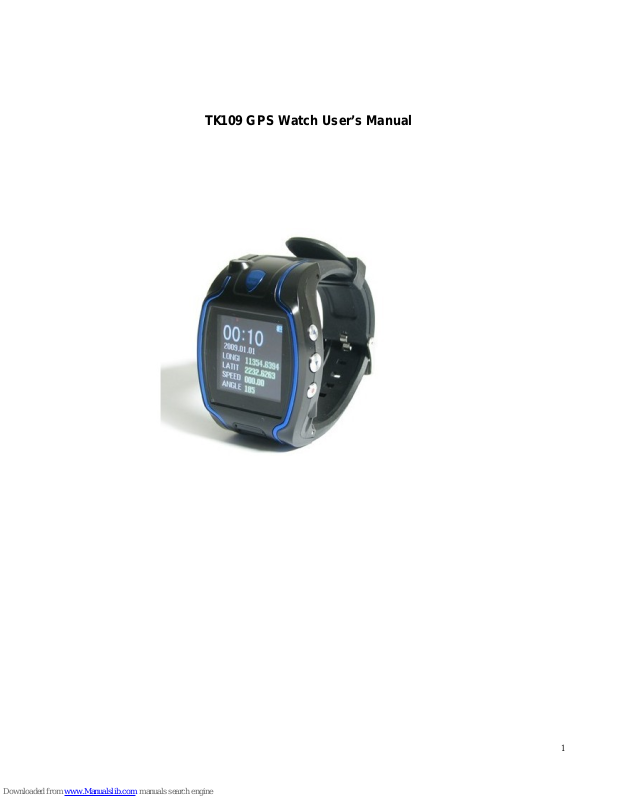

TK 109 GPS Watch User’s Manual

2

Table of Contents

Chapter I Preface………………………………………………….. ………………………………………………………..3

I．General……………………………………………………………. ……………………………………………………....3

II．Notices…………………………………………………………….. ……………………………………………………..3

Chapter II about the Device………………………………………………………………………………………………...3

1. Appearance…. ……………………………………………………………………………………………………………..3

2. Product Features……………………………………………………………………………………………………..…….4

3. Product Specification……………………………………………………………………………………………..……….5

Chapter III Usage Preparation………………………………………………………………………………..……………6

I.Accessories…………………………………………………………………………………………………..……………..6
II.Appearance and Interface………………………………………………………………………………..……………...7
III.Charge the Battery……………………………………………………………………………………..……………….8
IV.Installation of SIM Card……………………………………………………………. ……… ….. ….… ……………...8
ChapterIV Commands Corresponding to and Operation Method of Basic Functions………….……… …….8

1. Location Inquiry…………………………………………………………………………….. ….…………………….9

2. Setup of Centre Number…………………………………………………………………..………………………….9

3. Bi-directional Call Function……………………………………………………………..…………………………...9

4. Adjust Receiver Volume…………………………………………………………………..…………………………..10

5. SOS Function……………………………………………………………………………..…………………………...10

6. Monitoring Function……………………………………………………………………..…………………………...11

7. Regular Upload Interval Setup…………………………………………………………..…………………………..11

8. Function of Changing Password…………………………………………………….…..…………………………11

9. Set User Name Command……………………………………………………….. ….……………………………...12

10. Set APN Command………………………………………………………………..……. ….………………………..12

11. Set Server Address Command………………………………………………………...……………………………13

12. Low Voltage Alarming Function………………………………………………….. …. …………………………....13

13. Method to Set Time Zone………………………………………………………….…..……………………………...13

14. Electronic Fence Function…………………………………………………………………..……………………….14

15. Auxiliary Functions……… …………………………………………………………………..………………………15

Notices………………………………………………………….. ………………………………….……………………….....15

3

Chapter I Preface

I. General

TK 109 represents the perfect combination of GSM and GPS technologies. This model, with its precise dimensions
and compact appearance, expresses the advanced workmanship in the GSM and GPS field. It is a typical design
combing communication products and GPS services.

As a professional security and positioning company, we will provide you with more and better products and services.
Before using the watch, please spend several minutes reading this user’s manual in order to get to know about
operation details and obtain better services.

II. Notices

1. Please read this user’s manual carefully and always use correct operation methods to prevent any possible errors.

2. This user’s manual is for reference only. If some contents and operation steps are inconsistent with those for the
actual product, the latter will prevail.

3. The defaulted password of this product is 0000.

4

Chapter II about the Device

TK 109, as a personal remote positioning device made up of GPS module and GSM/GPRS module, is compact in
dimensions with high accuracy. On the basis of GPS satellites and under dynamic conditions, it can provide you with
accurate and correct location information. With such features, it can be used to protect and look for our old people
and children. It can also be used for safety purpose and other purposes, such as remote positioning to protect
property safety.

1 Appearance

2 Product Features

● Inbuilt GPS Module

● Internet positioning service center, used to receive and send positioning information

● GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz

● High-sensitivity, new workmanship and the most advanced GPS chip

● Can work effectively in limited space such as urban canyon

● Low energy consumption

● Fast signal acquisition

● Supports single positioning and continuous tracking;

● Supports alarming and remote monitoring

● Supports fast dial button

● Supports the location information inquiry by SMS and Internet

● May monitor without disturbing the tracked person and realizes real-time tracking;

● Can position the holder by call or SMS

● In emergency, press the SOS button to have an accurate positioning

5

3 Product Specifications

(1). Technical Specifications

GSM module GSM 850/900/1800/1900 MHz Quad frequency
GPS sensitivity -163dBm
GPS center frequency L1, 1575.42MHz
GPS positioning accuracy 5-25m
GSM positioning accuracy 100-500m
Speed accuracy 0.1 m/s
Time accuracy Synchronous with GPS
GPS Datum WGS-84
Hot start < 1s
Warm start < 38s
Max. altitude 18000m
Max. speed 515m/s
Gravitational acceleration

﹤4g

(2). Others

Operating temperature

-20---65℃
Humidity 5%---95%
Dimensions 64.5mm×45.5mm×17.5 mm (main unit)
Voltage Rechargeable 450mAh battery
Power supply DC5V
Standby time >48h
Buttons SOS button for emergency aid; Call 1, Call 2,

Switch on / off buttons, interface switch button
