ThinkGizmos TG541 turbo speed User Manual

TG541 TURBO SPEED

AWESOME R/C TRUGGY

User Manual

CONGRATULATIONS!! YOU ARE NOW THE OWNER OF THE TURBO SPEED TRUGGY.

FOR AGES 8+

PLEASE READ AND FOLLOW THESE INSTRUCTIONS AT ALL TIME FOR OPTIMUM ENJOYMENT.

English p 2

Deutsch p 8

Francais p 14

Italiano p 20

Español p 26

ENGLISH MANUAL - CONTENTS

1.

2.

3.

4.

5.

IMPORTANT INFORMATION

1.1 Truggy Battery Installation ................................................................................ 3

1.2 Remote Battery Installation ............................................................................... 3

INSTRUCTIONS PART 1

2.1 Setting up the Truggy ......................................................................................... 4

INSTRUCTIONS PART 2

3.1 Controlling the Truggy ....................................................................................... 5

INSTRUCTIONS PART 3

4.1 Adjusting the Directional Movement ............................................................... 6

4.2 Troubleshooting ..................................................................................................6

WARRANTY

5.1 Warranty Information ........................................................................................ 7

DEUTSCH MANUAL ................................................................................................. 8

MANUEL FRANÇAIS .............................................................................................. 14

MANUALE ITALIANO ............................................................................................ 20

MANUAL ESPAÑOL ............................................................................................... 26

2

1. IMPORTANT INFORMATION

1.1 Truggy Battery Installation

● Turn the Truggy (6) over so that you can gain access to the underside of the vehicle.

● Making sure that the Power switch (5) is in the OFF position, remove the screw (7) and

remove the battery compartment cover.

● Insert 4 AAA batteries (supplied) into the battery compartment observing the correct

pollarity as indicated.

● Re-t the battery cover and secure with the screw.

(Warning - Remove the batteries if the Truggy is not going to be used for a long time.)

1.2 Remote Battery Installation

● The battery compartment is located on the

bottom of the pistol grip controller.

● Push down and slide the battery compartment

cover (9) in the direction indicated to remove it
from the controller.

● Insert 2 AA batteries (supplied)(10) into the

battery compartment observing the correct
polarity as shown.

WARNING

Do not mix old and new batteries.
Keep batteries away from small children.

Do not short-circuit batteries or dispose of in a re.

Remove the batteries if the truggy is not going to be

3

used for a long time.

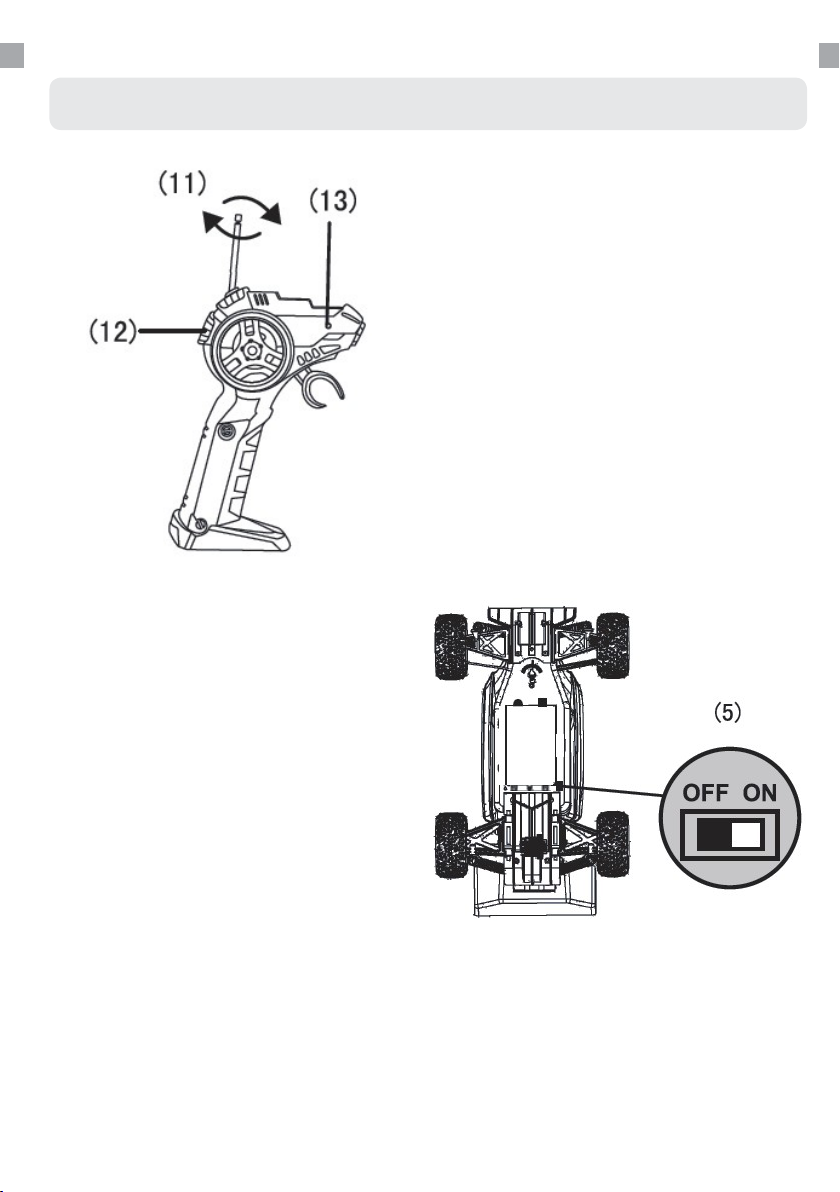

2. INSTRUCTIONS PART 1

2.1 Setting up the Truggy

● Add the included batteries into the

● Screw the antenna (11) into the top of the

● Fully extend the antenna on the contoller

controller and Truggy as previously
described.

contoller (12) making sure that it is secure.

and switch on the power, The Power LED
(13) will illuminate.

● Switch the power (5) on the underside of

the Truggy to the ‘ON’ position.

● You are now ready to begin driving.

4

3. INSTRUCTIONS PART 2

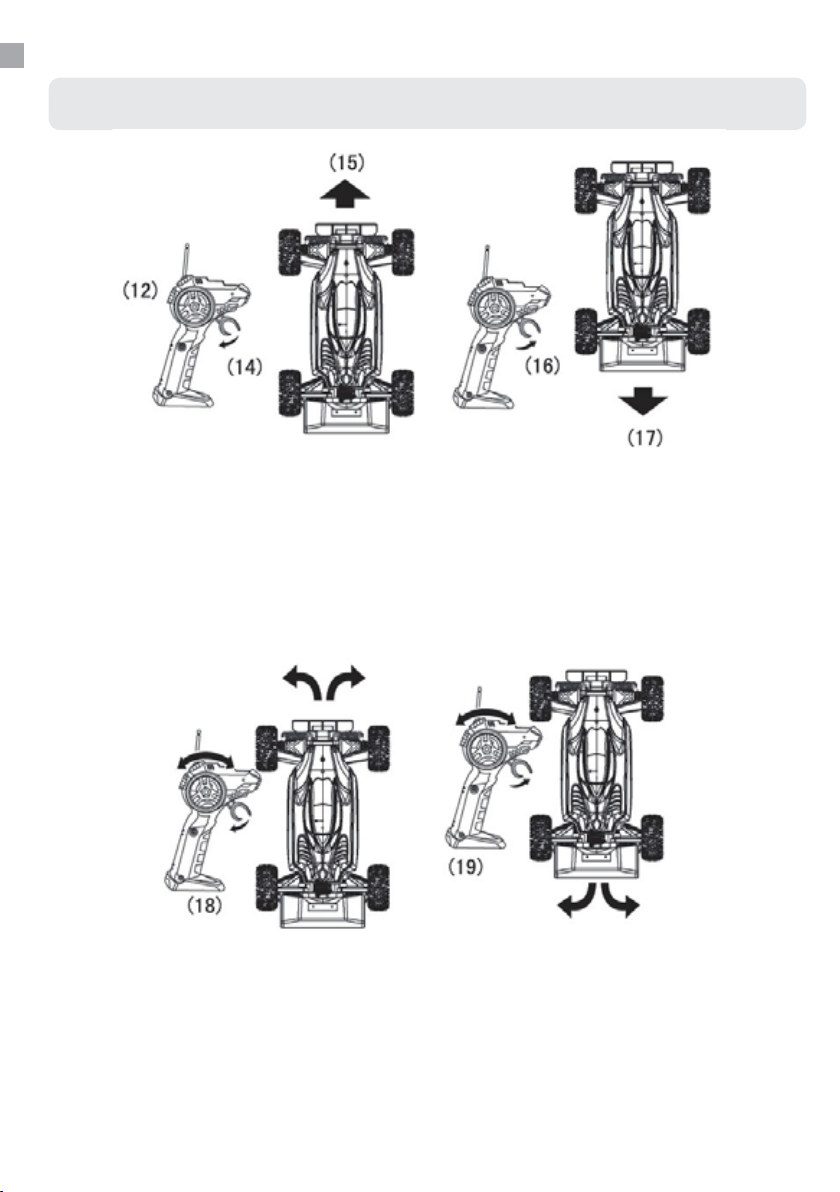

3.1 Controlling the Truggy

● In order to make the Truggy travel forward (15), hold the contoller (12) in your hand

and pull the accelerator trigger switch towards you (14). The Tuggy will begin to travel
forward.

● In order to make the Truggy travel in reverse (17), hold the controller in your hand

and push the accelerator trigger away from you (16). The Truggy will begin to travel
backwards.

● Releasing the trigger at any time will result in the Truggy coming to a full stop.

● To make the Truggy turn you will also need to turn the steering control at the same time

as pulling or pushing the accelerator trigger.

● When travelling forwards (18), turn the steering control to the right/away from you to

turn right and to the left/towards you to turn left.

● When travelling in reverse (19), you will need to turn the steering control in the opposite

direction. E.g. to turn the Truggy right you will need to turn the steering control to the
left/towards you.

5

4. INSTRUCTIONS PART 3

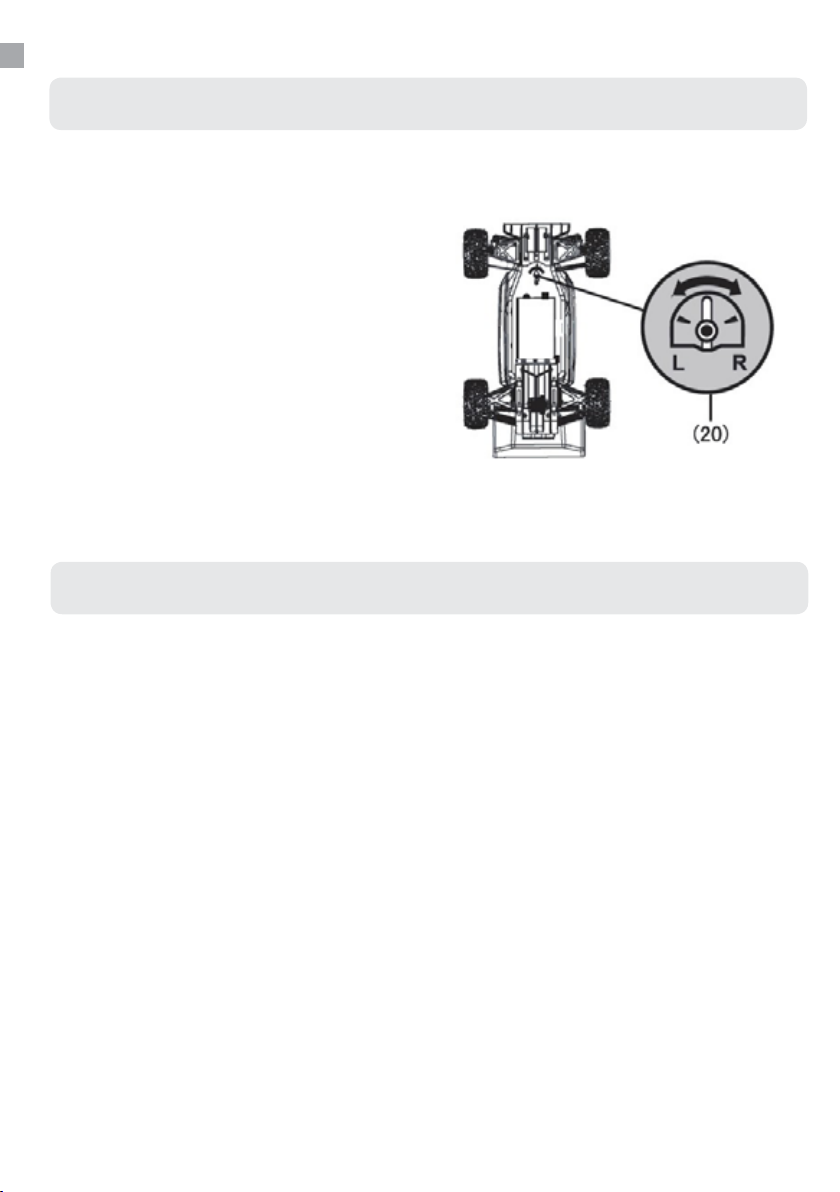

4.1 Adjusting the Directional Movement

● It may be necessary to ne tune the steering via

the steering adjustment control (20), located on
the underside of the Truggy.

● If while travelling in a straight line you nd

that the Truggy strays to the left or right then
you will need to adjust the steering control to
correct this issue.

● It is best to make several small adjustments

to the steering this allows for an accurate
adjustement of the steering.

● If the Truggy strays to the left then you will

need to move the steering adjustment to the
right (R).

● If the Truy strays to the right then you will

need to move the steering adjustment to the
left (L).

4.2 Troubleshooting

If you are experiencing problems with your Truggy, here are some quick and easy checks
that you can carry out, which may help to resolve the problem.

No Response from the Truggy:

● Please ensure that the Truggy is in range of the controller and that there is no

obstructions between the controller and the Truggy which could block the signal.

● Make sure that the batteries in the Pistol Grip Controller are tted correctly and that they

have not reached the end of their life. If required replace the batteries in the controller.

● Make sure that the batteries in the Truggy are tted correctly. If required replace the

batteries in the Truggy.

● Please ensure that the power switch on the Truggy and Pistol Grip Controller is switched

to ‘ON’.

● Make sure that the antenna is correctly and securely tted to the Pistol Grip Controller.

The Truggy does not travel straight:

● Please adjust the steering using the steering adjustment control located on the

underside of the Truggy.

The Truggy Starts to Run Slow:

● The batteries in the Truggy are running low, please insert new batteries.

6

5. WARRANTY

5.1 Warranty Information

What is Covered:

This warranty covers any defects in materials or workmanship, with the exceptions stated
below.

How Long Coverage Lasts:

This warranty runs for 1 Year from the date your Truggy is delivered.

What is not covered:

Any problem that is caused by abuse, misuse, or an act of God (such as a ood) are not

covered.

What We Will Do:

If the Product proves defective during the warranty period, we will provide you with the
instructions for the return, and we will take one of the following actions: (i) replace the
Product with a product that is the same or equivalent to the Product you purchased; (ii)
repair the Product; or (iii) refund to you the whole of or part of the purchase price of the
Product.

How To Get Service:

To obtain instructions on how to obtain service under this warranty, contact our customer

service by phone or email. You will nd the contact details of our customer service below.

Customer service may ask you questions to determine your eligibility under this warranty,
and if you are eligible you’ll be given instructions for returning the defective Product. If
we send you a replacement or repair your Product, we will pay the cost of delivering the
replacement or repaired Product to you.

Do not return the item to the original place of purchase, please contact Think

Gizmos direct.

Think Gizmos, Unit 19, Lawson Hunt Industrial Park,

Broadbridge Heath, West Sussex, RH12 3JR

Tel.: [phone]

[e-mail] ● www.thinkgizmos.com

7

DEUTSCH BEDIENUNGSANLEITUNG ­INHALTSVERZEICHNIS

1.

2.

3.

4.

5.

WICHTIGE INFORMATIONEN

1.1 Batterien in den Truggy einlegen ..................................................................... 9

1.2 Batterien in die Fernsteuerung einlegen ......................................................... 9

ANLEITUNG TEIL 1

2.1 Einrichten der Truggy ....................................................................................... 10

ANLEITUNG TEIL 2

3.1 Controlling the Truggy ..................................................................................... 11

ANLEITUNG TEIL 3

4.1 Feineinstellung der Lenkung des Truggy ....................................................... 12

4.2 Problemlösung ...................................................................................................12

GARANTIE

5.1 Garantieinformationen .................................................................................... 13

ENGLISH MANUAL ................................................................................................... 2

MANUEL FRANÇAIS .............................................................................................. 14

MANUALE ITALIANO ............................................................................................ 20

MANUAL ESPAÑOL ............................................................................................... 26

8

1. WICHTIGE INFORMATIONEN

1.1 Batterien in den Truggy einlegen

● Drehen Sie den Truggy (6) um, sodass Sie Zugang zur Unterseite erhalten.

● Stellen Sie sicher, dass sich der Ein/Aus - Schalter (5) auf der OFF Position bendet.

Entfernen Sie die Schraube (7) und entnehmen Sie den Deckel des Batteriefachs.

● Legen Sie 4 AAA Batterien (geliefert) in das Batteriefach ein.

● Legen Sie den Deckel des Batteriefachs wieder auf und befestigen Sie ihn mit der

Schraube.

(Achtung - Entnehmen Sie den Akku, wenn Sie den Truggy länger nicht verwenden)

1.2 Batterien in die Fernsteuerung einlegen

● Das Batteriefach bendet sich am Boden der Pistolen-

Fernsteuerung.

● Drücken Sie den Deckel des Batteriefachs (9) und

schieden sie ihn in die angegebene richtung, um ihn
abzunehmen.

● Legen Sie 2 AA Batterien (enthalten) (10) mit der

richtigen Polarität, die markiert ist, in das Batteriefach
ein.

ACHTUNG:

Verwenden Sie keine alten und neuen Batterien zusammen.
Halten Sie die Batterien von kleinen Kindern fern.
Schließen Sie Batterien nicht kurz und entsorgen Sie sich
nicht in einem Feuer.
Entnehmen Sie die Batterien, wenn Sie das Gerät längere
Zeit nicht verwenden.

9

2. ANLEITUNG TEIL 1

2.1 Einrichten der Truggy

● Legen Sie, wie zuvor beschrieben, die

Batterien in die Fernsteuerung und den
Akku in den Truggy ein.

● Schrauben Sie die Antenne (11) oben an

die Fernsteuerung (12) und stellen Sie
sicher, dass sie fest angeschraubt ist.

● Fahren Sie die Antenne an der

Fernsteuerung komplett aus und schalten
Sie sie ein. Die rote LED Lampe (13) wird

aueuchten.

● Schalten Sie den Ein/Aus-Schalter (5) auf

der Unterseite des Rennautos auf die
Position ON.

● Jetzt können Sie den Truggy fahren.

10
