WARRANTYSPECIFICATIONS
TROUBLESHOOTING
RESET YOUR MODLET
Hold the modlet button down (at least 5 seconds) until the
light starts spinning slowly.
RESET YOUR THERMOSTAT REMOTE
Hold the power button down (at least 10 seconds) until
a blinking X appears in the lower left corner of the display.
DURING SET UP
If you are having trouble setting up your modlet, then the
WiFi password entered is likely incorrect. Conrm that you
have the correct WiFi password, then follow the steps above
to reset your modlet and try again.
modlet light
modlet button
Power on/off Temperature
°C/°F toggle
thermostat remote
modlet BN WiFi
up
Temperature
down
LIGHTS GUIDE
SLOW SPIN
The modlet light spins slowly (one rotation every two
seconds) when the modlet is ready to be set up.
FAST SPIN
The modlet light spins quickly (two rotations every one
second) when the modlet is connecting to the WiFi network.
OFF
The modlet is operating normally.
SOLID ON
The overload protection circuit has tripped. Press the modlet
button to restore power. The connected appliance draws
too much power and should not be used with the modlet.
NEED HELP? GET SUPPORT
youtube.com/thinkecoincsupport.thinkecoinc.com
ThinkEco modletBN WiFi
Thank you for purchasing your new smartAC WiFi Kit!
For more information and to learn about your product(s)
please read all user guide/manuals provided to you (in
both paper and electronic form) and all operating and
safety instructions. If you fail to do so the products
listed below may not function properly and may lead
to damage to the products and to other danger.
Specications
The kit you purchased may include one or more of the
following products:
modletBN:
• TE5020: Electrical rating 125V/15A/60Hz
• TE5021: Electrical rating 125V/20A/60Hz
• TE5022: Electrical rating 240V 15A 60Hz
• TE5023: Electrical rating 240V/20A/60Hz
• All versions: 13 inch cord either end (26 in total
for cords)
• All versions: WiFi (IEEE 802.11b/g/n) and either
Bluetooth or ZigBee wireless communication
smartAC thermostat TE1320:
• Bluetooth or ZigBee wireless communication
• Power source: 2 AAA Batteries - 2x 1.5V DC
Important Safety Information:
UL 916 listed. Use indoors in a dry location. Do not use
this product in connection with critical care equipment
(i.e. life-support systems). Contains non-user serviceable
parts; do not open. This is a live AC outlet, even when
the modlet is in an “o scheduled mode”. This product
is not a toy. Do not allow children to operate it.
The modlet TE5020 is not intended for use with loads
rated above 15 Amps. The modlet TE5021 and modlet
TE5023 are not intended for use with loads rated above
20 Amps. Do not “daisy-chain” the modlet. Only plug
the modlet into a grounded outlet or a grounded
extension cord with the same rating as your modlet.
In an over current condition or if the modlet is plugged
into a n old and/o r damaged socket the modlet and
socket temperature may increase substantially. In such
a case, unplug the modlet and appliances immediately
and discontinue use. You should contact a qualied
electrician to inspect and/or replace the outlet.
Connecting a modlet or a modlet BN to an improperly
grounded outlet will void all warranties.
Regulatory Information:
Installation and use of this device must be in strict
accordance with the instructions included in the user
documentation provided with the product or at
www.thinkeco.com. Any changes or modications made
to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate
the equipment. ThinkEco will assume no liability for any
damage or violation of government regulations arising
from failing to comply with these guidelines.
RF Exposure Warning
This equipment complies with FCC radiation exposure
limits set for an uncontrolled environment. The modlet
BN (TE5020, TE5021, TE5023) should be installed and
operated with a minimum distance of 7.9 inches (20cm)
between the radiator and your body. The SmartAC
thermostat (TE1320) should be installed and operated
with a minimum distance of 0.2 inches (0.5cm) between
the radiator and your body. This transmitter must not
be co-located or operated in conjunction with any other
antenna or transmitter.
Note: USA-FCC (Federal Communications Commission)
statement:
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and 2.
This device must accept any interference, including
interference that may cause undesired operation
of this device.
Note: Industry Canada
Per RSS-Gen, Section 7.1.3
This device complies with Industry Canada license-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation ex-
posure limit set forth for an uncontrolled environment.
The modlet BN (TE5020, TE5021, TE5023) should be
installed and operated with a minimum distance of 7.9
inches (20cm) between the radiator and your body.
The SmartAC thermostat (TE1320) should be installed
and operated with a minimum distance of 0.2 inches
(0.5cm) between the radiator and your body.
Cet équipement est conforme aux CNR-102 d’Industrie
Canada. Cet équipement doit êtreinstallé et utilisé avec
uneLe modlet BN (TE5020, TE5021, TE5023) doit être
installé et utilisé avec une distance minimale de 7,9
pouces (20 cm) entre le radiateur et votre corps.
Le thermostat SmartAC (TE1320) doit être installé et
utilisé avec une distance minimale de 0,5 cm entre le
radiateur et votre corps. Cet émetteur ne doit pas être
co-localisées ou opérant en conjonction avec autreantenne ou émetteur. Les antennes utilisées pour ces
émetteurs doivent être installés et fournir une distance
de séparation d’au moins 20 centimètre pour le modlet
BN TE5020/TE5021/TE5023), et 0.5 centimètre pour le
SmartAC thermostat (TE1320), de toute per sonne et
doit pas être co-située ni fonctionner en conjonction
avec une autre antenne ou émetteur.
Section 7.1.3 de RSS-GEN
Le fonctionnement est soumis aux deux conditions
suivantes:1.Ce dispositif ne doit pas causer d’interférences, et 2. Ce dispositif doit accepter toutes les
interférences, y compris celles pouvant causer un
fonctionnement non souhaité.
Note: FCC Interference Statement:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try and correct the interference by one
or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and
the receiver.
3. Connect the equipment to an outlet on a circuit
dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV
technician for help.
LIMITED ONE (1) YEAR WARRANTY
Warranty: ThinkEco warrants that the modlet, modlet
BN, modlet USB receiver, modlet Gateway and smartAC
thermostat (collectively “TE Products”) will be free from
defects in material and workmanship and perform
to ThinkEco’s applicable published specications for
a period of one (1) year from date of delivery to you.
The liability of ThinkEco hereunder shall be limited
to replacing or repairing, at its option, any defective
TE Products which are returned F.O.B. ThinkEco’s
corporate address (or, at ThinkEco’s option, refunding
the purchase price of such TE Products). In no case
are TE Products to be returned without rst obtaining
permission and a return order number from ThinkEco.
You are responsible for the cost of shipment of the
defective TE Products to ThinkEco, and ThinkEco is
responsible for the cost of shipment of a replacement
TE Products to you. In the event you send TE Products
back to ThinkEco, and the TE Product is not defective,
ThinkEco reserves the right to charge you a fee associated with postage and handling of such TE Product.
Replacement TE Products: Replacement TE Products
are warranted by ThinkEco pursuant to the warranty
set forth above for the longer of (i) thirty (30) days; or (ii)
the remaining warranty period for the original Modlet.
The replacement TE Product may be refurbished and/
or contain refurbished parts.
The following are not covered by this warranty: (i) TE
Products which have been subject to abuse, misuse,
accident, alteration, neglect, unauthorized repair,
inspection or installation, Acts of God, power surge,
wear and tear, mishandling, misapplication, or other
causes unrelated to defective materials or workmanship;
and (ii) any damages and/or viruses caused by use of
a third party device in conjunction with the TE Products.
You are responsible for determining if a third party
device used in conjunction with any TE Product is
suitable for such use and ThinkEco is not liable, and
this warranty does not cover, any damages caused by,
or to, any third party device. ThinkEco will make the
nal determination as to the existence and cause of
any alleged defect. No warranty is made with respect
to any custom equipment or goods produced to your
specications except as specically stated in writing
by ThinkEco in the contract for such custom goods.
Disclaimer & Limitation of Liability: EXCEPT AS
EXPRESSLY PROVIDED ABOVE, THINKECO MAKES NO,
AND HEREBY DISCLAIMS ALL OTHER, WARRANTIES,
EXPRESS, STATUTORY, OR IMPLIED, INCLUDING ANY
WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
THINKECO MAKES NO REPRESENTATION, WARRANTY
OR GUARANTY AS TO THE RELIABILITY, TIMELINESS,
QUALITY, SUITABILITY, TRUTH, AVAILABILITY, ACCURACY OR COMPLETENESS OF THE TE PRODUCTS AND
DOES NOT REPRESENT OR WARRANT THAT (A) THE
USE OF THE TE PRODUCTS WILL BE SECURE, TIMELY,
UNINTERRUPTED OR ERROR-FREE OR OPERATE
IN COMBINATION WITH ANY OTHER HARDWARE,
SOFTWARE, SYSTEM OR DATA, (B) THE TE PRODUCTS
WILL MEET CUSTOMER’S REQUIREMENTS OR EXPECTATIONS, (C) ANY STORED DATA WILL BE ACCURATE
OR RELIABLE, (D), THE TE PRODUCTS ARE FREE OF
VIRUSES OR OTHER HARMFUL COMPONENTS. IN
NO EVENT WILL THINKECO BE LIABLE TO YOU OR
ANY THIRD PARTY FOR ANY LOST PROFITS, USE OF
USER INFORMATION, LOSS OF DATA, BUSINESS
INTERRUPTION, OR OTHER INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OF ANY
NATURE ARISING FROM OR RELATING TO YOUR USE
OF THE TE PRODUCTS, EVEN IF THINKECO HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT WILL THINKECO’S TOTAL CUMULATIVE
LIABILITY TO YOU, FOR ANY AND ALL CLAIMS UNDER
ANY THEORY OF LAW, EXCEED THE ORIGINAL PURCHASE PRICE OF THE TE PRODUCTS IN QUESTION.
To contact ThinkEco regarding this Limited
Warranty, please call ThinkEco at 1-800-684-0284.
For additional information please visit
http://www.thinkecoinc.com/warranty
RETURN POLICY
If you purchased your modlet from a third-party
retail store, you must return the modlet to that
same retailer and comply with such retailer’s return
policy. Please contact the store for additional details
on completing your return. All refunds will be net of any
rebate and/or discount that you received in connection
with any promotion. The failure to abide by this policy
will result in substantial delays to any refund request.
Please contact ThinkEco at 1-800-684-0284
with any questions regarding this policy.
If you did not purchase your TE Products, but received
the TE Products as part of a utility or third party
program, then the terms of conditions of that program
will apply and supersede these terms with respect to
the warranty, repair and return of your TE Products.

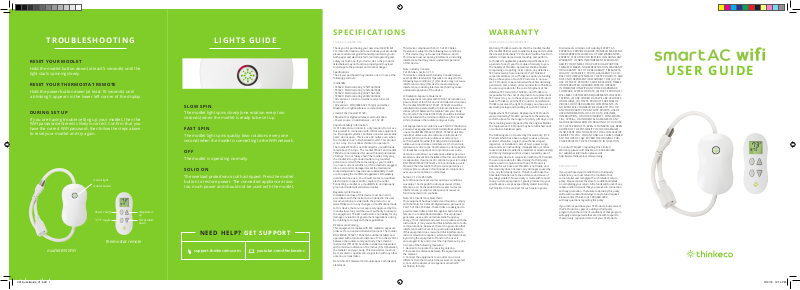

USER GUIDE
2018_userGuide_V1.indd 1 3/13/18 12:14 PM
WELCOME
SETTING UP YOUR KIT
When your modlet has connected successfully,
8
the light will turn o. Name your modlet to help
you distinguish it from other connected ACs.
Your browser will automatically redirect to your WiFi
4
modlet’s set up page. If it does not, check to make sure
your computer is still connected to the modlet’s WiFi
network. Reconnect to the network if necessary.
Welcome to your new smartAC WiFi Kit.
The modlet BN WiFi and thermostat remote allow
you to track your plugged-in AC’s energy use.
You can conveniently turn it on/o or change the
temperature from your smartphone or any browser.
You can set up via your smartphone with the
ThinkEco smartAC app or with a WiFi connected
computer via www.mymodlet.com.
NOTE: You will need a WiFi connection in order to use your smartAC WiFi
Kit. Please make sure you know your WiFi password before continuing.
YOUR SMARTAC WIFI KIT INCLUDES:
SET UP VIA SMARTPHONE
Download the ThinkEco smartAC app from
1
the iTunes App Store or Google Play.
Create an account to set up.
2
If you are part of a utility program, you must
use the same email address you registered with.
Unplug your air conditioner and plug your
3
modlet BN WiFi into the wall outlet.
The modlet light should spin slowly (once every two seconds).
Leave the smartAC app and go to
4
your Settings app. Connect to the modlet’s
WiFi network in your WiFi settings.
It will be listed as modletBN_WiFi_XXXXXX, where the last 6
characters will be a combination of numbers and letters.
Return to the ThinkEco smartAC app.
5
Choose your home WiFi network
6
from the list of networks.
If your home network is not on the list, then pull down
the list to refresh it.
Enter your home WiFi network password and
7
wait for your modlet to join your WiFi network.
Important! Make sure you use the correct password
or you will have to start over from Step 4.
To pair your thermostat remote, insert the
9
batteries. You should see a blinking X in the bottom
left-hand corner of the screen.
Congratulations! You are all set up. Plug in your
10
AC and turn it to the coldest setting. You will now
be able to change the temperature and turn it on/
o with your smartphone and thermostat remote.
SET UP VIA WEBSITE
Open any browser and go to mymodlet.com.
1
Click “sign me up!” to create an account. If you
were not prompted to set up a modlet, go to the
Modlet Network tab and select “Add Modlet”.
If you are part of a utility program, you must
use the same email address you registered with.
Unplug your air conditioner and plug your modlet
2
BN WiFi into the wall outlet.
The modlet light should spin slowly (once every two seconds).
Follow the on screen instructions to open
3
your computer’s WiFi settings and connect
to the modlet’s WiFi network.
It will be listed as modletBN_WiFi_XXXXXX, where the last 6
characters will be a combination of numbers and letters.
Select “Scan Available Networks” and
5
choose your home WiFi network.
Enter the password for your WiFi network
6
and select “Join Network”.
Important! Make sure you use the correct password
or you will have to start over from Step 3.
When your modlet has connected successfully,
7
the light will turn o. Open your computer’s
WiFi settings and conrm you have rejoined
your home network.
In your browser, a page titled “Almost Done”
8
will display. Click “Search”. Name your
modlet to help you distinguish it from other
connected ACs.
To pair your thermostat remote, insert the
10
batteries. You should see a blinking X in the
bottom left-hand corner of the screen.
Congratulations! You are all set up. Plug in your
11
AC and turn it to the coldest setting. You will now
be able to turn it on/o with your mobile phone
and thermostat remote.
modlet BN WiFi
2018_userGuide_V1.indd 2 3/13/18 12:14 PM
thermostat remote
WWW.THINKECOINC.COM
Loading...
