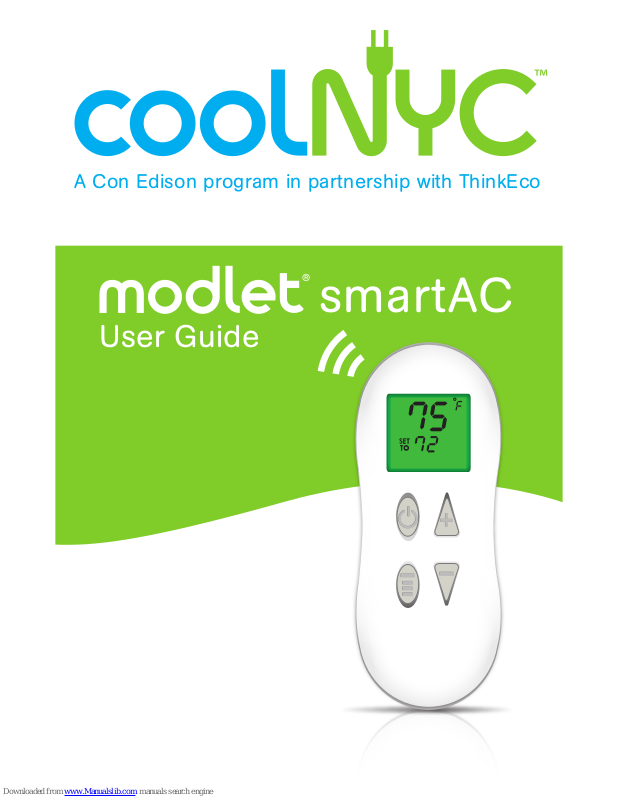

A Con Edison program in partnership with ThinkEco
®
smartAC
User Guide
The coolNYC program is designed to let Con Edison
customers who own window A/C units better manage
their power use while saving energy this summer.
Did you know that the power consumed by window A/C
units represents a large portion of residential energy usage during the summer months, placing a large burden
on the Con Edison distribution system?
By participating in this program, you will gain the ability to
see how much energy your window A/C units are using,
as well as gain remote control of your window A/C units
from a website or smartphone. We hope you’ll be able
to lower your energy consumption on window A/C units,
while allowing us to better manage our distribution systems overall.
For more information on how the modlet saves you energy,
visit our website: www.themodlet.com
What is the coolNYC™ program?
5
4
No wireless signal
Your thermostat is not
connected to your modlet.
Move the remote closer to
your modlet and the SET TO
temperature
should reappear.
Low Battery
You need to change the
batteries in your remote with
2 new AAA batteries.
Demand Response Mode
Your window A/C is receiving
a signal to turn off or use a
higher SET TO temperature.
To exit demand response
mode just press the toggle
up (
) or down (-) button to change the SET
TO temperature.
Normal Operation Mode
Current room temperature
is displayed on top and the
programmed (SET TO) temperature is displayed on the
bottom. To change the target
temperature, press the (
) or (-) button on the
remote to raise or lower the temperature.
Hardware
modlet
smartAC thermostat
modlet
USB gateway
smartAC thermostat
Red LED light
3-pin wall outlet
modlet button
Power
LCD Display
screen
Toggle up
Toggle down
Menu
Features
LED light status
Light not
on
Solid red
Spinning
clockwise
Slowly fills up
normal operation
mode
circuit overloaded;
unplug one or
more devices
modlet is joining
the network; occurs
when you first set
it up
Each segment will fill up
one at a time until the light
is solid red, then each
segment will turn off; occurs
when modlet is trying to
pair with the thermostat
Receptacle for
A/C unit
Use the wireless thermostat to set a target temperature for your room
and monitor the current room temperature. Please note, after a few
minutes of inactivity the remote enters a sleep mode and the screen
goes blank. To wake up the remote, press any button once.
Press the menu button once and then use the /- buttons to switch
between Fahrenheit and Celsius.
this is located in your computer tray
and for Mac’s this is located under Applications). Then follow all on
screen instructions.
7
6
Quick setup
Follow these simple instructions to get on your way to savings!
NOTE: DO NOT PLUG IN THE USB RECEIVER OR MODLET BEFORE
COMPLETING THE SOFTWARE WIZARD. The wizard will prompt you
when to plug them in.
1. Software
2. Hardware
Plug your USB receiver into your com-
puter when prompted by the Installer.
Depending on your computer, you
may see some ‘found new hardware’
or ‘install new hardware’ prompts. If
so, be sure to accept all of them. If
the USB receiver is not found on your
first try, reinsert into the USB slot and
push it in all the way
Turn off and unplug the window A/C
closest to your computer that you want
to monitor. Click Search on the Install-
er first, then plug the modlet into the
outlet. The spinning LED light will stop
when your modlet joins the network.
Plug your A/C back into the modlet and
complete the set up on the Installer.
Go to www.mymodlet.com to create an account and begin the
installation. Enter the registration key found on the inside cover of the
modlet box. Create a user profile and then download and save the
installer to your desktop. Double click on the installer icon to begin
the wizard and follow the onscreen instructions. If required to reboot
during the process, click back on the ThinkEco Installer to continue
the installation.
Next, set up the smartAC thermostat. First, click the Add thermostat
on the install wizard and the select
the modlet you wish to pair with the
thermostat. If you have exited the
wizard, it can be opened through the
ThinkEco Modlet Manager (for PC’s
82
ºF
If you have more than one window
A/C unit and modlet, set up each additional modlet one at a time as you
move away from your computer, so
that the last modlet plugged in is the
one farthest from your computer. To
set up additional modlets, click the
Add Modlets button on the installer
and install each modlet using the
same procedure as the first modlet.
9
8
3. Monitor & Control
4. Optional – Add More Modlets
Finish setting up your account and
then start viewing your energy consumption through the Energy Usage
tab. Keep in mind that it may take
a few minutes after setting up your
modlet to begin seeing data. To set a
schedule, visit the Savings Plan tab
More modlets can be added at any
time. For Windows, right click on the
ThinkEco Icon in your computer tray
and select Open Modlet Manager.
For Mac, go to Applications,
ThinkEco and then Modlet Manager.
to control when your devices are on
and off. Please note, during the initial baseline period scheduling
is not available. Track your savings with the Summary tab and see
updates from the coolNYC team on the Con Edison page. To view
your account from any computer simply visit www.mymodlet.com
or download the ThinkEco App for Android or iPhone.
For more information go to: www.coolNYCprogram.com/howto or
call our support team 1.800.682.0152
For both systems, next click the Add Another Modlet button, and
then plug in your next modlet. Then set up your thermostat by clicking
the Add Thermostat and selecting the modlet you wish to pair with
the thermostat. To build robust wireless networks, it’s best to work
your way outward from your computer.
Please note that a smartAC thermostat is needed for each modlet and
can only control the modlet that it was initially paired with.
11
10
How it works Tips
ThinkEco Web App
• Displays real-time and historical energy consumption data.
• Allows you to schedule your window A/C on or off or change the
SET TO
temperature from a computer or mobile device.
(This is equivalent to programming a
household thermostat to turn off and on at certain times of the day.)
modlet
• Controls the ow of electricity to your window A/C unit.
• Monitors real-time energy consumption of your window A/C unit and communi-
cates this data to your computer via the USB receiver.
smartAC thermostat
• Measures the current temperature inside the room and communicates the
temperature to the modlet.
• Allows you to program a
SET TO temperature that you would like the window
A/C unit to maintain.
(When the temperature in the room is greater (warmer) than the
SET TO temperature and your A/C is scheduled on, the modlet turns your window A/C on. If
the temperature is less (colder) than the SET TO temperature, the modlet turns your window
A/C off. )
1. Set your window A/C unit to high and cold.
When you first set up your modlet, use the controls on your A/C unit to set
it to a cold temperature and high fan speed. This will help your room cool
down and reach your target temperature faster.
2. Use the wireless remote instead of your A/C controls.
After the modlet is set up, use the wireless thermostat to change the SET TO
temperature. The thermostat communicates both the current and SET TO
temperature directly to the modlet so it can control your window A/C unit.
3. Turn on your computer and plug in your USB at least
once a week.
Energy consumption and temperature data is only transmitted from the modlet
to your computer when your computer is on and the USB receiver is plugged
in. The modlet can store this data for up to 10 days, but your computer must
be on to monitor or control your A/C from a smart phone or computer outside
your home or to participate in the demand response events.
4. Keep your thermostat in the same room as your A/C.
Each thermostat is programmed to work with one modlet and window A/C.
If you have multiple A/Cs and modlets in your apartment, make sure that you
leave the thermostat in the same room as the A/C that it controls to ensure
accurate temperature readings.
5. Keep the thermostat near the center of the room.
Since the thermostat has an internal thermometer to measure the room
temperature, keep the thermostat toward the middle of the room for an
accurate reading (i.e. – not right next to the window A/C or in a hot sunny
window).
To maximize the performance of your modlet A/C system, use the
following tips.
The modlet smartAC kit converts any window air-conditioner into an
Internet-enabled device with smart thermostat control and scheduling
capabilities.
13
12
Software tips
Displays total power consumption for all A/Cs as well as individual
A/C units.
1. Energy Usage
Customize the time period
displayed on the graph.
View up to 5 individual power traces as
separate lines or the total power consumption for more than 5 A/Cs.
Click and
drag your
mouse across
a section of
the graph to
zoom in.
Click on the names of one
or more A/Cs to display their
consumption on the graph.
Export current
data displayed
to a file for
more analysis.
Allows you to set schedules for when your window A/C is on or off.
When you schedule your window A/C to be “on,” the thermostat is
activated and works with the modlet to maintain the target temperature
in the room. Please note, this feature is only available after the initial
baseline period.*
2. Savings Plans
*The baseline period refers to the first few weeks after you set up your Modlet Network. The
baseline period monitors the typical energy consumption of your A/Cs. This information helps
you create plans and calculate savings.
You can create
more than one
plan – such as
one for weekdays and one
for weekends.
View an
overview of
the schedules
planned for
today.
Create a plan
for as little as
one day or for
many years.
Select days
and times for
your A/C to
turn on.
Select which A/Cs the plan
applies to. You can create a
separate plan for each outlet.
15
14
View total energy consumed and saved for all the A/Cs in your Modlet
Network.
Centralized control of all of your modlets and window air conditioners.
Check the status of your Modlet Network (modlets, USB receiver and
devices) and add new devices to your network.
3. Summary 5. Con Edison
4. Modlet Network
View savings by
week, month,
or year.
Baseline period
is the first month
after you set up
your modlet. It
monitors normal
energy consumption before
schedules are
implemented.
Savings calculated
based on difference
between energy
consumed before
and after baseline
period.
Displays cumulative
power consumption
for your A/C unit(s).
Set whether the demand
response feature is active.
View the current
temperature in the
room.
Indicates whether your
savings plan is active.
Check the current
temperature your
thermostat is set to.
Check here for alerts
from Con Edison.
17
16
Mobile apps
iPhone App Android App
Download the iPhone app from the App Store by searching
for ThinkEco.
Download the Android app from the Android Market by
searching for ThinkEco.
Click to see the
latest updates
from Con Ed
See your total
energy usage
and savings
See energy
use by
individual A/C
units or consumption by
all your units
Control your A/C
units and see the
current room
temperature
Turn your devices
on or off remotely*
Click to turn on or
off the demand
response setting
Review your
schedules
for today
See the current room
temperature and
Con Edison Alerts
Review your schedules
for today
See energy use by
individual A/C units
or consumption by
all your units
Select which devices to
view on the graph
See your total energy
usage and savings
*Note: to use these functions remotely, your computer must be on and the USB receiver must
be plugged in.
*Note: to use these functions remotely, your computer must be on and the USB receiver must
be plugged in.
19
18
Troubleshooting
If you are connected to the internet and logged into your
account, but you’re not seeing the latest data, try these tips.
1. Check USB
• Make sure your USB receiver is plugged in all the way.
• Next unplug it and then plug it back into your computer.
• Check the status of your USB by clicking on the Modlet Network link
in the top right of your screen and then clicking on USB Receiver.
2. Be patient
• When you rst set up your network, or if your computer has been off
for a while, the data may take a few minutes to load onto the interface.
Check back in 15 minutes.
3. Refresh
• Try hitting the refresh button on the Energy Usage tab or your browser.
4. Verify parameters
• Check the variables you selected for the graph: does the start and end
date match when you plugged in your modlet?
• Do you have at least one device selected? Click on the name of the
devices you want to graph or select all to see total energy consumption.
5. Check devices
• Check the status of your devices on the energy usage tab. A green
light next to your device means it has reported data to your computer
in the last 24 hours.
• If the light is red, rst unplug and re-plug in your USB receiver. Next,
verify your devices are labeled correctly and assigned to the correct
outlet by clicking Modlet Network and then Modlets.
ThinkEco modlet
®
Thank you for purchasing your new modlet®! For more information and to learn abo ut your
modlet
®
please visit www.themodlet.com. Please read all user guides/manuals provided to you
(in bo th paper and elect ronic for m) incl uding in th e soft ware dow nloade d in conne ction with
the usa ge of this device an d all operating and s afety i nstructions . If you fai l to do so this p roduct
may not f unction proper ly and may l ead to damage to the product and to o ther danger.
Specifications
The ki t you purchased may i nclude o ne or more of t he follow ing products:
modle tBN: • TE4010: Elec trica l rating : 120V/15A /60Hz/1875W
• TE4011: Electrical ra ting 120V/20A/60Hz/25 00W
• TE4013: Electrical rati ng 240V/ 20A/ 60Hz/50 00W
• All versions: 13 inc h cord ei ther end ( 26 in tota l)
• All versions: Zi gBee ( IEEE 80 2.15.4) wireless communic ation
USB Ga teway: • ZigBee (IEEE 802 .15.4) wirel ess communica tion
• Plugs into standa rd PC/ Mac USB port
smar tAC the rmostat: • ZigBee ( IEE 802.15.4) wireless c ommunication
• Power source: 2 AAA Bat teries
Important Safety Information:
Use ind oors in a dr y location. Do not use this product in connection wi th cri tical care equipment
(i.e. life-support systems). Contains non-user serviceable parts; do not open. This is a live AC
outlet, even w hen the modlet is in an “off scheduled m ode”. This product is n ot a toy. Do not
allow c hildren to operate i t. The mo dlet TE4 010 is not intended for use with lo ads rated above 15
Amps . The modlet TE4011 and mod let TE4013 are not intended for us e with loads rated about 20
Amps . Do not “dai sy-chain” the mo dlet. Only plug the modlet i nto a duplex outlet or a grounded
extension cord with th e same rat ing as your m odlet. In an over current condition or if the modlet
is plugged into an old and/or damaged socket the modlet and socket temperature may increase
substantially. Unplug the modlet and appliances immediately and discontinue use. You should
cont act a qualified electric ian to inspect and /or rep lace the outlet. Connec ting a mod let to an
improperly grounded ou tlet will void all w arrant ies. UL 916 /498 9/9 4 listed
Regulatory Information:
Inst allation and use of this devi ce must b e in stric t accordance w ith the in struc tions included
in the user documentation provided with the product or at www.thinkeco.com. Any changes
or modi fications made to t his devi ce that are not expre ssly app roved by the manufa cturer
may voi d the user ’s author ity to op erate the equipme nt. ThinkEco will assume n o liabili ty for an y
damage or violation of government regulations arising from failing to comply with these guidelines.
Note: USA-FCC (Federal Communications Commission) statement
This de vice co mplies w ith Par t 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This de vice may n ot cause interference, and 2. This device m ust acc ept any in terference,
including interference that may cause undesired operation of this device.
Note: FCC Interference Statement
This eq uipmen t has been te sted and fo und to comply with the limit s for a Clas s B digital dev ice, pursuant to P art 15 of the FCC Rules. These l imits are designe d to provid e
reasonable protection against harmful interference in a residential installation. This equipment
For more troubleshooting information, call the modlet tech support center at 1-800 -682- 0152
or email: support@thinkecoinc.com. You can also visit www.coolnycprogram.com for more
information about the program.
RETURN POLICY
If you p urchase d your Mod let from a t hird-pa rty re tail sto re, you mus t return t he Modle t to
that s ame retai ler and co mply wi th such re tailer ’s return po licy. Pl ease con tct the s tore for
additional details on completing your return. All refunds will be net of any rebate and/or
discount that you received in connection with any promotion.
The fai lure to abi de by this po licy wi ll resul t in subst antial d elays to an y refund re quest .
Pleas e conta ct Think Eco at 1-8 00- 682- 0152 <tel:1-800-682-0152> with any questions
regarding this policy.
21
20
LIMITED ONE (1) YEAR WARRANTY
Warranty: ThinkEco wa rrants t hat the mo dlet, USB gatewa y, gatewa y, smart AC thermostat
(collecti vely “T E Produc ts” ) will be free from defects in ma terial an d workma nship and perform
to ThinkEco’s app licabl e published specifications for a period of one (1) year from date of
deliv ery to you. The liabilit y of ThinkEco hereu nder shall be limited to replac ing or repairing, at
its op tion, an y defect ive TE Pro ducts w hich are re turned F.O.B . ThinkE co’s corp orate address
(or, at ThinkEco’s option, refunding the purc hase price of such T E Produc ts). In no case a re
TE Prod ucts to be returned withou t first ob taining permission and a return orde r number
from Th inkEco. You are respon sible for t he cost o f shipment of the defective TE Produc ts
to ThinkEco, and T hinkEc o is responsible for the cost o f shipment of a repla cement TE
Products to you . In the event you send TE Produc ts back to ThinkEc o, and the T E Produc t is not
defec tive, T hinkEco reserv es the right to charg e you a fee ass ociated with pos tage and handling
of such TE Produc t.
Replacement Modlets: Repl acemen t TE Produ cts are warrante d by ThinkEco pursu ant to the
warranty set forth above for the longer of ( i) thirty ( 30 ) days; o r (ii) the remaini ng warranty
perio d for the original Mo dlet. The replac ement TE P roduct may be refu rbished and/o r
contain refurbished parts.
The fol lowing are not covered by this w arranty: (i ) TE Products which have be en subject to
abuse, misuse, accident, alteration, neglect, unauthorized repair, inspection or installation, Acts
of God, power surge, wear and tear, mishandling, misapplication, or other causes unrelated
to defec tive ma terials or workma nship; and (ii ) any damag es and/or viru ses caus ed by use of
a third party d evice in conjunc tion wi th the TE Product s. You are resp onsible for determ ining
if a third part y devic e used in conjunction wit h any TE Product is su itable for such us e and
Think Eco is not l iable, and this war ranty d oes not cover, any damages cau sed by, or to, a ny third
par ty devi ce. Thin kEco wil l make the fin al determinatio n as to the existence and cause o f any
alleg ed defec t. No war ranty is made wit h respec t to any cus tom equipment or goods produced
to your specific ations except as s pecifi cally s tated in w riting b y ThinkEco in the contract for
such c ustom goods.
Disclaimer & Limitation of Liability: EXCEPT AS EXPRESSLY PROVIDED ABOVE, THINK ECO
MAKES NO, AND HEREBY DISCLA IMS ALL OTHE R, WAR-RANTIES, EXPRESS, S TATUTORY,
OR IMPLIED, INCLUDING ANY WARR ANTY OF NO N-INFRINGEMENT, MERCHANTABILITY OR
FITNE SS FOR A PARTICUL AR PURPOSE . THINKECO M AKES NO REPRE SENTATION, WARRA NTY
generates, uses, and can radiate radio frequency energy. If not installed and used in accordance
with the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipme nt does cause harm ful interferen ce to radio o r television rece ption, w hich ca n be
determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
1. Reorient or relo cate the receivi ng antenn a.
2. Increase the distance between the equipment and the receiver.
3. Conn ect the equipmen t to an outl et on a circ uit dif ferent f rom that to w hich the receive r is
connected.
4. Consult the dealer or an e xperienced radio/T V technician for help.
OR GUARANTY AS TO THE R ELIABIL ITY, TIMELINESS, QUALITY, SUITABI LITY, TRUTH ,
AVAILAB ILITY, ACCUR ACY OR COMPLETENES S OF THE TE PRODUCTS AND DOES NOT
REPRESENT OR WAR RANT THAT (A ) THE USE OF TH E TE PRODUCTS WILL BE SECURE,
TIMELY, UNIN TERRUPTED OR ERROR-FREE OR O PERATE IN COMBINATION WITH ANY OTHER
HARDWA RE, SOFTWARE, SYSTEM OR DATA, ( B) THE TE PRODUCTS WILL MEET CUSTOMER’S
REQUI REMENT S OR EXPECTATIONS , (C) ANY STORED DATA WILL BE ACCURATE OR RELIABLE ,
(D) , THE TE PRODU CTS ARE FRE E OF VIRUSES OR OTHER HARMFUL COMPONENTS . IN
NO EVENT WILL THINKECO BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY LOST
PROFITS, USE OF USER INFORMATION , LOSS OF DATA, BUSINESS INTE RRUPTION, OR
OTHER INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OF ANY NATURE
ARISI NG FROM OR RELATING TO YOUR US E OF THE TE PRO DUCTS, EV EN IF THINKECO HAS
BEEN ADVISED OF TH E POSSIB ILITY OF S UCH DAMAGES. IN NO EVENT WILL THIN KECO’S
TOTAL CUMULATIVE LIABILIT Y TO YOU, FOR ANY AN D ALL CLAI MS UNDER AN Y THEORY OF
LAW, EXCE ED THE ORI GINAL PURCHASE PRI CE OF THE TE PRODUCTS IN QU ESTION.
To contact ThinkEco regarding this Limited Warranty, please call ThinkEco at 1-800-682-0152.
For additional information please visit www.thinkeco.com/warranty
148 Madison Avenue, 8th Floor, New York, NY 10016
www.thinkecoinc.com
Assembled in the USA
Loading...
