Dear Customer,
Congra
tulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LE D cl ock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances
Page 3

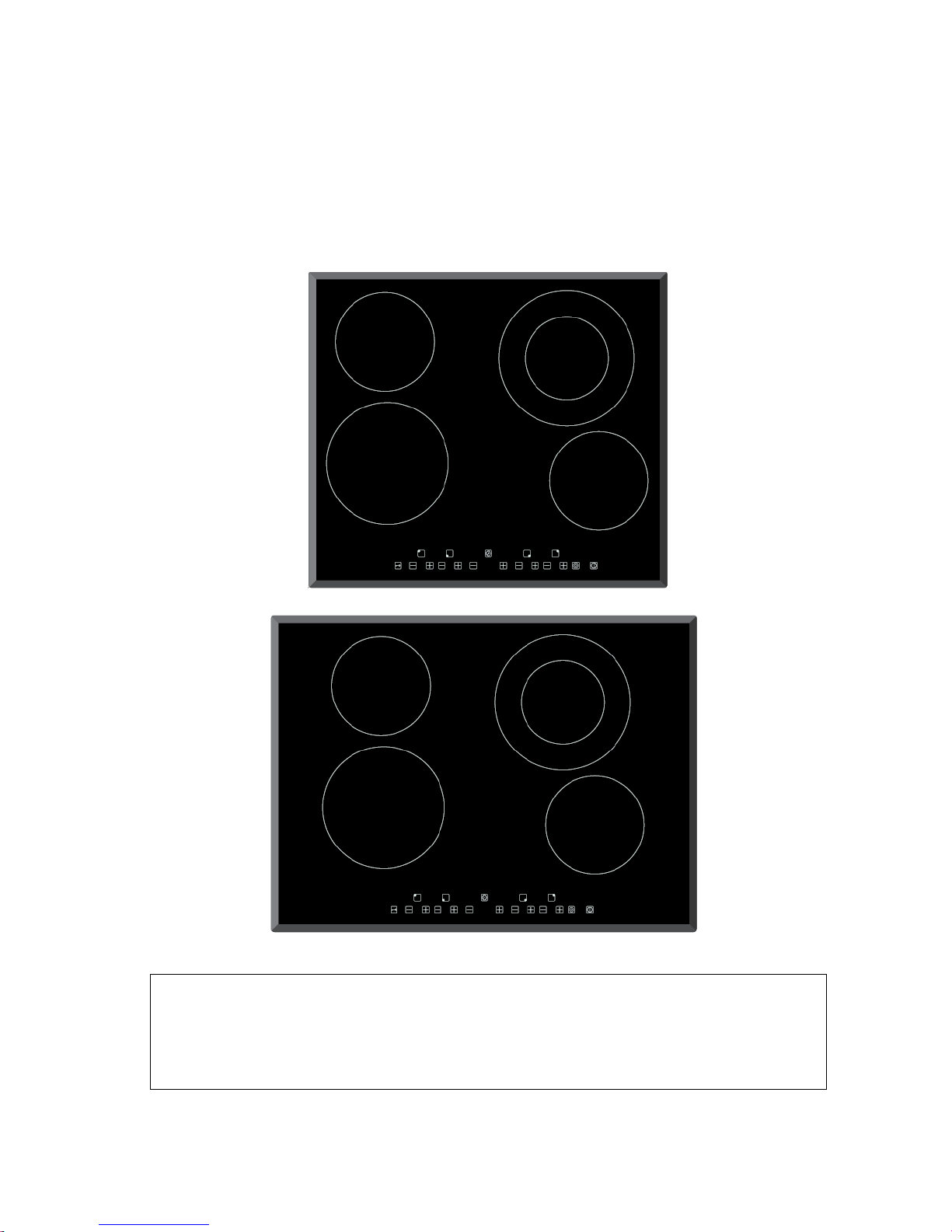

User Manual for your Baumatic
BCC600/BCC700
4 =one &eramic &RRNWRS
NOTE
:
This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
2
60/70
cm Front 7ouch &ontrol
GS 17/08/12
Page 4
3
Contents
Environmental note 4
Important safety information 5 – 8
Specifications 8 – 10
Ceramic hob layout 9
Control panel layout 10
Using the ceramic hob 10 - 16
Before first use 10
Touch controls 10
Switching the hob top on 11
Switching on a zone and setting a power level 11
Switching off a zone 11
Switching off the hob 12
Residual heat indicator 12
Switching on the dual cooking zone 12 - 13

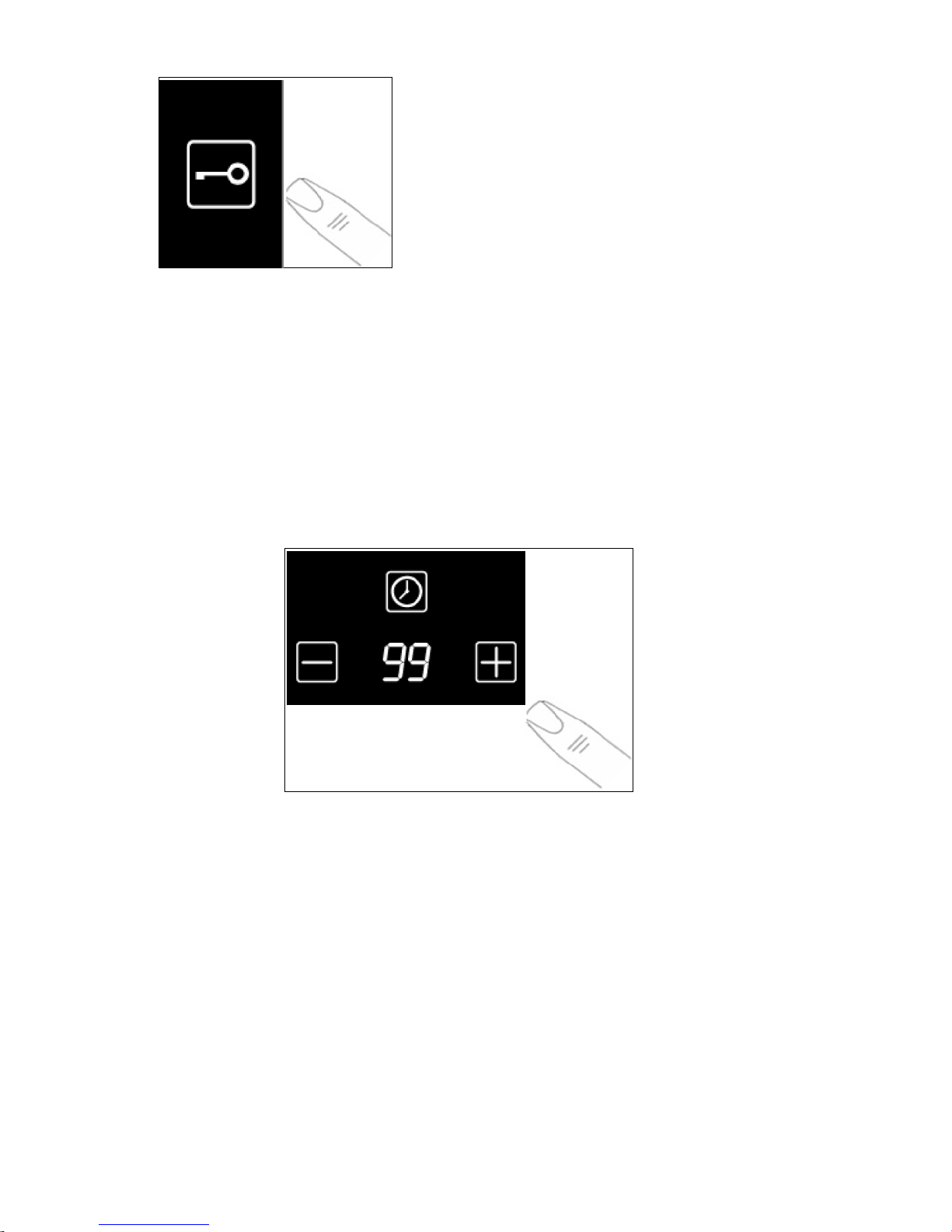

Locking the hob top 14
The hob timer 14 – 15
Setting a countdown time 15
Safety cut-off 16
Hob guidelines 16 – 17
Cleaning and maintenance 18 - 19
Cleaning the ceramic hob top 18
After each use 18
Cleaning table 18

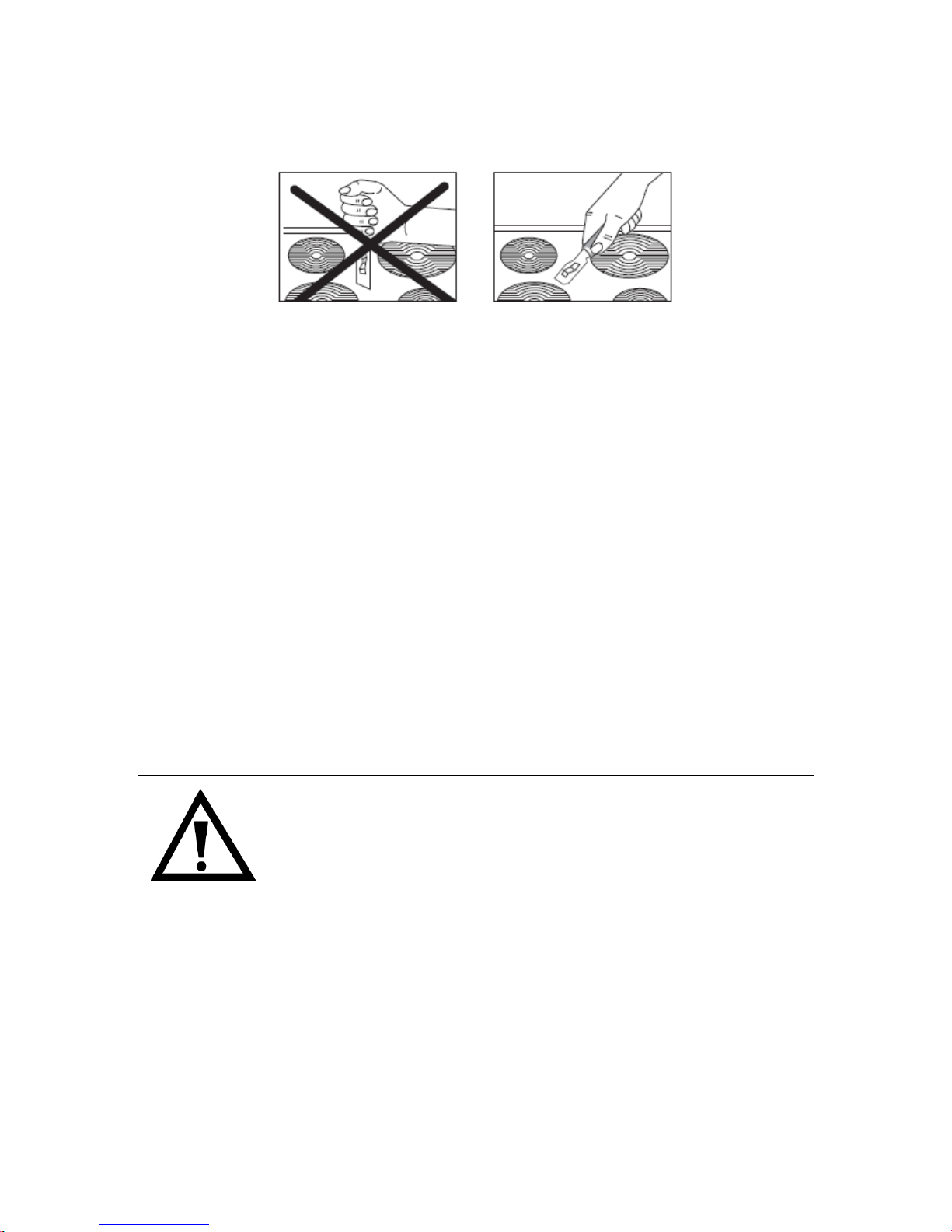

Using a ceramic hob scraper 19
Using a specialist ceramic hob cleaner 19
Installation 19 - 25
Positioning 20
Unpacking the appliance 20

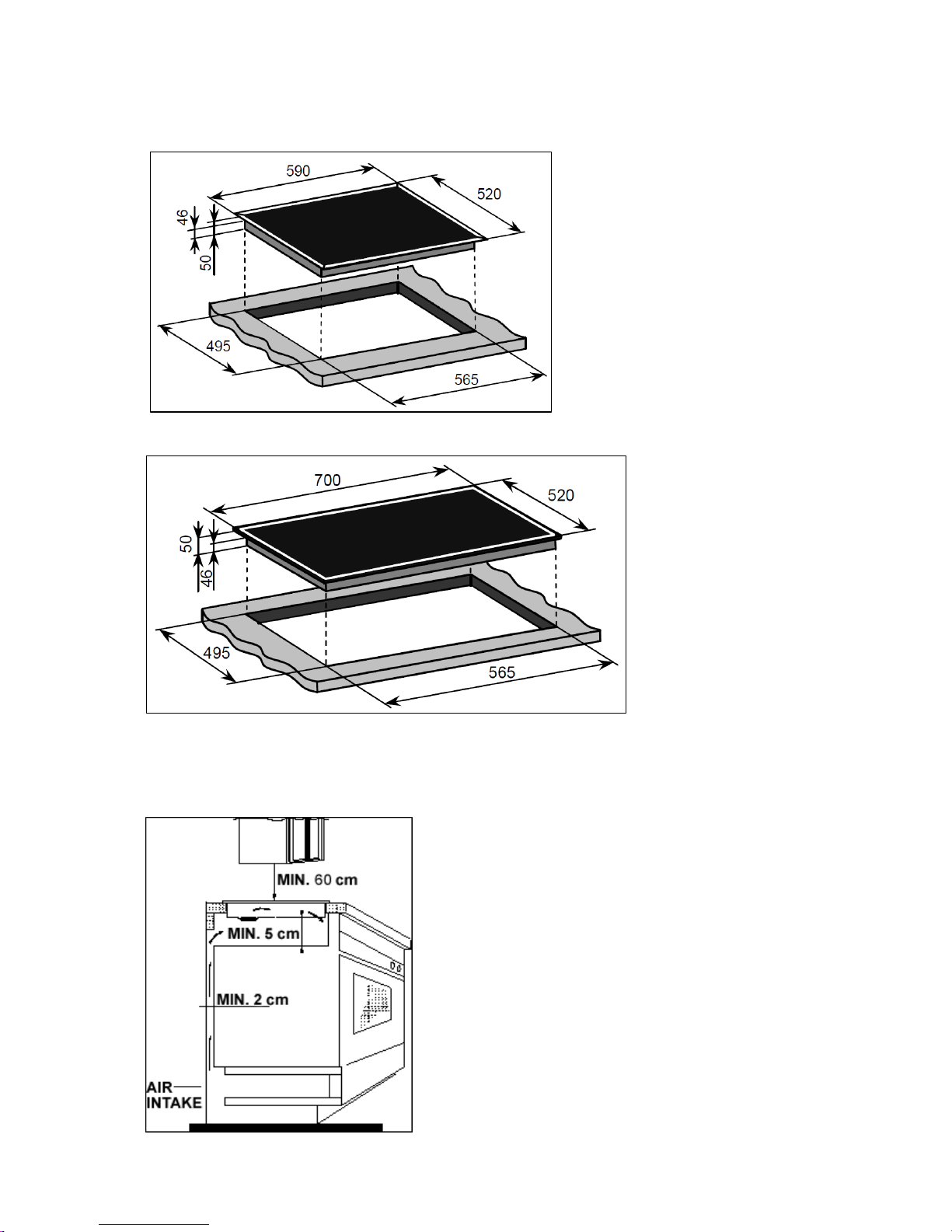

Installing the appliance 21 – 22
Electrical connection 23
Connecting the mains supply cable 23 - 24
Replacing the mains supply cable 24 - 25
My appliance isn’t working correctly 25 - 26
Contact details 27
Page 5

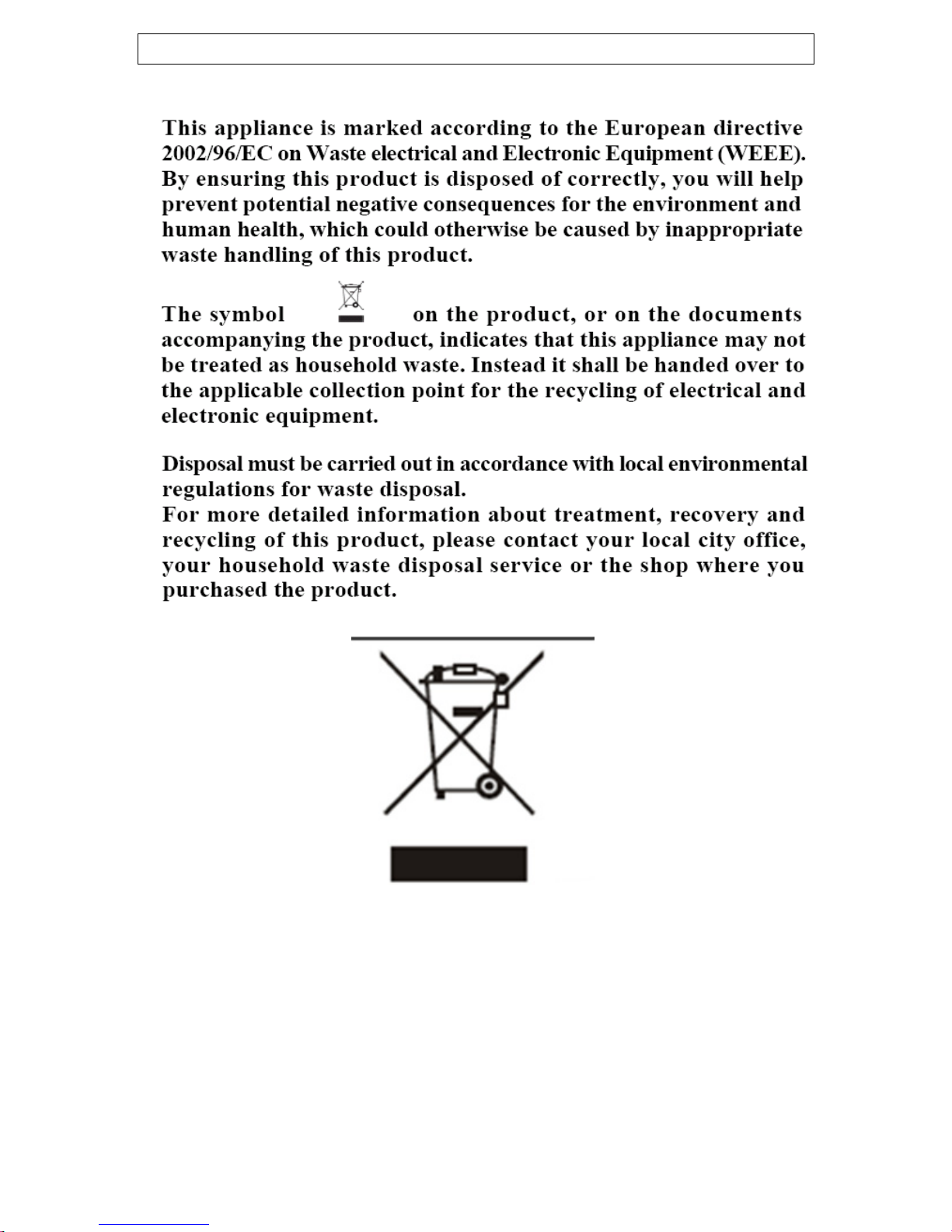

Environmental note
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
o Please discard
4
Page 6
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Customer Care Department.
ehold use and for
ambient temperature of the
scolouration at
of this temperature limit, will be the liability of
Guarantee. The foregoing does not
t of Baumatic Ltd.
ld not use this appliance to store items on or as a work
kept away
atic service
b
General Information
This appliance is designed for domestic houso
the cooking and frying of domestic foodstuffs.
o IMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the
room it is located in, whilst in use.
o Certain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
o Any damage caused by the appliance being installed in
contravention
the owner.
o Your new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
affect your statutory rights.
o The use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
o You shou
surface.
o No modifications to the appliance are permitted by Baumatic Ltd.
o You should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be
from the appliance, as they may fuse to the surface.
o Repairs may only be carried out by Baum
engineers or their authorised service agent.
5
Page 7
hild Safety
any time. During and after use, all
surfaces will become hot.
se ensure that they are kept under close supervision
at all times.
uld only be allowed to utilise the appliance
when supervised.
eneral Safety
C
o Baumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at
o If it is necessary for younger family members to be in the
kitchen, plea
o Older children sho
G
The appliance should only be installed and connected by a
suitably qualified person.
Care should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
If you notice any scratches, splits or cracks in the ceramic glass,
you should immediately switch off the appliance and disconnect
it from your mains supply. Otherwise there is the risk of electric
shock occurring.
uring use
D
Any film or stickers that are present on the hob surface when it
is delivered should be removed before use.
Care should be used when utilising the appliance, otherwise
there is a risk of burns being caused.
t with the hob surface when it is hot or any hot
cookware.
ng with fat and oil the appliance should
not be left unattended.
o You should not allow the electrical connection cables to come
into contac
o If fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooki
Make sure that all of the cooking zones are switched off after
use.
6
Page 8
leaning
Cleaning of the hob should be carried out on a regular basis.
, it
should be disconnected from the mains and allowed to cool.
using this appliance and when
following the cleaning procedure.
other high pressure
cleaning equipment to clean the appliance.
section of this booklet that refers to
stallation.
a result of improper
use or installation of this appliance.
eclaration of conformity
T
ce
must be used by a trained person for domestic purposes only.
o avoid damaging your appliance
The ceramic glass can be damaged by objects falling onto it.
ic glass edge can be damaged by knocks from
cookware.
es
may scratch the ceramic surface if they are dragged across it.
C
o
o IMPORTANT: Before attempting to clean the appliance
o Great care should be taken whilst
o You should not use a steam jet or any
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific
in
o Baumatic Ltd. declines any responsibility for injury or
damage, to person or property, as
D
o The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This applian
T
o
o The ceram
o Cast iron and cast aluminium cookware with damaged bas
7
Page 9
hild Safety
any time. During and after use, all
surfaces will become hot.
se ensure that they are kept under close supervision
at all times.
uld only be allowed to utilise the appliance
when supervised.
eneral Safety
C
o Baumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at
o If it is necessary for younger family members to be in the
kitchen, plea
o Older children sho
G
The appliance should only be installed and connected by a
suitably qualified person.
Care should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
If you notice any scratches, splits or cracks in the ceramic glass,
you should immediately switch off the appliance and disconnect
it from your mains supply. Otherwise there is the risk of electric
shock occurring.
uring use
D
Any film or stickers that are present on the hob surface when it
is delivered should be removed before use.
Care should be used when utilising the appliance, otherwise
there is a risk of burns being caused.
t with the hob surface when it is hot or any hot
cookware.
ng with fat and oil the appliance should
not be left unattended.
o You should not allow the electrical connection cables to come
into contac
o If fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooki
Make sure that all of the cooking zones are switched off after
use.
Page 10
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 30 A
Max Rated Inputs: 6.4 kW
Mains Supply Lead: 3 core x 4 mm² (not supplied)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

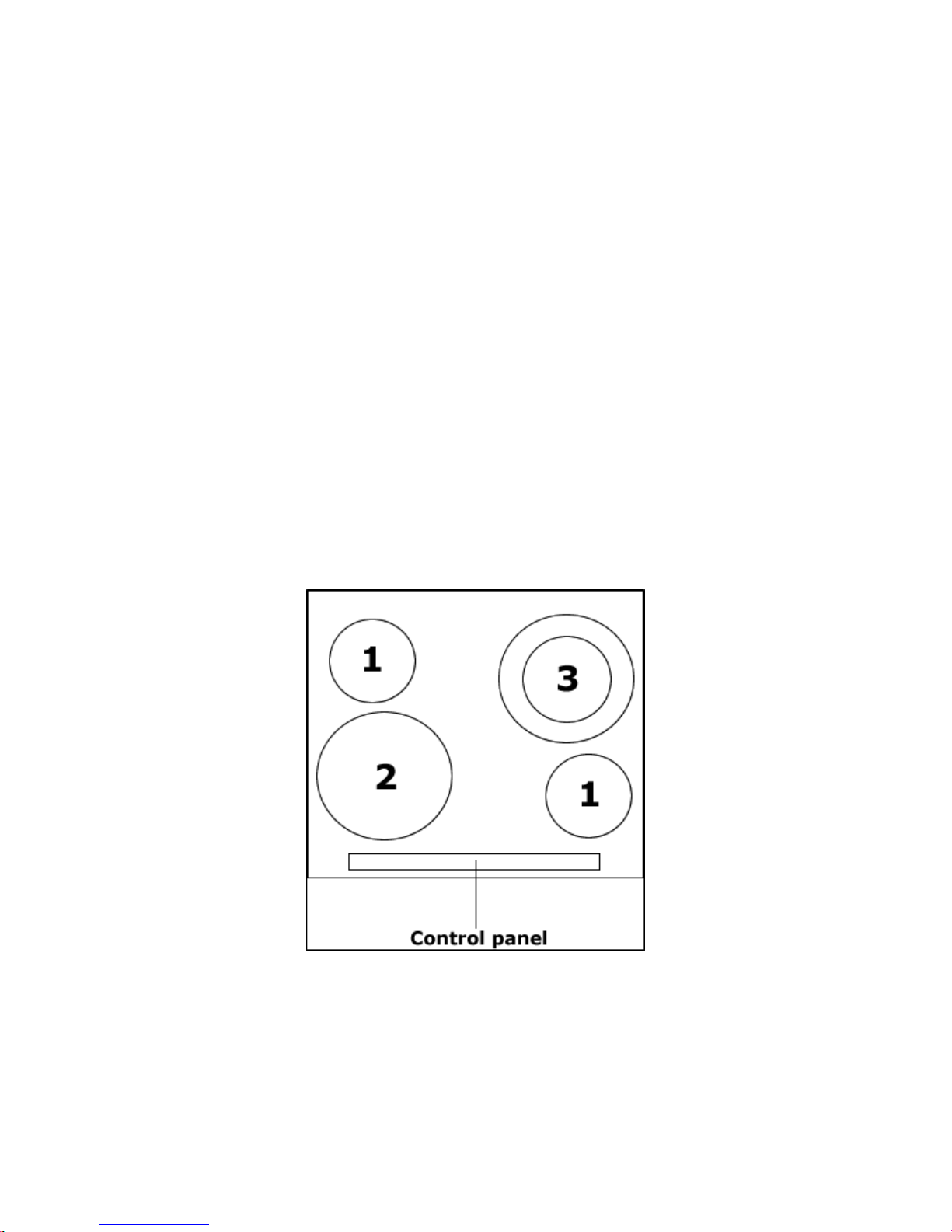

Ceramic Cooktop surface layout
1) 1.20 kW hyperspeed zones (Ø 160 mm)
2) 1.80 kW hyperspeed zone (Ø 200mm)
3) 1 x 1.00/2.2 kW double hyperspeed zone (Ø 140/220 mm)
9
Page 11

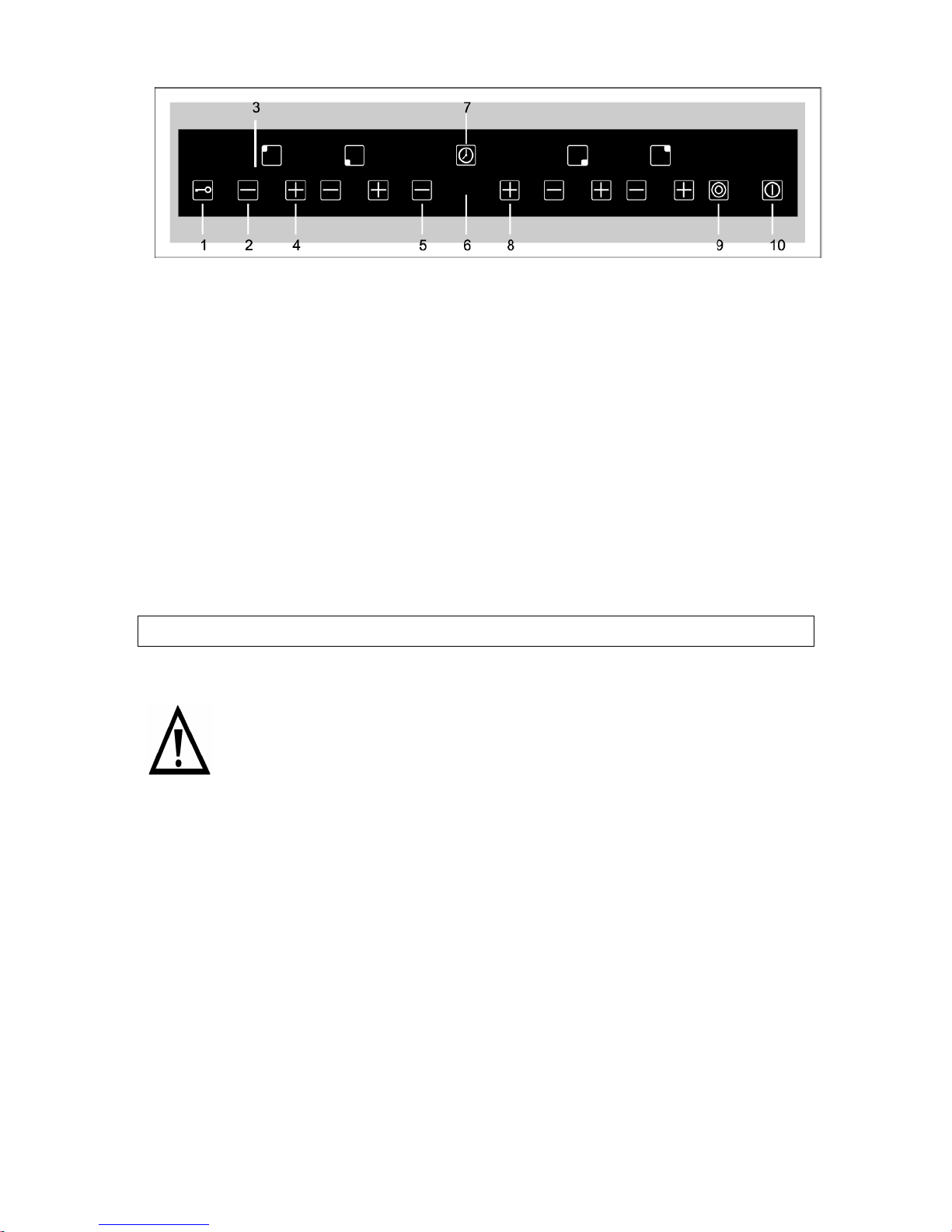

Control panel layout
1. Safety lock button
2. Cooking zone minus button
3. Cooking zone indicator
4. Cooking zone plus button
5. Timer minus button
6. Timer display
8. Timer plus button
9. Dual cooking zone ON/OFF button
10. ON/OFF button
Using the ceramic hob
Before first use
IMPORTANT: You should clean the ceramic hob surface (see
“Cleaning and maintenance” section).
o You should switch on one cooking zone at a time, for 5 minutes
at the maximum setting. This will help to eliminate any new
smell that exists and evaporate any humidity that has formed on
the heating elements during transit.
o Do not burn off more than one zone at once.
o You must place a saucepan filled half full with cold water on
each zone as you burn it off.
Touch controls
o All operations are performed by means of the touch controls that
can be found on the control panel.
o Each touch control has a visual display that corresponds to it.
7. Timer indicator
10
Page 12

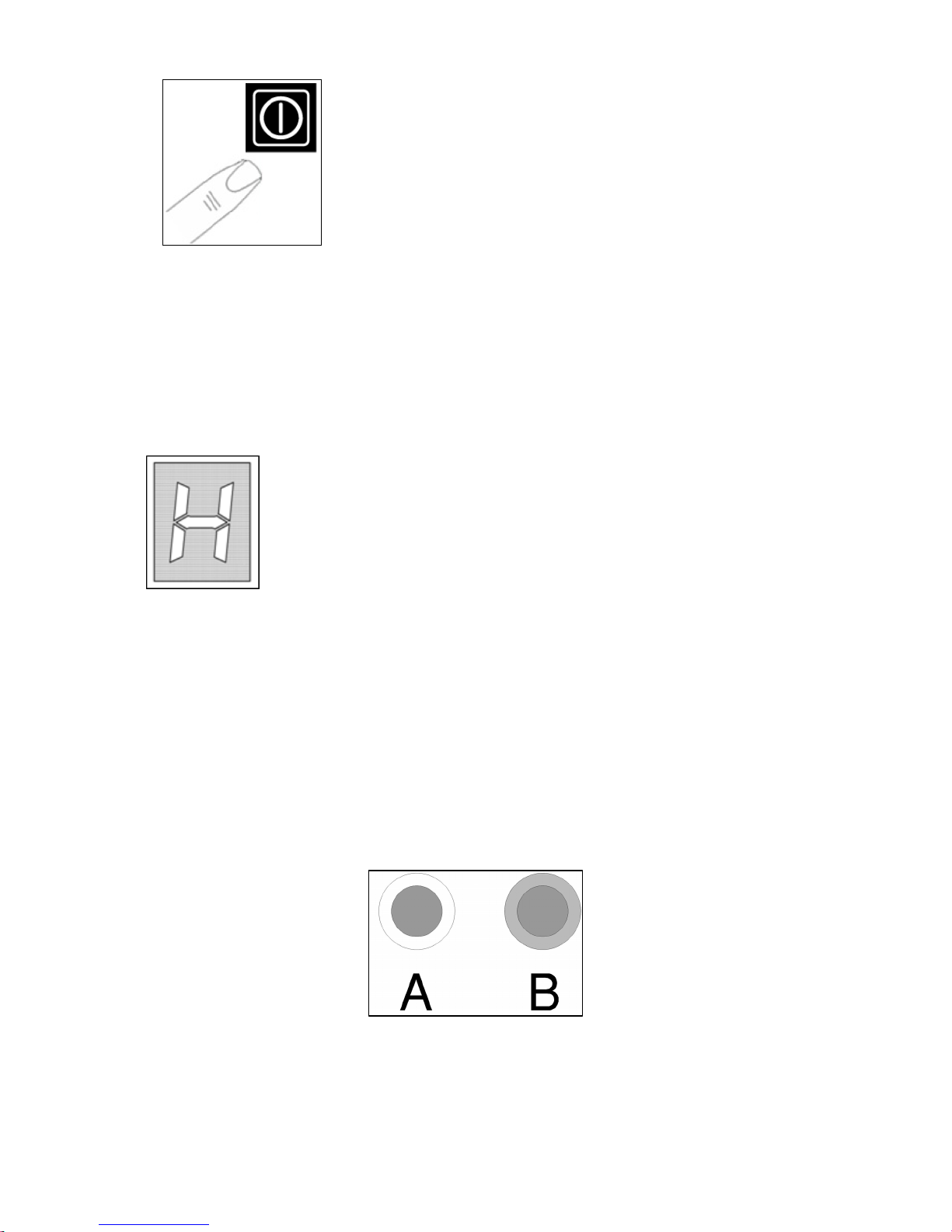

Switching the hob top on
o Press the ON/OFF button (10) to switch on
the appliance.
o The hob will beep once and all of the
cooking zone indicators will light briefly then
go out.
o This means that the hob has entered stand-by mode.

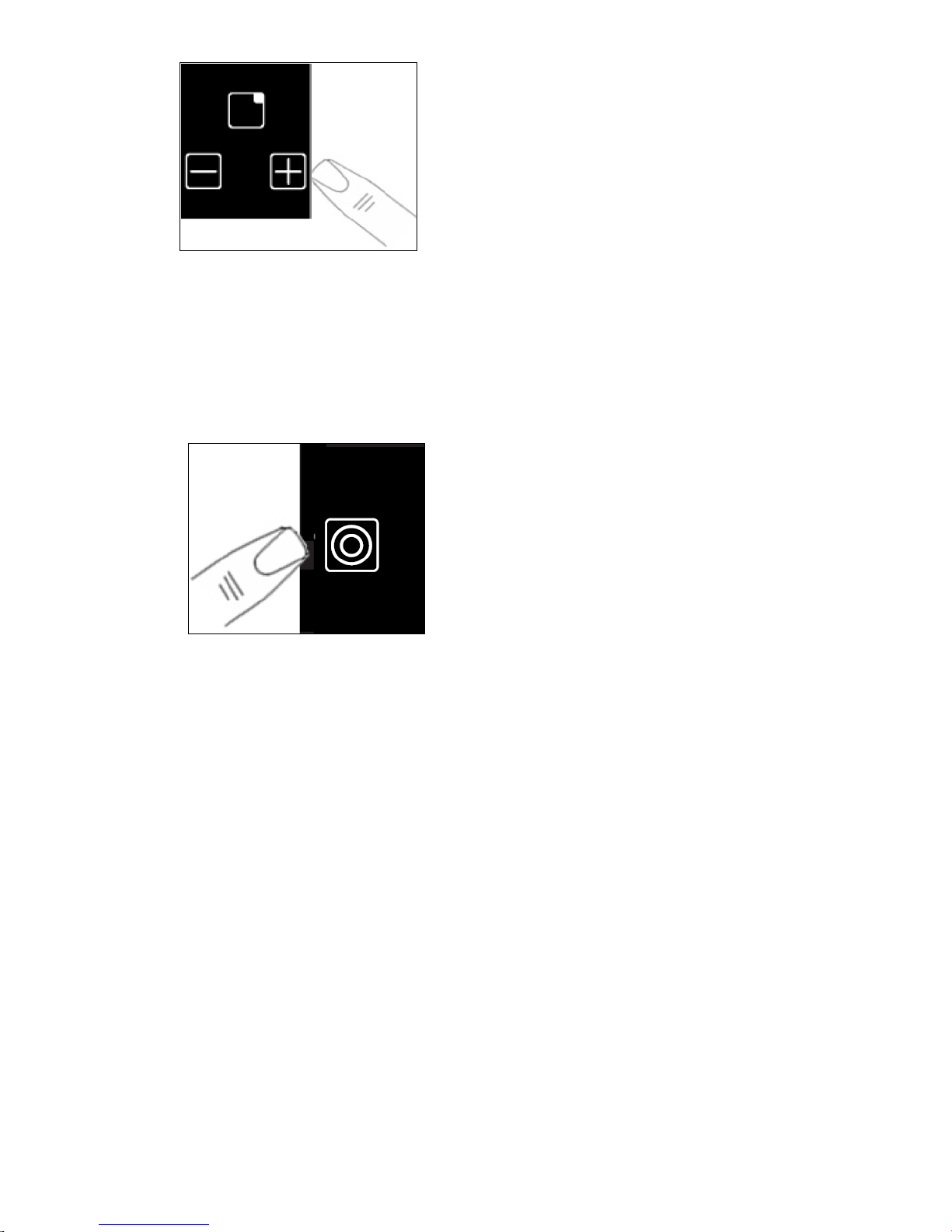

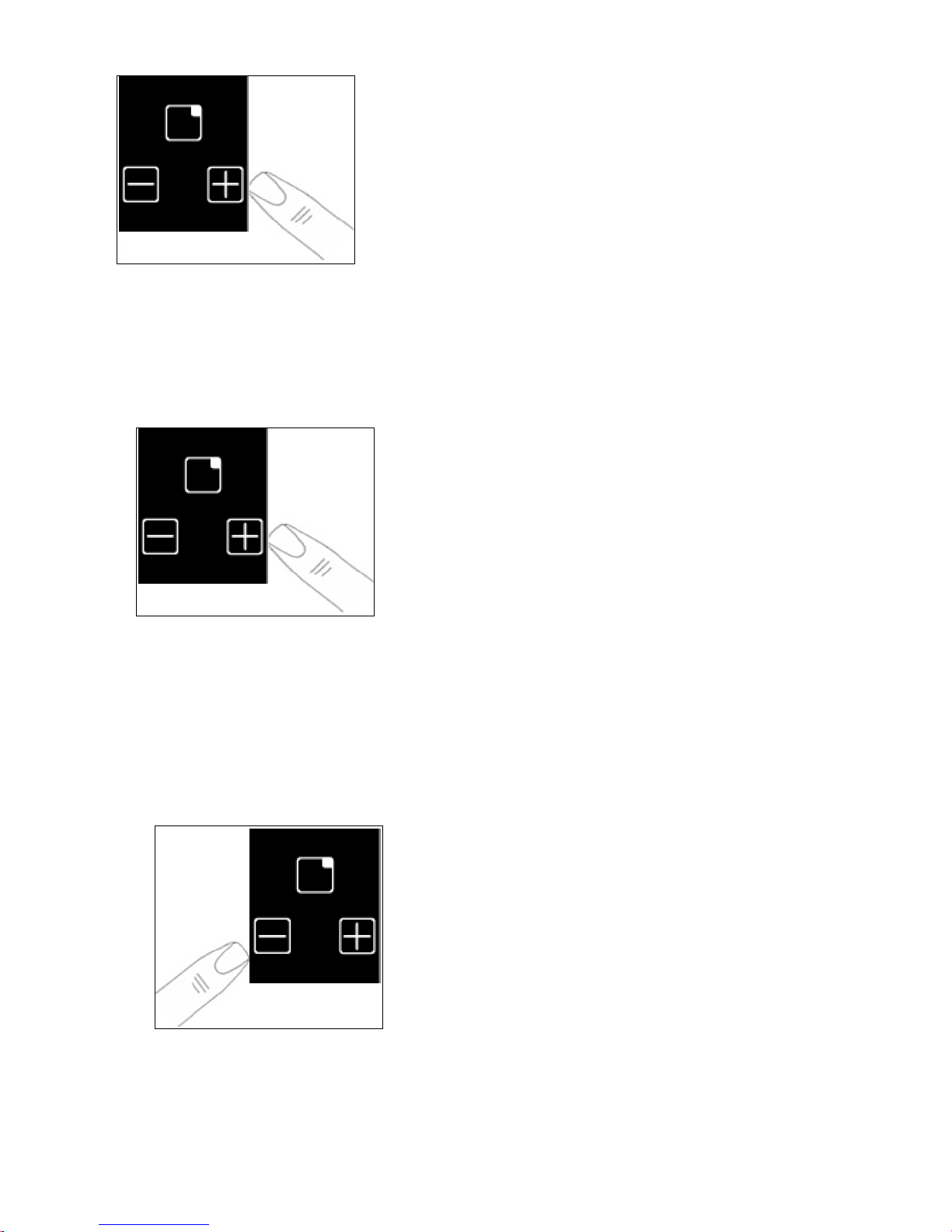

Switching on a zone and setting a power level
IMPORTANT: A zone must be selected within 1 minute of switching
the hob on.
o Press the cooking zone plus button
(4) of the zone that you want to
use.
o Adjust the zone between power levels 1 and 9, using the plus
(4) and minus (2) buttons. By holding down either of these
buttons, the value on the zone indicator (3) will adjust up or
down.
Switching off a zone
o Press the cooking zone minus
button (2) of the zone that you
want to switch off.
o Hold the button down until the
number in the cooking zone
indicator reaches “0”. After a few
seconds, the zone will switch off
automatically.
o The letter “H” will show in the cooking zone indicator (3), (see
the section on the “residual heat indicator” on the next page).
11
Page 13
Switching off the hob
o Once you have switched off all of the
cooking zones, you should turn off the hob.
o Press the ON/OFF button (10).
o It is possible to turn the hob off at any time by pressing the
ON/OFF button (10).
o The hob will switch off automatically after 1 minute, if none of
the zones are in use.
Residual heat indicator
o After a zone is switched off, the corresponding
cooking zone indicator (3) will show a flashing
letter “H”. This means that the temperature of the
zone is over 60°C and is therefore still high enough
to cause injury.
o When the temperature of the zone falls below 60°C, then the
letter “H” will go out.
o IMPORTANT: The residual heat indicator will disappear if the
mains supply to the product is cut.
o IT IS STILL POSSIBLE TO BURN YOURSELF ON A HOB
ZONE, EVEN WHEN THE TEMPERATURE OF IT HAS
DROPPED BELOW 60°C.
Switching on the dual cooking zone
The dual cooking zone has two cooking areas that you can use a
central section and an outer section. You can use the central section
(A) independently or both sections (B) at once.
12
Page 14
o Press the cooking zone plus button
(4) for the dual circuit zone.
o Adjust the zone between power levels 1 and 9, using the plus
(4) and minus (2) buttons. By holding down either of these
buttons, the value on the zone indicator (3) will adjust up or
down.
o The central section of the dual cooking zone will switch on.
o If you wish to activate the outer
section as well, you should press
the dual cooking zone ON/OFF
button (9). A neon above the
button will light.
o To switch the outer section off, you should press the dual
cooking zone ON/Off button again. The neon above the button
will go out and the outer section will go off.
o To switch off the zone after use, press the cooking zone minus
button (2) of the dual cooking zone.
o Hold the button down until the number in the cooking zone
indicator reaches “0”. After a few seconds, the zone will switch
off automatically.
o The letter “H” will show in the cooking zone indicator (3).
13
Page 15
Locking the hob top
o The whole hob top can be locked
by pressing the safety lock button
(1) whilst the appliance is switched
on.
o The timer display (6) will show
“L0” to indicate that the safety lock
feature has been activated.
o When the safety lock has been switched on, it will disable any of
the other buttons on the control panel, apart from the ON/OFF
button (10).
o To disable the safety lock feature, you should press the safety
lock button (1) again. The “L0” symbol will disappear from the
timer display (6) and you are then able to adjust the power of
any zone on the hob top.
The hob timer
Your hob has a timer which will countdown a period of time between 1
and 99 minutes. At the end of the countdown period an audible signal
will sound.
o Use the timer plus (8) and minus buttons (5) to set the
countdown time.
o The timer display will show the countdown time that is being set.
o The timer display will increase in 1 minute intervals each time
the timer plus button (8) is pressed.
14
Page 16
o The timer display will decrease in 1 minute intervals each time
the timer minus button (5) is pressed.
o If the set time exceeds 99 minutes, the timer display will return
to showing 0.
o If you press the timer plus (8) and minus buttons (5)
simultaneously, the timer display will reset to 0.
Setting a countdown time
IMPORTANT: The countdown timer controls the entire
hob, rather than an individual cooking zone. When this
function is used, the hob will switch off entering stand-by
mode.
The hob timer can be used as a minute minder at any time without
affecting the cooking process or power setting.
o To set a minute minder countdown, press the timer plus (8) or
minus (5) button so the timer display shows “- -”.
o Use the timer plus and minus buttons to adjust the time by 10
minutes.
o Once the desired time is set, release all buttons and after 5
seconds the timer countdown will be set.
o The timer display will show the remaining countdown time.
o When the set time is reached, a buzzer will sound for 30 seconds
and the timer display will show “- -“.
o To cancel a countdown time that is in progress, press the timer
plus and minus buttons simultaneously.
15
Page 17
Safety cut-off
o If one or more of the cooking zones are accidentally left on, a
safety cut off will activate after a certain period of time. The
length of time depends on the power level that a zone or zones
have been set on.
LEVEL TIME LIMIT (hours)
1 8
2 8
3 8
4 4
5 4
6 4
7 2
8 2
9 2
o If more than one zone is operating when one of the zones
reaches its safety cut-off point, only the zone which has reached
its safety cut off point will switch off.
Hob guidelines
o The first few times the hob top is used, it may give off an acrid,
burning smell. This smell will disappear completely with repeated
use.
o The worktop is fitted with cooking areas of different diameter
and power.
o The positions where the heat will radiate from are clearly marked
on the hob top. The saucepans must be positioned exactly on
these zones for efficient heating to occur. Pans should have the
same diameter as the cooking zone that they are being used on.
o You should not use saucepans with rough bottoms, as this can
scratch the ceramic surface.
o Before use, make sure that the bottoms of the saucepans are
clean and dry.
o When cold, the bottom of the pans should be slightly concave, as
they expand when hot and lie flat on the surface of the hob. This
will allow the heat to transfer more easily.
16
Page 18
o The best thickness for the bottom of the pans is 2 – 3 mm of
enamelled steel and 4 – 6 mm for stainless steel with sandwich
type bottoms.
o If these rules are not followed, then there will be a great loss of
heat and energy. Heat not absorbed by the saucepan, will spread
to the hob, frame and surrounding cabinets.
o Preferably cover pans with a lid to permit cooking at a lower
heat.
o Always cook vegetables and potatoes, etc. in as little water to
reduce cooking times.
o Food or liquid that has high sugar content may damage the hob
top if it comes into contact with the ceramic hob surface. Any
spillages should be wiped up immediately, however this may not
prevent the hob surface from becoming damaged.
o IMPORTANT: The ceramic hob surface is tough; however it is
not unbreakable and can be damaged. Especially if pointed or
hard objects are allowed to fall on it with some force.
o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN
OR CRACKED. YOU SHOULD CONTACT THE CUSTOMER
CARE DEPARTMENT IMMEDIATELY.
17
Page 19
Cleaning and maintenance
Cleaning operations must only be carried out
when the hob is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
Cleaning the ceramic hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm water mixed with a little washing up liquid.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using warm water mixed with a little washing
up liquid.
You may find it easier to clean some deposits whilst the hob
surface is still warm. However you should take care not to burn
yourself if cleaning the hob surface when it is still warm.
After each use
o Wipe the appliance over with a damp cloth.
o Dry the appliance by rubbing the surface with a clean cloth.
Cleaning table
Type of deposit Remove
immediately?
Remove
when the
appliance
has cooled
down?
What should I
use to remove
the deposit?
Sugar or
food/liquid
containing sugar
Yes No Ceramic hob
scraper
Tin foil or plastic Yes No Ceramic hob
scraper
Fat splashes No Yes Ceramic hob
cleaner
Metallic
discolouration
No Yes Ceramic hob
cleaner
Water splashes or
water rings
No Yes Ceramic hob
cleaner
18
Page 20
Using a ceramic hob scraper
Your appliance will be provided with a hob scraper. The following
guidelines should also be followed when using the ceramic hob
scraper:-
o The scraper should be placed on the ceramic surface at an angle.
o Residues should be removed by sliding the blade carefully over
the ceramic surface.
o The ceramic surface should be wiped with a damp cloth that has
been placed in warm water mixed with a small amount of
washing up liquid.
o Dry the appliance by rubbing the surface with a clean cloth.
Using a specialist ceramic hob cleaner
It is possible to purchase a specialist ceramic hob cleaner/conditioner.
You should follow the instructions given by the manufacturer of the
specialist ceramic hob cleaner. You should ensure that it is suitable for
use on your appliance.
Installation
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
o AS/NZS 3000:2007 Wiring Regulations
o 2010 Electricity Safety Regulations
19
Page 21
Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600 mm worktop that is at least 30
mm thick. The following minimum clearance distances must be
observed:-
o 700 mm between the hob surface and the underside of any
horizontal surface above it.
o 50 mm clearance around the sides and front of the appliance.
o 55 mm clearance between the back of the hob surface and the
wall behind it.
o If the hob is positioned so that the right or left hand side of the
appliance will be near to the edge of a kitchen unit. There must
be a gap of at least 150 mm between the side of the hob and the
vertical surface of the kitchen unit.
20
Unpacking the appliance
When unpacking the appliance please check that the following items
are contained within the packaging:-
1 Baumatic Cooktop
1 Ceramic Cooktop scraper
1 Installation and instruction manual
1 Baumatic guarantee card
4 Fixing brackets
4 Fixing screws
1 Sealing strip
Page 22

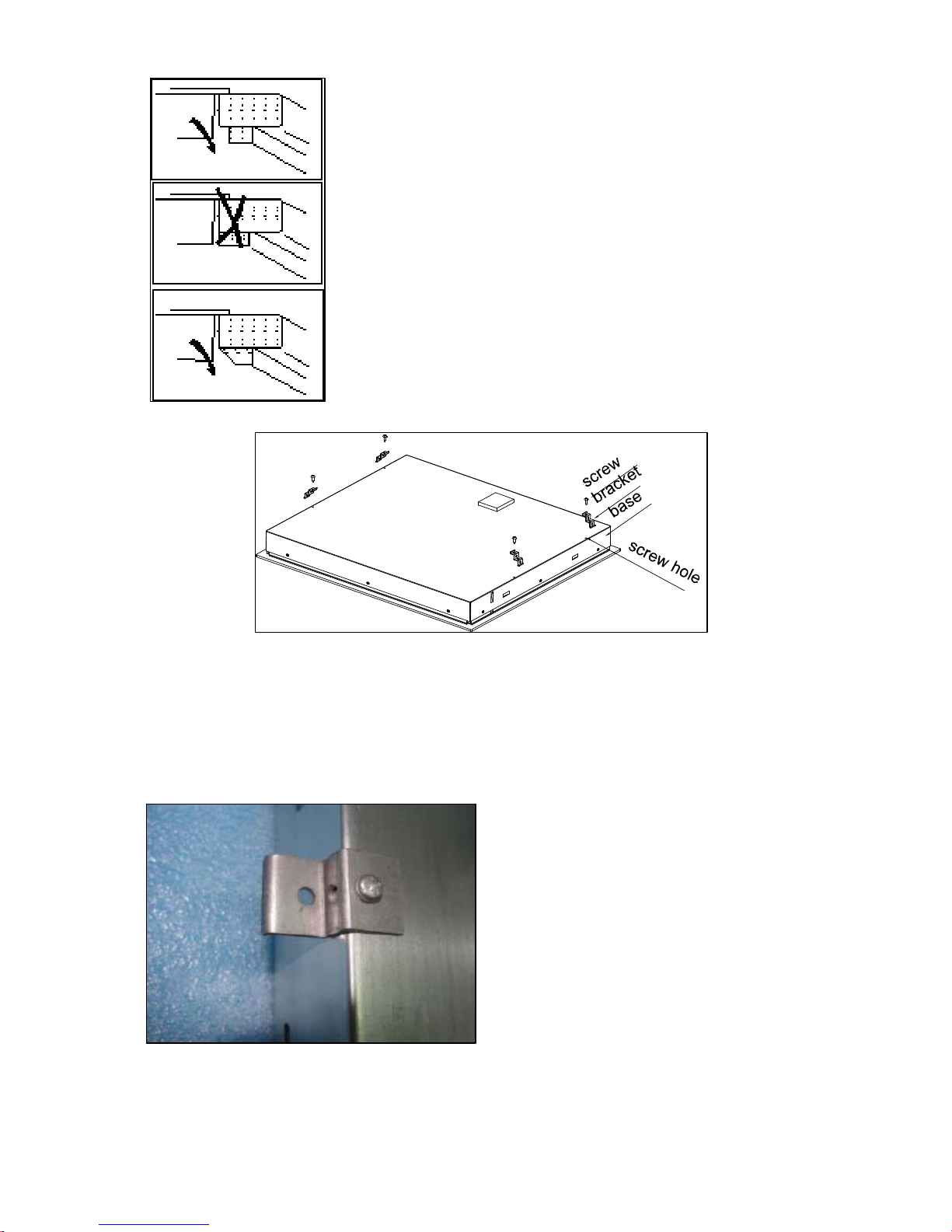

Installing the appliance
BCC600
BCC700
o Cut a hole in the worktop that corresponds with the drawing shown
above.
o IMPORTANT: You must observe the
ventilation requirements shown in the
drawing opposite.
21
Page 23
o IMPORTANT: There are ventilation holes
around the outside of the hob. YOU MUST
ensure that these holes are not blocked by
the work top, when you put the hob into
position (see drawing opposite).
o Carefully turn the hob upside down and place it on
a cushioned mat.
o IMPORTANT: Do not use a silicon sealant to seal
the appliance against the aperture. This will make
it difficult to remove the hob from the aperture in
future, particularly if it
needs to be serviced.
o Carefully turn the hob back over and then gently lower it into the
aperture hole that you have cut out.
o There are holes on the base or the sides of the hob that you can fix
the four brackets to. There are three holes in each one of the
brackets.
o You should place the bracket
on the underneath of the hob,
in a position that is
appropriate for the aperture
that you have cut out. Using
the screws provided, fix the
bracket to the hob. These
screws MUST be securely
tightened.
22
Page 24
23
Electrical connection
This appliance must be installed by a qualified
person in accordance with WKHUHODYHQW
Regulations and in compliance with Baumatic’s
instructions.
Before connecting the appliance, make sure that the supply voltage
marked on the rating plate corresponds with your mains supply
voltage.
WARNING: THIS APPLIANCE MUST BE EARTHED.
o This appliance must be wired into a 30A fused outlet
and placed in an easily accessible position
adjacent to the appliance. It should not be located
directly above the appliance and no more than 1.25m
away from it.
o The spur outlet must still be accessible even when your hob is
located in its operating position.
o Cable type: H05 RRF 3 core x 4 mm²
Connecting the mains supply cable

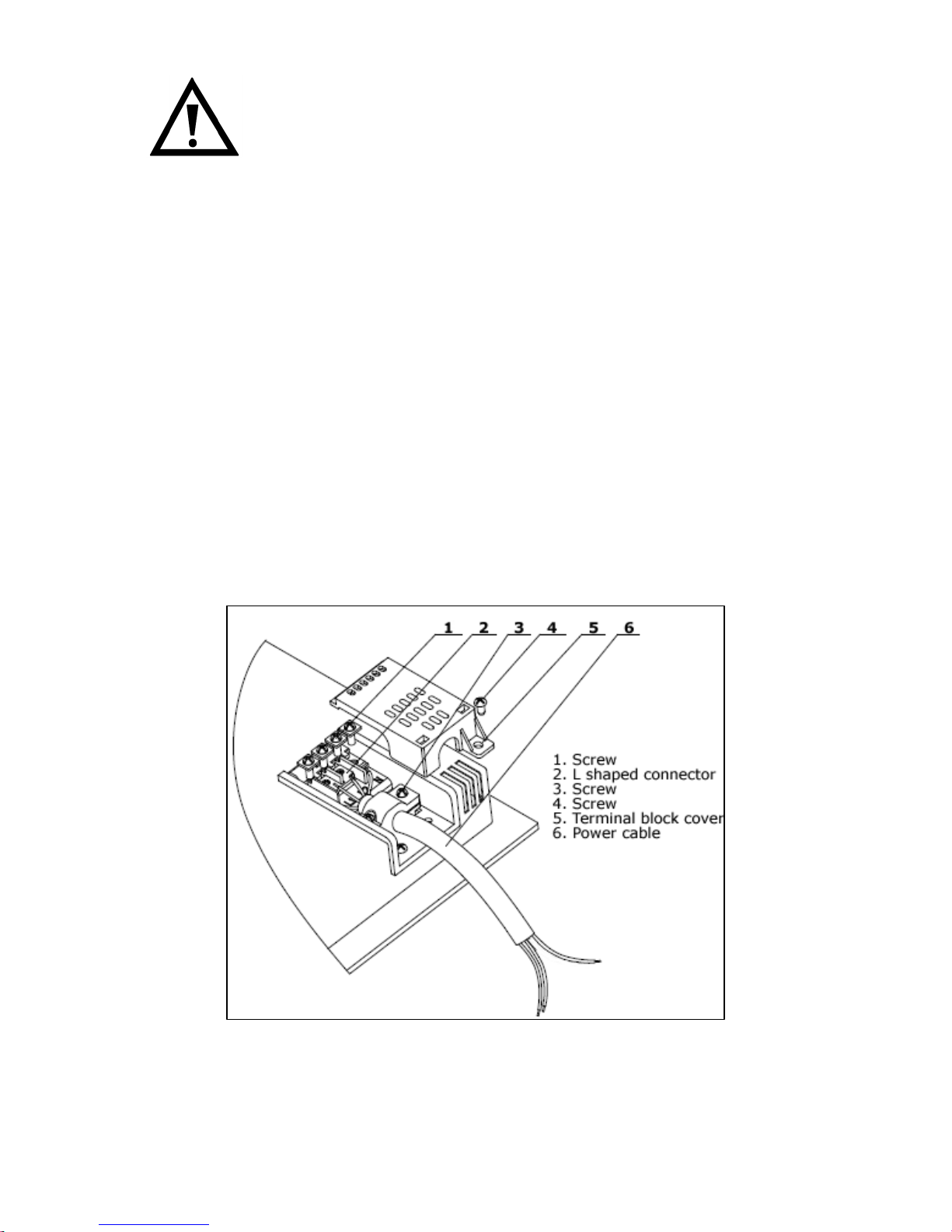

o The mains terminal block is located on the underside of the hob
and the terminals are accessible by removing the terminal block
cover by removing the cover screw.
Page 25
24

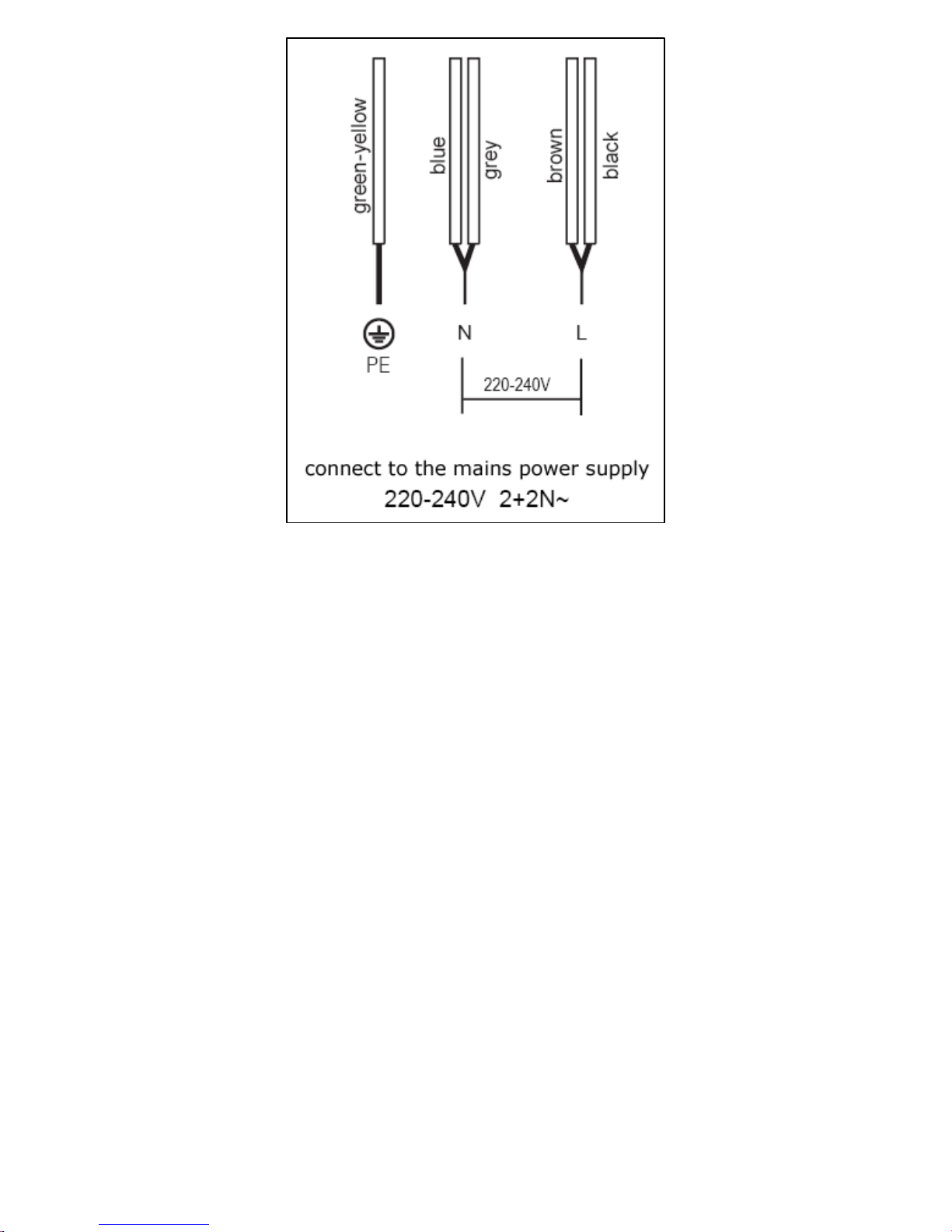

o The cable connections must be in accordance with the diagram
located on the bottom of the hob (see above).
o You should use a good quality screwdriver to carefully, fully
tighten ALL of the terminal screws.
o If when the hob is first switched on, only two of the zones
work, you should recheck that the terminal screws are all
fully tightened. This should be done before contacting the
Customer Care Department.
o IMPORTANT: The appliance must NOT be connected to the
mains supply by means of a $13A$ plug and socket.
o The cable can be looped if necessary, but make sure that is not
kinked or trapped when the hob is in position. Care must be
taken to avoid the cable being in contact with hot parts of the
appliance.
Replacing the mains supply cable
If the mains supply cable is damaged, then it must be replaced by an
appropriate replacement.
The mains supply cable should be replaced in accordance with the
instructions on the next page:
Page 26
25
o Switch the appliance off at the socket.
o Open the terminal block on the underside of the hob.
o Unscrew the terminal screws fixing the cable.
o Replace the cable with one of the same length and in accordance
o The “green-yellow” earth wire must be connected to the terminal
marked . It must be about 10 mm longer than the live and
neutral wires.
o The “blue” neutral wire must be connected to the terminal
marked with letter (N) - the live wire must be connected to the
terminal marked with letter (L).
My appliance isn’t working correctly
o The cooking zones are not functioning or will not switch
on.
* It has been more than 1 minute since the appliance was
switched on. You should switch the appliance back on again,
using the ON/OFF button and then switch on a cooking zone.
* The safety lock has been switched on (see the “Locking the hob
top” section for information on how to turn off the safety lock).
* Several cooking zone selection buttons have been pressed at
once. You should only try to switch on one cooking zone at once.
* The safety cut out has been triggered. Press the ON/OFF button
to reset the hob.
* Check that the mains electrical supply to the appliance is correct
and working. Check the mains fuse.
o The residual heat indicator has not come on after I have
switched a cooking zone off.
* The cooking zone has only been turned on for a short period of
time; therefore it did not go above 60°C.
* IMPORTANT: If the cooking zone does appear to be hotter than
60°C and the residual heat indicator has not come on, you
should call the Customer Care Department.
with the specification given on page 23.
Page 27
26
o A humming sound is heard when a cooking zone is
selected.
* This is normal; the sound will disappear when the zone heats up.
o The cooking zones have become discoloured.
* This maybe caused by burnt on remnants of food. This will not
affect the working of the appliance. However you should make
sure that the cleaning instructions are being followed regularly.
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact the
&XVWRPHU&DUH'HSDUWPHQW
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
Page 28
Think Appliances Pty Ltd.
416-424 Barry Rd
Coolaroo VIC 3048
Sales Telephone
1300 132 824
Service Telephone
1800 444 357
Website
www.thinkappliances.com
Applico Ltd.
P.O. 92900
Onehunga, Auckland 1061
New Zealand
Website
www.baumatic.co.nz
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Website:
www.baumatic.co.uk
Loading...
