thinka
Power adaptor
(and extensions)
Network cableThinka for KNX
Getting started
What’s in the box
®
Connect Thinka to your network using a network cable
and to KNX using a KNX certified bus cable
Connecting things
KNX
®
KNX busEthernet
Operating Thinka
Reset
Status
When Thinka is starting up the light will
be solid red. While starting up your Thinka
will look for updates and the light starts
flashing red. When finished starting the
light will be green. Sometimes Thinka will
restart after receiving an update which
will turn the status light off for a few
seconds.
Press and hold this button until the light
flashes orange, after releasing it press
shortly to restart.
Press and hold this button until the light
flashes orange, after releasing it press and
hold to perform a factory reset.
Top view
prog.
KNX bus
Power
Ethernet
Supplied power adapter
12V max 1A or screw
terminal 12-32V
Optional when
using a KNX IP
gateway
Connections
Front view Rear view

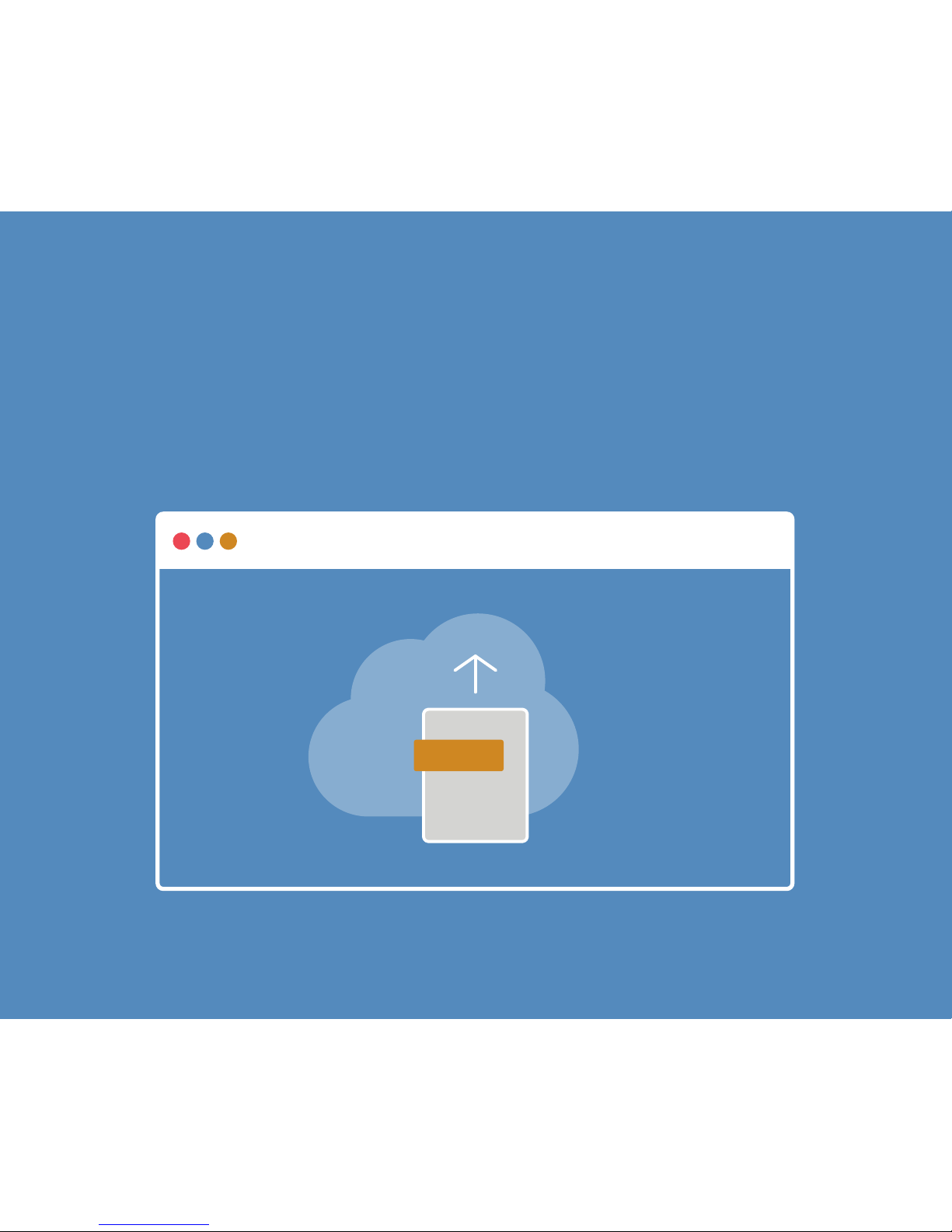

Go to setup.thinka.eu and follow the instructions
Setting up Thinka
https://setup.thinka.eu
knxproj
Review your accessories
Rename, add or hide accessoires from the KNX import
Okay
Tap the in the right corner and choose Add Accessory
Open the Home app
Home
Point the camera at the HomeKit setup code on the Thinka
or the back of this manual to add it
Pairing with HomeKit
Add accessory
123-45-678
Connected to
the same network
S/N:
068THK
https://setup.thinka.eu
123-45-678
®
prog.
Enable Amazon Echo
Go to the support page on your
Thinka setup interface.
Enable the Amazon Echo
Click the pair button
Copy the generated token and
enable the Thinka Skill as
described on the next page
Disable Amazon Echo
Enabled
Connected to Thinka Cloud
Amazon Echo
Enable Amazon Echo
Pair
Pair
Enabled
Connected to Thinka Cloud
Amazon Echo
1
2
Your token is: 6afdae8b11d53fb8
3
AMAZON ECHO PAIRING TOKEN
1
2
3
Enable the Thinka Skill
Finally you’ll need to start device discovery.
You do this by saying, "Alexa, discover devices"
or by choosing Discover devices on the Alexa
website.
Thats it. You’re now able to control your devices
with voice commands.
Go to alexa.amazon.com.
Select Skills in the left menu.
Search for Thinka and enable the skill.
You will be asked to enter or paste the
token from the previous step.
Thinka for KNX
Thinka
“Alexa, turn on
the ceiling lights”
Enable Skill
“Alexa,
discover devices”
By installing the software and/or using the software you agree to be bound to the general
terms and conditions found on www.thinka.eu
Use of the Works with Apple HomeKit logo means that an electronic accessory has been
designed to connect specifically to iPod touch, iPhone, or iPad, respectively, and has been
certified by the
developer
to meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and regulatory standards.
Home app is an Apple made app included in iOS. HomeKit is a trademark of Apple Inc.
HomeKit
Thinka features Apple HomeKit technology
for home management.
To control this
HomeKit-enabled accessory, iOS 10.0 or
later is recommended.
See our website
for more details.
Supported devices
Thinka supports switches, lightbulbs,
curtains, (venetian) blinds, and climate
control. It reports levels and sensors, see our
website for details.
KNX
Thinka for KNX connects to your
existing KNX system via twisted
pair or a KNX IP gateway.
