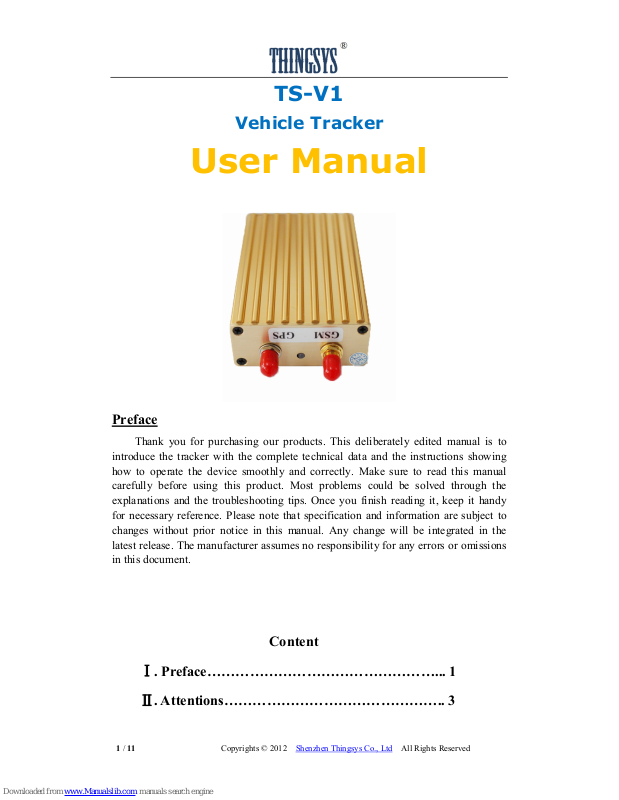

Thingsys TS-V1 User Manual

1 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved

TS-V1

Vehicle Tracker

User Manual

Preface

Thank you for purchasing our products. This deliberately edited manual is to
introduce the tracker with the complete technical data and the instructions showing
how to operate the device smoothly and correctly. Make sure to read this manual
carefully before using this product. Most problems could be solved through the
explanations and the troubleshooting tips. Once you finish reading it, keep it handy
for necessary reference. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions
in this document.

Content

Ⅰ. Preface…………………………………………... 1

Ⅱ. Attentions……………………………………….. 3

2 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved

Ⅲ Hardware description…..…………………….…3

Ⅳ. Main function……………………………….….. 4

Ⅴ. Set up………………………………………...….. 4

Ⅵ. Installation…………………………………...……7

Ⅶ. Application.……………………………….….…...9

Ⅷ. Specification…………………………………….…9

3 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved

Attention

1. Make sure to read this manual carefully before using this product.

2. Please insert the SIM card before installing, and make sure the SIM card has no

password, otherwise the tracker will not work normally.

3. Please make sure that all the cables of the tracker has been connected rightly, and

then connect the tracker to host power. Must not install or take down the tracker

when it is power on. If you found any troubles or omissions about the connections

of cables, please cut off power first, otherwise you will easily damage the tracker.

4. The tracker works in wireless communications, so please cut off the host power

before your vehicles entering fuel depot and dangerous material place.

5. The tracker’s work voltage is 9V-30V. Please use the tracker in the scope of work

voltage.

6. The host of GPS tracker is a low-power wireless transmitter and receiver. It

receives and sends radio frequency signal when it is working.

7. To avoid electromagnetic interference or uncompatible configuration, please stop

using your tracker in the noticed place.

GPS Vehicle Tracker

4 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved

◆Hardware Description

1. Host Tracker

2. Start up

Put the SIM card in place and installed the tracker in the car, the red indicator is on.

About 40 seconds, the unit will begin to work and acquire the GSM signals as well as

the GPS signals, and the red indicator will keep flashing every 2 seconds when the

GSM module is no communication. When the blue indicator is light, the unit has been

located.

◆Main functions

1. Positioning and Tracking: Through the on-line Positioning Platform or the cell

phone to locates at times, and get the working status. You can choose the Positioning

Platform by yourself.

2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle,

you can put on the button and the installed unit will send out alarm to the authorized

numbers.
