Wing Span
Wing Area
Flying Weight
Fuselage Length
39.5 in / 1000 mm
301 sq in / 19.4 sq dm
22 oz / 620 g
17.5 in / 440 mm
Requires : 3-channel “mixing” radio (elevator & ailerons),
2 micro servos, Ducted Fan Propulsion Unit
PL6800010 and Outrunner Motor KM0283110,
30A (burst 35A) brushless ESC, 3 cells 11.1V 15C
2100 mAh Li - Po battery & charger.
Specifications
*Specifications are subject to change without notice.*

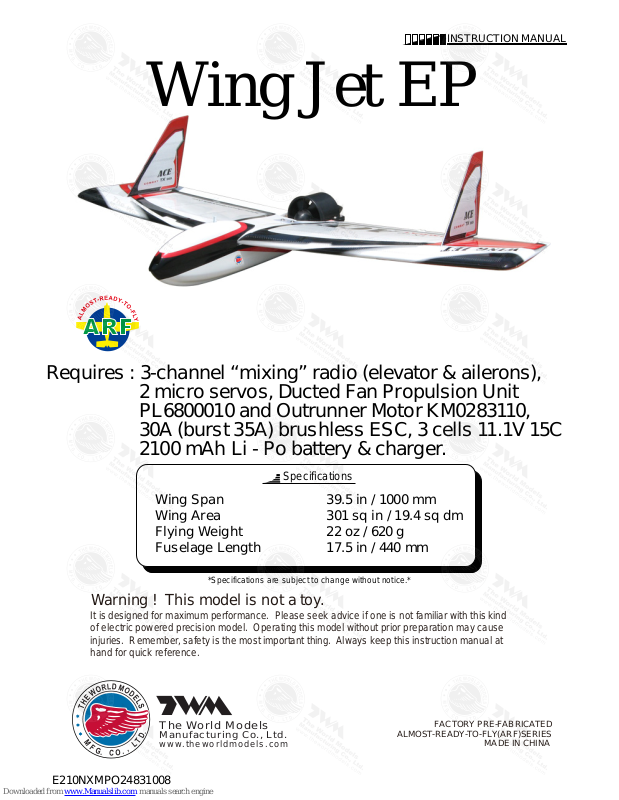

INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
Wing Jet EP
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E210NXMPO24831008

INDEX
BEFORE YOU BEGIN
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3-P.8
P.8
Check all parts. If you find any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
Any parts you find to be defective after the gluing process may be difficult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modified by customer.
Symbols used throughout this instruction manual comprise of the following :-
Read through the manual before you begin, so you will have an overall idea of what to do.
1
2
3
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Pay close attention here!
Apply epoxy glue.
Must be purchased separately !
Drill holes with the specified
diameter (here: 3mm).
Pierce the shaded portion
covering film.
3mm
Do not overlook this symbol !
Warning!
Apply thread locker
P.1
Wing Jet EP
E210NXMPO24831008

Parts List
P.2
COVERING:--
LIGHTEX SGX210000
LIGHTEX SGX100
1. MAIN WING -- 1 pair
2. SCREW PB2x10mm -- 4 pcs
SCREW PA1.7x8mm -- 8 pcs
STRAPER PL4112106 -- 2 pcs
CLEVIS PL4112105 -- 2 pcs
FUEL TUBE d2xD4x4mm -- 4 pcs
HORN PL4113102 -- 2 sets
PUSHROD Ø1.4x97mm w/ Threads (For Aileron) -- 2 pcs
MICRO AILERON SERVO MOUNT PL5310020 -- 1 pair
3. WING JOINER Ø5x135mm -- 1 pc.
4. VERTICAL FIN -- 1 set
SCREW PM2x20mm -- 2 pcs
WASHER d2xD5mm -- 4 pcs
M2 NYLON INSERT LOCK NUT -- 2 pcs
5. BATTERY TIE 200mm -- 1 pc.
SPONGE 10x50x150mm -- 2 pcs
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
CABLE TIE (For Brushless ESC) 1x2.5x200mm -- 1 pc.
6. SCREW PWM3x13mm -- 4 pcs
M3 NUT -- 4 pcs
7. SCREW PM2.5x20mm -- 2 pcs
WASHER d2.5xD8mm -- 2 pcs
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
PLYWOOD 2x20x40mm (Wing Protection) -- 1 pc.
8. CANOPY -- 1 pc.
9. FIELD STAND/ LAUNCHING PAD -- 1 set
DECALS -- 1 set
E210NXMPO24831008

Aileron Servo Lead
Main Wing
Apply instant type CA glue
to both sides of each hinge.
Aileron Servo
PB2x10mmScrew
4
8
Ø1mm pilot holes for World
Models tri-horn are pre-drilled.
Please look for pin-hole marks
at under side of control surfaces.
PA1.7x8mm Screw
Please choose either 02L & 02R or 03L & 03R or 04L & 04R
that suits your servo.
02L
03L
04L
02R
03R
04R
FuelTube
d2xD4x4mm
Clevis
Horn
PB2x10mm
Pushrod
Ø1.4x97mm
PA1.7x8mm
P.3
2
1
TWM PL8210010
CLEVIS WRENCH
Bottom View
Bottom View
E210NXMPO24831008

Front
Battery
Battery Tie
30A Brushless ESC
Double-Sided tape
P.4
Battery & ESC
5
Vertical Fin
4
Install and arrange the equipment as shown in
the picture.
Main Wing
Please apply glue to wing joiner and all surfaces in contact.
Ø5x135mm
3
2
4
2
d2xD5mmWasher
d2xD5mm
Washer
PM2x20mm
Screw
PM2x20mm
M2 Nylon Insert Lock Nut
M2 Nylon Insert
Lock Nut
Completed
Bottom View
30A Brushless
ESC
Cable Tie

Ducted Fan Propulsion Unit with 28/31 Motor
3
4
4
4
6
1 2 3
4 5 6
Make sure TWM logo on ducted
fan stays on top of fuselage.
PWM3x13mmScrew
PWM3x13mm
PWM3x13mm
PM2x5mm
Screw
PM2x5mm
M3x6mm
Center Line
Up
M3x6mmSocket Head Screw
M3 NUT
M3 NUT
Completed
Rear View
TWM
TWM
P.5
Make sure rotating motor casing
is not in contact with wirings or
anything.
OutrunnerMotor28/31
KM0283110
Ducted Fan Propulsion Unit PL6800010
Optional Parts
Sold er
Sold er
TWM
KP0011310
ESC
Ducted Fan
E210NXMPO24831008

Field Stand/ Launching Pad
Completed
The field stand can be used as a launching-pad if you are flying on paved
runways. Place the Wing Jet on the stand, point it into the wind, check your
controls and advance the throttle. When the Wing Jet gets enough air speed,
pull the elevator gently and the Wing Jet will fly off the field stand and get
airborne gracefully.
If you are flying on grass fields and could not use the field stand as a
launching pad, you will need to hand launch the Wing Jet.
When the Wing Jet has gained enough air speed, gently pull the elevator
and let the Wing Jet climb to a higher safe altitude. Reduce the throttle to
slow the Wing Jet while maintaining altitude. The Wing Jet should fly well
about half throttle. You may add power when turning, climbing or doing
loops. Learn how the Wing Jet behaves and adjust the trims for level flight.
To avoid overheating of ducted fan motor and battery, we recommend you
use full power intermittently. This will also give you longer flying time and
extend the battery life.
For the first hand launch flight, we recommend having an assistant to hand
launch the Wing Jet for you. Ask your assistant to hold the Wing Jet by the
fuselage, pointed into the wind, while you check the correct control surface
response. Fully advance the throttle to start the motor and once the ducted
fan is at full power, the hand launcher should gently push the plane into the
air at a level attitude. Don’t use excessive force as it is not necessary, and
don’t throw the model up the sky as it will cause the model to stall before
gaining air speed. Make sure the Wing Jet is being launched into the wind
and be alert to make corrections to keep the model flying straight and level
into the wind.
P.7
9

Control Throws
C.G.
6mm
6mm
Aileron/ Elevator
The ideal C.G. position is 70mm (2.75in)
behind the leading edge measured at where
the wing meets the fuselage. In order to
obtain the C.G. specified, add weight to the
fuselage or move the battery position.
Check the C.G. before flying.
70mm
2.75in
C.G.
Warning!
Important Safety Precautions
Wing Jet EP
Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
Please note that the mixing function of your radio will add up the control throws of
aileron and elevator input. A control throw of 6mm for the aileron or elevator alone
will give you up to 12mm throw if you input aileron and elevator throw at the same time.
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft.
# is specially designed to be powered by
KM0283110 Outrunner Motor.
# Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running
propeller. Extreme caution should be exercised when working with electric powered models. Make sure the
propeller is cleared of all objects, especially your hands before connecting the battery to the model. Make sure
you understand the operation of the ESC (Electronic Speed Control) by studying the ESC manual. Once you
plug in the battery for electric powered model, always treat the propeller as a rotating one, as accidental
movement of the throttle stick will spin the propeller and could cause injuries.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron to remove the wrinkles.
Please begin with lower temperature setting and gradually raise the temperature until the wrinkles are gone.
Too hot an iron may damage the covering. Don't use hot iron near the seams or edges, hot iron will melt the
glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
P.8
11
10
E210NXMPO24831008

Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA.
1. Name:______________________________________________
2. Address:____________________________________________
3. Phone #:____________________ E-mail:__________________
4. Model:______________________________________________
Wing QC#__________ Fuselage QC# _______________________
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:_____________________________________
6. Store Name: _________________________________________
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
