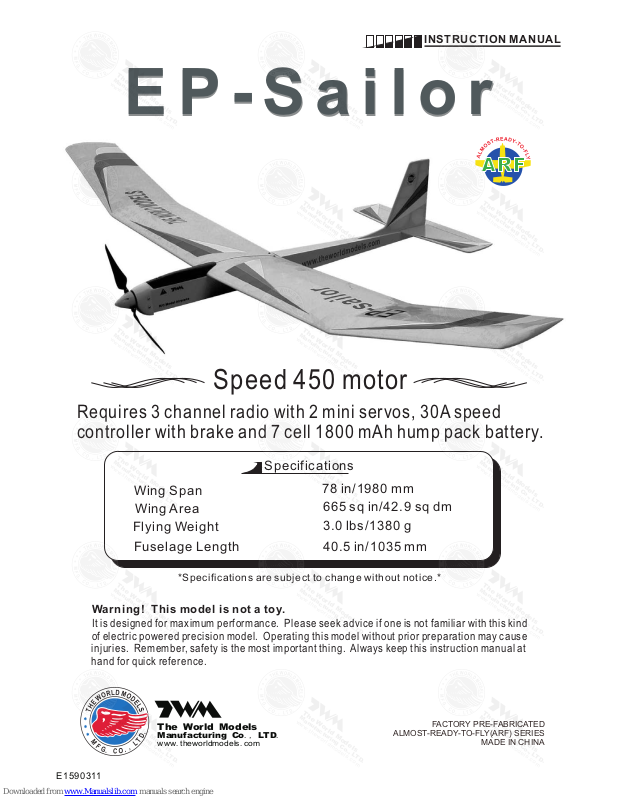

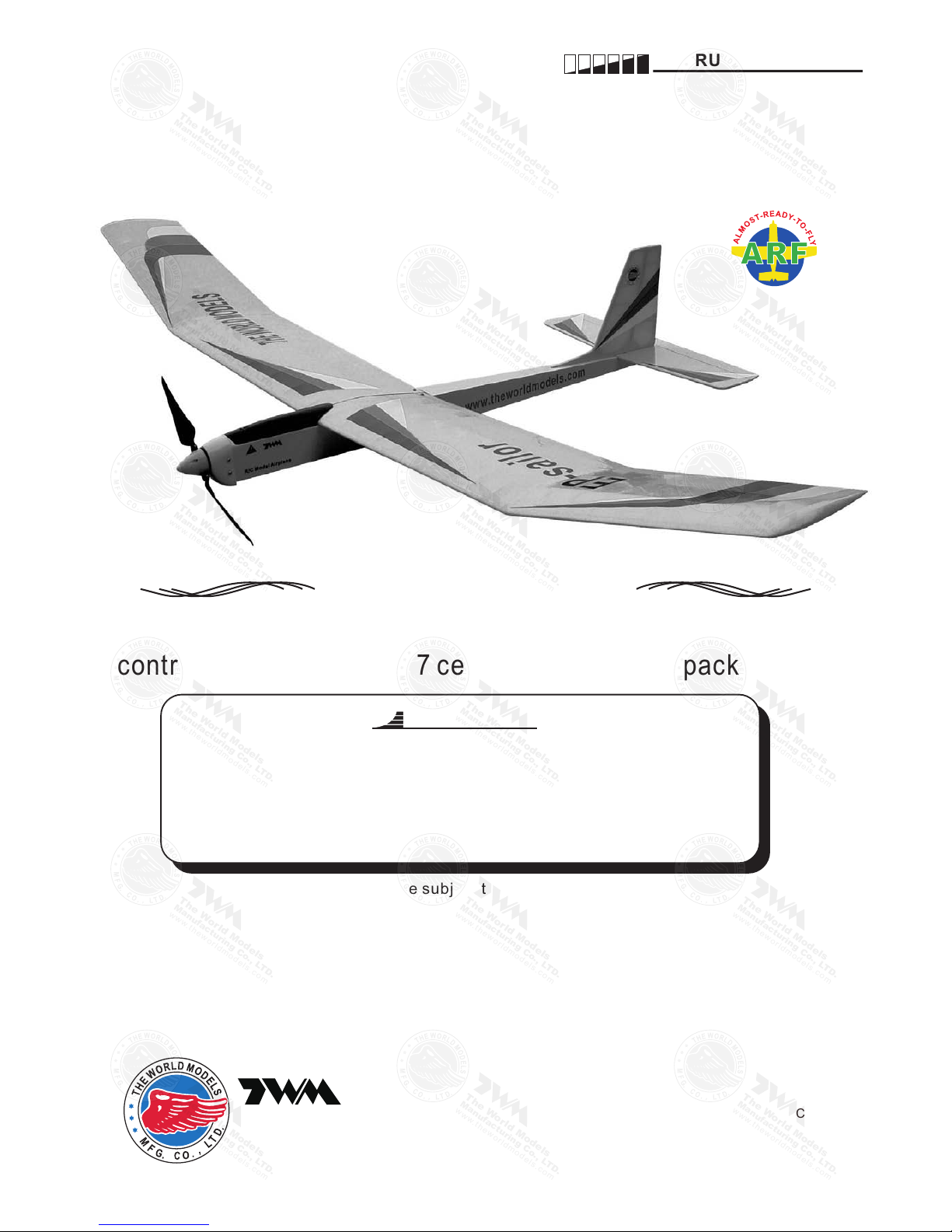

Requires 3 channel radio with 2 mini servos, 30A speed
controller with brake and 7 cell 1800 mAh hump pack battery.
Wing Span
78 in/1980 mm
Wing Area
Flying Weight
Fuselage Length
3.0 lbs/1380 g
665 sq in/42.9 sq dm
40.5 in/1035 mm
Specifications
E P - S a i l o r
E P - S a i l o r
Speed 450 motor
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
*Spe cifications are subject to c hange without notice.*
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF) SERIES
MADE IN CHINA
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
INSTRUCTION MANUAL
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

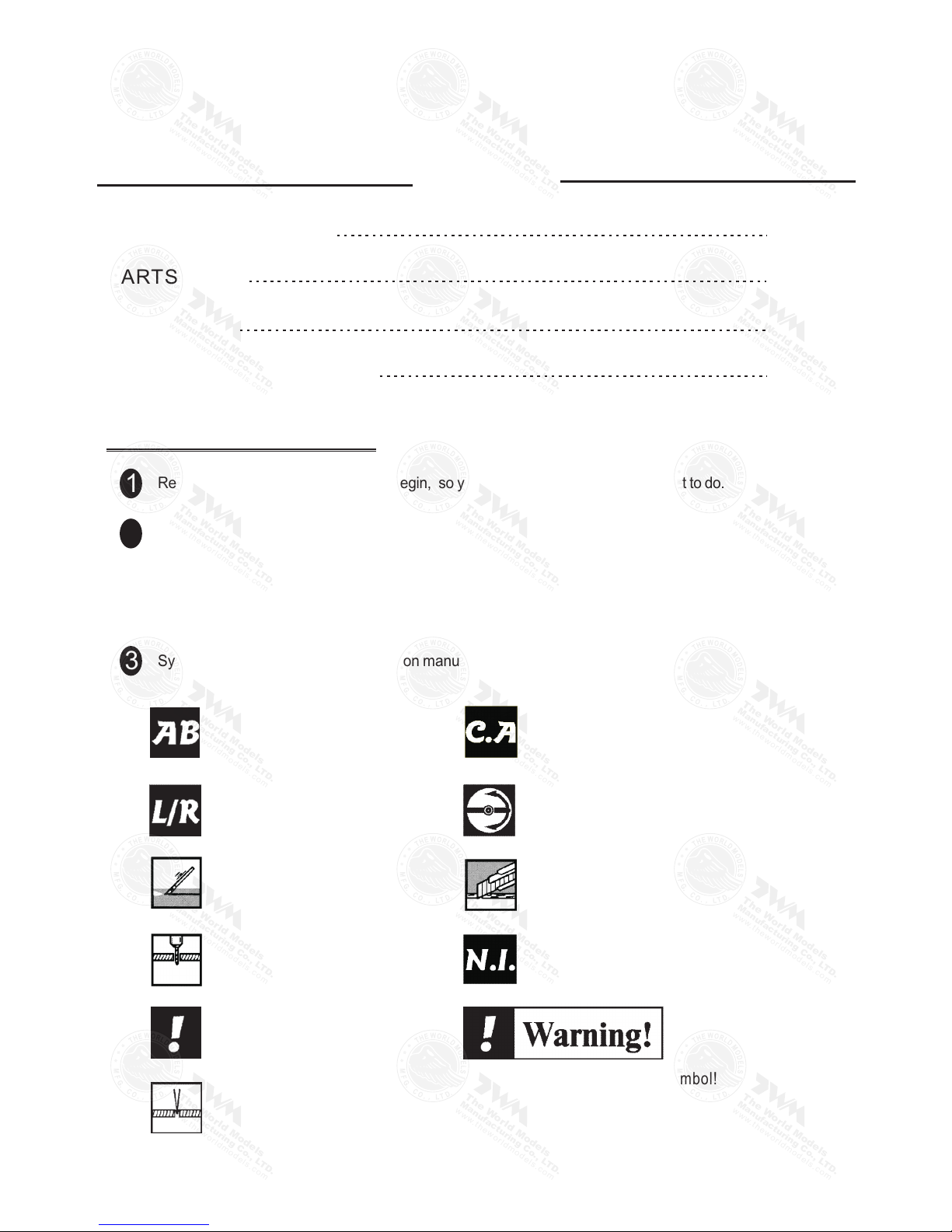

I N D E X
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
BEFORE YOU BEGIN
P.1
P.2
P.3-9
P.9
Apply epoxy glue.
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Drill holes with the specified
diameter(here:3mm)
Pay close attention here!
Pierce the shaded portion
covering film.
Apply instant glue
(C.A. glue, super glue.)
Ensure smooth non-binding
movement while assembling.
Cut off shaded portion.
Must be purchased separately!
Do not overlook this symbol!
3 mm
P.1
EP-Sailor
EP-Sailor
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts. but will extend to the parts that are good before
not
gluing to defective parts during assembly.
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

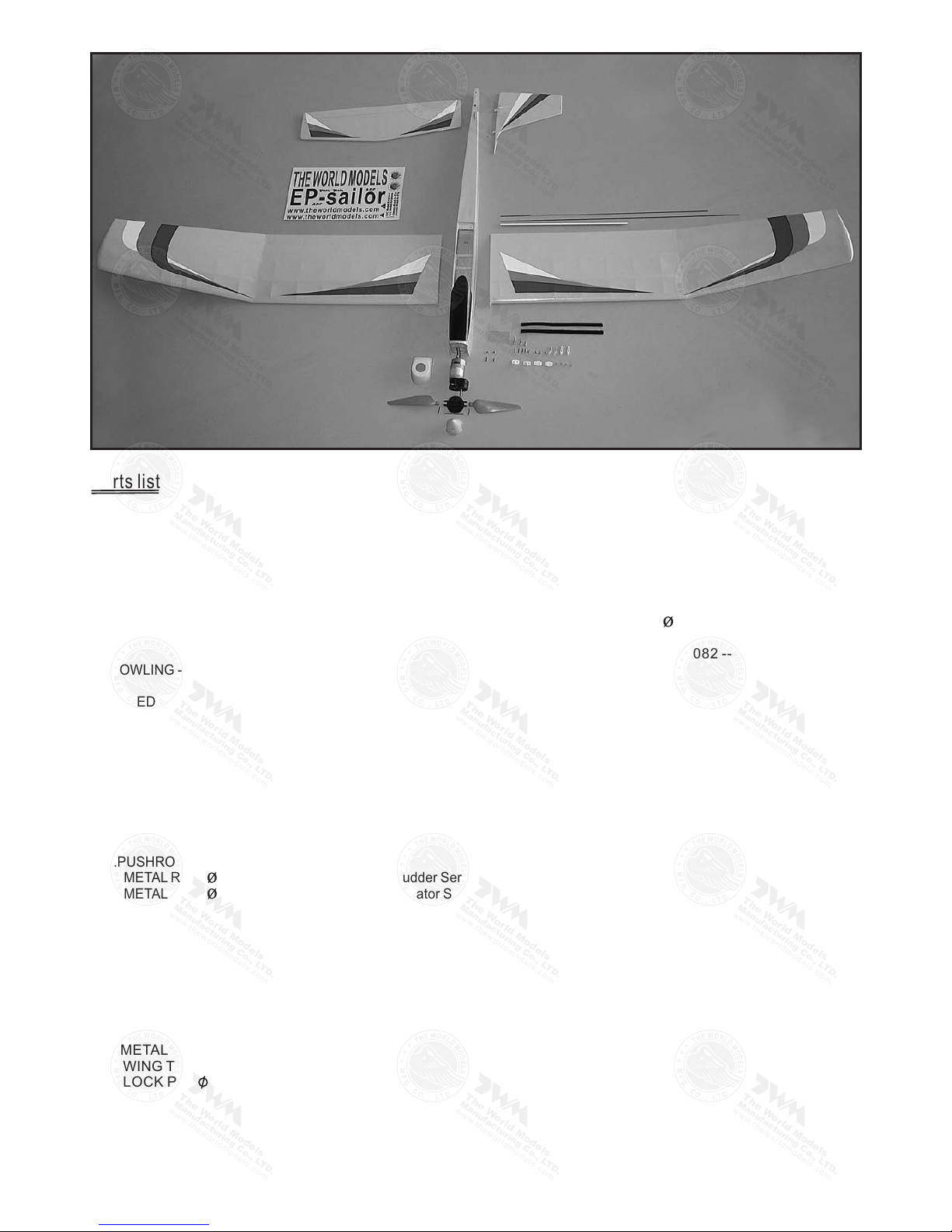

Parts list
13.PLASTIC PARTS:- CLEVIS -- 2 pcs
STRAPER -- 2 pcs
HORN -- 2 sets
PLASTIC PLATE 0.8 x 25 x55mm(Wing Protection) -- 1pc.
BATTERY TIE -- 1 pc.
DOUBLE-SIDE TAPE -- 1pc.
14.METAL PARTS :- WING TUBE D9.5 x 373mm -- 1 pc.
LOCK PIN 1.2 X 41mm -- 1 pc.
SCREW PM2 X 12mm -- 4 pcs
SCREW PM2.5 X 12mm -- 2 pcs
SCREW PM2 X 16mm -- 2 pcS
SCREW PM2.5 X 16mm -- 2 pcs
SOCKET HEAD SCREW
M3 X 8mm -- 2 pcs
SCREW PWA2.3 X 8mm -- 4 pcs
WASHER d3 X D7mm -- 2 pcs
WASHER d2.5 x D8mm -- 2 pcs
15.FUEL TUBE 6 X 5mm -- 8 pcs
16.DECALS:ST200 082 -- 1 set
P.2
1.FUSELAGE -- 1 pc.
2.MAIN WING -- 1 set
3.STABILIZER & ELEVATOR -- 1 set
4.VERTICAL FIN & RUDDER -- 1 set
5.CANOPY -- 1 set.
6.COWLING -- 1 pc.
7.SPEED 550 MOTOR -- 1set
8.GEARBOX -- 1 set
11.SPONGE(For Radio Equipment) -- 1 pc.
9.PROPELLER -- 1 set.
10.SPINNER -- 1 pc.
12.PUSHROD :- METAL ROD 1.6 X 600 mm w/Threads(For Rudder Servo) -- 1 pc.
METAL ROD 1.6 X 670mm w/Threads(For Elevator Servo) -- 1 pc.
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

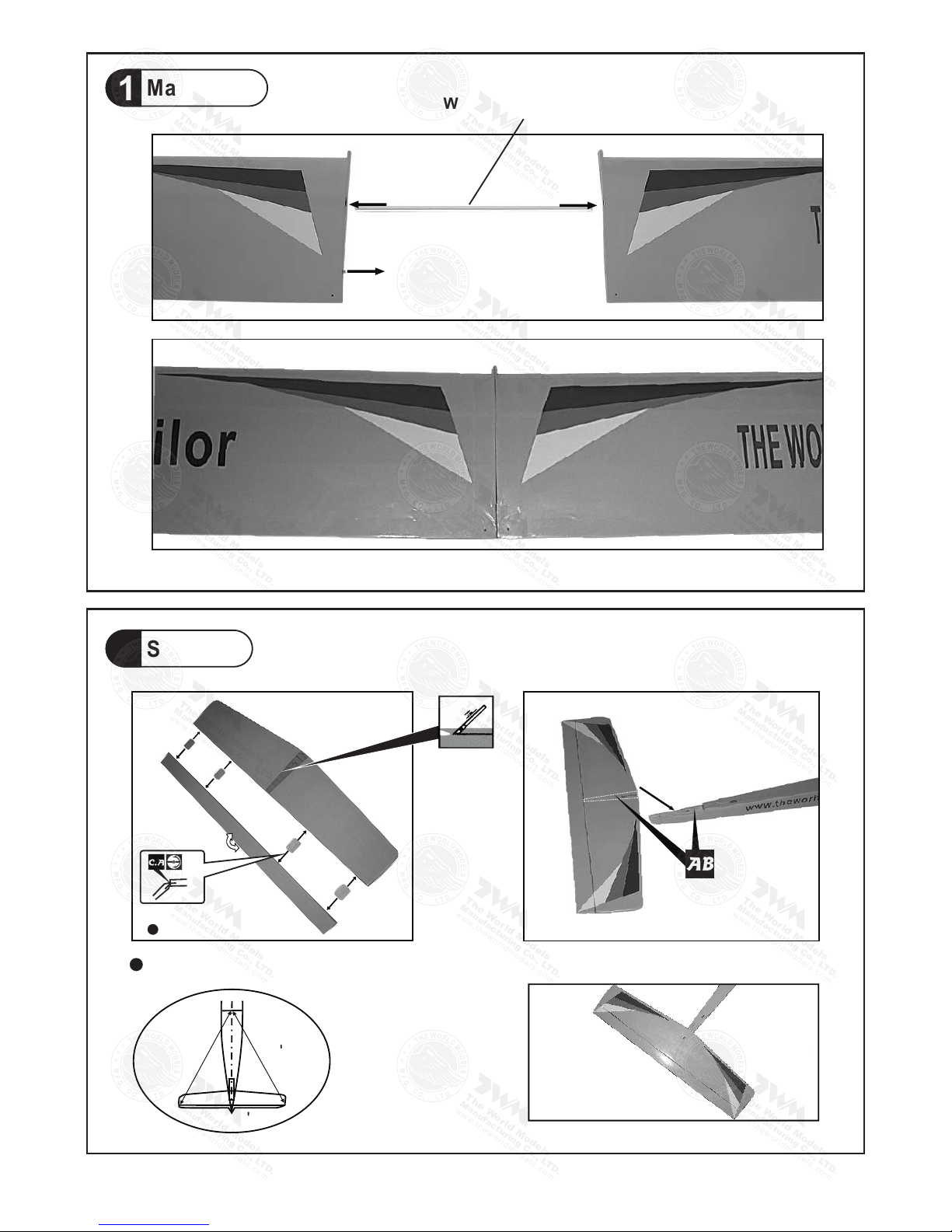

Completed
Wing Tube Ø9.5 x 373 mm
Main Wing
P.3
1
Stabilizer
2
Apply instant type CA glue to both sides of each hinge.
Comple ted
A=A
A
A
Bottom View
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

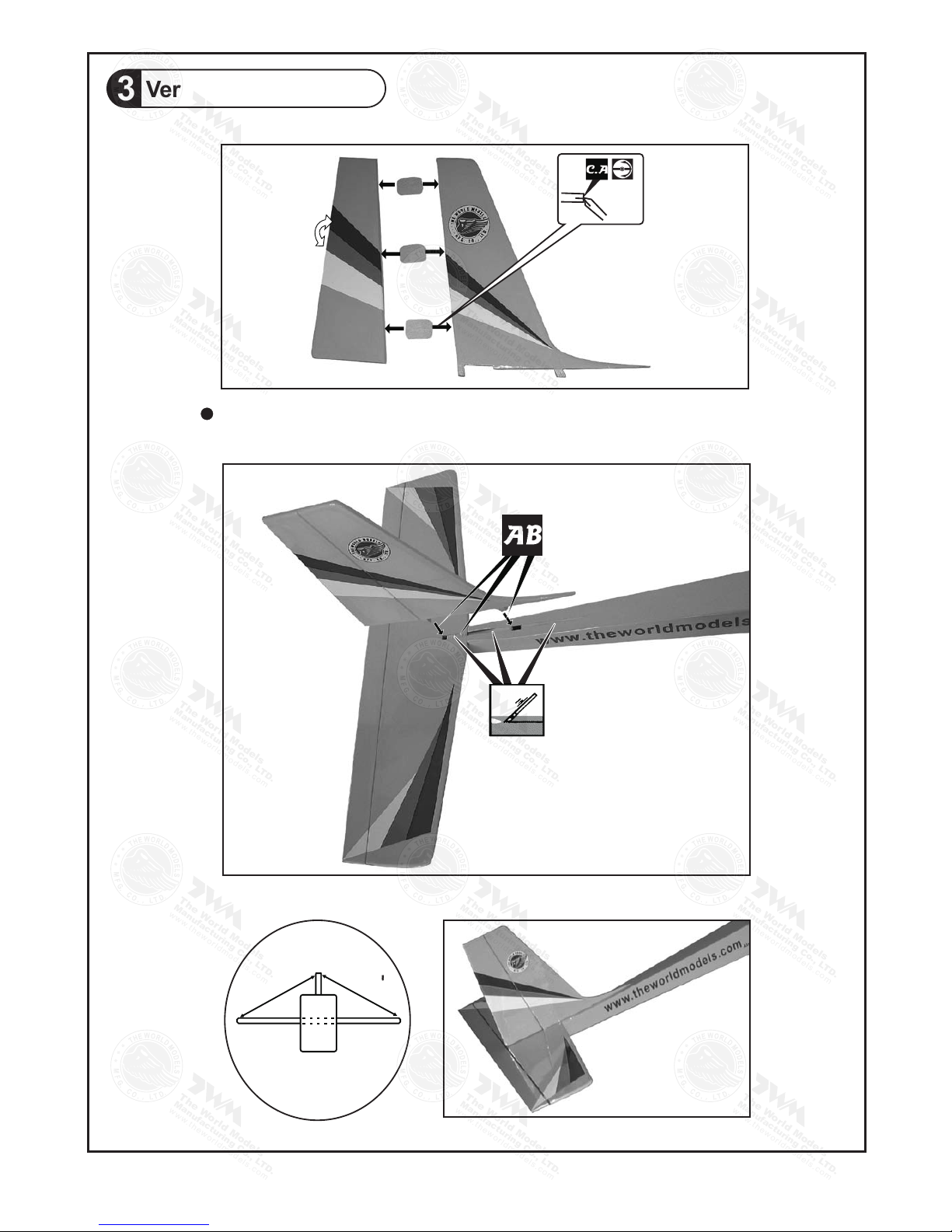

P.4
Vertical Fin / Stabilizer
3
Completed
Peel off shaded Portion
covering film.
Apply i nstant t y p e CA glue to b o t h sides of e a c h hinge.
B=B
B
B
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

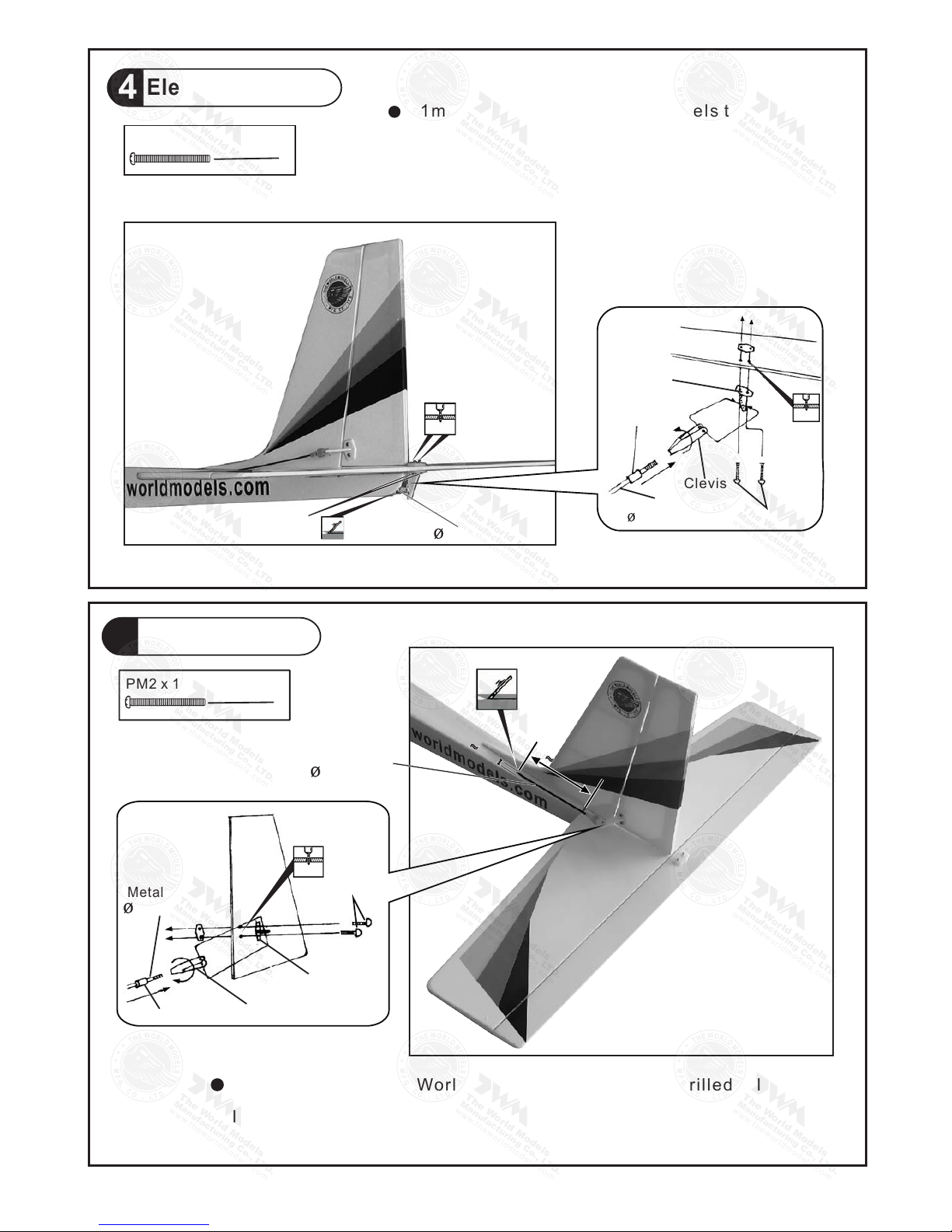

P.5
7
PM2 x 12mm Screw
2
Ø1mm pilot hol e s fo r World Models tri- h o rn a re p re-dril l e d. P lease
look for pin- h ole m arks at side of c ontrol surfa c es.
7
Rudder Pushrod
5
Elevator Pushrod
4
PM2 x 12mm Screw
2
5mm5mm
77m m
77m m
Ø1mm p i lot h o l e s for W o r l d Model s tri-horn a r e
pre-d r i l l e d . Plea s e look f o r pin-h o l e marks a t
under side o f control s urfaces.
Metal Rod 1.6 x 670mm
PM2 x 12mm
2mm
PM2 x 12mm
Clevis
Fuel Tube
Ø6 x 5mm
Horn
2mm
Metal Rod
1.6 x 600mm
Metal Rod
1.6 x 600mm
PM2 x 12mm
Metal R od
1. 6 x 670mm
Fuel Tube
Ø6 x 5mm
Clevis
Horn
2mm
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
6
1
2
d3 x D7mm
M3 x 8mm
3
PM2.5 x 12mm
4
5
PM2 x 16mm
6

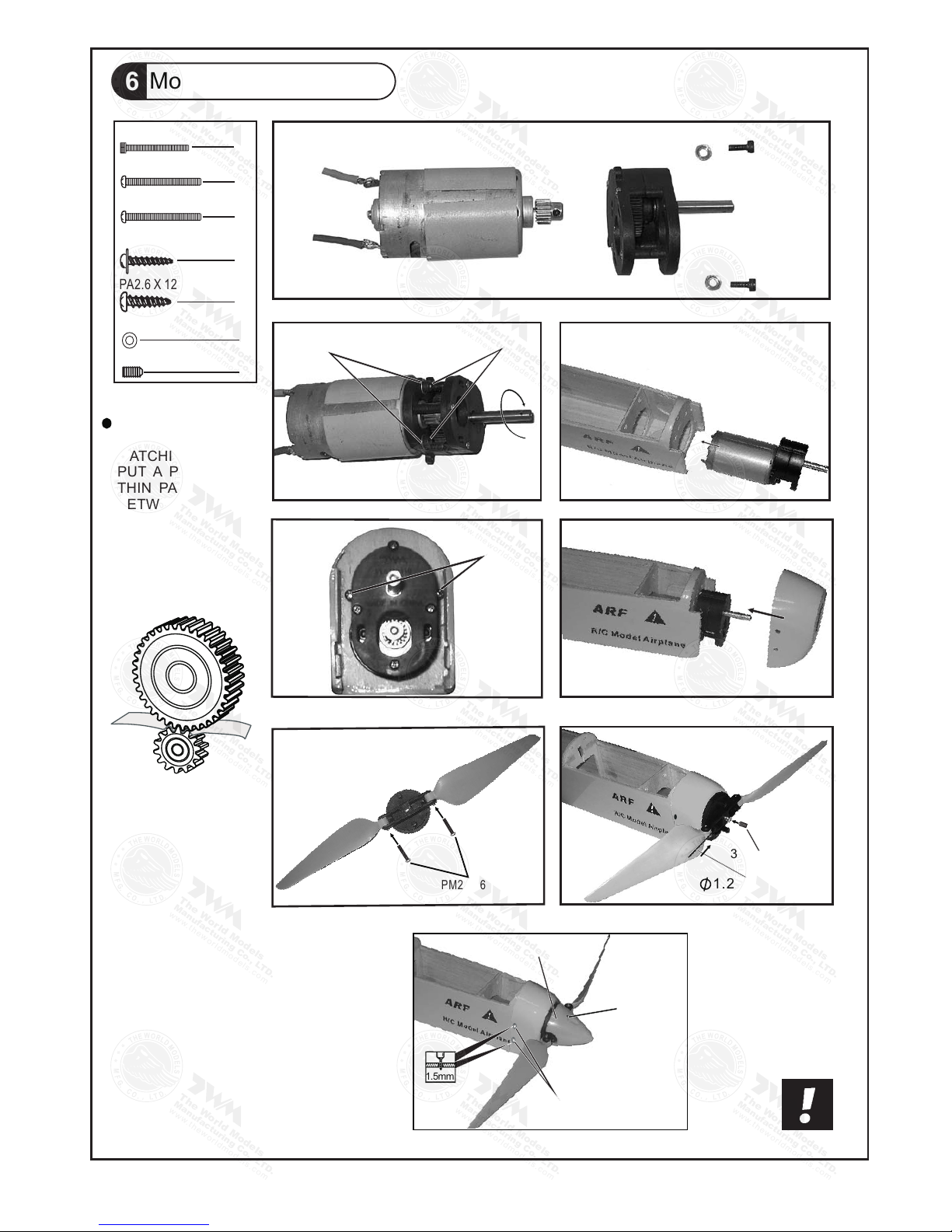

Motor / Cowling Setting
P.6
1.2x41mm
7
8
PA2.6 x 12 mm
PWA2.3 X 8mm
Spinner
3mm Set Screw
PM2.5 x 12mm Screw
PWA2.3 X 8mm Screw
4
2
2
M3 x 8mm Screw
1
d3 x D7mm Washer
2
3mm Set Screw
PM2 x 16mm Screw
2
2
PA2.6 X 12mm Screw
1.5mm
TO ALLOW FOR
BACKLASH OF
MATCHING GEAR,
PUT A PIECE OF
THIN PAPER
BETWEEN THE
GEARS AND
THEN TIGHTEN
THE M3X8mm
SCREWS. REMOVE
THE PAPER
BEFORE FLYING.
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
P.7
C a nop y
9
Completed
Main Wing
8
d2.5 x D8mm Washer
PM2.5 x 16mm Screw
2
2
d2.5 x D8mm
PM2.5 x 16mm
Wing P rotection
0.8 x 25 x 5 5mm
2.5mm
d2.5 x D8mm
PM2.5 x 16mm

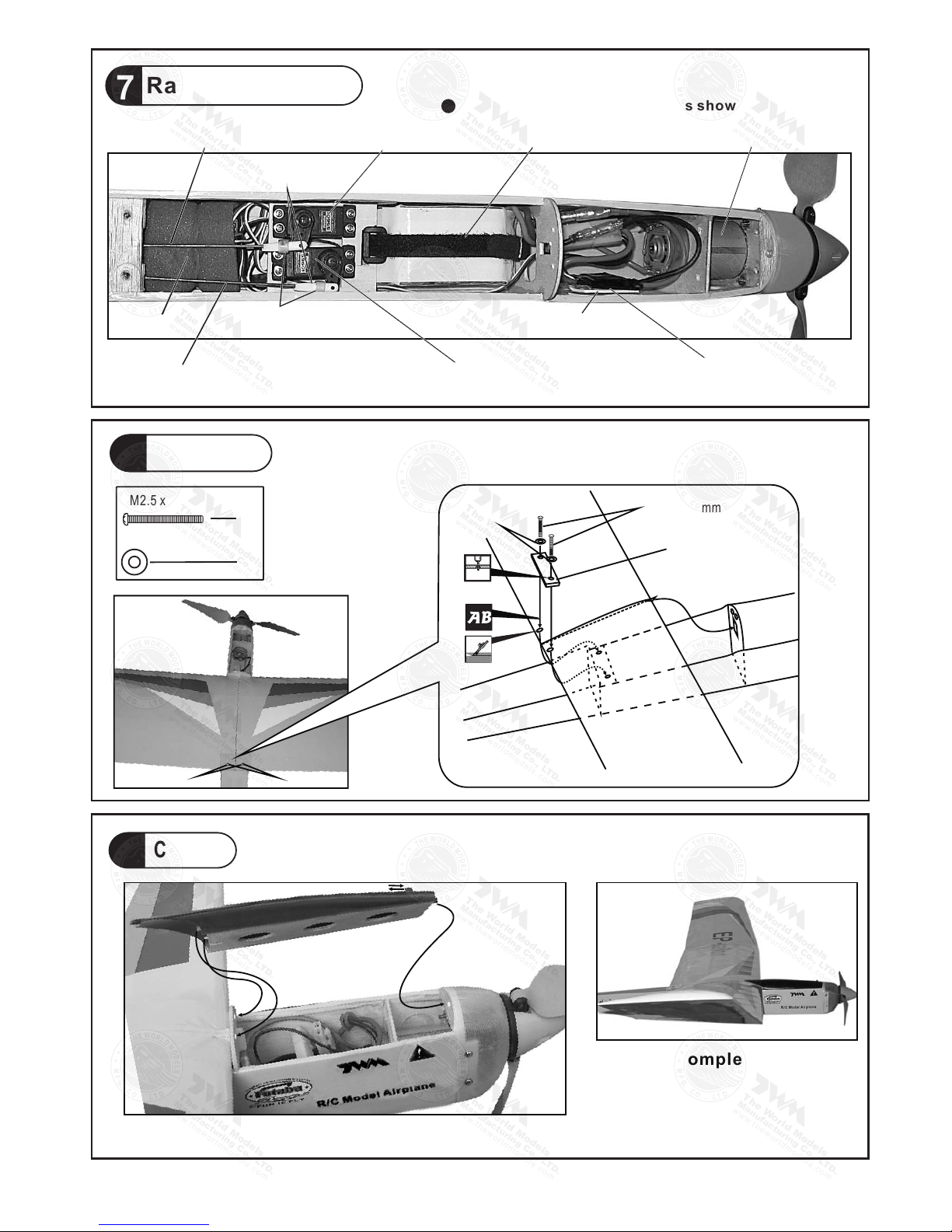

Radio Equipment
Rudder Servo
Rudder Pushrod
Straper
Elevator Pushrod
Elevator Servo
Battery Tie
Fuel Tube
Ø6 x 5mm
Install and arrange the servo as shown in the diagram.
Sponge
7
30A Speed Controller
Speed 550 Motor
Double-Side Tape
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A
A'
P.8
Wing Setting
10
Adjust the wing and fuselage configuration as in the diagrams.
A=A' B=B' C=C'
B
B'
C'
C
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
75mm
C.G.
2.95in.
Adju st the control throws as shown in the
diag ram.These throws are good for general
flyi ng. You can adjust according to your
pers onal preference.
Elevator
Important Safety Precautions
#First t ime flyer should never fly by him self/herself. Assistance f rom experienced flyer is
absolu tely necessary.
#Pre-f light adjustment must be done b efore flying, it is very danger ous to fly a badly
pre-ad justed aircraft.
# is special ly designed to be powered by sp ee d 550 geared motor.
#Make su re the air field is spacious, nev er fly the plane too close to peopl e and never get
too clos e to a running propeller.
#If you fi nd wrinkles on the covering as a re sult of weather changes, you ca n use hot iron
to remov e the wrinkles. Please begin wi th lower temperature settin g and gradually raise
the temp erature until the wrinkles ar e gone. Too ho t an i ron may damage the covering .
#Check a nd re-tighten up all factory as sembled screws, use thread lo cker if applicable.
Warning!
P.9

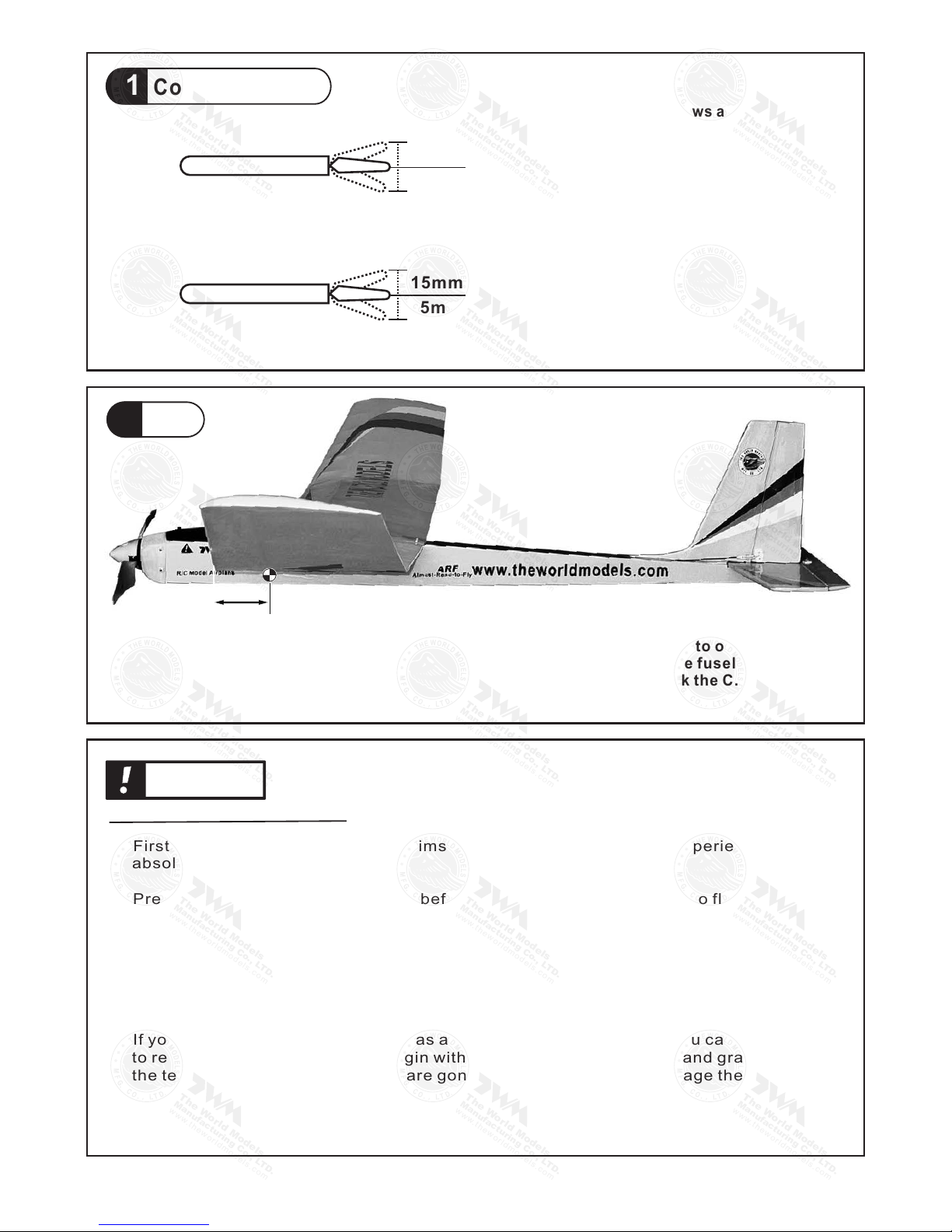

Control Throws
C.G.
12
The id eal C.G. position is 75mm (2.95 in.) behind
the le ading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
spec ified, add weight to the fuselage or move
the ba ttery position. Check the C.G. before
flyi ng.
Rudder
30mm
30mm
15mm
15mm
11
E P - S a i l o r
E P - S a i l o r
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www . th e wor ldm o del s .co m
E1590311
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Loading...
