Wing Span
Wing Area
Flying Weight
Fuselage Length
81.5 in / 2070mm
572.0 sq in / 36.9 sq dm
3.3 lbs / 1500g
43.5 in / 1100mm
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
Radio required : 3 channels, 4 servos airplane radio
* Specifi cat ions are sub jec t to change wi tho ut notice. *
Specifications

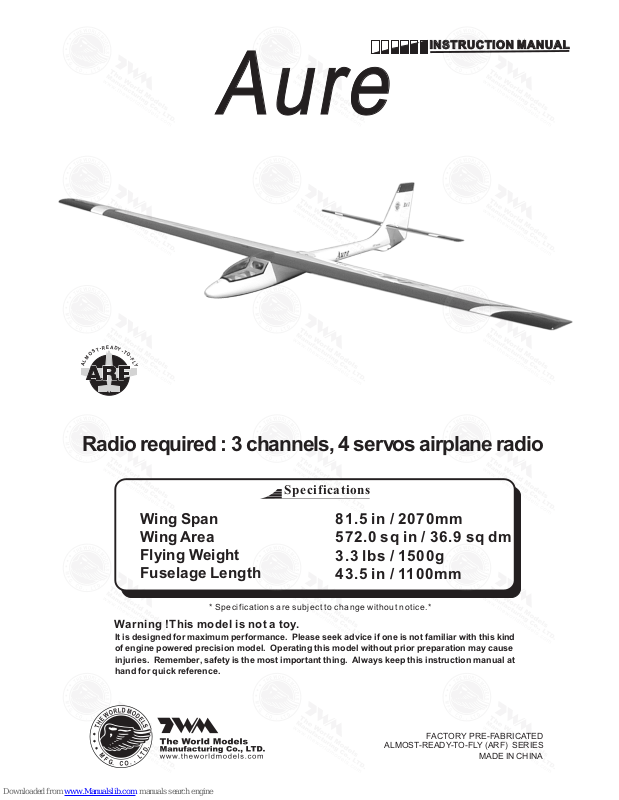

INSTRUCTION MANUAL
E
A
D
R
-
Y
T
-
T
S
O
O
-
F
M
L
L
Y
A
Aure
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
P. 1
Aure
P. 3 - 11
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
3mm
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts. but will
not
extend to the parts that are good before
gluing to defective parts during assembly.
I N D E X
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIO NS
P. 1
P. 2
P. 11
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
1
2
3
P. 2
Parts List
1. FUSELAGE -- 1pc.
2. MAIN WING -- 1 pair
3. ELEVATOR --1 pc.
4. RUDDER --1 pc.
5. CANOPY & COCKPIT --1 set
6. AILERON SERVO COVER --2 pcs
7. PUSHROD & PULLWIRE :- METAL RODØ1.8x50mm (For Radio) --2 pcs
METAL ROD Ø1.8x735mm w/Threads (For Rudder) --1 pc.
8. WOODEN PARTS :- BALSA 4x4x70mm(For Radio) --2 pcs
PLYWOOD 2x55x70mm (For Radio ) --1 pc.
WOODEN 8x16x24mm (For Aileron Servo) --4 pcs
9. PLASTIC PARTS :- CLEVIS --3 pcs
STRAPER --3 pcs
HORN --3 sets
PLASTIC PLATE 1.5x33.5x71mm --1 pc.
10.METAL PARTS :- LINKAGE CONNECTOR --1 set
WING JOINER Ø4x142mm --1 pc.
WING JOINER Ø6x211mm --1 pc.
STABILIZER JOINER Ø3x127mm --1 pc.
STABILIZER JOINER Ø3x144mm --1 pc.
SET SCREW 3mm --2 pcs
SCREW PM 2x12mm --4 pcs
SCREW PM 2x20mm --2 pcs
SCREW PM 3x16mm --2 pcs
SCREW PWA2x8mm --8 pcs
WASHER d3xD12mm --2 pcs
11.FUEL TUBE Ø6x5mm --6 pcs
12.DECALS --1 set
P.3
1
Aileron Servo
2
Aileron
2.5mm
1mm
1mm
PM2 x 30m m Screw
4
PWA2 x 8mm Screw
8
Wood en 8x16x2 4mm
Botto m View
PWA2x8mm
Strap er
Fuel
Tube
PM2x1 2mm
Clevi s
Fuel Tub e
Ø6x5mm
Metal R od
Ø1.8x5 0mm
Horn
P.4
3
Rudder Pushrod
4
Rudder
PM2 x 20m m Screw
2
PM2 x 20m m
Clevi s
Fuel Tub e
Ø6x5mm
Rudde r Pushrod
Ø6x5mm
2mm
P.5
5
Stabilizer / Elevator
Top View
Stabi lizer Joi ner
Ø3x127 mm
Stabi lizer Joi ner
Ø3x144 mm
P.6
6
Servos
8
Servo Set
7
Stabilizer / Elevator
LINKA GE CONNECTOR
3 X 3mm Set Screw
1
L i n k a g e C o n n e c t o r
1
2mm Nut
1
2mm Washer
1
3mm
Botto m View
3mm
2mm
2mm
Rudde r Pushrod .
Inclu ded with th e Radio Set.
Rudde r Servo.
Pleas e refer to at tached sheet f or linkag e connector in stallat ion.
Balsa 4 x4x70mm
Plywo od 2x55x7 0mm
Balsa 4 x4x70mm
Fuel Tub e
Ø6x5mm
Strap er
Top View
Rudde r Pushrod
Ø1.8x7 35mm
Eleva tor Servo
Rudde r Servo
Linka ge Connector
2mm
P.7
9
Main Wing
PM3 x 16m m Screw
2
d3 x D12m m Washer
2
Botto m View
Lead to Ai leron Ser vo
Top View
PM3x1 6mm
d3xD1 2mm
3mm
Wing Jo iner
Ø6x211mm
Wing Jo iner
Ø6x142 mm
P.8
10
Wing Setting
11
Canopy
Adjus t the wing an d fuselage con figurat ion
as in the d iagrams .
A = A'
B = B'
C = C'
P.9
12
C.G.
13
Control Throws
Elevator
Rudder
Aileron
40mm
40mm
53mm
53mm
15mm
15mm
75mm
2.9 in
C.G
Adjust t he control th rows as shown i n the
diagra m. These thro ws are good for g eneral
flying . You can adjust according to your
person al preference.
The idea l C.G. positi on is 75mm (2.9 i n.) behind
the lead ing edge meas ured at where t he wing
meets th e fuselage. In order to obta in the C.G.
specif ied, add weig ht to the fusel age or move
the batt ery positio n. Check the C. G. before
flying .
Important Safety Precautions
#First t ime flyer sho uld never fly by himself / herself. Assistance from experienced flyer is
absolu tely necessary.
#Pre-f light adjustment must be done before flying, it is very dangerous to fly a badly
pre-ad justed aircraft.
#Make su re the air field is spacious, never fly the plane too close to people and never ge t
too clos e to a running propeller.
#If you fi nd wrinkles on the covering as a result of weather changes, you can use hot iron
to remov e the wrinkles. Please begin with lower temperature setting and gradua lly raise
the temp erature until the wrinkles are gone. Too hot an iron may damage the covering.
#Check a nd re-tighten up all factory assembled screws, use thread locker if appl icable.
G1040405
ADDENDUM
LINKAGE CONNECTOR
HW7111030 & HW7111060
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Sh oul de r
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
After fastening the round nut, make sure that
the linkage connector can rotate freely.
