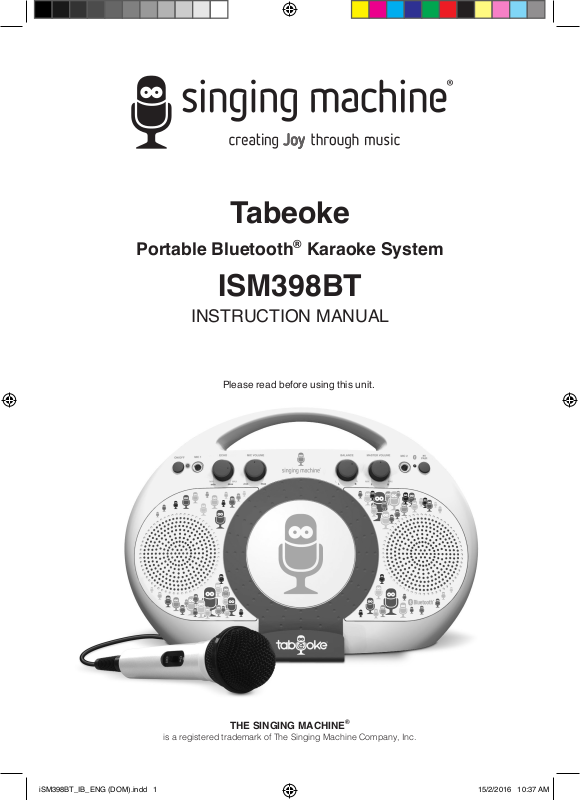

The Singing Machine ISM398BT User Manual

Tabeoke

Portable Bluetooth® Karaoke System

ISM398BT

INSTRUCTION MANUAL

Please read before using this unit.

is a registered trademark of The Singing Machine Company, Inc.

THE SINGING MACHINE

iSM398BT_IB_ENG (DOM).indd 1 15/2/2016 10:37 AM

®

Warnings

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The Caution marking is located on the bottom panel.

DANGEROUS VOLTAGE: The lightning flash with arrowhead
symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

ATTENTION: The exclamation point within an equilateral
triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions
in the literature accompanying this product.

DRIPPING WARNING: This product shall not be exposed to dripping or
splashing, and no objects filled with liquids, such as vases, shall be placed
on the product.

VENTILATION WARNING: The normal ventilation of the product shall not be
impeded for intended use.

SAFETY VERIFICATION: This device is made and tested to meet safety
standards of the FCC, requirements and compliance with safety performance
of the U.S. Department of Health and Human Services and also with FDA
Radiation Performance Standards 21 CFR Subchapter.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.

FCC ID : 2AAXO-ISM398BT

FCC WARNING: This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.

This device complies with part 15 of the FCC Rules. Operation is subjec t
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The rating information is located at the bottom of the unit.

INDUSTRY CANADA NOTICE:

This device complies with Industry Canada Iicense-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that
may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

Important Safety Information

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all Instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in
accordance with the Manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9. Do not defeat the safety purpose of the polarized or grounding­type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. When the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.

10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11. Only use attachments/accessories specified by the
manufacturer.

iSM398BT_IB_ENG (DOM).indd 1 15/2/2016 10:37 AM

12. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms
or when unused for long periods of time.

14. Refer all servicing to qualified service
personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

15. WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. Do not place objects
filled with water, such as a vase, on the apparatus.

16. The AC mains plug is used as the power disconnect device
and it should remain readily accessible and operable during
intended use. In order to completely disconnect the apparatus
from power, the mains plug should be completely removed
from the AC outlet socket.

17. C AUTION: To reduce the risk of fire or explosion, do not expose
batteries to excessive heat such as sunshine, fire or other
heat sources.

— 1 —

Location of Controls

4

1

Front

1

2
3

5
6

7

8

1. Carrying Handle

2. Mic 1 Jack

3. Power Indicator

4. Power ON/OFF Button

5. ECHO Control

6. MIC VOLUME Control

Rear

7. Left Speaker

8. Cradle

9. Mic 2 Jack

10. Bluetooth Indicator

11. PLAY/PAUSE/PAIR
Button

9
10

11
12
13

14

12. MASTER VOLUME
Control

13. BALANCE Button

14. Right Speaker

2
3
4

1. Battery Compartment
(bottom of unit)

2. AUDIO OUT Left Jack

3. AUDIO OUT Right Jack

— 2 —

4. AUX IN Jack

5. DC IN Jack

5

iSM398BT_IB_ENG (DOM).indd 2 15/2/2016 10:37 AM

Connection

Connecting this Unit to an External Stereo, etc.

To listen to this unit’s audio through a

REAR VIEW OF EXTERNAL UNIT

stereo or other external unit, connect
as follows:

REAR VIEW

Connect the Audio cables red and white
plugs to the red and white AUDIO OUT
jacks on the iSM398BT and the other
ends to the external unit red and white
Audio In jacks.
Note: Audio cables are not included.

AUDIO OUT

(white - L

red - R)

Connecting a Digital Music Player to this Unit

Your Singing Machine is designed to connect to your favorite
digital music device (iPod, MP3 player, etc.). Simply connect your
device by using an appropriate audio cable (3.5mm audio cable
not included). When connected, the Aux function is automatically
selected. See page 7 for more details.

Inserting Batteries

Lift battery door to reveal battery

1

compartment.

Insert four (4) “C” size alkaline batteries (not

2

included) as indicated by the polarity in the
battery compartment.

RCA cables

AUDIO
INPUT

RL

Replace battery door tightly before operating

3

BATTERY PRECAUTIONS:
Follow these precautions when using batteries in this device:

1. Warning – Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.

2. Use only the size and type of batteries specified.

3. Be sure to follow the correct polarity when installing the batteries as indicated in the battery
compartment. A reversed battery may cause damage to the device.

4. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or
old batteries with fresh ones.

5. If the device is not to be used for a long period of time, remove the batteries to prevent damage or
injury from possible battery leakage.

6. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture. (Follow

battery manufacturer’s directions.)

7. Remove batteries promptly if consumed.

8. Clean the battery contacts and also those of the device prior to battery installation.

— 3 —

iSM398BT_IB_ENG (DOM).indd 3 15/2/2016 10:37 AM
