ThermoSphere SCM-B-01, SCM-W-01 Installation Instructions

CONTROL | TOUCH
SINGLE MANUAL
SCM-W SCM-BINSTRUCTION GUIDE
Excellence in heating solutions.
Contents
Compatibility ..............................................................
What's in the box? .....................................................
Installing your thermostat ...........................................
Wiring diagram ...........................................................
User interface .............................................................
Settings ......................................................................
Technical data .............................................................
Factory reset & key lock ..............................................
3
4
5
6
10
13
14
16
17
2
Compatibility
This thermostat is compatible with ThermoSphere
NTC 10K oor sensor probes.
NTC 10kΩ @ 25°C
If you have an existing oor probe from another
thermostat that is not compatible, set your thermostat to ambient temperature sensing mode.
(Not advisable for timber or other temperature sensitive oors).
Replacing an existing thermostat? Contact the manufacturer's technical department
and ask for the rating of the oor sensor at 25°C.
3
What’s in the box?
Check you've got everything:
• Thermostat
Floor sensor probe (3m)
Floor sensor conduit (2m)
• Fixing screws
• Installation guide and warranty information
You will also need:
• Electrical screwdriver
• Deep electrical back box
• Electrical test meter
4
Before you start
Your thermostat should be:
Installed 1.2 - 1.5m from the oor
• On an internal wall
Outside any wet zones (IP30)
• Installed on an RCD protected circuit
Away from drafts or heat inuences
Installed so that the oor sensor probe can be laid in a
heated area of the oor
• Installed by a professional, in line with current electrical regulations and relevant local standards
5
Installing your thermostat
1. Switch off mains power
You will be installing your thermostat as part of a high voltage mains electrical circuit. To ensure your safety and to protect the thermostat, switch off the mains power and remove fuse from the spur before you start the installation.
ON ON ON ON ON
OFF
Fuse Box Fused Switch
6
!
CAUTION
High Voltage
Cables
OFF
Installing your thermostat
2. Installation location
At this stage it its likely that an RCD protected
electric underoor heating system has been
installed and a back box is already in place.
The underoor heating cold tail should be pulled
up through the back box, and the sensor probe
installed (in the conduit provided) within the wall
cavity or pre chased channel in a solid wall.
7
Installing your thermostat
3. Maximum distances
Your thermostat can be installed up to 50m away from the
underoor heating system it is controlling, provided that the oor sensor is used to control the temperature.
Underoor heating cold tails and oor sensor probes can be
extended up to 50m.
Connect multiple heaters in parallel.
50m max.
8
Installing your thermostat

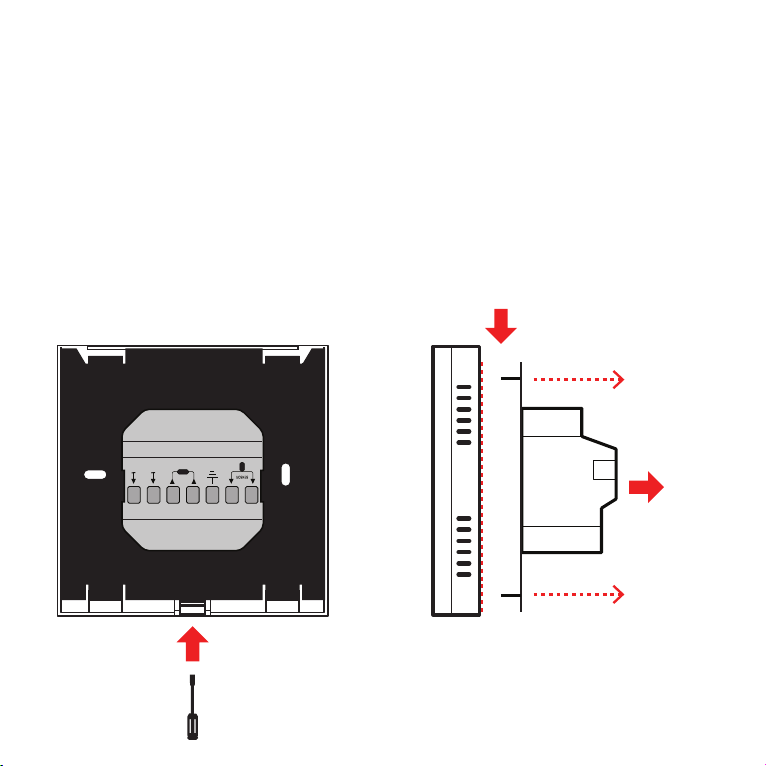

4. Release mounting plate
Use a at screwdriver to press is the catch and push the fascia
down as shown to release the clips holding the back plate and the thermostat fascia together. Disconnect the white ribbon cable.
2
3600W/16A 230V/AC
1
Do not try to force the back plate
off without rst pushing the
fascia down to release the clips!
3
9
Installing your thermostat
5. Wiring diagram
Connect the Thermostat to the underoor heating (UFH) cold tail, power supply and oor
temperature sensor.
The oor temperature sensor is not polarity sensitive.
7 6 5 4 3 2 1
230/240V AC Supply Live
230/240V AC Supply Neutral
UFH Neutral (Load N)
UFH Live (Load L)
Earth (Ground)
10
Sensor connections
(No polarity)
Installing your thermostat
6. Fix mounting plate in position
Use a cross-head screwdriver to x the mounting plate to the
back box in the wall. Now you can connect the white ribbon cable to the fascia.
11
Installing your thermostat
10. Switching on your system
It is important that all adhesives and grouting is dry and fully cured before you
switch on your underoor heating.
Most adhesives take between 7 to 10 days to cure. Follow manufacturer guidelines.
The temperature of your underoor heating
should be increased gradually to avoid
thermal shock in the oor. Start at 15°C
and work up to your desired temperature 2-3°C per day.
Observe any maximum temperature
guidelines from your oor manufacturer.
12
!
Wait for
7 - 10 Days
before you
switch on
User interface
1
7
2
3
54 6
1. Measured temperature
2. Heating on icon
3. Lock icon
4. Up arrow
5. Power button
6. Down arrow
7. Set temperature
13
Advanced settings
Adjusting the advanced settings
To access the settings, switch the unit off by
pressing .
Press and hold and together for 7 seconds.
Press to cycle between settings.
Use and to adjust the settings.
When you're nished leave the control idle for
30 seconds to save your settings. It will then
switch off automatically.
Switch the unit on by pressing to us the
control with your new settings.
14
Advanced settings
MENU DESCRIPTION RANGE DEFAULT
01 Temperature calibration -8°C ~ 8°C 0°C
02 Maximum set point 5°C ~ 80°C 35°C
03 Minimum set point 5°C ~ 80°C 5°C
04 Sensor mode
05 Frost protection 5°C ~ 15°C or - (Off) 5°C
06 Floor temperature display (ALL sensor mode only)
07 Temperature limit 10°C ~ 80°C (ALL mode only) 35°C
08 Status after power failure
09 Software version
10 Factory reset rE (yes)
11 Backlight timer 10 secs - 300 secs (5 mins) 20s
12 Backlight brightness level 1 (min), 2, 3, 4 (max) 4
IN (Ambient), OUT (Floor),
ALL (Ambient with oor limit)
LA: On as before, OF: Off after power failure
5215: 7021 V1.1 5216: 5101 V1.1
OUT
LA
15
Technical data
Supply voltage 230V 50/60Hz
Maximum load 16A
Backup storage EEPROM
Temperature range 5 ~ 80°C (0.5°C increments)
Accuracy ±0.5°C
Sensor rating NTC 10kΩ @ 25°C
Consumption 2W
Warranty 3 years
IP rating IP30
Width 85mm
Height 85mm
Depth 46mm (31mm in wall)
16
Factory reset & key lock
Locking the keys
To lock the keys press and hold and together for 7 seconds.
The icon will appear when the keys are locked and the keys will not function.
To unlock the keys press and hold and together for 7 seconds.
Factory reset
Find menu item 10 in the advanced settings.
Press and then press .
The thermostat will switch off and reset to factory settings after 10 seconds. This will totally erase any adjusted settings.
17
Notes
18
Notes
19
