Thermo Scientific RLE30086D, RLE30086A, RLE40086A, RLE50086A, RLE40086D Data Sheet

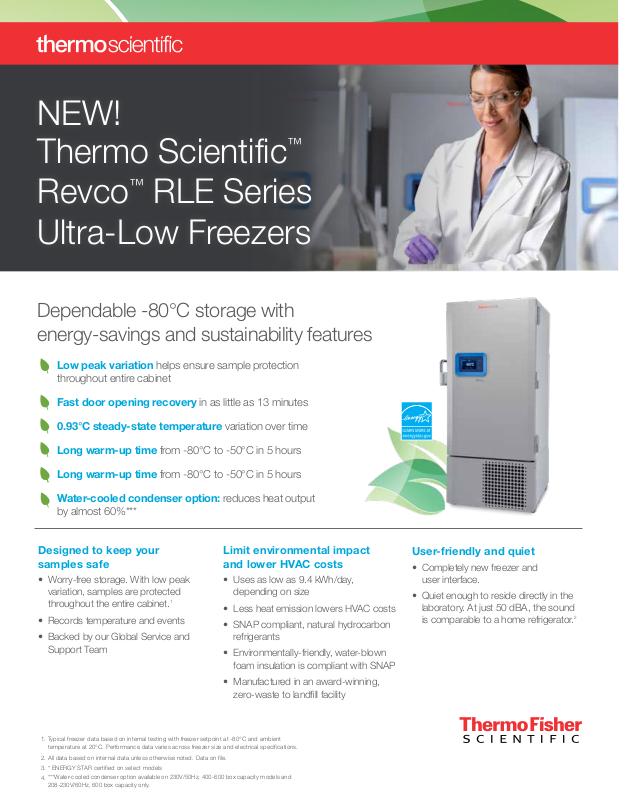

NEW! Thermo Scientific™

Revco™ RLE Series Ultra-Low Freezers

Dependable -80°C storage with energy-savings and sustainability features

Low peak variation helps ensure sample protection

throughout entire cabinet

Fast door opening recovery in as little as 13 minutes

0.93°C steady-state temperature variation over time

Long warm-up time from -80°C to -50°C in 5 hours

Water-cooled condenser option: reduces heat output

by almost 60%***

Designed to keep your samples safe

• Worry-free storage. With low peak variation, samples are protected throughout the entire cabinet.

• Records temperature and events

• Backed by our Global Service and Support Team

1

Limit environmental impact and lower HVAC costs

• Uses as low as 9.4 kWh/day, depending on size

• Less heat emission lowers HVAC costs

• SNAP compliant, natural hydrocarbon refrigerants

• Environmentally-friendly, water-blown foam insulation is compliant with SNAP

• Manufactured in an award-winning, zero-waste to landll facility

User-friendly and quiet

• Completely new freezer and user interface.

• Quiet enough to reside directly in the laboratory. At just 50 dBA, the sound is comparable to a home refrigerator.

2

1. Typical freezer data based on internal testing with freezer setpoint at -80°C and ambient temperature at 20°C. Performance data varies across freezer size and electrical specications.

2. All data based on internal data unless otherwise noted. Data on le.

3. * ENERGY STAR certied on select models

***Water-cooled condenser option available on 230V/50Hz, 400-600 box capacity models and

4. 208-230V/60Hz, 600 box capac ity only.

User friendly touch-screen interface and cabinet

Easy-to-use set-up wizard, event log, temperature mapping and data downloads

Capacitive touch even when using latex gloves

Touch-screen datalogging and temperature mapping

eliminates the need for a separate chart recorder

Built-in USB port for exporting data

Advanced security features: alarm settings, padlock-compatible

doors and optional access card entry

Ergonomic design: comfortable door handle, eye-level touch-screen

and shelf-level placement that do not require oor-level loading of racks

Five inner doors minimize ambient temperature during sample retrieval

Specifications & Ordering Information

Upright Freezers (-50°C to -86°C)

Model Number

RLE30086A

RLE30086D

RLE40086A

RLE40086D

RLE50086A

RLE50086D

RLE60086A

RLE60086D

* Allowa nce for h andle a nd hing e, add 4.2 in (10.7 cm) to cabinet width ** Door way width clear ance is 34.5 in (87.6 cm) for RLE50086 and R LE60 086

Capacity

cu. ft.

(liters)

14.9

(422)

19.4

(549)

24.1

(682)

28.8

(816)

2"

cryobox

300

400

500

600

Electrical

115V / 60Hz 12.6/20 (NEMA 5-20)

208-230V / 60Hz 5.6/15 (NEMA 6-15)

115V / 60Hz 13.0/20 (NEMA 5-20)

208-230V / 60Hz 5.9/15 (NEMA 6-15)

115V / 60Hz 12.5/20 (NEMA 5-20)

208-230V / 60Hz 5.0/15 (NEMA 6-15)

115V / 60Hz 12.7/20 (NEMA 5-20)

208-230V / 60Hz 6.2/15 (NEMA 6-15)

Amps / Breaker

(Plug)

Max. Shelf

Weight lbs (kg)

125

(57)

165

(75)

205

(93)

245

(111)

Interior Dimensions

H x W x D in (cm)

51.2 x 17.8 x 28.3

(130.1 x 45.2 x 71.9)

51.2 x 23.1 x 28.3

(130.1 x 58.8 x 71.9)

51.2 x 28.8 x 28.3

(130.1 x 73.0 x 71.9)

51.2 x 34.4 x 28.3

(130.1 x 87.3 x 71.9)

Exterior Dimensions

H x W* x D in (cm)

78.0 x 23.0 x 37.8

(198.1 x 58.4 x 96)

78.0 x 28.3 x 37.8

(198.1 x 71.9 x 96)

78.0 x 34.0 x 37.8**

(198.1 x 86.4 x 96)

78.0 x 39.6 x 37.8**

(198.1 x 100.6 x 96)

Shipping

Weight lbs (kg)

712

(323)

687

(312)

734

(333)

820

(372)

Performance Data

Model Number

RLE30086

RLE40086

RLE50086

RLE60086

* Energy Calculation: Typical fre ezer dat a based o n inter nal test ing with freeze r setpoint at -80 °C and am bient te mper ature at 20 °C ** Peak Var iation From Setp oint: Typical freezer data b ased on i nternal testing with freezer s etpoin t at -80°C and amb ient tem perat ure at 20°C *** Warm Up Time: Typic al fre ezer dat a based o n inter nal test ing with freeze r setpoint at -80 °C and am bient te mper ature at 20 °C

Energy Consumption

(kW-hr/day)*

Standard Mode

9.4 +8.5 / -2.4 13 254 52

9.8 +8.7 / -1.2 15 262 52

10.8 +6.6 / -1.0 21 258 50

11.5 +6.5 / -0.8 26 300 50

Peak Variation

from -80°C

setpoint (°C)**

Find out more at thermosher.com/cold

Door Opening

Recovery (minutes)

Warm Up Time (-80°C to -50°C)

(minutes)***

Noise

Level

(dBA)

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Options and Accessories (Field Installed must be installed by a qualified professional)

Options Installation RLE30086 RLE40086 RLE50086 RLE60086

LN2 Backup System

Maintains temperature down to -80°C with liquid nitrogen. Models for RLE300 are stand alone.

CO2 Backup System

Maintains temperature down to -67°C with CO2. Models for RLE300 are stand alone.

Chart Recorder (Inkless)

6" (15.2 cm), seven day inkless recorder, -115° to +50°C, +5°C resolution

Chart Recorder (Ink)

6" (15.2 cm), seven day inkless recorder, -115° to +50°C, +5°C resolution

Access Key Option Card

Access control. Includes ve key cards. Supports ISO15693 and ISO14443 protocols.

Stainless Steel Freezer Interior Factory Installed SS34567 SS34567 SS34567 SS34567

Factory Installed N/A LN4567 LN4567 LN4567

Field Installed

Factory Installed N/A CO4567 CO4567 CO4567

Field Installed

Factory Installed N/A CR4567 CR4567 CR4567

Field Installed N/A FCR400LE FCR500LE FCR600LE

Factory Installed N/A CRP4567 CRP4567 CRP4567

Field Installed

Factory Installed RAC34567 RAC34567 RAC34567 RAC34567

Field Installed FAC34567LE FAC34567LE FAC34567LE

FLN300V*

FLN300W**

FCO300V*

FCO300W**

6383-6V*

6383-6W**

FLN4567LE FLN4567LE FLN4567LE

FCO4567LE FCO4567LE FCO4567LE

FCRP400LE FCRP500LE FCRP600LE

FAC34567LE

Twist Lock Plug

NEMA L6-15P for 208-230V / 60Hz

Twist Lock Plug

NEMA L6-20P for 208-230V / 60Hz

Water-Cooled Condenser Option

Accessories RLE30086 RLE40086 RLE50086 RLE60086

Access Key Pack: Includes ve key cards. ACE34567 ACE34567 ACE34567 ACE34567

Shelf Kit: Includes one shelf and shelf support clips SK300 SK400 SK500 SK600

Chart Paper Ink (Pack of 50) 17020 17020 17020 17020

Chart Paper Inkless (Pack of 50) N/A 6185 6185 6185

Replacement Air Filter AF34567LE AF34567LE AF34567LE AF34567LE

Replacement Back-Up Battery 400159 400159 400159 400159

Alarm Delay Module: Eliminates nuisance alarms due to intermittent or transitory

conditions. Adjustable delaly requires alarm condition to exist for user dened period before signal is released to monitoring system.

Cryo Gloves Medium 4425 4425 4425 4425

Cryo Gloves Large

***

Factory Installed US230V15ATL US230V15ATL US230V15ATL US230V15ATL

Field Installed

Factory Installed

Field Installed

Factory Installed N/A WC34567 WC34567 WC34567

TL230V15A

US230V20ATL US230V20ATL

TL230V20A

6903 6903 6903 6903

4426 4426 4426 4426

TL230V15A

TL230V20A TL230V20A TL230V20A

TL230V15A

US230V20ATL

TL230V15A

US230V20ATL

Seismic Restraint Kit

*V = 230V/50Hz (Europe an plug) **W = 230V/50Hz (UK plu g) ***Water-cooled condenser option available on 230V/50Hz, 400-600 box capac ity models an d 208-230V/60 Hz, 600 b ox capac ity on ly.

TF-ULT300 TF-ULT400 TF-ULT500 TF-ULT600

Find out more at thermosher.com/cold

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Packages

Revco RLE with two shelves of sliding drawer racks, including boxes

Model No.

RLE30086ARAK

RLE30086DRAK

RLE40086ARAK

RLE40086DRAK

RLE50086ARAK

RLE50086DRAK

RLE60086ARAK

RLE60086DRAK

Capacity

Freezer

300 box 14.9 115V 6 120

300 box 14.9 208-230V 6 120

400 box 19.4 115V 8 160

400 box 19.4 208-230V 8 160

500 box 24.1 115V 10 200

500 box 24.1 208-230V 10 200

600 box 28.8 115V 12 240

600 box 28.8 208-230V 12 240

Cubic

Feet

Electrical,

60Hz

# of

Racks

Revco RLE with factory-installed CO2 back-up, two shelves of sliding drawer racks, including boxes

Model No.

RLE30086ARAKCO

RLE30086DRAKCO

RLE40086ARAKCO

RLE40086DRAKCO

RLE50086ARAKCO

RLE50086DRAKCO

RLE60086ARAKCO

RLE60086DRAKCO

Capacity

Freezer

300 box 14.9 115V 6 120

300 box 14.9 208-230V 6 120

400 box 19.4 115V 8 160

400 box 19.4 208-230V 8 160

500 box 24.1 115V 10 200

500 box 24.1 208-230V 10 200

600 box 28.8 115V 12 240

600 box 28.8 208-230V 12 240

Cubic

Feet

Electrical,

60Hz

# of

Racks

# of

Boxes*

# of

Boxes*

Revco RLE with LN2 back-up, two shelves of sliding drawer racks, including boxes

Model No.

RLE30086ARAKLN

RLE30086DRAKLN

RLE40086ARAKLN

RLE40086DRAKLN

RLE50086ARAKLN

RLE50086DRAKLN

RLE60086ARAKLN

RLE60086DRAKLN

Capacity

Freezer

300 box 14.9 115V 6 120

300 box 14.9 208-230V 6 120

400 box 19.4 115V 8 160

400 box 19.4 208-230V 8 160

500 box 24.1 115V 10 200

500 box 24.1 208-230V 10 200

600 box 28.8 115V 12 240

600 box 28.8 208-230V 12 240

Cubic

Feet

Electrical,

60Hz

# of

Racks

Revco RLE with factory-installed chart recorder, two shelves of sliding drawer racks, including boxes

Model No.

RLE30086ARAKCR

RLE30086DRAKCR

RLE40086ARAKCR

RLE40086DRAKCR

RLE50086ARAKCR

RLE50086DRAKCR

RLE60086ARAKCR

RLE60086DRAKCR

Capacity

Freezer

300 box 14.9 115V 6 120

300 box 14.9 208-230V 6 120

400 box 19.4 115V 8 160

400 box 19.4 208-230V 8 160

500 box 24.1 115V 10 200

500 box 24.1 208-230V 10 200

600 box 28.8 115V 12 240

600 box 28.8 208-230V 12 240

Cubic

Feet

Electrical,

60Hz

# of

Racks

# of

Boxes*

# of

Boxes*

Revco RLE with factory-installed access card, two shelves of sliding drawer racks, including boxes

Model No.

RLE30086ARAKHID

RLE30086DRAKHID

RLE40086ARAKHID

RLE40086DRAKHID

RLE50086ARAKHID

RLE50086DRAKHID

RLE60086ARAKHID

RLE60086DRAKHID

*2-inch b erboard boxes w ith 100- count c ell div ider s

Capacity

Freezer

300 box 14.9 115V 6 120

300 box 14.9 208-230V 6 120

400 box 19.4 115V 8 160

400 box 19.4 208-230V 8 160

500 box 24.1 115V 10 200

500 box 24.1 208-230V 10 200

600 box 28.8 115V 12 240

600 box 28.8 208-230V 12 240

Cubic

Feet

Electrical,

60Hz

# of

Racks

# of

Boxes*

Find out more at thermosher.com/cold

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Racks for Boxes and Microplates

Racks for 2" (5.08 cm) Boxes

2” Box Racks Model No. Description

398329 Sliding Drawer Rack

1950518

Adjustable Side

Access Rack

Racks for 3" (7.62 cm) Boxes

3” Box Racks Model No. Description

398328 Sliding Drawer Rack

H x W x D in. (cm)

(23.9 x 13.7 x 67.9)

H x W x D in. (cm)

Dimensions

9.5 x 5.5 x 26.9

(24 x 14 x 68.3)

9.4 x 5.4 x 26.75

Dimensions

9.5 x 5.5 x 26.9 (24 x 14 x 68.3)

Storage RLE300 RLE400 RLE500 RLE600

Boxes Per Rack 20 20 20 20

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Boxes Per Freezer 300 400 500 600

Boxes Per Rack 20 20 20 20

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Boxes Per Freezer 300 400 500 600

Storage RLE300 RLE400 RLE500 RLE600

Boxes Per Rack 15 15 15 15

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Boxes Per Freezer 225 300 375 450

Racking Shelf Kits

Description Storage RLE300 RLE400 RLE500 RLE600

Sliding Drawer Racks and 2” Boxes with 100 Count Cell Dividers (ts one shelf)

Model No. RSK300SD5 RSK400SD5 RSK500SD5 RSK600SD5

Racks Included 3 4 5 6

Boxes Included 60 80 100 120

Microplate Racks

Microplate Racks Model No. Description

Side Access Rack

398322

with Locking Rod for

Standard

or Deepwell

Dimensions

H x W x D in. (cm)

9.4 x 5.5 x 25.7

(23.9 x 14 x 65.3)

Storage RLE300 RLE400 RLE500 RLE600

Plates Per Rack 98 98 98 98

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Plates Per Freezer 1470 1960 2450 2940

Find out more at thermosher.com/cold

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Boxes and Dividers

Model No. Description # of Dividers Quantity Color

5026-0909 Thermo Scientic™ Nalgene™ polycarbonate 2" (5.08 cm) box for 1.2-2.0 mL vials

5954 2" (5.08 cm) berboard box 0 12 white

820002 2" (5.08 cm) berboard box 81 1 white

820109 2" (5.08 cm) berboard box

5956 3" (7.62 cm) berboard box 0 12 white

820003 3" (7.62 cm) berboard box 81 1 white

1950878 2" (5.08 cm) berboard box 0 12 multiple

1950879 2" (5.08 cm) berboard box 0 12 pink

1950880 2" (5.08 cm) berboard box 0 12 red

1950881 2" (5.08 cm) berboard box 0 12 yellow

1950882 2" (5.08 cm) berboard box 0 12 green

1950883 2" (5.08 cm) berboard box 0 12 blue

1950884 2" (5.08 cm) berboard box 0 12 black

Fiberboard Dividers

81 24 white

100 1 white

Model No. Description Quantity/Case

5958 Grid dividers for 100 12mm vials 12

6212 Grid dividers for 81 13mm vials 12

5960 Grid dividers for 64 14mm vials 12

5959 Grid dividers for 49 16mm vials 12

Vials and Tubes

Model No. Description Quantity/Case

377267 Thermo Scientic

™

Nunc™ 1.8mL screw-top round-bottom vials with internal threading

1,800

Visit thermosher.com for additional vials, tubes and sample storage consumables

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Sliding Drawer Racks for Matrix and Cryobank Tubes

Freezer Model RLE300 RLE400 RLE500 RLE600

200 µL Capacity Tubes

Rack Model No 1950786 1950786 1950786 1950786

Thermo Scientic Matrix™ 200 μL 2D

3747, 3748, 4988

500 µL Capacity Tubes

3734, 3735, 4898

3736, 3737, 4899

374086, 374087

(including color options)

Internally-threaded

Universal Tubes

Box Dimension:

3.365 x 5.03 x 1.082 in. (8.5 x 12.8 x 2.75 cm)

Thermo Scientic Matrix 500 μL 2D

Open Top Tubes

Box Dimension:

3.365 x 5.03 x 1.022 in. (8.5 x 12.8 x 2.6 cm)

Thermo Scientic

™

Matrix

200 μL 2D with

Duraseals Installed

Internally-threaded

Universal Tubes

Box Dimension:

3.365 x 5.03 x 1.082 in.

(8.5 x 12.8 x 2.75 cm)

Thermo Scientic

™

Nunc

500 μl Internally

Threaded Tubes

Box Dimension:

3.365 x 5.03 x 1.394 in. (8.5 x 12.8 x 3.5 cm)

Cryobank™

™

Freezer Rack

Dimensions

W x H x D

Tubes per Box 96 96 96 96

Boxes Per Rack 42 42 42 42

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 60,480 80,640 100,800 120,960

Rack Model No 1950786 1950786 1950786 1950786

Freezer Rack

Dimensions

W x H x D

Tubes per Box 96 96 96 96

Boxes Per Rack 42 42 42 42

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 60,480 80,640 100,800 120,960

Rack Model No 1950786 1950786 1950786 1950786

Freezer Rack

Dimensions

W x H x D

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

Tubes per Box 96 96 96 96

Boxes Per Rack 42 42 42 42

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 60,480 80,640 100,800 120,960

3743, 3744, 3745

(including color options)

Thermo Scientic Matrix 500 μL 2D

Internally Threaded

ScrewTop Tubes

Box Dimension:

3.365 x 5.03 x 1.745 in. (8.5 x 12.8 x 4.4 cm)

Find out more at thermosher.com/cold

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Sliding Drawer Racks for Matrix and Cryobank Tubes

Freezer Model RLE300 RLE400 RLE500 RLE600

750 µL Capacity Tubes

Thermo Scientic

3731, 3732, 4896

3729, 4896

1.0 mL Capacity Tubes

374088, 374089

(including color options)

Matrix 750 μL 2D Open Top Tubes

Box Dimension:

3.365 x 5.03 x 1.55 in. (8.5 x 12.8 x 3.9 cm)

Thermo Scientic

Matrix 750 μL 2D Tubes

with Duraseals Installed

Box Dimension:

3.365 x 5.03 x 1.55 in. (8.5 x 12.8 x 3.9 cm)

Thermo Scientic

Nunc Cryobank 1.0 mL

Internally Threaded

Tubes

Box Dimension:

3.365 x 5.03 x 1.92 in. (8.5 x 12.8 x 4.9 cm)

Rack Model No 1950639 1950639 1950639 1950639

Freezer Rack

Dimensions

W x H x D

Tubes per Box 96 96 96 96

Boxes Per Rack 28 28 28 28

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 40,320 53,760 67,200 80,640

Rack Model No 1950639 1950639 1950639 1950639

Freezer Rack

Dimensions

W x H x D

Tubes per Box 96 96 96 96

Boxes Per Rack 28 28 28 28

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 40,320 53,760 67,200 80,640

Rack Model No 1950798 1950798 1950798 1950798

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

5.5 x 9.5 x 26.96 in.

(14 x 24 x 68.5 cm)

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

5.5 x 9.5 x 26.96 in.

(14 x 24 x 68.5 cm)

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

3740, 3741, 3742

(including color options)

Thermo Scientic

Matrix 1.0mL 2D

Internally Threaded

ScrewTop Tubes

Box Dimension:

3.365 x 5.03 x 2.3 in. (8.5 x 12.8 x 5.8 cm)

Freezer Rack

Dimensions

W x H x D

Tubes per Box 96 96 96 96

Boxes Per Rack 21 21 21 21

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 30,240 40,320 50,400 60,480

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

Find out more at thermosher.com/cold

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

Thermo Scientic™ Revco™ RLE Series Ultra-Low Freezers

Sliding Drawer Racks for Matrix and Cryobank Tubes

Freezer Model RLE300 RLE400 RLE500 RLE600

1.4 mL Capacity Tubes

Rack Model No 1950639 1950639 1950639 1950639

Freezer Rack

Dimensions

W x H x D

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

3791, 3792, 4890

Thermo Scientic

Matrix 1.4ml 2D

Open Top Tubes

Box Dimension:

3.365 x 5.03 x 1.92 in. (8.5 x 12.8 x 4.9 cm)

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

Thermo Scientic Matrix

1.4mL 2D Tubes with

3801, 4890

3711, 3112, 4890

1.8 to 2.0 mL Capacity Tubes

374500, 374501

374221, 374223

5.0 mL Capacity Tubes

374220, 374222

Duraseals Installed

Box Dimension:

3.365 x 5.03 x 1.92 in. (8.5 x 12.8 x 4.9 cm)

Thermo Scientic Matrix 1.4ml Human Readable Open Top

Tubes Installed

Box Dimension:

3.365 x 5.03 x 1.92 in. (8.5 x 12.8 x 4.9 cm)

Thermo Scientic

Nunc 1.8 mL

Externally-threaded

Universal Tubes

Box Dimension:

3.365 x 5.03 x 2.15 in. (8.5 x 12.8 x 5.5 cm)

Thermo Scientic

Nunc Cryobank

2.0 ml Internally

Threaded Tubes

Box Dimension:

3.365 x 5.03 x 2.15 in. (8.5 x 12.8 x 5.5 cm)

Thermo Scientic

Nunc Cryobank

5.0 ml Internally

Threaded Tubes

Box Dimension:

3.365 x 5.03 x 3.78 in. (8.5 x 12.8 x 9.6 cm)

Tubes per Box 96 96 96 96

Boxes Per Rack 28 28 28 28

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 40,320 53,760 67,200 80,640

Rack Model No 1950639 1950639 1950639 1950639

Freezer Rack

Dimensions

W x H x D

Tubes per Box 48 48 48 48

Boxes Per Rack 28 28 28 28

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 20,160 26,880 33,600 40,320

Rack Model No 1950818 1950818 1950818 1950818

Freezer Rack

Dimensions

W x H x D

Tubes per Box 48 48 48 48

Boxes Per Rack 14 14 14 14

Racks Per Shelf 3 4 5 6

Racks Per Freezer 15 20 25 30

Tubes Per Freezer 10,080 13,440 16,800 20,160

5.5 x 9.5 x 26.96 in. (14 x 24 x 68.5 cm)

Find out more at thermosher.com/cold
