Thermo Scientific ALPHA PH 2000D DIFFERENTIAL PH CONTROLLER, Alpha DO 2000 PPG User Manual

Alpha DO 2000 PPG

Processor/Transmitter

Dissolved Oxygen ( ppm / m/L / % )

Preface

This manual serves to explain the use of the Alpha-pH2000D series pH/ORP controller/transmitter. The manual
functions in two ways, firstly as a step by step guide to help the user operate the instrument. Secon dly, it serves
as a handy reference guide. This instruction manual is written to cover as many anticipated applications of the
Alpha-pH2000D pH/ORP controller/transmitter. If you have doubts in the use of the instrument, please do not
hesitate to contact the nearest Alpha Authorised Distributor.

The information presented in this manual is subject to change without notice as improvements are made, and
does not represent a commitment on part of Thermo Scientific.

Thermo Scientific cannot accept any responsibility for damage or malfunc tion of the unit due to improper use of
the instrument.

Copyright © 2006
All rights reserved

.

Safety Information

The Controller/ Transmitter shall be installed and operated only in the man ner specified in the Instruction manual.
Only skilled, trained or authorized person should carry out installation, setup and operation of the instrument.

Before powering up the unit, make sure that power source it is connected to, is as specified in the top label.
Failure to do so may result in a permanent damage to the unit.

The unit has live and exposed parts inside. If it has to be opened, make sure that the power to the unit is off and
disconnected.

The unit is Fuse protected. In the event the fuse has to be replaced, use only those as specified in the manual.
The degree of protection against electric shock will be achieved only by observance of the corresponding

installation rules.

TABLE OF CONTENTS

1 INTRODUCTION ...................................................................................................................................................................1

1.1 A

T THE VERY BEGINNING ...............................................................................................................................................1

1.2 INTENDED USE

..............................................................................................................................................................1

1.3 S

AFETY INSTRUCTIONS .................................................................................................................................................2

1.4 P

UTTING OUT OF SERVICE / CORRECT DISPOSAL OF THE UNIT.........................................................................................2

2 PRODUCT DESCRIPTION ...................................................................................................................................................3

2.1 D

ESCRIPTION OF UNIT...................................................................................................................................................3

2.2 M

EASUREMENT AND CONTROL SYSTEM..........................................................................................................................4

2.3 U

NIT OVERVIEW............................................................................................................................................................5

2.3.1 Display Overview...................................................................................................................................................6

2.3.2 Key functions.........................................................................................................................................................6

2.3.3 LED indicators.......................................................................................................................................................7

2.3.4 Security codes.......................................................................................................................................................7

2.3.5 Menu overview ......................................................................................................................................................8

3 ASSEMBLY AND INSTALLATION.......................................................................................................................................9

3.1 M

OUNTING THE UNIT .....................................................................................................................................................9

3.2 C

ONNECTION DIAGRAM...............................................................................................................................................10

4 NORMAL OPERATION.......................................................................................................................................................11

4.1 M

EASUREMENT MODE.................................................................................................................................................11

5 CALIBRATION MODE........................................................................................................................................................12

5.1 E

NTERING CALIBRATION MODE....................................................................................................................................12

5.2

PH CALIBRATION.........................................................................................................................................................13

5.3 ORP-

MV CALIBRATION ...............................................................................................................................................14

5.4 ORP

-% CALIBRATION ................................................................................................................................................14

5.5 V

IEW ACTUAL ZERO AND SLOPE ...................................................................................................................................15

6 SETUP MODE.....................................................................................................................................................................16

6.1 E

NTER SETUP MODE...................................................................................................................................................16

6.2 E

LECTRODE OFFSET (OFS) SUB-FUNCTION.................................................................................................................17

6.3 S

ETTING TEMPERATURE (SET °C°F) SUB-FUNCTION.....................................................................................................18

6.4 C

ONTROL RELAY A / RELAY B (SP1/SP2) SUB-FUNCTION ............................................................................................19

6.5 C

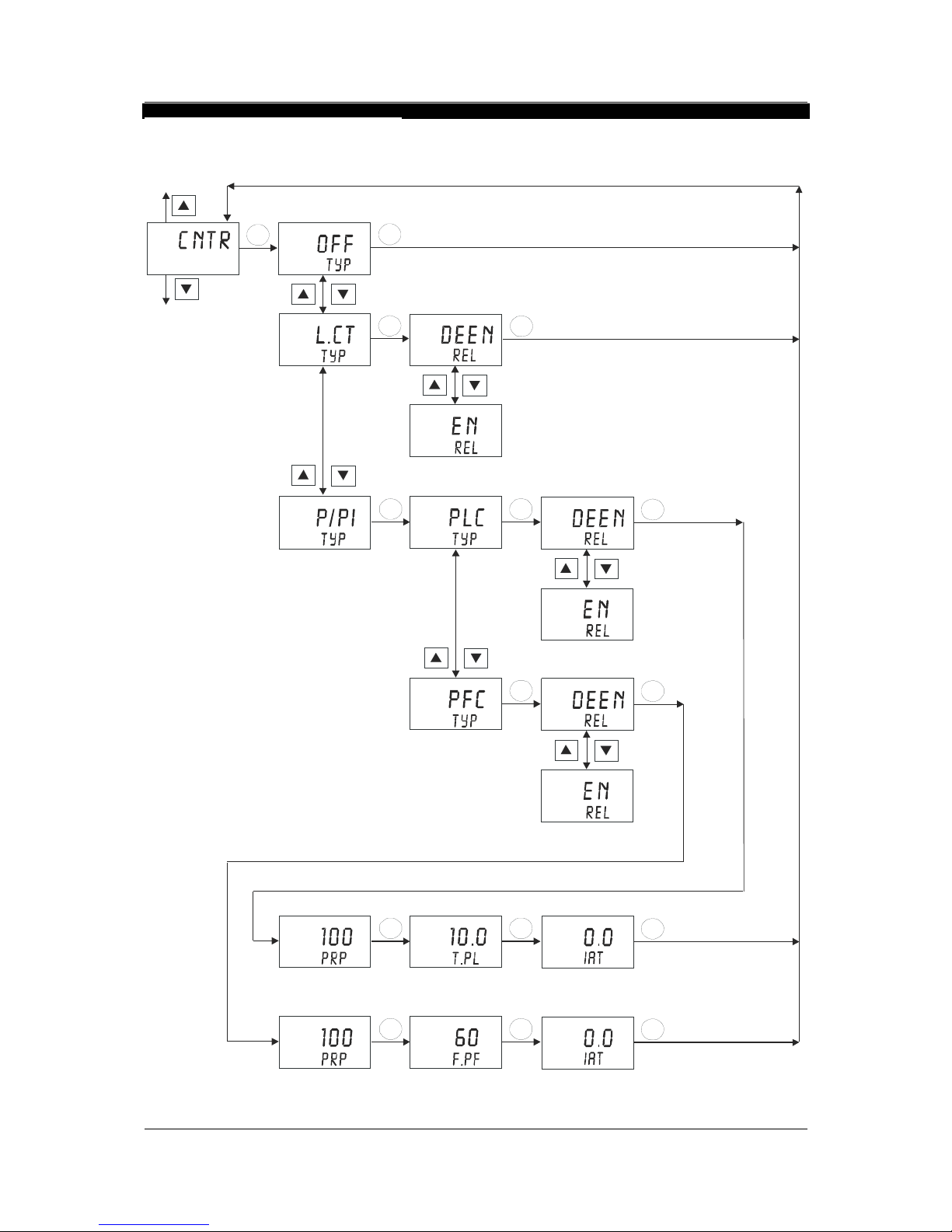

ONTROLLER (CNTR) SUB-FUNCTION .........................................................................................................................21

6.6 C

URRENT OUTPUT 1 SUB-FUNCTION............................................................................................................................23

6.7 C

URRENT OUTPUT 2 SUB-FUNCTION............................................................................................................................24

6.8 W

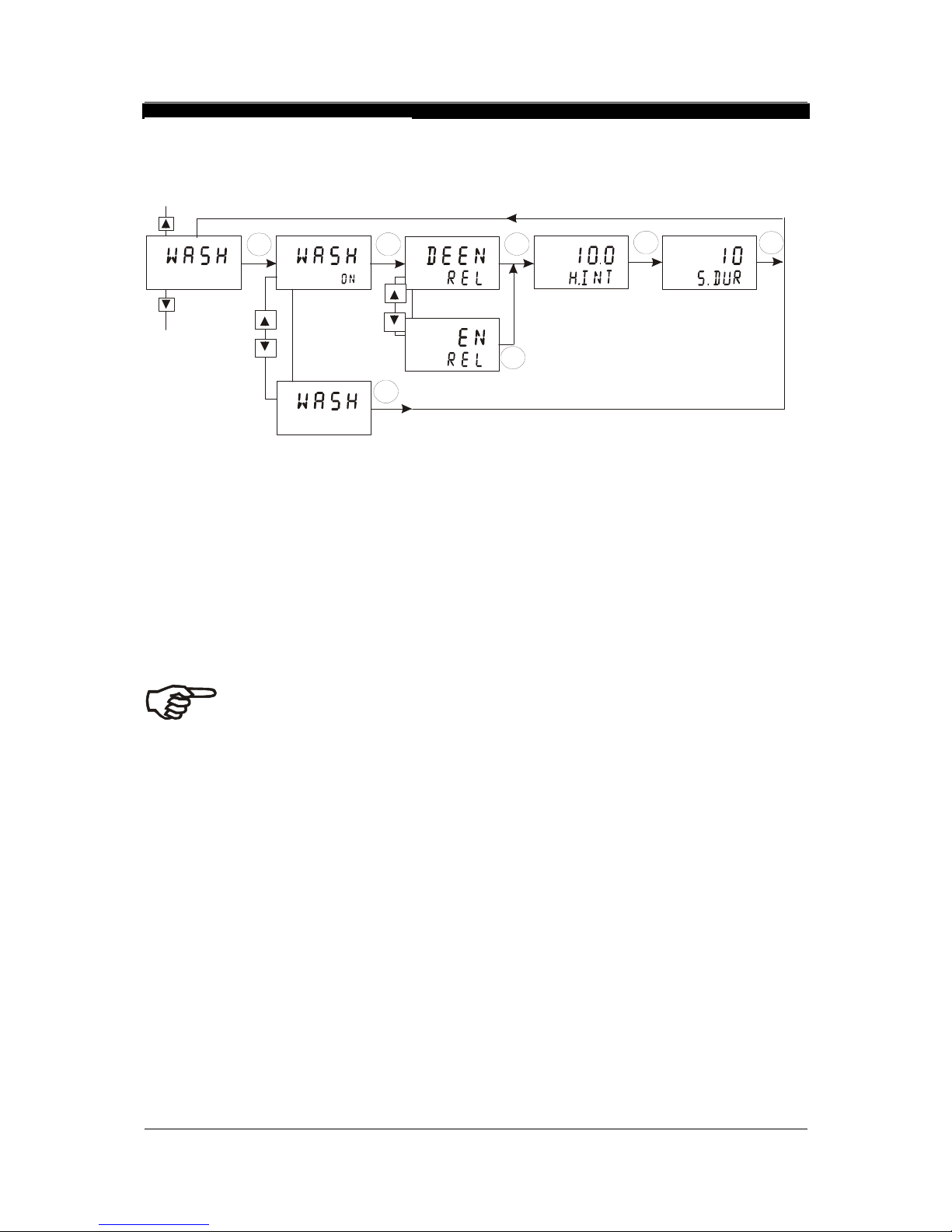

ASH RELAY (WASH) SUB-FUNCTION.........................................................................................................................25

6.9 C

ONFIGURATION (CNFG) SUB-FUNCTION ....................................................................................................................26

6.10 C

ALIBRATION (CAL) SUB-FUNCTION.............................................................................................................................27

7 RELAY MODES ..................................................................................................................................................................28

7.1 V

IEW RELAY SET POINTS .............................................................................................................................................28

7.2 M

ANUAL RELAY MODE .................................................................................................................................................29

8 TECHNICAL SPECIFICATIONS.........................................................................................................................................30

8.1 G

ENERAL SPECIFICATION............................................................................................................................................30

8.2 S

ET-POINT AND CONTROL FUNCTION – RELAY 1 & RELAY 2..........................................................................................30

8.3 W

ASH FUNCTION – WASH RELAY ................................................................................................................................30

8.4 A

LARM FUNCTION – ALARM RELAY ..............................................................................................................................31

8.5 T

RANSMITTER FUNCTION ............................................................................................................................................31

8.6 V

OLTAGE OUTPUT & HOLD FUNCTION SWITCH ............................................................................................................31

8.7 D

ISPLAY .....................................................................................................................................................................31

8.8 P

OWER SUPPLY..........................................................................................................................................................31

8.9 E

LECTRICAL DATA AND CONNECTIONS.........................................................................................................................31

8.10 M

ECHANICAL SPECIFICATIONS.....................................................................................................................................31

8.11 E

LECTROMAGNETIC COMPLIANCE (EMC) SPECIFICATIONS...........................................................................................32

8.12 E

NVIRONMENTAL CONDITIONS.....................................................................................................................................32

9 ACCESSORIES...................................................................................................................................................................33

9.1 R

EPLACEMENT UNIT ...................................................................................................................................................33

9.2 A

SSEMBLY ACCESSORIES ...........................................................................................................................................33

10 GENERAL INFORMATION.................................................................................................................................................34

10.1 W

ARRANTY.................................................................................................................................................................34

10.2 P

ACKAGING / SCOPE OF DELIVERY...............................................................................................................................34

10.3 R

ETURN OF GOODS.....................................................................................................................................................34

10.4 G

UIDELINES FOR RETURNING UNIT FOR REPAIR ............................................................................................................34

10.5 M

AINTENANCE AND CLEANING.....................................................................................................................................34

11 APPENDICES .....................................................................................................................................................................35

11.1 A

PPENDIX 1 – UNIT FUSE AND JUMPER SETTINGS .........................................................................................................35

11.2 A

PPENDIX 2 – PH BUFFER VALUES AT VARIOUS TEMPERATURES ...................................................................................36

11.3 A

PPENDIX 3 – SIMPLE EXPLANATION ON THE FUNCTION OF HYSTERESIS........................................................................37

11.4 A

PPENDIX 4 – GENERAL INSTRUCTIONS CONCERNING CONTROLLER SETTING...............................................................38

11.4.1 Control characteristic of Controllers used as limit value switch.....................................................................38

11.4.2 Control characteristic of P-Controllers as proportional controller...................................................................38

11.4.3 Control characteristic of PI-Controllers as proportional integral controller.....................................................38

11.4.4 Control signal of Pulse length Controllers......................................................................................................39

11.4.5 Control signal of Pulse Frequency Controllers...............................................................................................40

11.5 A

PPENDIX 5 – ABBREVIATIONS USED IN MENU DISPLAYS...............................................................................................41

INTRODUCTION

1.1 At the beginning

We thank you for having purchased the Alpha pH 2000D pH/ORP Controller.
The construction of the pH/ORP Controller employs leading edge technology and complies with safet y

regulations currently in force. Notwithstanding this, improper use could lead to hazards for the user or a
third-party, and/or adverse effects on the plant or other equipment. Therefore, the operating
instructions must be read and understood by the persons involved before work is started with the
pH/ORP Transmitter.

This instruction manual identifies safety instructions and additional information by means of the
following symbols:

This symbol draws attention to safety instructions and warnings of potential
danger which, if neglected, could result in injury to persons and/or damage
to property.

This symbol identifies additional information and instructions which, if
neglected, could lead to inefficient operation and possible loss of
production.

The instruction manual must always be stored close at hand, in a place accessible to all people
working with the pH/ORP Controller.

If you have questions, which are not or insufficiently answered in this instruction manual, please
contact your authorized supplier. They will be glad to assist you.

1.2 Intended Use

The Alpha pH 2000D pH/ORP Controllers are intended solely for pH or ORP and temperature
measurement, as described in this instruction manual.

Any other use, or use not mentioned here, that is incompatible with the technical specifications is
deemed inappropriate. The operator is solely responsible for any damage a r ising from such use.

Other prerequisites for appropriate use include:

– observing the instructions, notes and requirements set out in this instruction manual.
– observing all local safety regulations concerning safety at work.
– observing all information and warnings in the documentation dealing with the products used tog eth-

er with the transmitter (housings, sensors, etc.).

– observing the prescribed environmental and operational conditions.

- 1 -

1.3 Safety Instructions

- The Alpha pH 2000D should be installed and operated only by personnel familiar with the
transmitter and who are qualified for such work.

- A defective controller must neither be installed nor put into service.

- The Alpha pH 2000D must only be operated unde r the specified operating conditions (see
section 8).

- The Alpha pH 2000D must not be repaired by the customer.

- The Alpha pH 2000D must only be opened to replace the unit fuse. This work must be
carried out only by personnel familiar with the transmitter and who are qualified for suc h
work. Make sure the mains cable is separated from the power supply before opening the
unit.

- No modifications to the Alpha pH 2000D are allowed. The manufacturer/supplier accepts no
responsibility for damage caused by unauthorized modifications. The risk is borne
entirely by the user.

1.4 Putting Out of Service / Correct Disposal of the Unit

Putting out of service

• First disconnect the unit from the mains, then undo all electrical connections.

• Remove the unit from the wall / panel.

Correct disposal of the unit

When the transmitter is finally taken out of service, observe the local environmental regulations for
correct disposal or send the transmitter to your local distributor, they will take care of proper disposal.

- 2 -

2 Product Description

2.1 Description of Unit

The Alpha pH 2000D is used for measuring pH and temp erature values. The pH values can be measure d using industrial
differential & combination pH sensors. The temperatu re values can be measured using 2-wire / 3-wire NTC300 thermistor.
The transmitter is available in a wall mounting e nclosure. The controller / transmitter can be us ed for applications such as
water treatment and monitoring, galvanic-decontamination, chemical processing, food processing, clean or wastewater
control and neutralization processes.

This transmitter has many user-friendly and safety features which include:

• Push-button for calibration and sensor offset adjustment from the keypad.

• Built-in non-volatile memory to ensure that calibration and other information are not erased if power supply fails.

• Menu-driven program that simplifies set-up.

• Automatic temperature compensation (ATC).

• Manual temperature compensation setting wit hout the ATC probe, with independent s etting for calibration and proc ess

temperature.

• Two galvanically isolated current outputs 0/4...20mA.

• Two switching contacts as set-point relays.

• 0 to 2000 seconds time delay adjustment on all relays – minimizes false alarms.

• Separately adjustable high and low set-point hysteresis (dead bands) prevent chattering of relays around the set points.

• Three control modes: limit controller, P controller and PI controller (P/PI controller as pulse length or pulse frequency).

• Large dual display LCD for easy reading with clear multiple annunciators, alarm status, operational and error messages.

• Separate alarm relay alerting you to s et point limits exc eeded for a certain tim e and if the NTC300 thermistor wires ar e

broken or disconnected during the ATC function.

• Wash relay.

• Hold function to freeze output current (0/4...20mA) and release control relays.

• LED indicators signal control activities to visually monitor transmitter status from a distance.

• Protection against electromagnetic interference.

• Back lit and UV light protected LC display.

- 3 -

2.2 Measurement and Control System

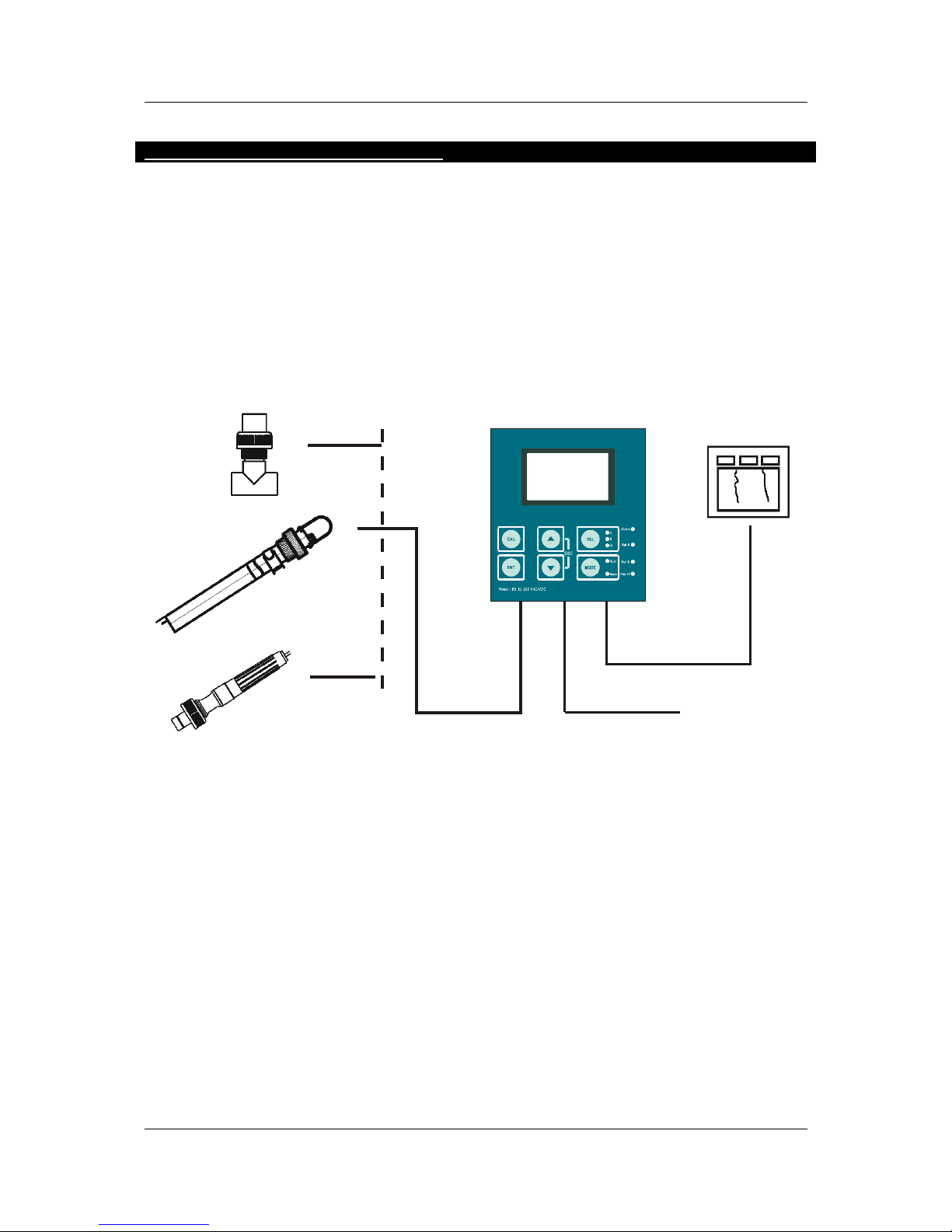

A typical measurement system consists of:

• A pH/ORP process controller

• A pH/ORP combination electrode with integrated or separate temperature sensor NTC300

thermistor.

• An appropriate pH or ORP measurement cable

• An immersion, flow or process assembly with or without a potential matching pin (PMP)

• A final control element such as pump or valve

• A chart recorder

Power Mains
(80 - 250 VAC)

0/4 - 20 mA

Measurement Cable

Housing and
Sensors

Chart Recorder

Alpha pH 2000D Transmitter

- 4 -

2.3 Unit Overview

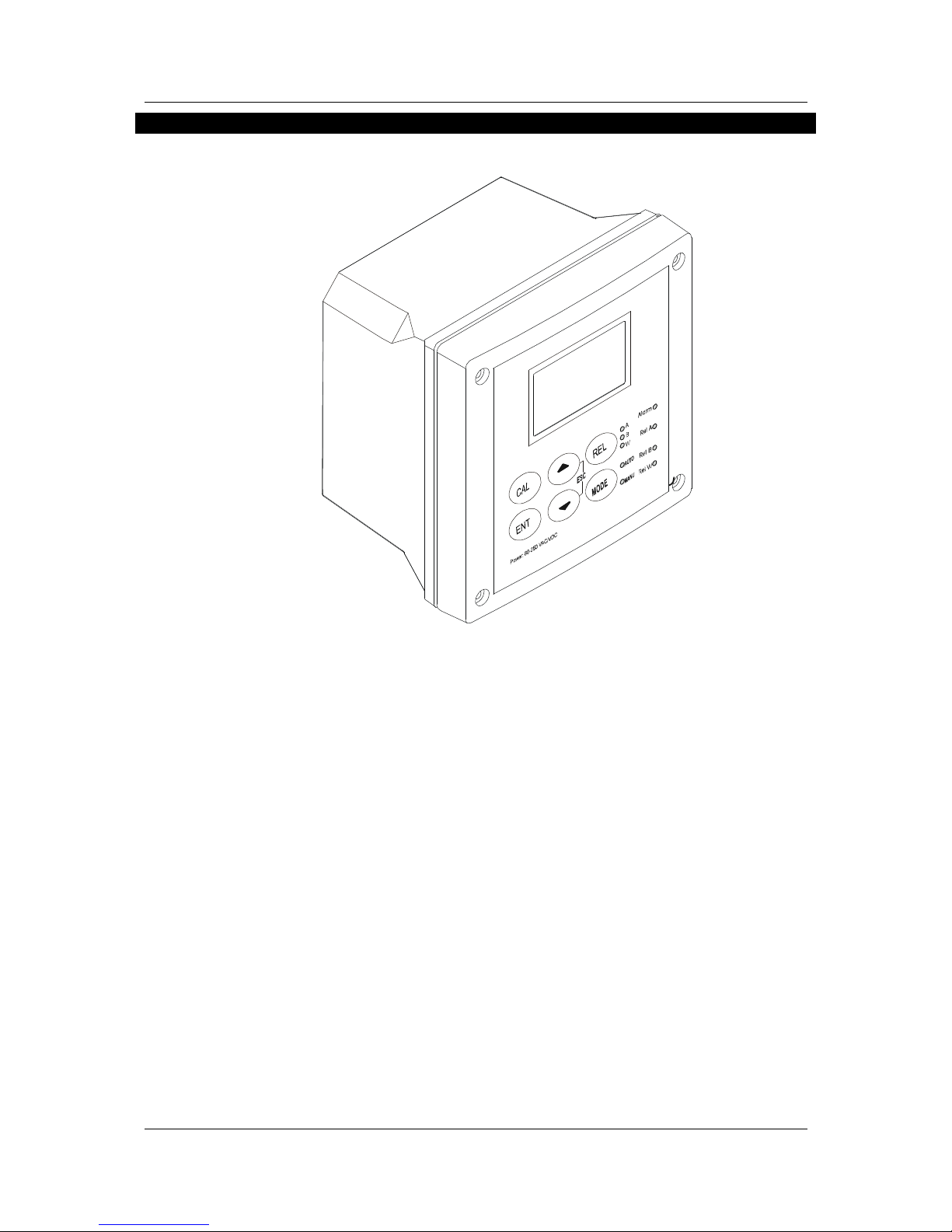

Wall mounting version

- 5 -

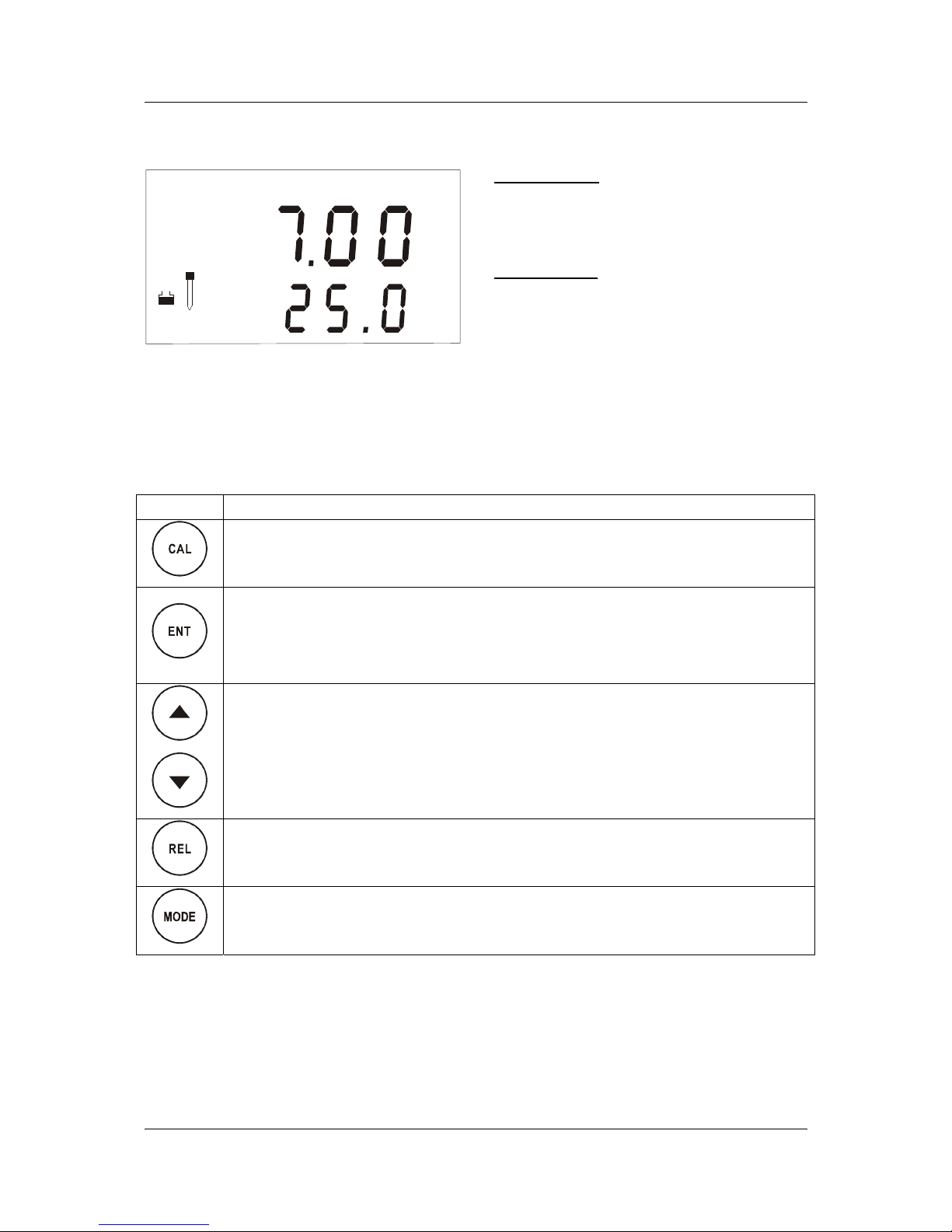

2.3.1 Display Overview

The LC display shows two alpha-numerical fields for parameters and measured values as well as
various mode and status indicators.

MEAS

SETUP

CAL

HOLD

O

C

pH

A

TC

mV

pH %

READY

ERR

O

F

Mode indicators:
MEAS: measurement mode
SETUP: Set-up mode
CAL: Calibration mode
Status indicator:
READY: Visible after successful calibration
HOLD: Unit in “HOLD” mode
ATC: Visible in ATC (Automatic Temperature

Compensation) mode. Not visible in the Manual
Temperature Compensation mode. “ATC” flashes if
the temperature probe is faulty in its ATC mode

ERR: Error indicator
S: Visible in symmetrical measurement mode

2.3.2 Key functions

Key Description

Enter Calibration mode (requires access code)

Enter Set-up mode (requires access code)
Access sub functions (parameters) within a function group of Set-up mode
Confirm (store) set-up parameters and numerical values
Start/Confirm calibration in Calibration mode.

Select function group in the Set-up mode.
Set parameters and numerical values (if key is pressed continuously, the setting speed increases).
Control the relays in MANUAL relay operation.
Returns to “Measurement mode” when both keys are pressed simultaneously.

Display limit values for SP1 and SP2 and settings for wash contact in AUTO relay operation.
Toggle between RELAY A, RELAY B or Wash relay in MANUAL relay operation

Switch from AUTO to MANUAL relay operation (requires access code)

- 6 -

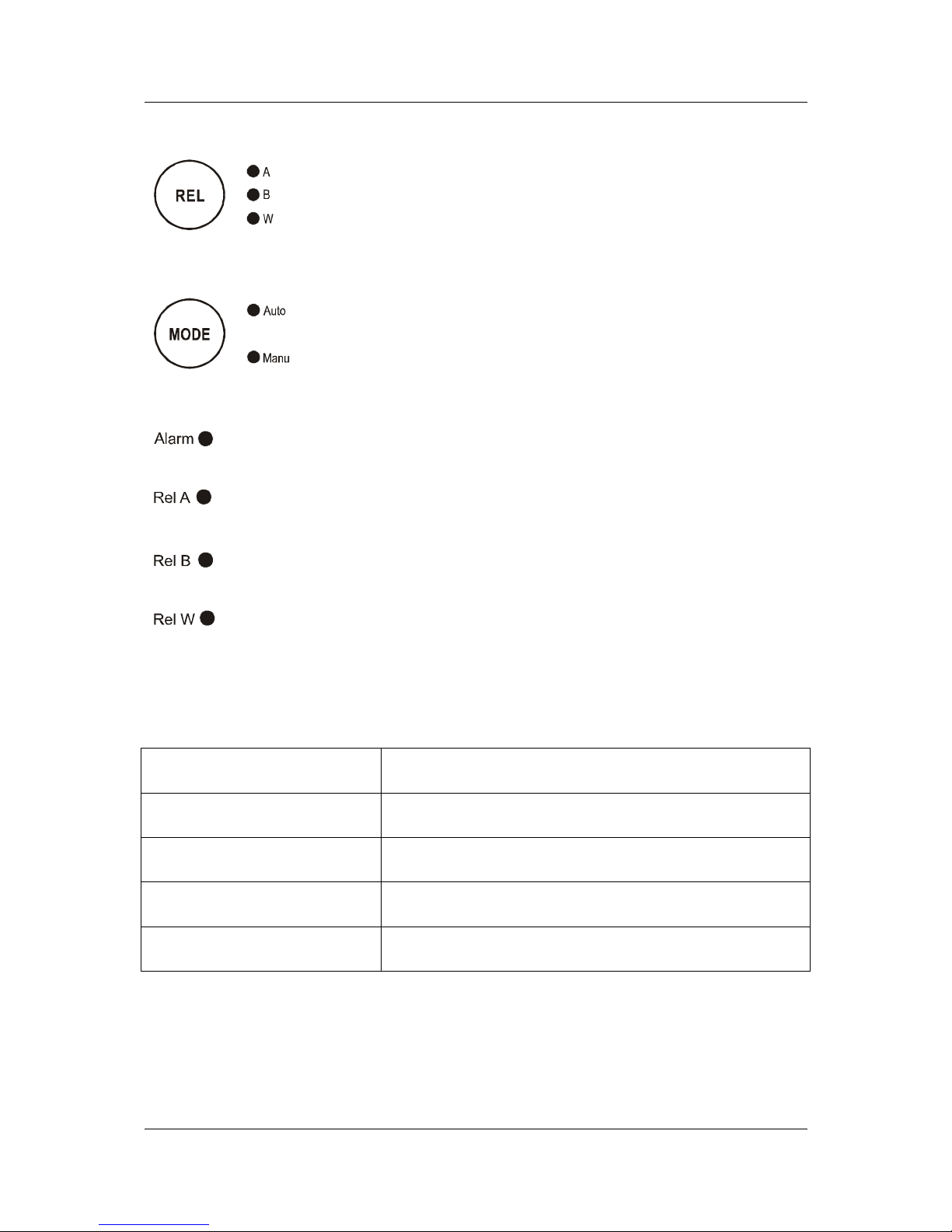

2.3.3 LED indicators

Relay indicators

If REL key is pressed the LED (A, B or W) indicates to which Relay (A, B or Wash)
the displayed limit values refer.

Relay mode indicators

Auto LED lights if relay operation is set to automatic mode. Manu LED lights if relay
operation is set to manual mode.

Relay status indicators

This LED lights if limit value is exceeded or the ATC probe fails.

This LED lights green if measured value is within the limit for Relay A or lights red if
measured value exceeds limit.

This LED lights green if measured value is within the limit for Relay B or lights red if
measured value exceeds limit.

This LED lights if cleaning cycle is on.

2.3.4 Security codes

The access to Calibration mode, Setup mode and Manual relay operation mode is protected with
security codes. The security codes are set at the factory and cannot be changed by the user. The
following security codes are used:

Security code Mode Description

000 View only mode to view actual settings

11 Calibration mode to start calibration

22 Setup mode to configure parameters

22

Manual relay operation to switch relay operation mode from automatic
to manual

- 7 -

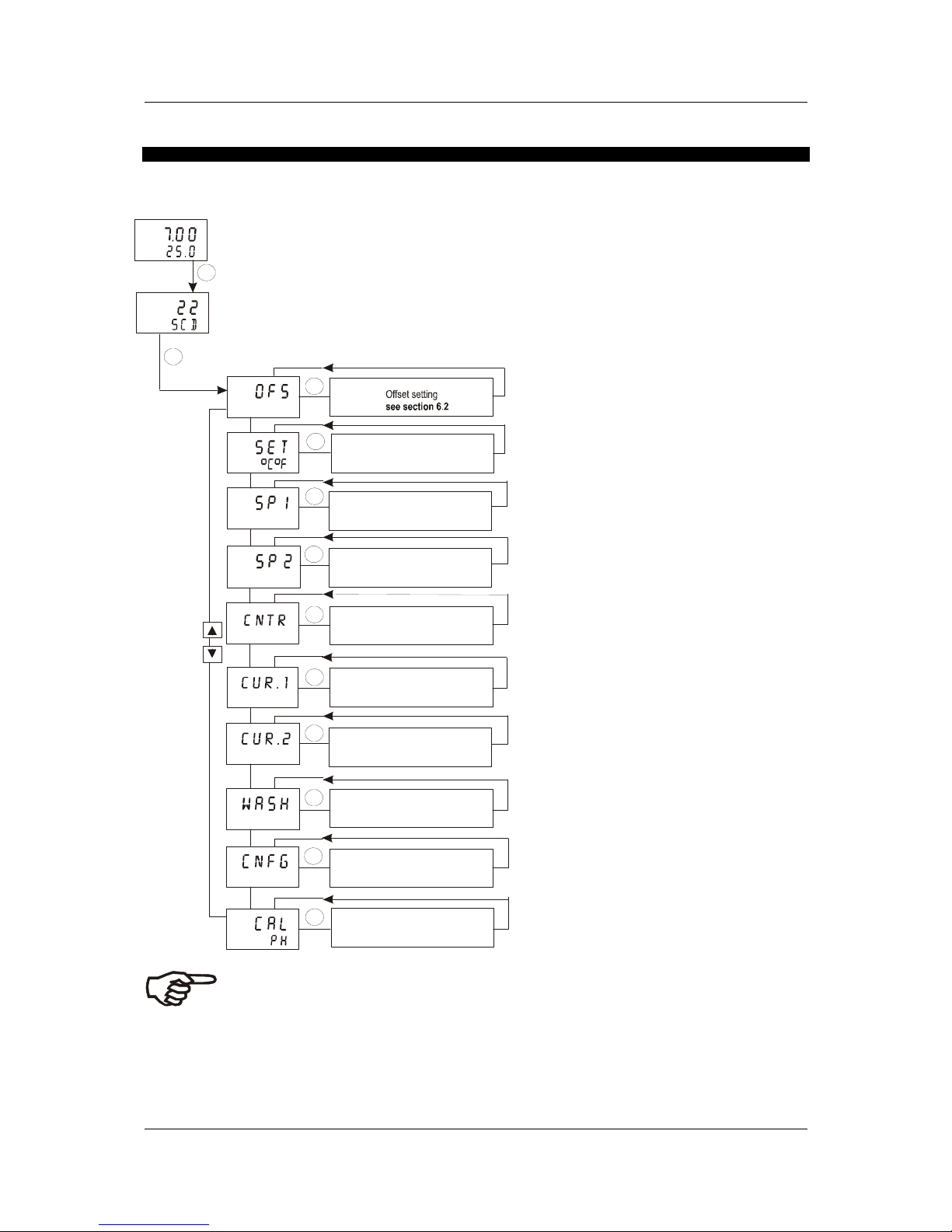

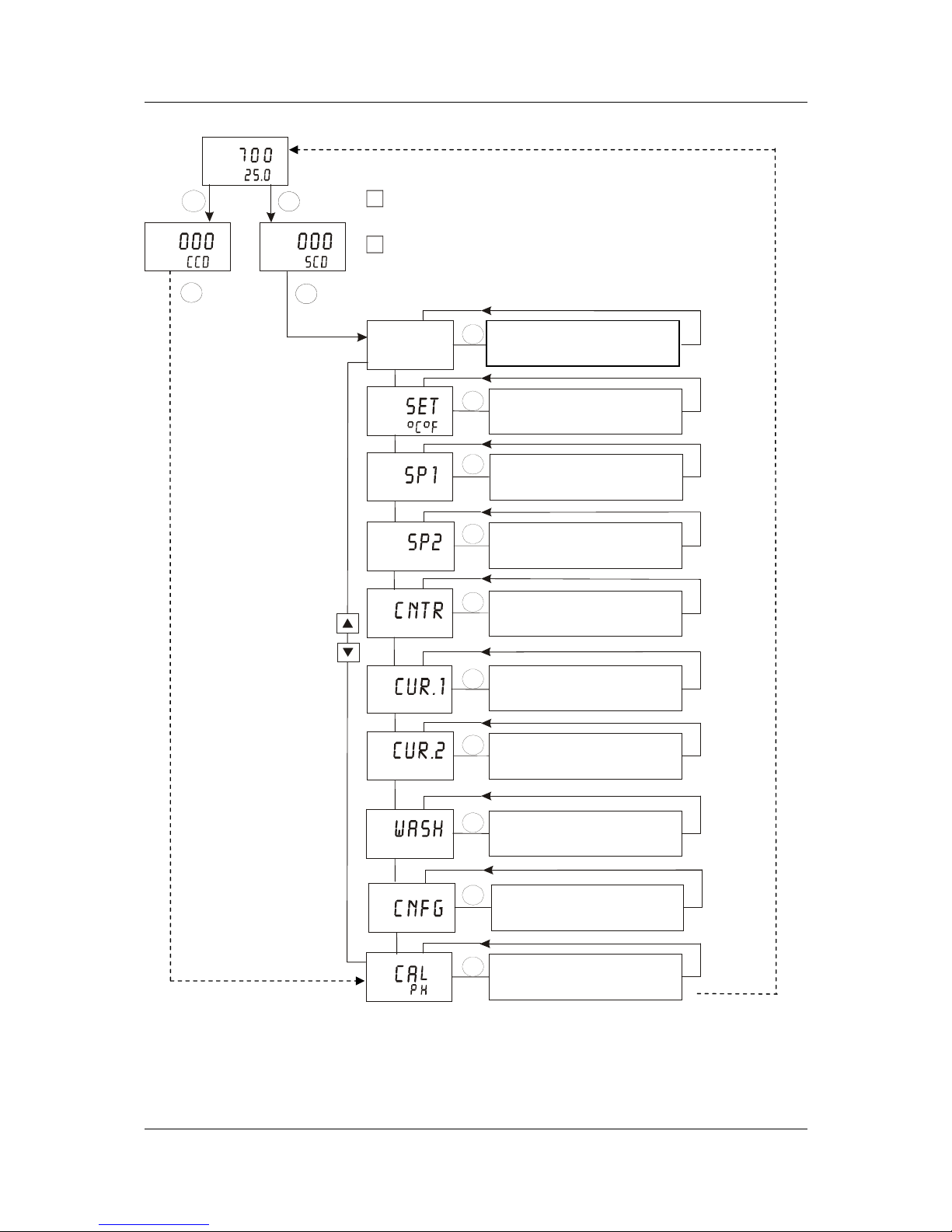

2.3.5 Menu overview

CCD “000” = Check calibration parameters (View only mode)
CCD “11” = Calibration mode

SCD “000” = Check setup parameters (View only mode)
SCD “22” = Setup mode

MEAS

P

H

°C

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

SET PU

HOLD

Temperature settings

see section 6.3

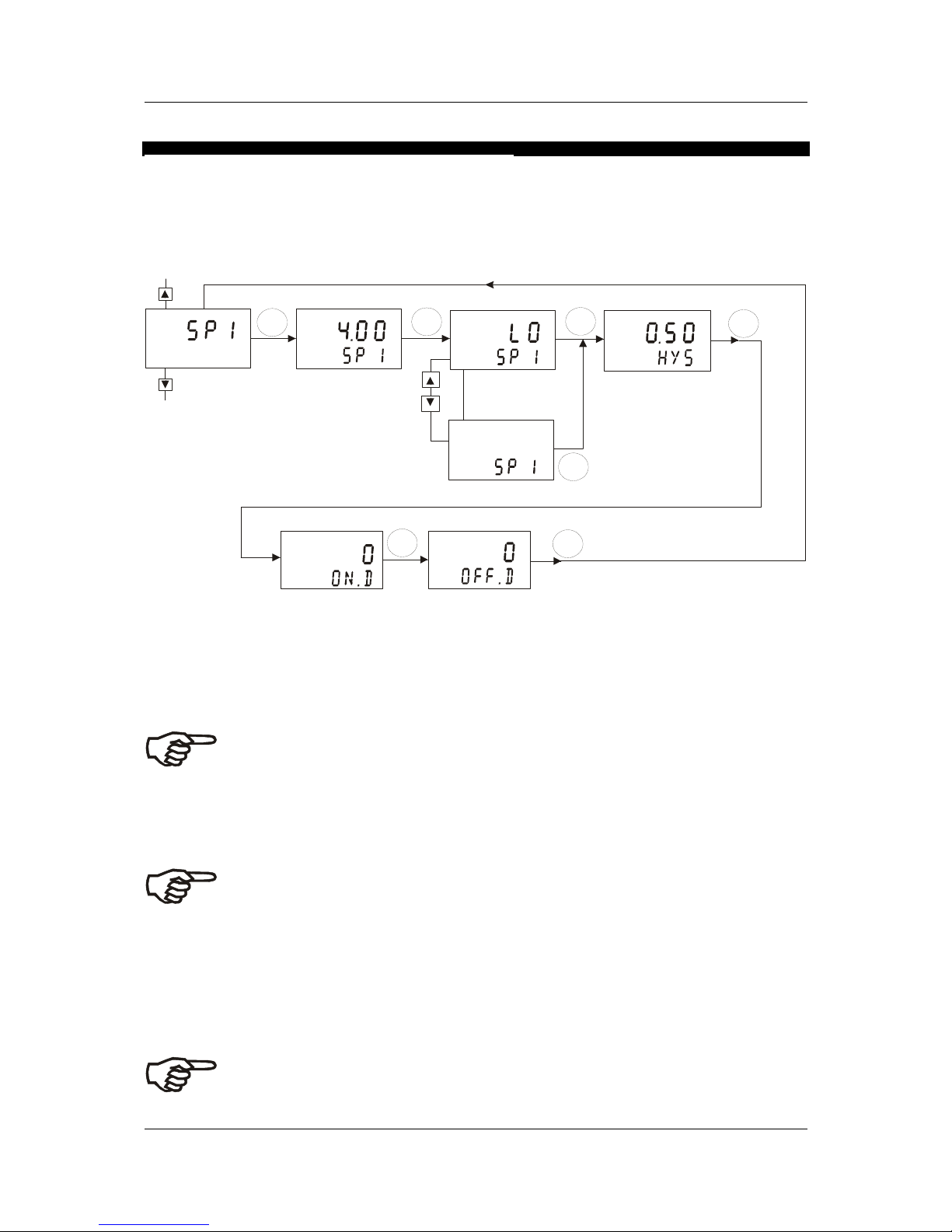

Relay A (set point 1) settings

see section 6.4

Relay B (set point 2) settings

see section 6.4

Controller settings

see section 6.5

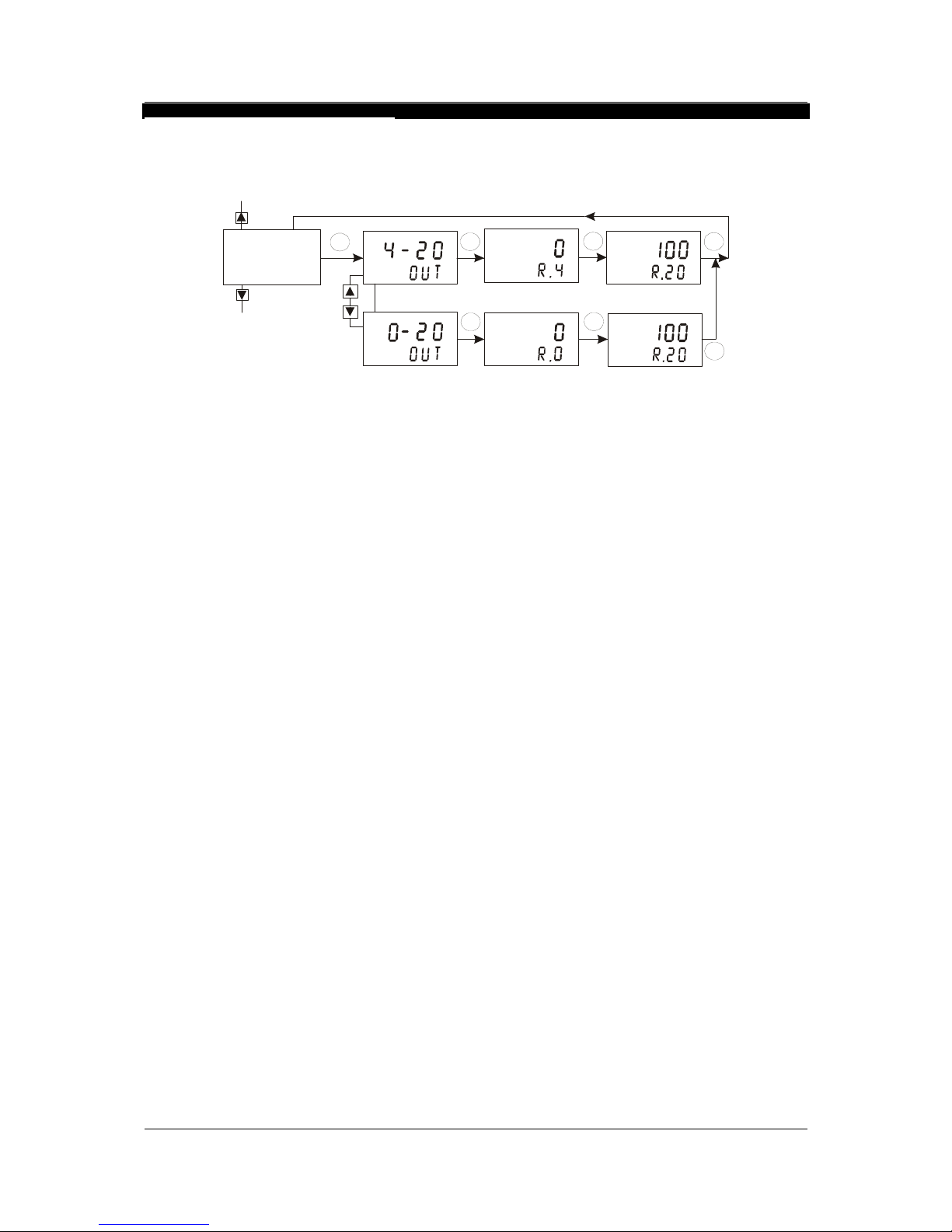

Current output 1 settings

see section 6.6

Current output 2 settings

see section 6.7

Wash contact settings

see section 6.8

Calibration

see section 5

CAL

E NTER

ENT

ENT

ENTER

E

NTER

ENT

ENT

ENT

ENT

ENT

ENT

ENT

ENT

ENT

ENT

SETUP

HOLD

1

2

Unit settings

see section 6.9

ENT

Offset setting

see section 6.2

OFS

- 8 -

3. Assembly and Installation

3.1 Mounting the Unit

Wall mounting version

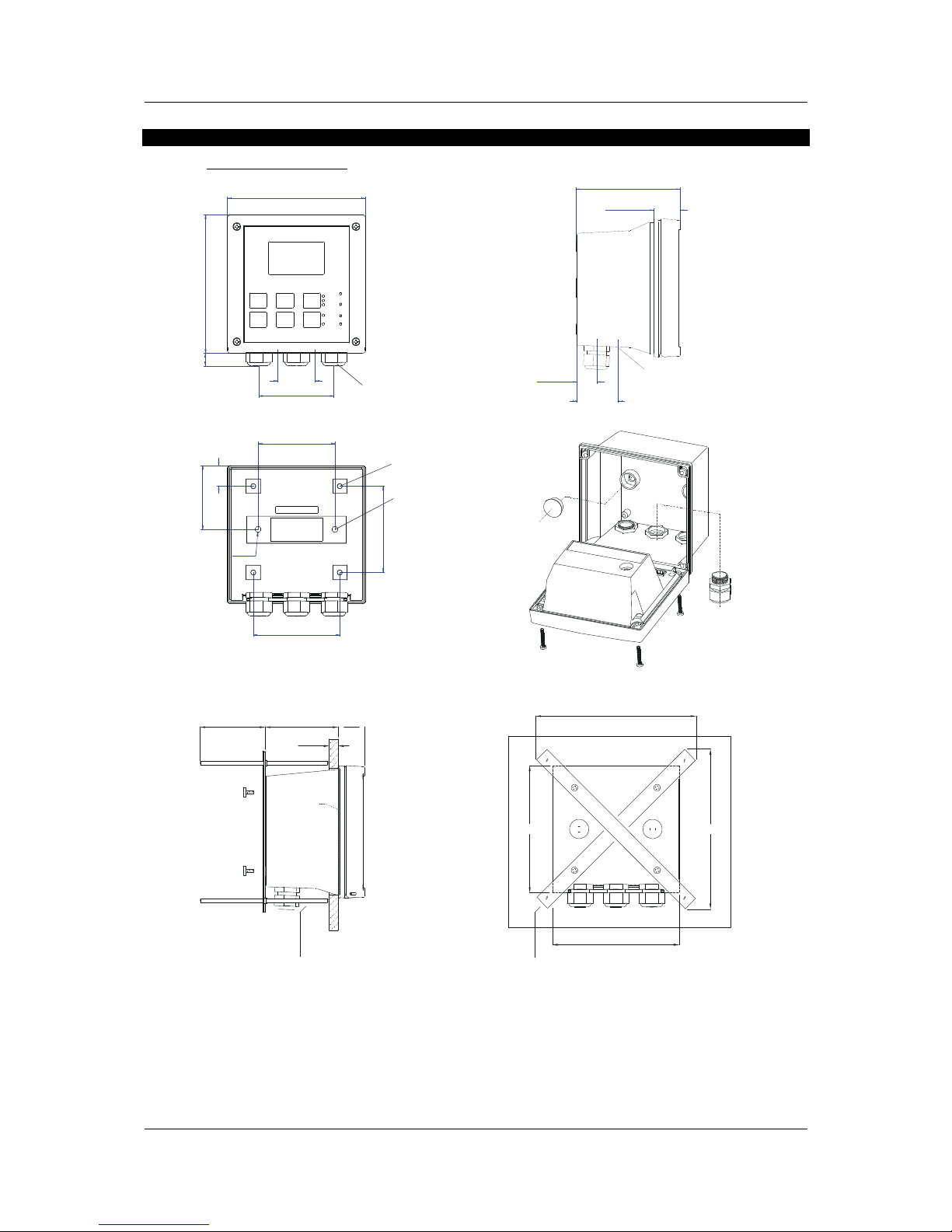

111.50 [4.39]

144 [5.67]

Unit:
MM [INCH]

approx.14 [.55]

39 [1.54]

144 [5.67]

78 [3.07]

Pg13.5 (3 pcs.)

27.5 [1.08]

24 [.94]

57.8[2.28]

For Pg13.5 cable glands

Holes for wall
mounting (2X)

21.5 [.85]

6 [.24]

66.5 [2.62]

80 [3.15]

90 [3.54]

90 [3.54]

Holes for post
mounting (4X)

Red Plugs for wall
mounting holes
enclosure (2X)

175 [6.88]

175 [6.88]

138 [5.43]

138 [5.43]

Cut-out mountin

84 [3.30]

29 [1.14]

1-22 [0.03 - 0.87]

Threaded rod for pan el mountin

Max.80

Seal gasket

g

g

plates for post mounting

Transmitter housing for wall mounting: protection class IP 65

- 9 -

3.2 Connection Diagram

Caution: Ensure electrical mains are disconnected before proceeding.

Connections for wall mounting version

1

L

2

N

Current

15

Current

13

OP2

14

16

OP1

17

3

4

5

6

22

HOLD

18 19 2120 23 24 25

7

8 9

10

11

2926 2827 30 31 32 33

12

-5

V

TE

MP

SENS T E MP

pH

RE

FpHME

AS

Fuse: 250V 315 mA,

Time Delay

L

1

12

24

Curren t

N

OP2

13

Curren t

14215

16

OP1

17

3

21

HOLD

18 19 20422 23

28

5

25

6 7

26 27

8

-5V

TEMP

31

TEMP
SENS

29930

10

pH
REF

11

32 33

pH
ME

AS

250V, 315 mA,
Time Delay

1. AC mains live wire 18. 12V output Power supply

2. AC mains neutral wire 19. Hold Function

3. AC mains protective earth wire 20. Hold Function

4. Relay A (SP 1) 21. Earth ground

5. Relay A (SP 1) 22. no connection

6. Relay B (SP 2) 23. no connection

7. Relay B (SP 2) 24. no connection

8. Wash relay 25. no connection

9. Wash relay 26. Shield (drain wire)

10. Alarm relay (NC) 27. -5V to differential pH sensor (White wire)

11. Alarm relay common 28. Temperature ground (black wire)

12. Alarm relay (NO) 29. Temperature Sense (Yellow wire)

13. 4-20 mA temperature output, +ve terminal 30. Temperature Input (Yellow wire)

14. 4-20 mA temperature output, -ve terminal (Internal ly connected by jumper to terminal 29)

15. 4-20 mA pH/ORP output, +ve terminal 31. No connection

16. 4-20 mA pH/ORP output, -ve terminal 32. pH input, Reference (Green wire)

17. 12V output ground 33. pH input, Measure (Red wire)
IMPORTANT: The Alarm relay functions “A s OFF under as an ctive Low” device i.e. it switche

Alarm condition. Therefore the Alarm display device should be connected to the ‘NC’ contacts of
the relay (10 & 11).

h or circuit breaker shall be included in the building installation.

the operator.

NOTE:
a) Switc
b) It shall be in close proximity to the equipment and within easy reach of
c) It shall be marked as the disconnecting device for the equipment.

- 10 -

4 Normal Operation

4.1 Measurement Mode

When the controller/transmitter is powered on, the display first shows all segments briefly, after which
the controller/transmitter automatically enters into the Measurement mode.

Please note: To guarantee accurate readings, the measuring system (transmitter and
sensor) must be calibrated.

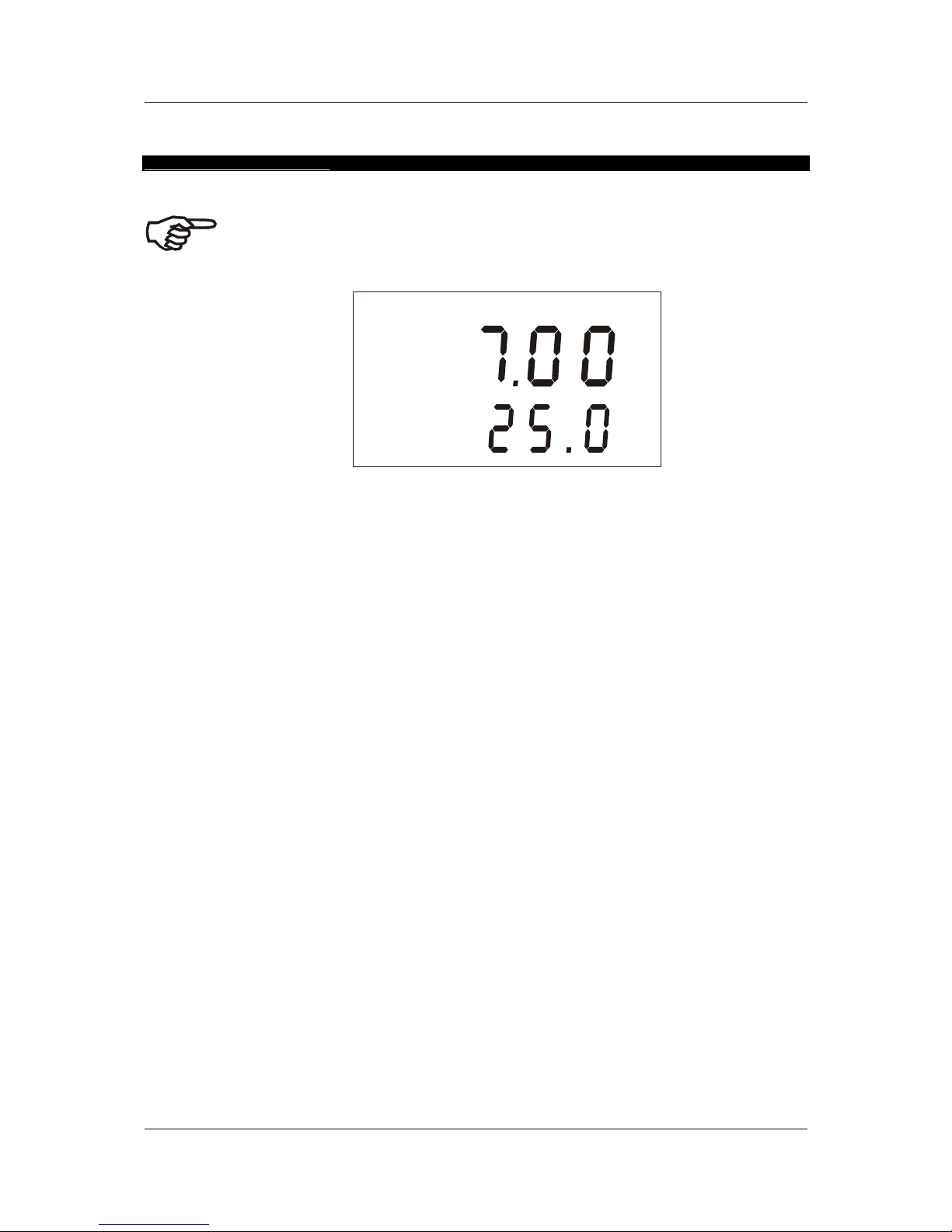

pH

MEAS

O

C

The mode indicator “MEAS” at the top of the display indicates that the transmitter is in Measurement
mode. The upper alpha-numerical display shows the measured pH or ORP value, while the lower
display shows the temperature value if the controller is set for pH measur ement, or “ORP” if it is set for
ORP measurement.

The annunciators “pH”, “mV” or “%” at the upper right side of the display indicate the current
measurement mode setting whether the controlling is set for pH, mV or ORP % measurement.

From Measurement mode you can access Calibration mode and Setup mode by pressing the CAL
key or ENT key followed by the corresponding security code. For detailed informati on refer to section
5 “Calibration mode” or section 6 “Setup mode”, respectively.

By pressing the REL key in Measurement mode you can view the actual relay set points. By pressing
the MODE key followed by the corresponding security code in Measurement mode you can switch
relay operation mode from automatic to manual.

For detailed information refer to section 7 “Relay Modes”.

- 11 -

5 Calibration Mode

You can access the Calibration mode directly from the Measurement mode by pr essing the CAL key
and entering the Calibration security code “11”. Calibration mode may also be accessed via the Setup
mode (see section 6.1).

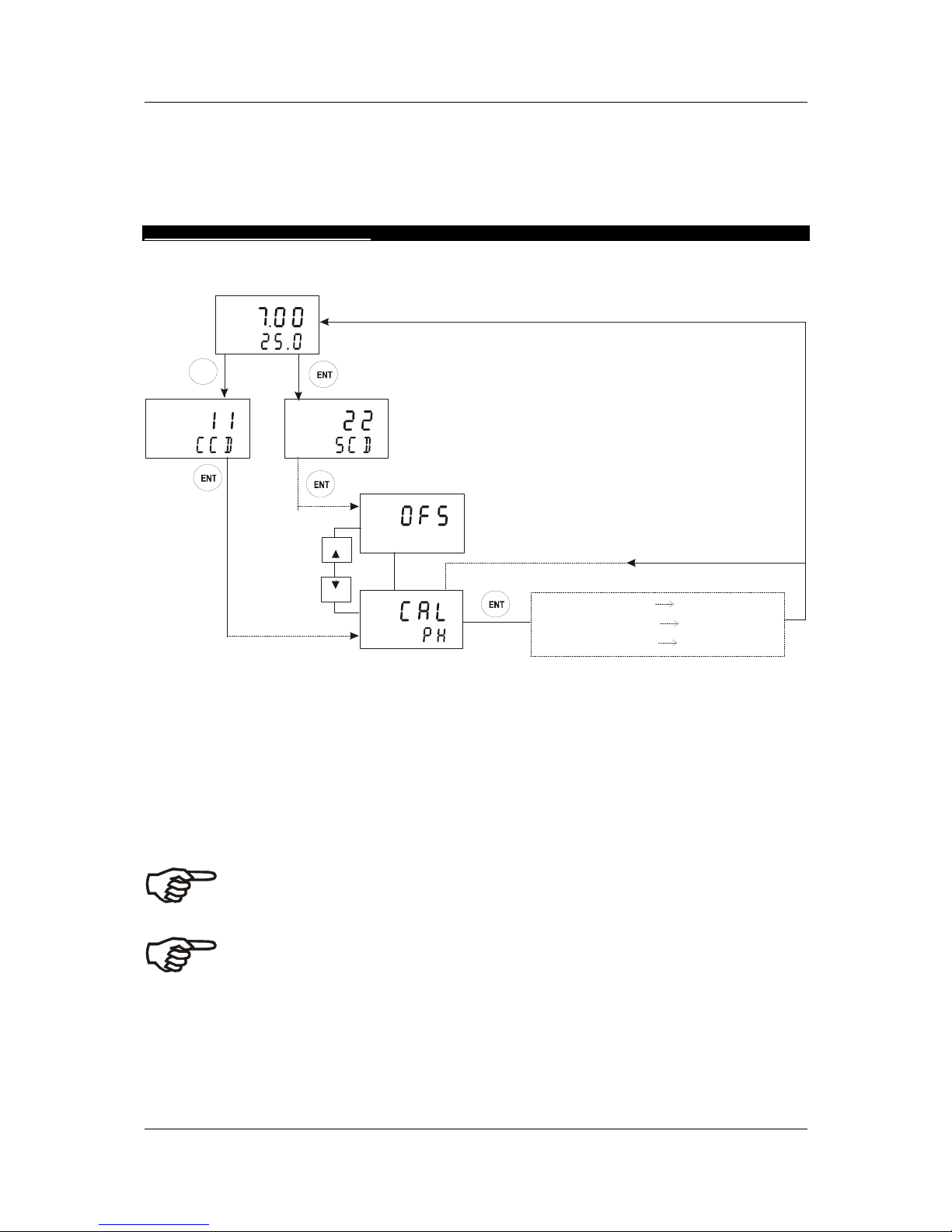

5.1 Entering Calibration mode

ENTERENTER

ENTERENTER

ENTERENTER

ENTERENTER

MEAS

P

H

O

C

CAL

SETUP

HOLD

SETUP

HOLD

pH calibration
ORP-mV calibration
ORP-% calibra tion

see section 5.2

see section 5.3

see section 5.4

1. While in Measurement mode press the CAL key (direct access) or ENT key (access via Setup mode).

2. If CAL key was pressed: The display prompts you to enter the calibration security code. Press the ▲ or
▼ key to set the calibration security code to “11”, and then press the ENT key to confirm the calibration
security code.

3. If ENT key was pressed: The display prompts you to enter the security code. Press the ▲ or ▼ key to
set the security code to “22”. Press the ENT key to confirm the security code, and then p ress the ▲ or
▼ key to select the calibration sub-function.

If configured for pH control, the display shows “CAL PH”. If configured for ORP control, the display
shows “CAL ORP”. To start calibration, refer to the corresponding section (see illustration above).

Note: to exit Calibration mode at any time press the ▲ and ▼ keys simultaneously
(escape). The transmitter returns to the Measurement mode and the old calibration values
remain active. The calibration security code automatically resets from “11” to “000” after the
transmitter returns to Measurement mode.

Note: The calibration is always carried out in the units (pH or mV or %) s elected in setup
mode. The pH controller/transmitter allows a 1-point or 2-point calibration.

- 12 -

5.2 pH Calibration

If the unit of measure is in pH (default), then the calibration is also carried out in pH. This transmitter
features a one-point or two-point calibration for pH with five preset buffer sets. Buffer values refer to 25

o

C. A standard pH buffer solution that matches one of these values is required to calibrate the

instrument

.

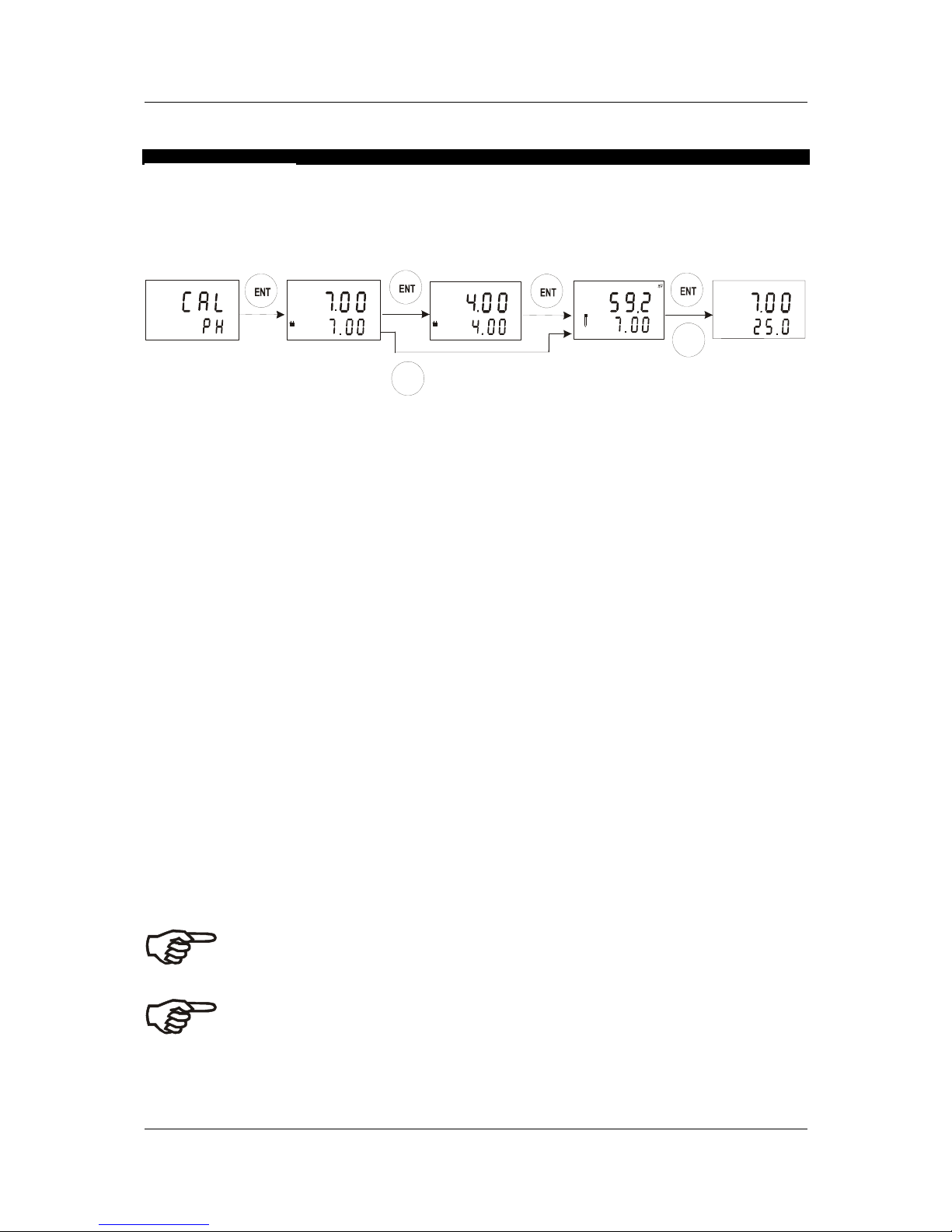

Two point calibration

SETUP

HOLD

P

H

CAL

HOLD

P

H

P

H

CAL

HOLD

P

H

P

H

CAL

MEAS

P

H

O

C

atc

CAL

CAL

One point calibration

1. Enter Calibration mode as described in section 5.1. The display shows “CAL PH” (for pH calibration).

Note: If the display reads “CAL ORP”, see section 6.9 for procedures on how to switch from ORP to pH

readings.

2. Press the ENT key to start calibration. T he “CAL” indicator appears at the top of display and the buffer
indicator appears in the bottom corner of the display. The display sho ws the actual pH reading (upper
value) and the buffer value for zero point (lower value). For the offset (zero point) calibration, there are
two values to choose from. They are pH 7.00 or pH 6.86. Using the ▲ and▼ keys, choose the value
that matches with the buffer used.

3. Place the electrode in the first buffer solution. In ATC mode, yo u must also immerse the temperature
probe in the buffer solution.

4. You can conduct either a one- point or a two-point calibration: Press the ENT for two point calibration or
the CAL key for one point calibration. The electrode indicator and CAL indicator both flash for a few
seconds. The controller automatically adjusts the reading to match the buffer value.

5. If one-point calibration was selected, the display will show the zero point in the lower section of the
display and the slope (default or using previous two-point ca libration) in the upper section of the display.
Proceed to step 7 after zero point display. If two-point calibration was selected, the lower section of the
display will now show its next lower “pH” buffer. Use ▲ and ▼ keys to select the second buffer from one
of these preset value: - pH 1.68, pH 4.01, pH 9.00, pH 9.1 8 and pH 10.01. Remove the electrode from
the first buffer, wash and then immerse it into the second buffer. Press the ENT key, the electrode
indicator and CAL indicator will flash for a few seconds. The controller adjusts the reading to the second
buffer.

6. After calibratin g the second buffer value, the controller will automatically display the slope in the upper
and the zero point in the lower section of the display.

Note: You can also view the values for zero point and slope without calibration (see section 5.5 for
instruction). The zero point and slope are pre-determined after each calibration.

7. Press the ENT key to return to the Measur ement mode.

Note: If you entered the Calibration mode from the Setup mode, the controller will return to the setup menu.

Note: If there is a calibration error, the controller displays “CAL ERR”. If this happens, push

both ▲ and ▼ keys (escape) to restart the calibration beginning from Step 1.

Note: When calibrating with manual temperature compensation, the controller automatically
changes from the preset process temperature to the calibra tion temperature. After leaving the
Calibration mode, the controller switches back to process temperature (for setting the
calibration temperature and the process temperature, see Section 6.3)

- 13 -

5.3 ORP-mV Calibration

If controller is configured for ORP-mV measuring you can perform a one-point calibration.

MEAS

CAL

CAL

HOLD

CAL

HOLD

mV

mV

R.mV

CAL

250

255

255

255

250

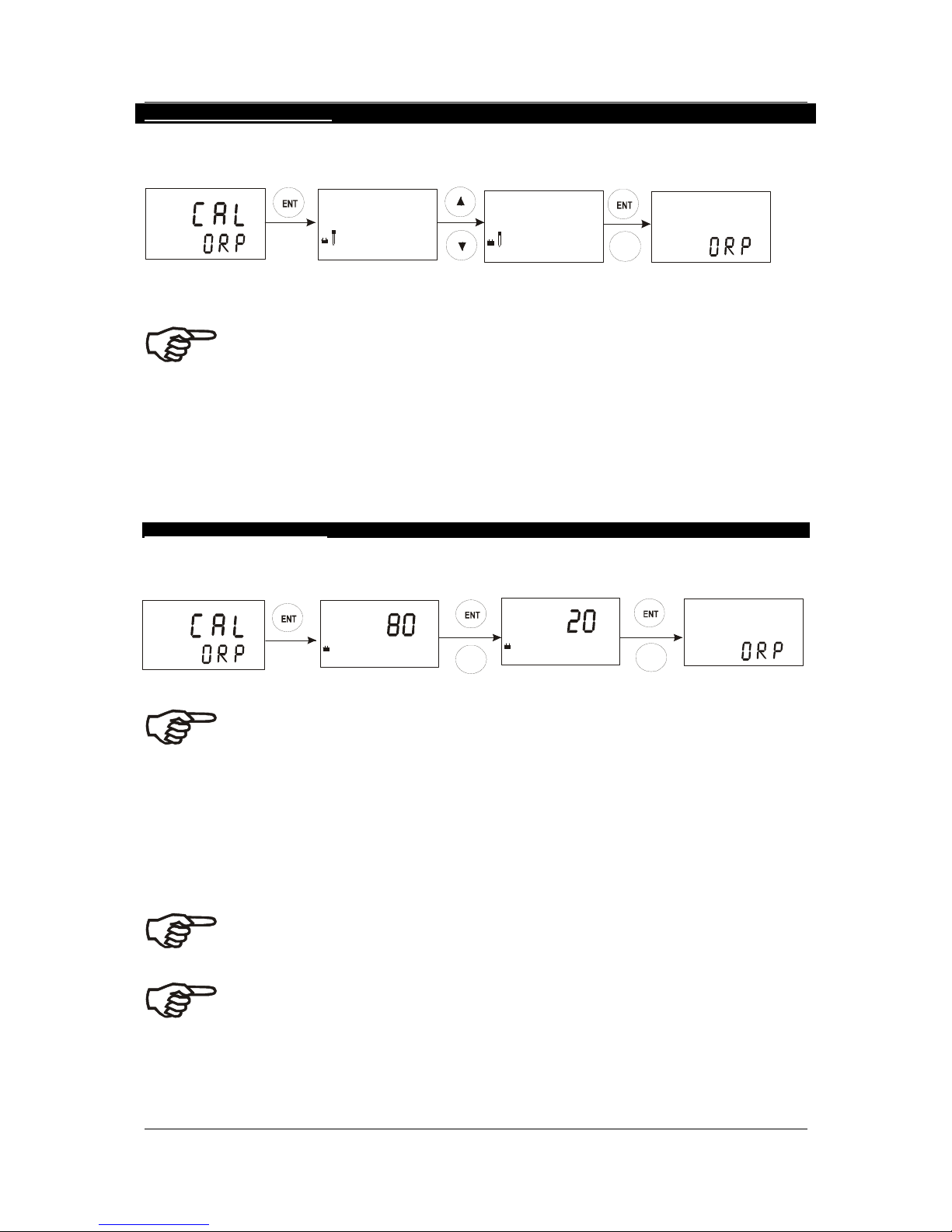

1. Enter Calibration mode as described in section 5.1. The display should read “CAL ORP”.

Note: If the display reads “CAL PH”, see section 6.9 for procedures on how to switch from pH

to ORP-mV readings.

2. Place sensor in the ORP solution.

3. Press the ENT key to start calibr ation. The “CAL”, buffer and electrode in dicator appears on the displ ay.
The upper and lower display shows the current mV output of the electrode without any offset adjustment.

4. Press the ▲ or ▼ key to adjust the upper display mV valu e to match your exact reading.

5. Press the ENT key (or CAL key) to confirm. The cont roller calculates the correction factor and returns to
the Measurement mode. The “R.mV” annunciator (Relative mV) will be shown on the displa y indicating
that the value displayed is the relative mV value of the default measurement.

5.4 ORP -% Calibration

If controller is configured for ORP-% measuring you can perform a calibrati on at t wo points using a lo w
concentration sample (20%) and a high concentrate sample (80 %). To calibrate the controller for ORP
%:

CAL

CAL

MEAS

59.0

%

%

%

CAL

HOLD

CAL

CAL

HOLD

C.1

C.2

1. Enter Calibration mode as desc ribed in section 5.1. The display should read “CAL ORP”.

Note: If the display reads “CAL PH”, see section 6.9 for procedures on how to switch from pH

to ORP-mV readings.

2. Press the ENT key to start calibration. The display prompts you to place the sensor in the high
concentration sample (relative value of 80%).

3. Place sensor in high concentration sample, then press the ENT key (or CAL key). The electrode and
CAL indicators flash. The unit automatically adjusts its reading to match the solution value.

4. The display prompts you to place the sensor in the low concentration sample (relative value of 20%).
Remove the electrode from the first standard, wash it well and then immerse it in the 20% standard.

5. When the display stabilizes pr ess the ENT key (or CAL key). The electrode and “CA L” indic ator flashe s
and the controller adjust its display to the 20% relative value and exits to the Measurement mode.

Note: If there is a calibration error, the controller displays “CAL ERR”. If this happens, push
both ▲ or ▼ keys (escape) to restart the calibration beginning from Step 1.

Note: If you stop calibration after entering the first value, or if calibration is defective, the
controller will use its original calibration data.

- 14 -

5.5 View actual zero and slope

MEAS

P

H

O

C

ATC

CAL

ENT

pH

CAL

ENT

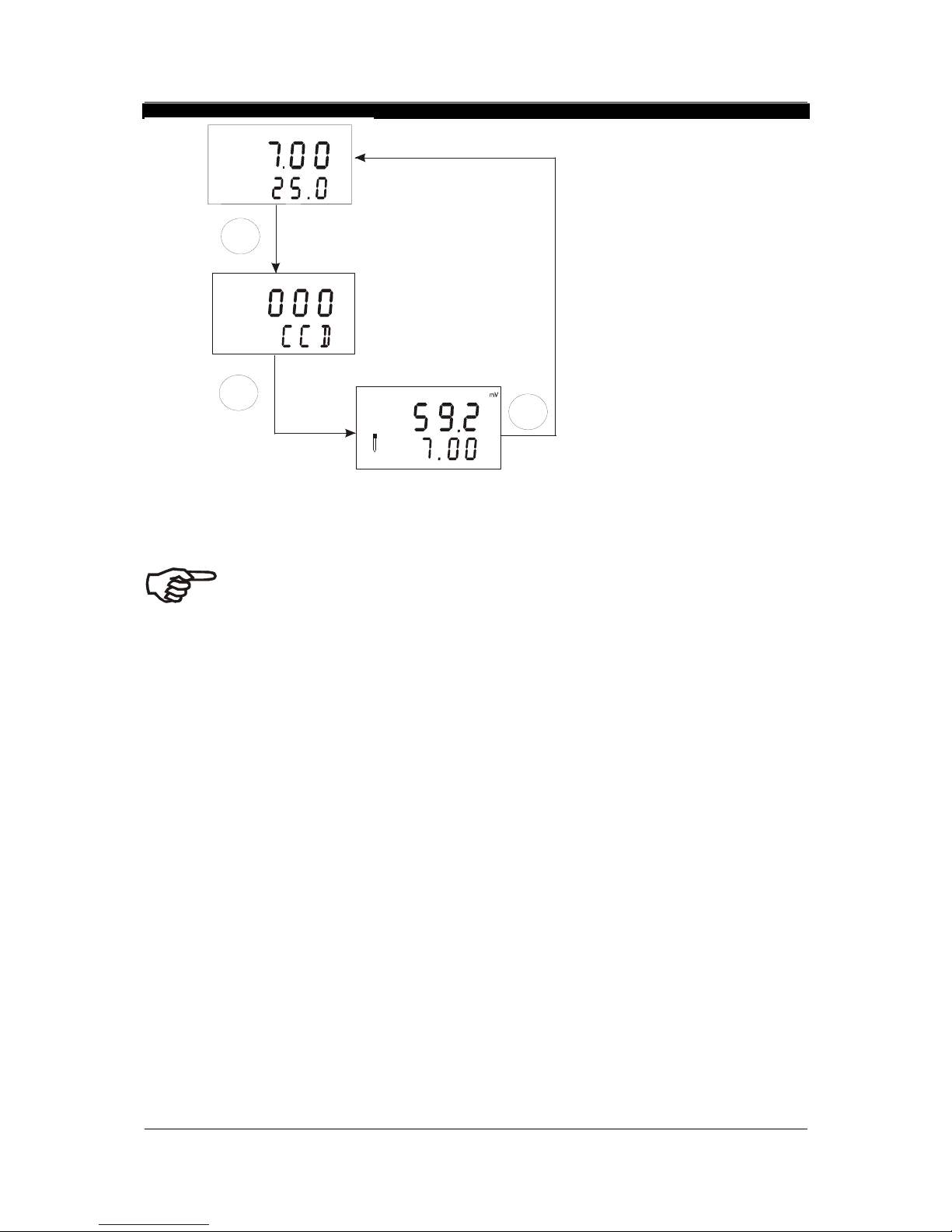

1. While in Measurement mode press the CAL key. The display will prompt you to enter a security code.
Leave the security code at “000” (view only mode).

2. Press the ENT key.

The display shows the slope in mV (upper value) and the pH reading at 0 mV (zero point, lower value).

Note: If no key is pressed for 30 seconds the transmitter automatically returns to the
Measurement mode.

3. Press the ENT key to return to the Measur ement mode.

- 15 -

6 Setup Mode

6.1 Enter Setup mode

In the Setup mode the transmitter can be configured to your individual requirements.

1. While in Measurement mode press the ENT key.

2. The display prompts you to enter the security code. Set the security code with ▲ or ▼ key
to:

MEAS

pH

O

C

− “SCD 22” if you want to change parameter settings

ENTER

ENT

− “SCD 000” if you want to view only parameter settings (view only mode)

3. Press the ENT key.

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

ENTER

ENT

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

Temperature settings

see section 6.3

Relay A (set point 1) settings

see section 6.4

Relay B (set point 2) settings

see section 6.4

Controller settings

see section 6.5

Current output 1 settings

see section 6.6

Current output 2 settings

see section 6.7

Wash contact settings

see section 6.8

Unit settings

see section 6.9

Calibration

see section 5

Note: Note: to exit Setup mode at any time press the ▲ and ▼ key simultaneously
(escape). The transmitter returns to the Measurement mode.

- 16 -

6.2 Electrode Offset (OFS) sub-function

The electrode offset sub-function is only available if the transmitter is configured for pH measur ing. Use
this sub-function to set an offset that corrects the readings without removing the electrode from the
control system. The setting range is ± 120 mV.

The transmitter will add or subtract the offset value from the measuring pH and display the corrected
value. However, if you need to offset the value beyond the average offset you would expect in your
application type, consider a full calibration or even electrode replacement.

1. Take a sample from the system. Record the controller’s pH reading at the time you take the sample.

2. Measure the pH value of your sample using a calibrated pH tester, hand-held meter, or bench meter.
Record the correct pH value.

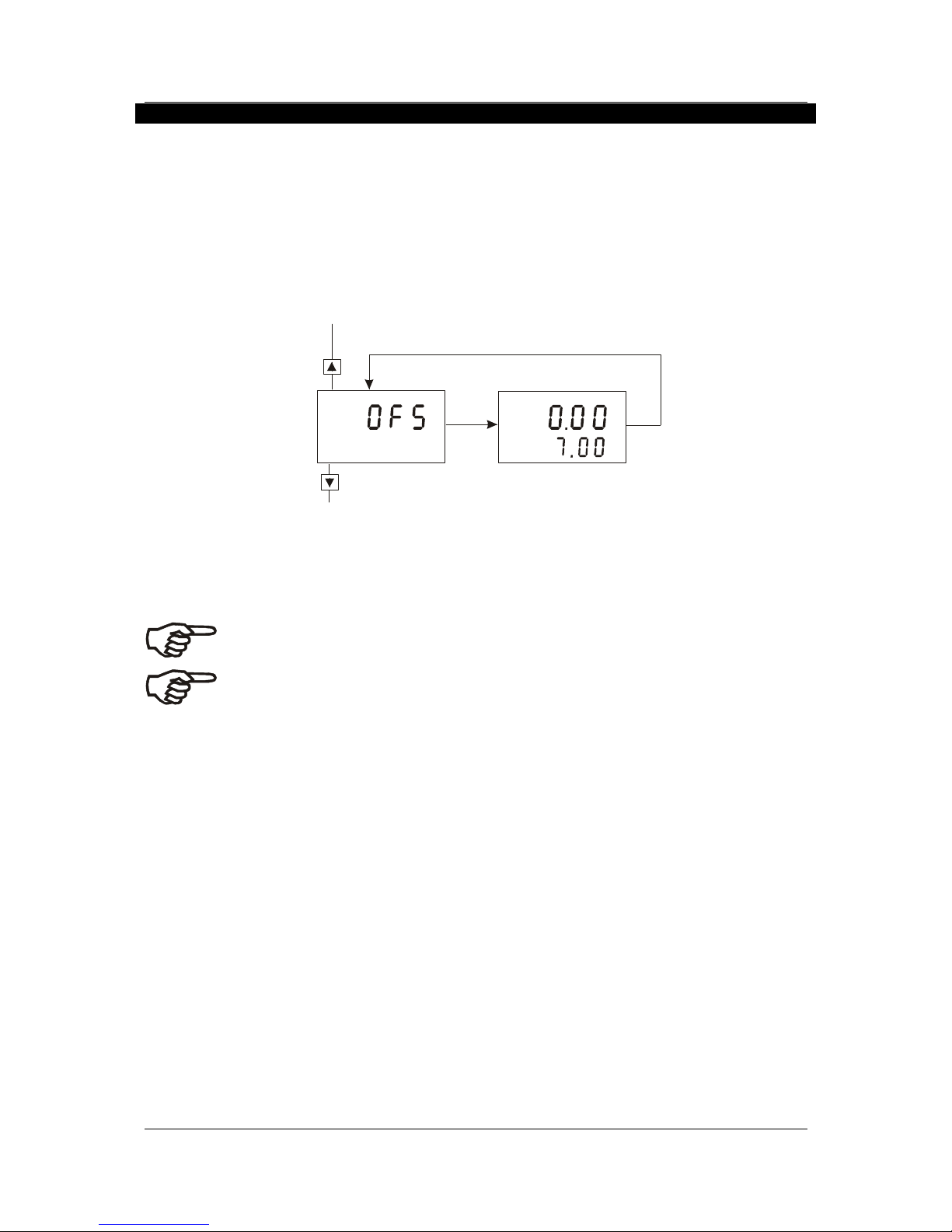

3. Select the “OFS” sub-function, and then press the ENT key.

SETUP

HOLD

P

H

SETUP

HOLD

P

H

4. The display shows the current measured pH value (lower section of the display) and the current offset
value (upper section of the displa y). Press the ▲ or ▼ key to adjust the pH value noted in Step 2. As
the ▲ and ▼ keys are being pressed to adjust the pH val ue, the offset value also changes. Press the
ENT key to confirm the new offset value.

5. Continue with additional Setup procedures, or return to the Measurement mode by pressing the ▲ and
▼ keys (escape) simultaneously.

Note: The offset value is reset during full calibration. See section 5 for full calibration
instructions.

Note: The offset sub-function is blanked out during ORP operation.

- 17 -

6.3 Setting temperature (Set °C°F) sub-function

SETUP

HOLD

SETUP

HOLD

O

C

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

O

O

C

F

SETUP

HOLD

O

C

A

TC

SETUP

HOLD

SETUP

HOLD

ENT

ENT

ENT

ENT

ENT

ENT

ENT

ENT

1

2

3

3

4

5

6

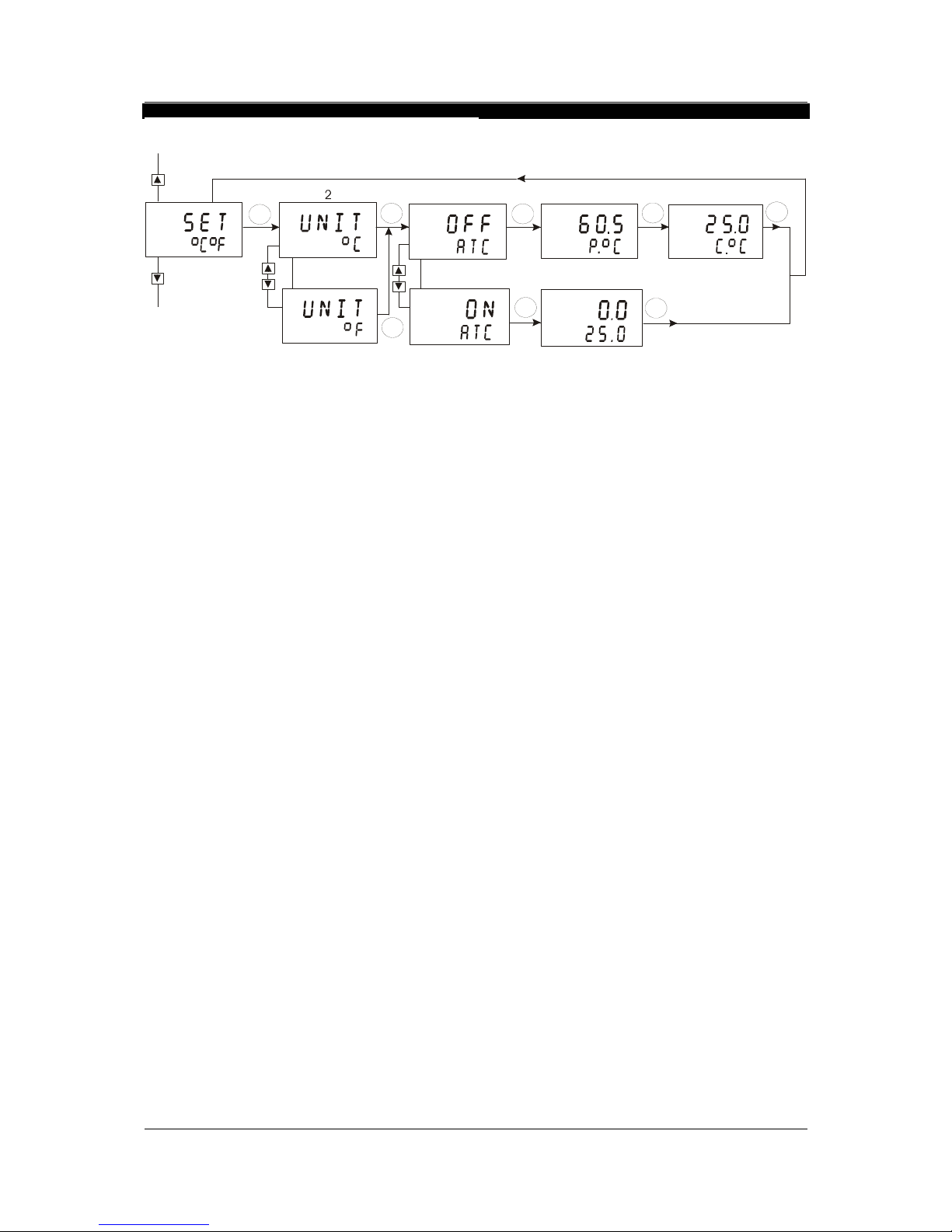

1. Select the “SET °C°F” sub-function, then press the ENT key.

2. Selecting temperature uni t: press the ▲ or ▼ key to select the desired temperature unit “°C” or “°F”.
Press the ENTER key to confirm your selection.

3. Enable/disable ATC mode: press the ▲ or ▼ key to enable (ATC ON) or disable (ATC OFF)
automatic temperature compensation. Press the ENT key to confirm your selection.

− ATC disabled (ATC OFF):
For manual temperature compensation you can set the process and calibration temperatures.

This allows calibration at a temperature other than the process temperature. Example: setting a
calibration temperature of 25°C lets you calibrate using standard solutions at 25°C, even if your
process temperature is different from 25°C.

4. Setting the process temper ature: press the ▲ or ▼ key to adjust the process temperature (upper
value, setting range: –10.0 to 125.0°C / 14.0 to 257.0 °F). Press the ENT key to confirm process
temperature.

5. Setting the calibration temperature: press the ▲ or ▼ key to adjust the calibration temperature
(upper value, setting range: – 10.0 to 125.0°C / 14.0 to 257.0 °F). Press the ENT key to confirm the
calibration temperature.

− ATC enabled (ATC ON):

6. Setting the temperature o ffset: The display shows the current temperature offset (upper value) and the
temperature currently measured (lower value). Compare the current temperature displayed on the
transmitter to a thermometer known to be accurate. Note the correct temperature value. Press the ▲ or
▼ key to adjust the lower value. The upper number indicates the offset value. You can offset the
temperature by up to ±10°C/±18°F. Press the ENT key to confirm your setting.

Continue with additional Setup procedures, or return to the Measurement mode b y pressing the ▲ and
▼ key (escape) simultaneously.

- 18 -

6.4 Control Relay A / Relay B (SP1/SP2) sub-function

The SP1 sub-function determines the operating parameters for Relay A; while SP2 defines the
operating parameters for Relay B. Since these groups have the same set-up parameters, they are

described together.

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

hi

1

2

5

6

3

3

4

ENT

ENT

ENT

ENT

ENT

ENT

ENT

pH

pH

SETUP

HOLD

1. Select the “SP1” (Relay A) or “SP2” (Relay B) sub-function, then press the ENT key.

2. Setting set point value: press the ▲ or ▼ key to enter the val ue for set point 1 (set point 2) at which
your controller will activate. Press the ENT key to confirm your setting.

3. Selecting relay function: press the ▲ or ▼ key to select the desired relay function (“LO”= low or “HI”=
high). Press the ENT key to confirm your selection.

Note: This parameter lets you choose the relay function. Select “LO” to activate the relay
when the pH/ORP value undershoots the set point; select “HI” to activate the relay when
the value overshoots the set point. SP1 and SP2 can be selected as “Lo/Lo”, “Lo/Hi”,
“Hi/Lo”, or “Hi/Hi”.

4. Setting a hysteresis value: press the ▲ or ▼ key to select the desired hysteresis (setting range: 0.1 to

1.0 pH, 10 to 100mV or 1 to 10%) for set point 1 (set point 2). Press the ENT key to confirm your setting.

Note: Hysteresis prevents rapid contact switching if your value is fluctuating near the set

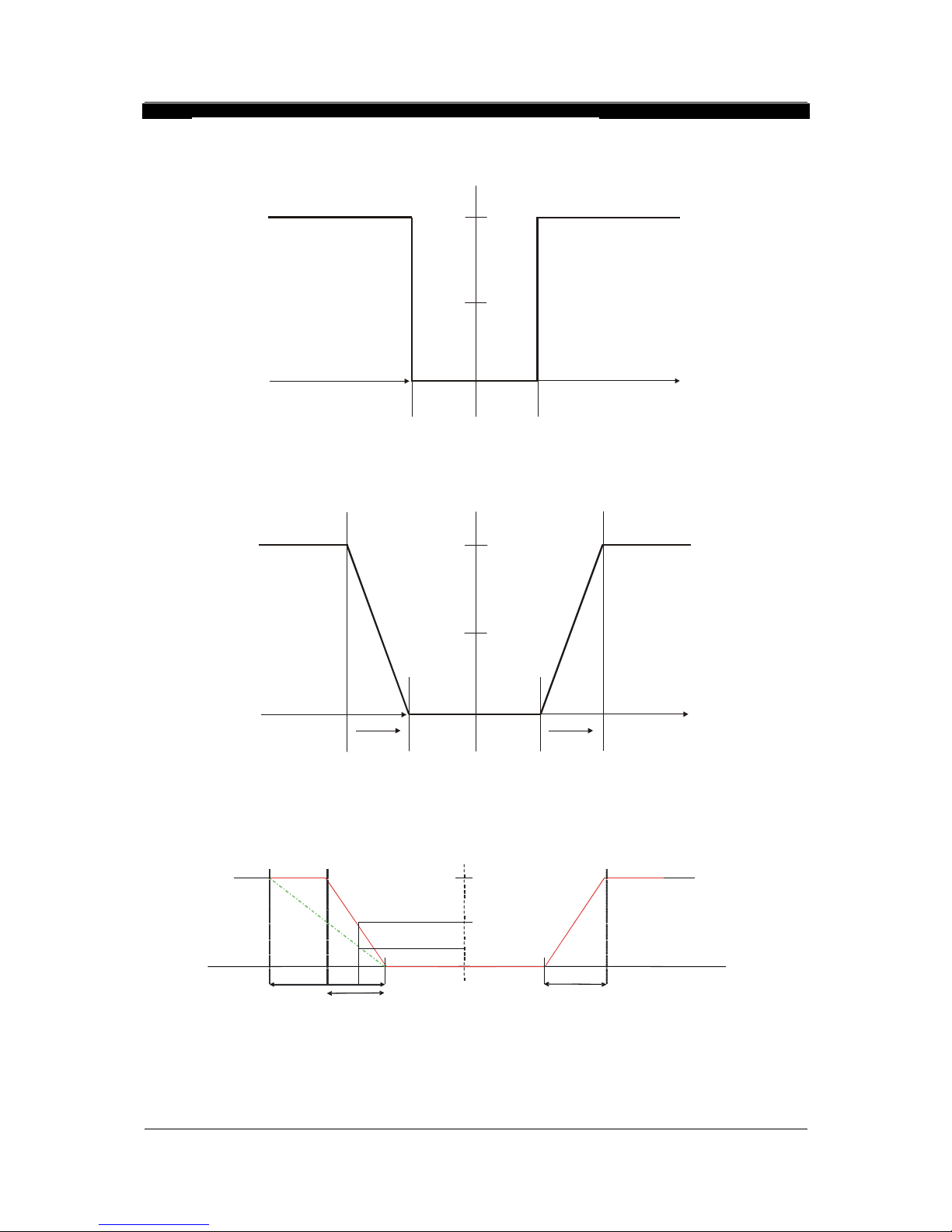

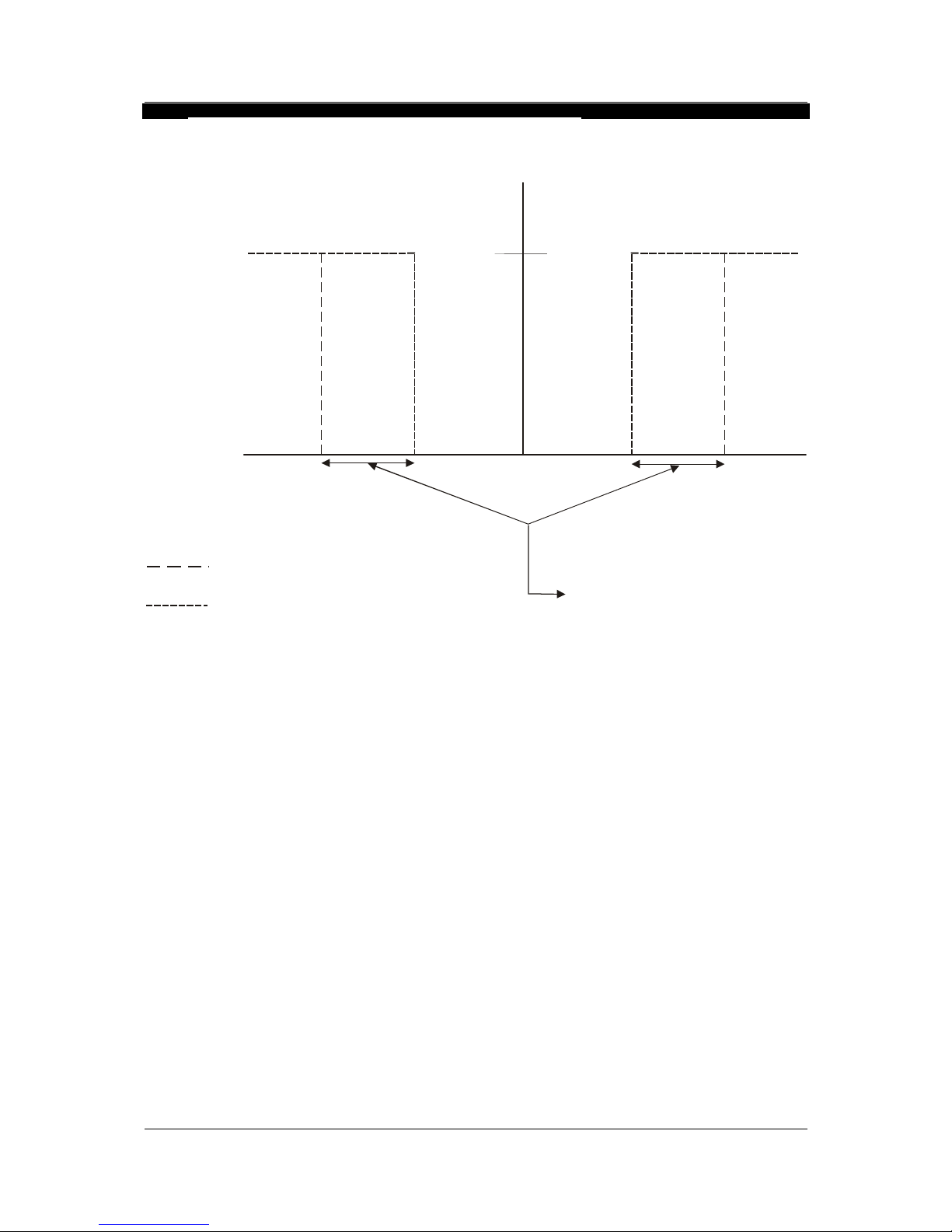

point. Please refer to Appendix 3 for a graphical representation of the hysteresis.

Example: You have set your high set point at pH 10.0 and your hysteresis value at pH 0.5. If your
measured value overshoots pH 10.0, the controller’s relay activates. The actions of the ext ernal device
will cause the solution’s pH to drop. The relay will deactivate, when the pH value drops below 9.5 pH.

5. Setting the on-delay time lag: press the ▲ or ▼ key to enter the on-delay time for set point 1 (set

point 2). The controller will delay activation of the relay for the number of seconds (0 to 2000 seconds)
you select. Press the ENT key to confirm your setting

.

Note: You can set a time delay for each relay, which stops the relay from switching on the
moment the set point is exceeded. This controller lets you set a 0 to 2000 seconds time
delay before your relay activates.

- 19 -

6. Setting the off-delay time lag: press the ▲ or ▼ key to enter the off-delay time for set point 1 (set
point 2). Your controller will delay deactivation of the relay for the number of seconds (0 to 2000 seconds)
you select. Press the ENT key to confirm your setting.

Note: You can set a time delay for each relay, which stops the relay from switching off the
moment the value reaches the set point and hysteresis. This controller lets you set a 0 to
2000 seconds time delay before your relay deactivates.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

- 20 -

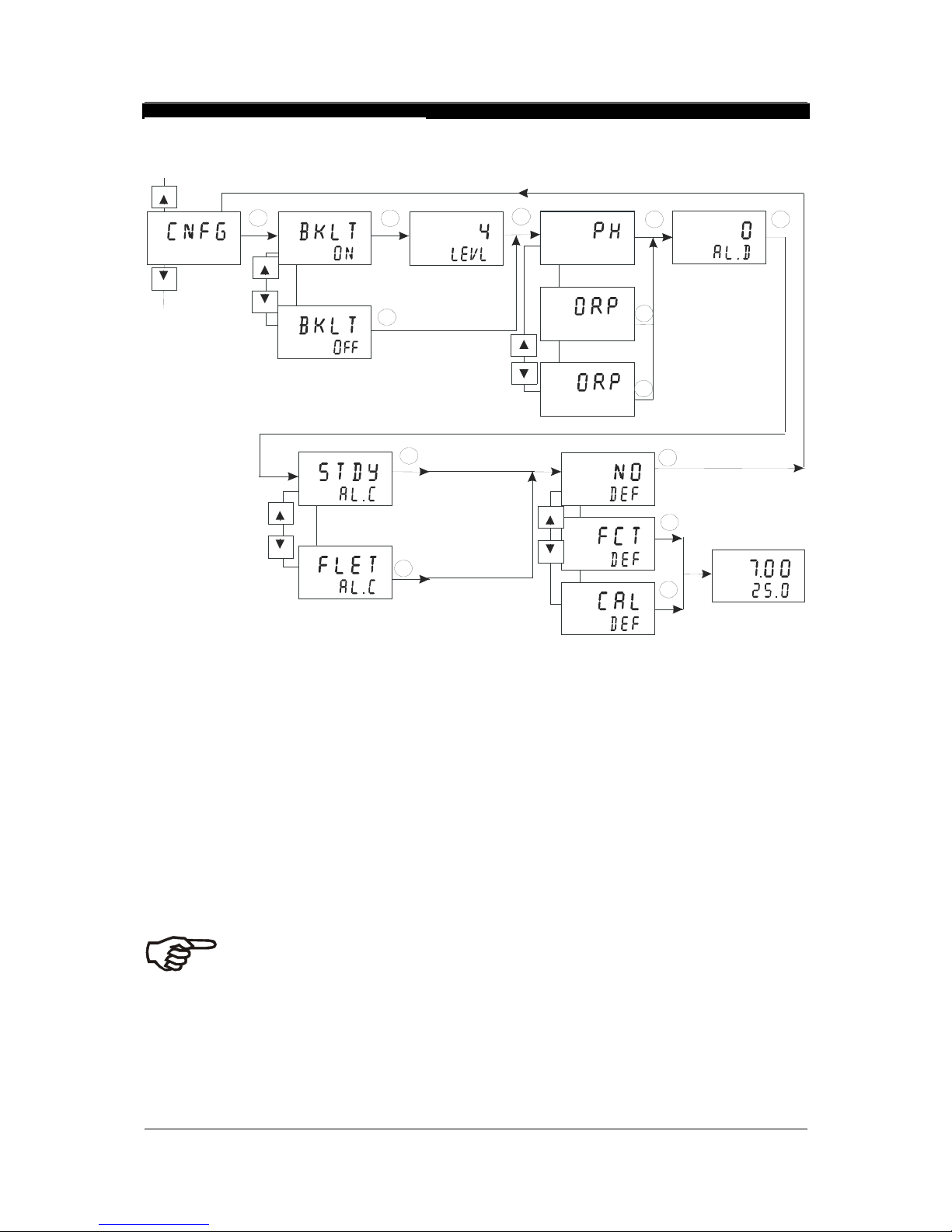

6.5 Controller (CNTR) sub-function

The CNTR sub-function determineshe controller’s parameters .

SETUP

SETUP

HOLD

HOLD

ENT

SETUP

HOLD

ENT

ENT

ENT

ENT

ENT

ENT

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

HOLD

HOLD

HOLD

HOLD

HOLD

HOLD

HOLD

HOLD

SETUP

SETUP

SETUP

HOLD

HOLD

HOLD

ENT

ENT

ENT

ENT

ENT

ENT

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

ENT

ENT

SETUP

HOLD

%

%

1. Select the “CNTR” sub function, then press the ENT key.

- 21 -

2. Selecting the controller type: press the ▲ or ▼ key to select the suitable controller type:

− OFF = controller off
Use control Off to operate controller as a monitor only or to prevent relays from switching.

− L.CT = limit value control (on/off control).
Use limit control with pumps or valves for fast response

− P/PI = proportional/integral control
Use proportional control to operate your pumps smoothly or for precise control of proporti oning

valves. Use PI controller to eliminate steady state error.

Note: please refer to Appendix 4 for detailed information on controller settings.

Press the ENT key to confirm your selection.

− If the controller is set to limit value control (L.CT):

3. Selecting the relay status under Non-Alarm condition: press the ▲ or ▼ key to choose the desired
relay status (de-energized = “DEEN” or energized = “EN”). Press the ENT key to confirm your selection.

− If the controller is set to proportional control (P/PI):

4. Selecting the proportional controller type: press the ▲ or ▼ key to select the suitable controller type
(“PLC” = pulse length control, “PFC” = pulse frequency control). Press the ENT key to confirm your
selection.

− If the proportional controller type is set to pulse length control (PLC):

5. Selecting the relay status under Non-Alarm condition: press the ▲ or ▼ key to choose the desired
relay status (de-energized = “DEEN” or energized = “EN”). Press the ENT key to confirm your selection.

6. Setting the proportional range: Press the ▲ or ▼ key to set the proportional range (setting range: 10
to 500%). Press the ENT key to confirm your setting.

7. Setting the pulse length: Press the ▲ or ▼ key to set the pulse length (setting range: 0.5 to 20
seconds). Press the ENT key to confirm your setting.

8. Setting the integral action time: Press the ▲ or ▼ key to set the integral action time (setting range:

0.0 to 999.9 minutes). Press the ENT key to confirm your setting

.

− If the proportional controller type is set to pulse frequency control (PFC):

9. Selecting the relay status under Non-Alarm condition: press the ▲ or ▼ key to choose the desired
relay status (de-energized = “DEEN” or energized = “EN”). Press the ENT key to confirm your selection.

10. Setting the proportional range: press the ▲ or ▼ key to set the proportional ra nge (setting range: 1 0
to 500%). Press the ENT key to confirm your setting.

11. Setting the pulse frequency: press th e ▲ or ▼ key to set the pulse frequency (setting range: 60 to
120 pulses per minute). Press the ENT key to confirm your setting.

12. Setting the integral action time: press the ▲ or ▼ key to set the integral action time (setting range:

0.0 to 999.9 minutes). Press the ENT key to confirm your setting.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

- 22 -

6.6 Current Output 1 sub-function

In this sub-function you set the current output range of the transmitter for pH or ORP values.

2

2

3

3

4

4

5

5

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

pH

pH

pH

pH

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

1

cur.1

SETUP

HOLD

ENT

ENT

ENT ENT

ENT

ENT

ENT

ENT

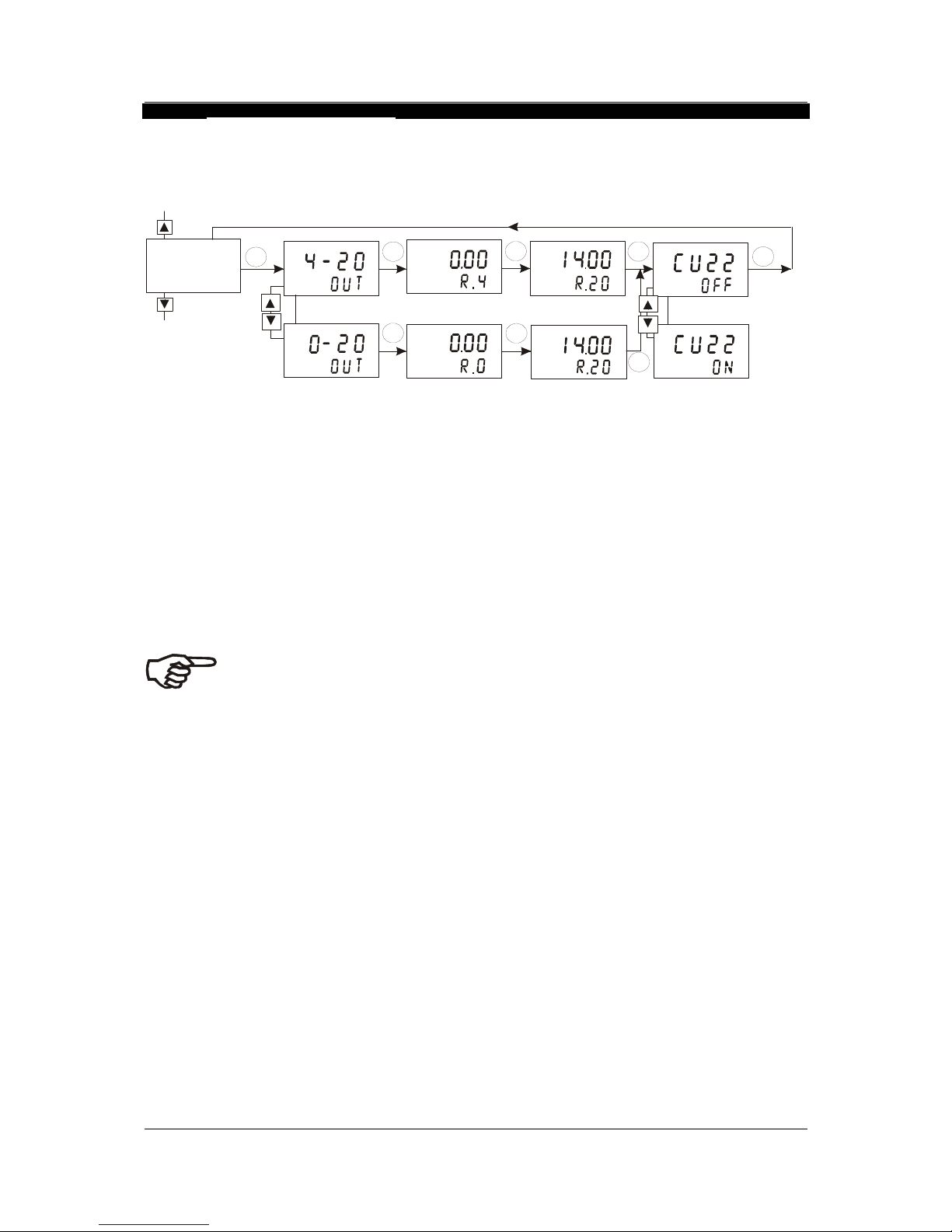

1. Select the “CUR.1” sub-function, and then press the ENT ke y.

2. Selecting the output type: press the ▲ or ▼ key to select the desired output type: 0-20 mA or 4-20
mA. Press the ENT key to confirm your selection.

3. Setting the pH or ORP value at which the transmitter outpu t will be 4 mA (or 0 mA): press the ▲
or ▼ key to set the pH or ORP value to be equivalent to 4 mA or 0 mA, respectively. Press the ENT key
to confirm your setting.

4. Setting the pH or ORP value at which the transmitter output will be 20 mA: press the ▲ or ▼ key
to set the pH or ORP value to be equivalent to 20 mA. Press the ENT key to confirm your setting.

5. Selecting out of range current: Press th e ▲ or ▼ key to switch “CU22” on or off. If “CU22” is on, the
output signal will jump to 22 mA when the measured pH and ORP value is below or above the values set
in points 3 & 4 above. Press the ENT key to confirm your setting.

Note: the “CU22” setting (on/off) of current output 1 applies to current output 2 as well.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

- 23 -

6.7 Current Output 2 sub-function

In this sub-function you set the current output range of the transmitter for temperature values.

ENT

ENT

ENT

ENT

ENT

ENT

ENT

o

c

o

c

2

2

3

3

4

4

o

c

o

c

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

1

cur.2

SETUP

HOLD

1. Select the “CUR.2” sub-function, then press the ENT key.

2. Selecting the output type: press the ▲ or ▼ key to select the desired output type: 0-20 mA or 4-20
mA. Press the ENT key to confirm your selection.

3. Setting the temperature value at w hich the transmitter output will be 4 mA (or 0 mA): press the ▲
or ▼ key to set the temperature value (setting range: -10.0 to 110.0 °C or 14 to 230 °F for NT C300
thermistor) to be equivalent to 4 mA (or 0 mA). Press the ENT key to confirm your setting.

4. Setting the temperature value at which the transmitter output will be 20 m A: press the ▲ or ▼ key
to set the temperature value (setting range: 0.0 to 110.0 °C or 32 to 230 °F for NTC300 thermistor) to be
equivalent to 20 mA. Press the ENT key to confirm your setting.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

- 24 -

6.8 Wash relay (WASH) sub-function

In this sub-function you set the parameters for the wash relay.

1

2

2

3

3

4

5

ENT

ENT ENT

ENT

ENT

ENT

ENT

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

off

1. Select the “WASH” sub-function, and then press the ENT ke y.

2. Enabling/disabling w ash function: press the ▲ or ▼ key to enable (WASH ON) or disable (WASH
OFF) wash function. Press the ENT key to confirm your selection.

3. Selecting the relay status condition: press the ▲ or ▼ key to choose desired relay status (de­energized = “DEEN” or energized = “EN”). Press the ENT key to confirm your selection.

4. Setting the wash interval in hou rs: Press the ▲ or ▼ key to set the desired wash interval (setting
range: 0.1 to 200.0 hours). Press the ENT key to confirm your setting.

5. Setting the wash duration in seconds: Press the ▲ or ▼ key to set the desired wash duration
(setting range: 1 to 2000 seconds). Press the ENT key to confirm your setting.

Note: During wash cycle the transmitter is set to HOLD. For safety reasons, the HOLD
function is activated 5 seconds prior and deactivated 10 seconds after the wash cycle.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

- 25 -

6.9 Configuration (CNFG) sub-function

In this sub-function you configure the transmitter to suit your requirements.

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

mV

%

SETUP

HOLD

SETUP

HOLD

ENT

ENT

ENT

ENT

ENT

ENT

ENT

ENT

1

2

2

3

SETUP

HOLD

4

4

4

5

SETUP

HOLD

SETUP

HOLD

ENT

ENT

6

7

SETUP

HOLD

SETUP

HOLD

SETUP

HOLD

MEAS

pH

O

C

ENT

ENT

ENT

6

7

7

SY

SY

SY

1. Select the “CNFG” sub-function, and then press the ENT ke y.

2. Enabling/disabling th e display backlight: press the ▲ or ▼ key to switch display backlight on (BKLT
ON) or off (BKLT OFF). Press the ENT key to confirm your selection.

3. Setting the backlight intensity (appears only If backlight is on): press the ▲ or ▼ key to set backlight
intensity (setting range: minimum 1 to maximum 4). Press the ENT key to confirm your setting.

4. Selecting the unit of measurement: press the ▲ or ▼ key to select measurement mode:

- “PH SY” = pH measurement with symmetrical input

- “ORP mV SY” = ORP-mV measurement with symmetrical input

- “ORP % SY” = ORP-% measurement with symmetrical input

- Press the ENT key to confirm your selection.

5. Setting the alarm delay time in seconds: press the ▲ or ▼ key to set the alarm delay time (setting
range: 0 to 2000 seconds). Press the ENT key to confirm your setting.

Note: With this parameter you set the delay before the alarm relay activates when the set
point has been exceeded.

6. Selecting the alarm contact type: press the ▲ or ▼ key to select the alarm contact type:

−

“STDY” = steady contact

− “FLET” = fleeting (single pulse) contact

Press the ENT key to confirm your selection.

- 26 -

Note: With this parameter you select whether the alarm contact will operate as a steady
contact or a fleeting (single pulse) contact. Pulse contact closing time is 1 second.

7. Resetting the transmitter settings to factory defaults: The display shows “NO DEF”. Press the ▲ or
▼ key to select:

− “NO DEF” = keeps old values active, when confirmed with ENT key

− “CAL DEF” = resets all calibrations to factory defaults, when confirmed with ENT key

− “FCT DEF” = resets all settings to factory defaults, when confirmed with ENT key

Press the ENT key. The selected function will be executed and the trans mitter returns automatica lly t o
the Measurement mode.

Continue with Setup mode procedures, or return to Measurement mode by pressing the ▲ and ▼ keys
simultaneously (escape).

6.10 Calibration (CAL) sub-function

The calibration procedure in Setup mode is identical to the procedur e in the Calibration mode (see
section 5). The only difference is that the transmitter remains in Setup mode (instead of Measurement
mode) after calibration is completed.

- 27 -

7 Relay Modes

You can control devices connected to Relay A, Relay B or wash relay via the front panel of the
transmitter. In Automatic mode, the transmitter’s set point values activate the relays. In
Manual mode, you can manually turn “on” and “off” the control devices connected to the relays.

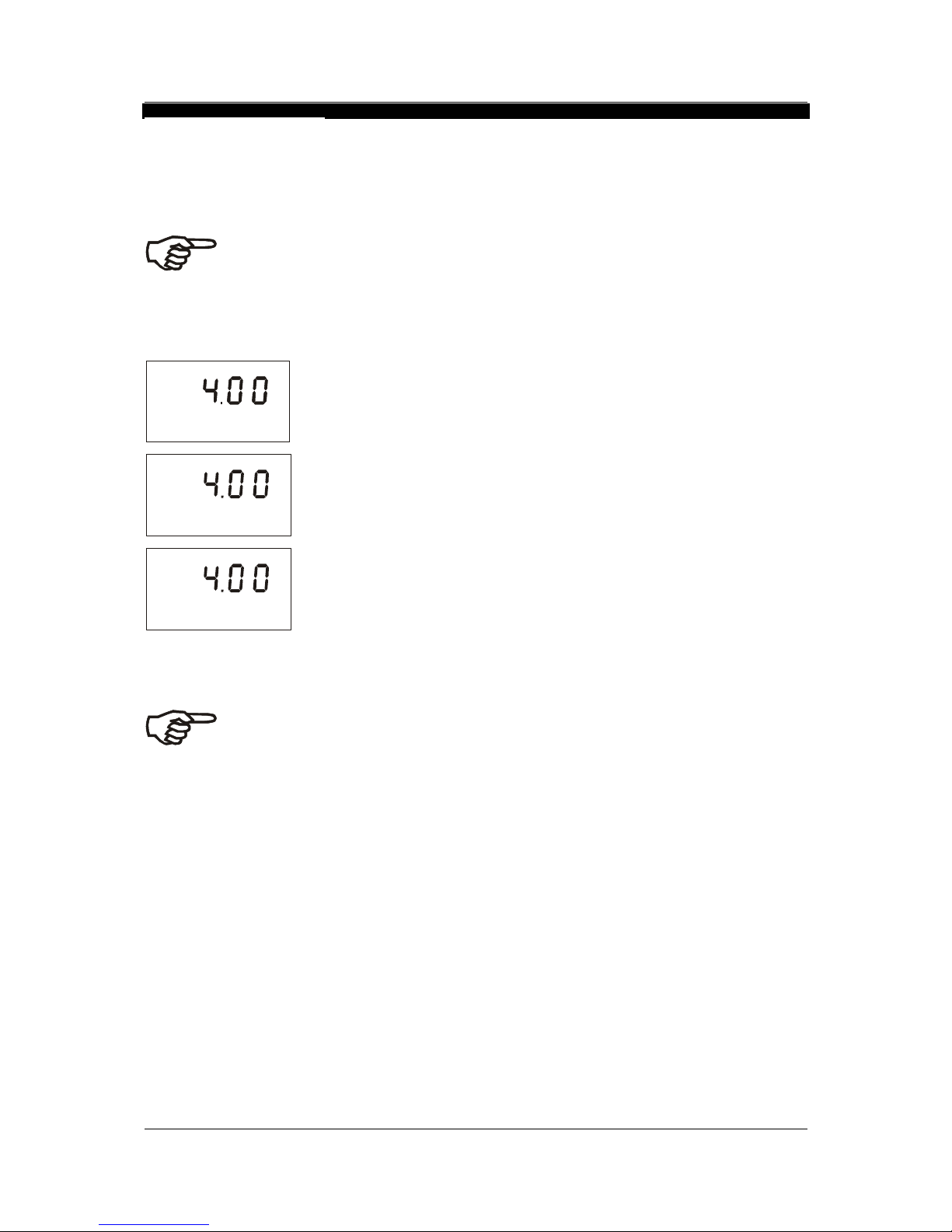

7.1 View relay set points

To view relay set points, the relay mode must be set to automatic (standard mode after switch-on, relay
mode LED “Auto” lights).

While in Measurement mode press the REL key.

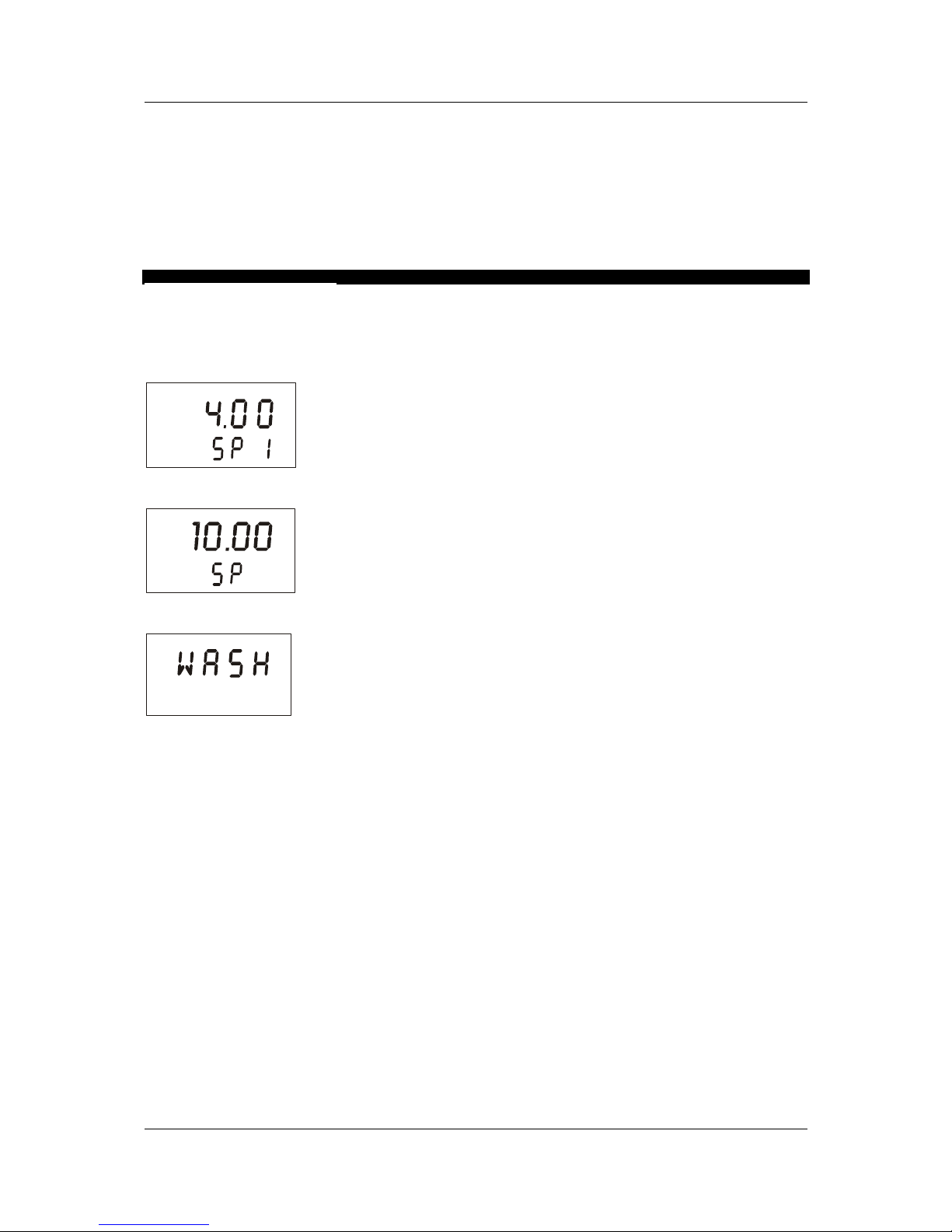

pH

The display shows the set point value for Relay A and LED “A” lights.

pH

2

After two seconds the display shows the set point value for Relay B and
LED “B” lights).

After two seconds the display shows the status of the Wash relay and LED
“W” lights. If Wash relay is “off” the display shows “WASH OFF”. If Wash
relay is “on” the wash interval time and wash duration is displayed.

After an additional two seconds the transmitter will return to Measurement
mode.

off

- 28 -

7.2 Manual relay mode

In manual relay mode, you can manually turn “on” and “off” the control devices connected to Relay A,
Relay B or Wash relay.

1. While in Measurement mode press the MODE key.

2. The display prompts you to enter the security code. Press the ▲ or ▼ key to set security code to “22”.

3. Press the ENT key. The Manual relay mode is activated and the relay mode LED “Manu” lights.

Note: Pressing ENT key at a value other than “22” will cause the transmitter to revert to
Measurement mode, and the relays will remain in automatic mode.

4. Press the REL key to select either Relay A, Relay B or Wash relay. The corresponding LED (A, B, or W)
turns to red.

The manual control options now available depe nd on the control type (limit, pulse frequency, or pulse
length) you selected and set in section 6.5.

pH

off

SETUP

HOLD

off

If you selected Limit control: The display shows the current measured value
and “OFF” or “ON” depending on the relay status of the currently selected
relay.

pH

SETUP

HOLD

o

If you selected Pulse length control: The display shows the current
measured value (upper value) and the on time as a percentage of the
current duration set in the CNTR sub-function in setup mode (lower value).

If you selected Pulse frequency control: The display shows the current
measured value (upper value) and the pulse frequency (lower value).

pH

SETUP

HOLD

o

5. Press the ▲ or ▼ key to change the Relay on/off status, pulse length, pulse frequency or wash function.
The relay status LED at the right of the transmitter will also change from Red to Green.

Note: Note: If you wish to manually change the status of relays, press the REL key at this
point and repeat step 5 for the other two relays. The relay(s) will remain under manual
control while you are setting a relay.

6. Press the MODE key to return to Measurement mode. The relays are now back to automatic control.

- 29 -

8 Technical Specifications

8.1 General Specification

(a) pH

pH Measuring Range -2.00 to 16.00 pH

Resolution 0.01 pH
Accuracy ± 0.01 pH

(b) mV

mV Measuring Range -1000 to 1000 mV

Resolution 1 mV
Accuracy ± 1 mV

(b) mV percentage

Percentage mV Measuring Range 0 to 100% (for -100 to 100 mV)

Resolution 0.1%

Accuracy ± 0.2 % (or ± 1 mV)
(c) Temperature
Temperature measuring range -10.0 to +110.0 oC or +14.0 to +230.0 oF for NTC300

Resolution 0.1

o

C or

0.1

o

F

Relative accuracy 0.5 oC or

1.0

o

F

Sensor NTC 300 (2 wire)

Compensation Automatic (± 10 ˚C/ ± 18 ˚F offset adjustment) or Manual

8.2 Set-point and control function – Relay 1 & Relay 2

Function Switchable

- Selection in Control (CNTR) function of Setup

Off
Limit Control
P/PI Control (Pulse length / Pulse frequency)

(a) Off

The control function of the controller is off SP1 & SP2 function will not appear in setup when Off is

selected in CNTR function to off mode

(b) Limit Control & P/PI Control

Relay contact selection for active mode Energise (EN) or

De-energise (DEEN)
Set Point 1 (SP1) -2.00 to 16.00 pH or 0 to 100% or -1000 to 1000mV
Set Point 2 (SP2) -2.00 to 16.00 pH or 0 to 100% or -1000 to 1000mV
Active mode selection (for SP1 & SP2) LO (Relay is active when measured value < set point)

HI (Relay is active when measured value > set point)
Hysteresis (for SP1 & SP2) 0.1 to 1 pH or 1 to 10.0%/ 10 to 100 mV
On (pickup) Delay (for SP1 & SP2) 0 to 2000 seconds
Off (Dropout) Delay (for SP1 & SP2) 0 to 2000 seconds
(c) P/PI Control only
Proportional Range 10 to 500 %
Integral Action Time (IAT) 0.0 to 999.9 minutes

(c) (1) Pulse Length Control (PLC)

Pulse Length 0.5 to 20.0 seconds

(c) (2) Pulse Frequency Control (PFC)

Pulse Frequency 60 to 120 pulses / minutes
Contact Outputs Two SPST relays
Switching Voltage / Current / Power Max 250VAC / Max 3A / Max 600VA

8.3 Wash Function – Wash Relay

Relay contact selection for active mode Energise (EN) or

De-energise (DEEN)
Wash Cycle Interval 0.1 to 200.0 hours
Wash Duration 1 to 2000 seconds
Contact Outputs One SPST relay
Switching Voltage / Current / Power Max 250VAC / Max 3A / Max 600VA

- 30 -

8.4 Alarm Function – Alarm Relay

Alarm Delay 0 to 2000 seconds
Alarm control Steady or Fleet (pulse)
Contact Outputs One SPDT relay
Switching Voltage / Current / Power Max 250VAC / Max 3A / Max 600VA

8.5 Transmitter Function

(a) Current Output 1 – pH/mV Proportional to pH/mV measured

Current output selection 4 – 20mA or 0 – 20mA
pH/mV value for 0 or 4mA current -2.00 to 16.00 pH or 0 to 100% or -1000 to 1000mV
pH/mV value for 20mA current -2.00 to 16.00 pH or 0 to 100% or -1000 to 1000mV
CU22 function

On - 22mA current output for over range or under range or if

outside zoom setting

Off

- 0 or 4 mA current output for under range or below lower

zoom setting

- 20mA current output for over range or above upper zoom

setting
(b) Current Output 2 - Temperature Proportional to Temperature measured

Current output selection 4 – 20mA or 0 – 20mA
Temperature value for 0 or 4mA current -10.0 to +100.0oC or +14.0 to +212.0oF for NTC300
Temperature value for 20mA current 0.0 to +110.0oC or +32.0 to +230.0oF for NTC300

8.6 Voltage Output & Hold Function Switch

+12 V Output 11.5 to 12.5 V Output - Max 50 mA
Hold Function Switch Hold function to freeze output current (0/4...20mA) and release

control relays

8.7 Display

LCD UV coat, backlit 14 segments display with symbols for status

information
Back light On/Off selectable with four levels of brightness control

8.8 Power Supply

Input 80 to 250VAC/DC, 50/60Hz, Approximately 10VA
Main Fuse 315mA Time Delay, 250V, Bussmann BK/GDC-315mA
Pollution Degree 2
Transient Voltage Category II
Connector 5-pin screw terminal

8.9 Electrical data and Connections

pH/mV Input 8-pin Screw Terminal (3.5mm pitch)
Temperature Input 8-pin Screw Terminal (3.5mm pitch)
Relay 1, Relay 2, Wash Relay & Alarm Relay 9-pin Screw Terminal (7.62mm pitch)
Current Output 1, Current Output 2, 12V output &
Hold function switch

13-pin Screw Terminal (3.5mm pitch)
Connection terminal 5-pin, 8-pin, 9-pin & 13-pin terminal connectors

8.10 Mechanical Specifications

Dimensions (W x H x D) - Wall Mount 144 x 144 x 111.5 mm
Weight - Wall Mount 950g (unit) / 1100g (Packed)
Environmental Rating - Wall Mount NEMA 4X, IP65

- 31 -

8.11 Electromagnetic Compliance (EMC) Specifications

Emitted Interference EN 61326
Immunity to Interference EN 61326

8.12 Environmental Conditions

Ambient Temperature operating range 0 to 40 oC
Maximum Relative Humidity 80% up to 31 oC decreasing linearly to 50% at 40oC

- 32 -

9 Accessories

9.1 Replacement Unit

Product Description Eutech Instruments Order Code

Alpha pH 2000 Controller / Transmitter, wall mount version EC-PHCTP2000D

9.2.1 Assembly Accessories

Product Description Eutech Instruments Order Code

pH Differential Electrode with NTC300 thermistor

ECFP21A1A1

ORP Differential Electrode with NTC300 thermistor

ECFR21A1A1

Note: Above pH/OR electrodes can withstand a pressure up to 6 bar pressure. These
electrodes have integral 3m measuring cable.

Note: Please contact your authorised distributor or dealer for the prices of extension measuring cables
and other accessories like tee joints, electrode assembly, and calibration solutions.

- 33 -

10 General Information

10.1 Warranty

Eutech Instruments/Oakton Instruments warrant this product to be free from significant deviations in
material and workmanship for a period of one year from the date of purchase. If repair is necessar y
and not the result of abuse or misuse within the warranty period, please return by freight pre-paid and
amendment will be made without any charge. Eutech Instruments/Oakton Instruments Customer
Service Dept. will determine if the product problem is due to deviations or customer abuse. Out-of­warranty products will be repaired on an exchange basis at cost.

10.2 Packaging / Scope of delivery

The instrument is packaged in a corrugated box with an instruction manual and the following
accessories:

Wall mount version:

• Plug, nylon, red, 2 pcs

• PG13.5, cable gland, 3 pcs

• Connectors, one each of 5 way (5.08 mm), 9 way (7.62mm), 13 way (3.5mm), 8 way (3.5mm)

10.3 Return of goods

Before returning goods for any reason whatsoever, Customer Service Dept. has to be informed in
advance. Items must be carefully packed to prevent damage during shipment, and insured against
possible damage or loss. Eutech Instruments/ Oakton Instruments will not be responsible for any
damage resulting from careless or insufficient packing.

Warning: Shipping damage as a result of inadequate packaging is the user's /distributor’s responsibilit y,
whoever applicable. Please follow the guidelines below before shipment.

10.4 Guidelines for returning unit for repair

Use the original packaging material if possible when shippin g the unit for repair. Other wise wrap it with
bubble pack and use a corrugated box for better protection. Include a brief description of any faults
suspected for the convenience of Customer Service Dept., if possible.

10.5 Maintenance and Cleaning

Maintenance

The lpha pH 2000D contains no user repairable components. Please contact Eutech Instruments or
its distributor if there is any problem with the unit.

Cleaning

To remove dust, dirt and spots, the external surfaces of the transmitter may be wiped with a dam p, lint­free cloth. A mild household cleaner can also be used if necessary

.

- 34 -

11 Appendices

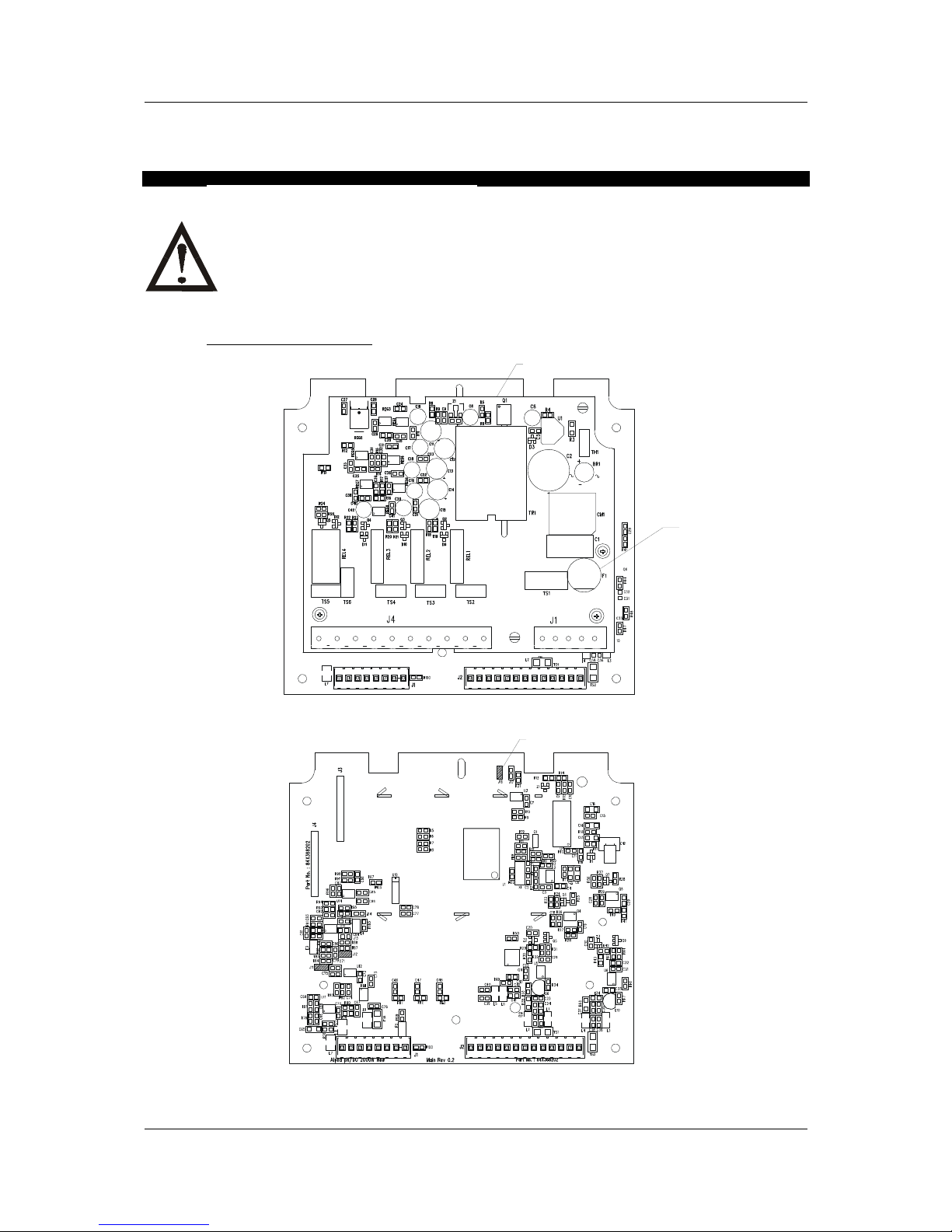

11.1 Appendix 1 – Unit fuse and jumper settings

Caution! Before opening the unit to replace the unit fuse, make sure the mains cable is
separated from the power supply

.

View from both PCBA side

Factory setting : NT C300

Fuse 250V, 315 mA,
Time Delay

Main Rev 0.2

A

lpha pH/DO2000 0W New Main Rev 0.2 par t No.: 84X36 8202

Factory setting: NTC300

- 35 -

11.2 Appendix 2 – pH buffer values at various temperatures

The following table shows the various pH values at different temperature of the solution during
calibration.

Temperature
(

o

C)

pH 1.00 pH 4.01 pH 6.86 pH 7.00 pH 9.00 pH 9.18 pH 10.01

0 0.96 4.01 6.98 7.12 9.33 9.47 10.32
5 0.99 4.01 6.95 7.09 9.24 9.38 10.25
10 0.99 4.00 6.92 7.06 9.16 9.32 10.18
15 0.99 4.00 6.90 7.04 9.11 9.27 10.12
20 1.00 4.00 6.88 7.02 9.05 9.22 10.06
25 1.01 4.01 6.86 7.00 9.00 9.18 10.01
30 1.01 4.01 6.85 6.99 8.95 9.14 9.97
35 1.01 4.02 6.84 6.98 8.91 9.10 9.93
40 1.01 4.03 6.84 6.97 8.88 9.07 9.89
45 1.01 4.04 6.83 6.97 8.85 9.04 9.86
50 1.01 4.06 6.83 6.97 8.82 9.01 9.83
55 1.01 4.08 6.83 6.97 8.79 8.99 9.81
60 1.02 4.10 6.84 6.98 8.76 8.96 9.79
70 1.02 4.12 6.85 6.99 8.72 8.92 9.76
80 1.02 4.16 6.86 7.00 8.68 8.89 9.74
90 1.02 4.20 6.88 7.02 8.65 8.85 9.73

- 36 -

11.3 Appendix 3 – Simple explanation on the function of hysteresis

SP1 Set to LO
SP2 Set to HI

RELAY ON

RELAY OFF

4.5

9.5 10.0

4.0

The controller relay activates when the set-point is reached. In the reverse direction, it does not de­activate when the value reaches the set-point. Instead, it continues to be active till the value reaches

the amount set by the Hysteresis band

.

HYSTERESIS BAND
(DEFAULT = 0.5 pH)

FORWARD DIRECTION

SP1

SP2

REVERSE DIRECTION

7.0

- 37 -

11.4 Appendix 4 – General instructions concerning Controller Setting

11.4.1 Control characteristic of Controllers used as limit value switch

Xp = 0

Xp = 0

SP 2SP 1

0%

50%

100% Yh

-Xw

+Xw

MIN function MAX function

11.4.2 Control characteristic of P-Controllers as proportional controller

Xp

0%

-Xw

+Xw

Xp

Prop. band Pro p. band

50%

100% Yh

MIN function MAX function

SP

2

SP 1

11.4.3 Control characteristic of PI-Controllers as proportional integral controller

SP1 SP 2

10%
Proportional. band
X

P

Prop. band
X

P

20%

25%

100%

50%

- 38 -

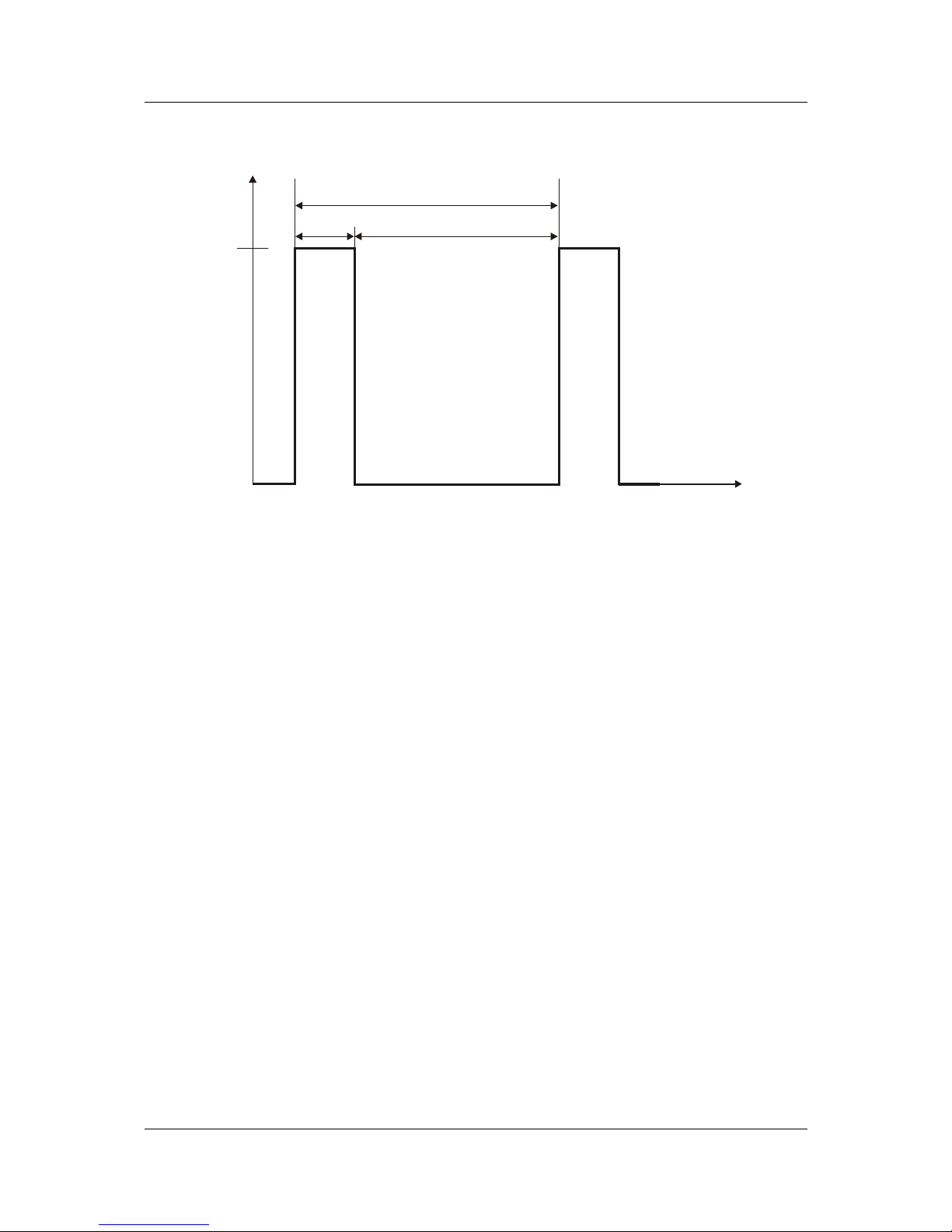

11.4.4 Control signal of Pulse length Controllers

Relay

ON

tON

tOFF

Pulse Length T

OFF

Time [s]

The output relay of the pulse length controller is clock-timed. The switching period T remains constant.
Depending on the divergence from the limit value, the switch on time tON is increased or decreased in
accordance with the proportional range Xp.

The following applies:
tON + tOFF = T (Const.)
greater divergence Î greater tON
Xp exceeded Î tON = T (relay remains picked up)

- 39 -

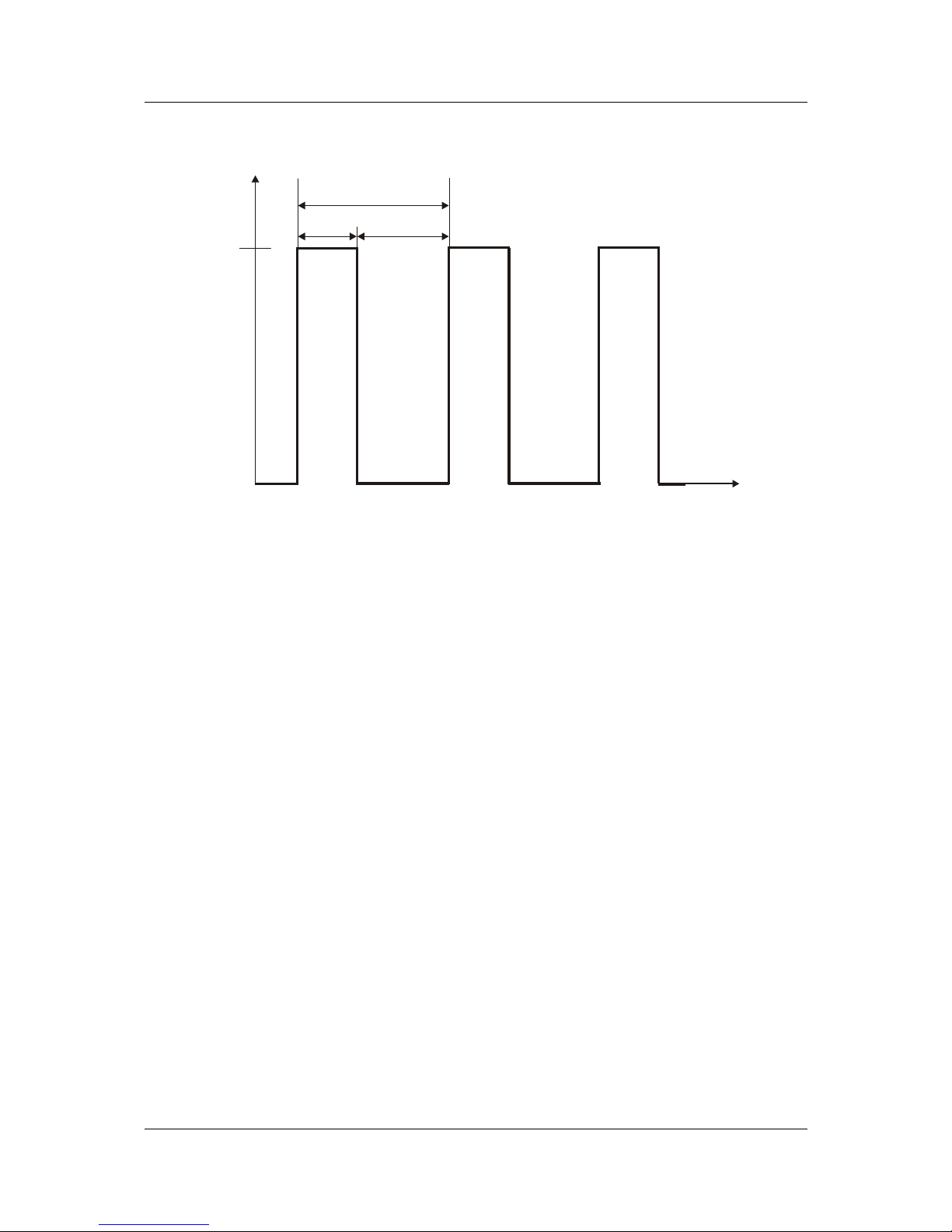

11.4.5 Control signal of Pulse Frequency Controllers

Relay

ON

tON

tOFF

Pulse Le ngth T

OFF

Time [s]

The output relay of the pulse frequency controller is clock-timed. The pulse duration tON remains
constant at 250 msec. Depending on the divergence from the limit value, the frequency (1/T) is
increased or decreased in accordance with the proportional range Xp.

The following applies:
tON = Const. (250 msec.)
greater divergence Î greater f (greater frequency)
Xp exceeded Î max. frequency

- 40 -

- 41 -

11.5 Appendix 5 – Abbreviations used in menu displays

Abbreviation Meaning Abbreviation Meaning

MEAS Measurement CUR. 1 Output current 1
CAL Calibration CUR. 2 Output current 2
ENT Enter OUT Output signal
OFS Offset 4 - 20 4 to 20mA
C. CD Calibration security code 0 - 20 0 to 20 mA
S. CD Setup security code R.0 Value at 0 mA
SET Setting R. 4 Value at 4 mA
ATC Automatic temperature calibration R. 20 Value at 20 mA
SP1 Set point 1 CU22 Out of range output current 22 mA
SP2 Set point 2 WASH Wash
LO Low limit H. INT Cleaning interval in hours
HI High limit S. DUR Cleaning duration in seconds
HYS Hysteresis CNFG Configuration
ON. D On delay BKLT Back light
OFF. D Off delay LEVL Level
CNTR Controller PH SY Symmetrical pH mode
L. CT Limit control ORP SY Symmetrical ORP mode
PLC Pulse length control AL. D Alarm delay
PFC Pulse frequency control AL.C Alarm Contact
P/PI Proportional control STDY Steady
EN Energized FLET Fleet, impulse
DEEN Deenergized DEF Default
REL Relay FCT DEF Factory default
PRP Proportional band CAL DEF Calibration default
T. PL Pulse length time
F. PF Pulse frequency
IAT Integral action time
MANU Manual

Water Analysis Instruments

North America

166 Cummings Center
Beverly, MA 01915 USA
Toll Free: 1-800-225-1480
Tel: [phone]
Dom. Fax: [phone]
Int’l Fax: [phone]

Europe

P.O. Box 254, 3860 AG Nijkerk
Wallerstraat 125K, 3862 CN Nijkerk,
Netherlands
Tel: [phone]
Fax: [phone]

Asia Pacific

Blk 55, Ayer Rajah Crescent
#04-16/24, Singapore 139949
Tel: [phone]
Fax: [phone]

www.thermo.com/process

© 2009 Thermo Fisher Scientific Inc.

All rights reserved. Thermo Fisher Scientific Inc.

68X216876 Rev 3
