Thermos 461410708 Product Manual

Page 1

MODEL 461410708 • PRODUCT GUIDE

THIS GRILL IS FOR OUTDOOR USE ONLY.

CAUTION:

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

If you have any questions or need assistance during assembly, please call 1-800-435-5194.

To insure your satisfaction and for follow-up service, register your grill online at www.grillregistration.com

WARNING:

Failure to follow all manufacturer's instructions could result in serious personal injury and/or property damage.

CAUTION:

Some parts may contain sharp edges – especially as noted in the manual! Wear protective gloves if necessary.

461410708 • 80014111 • 11-16-07

Page 2

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Call Grill Service Center for Help and Parts

• If you need assistance with your product or warranty parts call 1-800-241-7548. Hours of Service Center Operation are 8:00 A.M. To 6:00 P.M. EST Monday - Friday.

• To order non-warranty replacement parts or accessories please visit us on the web at www.charbroil. com or call

1-800-241-7548 and one of our friendly and knowledgeable agents will be glad to assist you.

IMPORTANT: Fill out the product record information below.

Model Number

Installation Safety Precautions

• Use grill, as purchased, only with LP (propane) gas and the

regulator/valve assembly supplied.

• Grill installation must conform with local codes, or in their

absence of local codes, with either the National Fuel Gas

Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

• All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes, or

National Electrical Code, ANSI / NFPA 70, Electrical Code, CSA C22.1.

fuel supply hoses away from any hot surfaces.

• Grill is not for use in or on recreational vehicles and/or boats.

• This grill is safety certified for use in the United States Canada Modification will result in a safety hazard.

only. Do not modify for use in any other location.

Keep any electrical cords and/or

or Canadian

and/or

WARNING

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

2. This product contains chemicals, including lead

and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.

Wash your hands after handling this product.

Safety Symbols

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

Serial Number

See rating label on grill for serial number.

Date Purchased

CAUTION

For residential use only. Do not use for commercial cooking.

2 • 461410708

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING: Indicates an potentially hazardous situation which, if not avoided, could result in death or serious injury.

Page 3

TABLE OF CONTENTS

For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Grill Service Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Record Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Use and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

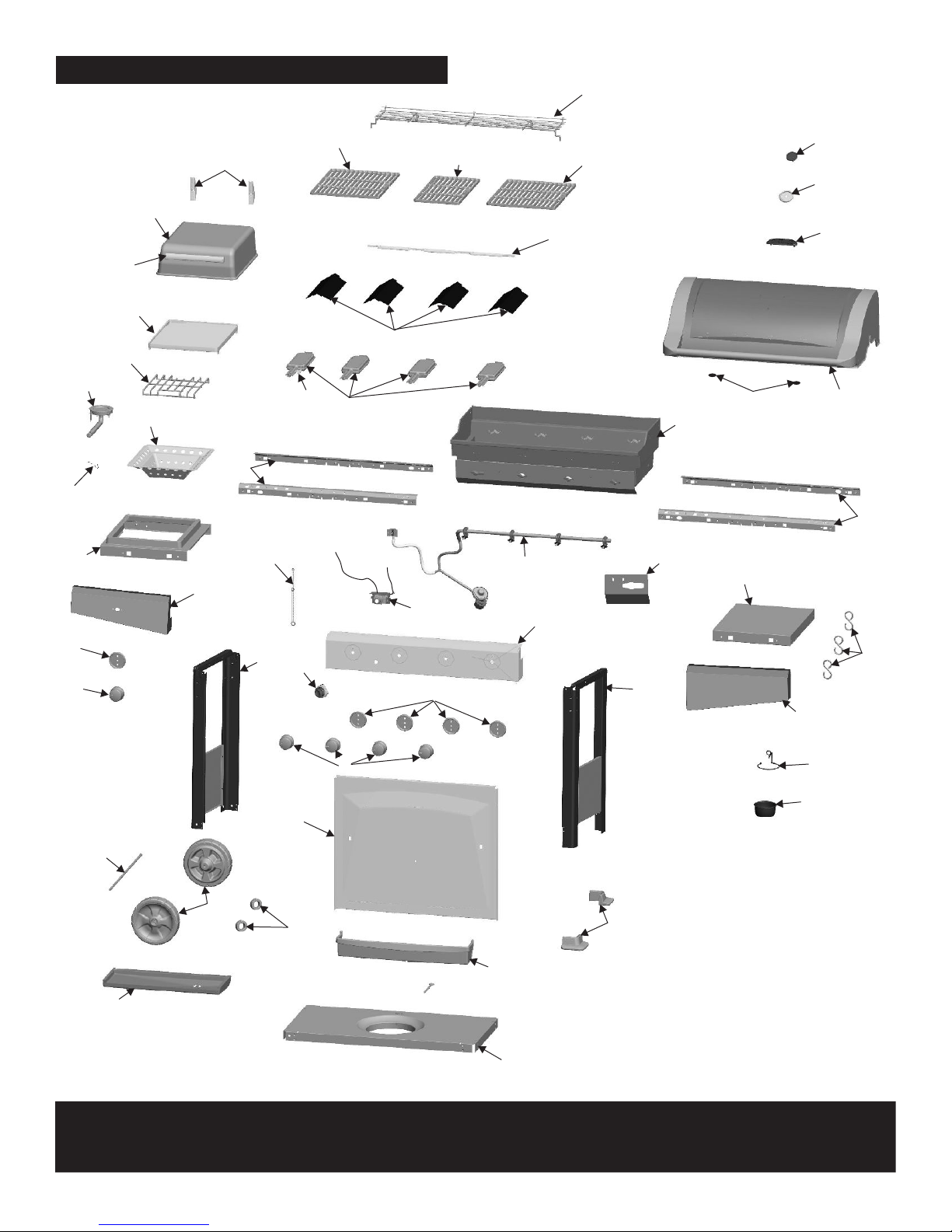

Parts Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

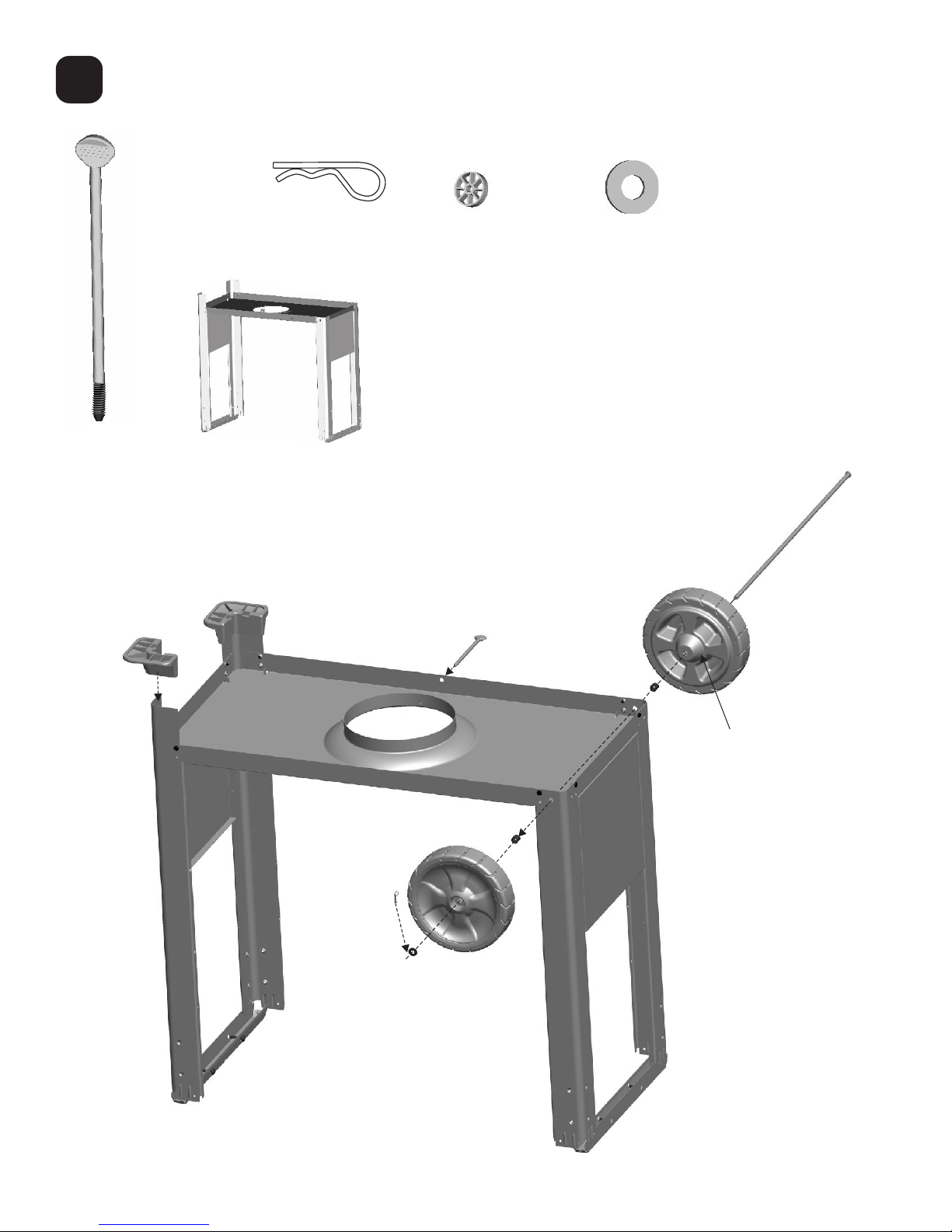

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-22

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

To insure your satisfaction

and for follow-up service,

online at:

www.grillregistration.com

WARNING

Do not attempt to repair or alter the hose/valve/regulator for any “assumed” defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

461410708 • 3

Page 4

USE AND CARE

DANGER

• NEVER store a spare LP cylinder under or near the appliance or in an enclosed area.

• Never fill a cylinder beyond 80% full.

• An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve.

• If you see, smell or hear gas escaping, immediately get away from the LP cylinder/appliance and call your fire department.

• This could cause an intense fire with risk of property damage, serious injury or death.

LP Cylinder

• The LP cylinder used with your grill must meet the following requirements:

• Use LP cylinders only with these required measurements: 12"

(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.

• LP cylinders must be constructed and marked in accordance with specifications for LP cylinders of the U.S. Department of Transportation (DOT)

cylinders, spheres and tubes for transportation of dangerous goods. Transport Canada (TC).

marking.

• LP cylinder valve must have:

• Type 1 outlet compatible with

regulator or grill.

• Safety relief valve.

• UL listed Overfill Protection

Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel. Use

only LP cylinders equipped with this type of valve.

• LP cylinder must be arranged for vapor withdrawal and include collar to protect LP cylinder valve. Always keep LP cylinders in upright position during use, transit or storage.

LP cylinder in upright position for vapor withdrawal

or for Canada, CAN/CSA-B339,

See LP cylinder collar for

OPD Hand Wheel

LP Cylinder Removal, Transport and Storage

• Turn OFF all control knobs and LP cylinder valve. Turn coupling nut counterclockwise by hand only - do not use tools to disconnect. Loosen cylinder screw beneath bottom shelf, then lift LP cylinder up and out of cart. Install safety cap onto LP cylinder valve. Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious personal injury and/or property damage.

• A disconnected LP cylinder in

storage or being transported must have a dust cap installed (as shown). Do not store an LP cylinder in enclosed spaces such as a carport, garage, porch, covered patio or other building. Never leave an LP cylinder inside a vehicle which may become overheated by the sun.

• Do not store an LP cylinder in an area where children play.

4 • 461410708

LP Cylinder Valve

Dust Cap

Retainer Strap

LP (Liquefied Petroleum Gas)

• LP gas is nontoxic, odorless and colorless when produced. For Your Safety, LP gas has been given an odor (similar to rotten

cabbage) so that it can be smelled.

• LP gas is highly flammable and may ignite unexpectedly when mixed with air.

LP Cylinder Filling

• Use only licensed and experienced dealers.

• LP dealer must purge new cylinder before filling.

• Dealer should NEVER fill LP cylinder more than 80% of LP

cylinder volume. Volume of propane in cylinder will vary by temperature.

• A frosty regulator indicates gas overfill. Immediately close LP cylinder valve and call local LP gas dealer for assistance.

• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.

• To remove gas from LP cylinder, contact an LP dealer or call a local fire department for assistance. Check the telephone directory under “Gas Companies” for nearest certified LP dealers.

Page 5

LP Cylinder Exchange

Connecting Regulator to the LP Cylinder

• Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your cylinder only

for an OPD safety feature-equipped cylinder as described in the "LP Cylinder" section of this manual.

• Always keep new and exchanged LP cylinders in upright

position during use, transit or storage.

• Leak test new and exchanged LP cylinders BEFORE

connecting to grill.

LP Cylinder Leak Test

For your safety

• Leak test must be repeated each time LP cylinder is exchanged

or refilled.

• Do not smoke during leak test.

• Do not use an open flame to check for gas leaks.

• Grill must be leak tested outdoors in a well-ventilated area,

away from ignition sources such as gas fired or electrical appliances. During leak test, keep grill away from open flames or sparks.

• Use a clean paintbrush and a 50/50 mild soap and water solution. in figure below.

s Do not use household cleaning agents. Damage to gas

train components can result.

Brush soapy solution onto areas indicated by arrows

1. LP cylinder must be properly secured onto grill. (Refer to

assembly section.)

2. Turn all control knobs to the OFF position.

3. Turn LP cylinder OFF by turning hand-wheel clockwise to a full stop.

4. Remove the protective cap from LP cylinder valve. Always use

cap and strap supplied with valve.

Strap and Cap

OPD Hand Wheel

Type 1 outlet with thread on outside

Safety Relief Valve

Do not use a POL transport plug (plastic part with external threads)! It will defeat the safety feature of the valve.

WARNING

If “growing” bubbles appear do not use or move the LP cylinder. Contact an LP gas supplier or your fire department!

5. Hold regulator and insert nipple into LP cylinder valve. Hand-tighten the coupling nut, holding regulator in a straight line with LP cylinder valve so as not to cross-thread the connection.

Nipple has to be centered into the LP cylinder valve.

461410708 • 5

Page 6

Leak Testing Valves, Hose and Regulator

1. Turn all grill control knobs to OFF.

Straight

Hold coupling nut and regulator as shown for proper connection to LP cylinder valve.

6. Turn the coupling nut clockwise and tighten to a full stop. The

regulator will seal on the back-check feature in the LP cylinder valve, resulting in some resistance. An additional one-half to

three-quarters turn is required to complete the connection. Tighten by hand only – do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6. If you are still unable to complete the connection, do not use this regulator!

2. Be sure regulator is tightly connected to LP cylinder.

3. Completely open LP cylinder valve by turning hand wheel

counterclockwise. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct

before proceeding.

4. Brush soapy solution onto area circled below.:

s Never remove threaded orifice at end of valve.

DANGER

• Do not insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death.

WARNING

• Outdoor gas appliance is not intended to be installed in or on a boat.

• Outdoor gas appliance is not intended to be installed in or on an RV.

• Never attempt to attach this grill to the self-contained LP gas system of a camper trailer or motor home.

• Do not use grill until leak-tested.

• If a leak is detected at any time, STOP and call the fire department.

• If you cannot stop a gas leak, immediately close LPcylinder valve and call LP gas supplier or your fire department!

5. If “growing” bubbles appear, there is a leak. Close LP cylinder valve immediately and re-tighten connections. If leaks cannot be stopped do not try to repair. Call for replacement parts. Order new parts by giving the serial, model number and name and part number of items needed (see parts list) to the Grill Service Center at 1-800-435-5194.

6. Always close LP cylinder valve after performing leak test by turning hand wheel clockwise.

6 • 461410708

Page 7

WARNING

For Safe Use of Your Grill and to Avoid Serious Injury:

• Do not let children operate or play near grill.

• Keep grill area clear and free from materials that burn.

• Do not block holes in sides or back of grill.

• Check burner flames regularly.

• Use grill only in well-ventilated space. NEVER use in

enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.

• Do not use charcoal or ceramic briquets in a gas grill.

(Unless briquets are supplied with your grill.)

• Use grill at least 3 ft. from any wall or surface.

Maintain 10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

• Keep ventilation opening(s) of the cylinder enclosure free and clear from debris.

Safety Tips

sBefore opening LP cylinder valve, check the coupling nut for

tightness.

sWhen grill is not in use, turn off all control knobs and LP

cylinder valve.

sIf the outdoor cooking gas appliance is not in use, the gas

must be turned off at the supply cylinder. Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.

sNever move grill while in operation or still hot. sUse long-handled barbecue utensils and oven mitts to avoid

burns and splatters.

sMaximum load for side shelves is 10 lbs. sThe grease cup must be inserted into grease clip and

emptied after each use. Do not remove grease cup until grill has completely cooled.

 Clean grill often, preferably after each cookout. If a bristle

brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

sIf you notice grease or other hot material dripping from grill

onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before continuing. Perform a leak test.

sThe regulator may make a humming or whistling noise during

operation. This will not affect safety or use of grill.

sOnly use the pressure regulator and hose assembly supplied

with this grill. Replacement pressure regulator and hose assemblies must be specified or supplied by Char-Broil, LLC.

sIf you have a grill problem see the "Troubleshooting Section". sIf the regulator frosts, turn off grill and LP cylinder valve

immediately. This indicates a problem with the cylinder and it should not be used on any product. Return to supplier!

• Apartment Dwellers:

Check with management to learn the requirements and fire codes for using an LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a three (3) foot clearance from walls or rails. Do not use on or under balconies.

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed grill is hazardous.

• Never operate grill with LP cylinder out of correct position specified in assembly instructions.

• Always close LP cylinder valve and remove coupling nut before moving LP cylinder from specified operation position.

CAUTION

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.

• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP cylinder off.

• Do not leave grill unattended while preheating or burning off food residue on HI. If grill has not been regularly cleaned, a grease fire can occur that may damage the product.

461410708 • 7

Page 8

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls OFF, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidently ignite with risk of injury.

Match Lighting

1. Open lid during lighting.

2. Match holder is on the left rear leg. Attach match to match holder, light match. Place match into match lighting hole from outside of grill bottom (as shown).

3. Push in and turn left knob to . Be sure burner lights and stays lit.

4. Push in and turn other knob to .

Match-lighting hole is on side of grill bottom

• Sideburner Use

Do not use a cooking pot larger th n 9” . from sideburner before using griddle. Do not close lid when using griddle.

8 • 461410708

a on grid Remove grid

Griddle

Grid

Match Lighting

1. Open lid.

2. Hold lit match to any port on the burner. Push in and turn

sideburner knob to HIGH . Be sure burner lights and stays lit.

Burner Flame Check

• Remove cooking grates and flame tamers. Light burners, rotate

knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Always check flame prior to each use. If only low flame is seen refer to "Sudden drop or low flame" in the Troubleshooting Section.

Before Your First Cookout

• Light burners, check to make sure they are lit, close the lid and

warm up grill on HIGH for 15 minutes. Curing of paint and parts will produce an odor only on first lighting.

Turning Grill Off

• Turn all knobs to position. Turn LP cylinder off by turning hand-wheel clockwise to a full stop.

OFF

Ignitor Check

• Turn gas off at LP cylinder. Press and hold electronic ignitor

button. "Click" should be heard and spark seen each time between burner and electrode. See "Troubleshooting" if no click or spark.

Valve Check

• Important: Make sure gas is off at gas source before checking valves. Knobs lock in position. To check

valves, first push in knobs and release, knobs should spring back. If knobs do not spring back, replace valve assembly before using grill. Turn knobs to LOW position then turn back to

position. Valves should turn smoothly.

OFF

Hose Check

• Before each use, check to see

if hoses are cut, worn or kinked. Replace damaged hoses before using grill. Use only hose specified by manufacturer.

Normal Hose

Kinked Hose

Page 9

CAUTION

SPIDER ALERT!

SPIDER AND WEBS

INSIDE BURNER TUBE

If you notice that your grill is getting hard to light or that the flame isn’t as strong as it should be, take the time to check and clean the venturi’s.

CONTROL PANEL

VALVE

SPIDER WEBS

INSIDE VENTURI

BURNER

Cleaning The Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill.

1. Turn gas off at control knobs and LP cylinder.

2. Remove cooking grids and heat tents.

3. Remove two pal nuts, carry-over tube and burners.

4. Under grill, remove grease pan and tray. Clean with soap and water.

5. Disconnect battery and under console disengage ignitor wire.

6. Wipe ceramic electrode with rubbing alcohol and cloth.

7. Clean carry-over tube and burners exterior with soap and water. Lay burners on flat surface, insert garden hose (preferably with nozzle), into burner tubes forcing water through tubes. Make sure water comes out of every porthole. Open clogged portholes with a thin wire. Shake out excess water and examine portholes. Due to normal wear and corrosion some portholes may become enlarged, if so replace burner. If any horizontal cracks appear from porthole to porthole or large holes (other than portholes) are found replace burner.

8. If grill is to be stored, coat burners lightly with cooking oil. Wrap in protective cover to keep insects out. If not storing use following steps.

VERY IMPORTANT: Burner tubes must engage valve openings as shown (A).

In some areas of the country, spiders or small insects have been known to create “flashback” problems. The spiders spin webs, build nests and lay eggs in the grill’s venturi tube(s) obstructing the flow of gas to the burner. The backed-up gas can ignite in the venturi behind the control panel. This is known as a flashback and it can damage your grill and even cause injury.

To prevent flashbacks and ensure good performance the burner and venturi assembly should be removed from the grill and cleaned before use whenever the grill has been idle for an extended period.

Carry-Over Tube

Burner

9. Attach ignitor wire to electrode. Replace battery.

10. Reposition cooking grids and heat tents. Place clean grease tray and pan into grill bottom.

11. Before cooking again on grill, perform a "Leak Test" and "Burner Flame Check".

Heat Tents

Burner tubes correctly engaged in valves

Burner Tube

Valve

461410708 • 9

Page 10

Food Safety

Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps:

Clean: Wash hands, utensils, and surfaces with hot soapy water

before and after handling raw meat and poultry.

Separate: Separate raw meats and poultry from ready-to-eat

foods to avoid cross contamination. Use a clean platter and utensils when removing cooked foods.

Cook: Cook meat and poultry thoroughly to kill bacteria. Use a

thermometer to ensure proper internal food temperatures.

Chill: Refrigerate prepared foods and leftovers promptly. For more information call: USDA Meat and Poultry Hotline at

1-800-535-4555 In Washington, DC (202) 720-3333, 10:00 am4:00 pm EST.

How To Tell If Meat Is Grilled Thoroughly

• Meat and poultry cooked on a grill often browns very fast on the

outside. Use a meat thermometer to be sure food has reached a safe internal temperature, and cut into food to check for visual signs of doneness.

• Whole poultry should reach 180° F; breasts, 170° F. Juices

should run clear and flesh should not be pink.

• Hamburgers made of any ground meat or poultry should reach

160° F, and be brown in the middle with no pink juices. Beef, veal and lamb steaks, roasts and chops can be cooked to 145° F. All cuts of pork should reach 160° F.

• NEVER partially grill meat or poultry and finish cooking later.

Cook food completely to destroy harmful bacteria.

• When reheating takeout foods or fully cooked meats like hot

dogs, grill to 165° F, or until steaming hot.

Storing Your Grill

• Clean cooking grates.

• Store in dry location.

• Cover grill if stored outdoors. Choose from a variety of grill covers offered by manufacturer.

• When LP cylinder is connected to grill, store outdoors in a wellventilated space and out of reach of children.

• If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinder. Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.

• Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed from grill and stored outdoors.

• When removing grill from storage, follow “Cleaning the Burner Assembly” instructions before starting grill.

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to completely air dry. Do not apply a caustic grill/oven cleaner to painted surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry. s Do not use citrisol, abrasive cleaners, degreasers or a

concentrated grill cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.

• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.

•Cooking surfaces: If a bristle brush is used to clean any of

the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

Certified Grill Parts And Accessories®, Char-Broil and Design®, Char-Broil (Gas Grill Briquettes)®, Char-Diamonds®, Cooking Zone and Design®, Diamond Flame®, Executive Chef®, Faststart®, Flare Fighter®, FlavorMaster®, Gas Grill Silouette and Design®, H2O Smoker®, Lava Flame®, MasterFlame®, MasterFlame Precision Cooking System®, PowerSpark®, Quantum®, VIP®, PrecisionFlame and Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates.

Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan Collection™, and The Urban Grill™ are Trademarks of the W.C. Bradley Company. Universal Grill Parts and Design™ is a trademark of the Thermos Company and its affiliates.

Protected under one or more of the following U.S. Patents: 4,598,692; 4,624,240; 4,747,391; 4,747,391; 4,817,583; 4,924,846; 4,989,579; 5,003,960; 5,076,256; 5,076,257; 5,090,398; 5,109,834; 5,224,676; 5,277,106; 5,421,319; 5,441,226; 5,452,707; 5,458,309; 5,566,606; 5,566,606; 5,579,755; 5,582,094; 5,613,486; 5,649,475; 5,706,797; 5,711,663; 5,765,543; 5,931,149; 5,996,573; 6,095,132; 6,135,104; 6,173,644B1; 6,279,566; 6,397,731; 6,418,923; 6,439,222; 6,523,461; 6,935,327; D282,619; D339,714; D341,292; D343,337; D358,059; D361,466; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643; D405,643; D406,005; D406,009; D413,043; D413,229; D413,229; D414,982; D415,388; D416,164; D416,441; D416,441; D417,587; D422,516; D423,274; D423,876; D428,303; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D451,759; D456,202S; D460,313, D461,359 and D504,048. Canada: 87743; 87744; 92607; 92608 and 1,316,424. Other Patents Pending. Assembly instructions © 2006.

10 • 461410708

Page 11

CARE AND CLEANING OF YOUR STAINLESS STEEL GRILL

Routine cleaning is necessary to preserve the appearance and corrosion resistance of Stainless Steel. The perception that many people have is that stainless steel will not rust. That is not the case in certain conditions. Rust marks are regular steel particles that have become attached to the surface of stainless steel. They may also occur if you are using a steel wool or wire wool scouring pad instead of a nylon scouring pad to clean your grill. In coastal areas, small rust pits may develop on the surface of your grill that cannot be fully removed by a cleaner. Concentrate bleaches and other solutions containing chlorine can also cause rust pits and should not be used.

Cooking creates smoke that may eventually coat and discolor the stainless steel surface. Grease fires will darken the stainless steel surface, but will not affect the integrity of the steel. Periodic cleaning of the cooking surface and inside of the grill helps decrease the risk of a fire. The methods below are suggestions for cleaning stainless steel surfaces. Choose a cleaning method appropriate for your needs. It is recommended that you use a Char-Broil® grill cover to help prolong the life and prevent discoloration of your grill.

Routine Care

After each use, let your grill cool and then wipe the grill with a soft, damp, soapy cloth and rinse with clean water. It is important to remove any food particles or marinade from the stainless steel surface of your grill. Most marinades are highly acidic and damage stainless steel. DO NOT USE STEEL OR WIRE WOOL. To clean, polish and protect your stainless steel grill on a weekly basis use Char-Broil® Stainless Steel Grill Cleaner. For quick, convenient cleaning, use Char-Broil® Stainless Steel Grill Wipes.

Stubborn Stains and Rust

Stubborn stains, discoloration and possibly rust and rust pitting can occur from cooking, exposure to harsh outdoor conditions, or extreme cooking temperatures. For stubborn rust stains and grease stains, you can restore your grill with the Char-Broil Stainless Steel Restoration Kit. It is available at major retailers retailers or you can buy it online at

www.charbroil.com www.grilllovers.com

or . For the latest new products and information for the care and cleaning of your

stainless steel grill go to www.charbroil.com.

* Always rub or wipe in the direction of the grain or polish lines in the stainless steel surface, not across them. ** Do not let stainless steel cleaners come in contact with painted or plastic surfaces as damage may occur.

ROUTINE CARE

Char-Broil® Stainless Steel

Grill Cleaner

ROUTINE CARE

Char-Broil® Stainless Steel

Grill Wipes

STUBBORN STAINS AND RUST

Char-Broil® Stainless Restoration Kit

461410708 • 11

Page 12

PARTS LIST – Model No. 461410708

Key Qty. Description . . . . . . . . . . . . . . Part #

A 1 Bottom Shelf . . . . . . . . . . . . . . 80014213

B 4 Rails . . . . . . . . . . . . . . . . . . . . 80014218

C 1 Lid Assembly. . . . . . . . . . . . . . 80014224

D 1 Firebox Assembly . . . . . . . . . . 80014220

E 4 Burners . . . . . . . . . . . . . . . . . . 80014221

F 1 Carry-Over Tube . . . . . . . . . . . 80014223

G 1 Heat Shield . . . . . . . . . . . . . . . 80014128

H 2 Wheels . . . . . . . . . . . . . . . . . . 80014103

I 1 Axle Rod . . . . . . . . . . . . . . . . . 80014104

J 4 Heat Tents. . . . . . . . . . . . . . . . 80014105

K 1 Grease Tray Assembly . . . . . . 80014087

L 1 Match Holder w/Chain. . . . . . . 80014217

M 1 Fascia, Right . . . . . . . . . . . . . . 80014199

N 1 Fascia, Left . . . . . . . . . . . . . . . 80014225

O 2 Leg Extenders. . . . . . . . . . . . . 80014116

P 5 Control Knobs . . . . . . . . . . . . . 80014059

Q 5 Bezels . . . . . . . . . . . . . . . . . . . 80014060

R 1 Electrode . . . . . . . . . . . . . . . . . 80014222

S 1 Electronic Ignition Module. . . . 80014211

T 1 Sideburner . . . . . . . . . . . . . . . 80014091

U 1 Sideburner Clip . . . . . . . . . . . . 80014124

V 1 Sideburner Body . . . . . . . . . . . 80014229

W 1 Sideburner Drip Pan . . . . . . . . 80014090

X 1 Sideburner Lid Assy . . . . . . . . 80014093

Y 1 Sideburner Handle . . . . . . . . . 80014096

Z 1 Sideburner Grid. . . . . . . . . . . . 80014106

AA 1 Condiment Basket. . . . . . . . . . 80014226

BB 2 Sideburner Lid Hinge Assy . . . 80014132

CC 1 Griddle. . . . . . . . . . . . . . . . . . . 80014107

DD 1 Right Shelf. . . . . . . . . . . . . . . . 80014219

Key Qty. Description. . . . . . . . . . . . . . . Part #

EE 1 Front Panel . . . . . . . . . . . . . . . 80014212

FF 1 Warming Rack. . . . . . . . . . . . . 80014110

GG 1 Cook Grid . . . . . . . . . . . . . . . . 80014126

HH 2 Cook Grids . . . . . . . . . . . . . . . 80014129

II 1 Valve/Hose/Regulator Assy. . . 80014227

JJ 1 Control Panel. . . . . . . . . . . . . . 80014056

KK 1 Logo Plate . . . . . . . . . . . . . . . . 80014050

LL 1 Leg Assembly, Long . . . . . . . . 80014215

MM 1 Leg Assembly, Short . . . . . . . . 80014216

NN 1 Temperature Gauge . . . . . . . . 80014048

OO 1 Temperature Gauge Bezel. . . . 80014049

PP 1 Grease Cup . . . . . . . . . . . . . . . 80014122

QQ 1 Grease Cup Clip . . . . . . . . . . . 80014123

RR 2 Silicone Rubber Bumpers, Lid . . . 80014052

SS 1 Electronic Ignition Button. . . . . 80014120

TT 3 "S" Hooks . . . . . . . . . . . . . . . . 80014127

UU 2 Wheel Spacer . . . . . . . . . . . . . 80014134

1 Product Manual, English . . . . . 80014111

1 Product Manual, French . . . . . 80014112

1 Hardware Bag . . . . . . . . . . . . . 80014130

1 Screw Driver

42 #10-16x1/2" Self-Tap Screw

1 Thumbscrew

4 #10-24x3/8" Machine Screw

6 #8-32x3/8" Machine Screw

1 Flat Washer

4 Fiber Washer

4 #10-24 Wing Nut

4 #10-16x3/4" Self-Tap Screw

1 Hitch Pin

3 Push Pin

12 • 461410708

Page 13

PARTS DIAGRAM – Model No. 461410708

Estimated assembly time: 30 minutes.

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

461410708 • 13

Page 14

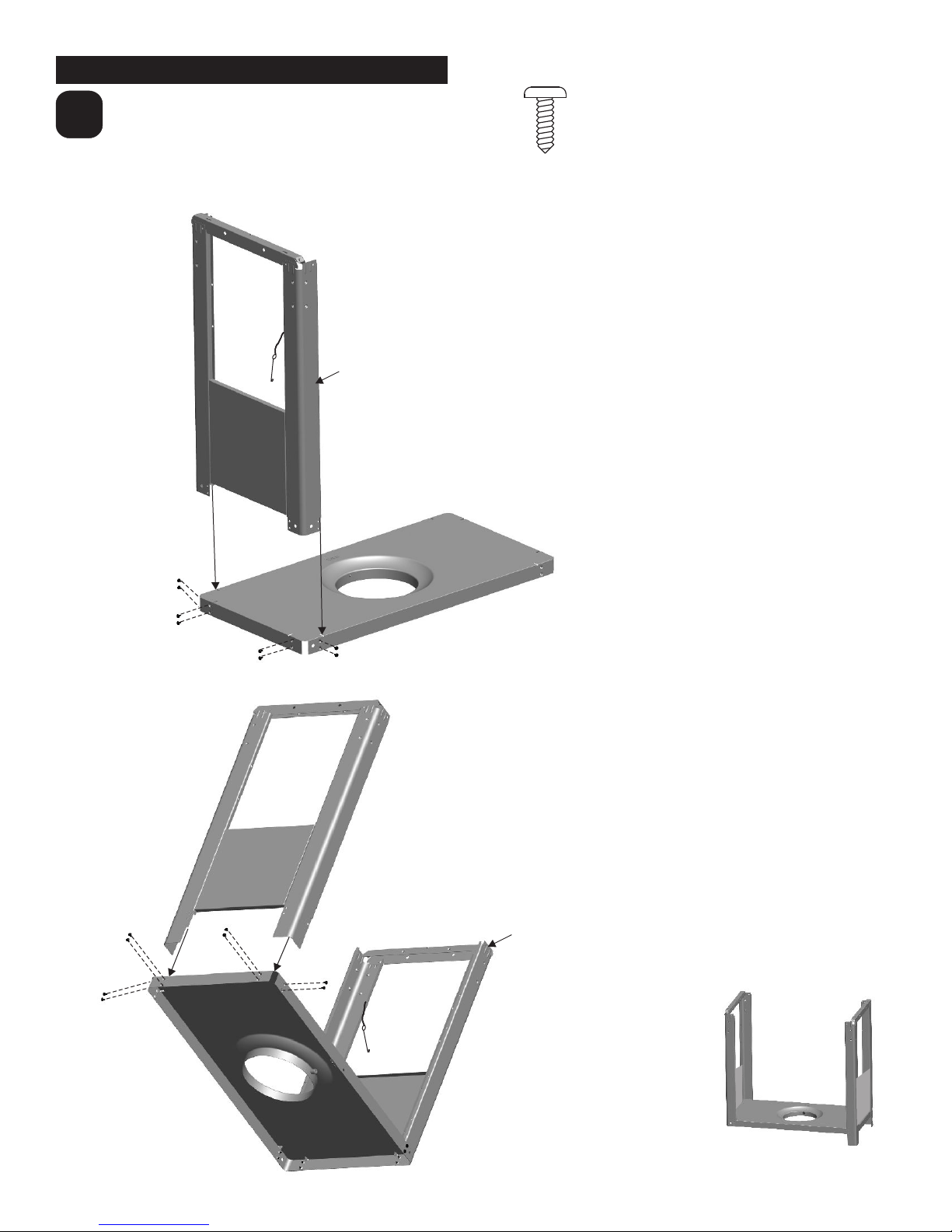

ASSEMBLY – Model No. 461410708

A Place bottom shelf on table or grill container. B Insert tabs on short leg assembly into bottom shelf.

C Attach leg assembly with two screw on each side. D Repeat step B and C for long leg assembly.

Short leg assembled

ACK

CAUTION: Ends of screws have sharp points

#10-16 X 1/2" Self-Tap Screw Qty: 16

ONT

Short leg assembled

14 • 461410708

Correctly assembled legs

Page 15

A Attach leg extenders. Check to make sure leg is seated all the way into the leg . B Thread cylinder thumbscrew into hole.

C Slide wheel and wheel spacer onto axle rod. Insert assembly into large hole in bottom shelf. Attach other wheel, wheel spacer, washer

and hitch pin.

Thumb Screw Qty: 1 Not to scale

1” Hitch Pin Qty: 1

Turn cart upside down

Wheel Spacer Qty: 2

extender

Flat Washer Qty: 1

Hub on wheel faces into grill bottom

461410708 • 15

Page 16

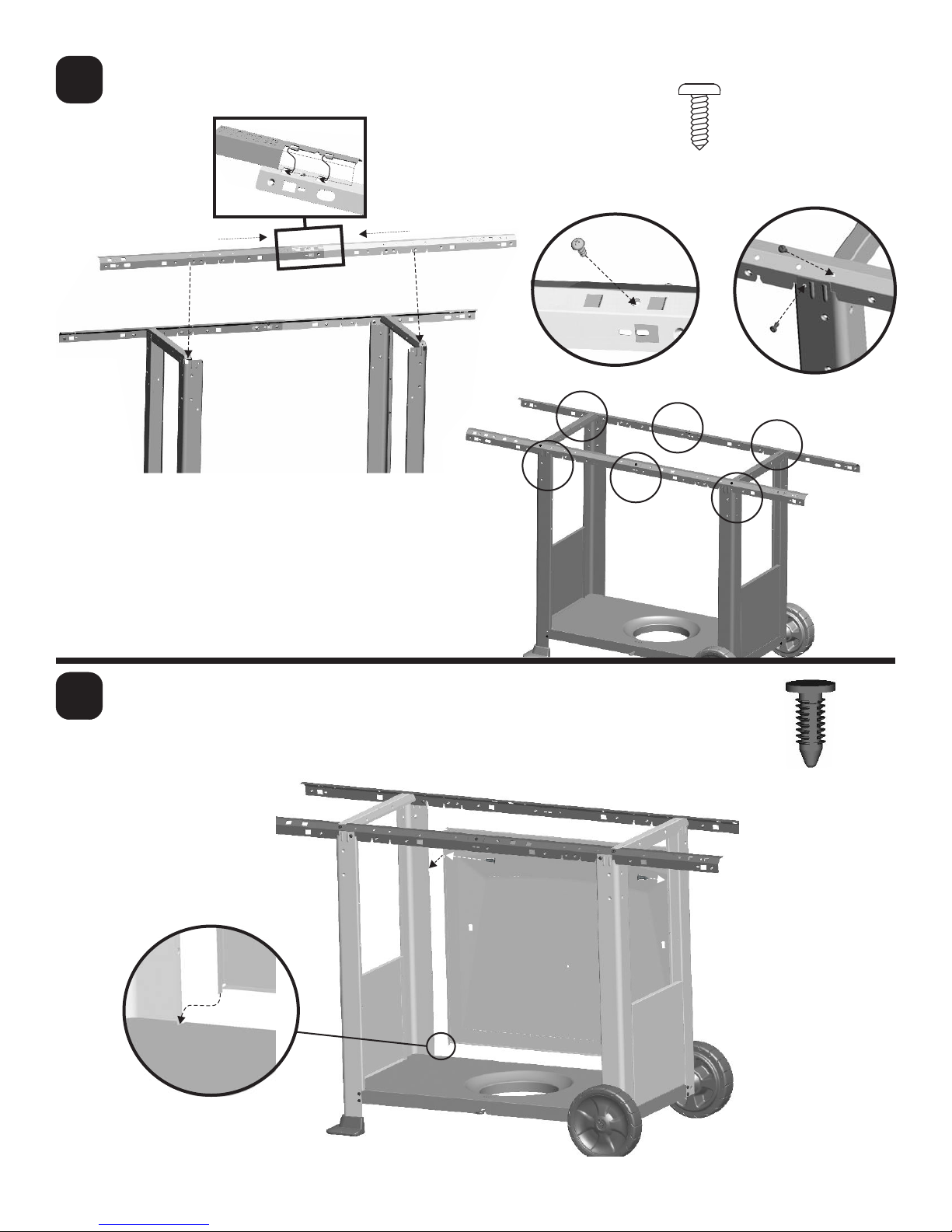

A Overlap rails and hook tabs into slots. Pull rails to latch. B Attach one screw in center of each rail. C Attach rail and legs with two screws in each corner.

#10-16 X 1/2" Self-Tap Screw Qty: 10

A Place tabs on front panel beside leg tabs. B Insert push pins into front panel and legs.

Push Pin Qty: 2

16 • 461410708

Page 17

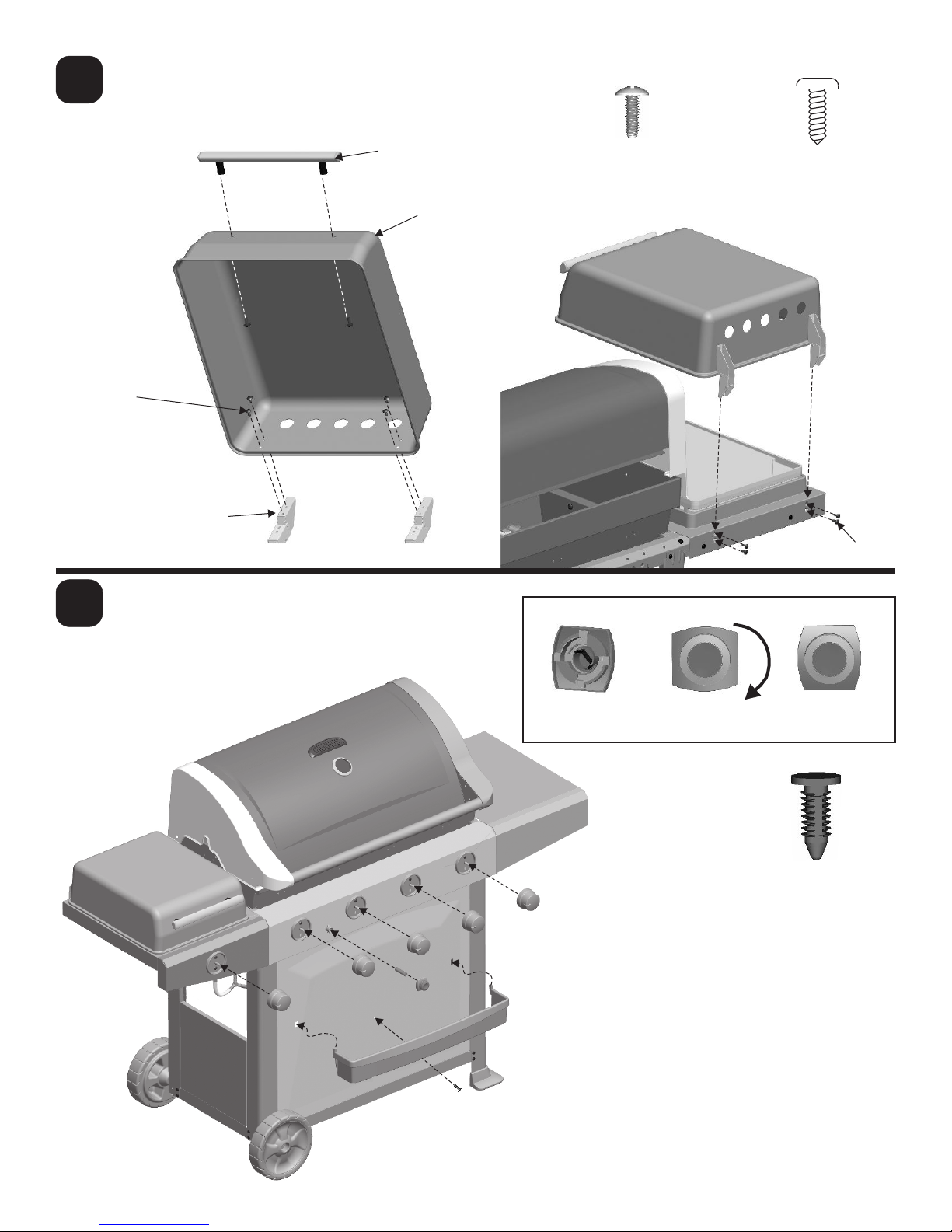

This step requires two people to lift and position grill head onto cart.

A Attach heat shield with two #10-16x3/8" machine screws onto firebox as shown. B With the lid closed, carefully lower the grill head onto the cart. Open lid and attach four screws inside grill bottom and into casting seat.

#10-16 X 3/4" Self-Tap Screw Qty: 4

#10-24 X 3/8" Machine Screw Qty: 2

#10 Fiber Washer Qty: 4

461410708 • 17

Page 18

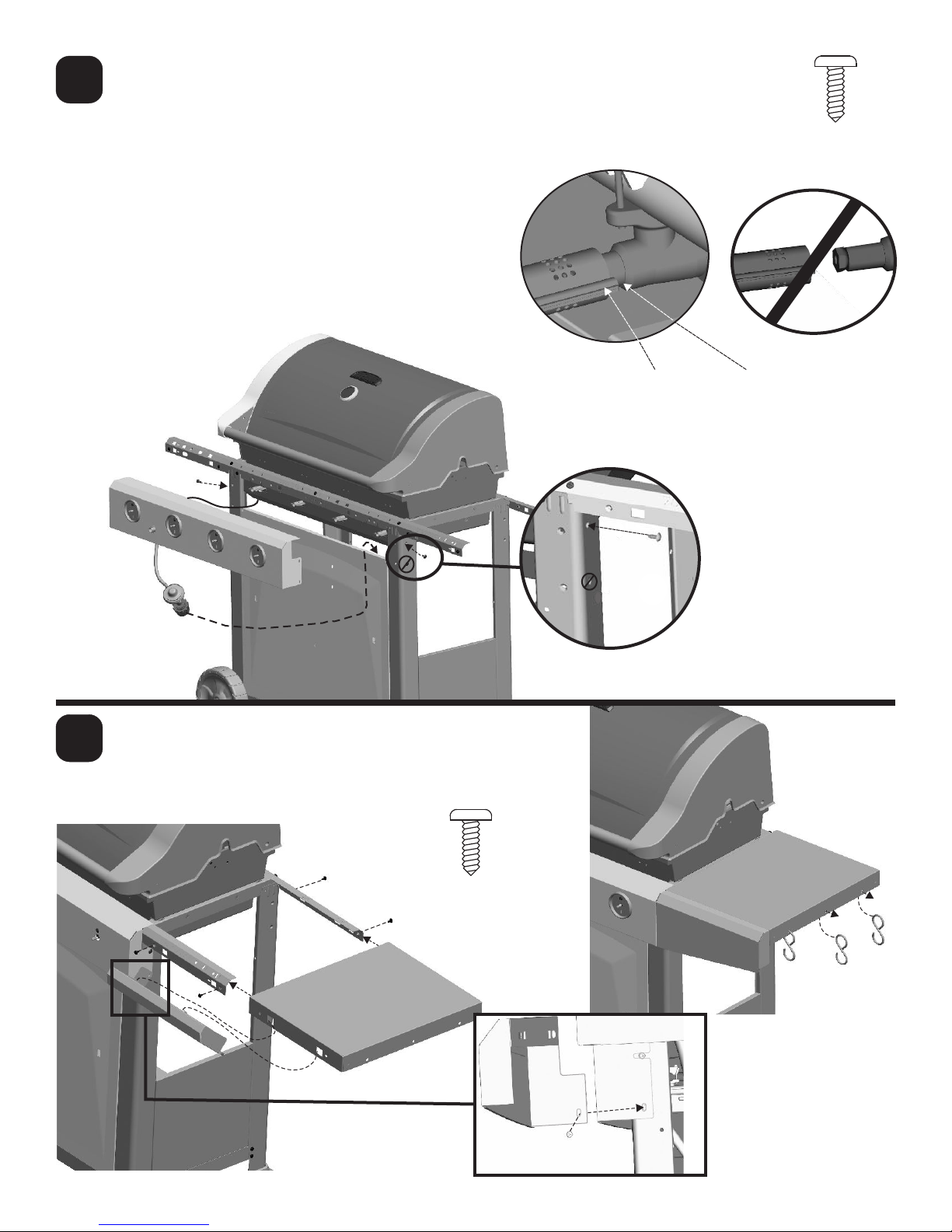

Loosen long wire and place behind front panel. Do not connect at this time.

A Hold control panel close to bottom casting. Attach ignitor wire to electronic ignition module. B Insert regulator into opening in front panel. Make sure regulator and hose are behind the front panel. C Position valves into burner tubes (see burner-valve view). Rotate control panel up and rest flange over rail. D Attach control panel to legs with a screw in top hole on each side.

Correctly assembled burner tube and valve.

#10-16 X 1/2" Self-Tap Screw Qty: 2

A Shelf slides into rails. Secure with 4 screws. B Fascia tabs must insert into 2 slots in front of shelf, then slide towards leg. C Fasten fascia with 1 screw into second hole through control panel and leg. D Hook "S" hooks into holes on right shelf.

#10-16 X 1/2" Self-Tap Screw Qty: 5

18 • 461410708

Page 19

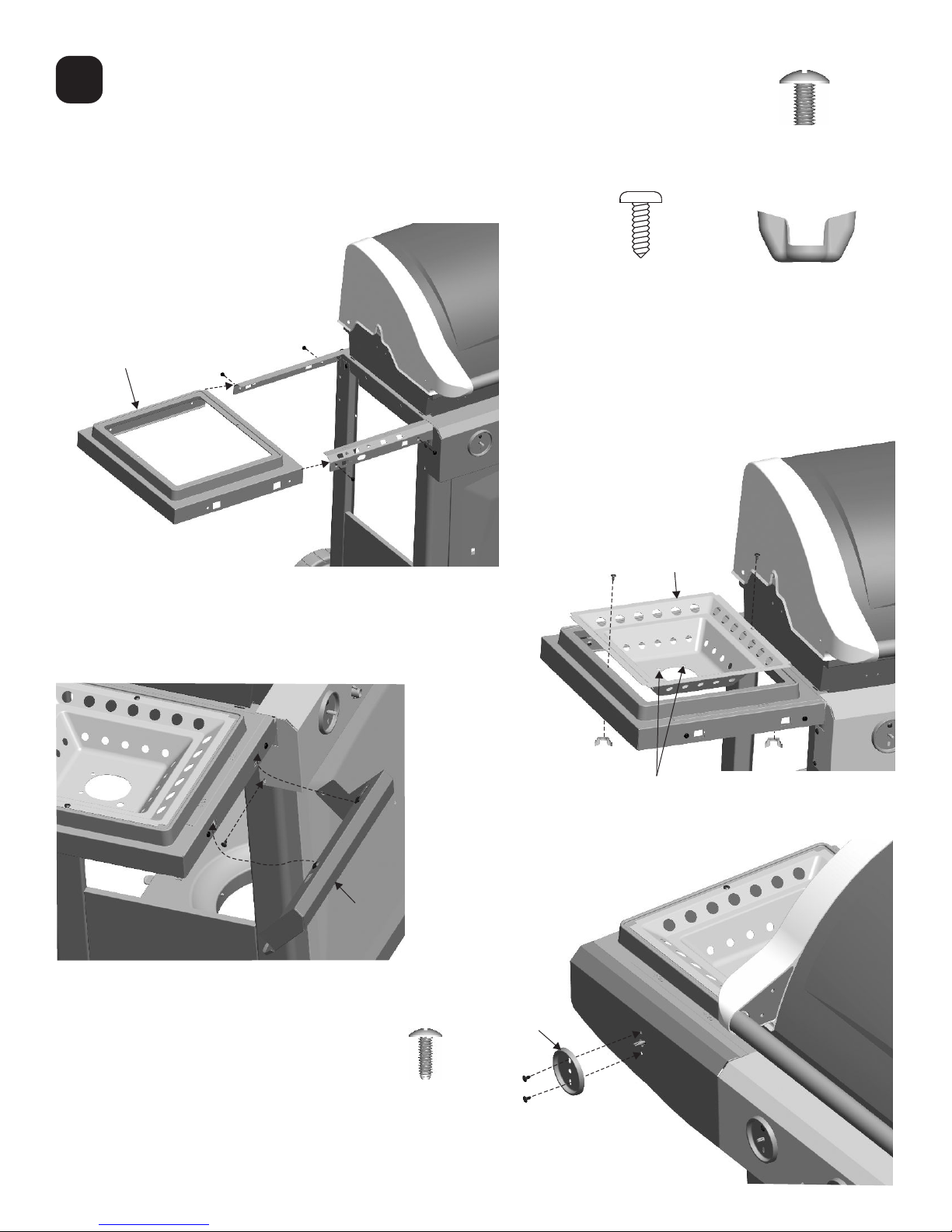

A Slide sideburner body onto rails. Attach with 4 screws. B Place sideburner drip pan into the body and attach with 2 screws and wing nuts. Note position of

hole in the pan.

C Slide fascia round manifold and insert sideburner valve into slot. Fascia tabs must insert into 2

slots in front of shelf, then slide towards leg. Fasten fascia into second hole through control panel and leg.

D Place bezel onto side valve and attach with #8-32x3/8” screws.

#10-24x3/8" Machine Screw Qty: 2

Sideburner Body

#10-16x1/2" Self-Tap Screw Qty: 5

Sideburner

Drip Pan

#10-24 Wing Nut Qty: 2

Fascia

#8-32 x 3/8" Machine Screw Qty: 2

Bezel

Note position of holes in the pan.

461410708 • 19

Page 20

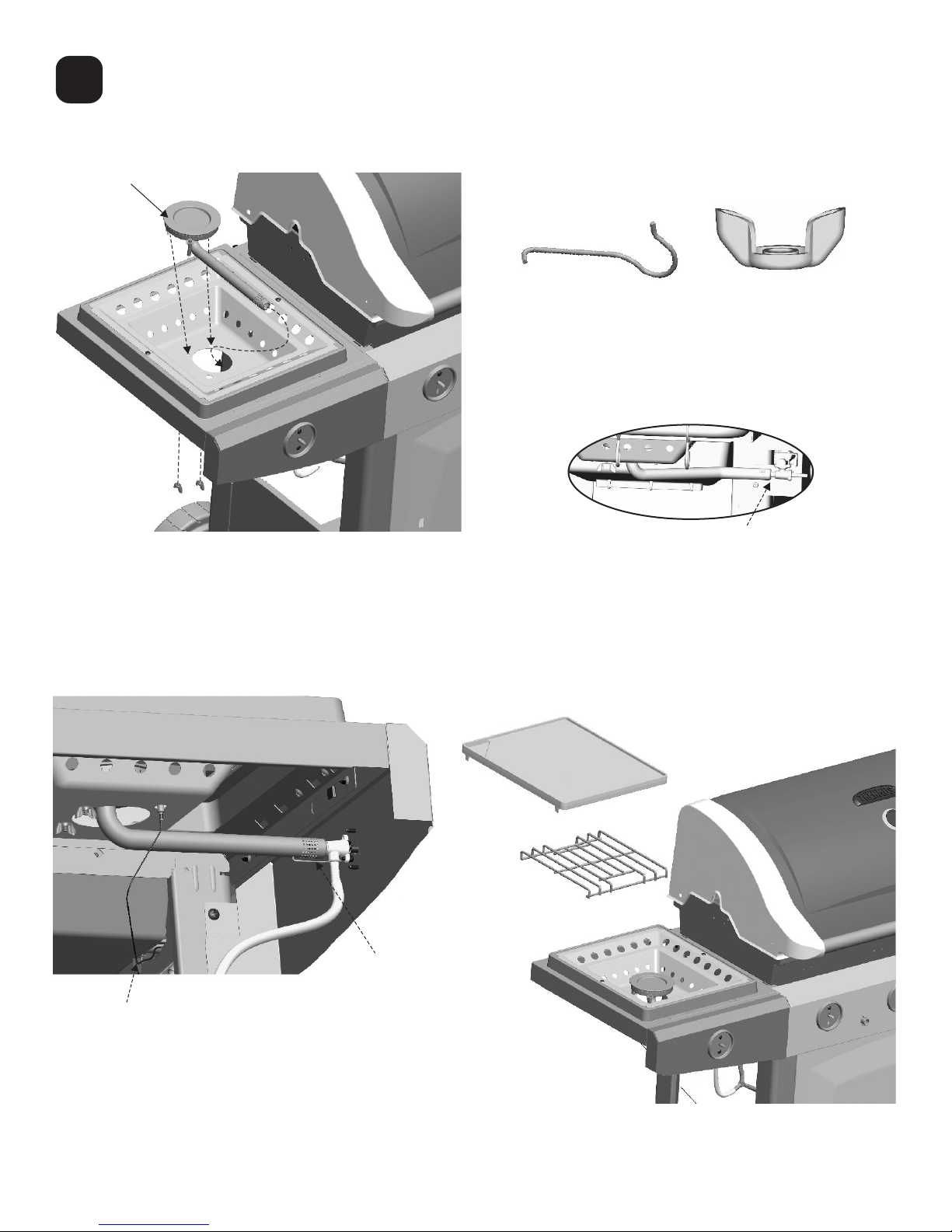

Sideburner

Insert sideburner into assembly. Make sure valve fits into tube before attaching wing nuts to sideburner.

B Attach long wire from electrode to electronic ignition module. Hook sideburner clip to sideburner tube and around manifold. C Place sideburner grid and griddle onto sideburner body

Sideburner Clip Qty: 1

Sideburner tube and valve properly engaged.

#10-24 Wing Nut Qty:2

Long Ignitor Wire

20 • 461410708

Sideburner Clip

NOTE: Remove grid from sideburner before using griddle.

Page 21

Attach hinges to sideburner lid.

B Remove screws from handle and assemble to lid. C Attach lid to sideburner assembly.

#8-32x3/8"

Sideburner

Handle

Sideburner

Lid

Sideburner

Hinge

A Push control knobs onto valve stems. B Insert + side of battery into ignitor module. C Note correct position to hold ignitor button. Push button onto ignitor

module and turn right 1/4 turn to lock in place.

D Attach condiment basket to front panel.

Insert push pin into condiment basket.

#8-32x 3/8” Machine Screw Qty: 4

#10-16x1/2" Self-Tap Screw Qty: 4

#10-16x1/2"

Back of button

Turn 1/4

Correct position

Push Pin Qty: 1

461410708 • 21

Page 22

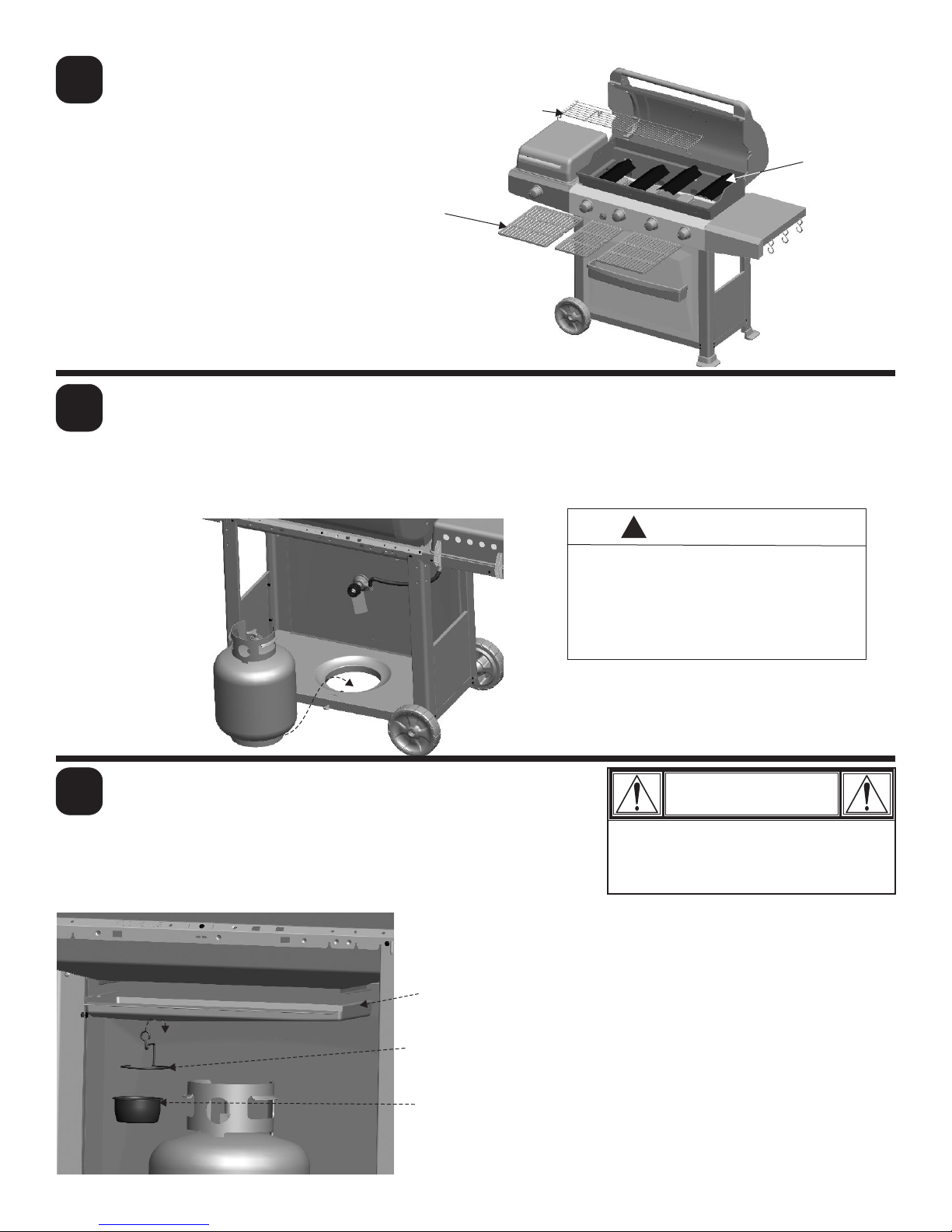

A Note correct position of heat tents directly over burners. B Place grates into firebox. C Place warming rack in slots on bottom casting.

LP cylinder is sold separately. Use only with an (over-fill protection device) OPD equipped LP cylinder. Fill and leak check before attaching to grill and regulator.

Place LP cylinder into hole in bottom shelf. Tighten thumbscrew to hold LP cylinder securely in place.

Grate

Warming Rack

Heat Tents

See the Use & Care manual to correctly install the LP cylinder, Leak Test and do the Burner Flame Check.

Back of cart

A Slide grease tray into brackets on bottom casting. B Hang grease clip on grease tray and place grease cup into grease clip.

CAUTION

• Cylinder collar opening must face to front of cart once cylinder is attached.

• Failure to install cylinder correctly may allow gas hose to be damaged in operation, resulting in the risk of fire.

CAUTION

Failure to install the grease tray will cause hot grease to drip from bottom of grill with risk of fire or property damage.

22 • 461410708

Grease Tray

Grease Clip

Grease Cup

Page 23

EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.

Emergencies

Gas leaking from cracked/cut/burned hose.

Gas leaking from LP cylinder.

Gas leaking from LP cylinder valve.

Gas leaking between LP cylinder and regulator connection.

Fire coming through control panel.

Grease fire or continuous excessive flames above cooking surface.

Troubleshooting

Problem

Possible Cause

• Damaged hose.

• Mechanical failure due to rusting or mishandling.

• Failure of cylinder valve from mishandling or mechanical failure.

• Improper installation, connection not tight, failure of rubber seal.

• Fire in burner tube section of burner due to blockage.

• Too much grease buildup in burner area.

Possible Cause

Prevention/Solution

• Turn off gas at LP cylinder or at source on natural gas systems. If anything but burned, replace valve/hose/regulator. If burned, discontinue use of product until a plumber has investigated cause and corrections are made.

• Replace LP cylinder.

• Turn off LP cylinder valve. Return LP cylinder to gas supplier.

• Turn off LP cylinder valve. Remove regulator from cylinder and visually inspect rubber seal for damage. See LP Cylinder Leak Test and Connecting Regulator to the LP Cylinder.

• Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After fire is out and grill is cold, remove burner and inspect for spider nests or rust. See Natural Hazard and Cleaning the Burner Assembly pages.

• Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After cooling, clean food particles and excess grease from inside firebox area, grease tray, and other surfaces.

Prevention/Solution

Burner(s) will not light using ignitor. (See Electronic Ignition Troubleshooting also)

Continued on next page.

GAS ISSUES:

• Trying to light wrong burner.

• Burner not engaged with control valve.

• Obstruction in burner.

• No gas flow.

• Vapor lock at coupling nut to LP cylinder.

• Coupling nut and LP cylinder valve not fully connected.

ELECTRICAL ISSUES:

• Electrode cracked or broken; “sparks at crack.”

• Electrode tip not in proper position.

• Wire and/or electrode covered with cooking residue.

• See instructions on control panel and in Use and Care section.

• Make sure valves are positioned inside of burner tubes.

• Ensure burner tubes are not obstructed with spider webs or other matter. See cleaning section of Use and Care.

• Make sure LP cylinder is not empty. If LP cylinder is not empty, refer to “Sudden drop in gas flow.”

• Turn off knobs and disconnect coupling nut from LP cylinder. Reconnect and retry.

• Turn the coupling nut approximately one-half to three-quarters additional turn until solid stop. Tighten by hand only - do not use tools.

• Replace electrode(s).

Main Burners:

• Tip of electrode should be pointing toward gas port opening on burner. The distance should be 1/8” to 1/4”. Adjust if necessary.

Sideburner:

• Tip of electrode should be pointing toward gas port opening on burner. the distance should be 1/8” to 3/16”. Adjust if necessary.

• Clean wire and/or electrode with rubbing alcohol and clean swab.

• Wires are loose or disconnected.

• Wires are shorting (sparking) between ignitor and electrode.

• Dead battery.

• Reconnect wires or replace electrode/wire assembly.

• Replace ignitor wire/electrode assembly.

• Replace with a new AA-size alkaline battery.

461410708 • 23

Page 24

Troubleshooting (continued)

Problem

Burner(s) will not light using ignitor. (See Electronic Ignition Troubleshooting also)

Burner(s) will not match light.

Sudden drop in gas flow or low flame.

Possible Cause

ELECTRONIC IGNITION:

• No spark, no ignition noise.

• No spark, some ignition noise.

• Sparks, but not at electrode or at full strength.

PIEZO PUSH-BUTTON AND ROTARY:

• Push-button sticks at bottom.

• Rotary knob rotates without clicking.

• Sparking between ignitor and electrode.

• See “GAS ISSUES:” on previous page.

• Match will not reach.

• Improper method of match-lighting.

• Out of gas.

• Excess flow valve tripped.

Prevention/Solution

• See Section I of Electronic Ignition System.

• See Section II of Electronic Ignition System.

• See Section III of Electronic Ignition System.

• Replace ignitor.

• Replace knob.

• Inspect wire insulation and proper connection. Replace wires if insulation is broken.

• Use long-stem match (fireplace match).

• See “Match-Lighting” section of Use and Care.

• Check for gas in LP cylinder.

• Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP cylinder valve. Disconnect regulator. Reconnect regulator and leak-test. Turn on LP cylinder valve, wait 30 seconds and then light grill.

Flames blow out.

Flare-up.

Persistent grease fire.

Flashback... (fire in burner tube(s)).

Unable to fill LP cylinder.

• Vapor lock at coupling nut/LP cylinder connection.

• High or gusting winds.

• Low on LP gas.

• Excess flow valve tripped.

• Grease buildup.

• Excessive fat in meat.

• Excessive cooking temperature.

• Grease trapped by food buildup around burner system.

• Burner and/or burner tubes are blocked.

• Some dealers have older fill nozzles with worn threads.

• Turn off knobs and LP cylinder valve. Disconnect coupling nut from cylinder. Reconnect and retry.

• Turn front of grill to face wind or increase flame height.

• Refill LP cylinder.

• Refer to “Sudden drop in gas flow” above.

• Clean burners and inside of grill/firebox.

• Trim fat from meat before grilling.

• Adjust (lower) temperature accordingly.

• Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in position and let fire burn out. After grill cools, remove and clean all parts.

• Turn knobs to OFF. Clean burner and/or burner tubes. See burner cleaning section of Use and Care.

• The worn nozzles don’t have enough “bite” to engage the valve. Try a second LP dealer.

One burner does not light from other

• Grease buildup or food particles in end(s) of carryover tube(s).

burner(s).

24 • 461410708

• Clean carry-over tube(s) with wire brush.

Page 25

Troubleshooting - Electronic Ignition

Problem (Ignition)

SECTION I

No sparks appear at any electrodes when ignition button is pushed; no noise can be heard from spark module.

SECTION II

No sparks appear at any electrodes when ignition switch is pushed; noise can be heard from spark module.

Possible Cause

• Battery not installed properly.

• Dead battery.

• Button assembly not installed properly.

• Faulty spark module.

• Output lead connections not connected.

Check Procedure

• Check battery orientation.

• Has battery been used previously?

• Check to insure threads are properly engaged. Button should travel up and down without binding.

• If no sparks are generated with new battery and good wire connections, module is faulty.

• Are output connections on and tight?

Prevention/Solution

• Install battery (make sure that “+” and “–” connectors are oriented correctly, with “+” end up and “–” end down.)

• Replace battery with new AA-size alkaline battery.

• Unscrew button cap assembly and reinstall, making sure threads are aligned and engaged fully.

• Replace spark module assembly.

• Remove and reconnect all output connections at module and electrodes.

SECTION III

Sparks are present but not at all electrodes and/or not at full strength

• Output lead connections not connected.

• Arcing to grill away from burner(s).

• Weak battery.

• Electrodes are wet.

• Electrodes cracked or broken “sparks at crack”.

• Are output connections on and tight?

• If possible, observe grill in dark location. Operate ignition system and look for arcing between output wires and grill frame.

• All sparks present but weak or at slow rate.

• Has moisture accumulated on electrode and/or in burner ports?

• Inspect electrodes for cracks.

• Remove and reconnect all output connections at module and electrodes.

• If sparks are observed other than from burner(s), wire insulation may be damaged. Replace wires.

• Replace battery with a new AA-size alkaline battery.

• Use paper towel to remove moisture.

• Replace cracked or broken electrodes.

461410708 • 25

Page 26

LIMITED WARRANTY

Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after

correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase.

The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid, by the consumer, for review and

examination.

One year LIMITED warranty

Upon consumer supplying proof of purchase as provided herein, Manufacturer will repair or replace the parts listed below which are proven

defective during the applicable warranty period. Parts required to complete such repair or replacement shall be free of charge to you except for shipping costs. The original consumer-purchaser will be responsible for all shipping charges of parts replaced under the terms of this

limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires reasonable proof of your date of purchase. Therefore, you should retain your sales slip or invoice and register your new product immediately. Defective or missing parts subject to this limited warranty will not be replaced without registration and proof of purchase. Register online at http://www.charbroil.com or complete and return via mail the Product Registration Card located on the last page of the Use & Care manual included with this product and retain your sales receipt for proof of purchase.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

If an original replacement part is not available, a comparable replacement part will be sent. You will be responsible for all shipping charges of parts replaced under the terms of this limited warranty.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Service calls to your home.

2. Repairs when your product is used for other than normal, single-family household or residential use.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with

electrical or plumbing codes, or use of products not approved by the manufacturer.

4. Any food loss due to product failures.

5. Replacement parts or repair labor costs for units operated outside the United States or Canada.

6. Pickup and delivery of your product.

7. Repairs to parts or systems resulting from unauthorized modifications made to the product.

8. The removal and/or reinstallation of your product.

9. Shipping cost, standard or expedited, for warranty and replacement parts.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Repair or replacement of defect parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions. THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above.

Manufacturer’s maximum liability, in any event, shall not exceed the documented purchase price of the product paid by the original consumer.

This warranty only applies to units purchased from an authorized retailer and or re-seller.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set for herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumerpurchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Char-Broil Consumer Relations

P. O. Box 1240

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired by calling 1-800-435-5194 and then clearly marked on the outside of the package and the package is shipped freight/postage pre-paid to the address above.

26 • 461410708

Page 27

Please register your product online at:

www.grillregistration.com

(If you register online, you do not need to send in this registration card.)

PLEASE FILL OUT THIS CARD AND RETURN IT WITHIN 10 DAYS OF PURCHASE. FAILURE TO RETURN MAY AFFECT YOUR WARRANTY COVERAGE. FOR WARRANTY

LLENE ESTA TARJETA Y DEVUELVALA DENTRO DE LOS 10 DIAS DE LA COMPRA. SI NO LA DEVUELVE, PUEDE VERSE AFECTADA SU COBERTURA DE GARANTIA.

PARA EL SERVICIO DE GARANTIA ES NECESARIO QUE PRESENTE SU COMPROBANTE DE COMPRA. CONSERVE LA FACTURA. ESTA GARANTIA ES INTRANSFERIBLE.

VEUILLEZ COMPLETER CETTE CARTE ET LA RETOURNER DANS LES 10 JOURS SUIVANT L’ACHAT. LA COUVERTURE DE VOTRE GARANTIE POURRAIT EN ETRE

AFFECTEE SI VOUS NE LE FAITES PAS. POUR OBTENIR LE SERVICE SOUS GARANTIE, UNE PREUVE D’ACHAT DOIT ETRE PRESENTEE. VEUILLEZ CONSERVER

SERVICE PROOF OF PURCHASE WILL BE REQUIRED. PLEASE KEEP YOUR SALES RECEIPT. THIS WARRANTY IS NON-TRANSFERABLE.

VOTRE FACTURE. LA PRESENTE GARANTIE N’EST PAS TRANSFERABLE.

First Name/Nombre/Prénom

Address (number and street)/Dirección (número y calle)/Adresse (numéro et rue)

City/Ciudad/Ville

E-mail Address/Dirección de correo electrónico/Adresse électronique

If you voluntarily provide us with your email address, you give us permission to use your email address to send you offers that may interest you. Si nos informa voluntariamente su dirección de correo electrónico, nos da permiso para usarlo a fin de enviarle ofertas que pueden interesarle. Si vous choisissez de nous fournir votre adresse électronique, vous nous donnez la permission de l’utiliser pour vous faire part d’offres spéciales susceptibles de vous intéresser.

(Example: your name @ your host.com) (Ejemplo: su nombre@su host.com) (Exemple : votre nom@votre hôte.com)

Phone Number/Número telefónico/Numéro de téléphone

IMPORTANT!/¡IMPORTANTE!/IMPORTANT!

Write Serial Number and Model Number in spaces below. Escriba en los espacios de abajo el número de serie y el número de modelo. Inscrivez le numéro de série et le numéro de modèle dans les espaces ci-dessous.

Initial/Inicial/Initiale Last Name/Apellido/Nom de famille

State/Estado/Province

Date of Purchase/Fecha de compra/Date de l’achat

Store Name/Nombre de la tienda/Nom du magasin

Purchase Price/Precio de compra/Prix d’achat

.00

Apt Number/N de apart./N d’appt.

Zip Code/Código zip/Code postal

O O

Your Gender/Sexo/Sexe :

Which product are your registering?

¿Qué producto está registrando? Quel produit enregistrez-vous?

1. Gas Grill/Parrilla a gas/Gril au gaz

2. Electric Grill/Parrilla eléctrica/Gril électrique

3. Smoker/Ahumador/Fumoir

4. Charcoal Grill/Parrilla a carbón/Barbecue au charbon

5. Charcoal Smoker/Ahumador a carbón/Fumoir au charbon

6. Outdoor Fireplace/Chimenea para exteriores/Foyer extérieur

7. Cooker/Fryer / Cocina/freidora / Cuiseur/Friteuse

8. Other/Otro/Autre

1. Male/Masculino/Masculin 2. Female/Femenino/Féminin

Mail to: / Envíelo a: Consumer Warranty Service P. O. Box 1240 Columbus, GA 31902-1240

Thank you for completing this questionnaire. Your answers will help us and other companies reach you with offers that may interest you. If you prefer not to receive these offers, please check here .

Gracias por completar este cuestionario. Sus respuestas nos ayudarán, a nosotros y a otras compañías, a llegar a usted con ofertas que puedan resultarle de interés. Si prefiere no recibir estas ofertas, por favor marque aquí .

Merci d’avoir bien voulu remplir ce questionnaire. Vos réponses nous aideront et aideront d’autres compagnies à vous communiquer des offres spéciales susceptibles de vous intéresser. Si vous préférez ne pas recevoir d’informations concernant ces offres spéciales, veuillez cocher ici .

461410708 • 27

Page 28

STOP

Should you encounter a problem with our product

CALL US FIRST

Do not return this product to the store.

WE CAN HELP

GRILL SERVICE CENTER

1-800-435-5194

HOURS 8AM-6PM EST Mon-Fri

Please ensure your warranty registration is complete.

Grilling Safety Checklist

Read and understand owners manual. Never overfill LP cylinder. Overfilled cylinders may cause freeze-up of

regulator. Check tubes for spider webs. Ensure valves are correctly installed in

burner tubes. Always ensure control knobs are in OFF position and regulator is

attached to tank BEFORE opening tank valve to avoid low flames. Perform leak test regularly.

Thank You for Your Purchase!

Char-Broil, LLC Printed in China • Columbus, GA 31902 •
