Page 1
Oil Heating
Lowboy Furnaces
OL5-OL39 Series
Horizontal OT11-OT16
Built Tough for Lifetime Comfort™
Page 2
Oil Heating At Its Best
ermo Pride —
Dependable Craftmanship
For over 60 years, Thermo
Pride has listened to your
concerns about comfort
and has met your demands
for the best, most reliable,
and effi cient furnaces and
cooling systems. Every
Thermo Pride product
is built with traditional, dependable craftsmanship.
What this means to you is quiet, reliable, long lasting
performance.
Comfort
Comfort is the purpose behind any heating system.
“Temperature rise” makes the difference between
feeling warm, comfortable air from the registers in
your home or the feeling of cool air blowing across
you when the furnace is on. It is the difference
in air temperature from the point where it enters
the furnace to the point where it exits. The higher
the temperature rise—the warmer the air when it
enters the rooms of your home. Thermo Pride has
a standard 70°F temperature rise across its full line
of oil furnaces. This is an air temperature up to
30°F warmer than the competition—providing a far
superior comfort level.
insulated furniture grade steel cabinet helps retain
heat within the furnace and prevents annoying
vibrations during operation. The rounded corners add
structural strength and a pleasing appearance to the
cabinet.
The heat exchanger is fabricated of 13-gauge
copper coated steel in a unique octagonal shape to
increase the surface area and the heat transfer of the
heat exchanger. The copper coating helps prevent
corrosion from external damp conditions. This
unique combination of design and material provides
Thermo Pride oil furnace owners with the confi dence
that these furnaces are made to last a lifetime!
Warranty
The proven longevity of Thermo Pride’s heat
exchanger, combined with the Limited Lifetime
Warranty, virtually eliminates the worry of ever
having to replace your furnace. Should you sell your
home, the heat exchanger warranty will automatically
transfer to the new owners. Thermo Pride furnaces
also come with a “Peace
of Mind” 10-year parts
warranty.
Several of our oil furnaces bear the ENERGY STAR®
logo. These products are 85% or more effi cient, with
an energy effi cient blower system saving you money
on energy bills.
Temperature Rise
Handcrafted Quality
Each Thermo Pride cabinet is powder coated inside
and out for a durable, tough fi nish that will ensure
long life and a quality appearance. The interlocking
Thermo Pride’s manufacturing facilities have earned
the prestigious ISO 9001:2000
certifi cation. This seal assures
consistent quality products through
a structured quality control process
Thermo Pride oil products have also
earned the industry respected certifi cation for safety
from Underwriter’s
Laboratory (UL).
2
Page 3

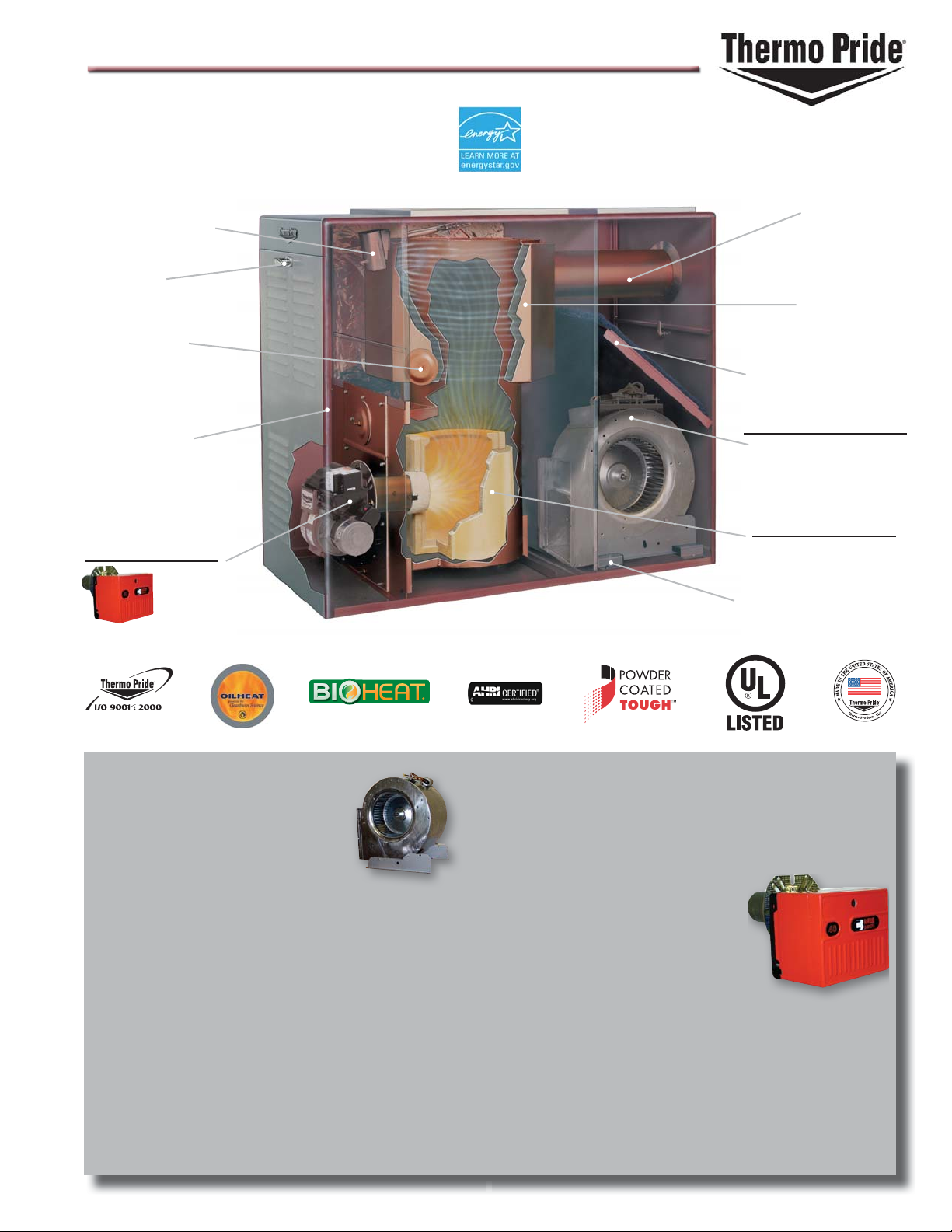

Features and Bene ts
3
Honeywell
Automatic/Manual
Fan & Limit Control
Chrome
Plated Handles
Large, Easily
Accessable
Inspection Ports
22-gauge
Furniture Grade
Steel Cabinet
Construction
High Effi ciency
Flame Retention
Beckett Burner
Optional
Riello
Burner
Front or Rear
Flue Option
13-gauge Copper
Powder Coated
Octatherm
Heat Exchanger
Filter Frame and Filter
Effi cient Direct Drive
Blower Motor
Optional ECM Motor
Available for Increased
Comfort and
Electrical Savings
Ceramic Refractory
Heavy Fiber Chamber
(Available)
Sound and Vibration
Absorbing Blower Mounts
Blower Motors
ermo Pride’s direct-drive blowers
allow the installer to select the
appropriate heating and cooling
blower speed for your home.
Filter Frame and Filter
A washable air lter means cleanliness, convenience,
and cost savings over disposable air lters.
High-E ciency Flame Retention Burner
Beckett hi-speed ame retention
Your furnace is also available with the optional ECM
motor. e ECM motor provides in nite blower
speeds for increased e ciency and ramps up to speed
reducing the annoying burst of cold air from your registers giving you a more comfortable home. It can pay
for itself in electrical savings alone.
burners are standard on ermo
Pride furnaces. ey provide more
complete combustion and higher
fuel e ciency. e Riello burner is
also an available option.
Riello F Series
Ceramic Refractory
e ceramic refractory is designed to assure more
complete combustion which means increased e ciency. It also provides protection for the heat exchanger
from the direct ame and ensures quiet operation.
3
Page 4

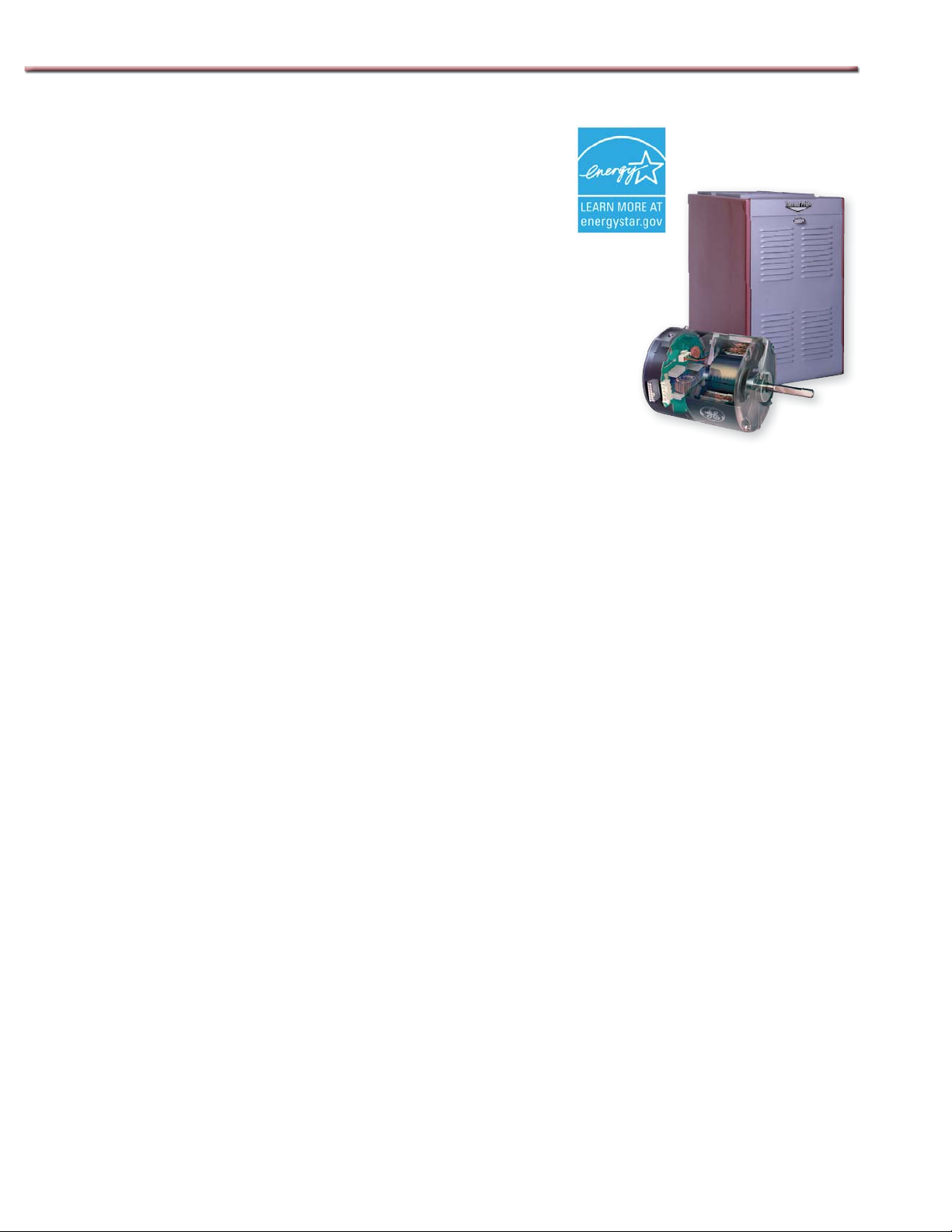

Premiere Oil Furnace with ECM
Blower System
Dependable Craftsmanship with Maximum Comfort
When you want to experience exceptional comfort, increased effi ciency, and
quieter operation while still receiving the handcrafted quality and proven
warranty of Thermo Pride’s traditional oil furnace, select the Premiere Oil
Furnace with the ECM variable-speed blower motor. Since the ECM motor
automatically adjusts its speed for varying heating and cooling modes your
home’s maximum comfort is achieved.
Some of the ECM benefi ts include:
• Energy bills will be lower due to increased electrical effi ciency of the ECM
Motor (especially when you run the blower for long periods of time.)
•
Quieter start up, greater effi ciency, and more comfortable operation due to infi nite fan motor speeds
• Delivery of comfortable airfl ow in both the heating and cooling modes. On a call for heat or cooling the
blower motor starts at the slower speed and builds to the correct running speed
• Automatically compensates for restricted ducts or a dirty air fi lter by increasing the motor speed
(routine fi lter cleaning is still recommended.)
• Reduced fan speeds will save energy and increase comfort levels when the blower runs in circulation mode.
Saving to Experience
Since the ECM variable-speed blower motor uses less electricity than a conventional blower motor, not only will
you have increased comfort, but you can also save money (based on 0.08/kWh electric cost). Savings will vary
depending on model and motor size.
1. Annual Savings for heating your house — average $58
2. Annual Saving for heating and cooling your house — average $76
3. When using a constant fan that runs for air fi ltration, your annual savings can average $480 for just heating
your house or $429 for heating and cooling your house.
“This Furnace is much quieter. Heats rooms that were cool with previous furnace.
So far we have used less kw of power each month compared to the previous year.”
Bob Williams, VP of Rossoe Energy Systems & Oil Company
4
Page 5

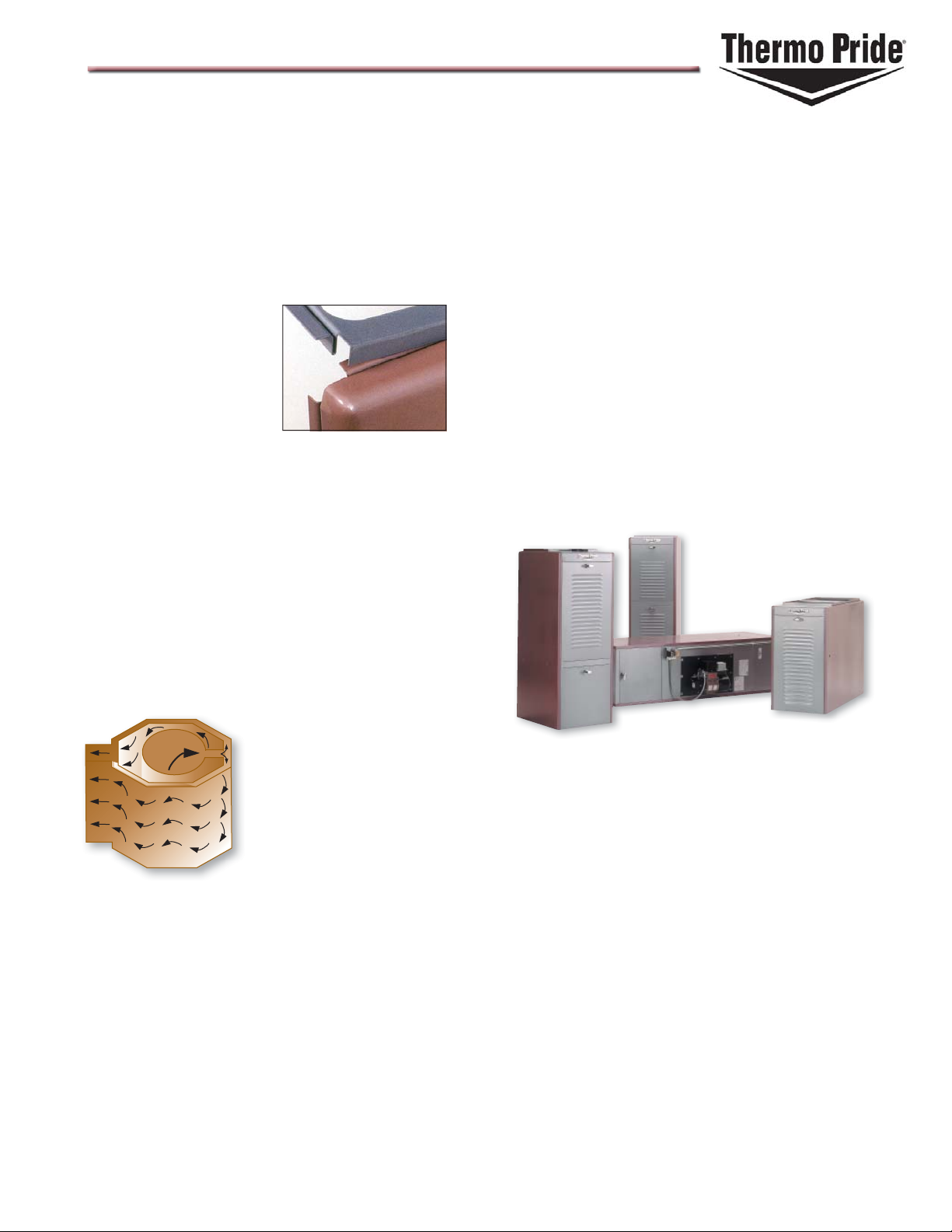

Built with Your
Home in Mind
Cabinet Construction
Thermo Pride cabinet panels are fabricated of 22gauge cold-rolled steel with rounded corners and
an interlocking design for a
more fi nished appearance
and greater strength. The
cabinet is powder coated
on both sides and is lined
with ½” thick reinforced
fi berglass insulation for maximum heat retention.
On all basement, upfl ow and horizontal furnaces,
Thermo Pride incorporates a burner vestibule
enclosure into its design. The vestibule and insulation diminish burner combustion noise and
provide safety by isolating controls from children
and pets.
The octatherm heat exchanger’s unique eight sided
design provides more effi cient use of the heat trans-
fer area. This design puts less stress on the steel and
thus provides a longer life. As a result, the octatherm
design generates increased dependability and a life-
time of comfort for your home.
Perfect Application
Thermo Pride oil furnaces provide complete product
fl exibility. Available in BTU per hour output rages
from 85,000 to 320,000 to comfortably heat any size
home, Thermo Pride oil furnaces offer the widest
selection available—there’s one that’s right for your
home.
Octatherm™ Heat Exchanger
At the heart of every Thermo Pride oil-fi red
furnace is the “Octatherm” heat exchanger. The
heat exchanger is fabricated out of 13-gauge
copper coated steel. Some
manufacturers use less
expensive, thinner 14 or
16-gauge steel. Thermo
Pride’s copper powder
coating helps prevent corrosion from damp conditions often encountered
in basement installations.
Thermo Pride further stands out by individually
sizing its heat exchangers for virtually every model
furnace offered. This helps to assure maximum
effi ciency, longest life, and the highest comfort for
all applications.
Choose from two different confi gurations.
1. Lowboys (OL) for basement use, or where
height may be limited, feature a vestibule-
enclosed burner and either rear or front fl ues.
2. Horizontal (OT) models are designed for crawl
spaces, and are available with either front or
rear fl ue. They are can be installed with either a
right or left hand discharge.
5
Page 6

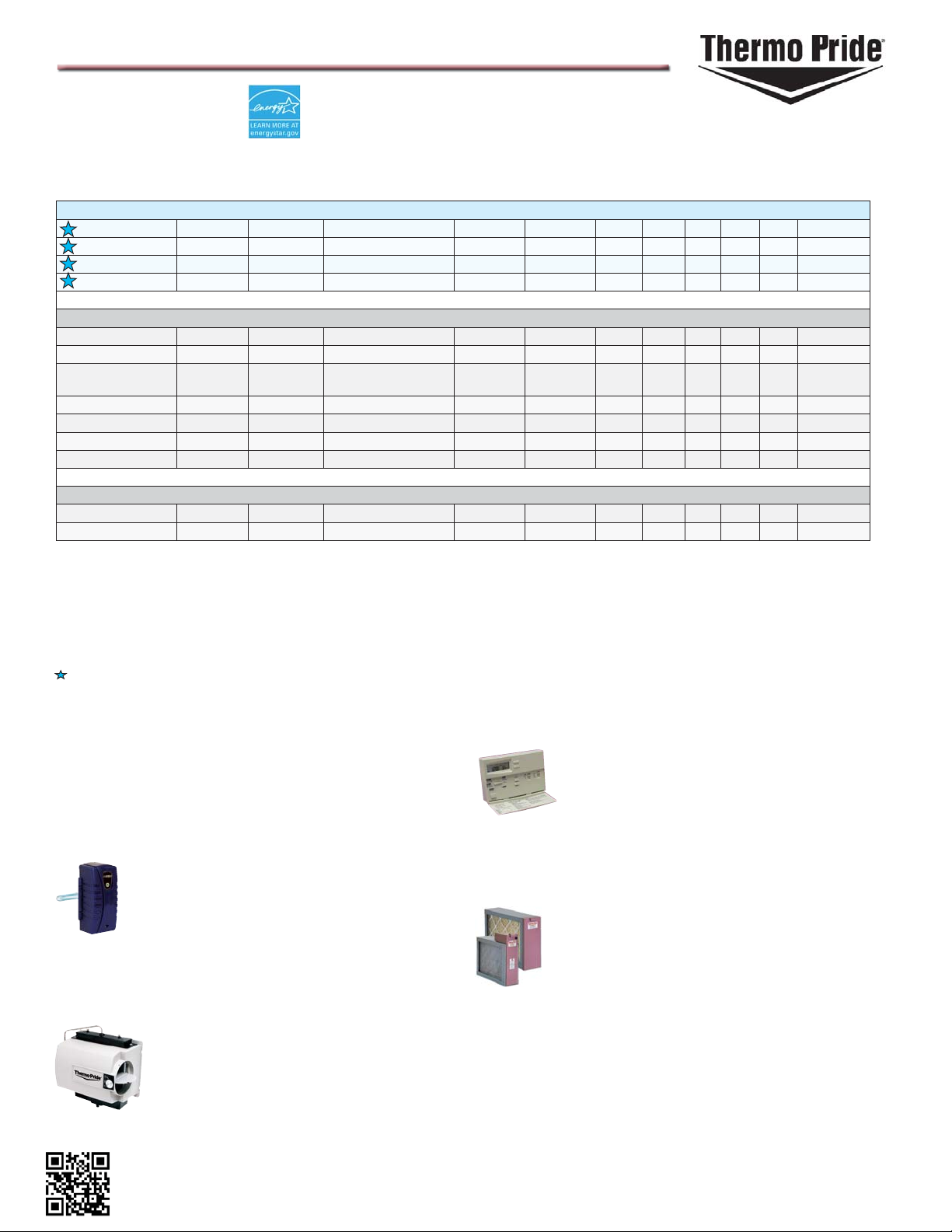

Speci cations
WARM AIR
OUTLET
(INCHES)
W x L
MODEL
NUMBER AFUE%
PREMIERE WITH ECM
OL5-85_DE 85.3 85,000 25 X 50-1/4 X 43-1/4 20 X 20 20 X 14 5 — 3.5 — — 410
OL11-105_DE 85 101,000 25 X 54-1/2 X 46-1/2 20 X 20 20 X 16 6 — 3.5 — — 500
OL16-125_DE 85 125,000 25 X 58-1/2 X 46-1/2 22 X 22 22 X 18 7 — 5 — — 560
OL20-151_DE 85 151,000 27 X 58-1/2 X 50-1/2 22 X 22 22 X 18 7 — 5 — — 600
(1)
BTU/H
OUTPUT
(3)
DIMENSIONS
(INCHES)
W x L x H
RETURN
AIR INLET
(INCHES)
W x L
FLUE
DIA.
MAXIMUM A/C CAPACITY
STANDARD UPGRADE
(IN) BD DD BD DD
APPROX.
SHIPPING
WEIGHT
LOWBOY
OL5-85 85/86
OL11-105 85/82.6
OL16-125 85
OL20-151 85 151,000 27 X 58-1/2 X 50-1/2 22 X 22 22 X 18 7 — 5 — — 600
OL33-200 —
OL37-250 —
OL39-320 —
HORIZONTAL
OT11-105
OT16-125
1. Seasonal effi ciency (Annual Fuel Utilization Effi ciency) ratings are based on tests following U.S. Department of Energy Test Procedures.
2. The second fi gure represents AFUE% ratings with Riello burner option.
3. BTU output based on 80% effi ciency, rated by manufacturer, all specifi cations subject to change without notice.
4. These models have exposed burners. T-units not approved for attic installation.
5. DOE test procedures do not apply on units with 200,000 BTU input or higher.
6. Not Shown: Barometric Draft Regulator - Optional, four-speed direct drive blower with fan center.
All Thermo Pride octagon oil furnaces can be changed easily from oil to either natural or propane (L.P.) gas. For recommendations on selecting the proper burner,
contact Thermo Pride...Design certifi ed conversion burners must be installed and used in accordance with the manufacturer’s instructions, the “American National
Standard installation of domestic gas conversion burners, Z21.8”, and all local installation codes.
As an E
(4)
(4)
NERGY STAR
®
partner, Thermo Pride has determined these models meet ENERGY STAR® 3.0 guidelines.
(2)
85,000 25 X 50-1/4 X 43-1/4 20 X 20 20 X 14 5 — 3.5 — 4 410
(2)
101,000 25 X 54-1/2 X 46-1/2 20 X 20 20 X 16 6 — 3.5 — 4 500
129,000
142,000
(5)
(5)
(5)
78.2 101,000 24-1/2 X 74 X 24 20 X 20 20 X 20 6 — 3.5 — 4 445
78 125,000 26 X 74 X 26 22 X 20 22 X 20 7 — 5 — — 500
200,000 34 X 72 X 60-3/4 28 X 28 28 X 24 9 5 — 10 — 1025
250,000 38 X 85-1/2 X 67-3/4 32 X 32 32 X 28 9 5 — 10 — 1120
320,000 38 X 85-1/2 X 67-3/4 32 X 32 32 X 28 9 8 — 10 — 1150
25 X 58-1/2 X 46-1/2 22 X 22 22 X 18 7 — 5 — — 560
Accessories
Thermo Pride offers a complete line of heating/
cooling equipment. The addition of accessories to your
system can provide greater comfort and a healthier
indoor environment.
UV Aire
Improve the indoor air quality of your home
by adding a UV Aire-Air Purifying System to
your home heating and cooling ductwork. UV
Aire silently and effectively reduces airborne
contaminates including molds, bacteria, yeasts, dust
mites, and viruses that can cause allergies.
Premiere Series Programmable Thermostat
Perfect for a combination heating/
cooling system, the Premiere Series
Programmable Thermostat maximizes
comfort while saving energy. Use up to four different
timed programs to save energy.
Electronic Air Cleaner and Media Air Filter
Air cleaners and media fi lters remove odors
and up to 99% of air born pollutants, plus
keep the dust under control.
Power Humidifi er
Proper humidity levels in your home
increases comfort, reduce annoying static
electricity, dried cracked furniture and
wood trim, and wilting houseplants.
Scan this code
with your smart
phone to visit our
website.
www.thermopride.com
Visit us at www.thermopride.com
PL81410021000 - 2/12
© 2012 Thermo Products, LLC
Loading...
