Thermo Pride Premiere Series Specifications

User-friendly Features

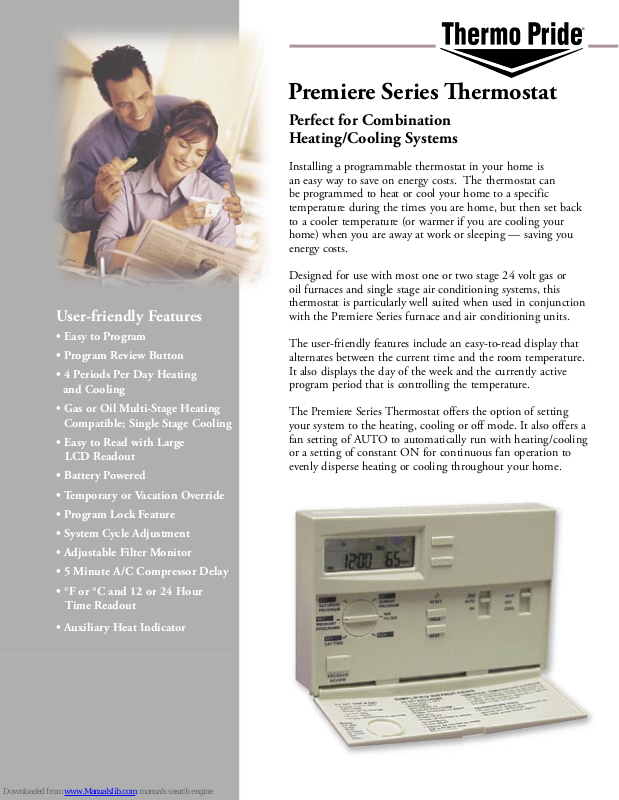

Premiere Series  ermostat

Perfect for Combination
Heating/Cooling Systems

Installing a programmable thermostat in your home is
an easy way to save on energy costs. The thermostat can
be programmed to heat or cool your home to a specific
temperature during the times you are home, but then set back
to a cooler temperature (or warmer if you are cooling your
home) when you are away at work or sleeping — saving you
energy costs.

Designed for use with most one or two stage 24 volt gas or
oil furnaces and single stage air conditioning systems, this
thermostat is particularly well suited when used in conjunction
with the Premiere Series furnace and air conditioning units.

• Easy to Program

• Program Review Button

• 4 Periods Per Day Heating
and Cooling

• Gas or Oil Multi-Stage Heating
Compatible; Single Stage Coolin

• Easy to Read with Large
LCD Readout

• Battery Powered

• Temporary or Vacation Override

• Program Lock Feature

• System Cycle Adjustment

• Adjustable Filter Monitor

• 5 Minute A/C Compressor Delay

• °F or °C and 12 or 24 Hour
Time Readout

• Auxiliary Heat Indicator

g

The user-friendly features include an easy-to-read display that
alternates between the current time and the room temperature.
It also displays the day of the week and the currently active
program period that is controlling the temperature.

The Premiere Series Thermostat offers the option of setting
your system to the heating, cooling or off mode. It also offers a
fan setting of AUTO to automatically run with heating/cooling
or a setting of constant ON for continuous fan operation to
evenly disperse heating or cooling throughout your home.

Dimensions:

or 2 stage heating and 1 stag

cooling thermostat with sealed relay contacts. Pre

with 4 adjust

heating and cooling periods

(

AMPS at 24v AC. Requires 2 AA batteries (included)

RH, B, O, RC

15-minute increments with program dial

increments. F

(

Specifications

Easy to read display

alternates between time

& room temperature and

displays set emperature

Simple to program controls

Program review button

Programming instructions

printed right on thermostat

for easy reference

AUTO or continuous

ON fan options

Set to HEAT, COOL

or OFF mode

Form No. PL81410061007 - 3/05-5Ms

Printed in the U.S.A.

© 2005 Thermo Pride - North Judson, IN
