Thermoplan TIGER Technical Manual

Download
1
Technical Manual
© 2006 by Thermoplan, Subject to change
Tiger REV-7
SECTION 5
Preventative Maintenance
Document: Preverantive Maintenance
Modication journal
Revision: Date: Modications Visa:
0 2006-02-01 Basic document, premier edition SS
1 2006-08-31 Complete revision SS
2 2006-09-25 Supplement of the Plate rear support in the PM Kit 60k SS
3 2006-11-15 Supplement of the O-ring (71.28.40) and Lip valve (71.20.0304) in the PM Kit 60K KR
4 2007-10-31 Different Modications KR
5 2008-10-06 Add of Contact spring loaded (71.37.27) in all CTM Kits KR
6 2008-11-19 Different Modications KR
7 2009-03-10 Different Modications KR
8
9
10
1 X X X X X
2 X X X X X X
3 X X X X X
4 X X X X X
5 X X X X X
6 X X X X X
7 X X X X X
8 X X X X X
9 X X X X X
10 X X X X X
11 X X X X X
12 X X X X X
13 X X X X X
14 X X X X X
15 X X X X X
16 X X X X X
17 X X X X X X
18 X X X X X
19 X X X X X
20 X X X X X
21 X X X X X
22 X X X X X
23 X X X X X X
24 X X X X X
25 X X X X X
26 X X X X X X
27 X X X X X
28 X X X X X
29 X X X X X X
30 X X X X X X
31 X X X X X X X
32 X X X X X X X
33 X X X X X
34 X X X X X
35 X X X X
36 X X X X
37 X X X X
38 X X X X
39 X X X X
40 X X X X
41 X X X X
42 X X X X
43 X X X X
44 X X X X
45 S X X
46 S X X
47 S X X
48 S X X
49 S X X
50 S X X
51 S X X
52 S X X
53 S X X
54 S X X
55 S X X
56 S X X
57 S X
58 S X
59 X
60 X
61 X
62 X
63 X
64 X
65 X
66 X
67 X
68 X
69 X
70 X
71 X
72 X
73 X
74 X
75 X
76 X
77 X
Page
REVISION
Page
REVISION
Page
REVISION
Overview modications
Verison: Replacement for page: Attachement to page: Page:
X Changes in content, corrections S New paging
Index
Details of Preventative Maintenance 4
Service Kit Tiger CT/CTS 30k 5 - 7
Service Kit Tiger CTM 30k 8 - 10
Service Kit Tiger 30k 11 - 17
Service Kit Tiger CT/CTS 30k 18
Service Kit Tiger CTM 30k 19
Service Kit Tiger CT/CTM/CTS 60k 20 - 25
Service Kit Tiger 60k 26 - 36
Service Kit Tiger CT 60k 37 - 38
Service Kit Tiger CTM 60k 39 - 41
Service Kit Tiger CTS 60k 42 - 44
Service Kit Tiger CT/CTM/CTS 120k 45 - 50
Service Kit Tiger 120k 51 - 61
Service Kit Tiger CT1 Mill 120k 62 - 63
Service Kit Tiger CT2 Mills 120K 64 - 65
Service Kit Tiger CTM1 Mill 120k 66 - 68
Service Kit Tiger CTM2 Mills 120k 69 - 71
Service Kit Tiger CTS1 Mill 120k 72 - 74
Service Kit Tiger CTS2 Mills 120k 75 - 77
PREVENTIVE MAINTENANCE
Preventive Maintenance is crucial to the production of quality coffee products and the sustained use and reliability of the machine.
The recommended actions and parts replacements below will ensure the quality of product and the reliability of the machine. These actions are based on a reoccurring preventive maintenance schedule as a function of brew cycle counts. The machine will automatically display a ”PM Required” prompt to the operator when the ”Service interval” setting is reached. This will prompt the operator to contact a service/repair technician and have the preventive maintenance actions below performed.
It is recommended that the preventive maintenance service is done every 30‘000 brew cycles.
There are 3 levels of preventive maintenance service interventions:
- 30‘000 cycles
- 60‘000 cycles
- 120‘000 cycles (Mill wheel pair)
Since the preventative maintenance levels are based on the coffee unit by brew cycle counts, the time between maintenance calls will depend on the daily volume of drinks produced on an individual machine.
Details of Preventative Maintenance
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CT/CTS 30k
Inspect
Clean
Replace
Article number Description
72.12.12 Enclosure, assembly
71.16.53 Ventilation work sheet left C
71.16.54 Ventilation work sheet right C
107.530 Drip tray, assembly
108.107 Valve for drainage tray, assembly I
108.106 Shaft sealing ring ø12x19x5 E
72.21.20 POD Tiger, assembly I
115.039 Filter POD I
72.22.04 Filter POD, assembly C
72.40.46 Bean hopper 2 Mills Tiger, assembly C
Distributor Bean hopper I
71.43.66 Closure plate right I
71.43.69 Closure plate left C
Bean hopper

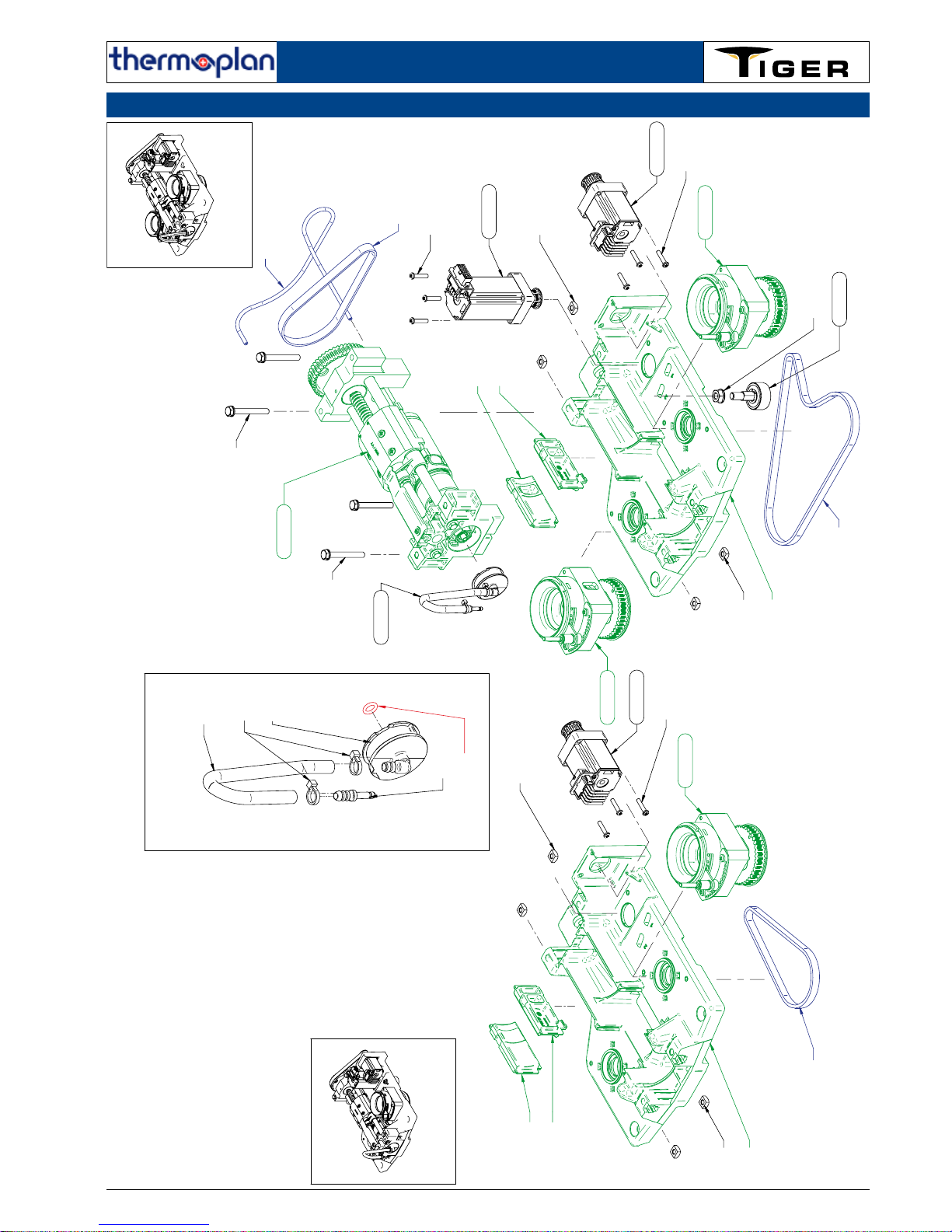

72.01.15 Mechanical module 2 Mills Tiger, assembly
71.01.92 Powder diffuser left grinder C
71.01.93 Powder diffuser right grinder C
71.01.97 Base support C
71.01.94 Cap for powder channel C
71.20.0177 Pipe ø4/2x 430mm I
71.43.04 Toothbelt 10 T5/365-PAZ I
71.43.08 Toothbelt 360-5M-9 I
71.43.09 Toothbelt 610-5M-9 I
72.00.84 Mill right Tiger, assembly C
72.00.85 Mill left Tiger, assembly C
72.00.98 Brew chamber, assembly C
72.21.52 Connection MECA-POD
71.20.04 O-ring 6.07x1.78 R
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CT/CTS 30k
Inspect
Clean
Replace
Article number Description
100.990 Brew chamber, assembly
100.998 Brew chamber with piston, assembly C
Support Brew chamber, assembly C
104.947 Guidee sleeve P11 1212 E
104.651 Brew chamber nut 14x4 C
103.826 Moving piston head I
100.370 Shaft moving piston C
104.818 O-ring 10.69x3.53 C
104.360 Filter with clip C
103.957 Front support, assembly
104.360 Filter with clip C
101.972 Fix piston Tiger, assembly C
107.654 Clip collar, assembly C
103.936 Rear support with drive spindel, assy.
105.589 Drive spindle Rondo 14x4 C
72.00.84/72.00.85 Mill right Tiger, assembly / Mill left Tiger, assembly
71.01.96 Mill body ø54 C
71.43.10 Mill wheel pair steel right I
71.43.11 Mill wheel pair steel left I
71.46.04 Disc for mill ø54 R
72.01.67 Mill upper support, assembly
Mill wheel upper support ø54 C
71.26.74 O-ring 59x2 I
72.01.68 Mill lower support right, assembly
Mill wheel pair steel right I
Mill wheel lower support ø54 C
72.01.69 Mill lower support left, assembly
Mill wheel pair steel left I
Mill wheel lower support ø54 C
72.01.13 Toothbelt pulley mill ø54, assembly I
72.23.80 Connection block assembly, TS module
71.22.50 Outlet nozzle 1.3mm I
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CT/CTS 30k
Inspect
Clean
Replace
Article number Description
72.30.31 Ventilation pillar, assembly
71.42.39 Axial-fan 24VDC, 2W (80x80x25) R
72.40.75 Airlter basement, assembly
71.43.92 Filter Tiger base air entry K
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CTM 30k
Inspect
Clean
Replace
Article number Description
72.12.12 Enclosure, assembly
71.16.53 Ventilation work sheet left C
71.16.54 Ventilation work sheet right C
107.530 Drip tray, assembly
108.107 Valve for drainage tray, assembly I
108.106 Shaft sealing ring ø12x19x5 E
72.21.20 POD Tiger, assembly I
115.039 Filter POD I
72.22.04 Filter POD, assembly C
72.22.08 Milk outlet Tiger, assembly C
10.09.10 O-ring 5x1.5 R
72.40.46 Bean hopper 2 Mills Tiger, assembly C
Distributor Bean hopper I
71.43.66 Closure plate right I
71.43.69 Closure plate left C
Bean hopper
72.01.15 Mechanical module 2 Mills Tiger, assembly
71.01.92 Powder diffuser left grinder C
71.01.93 Powder diffuser right grinder C
71.01.97 Base support C
71.01.94 Cap for powder channel C
71.20.0177 Pipe ø4/2x 430mm I
71.43.04 Toothbelt 10 T5/365-PAZ I
71.43.08 Toothbelt 360-5M-9 I
71.43.09 Toothbelt 610-5M-9 I
72.00.84 Mill right Tiger, assembly C
72.00.85 Mill left Tiger, assembly C
72.00.98 Brew chamber, assembly C
72.21.52 Connection MECA-POD
71.20.04 O-ring 6.07x1.78 R
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CTM 30k
Inspect
Clean
Replace
Article number Description
100.990 Brew chamber, assembly
100.998 Brew chamber with piston, assembly C
Support Brew chamber, assembly C
104.947 Guidee sleeve P11 1212 E
104.651 Brew chamber nut 14x4 C
103.826 Moving piston head I
100.370 Shaft moving piston C
104.818 O-ring 10.69x3.53 C
104.360 Filter with clip C
103.957 Front support, assembly
104.360 Filter with clip C
101.972 Fix piston Tiger, assembly C
107.654 Clip collar, assembly C
103.936 Rear support with drive spindel, assy.
105.589 Drive spindle Rondo 14x4 C
72.00.84/72.00.85 Mill right Tiger, assembly / Mill left Tiger, assembly
71.01.96 Mill body ø54 C
71.43.10 Mill wheel pair steel right I
71.43.11 Mill wheel pair steel left I
71.46.04 Disc for mill ø54 R
72.01.67 Mill upper support, assembly
Mill wheel upper support ø54 C
71.26.74 O-ring 59x2 I
72.01.68 Mill lower support right, assembly
Mill wheel pair steel right I
Mill wheel lower support ø54 C
72.01.69 Mill lower support left, assembly
Mill wheel pair steel left I
Mill wheel lower support ø54 C
72.01.13 Toothbelt pulley mill ø54, assembly I
Service Kit Tiger 30k
70.07.00 Service Kit Tiger CTM 30k
Inspect
Clean
Replace
Article number Description
Exit Milk C
72.22.21
Labyrinthplate Thermoblock, assembly
Central tting labyrinth disc
I
71.20.0137
Sealing Thermoblock
R
71.29.28
Labyrinthlpate Thermoblock
C

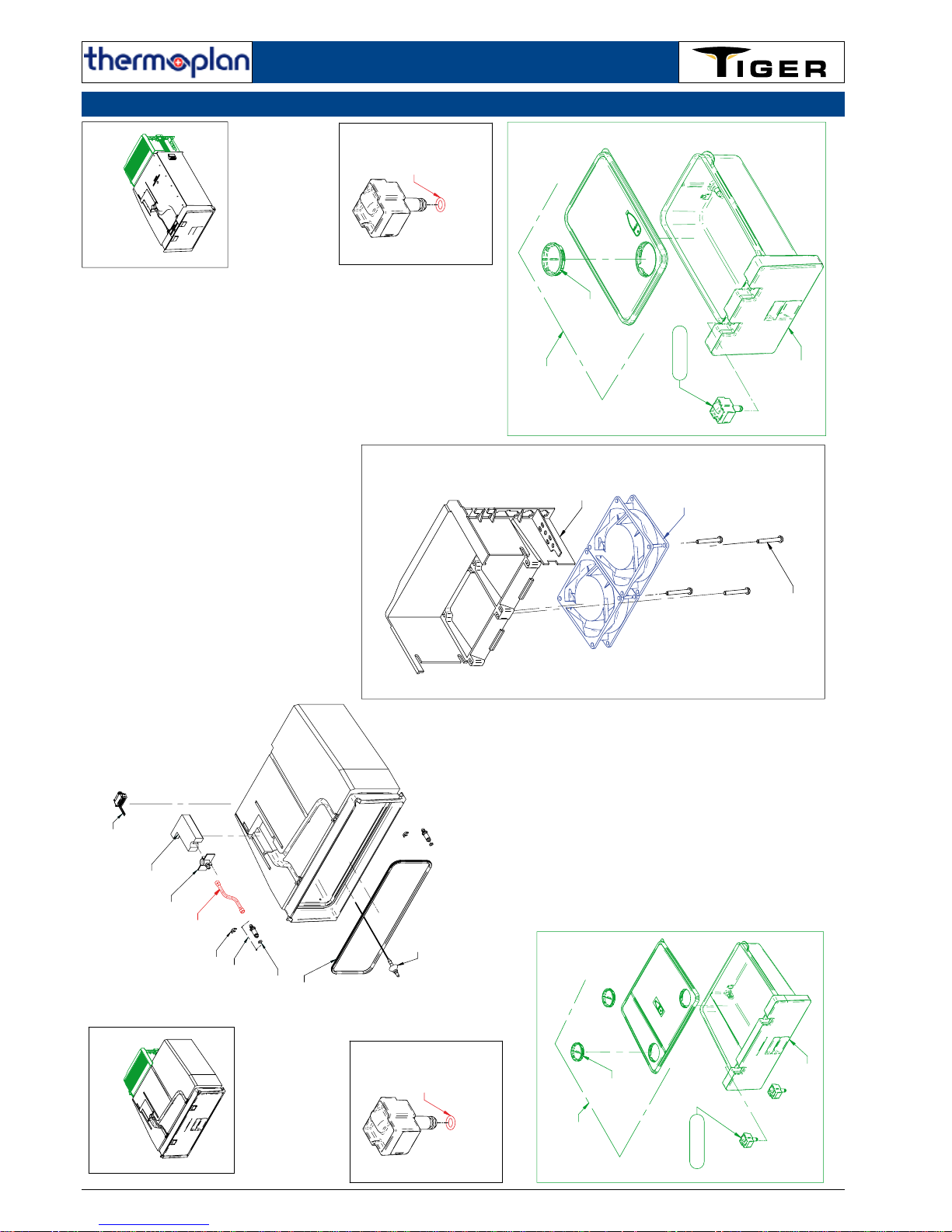

72.30.31 Ventilation pillar, assembly
71.42.39 Axial-fan 24VDC, 2W (80x80x25) C
72.40.75 Airlter basement, assembly
71.43.92 Filter Tiger base air entry I
72.40.82 Milk base module 2l, assembly
Cooling system peltier milk, assembly C
72.42.38 Milk base module 4l, assembly
Cooling system peltier milk, assembly C
71.37.27 Contact pin sprin-loaded R
72.40.93 Fan unit cooling element
71.34.94 Fan 80x80x25 24VDC I
72.41.04 Milk tank 2l, assembly I
71.46.61 Milk tank 2l I
72.41.11 Suction part milk tank, assembly I
72.42.96 Cover milk tank 2l, assembly I
71.44.26 Plug water and milk tank I
72.42.36 Milk tank 4l, assembly I
72.41.11 Suction part milk tank, assembly I
72.42.35 Milk tank 4l, weld I
72.42.99 Cover milk tank 4l, assembly I
71.44.26 Plug water and milk tank I
Service Kit Tiger 30k
71.16.13
71.43.22
71.16.54
71.16.53
72.12.12
71.52.80
71.52.80
108.107
107.530
108.107
106.686
108.105
107.737
107.724
108.106
Service Kit Tiger 30k
02.12.27
80.22.27
01.90.01
40.22.27
90.22.27
80.22.27
20.20.17
30.20.17
40.15.17
05.51.17
34.10.17
14.20.17
40.15.17
04.20.17
04.82.17
31.22.27
35.35.17
54.10.17
34.10.17
77.45.17
83.20.17
72.40.46
71.43.71
71.43.68
71.43.64
71.02.24
71.02.25
71.43.76
71.43.76
71.43.69
71.43.64
07.35.12
71.43.20
71.43.66
07.35.12
930.511
42.12.27
21.22.27
49.92.17
44.32.27
40.15.17
40.15.17
15.51.17
Service Kit Tiger 30k
22.10.27
12.10.27
00.10.27
54.35.17
54.35.17
40.34.17
7710.02.17
80.15.17
43.35.17
80.15.17
43.35.17
90.34.17
10.05.17
79.10.17
51.10.27
39.10.17
29.10.17
12.10.27
49.10.17
39.10.17
43.35.17
80.15.17
43.35.17
80.34.17
79.10.17
61.10.27
72.21.52
71.27.90
71.40.69
71.27.59
71.20.04
71.20.0151
72.21.52
89.00.27
48.00.27
58.00.27
48.00.27
Service Kit Tiger 30k
063.401
279.101
899.001
456.701
759.301
628.301
063.401
818.401
073.001
156.401
985.501
749.401
639.301
072.601
792.801
586.601
834.101
590.601
094.101
739.301
369.101
410.401
722.201
255.601
876.701
325.601
983.501
488.301
072.601
919.501
100.101
249.401
456.701
908.301
099.001
799.001
899.001
749.801
948.401
973.601
500.101
503.701
370.601
249.401
376.601
040.401
912.011
249.401
370.601
773.201
422.011
382.011
489.701
799.001
194.401
639.301
120.211
110.801
927.801
597.401
032.401
488.101
138.301
107.611
279.101
955.501
236.401
549.401
969.301
420.401
059.101
759.301
368.301
:à'uqsuj / litnu / sib
9002 .naJ
Only with magnet compatibly
Service Kit Tiger 30k
72.00.84
71.50.01
71.40.10
71.02.00
71.40.10
71.01.98
71.50.02
71.51.00
71.50.14
71.51.60
71.02.74
72.01.05
72.00.84 / 72.00.85
71.40.10
71.02.00
71.50.01
71.40.10
71.01.98
71.50.02
72.01.05
71.02.74
71.51.60
71.51.00
71.50.14
71.05.19
72.01.69
72.01.67
71.05.19
72.01.68
72.01.67
71.26.74
71.43.11
71.01.96
71.46.04
72.01.13
72.01.13
71.26.74
71.43.10
71.01.96
71.46.04
72.00.85
Service Kit Tiger 30k
9 0 . 3 2 . 2 7 / 9 1 . 2 2 . 2 7
1 2 . 2 2 . 2 7
1 7 . 3 5 . 1 7
2 7 . 3 5 . 1 7
8 2 . 3 0 . 1 7
8 2 . 9 2 . 1 7
7 3 1 0 . 0 2 . 1 7
0 6 . 5 2 . 1 7
2 2 . 2 2 . 2 7
8 4 . 3 2 . 2 7
1 3 . 0 3 . 2 7
2 9 . 4 3 . 1 7
2 7 . 0 5 . 1 7
5 3 . 3 5 . 1 7
9 3 . 2 4 . 1 7
4 1 . 6 1 . 1 7
7 3 . 6 4 . 1 7
Durchgang reinigen
72.23.80
71.20.50
71.21.27
71.28.10
71.22.16
71.20.63
71.24.97
71.24.99
71.24.98
10.09.10
71.23.08
71.22.48
71.20.79
71.21.26
71.21.29_bobine
71.21.04
72.70.13
72.20.03
71.22.10
71.20.04
71.21.53
71.20.38
71.20.38
72.20.84
72.20.39
71.20.37
71.22.50
Service Kit Tiger 30k
72.45.26
3 9 . 0 4 . 2 7
0 6 . 3 5 . 1 7
0 1 . 6 1 . 1 7
4 9 . 4 3 . 1 7
6 3 . 2 4 . 2 7
1 1 . 1 4 . 2 7
5 3 . 2 4 . 2 7
9 9 . 2 4 . 2 7
6 2 . 4 4 . 1 7
8 3 . 2 4 . 2 7
71.43.92
71.43.91
71.16.58
72.40.74
72.40.75
16.64.17
40.14.27
11.14.27
62.44.17
69.24.27

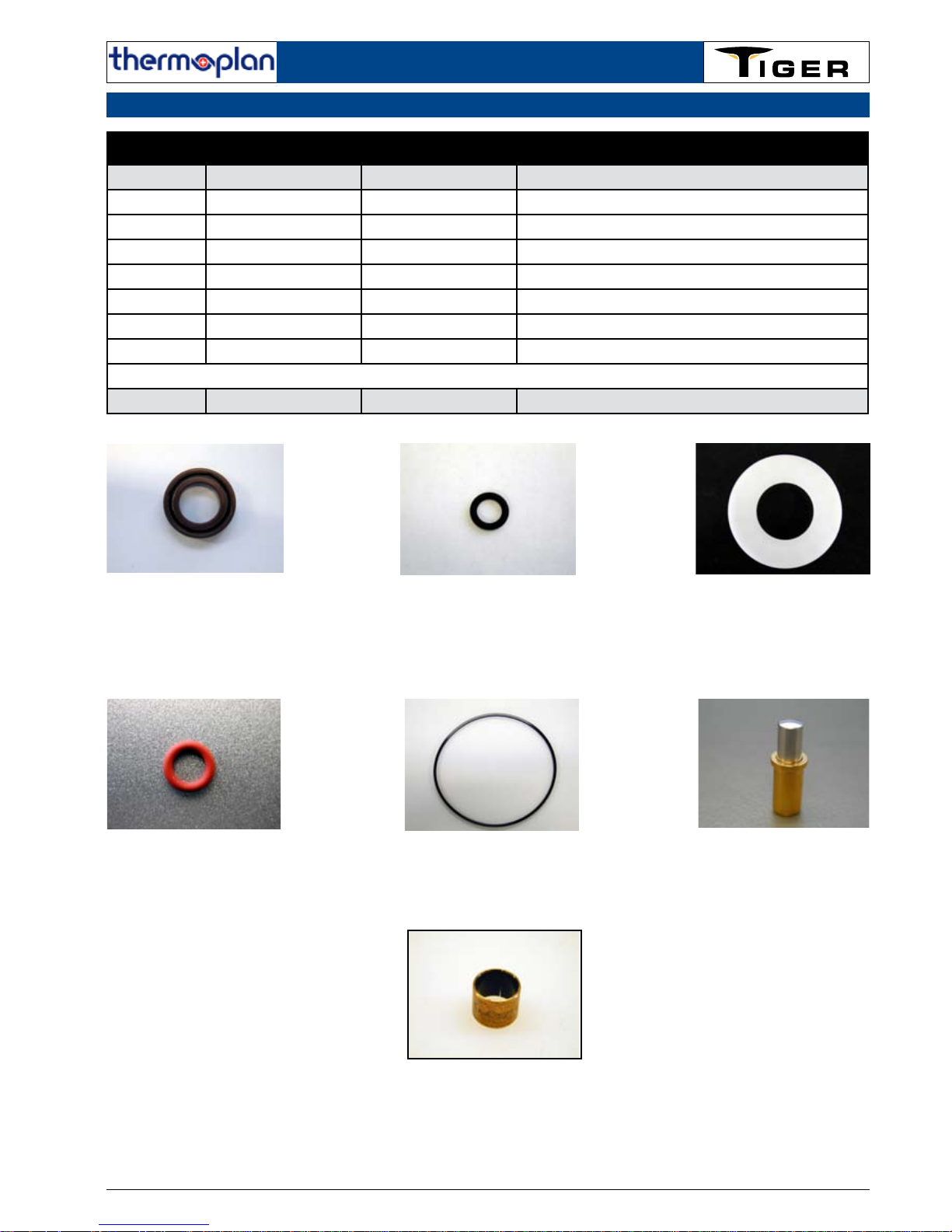

Service Kit Tiger CT/CTM/CTS 30k
70.07.00 Service Kit Tiger CT/CTS 30k
Qty. Article number old Article number new Description
1 71.20.0279 108.106 Shaft sealing ring ø12x19x5
1 71.20.04 104.795 O-ring ø6.07x1.78 1 71.41.71 104.947 Guide sleeve P11 PAP 1212 2 71.46.04 104.598 Disc for mill ø54
1 70.07.00 106.448 PM Kit Tiger CT/CTS 30‘000
71.20.04 / 104.795 O-ring ø6.07x1.78
71.46.04 / 104.598
Disc for mill ø54
71.20.0279 / 108.106
Shaft sealing ring ø12x19x5
71.41.71 / 104.947
Guide sleeve P11 PAP 1212
Service Kit Tiger CT/CTM/CTS 30k
70.07.01 Service Kit Tiger CTM 30k
Menge Artikelnummer alt Artikelnummer neu Beschreibung
1 10.09.10 104.793 O-Ring ø5x1.5 1 71.20.0137 101.406 Dichtung Thermoblock 1 71.20.0279 108.106 Wellendichtung ø12x19x5 1 71.20.04 104.795 O-Ring ø6.07x1.78 1 71.41.71 104.947 Permaglide Buchse P11 PAP 1212 2 71.37.27 102.325 Gefederter Kontaktstift 2 71.46.04 104.598 Mühlenscheibe
1 70.07.00 106.448 PM Kit Tiger CTM 30‘000
10.09.10 / 104.793 O-ring ø5x1.5
71.20.0137 / 101.406 Sealing Thermoblock
71.20.04 / 104.795 O-ring ø6.07x1.78
71.46.04 / 104.598
Disc for mill ø54
71.20.0279 / 108.106
Shaft sealing ring
ø12x19x5
71.37.27 / 102.325
Contact pin spring-loaded
71.41.71 / 104.947
Guide sleeve P11 PAP 1212
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.12.12 Enclosure, assembly
71.16.53 Ventilation work sheet left C
71.16.54 Ventilation work sheet right C
107.530 Drip tray, assembly
108.107 Valve for drainage tray, assembly I
108.106 Shaft sealing ring ø12x19x5 R
Distributor
101.222 Steam outlet NTC, assembly (CTS)
108.530 Kneecap of exit T&V, assembly R
101.383 Seal 1/8“
108.531 Steam pipe NTC with O-ring, assembly R
104.797 O-ring 6.75x1.78
100.453 Milk suction (front), assembly (CTM) I
100.452 Milk suction
Milk outlet I
100.473 Silicone hose ø8.5/4x 500mm I
106.591 Silicone tube ø8.5/4x500mm I
100.447 Suction
72.21.20 POD Tiger, assembly I
115.039 Filter POD R
71.28.40 O-Ring 4.42x2.62 I
72.22.04 Filter POD, assembly R
72.22.08 Milk outlet Tiger, assembly (CTM)
72.40.46 Bean hopper 2 Mills Tiger, assembly C
Distributor Bean hopper I
71.43.66 Closure plate right I
71.43.69 Closure plate left
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.01.15 Mechanical module 2 Mills Tiger, assembly
71.01.92 Powder diffuser left grinder R
71.01.93 Powder diffuser right grinder R
71.01.94 Base support R
71.01.97 Cap for powder channel R
71.20.0177 Pipe ø4/2x 430mm E
71.43.04 Toothbelt 10 T5/365-PAZ K
71.43.08 Toothbelt 360-5M-9 K
71.43.09 Toothbelt 610-5M-9 K
72.21.52 Connection MECA-POD E
100.990 Brew chamber, assembly
100.998 Brew chamber with piston, assembly R
104.491 Mobil piston, assembly
103.826 Moving piston head K
104.818 O-ring 10.69x3.53 E
104.360 Filter with clip E
101.005 Brew chamber with guide, assembly
104.651 Brew chamber nut 14x4 R
106.073 Scraper ring G12x19x3/5 K
110.283 Support brew chamber, assembly R
104.947 Guide sleeve P11 1212 E
Support brew chamber R
103.936 Rear support with drive spindel, assembly
105.589 Drive spindle Rondo 14x4 R
101.963 Spring steel plate E
103.957 Front support, assembly R
101.972 Fix piston, assembly R
104.795 O-ring 6.07x1.78 E
104.230 Cuff for piston E
105.559 Pipe ø6/4x 58 E
104.360 Filter with clip E
107.654 Clip collar, assembly R
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.00.84/72.00.85 Mill right/left Tiger, assembly C
72.00.84 Mill right, assembly
71.01.96 Mill body ø54 C
71.43.10 Mill wheel pair steel right I
71.46.04 Disc for mill ø54 R
72.01.67 Mill upper support, assembly
Mill upper support ø54 C
71.26.74 O-ring 59x2 I
72.01.68 Mill lower support right, assembly
Mill low support ø54 C
71.43.10 Mill wheel pair steel right I
72.01.13 Toothbelt pulley mill ø54, assembly I
72.00.85 Mill left Tiger, assembly
71.01.96 Mill body ø54 C
71.43.11 Mill wheel pair steel rleft I
71.46.04 Disc for mill ø54 R
72.01.67 Mill upper support, assembly
Mill upper support ø54 C
71.26.74 O-ring 59x2 I
72.01.69 Mill lower support left, assembly
Mill low support ø54 C
71.43.11 Mill wheel pair steel rleft I
72.01.13 Toothbelt pulley mill ø54, assembly I
72.22.46 Hydraulic unit CTM int. / WT, assembly (CTM)
71.20.0183 Silicone tube ø8.5/4x 95mm (CTM) E
103.289 Coffee boiler Tiger, assembly
104.882 O-ring 66.68x3.53 R
102.448 Straight connection 4-1/8“, SW13 I
104.167 Solenoid valve 2 ways, assembly
100.426 Plunger with seal R
104.170 Solenoid valve 3-and 2-way, assembly
100.429 Plunger with seal for 3/2 way R
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.70.86 / 72.71.01 Tea Steam Module Tiger 230V / Tea Steam Module Tiger 115V (CTS)
71.20.0420 Straight Schott connection 6-4 (CTS) R
71.20.0421 Straight Schott connection 6-6 (CTS) R
71.20.0479 Silicon hose ø7/10x185mm (CTS) R
71.20.0480 Silicon hose ø7/10x70mm (CTS) R
71.20.0481 Silicon hose ø7/10x45mm (CTS) R
72.23.80 Connection block assembly, TS module (CTS)
10.09.10 O-ring 5x1.5 R
71.20.04 O-ring 6.07x1.78 R
71.20.38 O-ring 6.75x1.78 R
71.20.63 O-ring 2.9x1.78 (CTS) R
71.21.26 O-ring 11.11x1.78 (CTS) R
71.21.27 Seal for 2- and 3-way valve (CTS) R
71.22.10 Filter for 2-way valveblock TS (CTS) R
72.20.39 Plunger with seal for 2- and 3-way valve (CTS) R
72.20.84 Valve check air valve block G1/8“ (CTS) R
100.960 / 108.702 Boiler TS Module Tiger 230V / Boiler TS Module Tiger 115V (CTS)
101.241 Steam valve Ø 4 (CTS)
100.421 Plugger for steam valve(CTS) R
106.478 Security valve TS, assembly (CTS)
100.418 Safety plunger & o-ring SM (CTS) R
104.719 Level probe assembly, TS module Tiger, assembly (CTS)
104.715 Teon pipe probe TS V3 (CTS) R
107.698 Valve 2/2 Lucifer, assembly (CTS)
100.421 Plunger valve ø4mm R
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.22.17 Mulifunctional bloc, assembly
72.22.18 Expansion valve x, assembly R
Piston Security valve, assembly R
71.22.25 O-ring 17.17x1.78 R
71.53.54 Oval head PT screw Phillips KA40x8 R
72.21.60 Check valve hydr. Block, assembly I
71.20.04 O-ring 6.07x1.78 R
71.20.39 O-ring 9x2 R
71.42.34 Spring check valve hexagonal R
72.21.54 Waterpump with motor, assembly I
72.21.73 Milkpump with motor, assembly (CTM)
71.20.0147 Throttle jet screw (CTM) C
71.20.0165 O-ring ø13x1.3 (CTM) R
71.20.0304 Lip valve (CTM) R
72.23.30 Solenoid valve 3way, assembly (CTM)
72.23.04 Plunger with seal for 3/2 way, teon (CTM) R
71.20.0165 O-ring ø13x1.3 (CTM) R
72.21.98 Milk block Tiger, assembly
71.23.79 O-ring 3.69x1.78 R
72.22.27 Check valve milk block, assembly R
72.21.41 Mini-Elektric valve 2/2 (CTM)
71.23.03 Threaded elbow joint 6-1/8“ SW R
71.20.0165 O-ring ø13x1.3 (CTM) R
72.22.21 Labyrinth disc Thermoblock, assembly (CTM)
71.20.0137 Seal Thermoblock (CTM) R
71.29.28 Labyrinthplate Thermoblock (CTM) C
72.40.75 Airlter basement, assembly
71.43.92 Airlter basement R
72.30.31 Ventilation pillar, assembly
71.42.39 Axial-fan 24VDC, 2W (80x80x25) C
Service Kit Tiger 60k
70.07.10
70.07.11
70.03.09
Service Kit Tiger CT 60k Sercive Kit Tiger CTM 60k Service Kit Tiger CTS 60K
Inspect
Clean
Replace
Article number Description
72.45.26 Milk base modul 2L, assembly (CTM)
Cooling system peltier milk, assembly (CTM) C
72.41.04 Milktank 2L, assembly (CTM) C
71.46.61 Milktank 2L (CTM) C
72.41.11 Suction part milktank, assembly (CTM) C
71.20.04 O-ring 6.07x1.78 R
72.42.96 Cover milktank 2L, assembly (CTM) C
71.44.26 Plug water and milktank C
72.42.38 Milk base modul 4L, assembly (CTM)
Cooling system peltier milk, assembly (CTM) C
72.42.37 Body milk unit 4.0L, assembly (CTM)
71.46.54 Silicone tube ø8.5/4x117mm (CTM) E
72.42.36 Milktank 4L, assembly (CTM) C
72.41.11 Suction part milktank, assembly (CTM) C
71.20.04 O-ring 6.07x1.78 R
72.42.35 Milktank 4L weld (CTM) C
72.42.99 Cover milktank 4L, assembly(CTM) C
71.44.26 Plug water and milktank (CTM) C
72.40.93 Fan unit cooling element (CTM)
71.34.94 Fan 80x80x25 24VDC (CTM) I
Service Kit Tiger 60k
71.16.13
71.43.22
71.16.54
71.16.53
72.12.12
71.52.80
71.52.80
108.107
107.530
100.452
Milchansaugung
108.107
106.686
108.105
107.737
107.724
100.453
102.521
102.424
107.827
100.473
100.447
106.591
108.530
108.629
115.941
(
O1.3, optional)
101.195
(
O0.8, standard)
115.936
102.457
102.424
101.943
108.531
101.229
105.607
101.222
108.106
104.797
101.383
101.383
Service Kit Tiger 60k
0 2 . 1 2 . 2 7
8 0 . 2 2 . 2 7
0 1 . 9 0 . 0 1
4 0 . 2 2 . 2 7
9 0 . 2 2 . 2 7
8 0 . 2 2 . 2 7
2 0 . 2 0 . 1 7
3 0 . 2 0 . 1 7
4 0 . 1 5 . 1 7
0 5 . 5 1 . 1 7
3 4 . 1 0 . 1 7
1 4 . 2 0 . 1 7
4 0 . 1 5 . 1 7
0 4 . 2 0 . 1 7
0 4 . 8 2 . 1 7
3 1 . 2 2 . 2 7
3 5 . 3 5 . 1 7
5 4 . 1 0 . 1 7
3 4 . 1 0 . 1 7
7 7 . 4 5 . 1 7
8 3 . 2 0 . 1 7
72.40.46
71.43.71
71.43.68
71.43.64
71.02.24
71.02.25
71.43.76
71.43.76
71.43.69
71.43.64
07.35.12
71.43.20
71.43.66
07.35.12
930.511
21.22.27
49.92.17
44.32.27
40.15.17
40.15.17
15.51.17
42.12.27
Service Kit Tiger 60k
2 2 . 1 0 . 2 7
1 2 . 1 0 . 2 7
0 0 . 1 0 . 2 7
5 4 . 3 5 . 1 7
5 4 . 3 5 . 1 7
4 0 . 3 4 . 1 7
7 7 1 0 . 0 2 . 1 7
8 0 . 1 5 . 1 7
4 3 . 3 5 . 1 7
8 0 . 1 5 . 1 7
4 3 . 3 5 . 1 7
9 0 . 3 4 . 1 7
1 0 . 0 5 . 1 7
7 9 . 1 0 . 1 7
5 1 . 1 0 . 2 7
3 9 . 1 0 . 1 7
2 9 . 1 0 . 1 7
1 2 . 1 0 . 2 7
4 9 . 1 0 . 1 7
3 9 . 1 0 . 1 7
4 3 . 3 5 . 1 7
8 0 . 1 5 . 1 7
4 3 . 3 5 . 1 7
8 0 . 3 4 . 1 7
7 9 . 1 0 . 1 7
6 1 . 1 0 . 2 7
8 9 . 0 0 . 2 7
4 8 . 0 0 . 2 7
5 8 . 0 0 . 2 7
4 8 . 0 0 . 2 7
25.12.27
Service Kit Tiger 60k
369.101
597.401
032.401
063.401
955.501
063.401
818.401
370.601
370.601
749.401
279.101
899.001
456.701
759.301
628.301
073.001
156.401
985.501
639.301
072.601
792.801
586.601
834.101
590.601
094.101
739.301
410.401
722.201
255.601
876.701
325.601
983.501
488.301
072.601
919.501
100.101
249.401
456.701
908.301
099.001
799.001
899.001
749.801
948.401
973.601
500.101
503.701
249.401
376.601
040.401
912.011
249.401
773.201
422.011
382.011
489.701
799.001
194.401
639.301
120.211
110.801
927.801
488.101
138.301
107.611
279.101
236.401
549.401
969.301
420.401
059.101
759.301
368.301
:à'uqsuj / litnu / sib
9002 .naJ
Only with magnet compatibly
Service Kit Tiger 60k
72.00.84
71.50.01
71.40.10
71.02.00
71.40.10
71.01.98
71.50.02
71.51.00
71.50.14
71.51.60
71.02.74
72.01.05
72.00.84 / 72.00.85
71.40.10
71.02.00
71.50.01
71.40.10
71.01.98
71.50.02
72.01.05
71.02.74
71.51.60
71.51.00
71.50.14
71.05.19
72.01.69
72.01.67
71.05.19
72.01.68
72.01.67
71.26.74
71.43.11
71.01.96
71.46.04
72.01.13
72.01.13
71.26.74
71.43.10
71.01.96
71.46.04
72.00.85
Service Kit Tiger 60k
288.401
624.001
704.101
093.101
924.001
3810.02.17
844.201
882.301
127.701
071.401
194.901
761.401
166.301
507.601
328.401
473.601
240.201
656.301
071.401
383.101
037.901
706.501
722.601
750.401
050.111
547.401
338.001
440.301
752.701
610.301
374.201
982.301
761.401
483.301
140.201
373.601
998.401
407.601
066.301
/ 64.22.27
05.32.27
08.04.27
84.92.17
4810.02.17
2810.02.17
24.05.17
54.30.17
92.22.27
Service Kit Tiger 60k
230V/ 115V
72.23.80
71.20.50
71.28.10
71.22.16
71.24.97
71.24.99
71.24.98
71.22.50
71.23.08
71.22.48
71.20.79
71.21.29_bobine
71.21.04
72.70.13
72.20.03
71.21.53
71.20.0428
71.20.0436
71.20.0455
71.20.0456
71.34.13
71.50.98
71.50.98
71.21.56
71.20.0432
71.20.0431
71.21.15
71.20.0430
71.20.0429
71.23.09
71.51.08
71.50.95
71.54.65
71.20.88
71.23.09
71.33.45
71.20.82
71.30.09
71.28.14
71.28.07
71.21.04
71.20.0434
71.28.08
71.20.0522
71.20.0433
71.31.95
71.31.55
71.36.75
72.23.80
71.54.65
04.04.00
71.36.74
71.36.72
72.23.76
72.24.15
115V
04.04.00
71.52.70
71.20.37
230V
71.20.0481
71.20.0480
71.20.0479
71.20.0421
71.20.0420
71.21.26
71.21.27
72.20.39
71.20.04
71.20.38
71.20.38
71.22.10
71.20.63
10.09.10
72.20.84
Service Kit Tiger 60k
104.715
100.418
100.421
100.421
103.236
111.907
115.756
100.952 (230V)
105.314
101.493
102.462
108.211
103.045
103.043
100.833
106.520
101.241
106.478
104.195
100.855
101.241 (steam, 3/2)
103.658
106.703
101.957
103.661
104.654
105.309
104.719
104.719
106.478
100.960 (230V)
108.702 (120V)
100.951 (120V )
115.926
115.926
106.524
115.631
115.645
104.814
115.630
107.698
108.205
107.698 (tea, 2/2)
104.193
107.763
103.657
106.703
101.957
103.661
Service Kit Tiger 60k
72.21.60
72.22.37 (with 72.22.17)
72.22.39 (with 72.22.38)
71.53.54
72.23.34
72.22.18
71.22.25
72.22.40
71.25.43
72.23.37
72.22.03
72.21.60
71.20.04
71.42.34
72.22.75 (with 72.23.40)
72.22.17 / 72.22.38 / 72.23.40
45.12.27
37.12.27
6610.02.17
5610.02.17
14.72.17
67.45.17
04.72.17
63.72.17
03.32.27
3610.02.17
40.32.27
7410.02.17
71.20.0236
71.20.0304
72.23.30
71.53.66
71.20.0165
71.20.3
Service Kit Tiger 60k
8 9 . 1 2 . 2 7
1 4 . 1 2 . 2 7
5 6 1 0 . 0 2 . 1 7
2 6 1 0 . 0 2 . 1 7
1 4 . 7 2 . 1 7
4 9 . 1 5 . 1 7
0 4 . 7 2 . 1 7
6 3 . 7 2 . 1 7
3 6 1 0 . 0 2 . 1 7
3 0 . 3 2 . 2 7
9 0 . 3 2 . 2 7 / 9 1 . 2 2 . 2 7
1 2 . 2 2 . 2 7
1 7 . 3 5 . 1 7
2 7 . 3 5 . 1 7
8 2 . 3 0 . 1 7
8 2 . 9 2 . 1 7
7 3 1 0 . 0 2 . 1 7
0 6 . 5 2 . 1 7
2 2 . 2 2 . 2 7
8 4 . 3 2 . 2 7
1 3 . 0 3 . 2 7
2 9 . 4 3 . 1 7
2 7 . 0 5 . 1 7
5 3 . 3 5 . 1 7
9 3 . 2 4 . 1 7
4 1 . 6 1 . 1 7
7 3 . 6 4 . 1 7
71.43.91
71.16.58
72.40.74
72.40.75
72.21.76
71.20.0119
72.21.41
72.21.41
72.22.26
71.23.79
71.43.92
*
*
72.22.27
71.20.0118
71.20.0117
Service Kit Tiger 60k
71 . 2 0 . 0 4
71 . 2 0 . 0 4
6 2 . 5 4 . 2 7
39.04.27
06.35.17
01.61.17
49.43.17
6 3 . 2 4 . 2 7
1 1 . 1 4 . 2 7
5 3 . 2 4 . 2 7
9 9 . 2 4 . 2 7
6 2 . 4 4 . 1 7
8 3 . 2 4 . 2 7
72.41.11
72.41.11
1 6 . 6 4 . 1 7
4 0 . 1 4 . 2 7
1 1 . 1 4 . 2 7
6 2 . 4 4 . 1 7
6 9 . 2 4 . 2 7
20.14.27
96.35.17
07.43.17
35.64.17
3310.02.17
64.12.17
44.64.17
82.74.17
45.64.17
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
