1.26
REV-9
© 2015 Thermoplan AG, Subject to change
Technical Manual
max.
1 meter
Automatic coffee machine Black&White 3 CTMC
Connections
220-240 VAC | 16 A | 50/60 Hz
Refrigerator: 220-240 VAC | 0.3 A | 50/60 Hz
Output
3200-3800 W
Refrigerator: 72 W
Dimensions 770 x 600 x 725 mm (W / D / H)
Coffee spout height standard 80-173 mm
Weight 95 kg
Water connection 3/8“
Water pressure 2-4 bar / 30-60 psi
Chlorine none
TDS 70-200 ppm
Hardness 5-8 °dH (8-14 °fH)
pH 6.8-7.4
Alkalinity less than 100 ppm
Iron less than 0.25 ppm
Conversion table water hardness:
Water hardness DE FR EN Ppm Mval/l
1° dH 1.0 1.79 1.25 17.8 0.357
1° fH 0.56 1.0 0.7 10.0 0.2
1° e 0.8 1.43 1.0 14.3 0.86
1° ppm 0.056 0.1 0.07 1.0 0.02
1 mval/I 2.8 5.0 3.5 50.0 1.0
For more information see Technical Manual.
Drainage
The distance between the drain
and the machine must not be more
than 1m. Make sure there is no dip
or any back pressure in the drain
hose. The end of the hose must
not be in the water.
Hole 150 x 150mm for coffee grounds drawer.
Special grounds drawer needed.
Hole diameter 70mm for water inlet and outlet.
Also possible for electric cords.

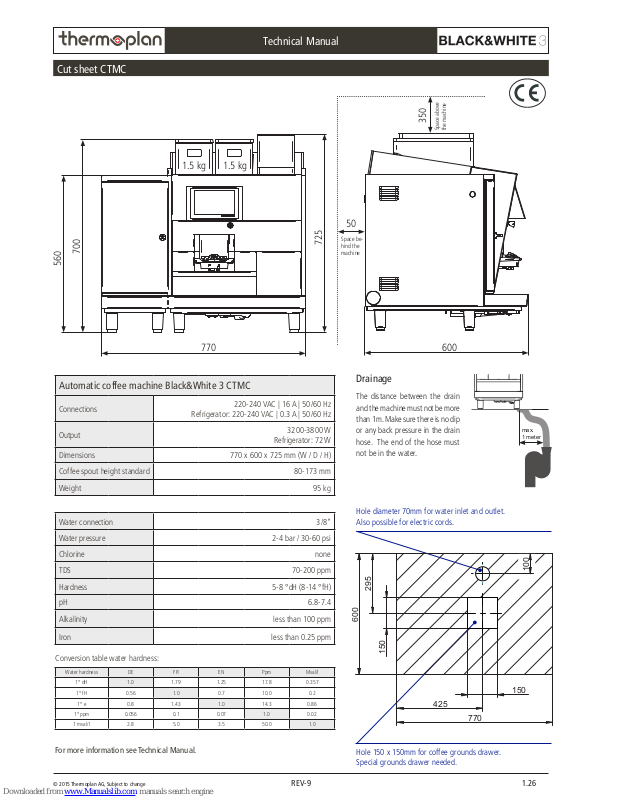

Cut sheet CTMC
700
725
770
600
Space above
the machine
Space behind the
machine
350
50
560
770
600
425
295
150
150
100
1.5 kg
1.5 kg
1.28
REV-9
© 2015 Thermoplan AG, Subject to change
Technical Manual
max.
1 meter
Automatic coffee machine Black&White 3 CTMC without refrigerator
Connections 220-240 VAC | 16 A | 50/60 Hz
Output 3200-3800 W
Dimensions 520 x 600 x 725 mm (W / D / H)
Coffee spout height standard 80-173 mm
Weight 71.5 kg
Water connection 3/8“
Water pressure 2-4 bar / 30-60 psi
Chlorine none
TDS 70-200 ppm
Hardness 5-8 °dH (8-14 °fH)
pH 6.8-7.4
Alkalinity less than 100 ppm
Iron less than 0.25 ppm
Conversion table water hardness:
Water hardness DE FR EN Ppm Mval/l
1° dH 1.0 1.79 1.25 17.8 0.357
1° fH 0.56 1.0 0.7 10.0 0.2
1° e 0.8 1.43 1.0 14.3 0.86
1° ppm 0.056 0.1 0.07 1.0 0.02
1 mval/I 2.8 5.0 3.5 50.0 1.0
For more information see Technical Manual.
Drainage
The distance between the drain
and the machine must not be more
than 1m. Make sure there is no dip
or any back pressure in the drain
hose. The end of the hose must
not be in the water.
Cut sheet CTMC without refrigerator
Hole 150 x 150mm for coffee grounds drawer.
Special grounds drawer needed.
Hole diameter 70mm for water inlet and outlet.
Also possible for electric cords.
520
600
175
295
150
150
100
Space
behind
the
machine
50
725
520
600
Space
above the
machine
350
700
1.5 kg
1.5 kg
