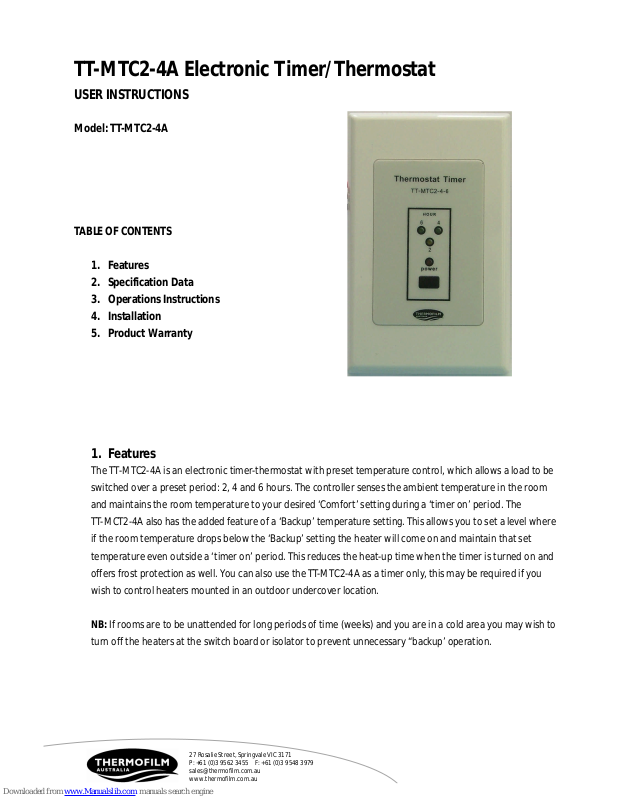

TT-MTC2-4A Electronic Timer/Thermostat

USER INSTRUCTIONS

Model: TT-MTC2-4A

TABLE OF CONTENTS

1. Features

2. Specification Data

3. Operations Instructions

4. Installation

5. Product Warranty

1. Features

The TT-MTC2-4A is an electronic timer -thermostat with preset temperature control, which allows a load to be
switched over a preset period: 2, 4 and 6 hours. The controller senses the ambient temperature in the room
and maintains the room temperature to your desired ‘Comfort’ setting during a ‘timer on’ period. The
TT-MCT2-4A also has the added feature of a ‘Backup’ temperature setting. This allows you to set a level where
if the room temperature drops below the ‘Backup’ setting the heater will come on and maintain that set
temperature even outside a ‘timer on’ period. This reduces the heat-up time when the timer is turned on and
offers frost protection as well. You can also use the TT-MTC2-4A as a timer only, this may be required if you
wish to control heaters mounted in an outdoor undercover location.

NB: If rooms are to be unattended for long periods of time (weeks) and you are in a cold area you may wish to
turn off the heaters at the switch board or isolator to prevent unnecessary “backup’ operation.

27 Rosalie Street, Springvale VIC 3171
P: [phone] F: [phone]
[e-mail]
www.thermofilm.com.au

2. Specification Data

Model Supply Max. Load Power

TT-MTC2-4A 230-240 volt AC 13 Amps (resistive) 3100 Watts

3. Operations Instructions

To set 2 hour/4 hour/6 hour mode

• Press the On/Off button once and the 2 hour LED light will come on.

• Press the On/Off button again and the 4 hour LED light will come on.

• Press the On/Off button again and the 6 hour LED light will come on.

• Press the On/Off button again and the unit will turn off.

NB: The Power LED will be lit up when the heating is on.

Temperature Control Settings

Comfort: 18°C – 26°C
Backup: 5°C – 15°C

NB: The above temperature parameters will be set by the Installer..

4. Installation

Installation Guidelines:

• All electrical connections are to be performed by a registered electrician only, as required by
law.

• Ensure that the supply is disconnected at the distribution board.

• All connections are secure and tested prior to activation.

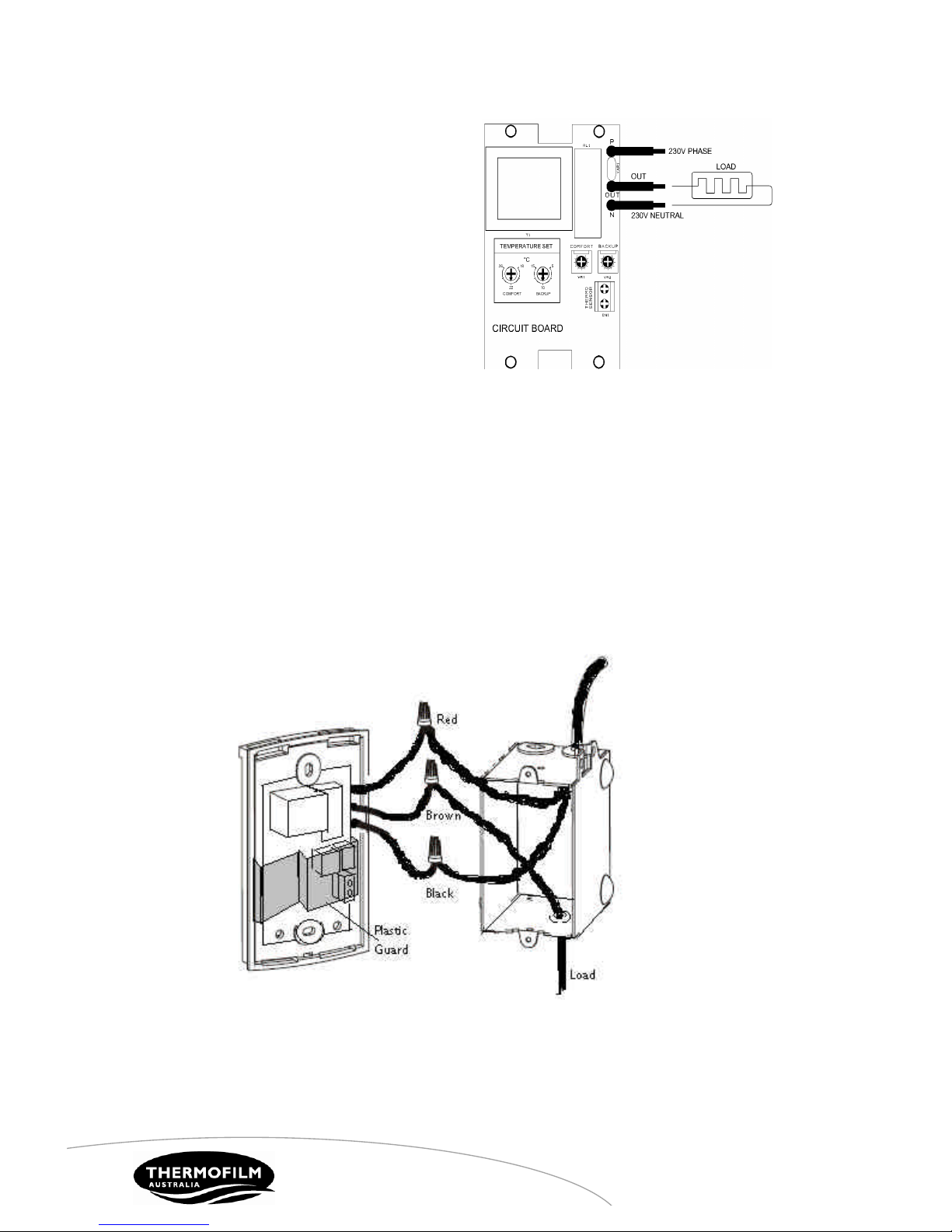

• You have studied and fully understood the connection diagram.

• Thermostat must be installed in the same room as the heating system.

• The thermostat must be installed on an inside wall

• Avoid location where there are air drafts (top of staircase, air outlets), dead air spots (behind

doors), direct sunlight or concealed chimneys.

• Must be installed using a plastic (not metal) wall box (i.e. Clipsal 157/1P).
