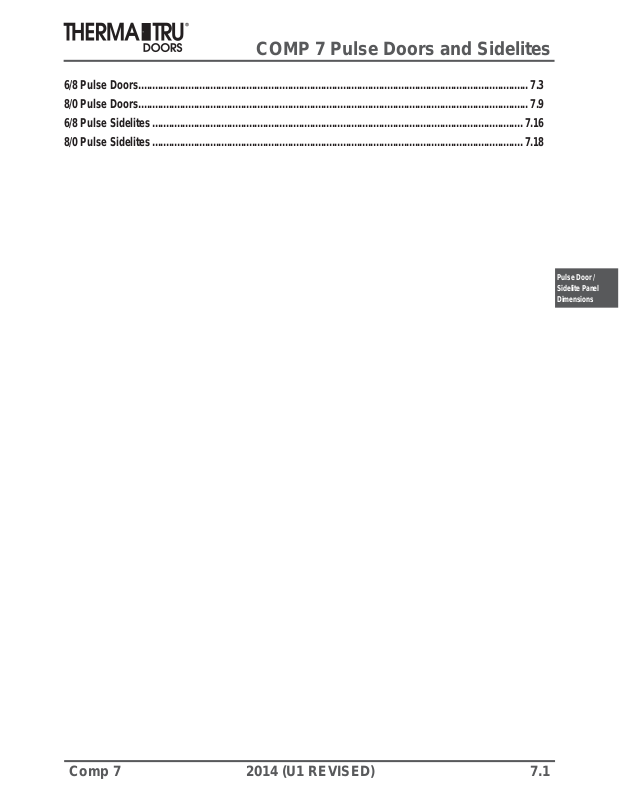

COMP 7 Pu lse Doors and Sidelites
6/8 Pulse Doors .............................................................................................................................................7.3
8/0 Pulse Doors .............................................................................................................................................7.9
6/8 Pulse Sidelites ......................................................................................................................................7.16
8/0 Pulse Sidelites ......................................................................................................................................7.18
Pulse Door /
Sidelite Panel
Dimensions
Comp 7 2014 (U1 REVISED) 7.1
Pulse Door /
Sidelite Panel
Dimensions
7.2 2014 (U1 REVISED) Comp 7
6/8 Pulse Doors
A
23 3/32" TYP.
B
4 3/16"
16 27/32" TYP.
7 21/32" TYP.
13 27/32" TYP.
79 3/64"
20 3/32" TYP.
9 1/32"
Ari 3-Lite
(Glass - 2115)
ASize B
2/6 29 13/16" *3 27/32 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 4 11/32 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 5 11/32 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 6 11/32 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 9 11/32 " SS36010U1 DR36100U1
*Reflect s lockside dimension with cutout shifted 1/2" toward hinge side to allow st andard bore with 2 3/ 8" backset.
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 834 sq.in.
Slab
Pulse Door /
Sidelite Panel
Dimensions
Echo 3-Lite Top
Center Cluster
(Glass - 0806)
6 15/16" TYP.
Size A B
2/6 29 13/16" 9 15/16 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 10 15/16 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 11 15/16 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 12 15/16 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 15 15/16 " SS36010U1 DR36100U1
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 102 sq.in.
Slab
A
B
9 15/16" TYP.
4 5/32" TYP.
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
79 3/64"
49 1/8"
Comp 7 2014 (U1 REVISED) 7.3
6/8 Pulse Doors
Pulse Door /
Sidelite Panel
Dimensions
6 3/16" TYP.
4 5/32"
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
A
9 15/16" TYP.
79 3/64"
49 1/8"
Echo 3-Lite Top
Offset Cluster
(Glass - 0806)
Also available
offset right.
Size A
2/6 29 13/16" FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" SS36010U1 DR36010U1
FC Oak FC Mahogany Smooth-Sta r Profiles
Total Daylight Opening: 102 sq.in.
Slab
Echo 3-Lite Middle
Center Cluster
(Glass - 0806)
Size A B
2/6 29 13/16" 9 15/16 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 10 15/16 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 11 15/16 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 12 15/16 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 15 15/16 " SS36010U1 DR36100U1
FC Oak FC Maho gany Smooth-Star Profile s
Total Daylight Opening: 102 sq.in.
Slab
B
A
9 15/16" TYP.
26 3/4"
7 15/16" TYP.
1" TYP.
79 3/64"
4 15/16" TYP.
6 15/16" TYP.
7.4 2014 (U1 REVISED) Comp 7
A
6 3/16" TYP.
9 15/16" TYP.
26 3/4"
7 15/16" TYP.
1" TYP.
6/8 Pulse Doors
Echo 3-Lite Middle
Offset Cluster
(Glass - 0806)
Also available
offset right.
79 3/64"
4 15/16" TYP.
6 15/16" TYP.
Size A
2/6 29 13/16" FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" SS36010U1 DR36010U1
Echo 4-Lite Centered
(Glass - 0806)
Size A B
2/6 29 13/16" 9 15/16 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 10 15/16 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 11 15/16 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 12 15/16 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 15 15/16 " SS36010U1 DR36100U1
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 136 sq.in.
Slab
9 15/16"
Slab
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 102 sq.in.
A
B
4 5/32"
7 15/16" TYP.
11 13/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
79 3/64"
Pulse Door /
Sidelite Panel
Dimensions
9 1/32"
Comp 7 2014 (U1 REVISED) 7.5
6/8 Pulse Doors
Pulse Door /
Sidelite Panel
Dimensions
A
6 9/32" 9 15/16" TYP.
4 5/32"
7 15/16" TYP.
11 13/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
9 1/32"
Echo 4-Lite Offset
(Glass - 0806)
Also available
offset right.
79 3/64"
Size A
2/6 29 13/16" FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13 /16" FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" SS36010U1 DR36010U1
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 136 sq.in.
Slab
Echo 5-Lite Centered
(Glass - 0806)
Size A B
2/6 29 13/16" 9 15/16 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 10 15/16 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 11 15/16 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 12 15/16 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 15 15/16 " SS36010U1 DR36100U1
FC Oak FC Mahogany Smooth-Star Pro files
Total Day l ight Opening: 17 0 sq.in.
Slab
B 9 15/16" TYP.
A
4 5/32"
7 15/16" TYP.
6 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
79 3/64"
9 1/32"
7.6 2014 (U1 REVISED) Comp 7
6/8 Pulse Doors
A
6 9/32" 9 15/16"
4 5/32"
7 15/16" TYP.
6 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
79 3/64"
9 1/32"
Echo 5-Lite Offset
(Glass - 0806)
Also available
offset right.
Size A
2/6 29 13/16" FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" SS36010U1 DR36010U1
FC O ak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 170 sq.in.
Slab
Pulse Door /
Sidelite Panel
Dimensions
Linea Centered
(Glass - 0764)
Size A B
2/6 29 13/16" 10 1/2 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 11 1/2 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 12 1/2 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 13 1/2 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 16 1/2 " SS36010U1 DR36100U1
FC Oak FC Mahogany Smooth-Star Profiles
Total Daylight Opening: 373 sq.in.
Slab
8 13/16"
5 15/16"
A
B
4 7/32"
62 15/16"
65 13/16"
79 3/64"
9"
Comp 7 2014 (U1 REVISED) 7.7
6/8 Pulse Doors
Pulse Door /
Sidelite Panel
Dimensions
A
6 13/32"
8 13/16"
5 15/16"
4 7/32"
62 15/16"
65 13/16"
9"
79 3/64"
Linea Offset
(Glass - 0764)
Also available
offset right.
Size A
2/6 29 13/16" FCO26010U1 FCM26010U1 SS26010U1 TS26100U1
2/8 31 13/16" FCO28010U1 FCM28010U1 SS28010U1 TS28100U1
2/10 33 13/16" FCO21010U1 FCM21010U1 SS21010U1 TS21100U1
3/0 35 13/16" FCO30010U1 FCM30010U1 SS30010U1 TS30100U1
3/6 41 13/16" SS36010U1
FC Oak FC Mahogany Smoo th-Star Profiles
Total Daylight Opening: 373 sq.in.
Slab
Solei
(Glass - 1664)
Size A B
2/6 29 13/16" 5 29/32 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 6 29/32 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 7 29/32 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 8 29/32 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
FC Oak FC Mahogany Smooth-S tar Prof iles
Total Daylight Opening: 941 sq.in.
Slab
A
17 31/32" B
6 21/32"
62 31/32"
65 31/32"
79 3/64"
1U00163RD1U01063SS"23/92 11"61/31 146/3
6 7/16"
7.8 2014 (U1 REVISED) Comp 7
8/0 Pulse Doors
A
B
23 3/32" TYP.
8' Ari 4-Lite
(Glass - 2115)
5 1/4"
16 27/32" TYP.
4 13/16" TYP.
ASize B
2/8 31 13/16 " 4 11/32 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 5 11/32 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 6 11/32 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 9 11/32 " S836010U1
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 1108 sq.in.
Slab
95 3/64"
20 3/32" TYP.
13 27/32" TYP.
Pulse Door /
Sidelite Panel
Dimensions
7 31/32"
8' Echo 4-Lite Centered
(Glass - 0806)
Size BA
2/6 29 13/16 " 9 15/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 10 15/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 11 15/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 12 15/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 15 15/16 " S836010U1
Slab
FC Oak FC M ahogany Smooth- Star Traditi ons
Total Daylight Opening: 136 sq.in.
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
16 23/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 3/64"
7 15/16"
Comp 7 2014 (U1 REVISED) 7.9
8/0 Pulse Doors
Pulse Door /
Sidelite Panel
Dimensions
6 27/32"
95 3/64"
A
9 15/16" TYP.
5 7/32"
7 15/16" TYP.
16 23/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16" FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
8' Echo 4-Lite Offset
(Glass - 0806)
Also available
offset right.
Slab
FC O ak FC Mahogany Smooth-St ar Traditions
Total Daylight Opening: 136 sq.in.
7 15/16"
6 15/16" TYP.
8' Echo 4-Lite Top
Center Cluster
(Glass - 0806)
Size BA
2/6 29 13/16 " 9 15/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 10 15/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 11 15/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 12 15/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 15 15/16 " S836010U1
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 136 sq.in.
Slab
B
A
9 15/16" TYP.
5 7/32"
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
95 3/64"
55 1/8"
7.10 2014 (U1 REVISED) Comp 7
8/0 Pulse Doors
6 3/4" TYP.
5 7/32"
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
A
9 15/16" TYP.
95 3/64"
55 1/8"
8' Echo 4-Lite Top
Offset Cluster
(Glass - 0806)
Also available
offset right.
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16" FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
FC Oak FC Ma hogany Smooth- Star Tradi tions
Total Daylight Opening: 136 sq.i n.
Slab
Pulse Door /
Sidelite Panel
Dimensions
8' Echo 4-Lite Middle
Center Cluster
(Glass - 0806)
Size BA
2/6 29 13/16 " 9 15/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 10 15/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 11 15/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 12 15/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 15 15/16 " S836010U1
FC Oa k FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 136 sq.in.
Slab
B
A
9 15/16" TYP.
30 9/32"
7 15/16" TYP.
1" TYP.
95 3/64"
4 15/16" TYP.
6 15/16" TYP.
Comp 7 2014 (U1 REVISED) 7.11
8/0 Pulse Doors
Pulse Door /
Sidelite Panel
Dimensions
B
A
9 15/16" TYP.
30 9/32"
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 3/64"
8' Echo 4-Lite Middle
Offset Cluster
(Glass - 0806)
Also available
offset right.
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16" FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
FC Oak FC Maho gany Smooth-Star Traditio ns
Total Day light Opening: 136 sq.in.
Slab
8' Echo 5-Lite Centered
(Glass - 0806)
Size A B
2/6 29 13/16 " 9 15/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 10 15/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 11 15/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 12 15/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 15 15/16 " S836010U1
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 170 sq.in.
Slab
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
10 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 3/64"
7 15/16"
7.12 2014 (U1 REVISED) Comp 7
8/0 Pulse Doors
A
6 27/32" 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
10 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 3/64"
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16" FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
8' Echo 5-Lite Offset
(Glass - 0806)
Also available
offset right.
Slab
FC O ak FC Mahogany Smooth-Star Traditions
Pulse Door /
Sidelite Panel
Dimensions
Tot al Daylight Opening: 170 sq.in.
7 15/16"
8' Echo 6-Lite Centered
(Glass - 0806)
Size A B
2/6 29 13/16 " 9 15/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 10 15/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 11 15/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 12 15/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 15 15/16 " S836010U1
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Openi ng: 204 sq.in.
Slab
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
6 7/8" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 3/64"
7 15/16"
Comp 7 2014 (U1 REVISED) 7.13
8/0 Pulse Doors
Pulse
Pulse Door /
Door Panel
Sidelite Panel
Dimensions
Dimensions
6 27/32"
95 3/64"
A
9 15/16" TYP.
5 7/32"
7 15/16" TYP.
6 7/8" TYP.
4 15/16" TYP.
6 15/16" TYP.
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16" FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
8' Echo 6-Lite Offset
(Glass - 0806)
Also available
offset right.
Slab
FC O ak FC Mahogany Smoo th-Star Traditions
Total Daylight Opening: 204 sq.in.
7 15/16"
8' Linea Centered
(Glass - 0780)
Size A B
2/6 29 13/16 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " S836010U1
10"
11"
12"
13"
16"
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 545 s q.in.
Slab
A
9 27/32"
6 7/8"
B
5 5/16"
79 1/16"
82 1/32"
95 3/64"
7 23/32"
7.14 2014 (U1 REVISED) Comp 7
8/0 Pulse Doors
9 27/32"
6 7/8"
6 15/16"
95 3/64"
A
5 5/16"
79 1/16"
8' Linea Offset
(Glass - 0780)
Also available
offset right.
82 1/32"
Size A
2/6 29 13/16" FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16" FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 3 3 13/16 " FCO821010U1 FCM821010U1 S8210 10 U1 D821100U1
3/0 35 13/16" FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16" S836010U1
FC Oak FC Mahogany Smooth-Sta r Traditions
Total Daylight Opening: 545 sq.in.
Slab
Pulse Door /
Sidelite Panel
Dimensions
7 23/32"
8' Solei
(Glass - 1664)
Size A B
2/6 29 13/16 " 5 29/32 " FCO826010U1 FCM826010U1 S826010U1 D826100U1
2/8 31 13/16 " 6 29/32 " FCO828010U1 FCM828010U1 S828010U1 D828100U1
2/10 33 13/16 " 7 29/32 " FCO821010U1 FCM821010U1 S821010U1 D821100U1
3/0 35 13/16 " 8 29/32 " FCO830010U1 FCM830010U1 S830010U1 D830100U1
3/6 41 13/16 " 11 29/32 " S836010U1
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 941 sq.in.
Slab
B
A
17 31/32"
14 31/32"
14 21/32"
62 31/32"
65 31/32"
95 3/64"
14 7/16"
Comp 7 2014 (U1 REVISED) 7.15
6/8 Pulse S idel ites
Pulse Door /
Sidelite Panel
Dimensions
4 5/32"
49 5/16"
A
9 15/16" TYP.
B
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
Size A B
12" 11 15/16" 1" SL12FCO1 SL12FCM1 SL12SS1 SL12FL8
14" 13 15/16" 2" SL14FCO1 SL14FCM1 SL14SS1 SL14FL8
79 1/4"
Echo 3-Lite Sidelite
Top Cluster
(Glass - 0806)
Slab
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 102 sq.in.
Echo 3-Lite Sidelite
Middle Cluster
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL12FCO1 SL12FCM1 SL12SS1 SL12FL8
14" 13 15/16" 2" SL14FCO1 SL14FCM1 SL14SS1 SL14FL8
FC Oak FC Maho gany Smooth-St ar Traditi ons
Total Daylight Opening: 102 sq.in.
Slab
A
B
9 15/16" TYP.
26 3/4" TYP.
7 15/16" TYP.
1" TYP.
79 1/4"
4 15/16" TYP.
6 15/16" TYP.
7.16 2014 (U1 REVISED) Comp 7
6/8 Pulse S idel ites
A
B 9 15/16" TYP.
4 5/32"
7 15/16" TYP.
12 5/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
9 7/32"
79 1/4"
Echo 4-Lite Sidelite
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL12FCO1 SL12FCM1 SL12SS1 SL12FL8
14" 13 15/16" 2" SL14FCO1 SL14FCM1 SL14SS1 SL14FL8
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 136 sq.in.
Slab
Pulse Door /
Sidelite Panel
Dimensions
Echo 5-Lite Sidelite
Glass - 0806)
Size A B
12" 11 15/16" 1" SL12FCO1 SL12FCM1 SL12SS1 SL12FL8
14" 13 15/16" 2" SL14FCO1 SL14FCM1 SL14SS1 SL14FL8
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 170 sq.in.
Slab
A
B 9 15/16" TYP.
4 5/32"
7 15/16" TYP.
6 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
79 1/4"
9 7/32"
Comp 7 2014 (U1 REVISED) 7.17
8/0 Pulse Sidelites
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
8' Echo 4-Lite Sidelite
(Glass - 080 6 )
Pulse Door /
Sidelite Panel
Dimensions
16 23/32" TYP.
4 15/16" TYP.
6 15/16" TYP.
8 1/8"
Size A B
12" 11 15/16" 1" SL812FCO1 SL812FCM1 SL812SS1 S812FL8
14" 13 15/16" 2" SL814FCO1 SL814FCM1 SL814SS1 S814FL8
95 1/4"
FC Oak FC Mahogany Smooth-Star Tradit ions
Total Daylight Opening: 136 sq.in.
8' Echo 4-Lite Sidelite
Top Cluster
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL812FCO1 SL812FCM1 SL812SS1 S812FL8
14" 13 15/16" 2" SL814FCO1 SL814FCM1 SL814SS1 S814FL8
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 136 sq.in.
Slab
Slab
A
9 15/16" TYP.
B
5 7/32"
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 1/4"
55 11/32"
7.18 2014 (U1 REVISED) Comp 7
8/0 Pulse Sidelites
A
B 9 15/16" TYP.
30 9/32" TYP.
7 15/16" TYP.
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
8' Echo 4-Lite Sidelite
Middle Cluster
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL812FCO1 SL812FCM1 SL812SS1 S812FL8
14" 13 15/16" 2" SL814FCO1 SL814FCM1 SL814SS1 S814FL8
95 1/4"
FC Oak FC Mahogany Smooth-Star Traditions
Total Daylight Opening: 136 sq.in.
Slab
Pulse Door /
Sidelite Panel
Dimensions
8' Echo 5-Lite Sidelite
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL812FCO1 SL81 2FCM1 SL812SS1 S812FL8
14" 13 15/16" 2" SL814FCO1 SL81 4FCM1 SL814SS1 S814FL8
FC Oak FC Mahogany Smooth-St ar Traditions
Total Daylight Opening: 170 s q .in.
Slab
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
10 9/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
95 1/4"
8 1/8"
Comp 7 2014 (U1 REVISED) 7.19
8/0 Pulse Sidelites
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
6 7/8" TYP.
4 15/16" TYP.
6 15/16" TYP.
8' Echo 6-Lite Sidelite
(Glass - 0806)
Size A B
12" 11 15/16" 1" SL812FCO1 SL812FCM1 SL812SS1 S812FL8
14" 13 15/16" 2" SL814FCO1 SL814FCM1 SL814SS1 S814FL8
95 1/4"
FC Oak FC M ahogany Smooth-Star Traditions
Total Daylight Opening: 204 sq.in.
Slab
8 1/8"
This space intentionally left blank.
7.20 2014 (U1 REVISED) Comp 7
Loading...
