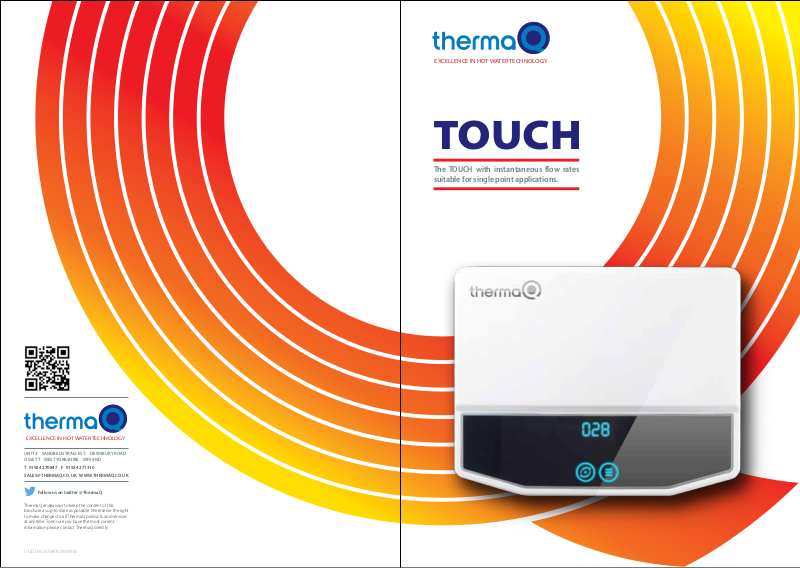

TOUCH
EXCELLENCE IN HOT WATER TECHNOLOGY
The TOUCH with instantaneous flow rates
suitable for single point applications.
EXCELLENCE IN HOT WATER TECHNOLOGY
UNIT 3 SANDBEDS TRAD. EST. DEWSBURY ROAD
OSSETT WEST YORKSHIRE WF5 9ND
T 01924 270847 F 01924 271310
SALESTHERMAQ.CO.UK WWW.THERMAQ.CO.UK
Follow us on twitter @ ThermaQ
ThermaQ endeavour to keep the content of this
brochure as up-to-date as possible. We reserve the right
to make changes to all ThermaQ products and services
at anytime. To ensure you have the most current
information please contact ThermaQ directly.
T/ELECTRIC/OCTOBER/2018/VER2
Please read and follow the installation and operation
instructions carefully, to ensure the long life and reliable
operation of this appliance.
CONTENTS
Important Safety Instructions ........................................................................................ 3
Product Features
Electrical Diagram
Technical Data
Product Structure
Installation Guideline
Installation Method
Operation Instructions
Packing List
Maintenance
Trouble-Shooting
................................................................................................................................... 4
............................................................................................................................... 4
............................................................................................................................................ 5
................................................................................................................................. 5
.................................................................................................................... 6
.......................................................................................................................... 6
............................................................................................................10
.................................................................................................................................................10
.............................................................................................................................................11
.............................................................................................................................11
Important Safety Instructions
1. The installation must be installed in compliance with National Electrical regulations
and your local electrical and plumbing codes.
2. This appliance must be EARTHED.
3. Install or locate this water heater only in accordance with the provided installation
instructions.
4. Use this water heater only for its intended use as described in this manual.
5. Contact a qualied electrician to have the unit properly installed .
6. This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
7. This appliance MUST be permanently connected to the xed circuit breaker and it
must be installed vertically (excluding the models which are equipped with a plug).
DO NOT install this appliance directly onto timber or in a strong magnetic eld.
8. This appliance MUST NOT be switched on if you think it may be frozen, as this could
result in serious damage to the unit. Wait until you are sure that the ThermaQ
Touch has completely thawed out before you switch it on.
9. Before connecting pipes to the water heater outlet and inlet hoses, it is extremely
important to FLUSH the pipes to wash away all plumbing waste or residue that
could be detrimental or damaging to the unit.
10. If there is damage to the wiring, you must contact a qualied electrician to replace
it with dedicated wire from our authorized dealers.
Attention!
This is not a do-it-yourself project. Failure to have this appliance installed by a licensed
plumber and electrician will void all warranties.
Under no circumstances should you attempt to install, repair or disassemble the electric
instantaneous water heater without rst shutting o all power to the unit directly at the
circuit breaker box.
Installation of this product is restricted to indoor locations only by licensed plumbing or
electrical contractors
2
Excellence in Hot Water Technology.
ThermaQ Specification Hotline 01924 270847
3
Product Features
Terminal
Blocks
Control
Board
Thermal
Cut-Out
Outlet Temp.
Sensor
Bottom
Case
Water Inlet
r
Water Outlet
Controler
Inlet Temp.
Sensor
Flow
Meter
Heating
Chamber
SPECIFICATIONS
This ThermaQ Touch electric water heater diers from a conventional storage type mini water
heater, in that it doesn’t store hot water. Instead, water is heated instantaneously as it ows
through the unit. The powerful heating elements are activated by a ow switch as water is
drawn from a hot water faucet connected to the appliance. Due to the absence of standby loss, the Touch has greater energy eciency than storage type water heaters. The unit is
incorporated with several safety devices and will continuously supply hot water for as long as
the faucet is open. In summary, the unit has the following features:
1. Tankless, instantaneous heating for on demand hot water, no pre-heating, no stand-
by heating loss energy-saving.
2. High strength ABS splash proof casing, stainless steel heating element.
3. Compact appearance and unlimited supply of hot water.
4. Easy installation, heater can be installed above or under sink. A power cord is
equipped.
5. Easy operation, the heater provides hot water with constant temperature.
6. Micro-computer control, Adopting patent heating technology. Water is completely
separated from electricity by multi-layered composite nano-insulation material.
7. High-temperature protection: when the outlet water temperature reaches 65°C or
more, the appliance will work to avoid scalding and will automatically adjust while
the temperature drops to a more desirable value.
ELECTRICAL
DIAGRAM
R - Resistance
•
T- Triac
Leakage Sensor
L
Thermal cut-out
1
2
T
3
Temperature
Controller
R
R
R
PRODUCT
PROD.CODE
POwER
RaTED CURREnT
BODy MaTERial
VOlTagE
RECOMMEnDED CaBlE sizE
OVERhEaT PROTECTiOn
ThERMal CUT-OUT
COnTROl MODE
wORKing PREssURE
waTER COnnECTiOns
DiMEnsiOns
Product Structure
TOUCH3 TOUCH5
EWH0008 EWH0009
3.5kW 5.0kW
16A 21.7A
HIGH STRENGTH ABS CASING
220240V
2
2.5mm
60°C
95°C
ELECTRONIC CONTROL
0.2-6 bar
G1/2"
198 x 160 x 98mm
Triac
4
N
E
Excellence in Hot Water Technology.
Temperature
Sensor
Flowmeter
Controle
ThermaQ Specification Hotline 01924 270847
5
Installation Guideline
146mm
The installation must be in compliance with the National Electrical
Guidelines, as well as your local electrical and plumbing regulations.
1. Make sure the appliance is intact, and the ttings are complete.
2. Please make sure the mains power supply, incoming water pressure and the
grounding conditions are adequate, and the ammeter and wire are at the correct
standard required for installation.
3. The appliance must be properly grounded due to the dedicated branch circuits of
high voltage within the unit. Ground wires must be brought to the 'ground' at the
circuit breaker panel.
4. This appliance MUST be permanently connected to the xed circuit breaker. If you
don’t use the heater, please switch o the circuit breaker.
5. Do NOT install this appliance on timber or in the presence of a strong magnetic
eld. The appliance can be installed above or under the sink, and must only be
mounted in a VERTICAL position near by the water ttings.
Installation Method
INSTALLING THE UNIT
Fig 2. Drill two holes of 6mm
diameter: if you install the heater
upright above the sink, the
distance between every two
holes is 146mm; if you install the
heater upside down under the
sink, the distance between every
two holes is 139mm. Put plastic
rawplugs in the holes.
139mm
A
B
6
Locate an appropriate place on a section of wall as shown in guidelines opposite.
Fig 1. Front and back of the appliance.
198mm
160mm
Excellence in Hot Water Technology.
Fig 3. For Upright Installation, drill a
screw into the upper hole (Fig3-A),
For Downward Installation, drill a
screw into the lower hole (Fig3-B).
A. For Upright Installation.
B. For Downward Installation.
A
ThermaQ Specification Hotline 01924 270847
B
7
WATER CONNECTIONS
OUTL
OUTLE
T
INLET
1. All water pipework must comply with national regulations and local water piping
codes.
2. No matter whether installing the appliance upright or upside down, Please connect
the inlet connection (blue nozzle on the unit) to the cold water inlet pipe; connect
the outlet connection (red nozzle on the unit) to the hot water outlet pipe.
3. The unit should be connected directly to the mains water supply. Flush pipes rst
with water to remove any debris or loose particles.
4. It is required that one uses G1/2” water connections to t the appliance. Please
connect the inlet and outlet pipe in the correct perspective mentioned above.
5. Please remember to install rubber seal O-rings at the connections. When all water
connections are completed, check for leaks and take corrective action before
proceeding to turn the unit on.
A
Fig 4. Please plug in the at cable of display board to the main power board, then Fix
the front cover on the appliance and screw to x the front cover.
Fig 5. Then x the appliance with screw in another hole, to make sure the whole
appliance is installed rmly onto the wall.
A
A. For Upright Installation. B. For Downward Installation.
B
B
ET INLET
ELECTRICAL CONNECTION
1. All electrical work must comply with national regulations and local electrical codes
2. The unit must be connected to a properly grounded dedicated branch circuit of
proper voltage rating.
3. While feeding the cable to terminal blocks/Circuit Breaker, please make sure the
metal wire ends and the terminal blocks touch and can be sealed completely. Then
tighten the screws up to make sure the full current can go through.
4. Before beginning any work on the electric installation, be sure that main breaker
panel switch is OFF to avoid any danger of electric shock, all mounting and
plumbing must be completed before proceeding with electrical hook-up.
8
Excellence in Hot Water Technology.
ThermaQ Specification Hotline 01924 270847
9
Operation Instructions
Maintenance
1. Turn on the circuit breaker to bring electrical power to the unit. The LED digital
display screen will light.
2. Turn on the water faucet for a few minutes until water ow is continuous and all air
is drained from water pipes. The unit must be operated after the breaker is turned on.
3. After the unit is supplied with power, please turn on the water and then the
appliance will start working. The minimum water ow to activate the unit is 1.5L/min.
4. If the water ow is turned o, the appliance will stop working. It is not necessary to
turn o the heater by pressing any key on front panel.
5. Press
setting will cycle among 30°C, -55°C, -30°C. By pressing the key once, the setting
temperature will go up 1°C. Only when the unit is working is the press key to be
used to adjust the temperature. The default setting temperature is 55°C.
6. Press
setup among 38°C - 42°C -55°C - 42°C - 38°C.
7.
and hold for 3 seconds, the temperature display Arabic numerals will rotate 180°.
8. There is overheat production function for the appliance, if the outlet temperature
reaches 65°C, the appliance will decrease the power level automatically, and only
after the hot water temperature drops to 53°C will the unit recover and work
normally. Should this occur, reduce the setting temperature.
9. There is real-time leakage detection function. If a leakage is detected by the unit, the
appliance will stop working automatically.
10. Please check hot water with hand before you taking a shower.
•
heater will not be frozen.
•
PACKING
LIST
to adjust the setting temperature between 30°C and -55°C. Temperature
continuously for 3 seconds, the setting temperature will be circularly
is the function key, If you need to install the unit upside down, Please press
If the unit will not be used in winter, drain out water completely so that the
Please periodically clean inlet strainer and the shower to keep a free water ow.
ITEM UNIT QUANTITY
Electric Water Heater. Unit 1
Bracket. Piece 1
Rubber plug and screw. Piece 1
Operation and Installation instructions. Copy 1
Cable Clamp and Screw Sets. Set 1
Note: Do not attempt to repair this water heater yourself, call a qualied plumber for
assistance. Before maintenance takes place, the power supply needs to be shut o.
The ThermaQ Touch does not require any regular maintenance. However, to ensure
consistent water ow, it is recommended to complete the following.
1. Periodically remove scale and dirt that may build up at the aerator of the faucet or in
the shower head.
2. There is a built in lter screen at inlet connection which should be cleaned from
time to time. Please turn o the water ow before doing this.
Guarantee
Your ThermaQ water heater is guaranteed for a period of 12 months from the date of
purchase. The unit is only guaranteed if the water heater has been installed and maintained
in accordance with these instructions. Full guarantee information can be found at:
ThermaQ.co.uk/guarantee.
Trouble-Shooting
PROBLEMS POSSIBLE CAUSES CORRECTIVE ACTIONS
Inlet and outlet
fittings leaking.
LED no signal.
Functional keys not
working.
Water too hot.
Water too cold.
Outlet water volume
gets smaller and
smaller.
Fittings not tight.
•
Rubber washer worn-out.
•
Power not connected.
•
LED Damaged.
•
No water out from shower.
•
Water pressure too low.
•
Key or PCB damaged.
•
Too high temperature set.
•
Water flow too small.
•
Low temperature set.
•
Water flow too much.
•
Inlet strainer or shower clogged.
•
Tighten fittings.
•
Change rubber washer.
•
Connect power to the unit.
•
Change LED.
•
Open valve to get water.
•
Open valve to get pressure.
•
Change key or PCB
•
Set a lower temperature.
•
Open valve bigger.
•
Set a higher temperature.
•
Reduce water flow.
•
Clean strainer and shower.
•
10
Excellence in Hot Water Technology.
ThermaQ Specification Hotline 01924 270847
11
Loading...
