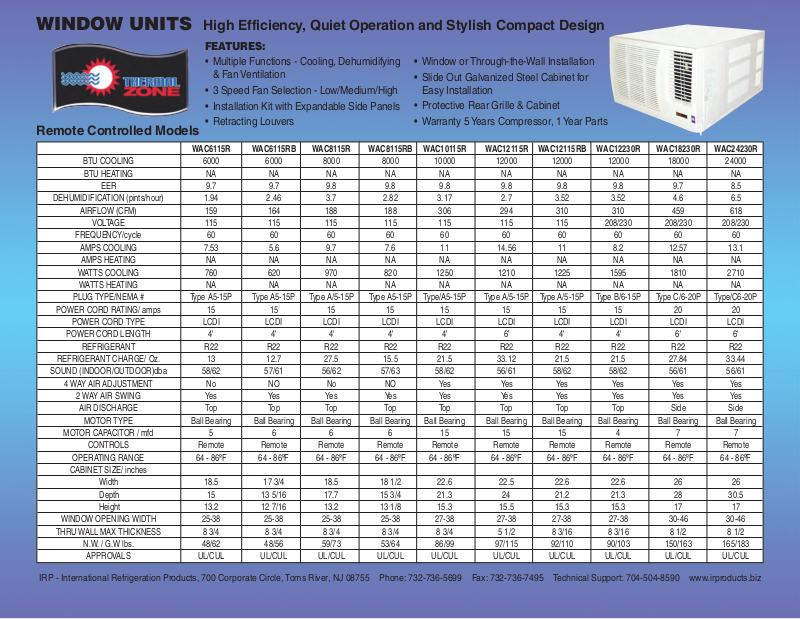

WINDOW UNITS High Efficiency, Quiet Operation and Stylish Compact Design
FEATURES:
• Multiple Functions - Cooling, Dehumidifying
& Fan Ventilation
• 3 Speed Fan Selection - Low/Medium/High
• Installation Kit with Expandable Side Panels
• Retracting Louvers
Remote Controlled Models
WAC6115R WAC6115RB WAC8115R WAC8115RB WAC10115R WAC12115R WAC12115RB WAC12230R WAC18230R WAC24230R
BTU COOLING 6000 6000 8000 8000 10000 12000 12000 12000 18000 24000
BTU HEATING NA NA NA NA NA NA NA NA NA NA
EER 9.7 9.7 9.8 9.8 9.8 9.8 9.8 9.8 9.7 8.5
DEHUMIDIFICATION (pints/hour) 1.94 2.46 3.7 2.82 3.17 2.7 3.52 3.52 4.6 6.5
AIRFLOW (CFM) 159 164 188 188 306 294 310 310 459 618
VOLTAGE 115 115 115 115 115 115 115 208/230 208/230 208/230
FREQUENCY/cycle 60 60 60 60 60 60 60 60 60 60
AMPS COOLING 7.53 5.6 9.7 7.6 11 14.56 11 8.2 12.57 13.1
AMPS HEATING NA NA NA NA NA NA NA NA NA NA
WATTS COOLING 760 620 970 820 1250 1210 1225 1595 1810 2710
WATTS HEATING NA NA NA NA NA NA NA NA NA NA
PLUG TYPE/NEMA # Type A5-15P Type A5-15P Type A/5-15P Type A5-15P Type/A5-15P Type A/5-15P Type A/5-15P Type B/6-15P Type C/6-20P Type/C6-20P
POWER CORD RATING/ amps 15 15 15 15 15 15 15 15 20 20
POWER CORD TYPE LCDI LCDI LCDI LCDI LCDI LCDI LCDI LCDI LCDI LCDI
POWER CORD LENGTH 4' 4' 4' 4' 4' 6' 4' 4' 6' 6'
REFRIGERANT R22 R22 R22 R22 R22 R22 R22 R22 R22 R22
REFRIGERANT CHARGE/ Oz. 13 12.7 27.5 15.5 21.5 33.12 21.5 21.5 27.84 33.44
SOUND (INDOOR/OUTDOOR)dba 58/62 57/61 56/62 57/63 58/62 56/61 58/62 58/62 56/61 56/61
4 WAY AIR ADJUSTMENT No NO No NO Yes Yes Yes Yes Yes Yes
2 WAY AIR SWING Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
AIR DISCHARGE Top Top Top Top Top Top Top Top Side Side
MOTOR TYPE Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing
MOTOR CAPACITOR / mfd 566615 15 15 477
CONTROLS Remote Remote Remote Remote Remote Remote Remote Remote Remote Remote
OPERATING RANGE 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF
CABINET SIZE/ inches
Width 18.5 17 3/4 18.5 18 1/2 22.6 22.5 22.6 22.6 26 26
Depth 15 13 5/16 17.7 15 3/4 21.3 24 21.2 21.3 28 30.5
Height 13.2 12 7/16 13.2 13 1/8 15.3 15.5 15.3 15.3 17 17
WINDOW OPENING WIDTH 25-38 25-38 25-38 25-38 27-38 27-38 27-38 27-38 30-46 30-46
THRU WALL MAX THICKNESS 8 3/4 8 3/4 8 3/4 8 3/4 8 3/4 5 1/2 8 3/16 8 3/16 8 1/2 8 1/2
N.W. / G.W lbs. 48/62 48/56 59/73 53/64 86/99 97/115 92/110 90/103 150/163 165/183
APPROVALS UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL
• Window or Through-the-Wall Installation
• Slide Out Galvanized Steel Cabinet for
Easy Installation
• Protective Rear Grille & Cabinet
• Warranty 5 Years Compressor, 1 Year Parts
IRP - International Refrigeration Products, 700 Corporate Circle, Toms River, NJ 08755 Phone: 732-736-5699 Fax: 732-736-7495 Technical Support: 704-504-8590 www.irproducts.biz
WINDOW UNITS High Efficiency, Quiet Operation and Stylish Compact Design
FEATURES:
• Multiple Functions - Cooling, Dehumidifying
& Fan Ventilation
• 3 Speed Fan Selection - Low/Medium/High
• Installation Kit with Expandable Side Panels
• Retracting Louvers
Manual Controlled Models
WAH8115M WAC12115M WAC12115MB WAC12230M WAC12230MB WAH12230M WAC24230M WAH18230M WAH24230M
BTU COOLING 8000 12000 12000 12000 12000 11600 24000 18000 23700-23200
BTU HEATING 3800 NA NA NA NA 10700 NA 11000 11000-8700
EER 9.8 9.8 9.8 9.8 9.8 9.8 8.5 9.7 8.5
DEHUMIDIFICATION (pints/hour) 2.29 2.7 3.52 2.9 3.52 2.6 6.5 4.2 8.1
AIRFLOW (CFM) 310 294 310 294 310 310 618 450 589
VOLTAGE 115 115 115 208/230 208/230 208/230 208/230 208/230 208/230
FREQUENCY/cycle 60 60 60 60 60 60 60 60 60
AMPS COOLING 9.74 14.56 11 7.07 6.2 5.7 13.1 8.75 13.0-14.0
AMPS HEATING 12.6 NA NA NA NA 14.84 NA 15.4 16.0-15.6
WATTS COOLING 972 1210 1225 1210 1225 1164 2710 1885 2790-2740
WATTS HEATING 1380 NA NA NA NA 3500 NA 3500 3680-3030
PLUG TYPE/NEMA # Type A/5-15P Type A5-15P Type A/5-15P Type B/6-15P Type B/6-15P Type B/6-20P Type C/6-20P Type C/6-20P Type C/6-20P
POWER CORD RATING/ amps 15 15 15 15 15 20 20 20 20
POWER CORD TYPE LCDI LCDI LCDI LCDI LCDI LCDI LCDI LCDI LCDI
POWER CORD LENGTH 4' 6' 4' 6' 4' 6' 6' 6' 6 1/2‘
REFRIGERANT R22 R22 R22 R22 R22 R22 R22 R22 R22
REFRIGERANT CHARGE/ Oz. 22.2 33.12 21.5 32.32 21.5 32.32 33.44 27.84 33.44
SOUND (INDOOR/OUTDOOR)dba 56/62 56/61 58/62 56/61 58/62 58/62 56/61 59/63 60/63
4 WAY AIR ADJUSTMENT Yes Yes Yes Yes Yes Yes Yes Yes Yes
2 WAY AIR SWING Yes Yes Yes Yes Yes Yes Yes Yes Yes
AIR DISCHARGE Top Top Top Top Top Top Side Side Side
MOTOR TYPE Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing
MOTOR CAPACITOR / mfd 15 15 15 4 15 47 7 7
CONTROLS Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical
OPERATING RANGE 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 86ºF 64 - 89ºF 64 - 86ºF 64 - 89ºF 64 - 89ºF
CABINET SIZE/ inches
Width 22.6 22.5 22.6 22.5 22.6 22.5 26 26 26"
Depth 23.6 24 21.2 24 21.2 24 30.5 28 31 1/4"
Height 15.3 15.5 15.3 15.5 15.3 15.5 17 17 16 7/8"
WINDOW OPENING WIDTH 27-38 27-38 27-38 27-38 27-38 28-44 30-46 30-46 30"-46"
THRU WALL MAX THICKNESS 8 3/4 5 1/2 8 3/16 5 1/2 8 3/16 5 1/2 8 1/2 8 1/2 8.5"
N.W. / G.W lbs. 88/106 97/115 92/110 97/115 92/110 97/114 165/183 150/163 165/183
APPROVALS UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL UL/CUL
• Window or Through-the-Wall Installation
• Slide Out Galvanized Steel Cabinet for
Easy Installation
• Protective Rear Grille & Cabinet
• Warranty 5 Years Compressor, 1 Year Parts
IRP - International Refrigeration Products, 700 Corporate Circle, Toms River, NJ 08755 Phone: 732-736-5699 Fax: 732-736-7495 Technical Support: 704-504-8590 www.irproducts.biz
