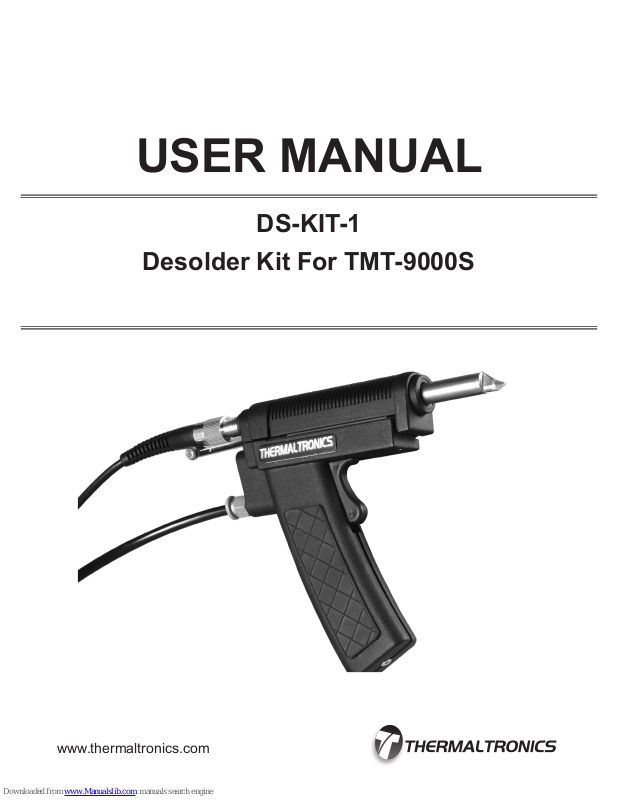

Page 1
USER MANUAL
DS-KIT-1
Desolder Kit For TMT-9000S
www.thermaltronics.com
Page 2
1
DS-KIT-1 Desoldering Kit for TMT-9000S Soldering Stations
USER MANUAL
INTRODUCTION
Congratulations on your purchase of the DS-KIT-1 desoldering kit. The
desolder gun uses shop air to create a powerful air vacuum to clean throughholes quickly and efficiently. Cleaning and maintenance is quick and easy
with the use of replaceable lter wools and chamber liners.

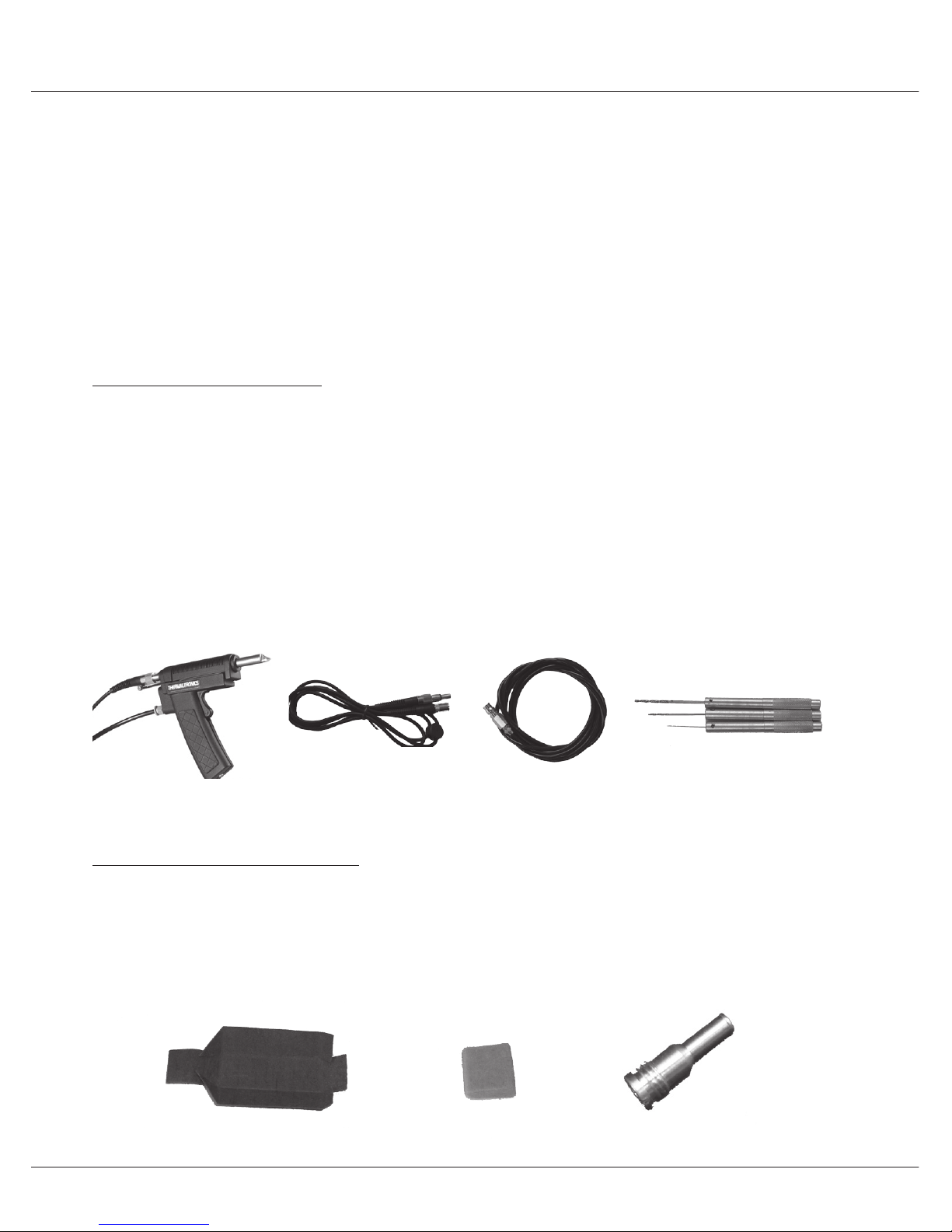

Desolder Kit Includes:
DS-AH-1 Desolder Gun Airhose
DS-CP-1 Filter Wool (6pcs) & Chamber Liner (15pcs)
DS-GUN-1 Desolder Handpiece
DS-HPC-1 Desolder Gun Handpiece Cable
DS-TCT-1 Cleaning Toolkit
RMP-1 Cartridge Removal Pad
SHH-3 Desolder Gun Workstand
Spare Parts for Purchase:
DS-CL-1 Chambler Liners (40pcs)
DS-FW-1 Filter Wool (20pcs)
DS-VC-1 Venturi Cartridge
Page 3
2
www.thermaltronics.com support email: [email protected]
TIP SELECTION
Desolder Tips:
MxxDT003 Desolder Tip Inner Diameter: 0.80 mm (0.03”)
MxxDT004 Desolder Tip Inner Diameter: 1.02 mm (0.04”)
MxxDT005 Desolder Tip Inner Diameter: 1.27 mm (0.05”)
MxxDT006 Desolder Tip Inner Diameter: 1.52 mm (0.06”)
XX Denotes Temperature Series:
60 = Temperature Sensitive
75 = Standard Applications
80 = High Performance

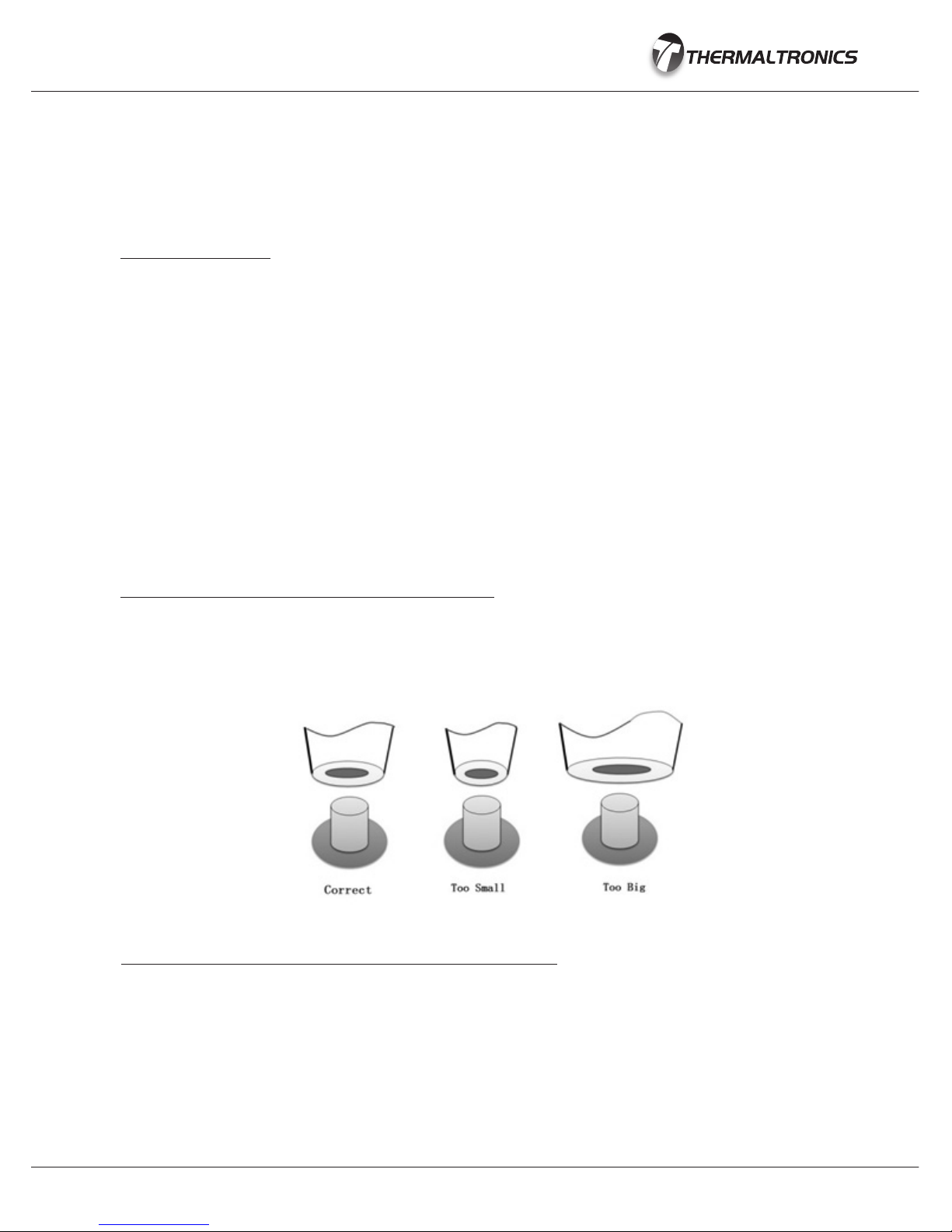

Choosing the Correct Tip Geometry:
1) Select a tip with an inside diameter larger than the lead diameter.
2) Select a tip with an outside diameter that is approximately the same size
as the pad.
Choosing the Correct Temperature Series:
For temperature sensitive applications please choose the 60 Series tips.
For standard applications the 75 series tips is sufcent.
For heavy loads or very thick multi-layer boards use the 80 series high
performance tips.
