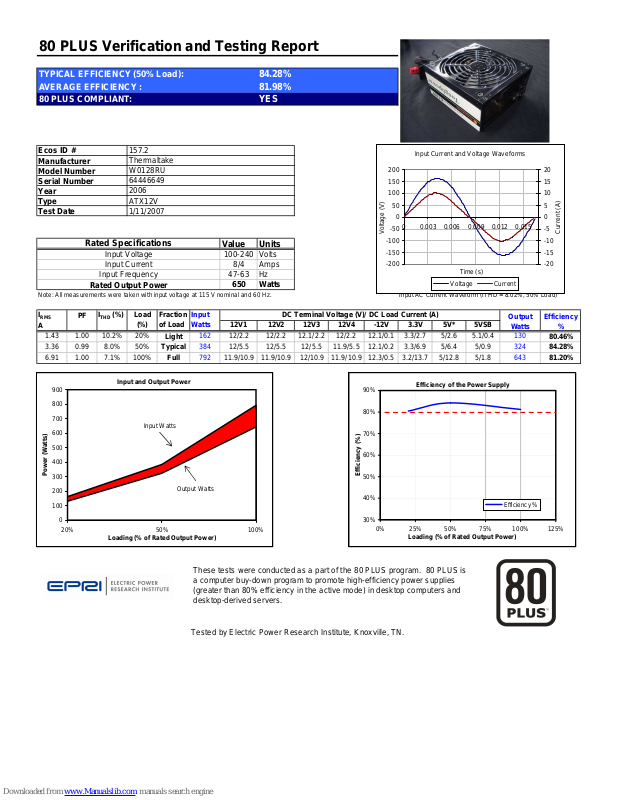

80 PLUS Verification and Testing Report
Value
Units
650
Watts
12V1
12V2
12V3
12V4
-12V
3.3V
5V*
5VSB
Watts
%
Rated Specifications
TYPICAL EFFICIENCY (50% Load):
AVERAGE EFFICIENCY :
80 PLUS COMPLIANT:
Ecos ID #
Manufacturer
Model Number
Serial Number
Year
Type
Test Date
Rated Output Power
Note: All measurements were taken with input voltage at 115 V nominal and 60 Hz. Input AC Current Waveform (ITHD = 8.02%, 50% Load)
I
RMS
A
1.43 1.00 10.2% 20%
3.36 0.99 8.0% 50%
6.91 1.00 7.1% 100%
PF
157.2
Thermaltake
W0128RU
64446649
2006
ATX12V
1/11/2007
Input Voltage
Input Current
Input Frequency
(%)
Load
(%)
I
THD
Fraction
of Load
Light
Typical
Full
100-240 Volts
Input
Watts
162 12/2.2 12/2.2 12.1/2.2 12/2.2 12.1/0.1 3.3/2.7 5/2.6 5.1/0.4 130
384 12/5.5 12/5.5 12/5.5 11.9/5.5 12.1/0.2 3.3/6.9 5/6.4 5/0.9 324
792 11.9/10.9 11.9/10.9 12/10.9 11.9/10.9 12.3/0.5 3.2/13.7 5/12.8 5/1.8 643
84.28%
81.98%
YES
8/4 Amps
47-63 Hz
Input Current and Voltage Waveforms
200
150
100
50
0
0 0.003 0.006 0.009 0.012 0.015
-50
Voltage (V)
-100
-150
-200
DC Terminal Voltage (V)/ DC Load Current (A)
Time (s)
Voltage Current
Output
20
15
10
5
0
-5
-10
-15
-20
Efficiency
80.46%
84.28%
81.20%
Current (A)
900
800
700
600
500
400
Power (Watts)
300
200
100
0
20% 50% 100%
Input and Output Power
Input Watts
Output Watts
Loading (% of Rated Output Power)
These tests were conducted as a part of the 80 PLUS program. 80 PLUS is
a computer buy-down program to promote high-efficiency power supplies
(greater than 80% efficiency in the active mode) in desktop computers and
desktop-derived servers.
Tested by Electric Power Research Institute, Knoxville, TN.
90%
80%
70%
60%
Efficiency (%)
50%
40%
30%
0% 25% 50% 75% 100% 125%
Efficiency of the Power Supply
Efficiency %
Loading (% of Rated Output Power)
