Thermaltake V-rtx 2080 Plus User Manual
+5V D G
JRAINBOW
G

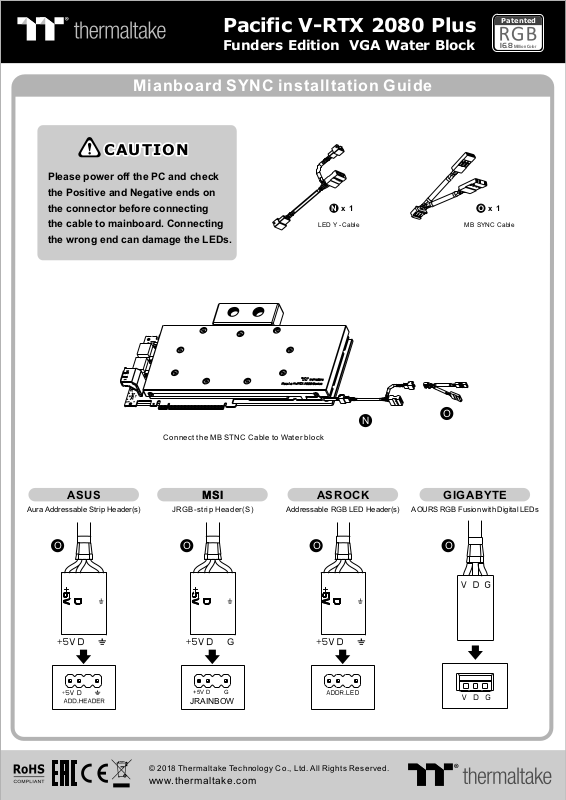

Pacific V-RTX 2080 Plus
Patent ed
Funders Edition VGA Water Block
Mianboard SYNC installtation Guide
CAUTI O NCAUTI O N
Please power off the PC and check
the Positive and Negative ends on
the connector before connecting
the cable to mainboard. Connecting
the wrong end can damage the LEDs.
N x 1
LED Y - Cable
16.8 Million Color
O x 1
MB SYNC Cable
N
Connect the MB STNC C ab le t o Wat er b lo ck
ASUS ASROCK
Aura Addressable Strip Header(s) Addressable RGB LED Header(s)
JRGB-strip Head er (S )
MSIMSI
O O O O
O
GIGABYTE
AOURS RGB Fusion with Digital LEDs
© 2018 Thermaltake Tech no lo gy C o. , Lt d. Al l Ri gh ts R es er ve d.
www.thermaltake. com
TT RGB Plus Software control interface
Please download software from Thermaltake Official website.
www.thermaltake.com/home.aspx
and search " TT RGB Plus " on t he official website.
OS compatibility: Windows 7 / 8 / 8.1 / 10
When you open the software, choos e the “VGA Plus” in the drop-down list(C-3) first.
1. Software User Interface
BB
A-1A-1
A-2A-2
D-1D-1
D-2D-2
A-3A-3
C-2C-2
C-1C-1
A. TT RGB Plus software Profile Setting
A-1 Set up a profile: Choose a Profile and set up the LED Lighting Mode,
then click the SAVE icon(A-3) to store your settings to the software.
A-2 Save a profile to controller: Select a profile and a controller,
then click the Save icon to assign the profile to the controller.
B. Follow the Installation Guide step 3, you can set up the number of the controller
C. LED Lighting Mode
Full Lighted / Wa ve / P ul se / R ip pl e / Bl in k / So und Control / RGB Spectrum / Flow / Thermal...
C- 1 LED Selection: set up the LEDs lighting, color, and speed.
Light Mode: Choose a lighting mode
Color Mode: Choose the LEDs color
Light Speed: Set up the speed of the LEDs light
LED Spot & Color Palette: Choose the color of each of the individual LEDs by clicking the color palette
Done: Save your setting
Default: Reset the LED setting back to the default
Brightness: Drag the mouse to adjust LED light brightness.
LED On/Off: Click the LED Light icon to turn on or off th e LE D li gh t
RGB Color Code: Enter the Decimal Code of Red, Green, and Blue to set the LEDs color
C-2 LED On/Off: User can switch off t he L ED c on tr ol f un ct io n in t he s of tw ar e if the fan is not plug into the controller.
C-3 Drop-down list: click the product name to choice another you want.
D-1 & D-2. Product Selection: click the control panel to rotate it to the front
C-3C-3
C-3C-3
VGA Plus
2. Mobile APP Connection Password
To connect the Riing Plus RGB APP, please connect the PC to your
wireless first, and click the Password setting under the software
setting menu, set up your connection password. The TT RGB Plus
APP will ask for your password every time when starting the APP.
For more information please visit www.thermaltake.com
© 2018 Thermaltake Tech no lo gy C o. , Lt d. Al l Ri gh ts R es er ve d.
www.thermaltake. com
English
English
正體中文
正體中文
簡體中文
簡體中文
Deutsch
Deutsch
Français
Français
日本語
日本語
ไทย
ไทย
Auto Update On
Auto Update On
Password O n
Password O n
Password :8888
Password :8888
