Page 1
Pictu re i s for ref er enc e on ly
The Tower 500
© 2 022 Ther mal take Technol ogy Co ., L td. All Righ ts Rese rved . 2 022. 04
All other r egis tered tradem arks b elong t o their respec tive co mpanies .
Tested To C omply
With F CC Standa rds
FOR H OME OR O FFICE USE
www. therm altak e.com
User's Manual
Benutzerhandbuch
Mode d’emploi
Manual del usuario
Manuale dell’utente
Manual do Utilizador
安裝說明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คู่มือการใช้
Page 2
TT Pr emium
To co ntinue ac hie vin g the co rpo rat e mission o f del ive ring t he
per fect user e xpe rie nce, T her mal take deve lop ed “TT Prem ium ”
wit h the essen ce of c omb inin g sup rem e quality p rod uct s with a
new l ogo desig n. TT P rem ium is f ar mo re th an just a gua ran tee
of qu ality. Be hin d the n ame, i t rep res ents the pa ssi on in DIY,
Mod ding and Th erm alt ake’ s des ire t o be the most i nno vat ive
bra nd in the PC ha rdw are m arke t. To s ati sfy the dem and o f the
hig h-end PC us ers , TT Pr emiu m fol low s its core va lue s of
Exc ellent Qu ali ty, U niqu e Des ign , Diverse C omb ina tion s and
Bou ndless Cr eat ivi ty to pr ovi de a hi gh perfor man ce PC p rodu ct
for e very enth usi ast . http :// ttp remi um. com
Contents
Chapter 1. Product Introduction
Tt LCS-Li quid Co oling S uppor t Certi ficat i on
Tt LC S Certifi ed is a T her malt ake e xcl usive cer tif ication
app lied to onl y pro duc ts tha t pas s the d esign and
har dcore ent hus ias ts sta nda rds t hat a true LC S cha ssis
sho uld be held t o. Th e Tt LC S cert ifi cat ion was cre ate d
so th at we at Ther mal tak e can de sig nat e to all powe r
use rs which ch ass is ha ve bee n tes ted t o be best
com patible w ith e xtr eme li qui d coo ling conf igu rat ions t o
ens ure you get t he be st pe rfor man ce fr om the best
fea tures and f itm ent .
Joi n Tt Comm unity To Re ceive Benef its
Dea r Valued Cu sto mer ,
Tha nk you for ch oos ing T herm alt ake .
As a ne w user we val ue yo ur th ough ts an d opi nions and
you r feedbac k is im por tant t o us. W e at Th ermalta ke
wou ld like to us e thi s opp ortu nit y to in vite you to j oin o ur
Com munity Fo rum s. Re gist er to day t o start enj oyi ng the
ful l benefit s of ou r com muni ty.
Ben efits of be ing a m emb er:
Qui ck and resp ons ive u ser su ppo rt
Rec eive help a nd ad vic e with n ew bu ild s
Kee p up to date wi th ne w pro duct r ele ase s
Sha re your tho ugh ts an d buil ds wi th th e communi ty
Ent er monthl y con tests and g ive awa ys
Bra nd off ici al websit e
htt p:// www. ther mal take.co m/
Glo bal Fa ceb ook
htt ps:/ /ww w.fac ebo ok.com/ The rmal tak eInc
Taiwa n Faceboo k
htt p:// www. face boo k.com/T her malt ake TW
Glo bal co mmu nity foru ms
htt p:// com mun ity.th erm alt ake. com
1.0
Sp ec ifi ca tio n
1.1
Ac ce sso ry
1.2
War nin g an d No tice
Chapter 2. Installation Guide
Remo ve C om ponen ts
2.0
Powe r Su pp ly Un it ( PS U) I nst al lat io n
2.1
Mo th erb oa rd I nst al lat io n
2.2
PC I Ca rd I nst al latio n
2.3
HD D In stall at ion
2.4
Ai r Co oling I ns talla ti on
2.5
Li qu id Cool in g Insta ll ati on
2.6
AI O Br ac ke t Insta ll ati on
2.7
Pu mp I nstal la tio n
2.8
Remo ve F il ters
2.9
I/ O Co nnect io n
2.10
01
02
03
06
07
08
09
10
13
14
15
17
18
19
Page 3
The Tower 500 The Tower 500
Spe c ification
Acce ssory
Case Type
Dimension (H*W*D)
Side Panel
Material
Cooling System
Drive Bays
Expansion Slots
Motherboards
I/O Por t
PSU
Fan Support
Radiator Support
Clearances
Mid Tower
608 x 388 x 398 mm (23.9 x 15.3 x 1 5.7 inch)
Tempered Glass x 3
SPCC
Rear
(exhaust):
120 x 120 x 25 mm Standard fan (1500 rpm, 35.8 dBA) x 2
4 x 3.5”, 8 x 2 .5”
or 8 x 3.5”
9
6.7” x 6.7” (Min i ITX), 9 .6” x 9.6 ” (Micr o ATX),
12” x 9.6” (ATX), 10 .5” x 12” ( CEB), 1 3” x 12” (E EB)
USB 3.2 ( Gen 2) Type -C x 1, USB 3 .0 x 4, HD Audi o x 1
Standard PS2 PSU (optional)
Top
Side
Rear
Power Cover
Botto m
(Vertical / Horizontal)
Top
Side (AIO Only )
Botto m
(Vertical / Horizontal)
CPU cooler height
limitation
VGA length limitation
PSU length limitation
2 x 120 mm, 1 x 120 mm
3 x 120 mm, 2 x 120 mm,1 x 1 20 mm
2 x 120 mm, 1 x 120 mm 2 x 140 mm, 1 x 140 mm
2 x 120 mm, 1 x 120 mm 2 x 140 mm, 1 x 140 mm
2 x 120 mm, 1 x 120 mm
1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm
1 x 360 mm, 1 x 240 mm,1 x 1 20 mm
(Max length limitation: 399 mm)
1 x 240 mm, 1 x 120 mm
275 mm
325 mm (With power cover)
355 mm (Without power cover)
200 mm
2 x 140 mm, 1 x 140 mm
Q’tyPart NameFigure Used For
4
Power S up plyScrew # 6- 32 x 6.0 mm
Buzze r
Screw M 3 x 6 mm
Stand -o ff #6-3 2 x 6. 5 mm
NutS e tter Mothe rb oard St an d- off I ns ta llati on
Screw # 6- 32 x 6.0 mm
3.5” HD D Ru bber
2.5” HD D Ru bber Pa d
Cable T ie s
AIO Bra ck et
Mothe rb oard Al ar m
1
Mothe rb oard
45
2.5” HD D / SS D
Mothe rb oard
3
1
3.5” HD D
35
AIO 360 B ra cket
3.5” HD D
12
2.5” HD D
16
SSD
20
Cable M an ageme nt
2
Fan / Rad ia tor
01 02
Page 4
The Tower 500 The Tower 500
War n ing and Notice
Cha ssis dim ension
398mm
608mm
388mm
388mm
Mot herboa rd Compa tibilit y:
ITX / m AT X / AT X / CEB / EEB (W ithout Power C over)
Radiator l ength ma x length : 399mm
399mm
CPU c ooler ma x height : 275mm
275m m
ITX ITX
ATX ATX
mAT X mAT X
EEBEEB
03 04
Page 5
The Tower 500 The Tower 500
PSU l ength ma x length : 300 mm
Remo ve Components
1
4
2
332mm 246mm
Vertical F an Brack et Horizont al Fan Bracket
VGA l ength ma x length : 355 mm (Wi t hout Power Cover)
2
2
3
325mm
355mm
05 06
Page 6
The Tower 500 The Tower 500
Power Supply Unit Installation
Mot herboard Installation
x 4
x 9
07 08
Page 7
The Tower 500 The Tower 500
PCI C ard Installa tion HDD In stallation
Fro nt PSU Cover
1
3.5 ” HDD x 1 2.5 ” HDD x 2
x 4 x 4
09 10
Page 8
The Tower 500 The Tower 500
Rear Fan Bra cket
2
Type A:
3.5 ” HDD x 2 + 2.5 ” x 4
x 4
x 4
Type B:
3.5 ” HDD x 4
x 4
11 12
Page 9
The Tower 500 The Tower 500
Air Cooling Insta llation
Liqu id Cooling Ins tallation
Left
120mm x 3
Power Cover
120mm x 1 or
140mm x 1
Top
120mm x 2
or
140mm x 2
Power Cover
Rear
120mm x 2
or
140mm x 2
Right
120mm x 3
Top
240mm x 1
or
280mm x 1
Left
360mm x 1
Right
360mm x 1
120mm x 1
or
140mm x 1
Front
120mm x 2
Bottom
120mm x 2
13 14
Front
240mm x 1
Bottom
240mm x 1
Page 10
The Tower 500 The Tower 500
AIO Br acket Instal lation
1
3
x 2
2
4
15
16
Page 11
The Tower 500 The Tower 500
Pacific P R22-D5 Pl us Pacific P R32-D5
1 2

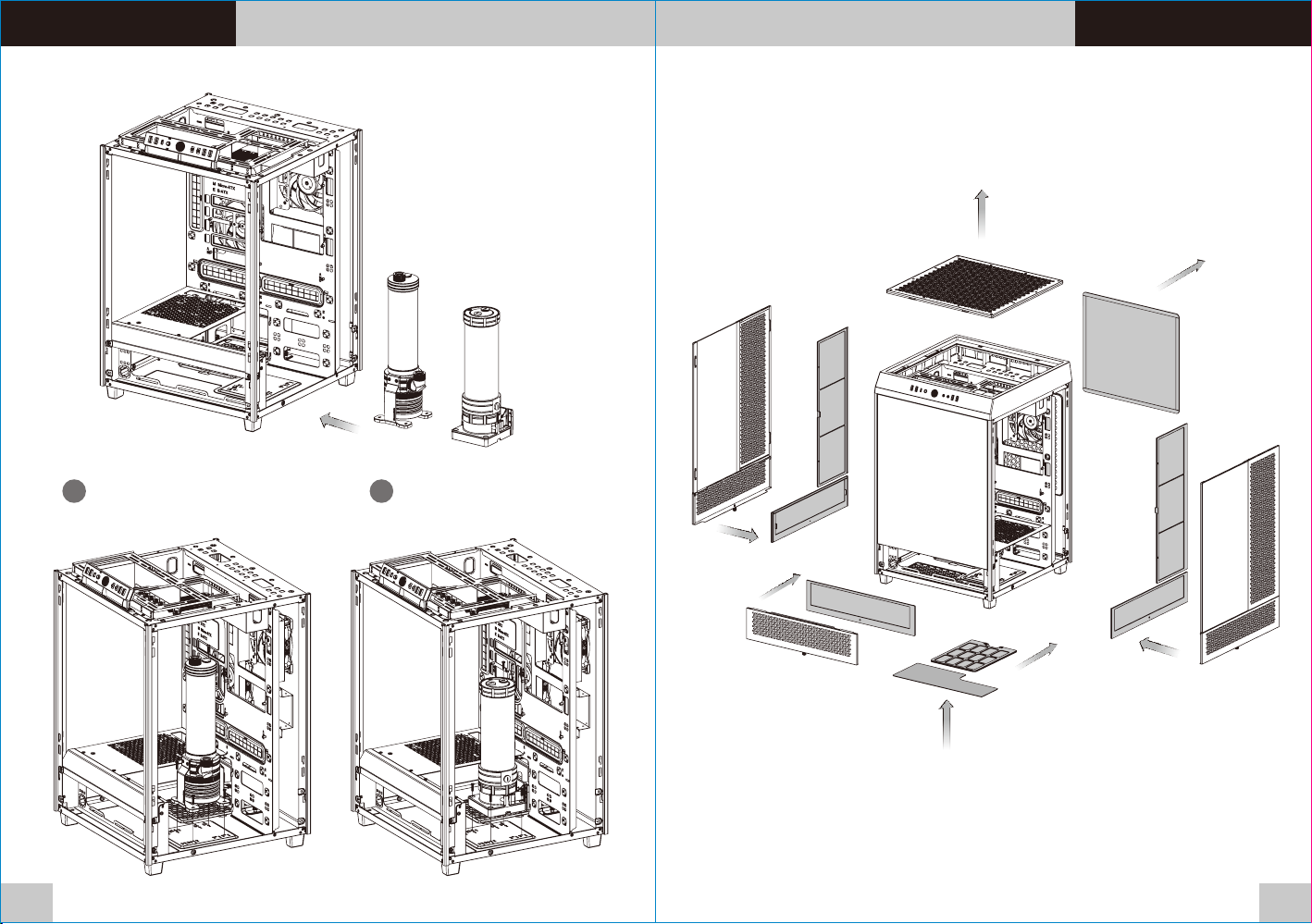

Pump Installation
Remo ve Filters
17
18
Page 12
The Tower 500

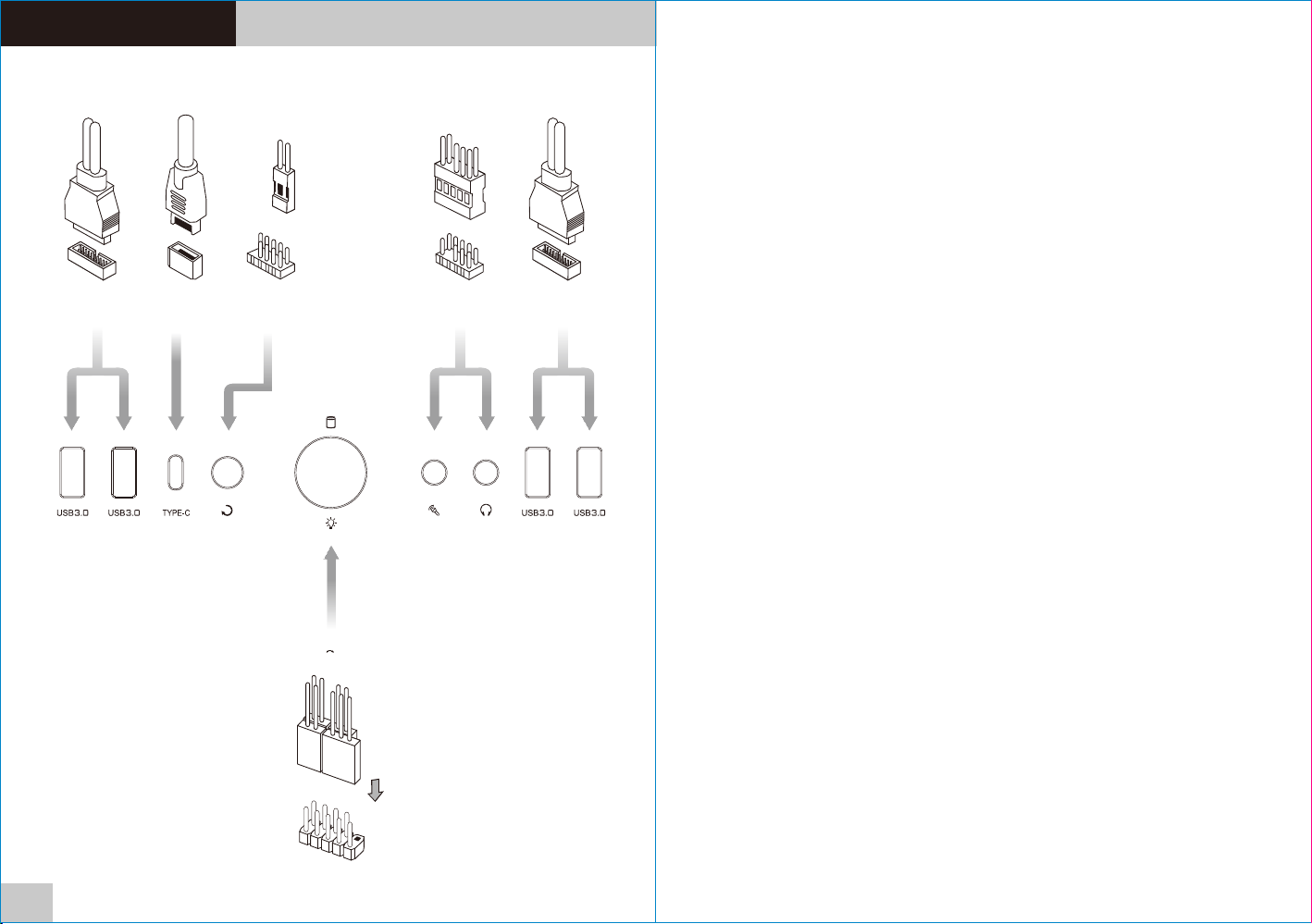

I/O Connection
USB 3.0 RESET
Power SW / Power LED / HDD LED
HD Audio USB 3.0TYPE-C
19
