Page 1
Pictu re i s for ref er enc e on ly
Micro Case
Divider 200 TG Air
© 2021 Thermaltake Technology Co., Ltd. All Rights Reserved. 2021.07
All other registered trademarks belong to their respective companies.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
www.thermaltake.com
User's Manual
Benutzerhandbuch
Mode d’emploi
Manual del usuario
Manuale dell’utente
Manual do Utilizador
安裝說明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คู่มือการใช้
Page 2
TT Premium
TT Premium
To continue achieving the corporate mission of delivering the
perfect user experience, Thermaltake developed “TT Premium”
with the essence of combining supreme quality products with a
new logo design. TT Premium is far more than just a guarantee
of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative
brand in the PC hardware market. To satisfy the demand of the
high-end PC users, TT Premium follows its core values of
Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity to provide a high performance PC product
for every enthusiast. http://ttpremium.com
Contents
Chapter 1. Product Introduction
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Joi n Tt Comm unity To Re ceive B enefi ts
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
1.0
Specification
1.1
Accessory
1.2
War nin g an d No tice
Chapter 2. Installation Guide
Remove Components
2.0
Power Supply Unit (PSU) Installation
2.1
Motherboard Installation
2.2
3.5" & 2.5" HDD Installation
2.3
PCI Card Installation
2.4
2.5
Air Cooling Installation
2.6
AIO Liquid Cooling Installation
2.7
I/O Connection
2.8
Bracket Installation
2.9
Remove Filters
01
02
03
06
07
08
09
11
12
13
14
15
16
Page 3
Div ider 200 TG Air Divider 200 TG Air
Specification
Accessory
Model
Cas e Type
Dimension (H*W*D) 364.7 x 333 .2 x 425. 7 mm (14. 4 x 13.1 x 16 .8 inch )
Side Panel
Color
Material
Coo ling Sy stem
Drive Bays
Expansion Slots
Motherboards
I/O P ort
PSU
Fan Support
Radiator Support
Clearance
Div ider 20 0 TG Air Div ider 20 0 TG Air S now Edi tion
Micro Case
Tempe red Gla ss x 2
Black White
SPCC
Fro nt (int ake) :
200 x 2 00 x 30 mm St andard fan (800rpm, 13 dBA) x 1
Rea r (exha ust) :
120 x 1 20 x 25 mm fa n (1000rpm, 16 dBA) x 1
3 x 3.5 ”, 3 x 2.5”
or 6 x 2. 5”
5
6.7 ” x 6.7” (M ini ITX ), 9.6” x 9 .6” (Mi cro ATX)
USB 3 .2 (Gen 2 ) Type-C x 1 , USB 3 .0 x 2, HD Aud io x 1
Standard PS2 PSU (optional)
Front: 2 x 120 mm, 1 x 1 20 mm
2 x 140 mm, 1 x 140 mm
1 x 200 mm
Right: 2 x 120 mm , 1 x 120 mm
2 x 140 mm, 1 x 140 mm
Rear: 1 x 120 mm, 1 x 1 40mm
Bottom: 2 x 120 mm, 1 x 1 20 mm
Front: 1 x 240mm, 1 x 120mm
1 x 280 mm, 1 x 140 mm
Right: 1 x 240m m, 1 x 120 mm
1 x 280 mm, 1 x 140 mm
Rear: 1 x 120 mm
CPU c ooler h eight l imita tion: 1 85 mm
VGA length limitation: 310mm (With 27mm radiator)
PSU length limitation: 180mm (Wi th Bo ttom Fa n)
200mm (W ithou t Botto m Fan)
340mm (Without radiator)
Figure
Part Name
Screw 5 x 10 mm
Stand-off #6-32 x 6.5 mm
Screw M3 x 6 mm
Screw #6-32 x 5 mm
Screw #6-32 x 5 mm
Screw #6-32 x 6 mm
Screw 3 x 6 mm
PSU Pad
Buzzer
Zip Tie 150 mm
Q`ty
12
2
18
12
9
4
6
2
1
7
Use For
For Fan
For Motherboard
For 2.5” HDD
For 3.5” HDD
For Motherboard
For PSU
For 3.5” Tray
For PSU
Motherboard Alarm
Cable Management
01 02
Page 4
Div ider 200 TG Air Divider 200 TG Air
War n ing and Notice

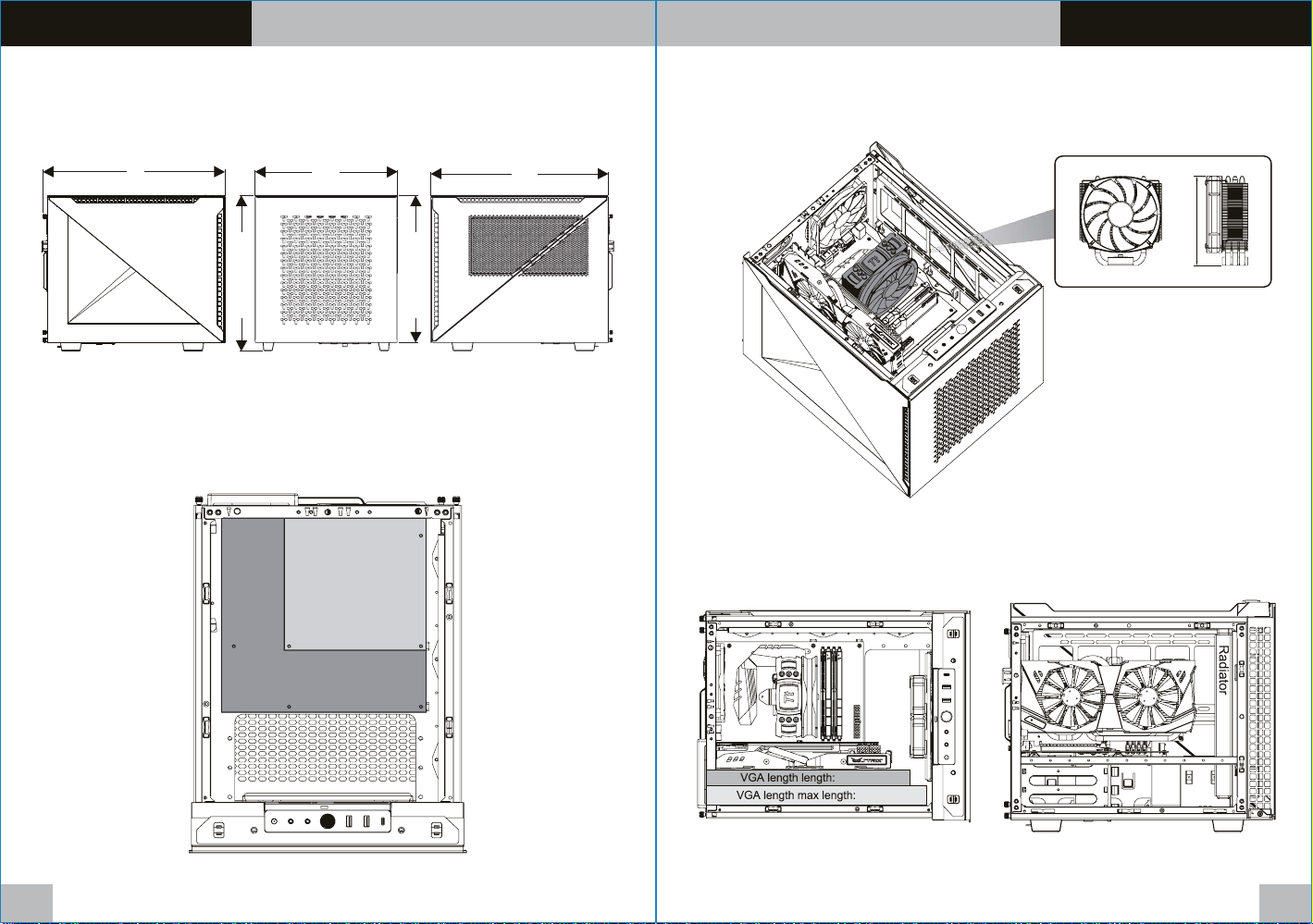

Chassis dimension
425.7mm 333.2mm
364.7mm
344.7mm
415.8mm
Motherboard Compatibility: ITX / mATX
(Up to 244mm wide)
ITX
CPU c ooler ma x height : 185mm
185mm
VGA l ength ma x length : 340mm
mATX
310mm
340mm
03 04
240mm
Page 5
Div ider 200 TG Air Divider 200 TG Air

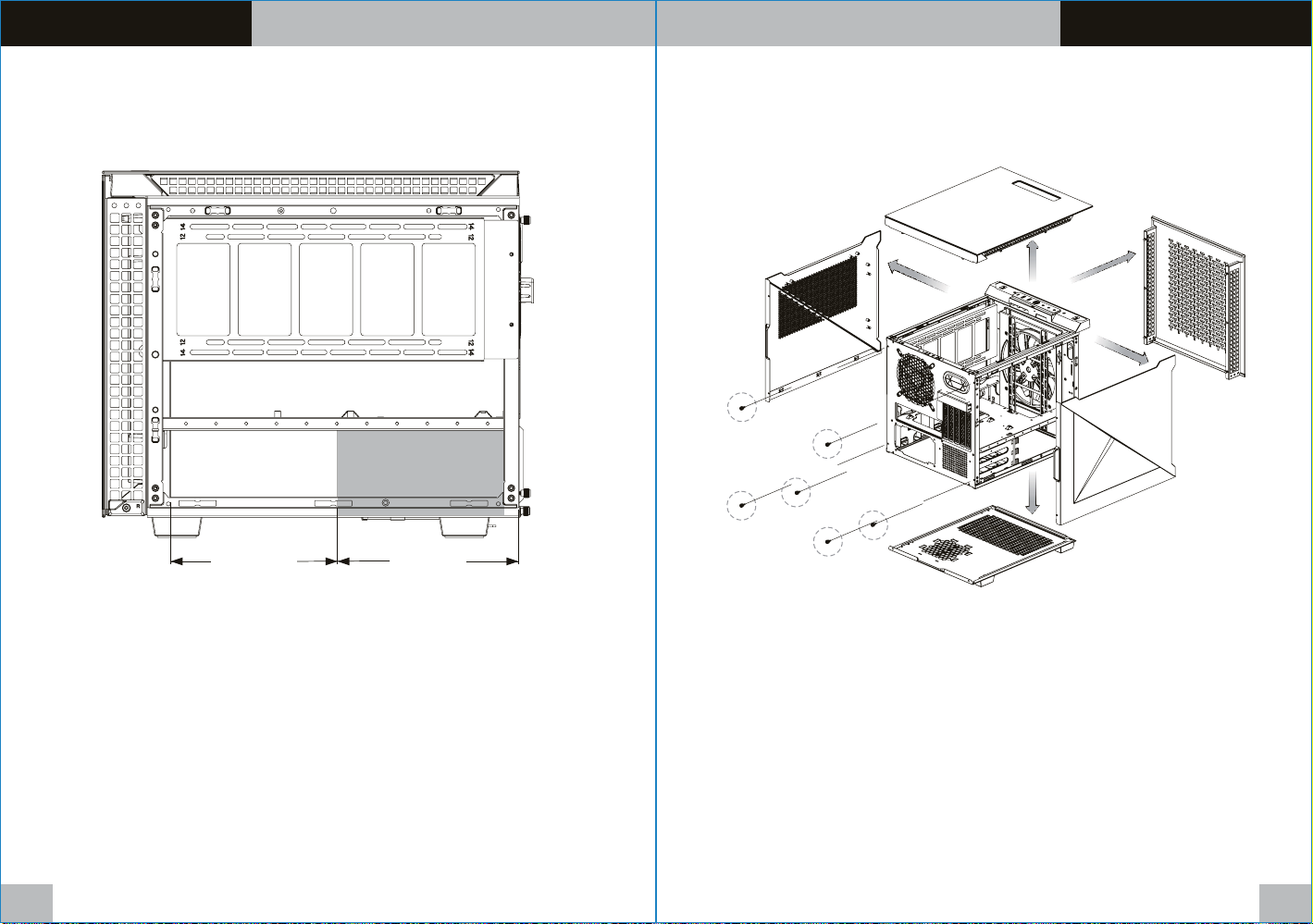

Remove Components
PSU m ax lengt h: 180mm
165.95mm 180mm
05 06
Page 6
Div ider 200 TG Air Divider 200 TG Air

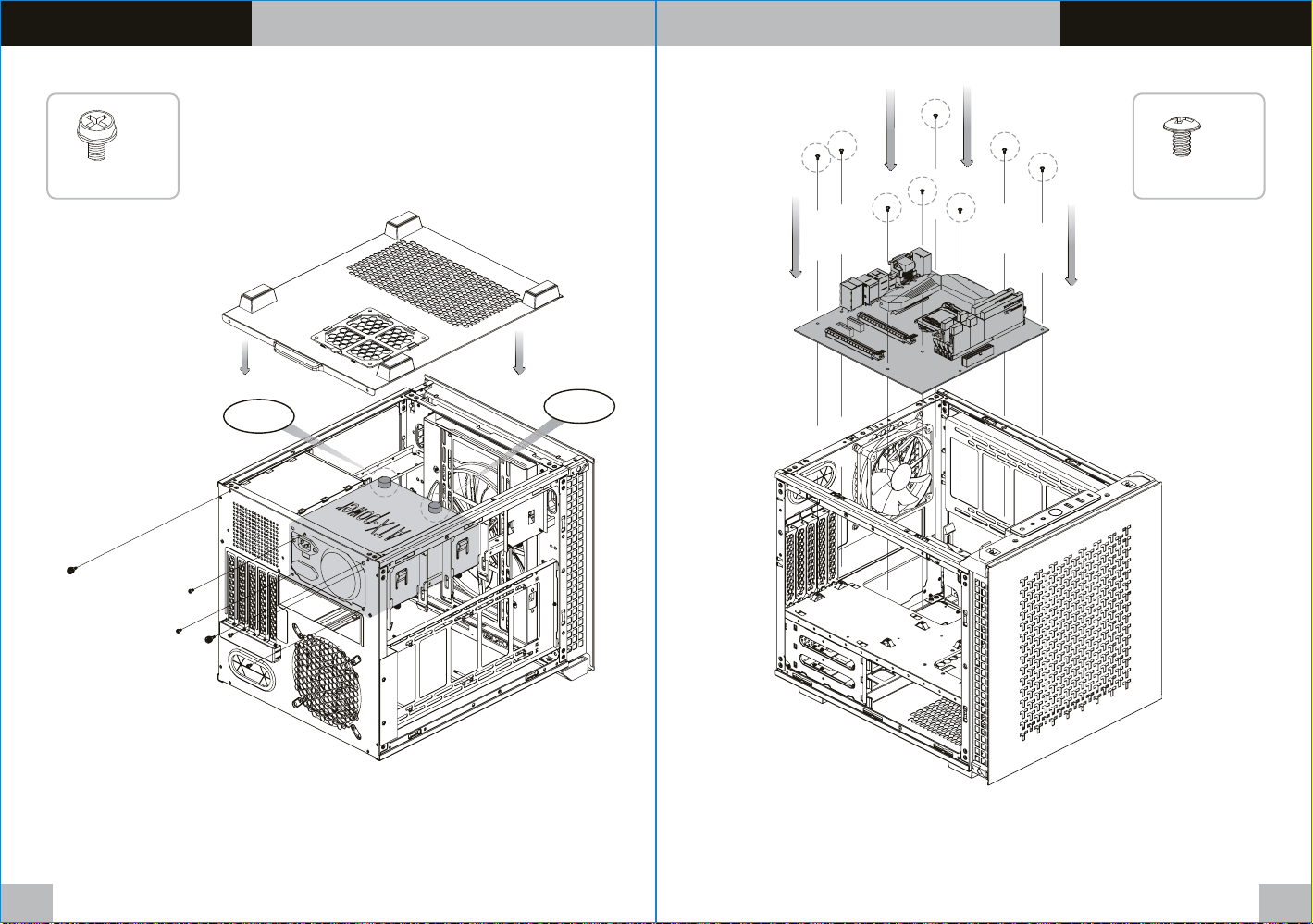

Power Supply Unit Installation Mot h erboard Inst allation
x 4 x 8
PSU Pad
07 08
PSU Pad
Page 7
Div ider 200 TG Air Divider 200 TG Air

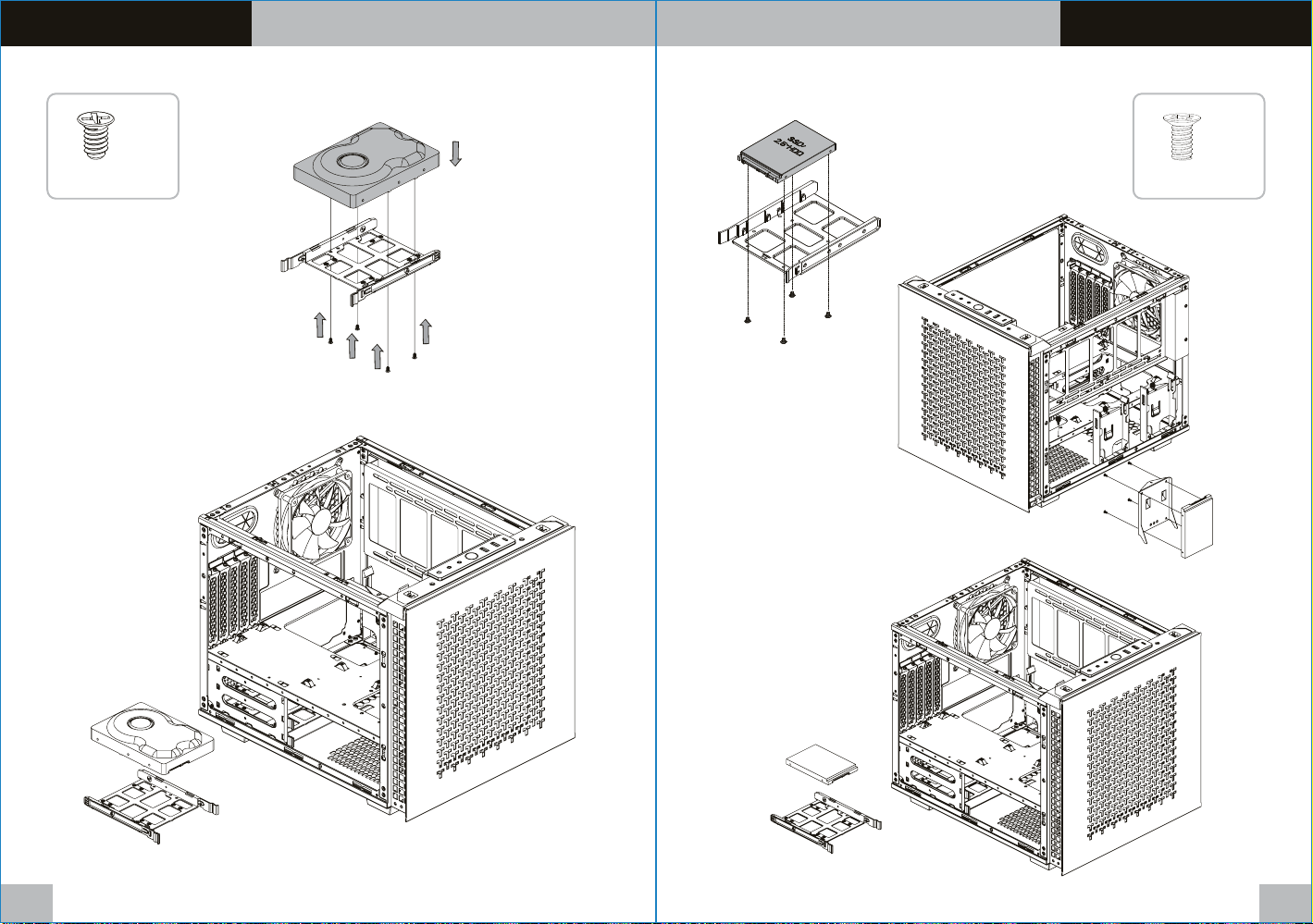

3.5” HDD Installation
2.5” HDD Installation
x 4
x 4
09 10
Page 8
Div ider 200 TG Air Divider 200 TG Air

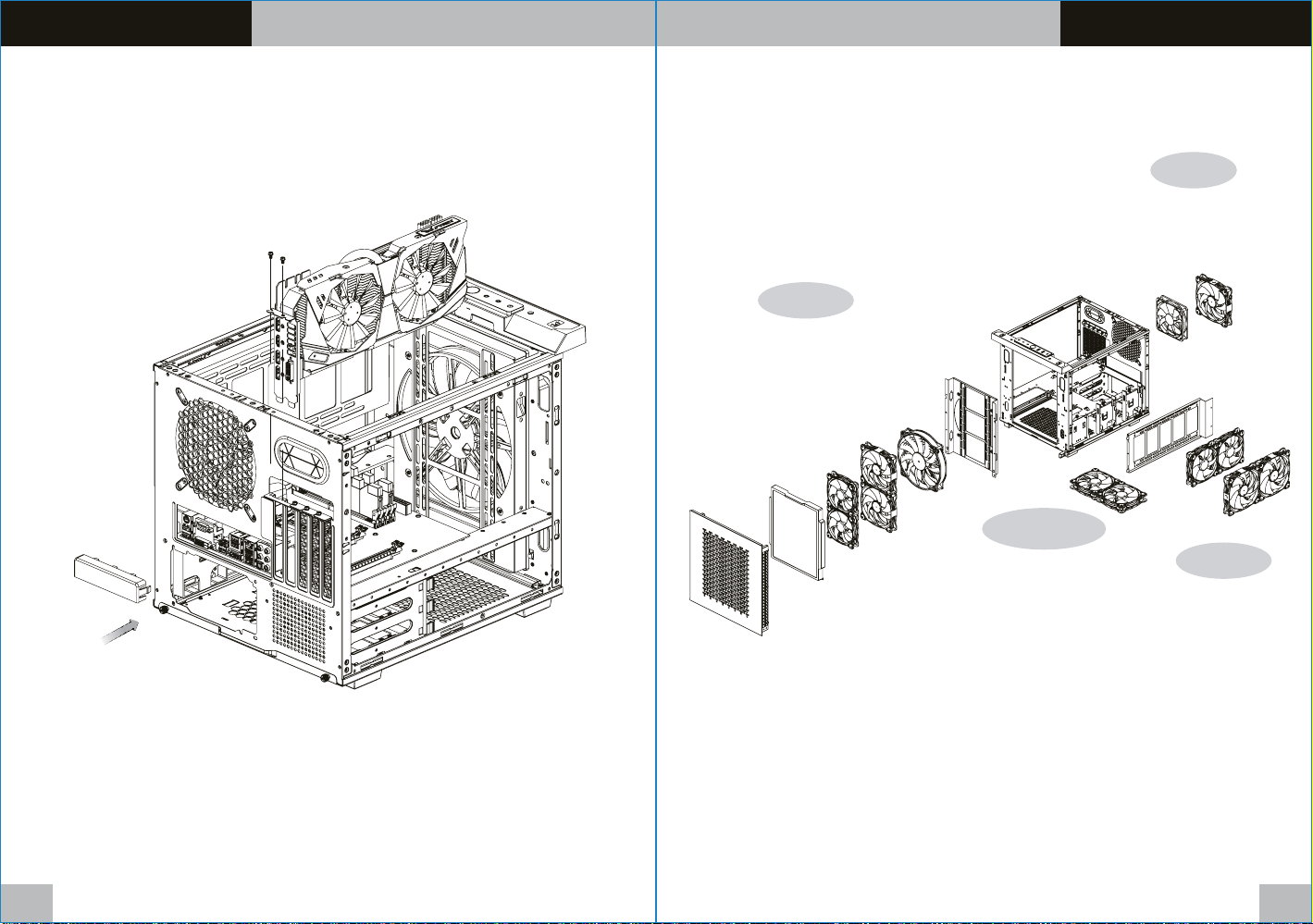

PCI Card Installation
Air Cooling Installation
Rear
120mm x 1
or
140mm x 1
Front
120mm x 2
or
140mm x 2
or
200mm x 1
Bottom
120mm x 2
11 12
Right
120mm x 2
or
140mm x 2
Page 9
Div ider 200 TG Air Divider 200 TG Air

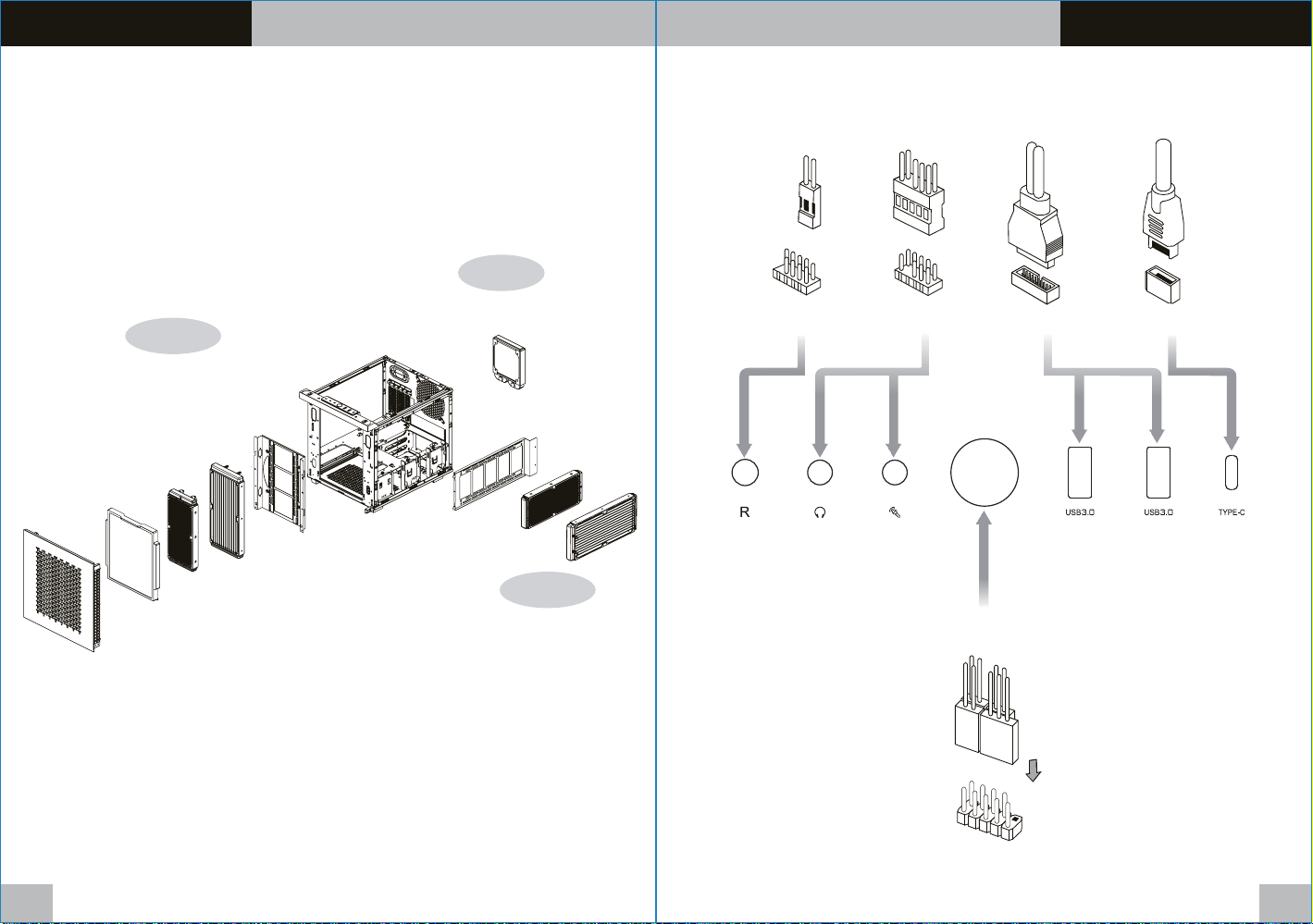

AIO Liquid Cooling Installation I/O Connection
Rear
Front
240mm x 1
or
280mm x 1
120mm x 1
Right
240mm x 1
280mm x 1
RESET HD Audio USB 3.0 TYPE-C
Power SW / Power LED / HDD LED
or
13 14
Page 10
Div ider 200 TG Air Divider 200 TG Air
Bracket Installation Remove Filters
Front
Top
Right
15
Right
Front
Bottom
16
