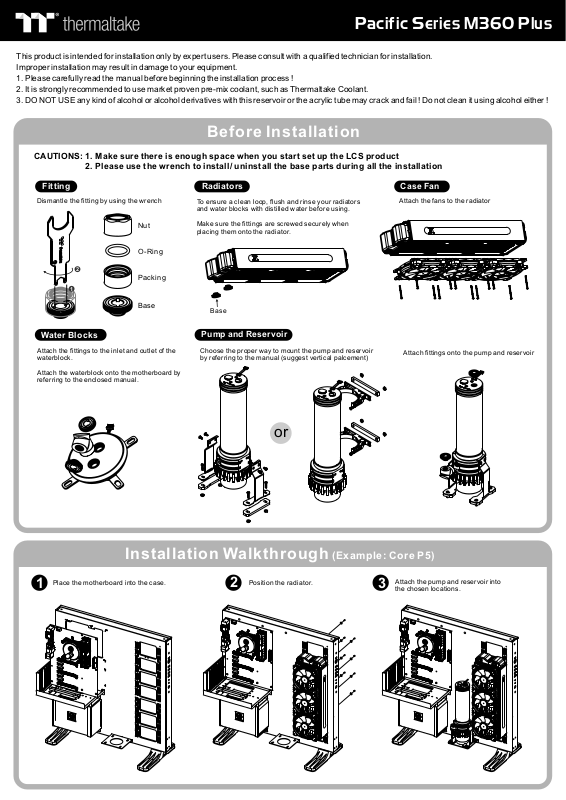

Pacif ic Serie s M360 Plus
This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
1. Please carefully read the manual before beginning the installation process !
2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant.
3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either !
Before Installation
CAUTIONS: 1. Make sure there is enough space when you start set up the LCS product
2. Please use the wrench to install/ uninstall the base parts during all the installation
Fitting
Dism antle the fitting b y using the wrench
Nut
O- Ring
2
1
Water Blocks
Attach the fitting s to the inlet and outlet of the
waterblock.
Attach the waterbl ock onto the motherboard by
referring to the enc losed manual.
Packing
Base
Radiators
To ensure a clean loop, fl ush and rinse your ra diators
and wa ter blocks with dis tilled water befo re using.
Make s ure the fittings ar e screwed securel y when
plac ing them onto the rad iator.
Base
Pump and Reservoir
Choose the proper wa y to mount the pump and reservo ir
by referring to the ma nual (suggest vertical palceme nt)
or
Case Fan
Attach the fans to the r adiator
Attach fittings on to the pump and reservoir
Installation Walkthrough (Example: Core P5)
Place the motherbo ard into the case. Position the radia tor.
1
2
Attach the pump and re servoir into
3
the chosen locatio ns.
Page 2
Cutting and Attaching the Tubing
Measu re t he tube l ength b as ed on the b ase
1
part of t he f ittin g, and ma ke ( bend) t he tube s.
The loo p or der : Pum p Outle t > Wat er Bloc k
Fit the C -P ro fitt ing to th e tu be acco rding
4 5
to the or de r in the pi cture b el ow, Inst all the
tubes a nd t ight th e fitti ng c aps.
Groov e
2
Measu re t he tube l ength b as ed on the b ase
part of t he f ittin g, and ma ke ( bend) t he tube s.
The loo p or der : Water Bl ock > Rad ia tor
Finis he d
Measu re t he tube l ength b as ed on the
3
base pa rt o f the fit ting, a nd m ake (be nd)
the tub es . The l oop ord er : R adiat or >
Reser vo ir inle t
CA UT IO NCA UT IO N
The O-r in g and the p ackin g
with a gr oo ve on the i nside
diame te r must al ways be
insta ll ed towa rds the t op o f
the com pr essio n nut
CAUTIONS:
1. Before filling t he s ys te m, please make
sure that each fitt in g as w el l as unused
ports are complet el y se al ed.
2. If there is any case o f le ak in g,
immediately tur n of f th e po wer and
clean the leak
3. If there is any rela te d el ec tronic parts
stained on liquid c oo la nt , make sure to
completely clea n an d dr y th e
components. And then make sure t he y
all work well.
Filling the System
After s wi tchin g off t he p ower su pply,
1
conne ct t he PSU po wer cor d an d
produ ct c ables .
Use the r ef ill bot tle to fi ll c oolan t into th e re servo ir
2
Refil l bo ttle
not inc lu ded
Place y ou r PSU out side of t he c ase and a ttach i t to
3
the pum ps 4 pin mol ex conn ec tor, tur n on the po we r
of PSU an d ma ke the re st of the s ys tem fil ls up.
Thermaltake recommen ds the following steps to be taken after completing y our water loop setup
1. It is strongly reco mm en de d to u se m ar ke t pr ov en p re -m ix coolant, such as Th er ma lt ak e Co ol ant 1000. It off er s gr ea t pe rf or ma nc e
while preventi ng t he e nt ir e co ol in g sy st em – c op per, brass, nickel, aluminum, and steel – from corrosion.
2. Fill the reservoi r wi th c oo la nt a nd c yc le t he p ow er o n and off se ve ra l ti me s wh il e th e pu mp p us hing the coolant into the loop.
3. DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
4. Fill the reservoi r to t he t op a s it w il l pr ev en t ai r fr om g oi ng into the pump
5. If necessary tilt t he s ys te m sl ig ht ly f ro m si de t o si de t o bl eed the air out of the loop.
6. Place some pape r to we ls u nd er f it ti ng s an d jo in in g points to test for leaks.
7. Run the loop with t he f il l po rt o pe n fo r ab ou t 24 h ou rs t o co mpletely bleed the air out of the loop.
© 2017 Th er ma ltake Technology C o. , Lt d. All Rights Re se rv ed.
www.thermaltake.c om
