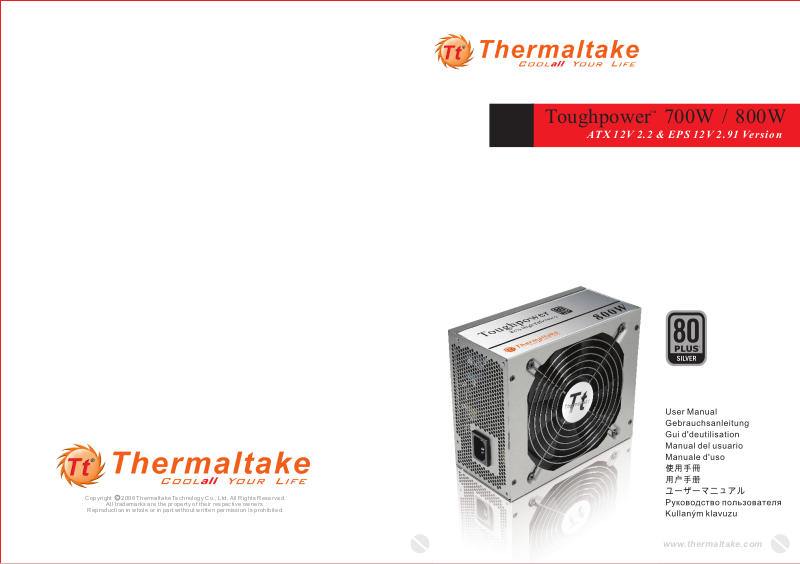

Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
AT X 1 2 V 2 . 2 & E PS 1 2 V 2. 9 1 Ve r s io n
C
Cop yrigh t 2008 Th ermal take Techn ology C o., Ltd . All R ights R eserv ed.
All t radem arks ar e the pro perty o f their r espec tive ow ners.
Rep roduc tion in w hole or i n part wi thout w ritte n permi ssion i s prohi bited .
www.t herm altake. com
Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
Table of contents
01. Warnings & Caution -----------------
02. Components Check -----------------
03. Power Connector Introduction --
04. Installation Steps --------------------
05. Product Features -------------------
06. Output Specification ----------------
07. Total Protection ----------------------
08. EMI & SAFETY -----------------------
09. Environments -------------------------
10. Trouble Shooting ---------------------
01
02
03
04
05
06
06
07
07
07
Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
1. Warnings and Caution 2. Components Check
1. Do not unplug the AC power cord when the power supply is in
use. Doing so may cause damage to your components.
2. Do not place the power supply in a high humidity and/or
temperature environment.
3. High voltages exist in the power supply. Do not open the
power supply case unless you are an authorized service
technician or electrician. Doing so will void the warranty.
4. PSU should be powered by the source indicated on the rating
label.
5. All warrantees and guarantees will be voided, if failure to
comply with any of the warnings and cautions covered in this
manual.
Toughpower 80Plus (Silver)
/ power supply unit 700W 800W
User manual
AC power cord
Mounting screw x 4
Silicone rubber mounting
gasket x 1
Cable strap x 4
01 02
Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
3. Power Connector Introduction
Cab le
P/N M odel
W02 95 700W
W02 96 800W
MODELS
700W
800W
20+4 pin Mai n
4pin +12V CPU
Connector
8pin +12V CPU
Connector
Conn ector
1 1 1 6
1 1 1 6
SATA
Conn ector
Peri phera l
Conn ector
Connector Type Connectors & Cable length
20+4pin
ATX 12V 4pin
EPS 12V 8pin
Molex & FDD
SATA
PCI-E 8/6pin
1 x 20+4pin Main connector
(500mm)
1 x ATX 12V 4pin connector
(500mm)
1 x EPS 12V 8pin connector
(500mm)
2 x Peripheral & 1 x FDD connectors
(500mm + 150mm + 150mm)
3 x connectors
Peripheral
(500mm + 150mm + 150mm)
3 x S-ATA connectors
(500mm + 150mm + 150mm)
3 x S-ATA connectors
(500mm + 150mm + 150mm)
1 x 8/6pin PCI-E connectors
(500mm + 150mm)
1 x 8/6pin PCI-E connectors
(500mm + 150mm)
Flop py
8pin P CI-E
Conn ector
5
5
Conn ector
1 2 2 2
1 2 2 2
6pin P CI-E
Conn ector
PCI- E (8 to 6)
Conn ector
4. Installation Steps
Note: Make su re that your system is turned of f a nd unplugged.
Disconnect th e A C power cord from y our old power supply.
1. Open your computer case; please refer to the direction in your
case manual.
2. Install the PSU into the case with the four screws provided.
3. Connect the 24 pin Main Power Connector to your motherboard
and peripheral. If your motherboard uses a 20-pin
connector, detach the 4-pin attachment on the 24-pin connector.
Note: The det ach able 4-pin section cannot be used in p lac e of a 4-pin +12 V
connector.
4. Connect the 8-pin or 4-pin connector for the CPUs.
5. Connect other peripheral power connectors to devices such as
hard drives, optical drives, etc.
6. Close your computer case and connect the AC power cord to
the power supply AC inlet.
03 04
Toughpower 700W / 800W
TM
Toughpower 700W / 800W
TM
5. Product Features
- Stable 700W / 800W continuous output.
- 80 Plus (Silver) certified.
- High efficiency (88% @ 115V & 230V input).
- Intel ATX 12V 2.2 and EPS 12V 2.91 Compatible.
- Universal AC input 100~240V automatically scans and detects
the correct voltage for different country.
- Supports Dual Core CPU / Quad Core CPU / NVIDIA SLI & Quad
SLI and all Multi-Core GPU technologies.
- Active PFC (PF>0.99).
- High reliability: MTBF>120,000 hours.
- Protections: Over Current, Over Voltage, and Short-Circuit
protection.
- Safety / EMI Approvals: UL, CUL, TUV, CE, FCC, BSMI,
GOST certified
6. Output Specification
INPUT VOLTAGE: 100V-240V~, FREQUENCY: 50HZ-60HZ
MODEL
700W
800W
Voltage
MAX Load
Combined
Wattage
MAX Load
Combined
Wattage
+3.3V
24A
24A
170W
150W
+5V
30A
30A
30A
30A
+12V2
672W
792W
35A
40A
-12V+12V1
0.5A
6W
0.5A
6W
7. Total Protection
Over Voltage Protection
W0295 (700W) / W0 296 (800W)
Voltage Source
+3.3V
+5V
+12V
Over Current Protection
W0295 (700W)
Output Voltage
+3.3V
+5V
+12V1 DC
+12V2 DC
Protection Point
3.76V-4.8V
5.6V-7V
13.5V-16.5V
Max. over current limit
35.0A
40.0A
40.0A
45.0A
W0296 (800W)
Output Voltage
+3.3V
+5V
+12V1 DC
+12V2 DC
+5Vsb
3.5A
17.5W
3A
15W
Max. over current limit
TOTAL
POWER
700W
800W
35.0A
40.0A
40.0A
55.0A
Short Circuit Protection
Activated when any DC rails short circuited.
05 06
Toughpower 700W / 800W
TM
8. EMI & SAFETY
EMI Regulatory
W0295 (700W)
W0296 (800W)
FCC Part 15 Subpart J, Class B 115 Vac operation
CISPR 22 Class B 230 Vac operation
SAFETY Standards
W0295 (700W)
W0296 (800W)
UL, CUL, CE, FC C, B SMI and GOST ce rt ified.
9. Environments
Toughpower 700W / 800W
TM
Temperature Range
Operating
Storage
o
+10 to +40 C
C
o
-10 to +60 C
C
o
o
Humidity
Operating
Storage
5-95% RH, Non-condensing
5-95% RH, Non-condensing
10. Trouble-Shooting
If the power sup ply fails to function properly, ple ase follow the t rou bleshooting
guide before app lication for servic e:
1. Is the power cord plugged properly into electrical outlet and into the
power supply AC inlet?
2. Please make sure all power connectors are properly connected to all
the devices.
3. If connected to a UPS unit, is the UPS on and plugged in?
If the power sup ply is sti ll unable to function properly after foll owi ng the above
instruction, ple ase contac t y ou local store o r T t branch office for after sales service.
You may also ref er to Thermaltak e's website f or more technical s upp ort:
www.thermalta ke.com
07
