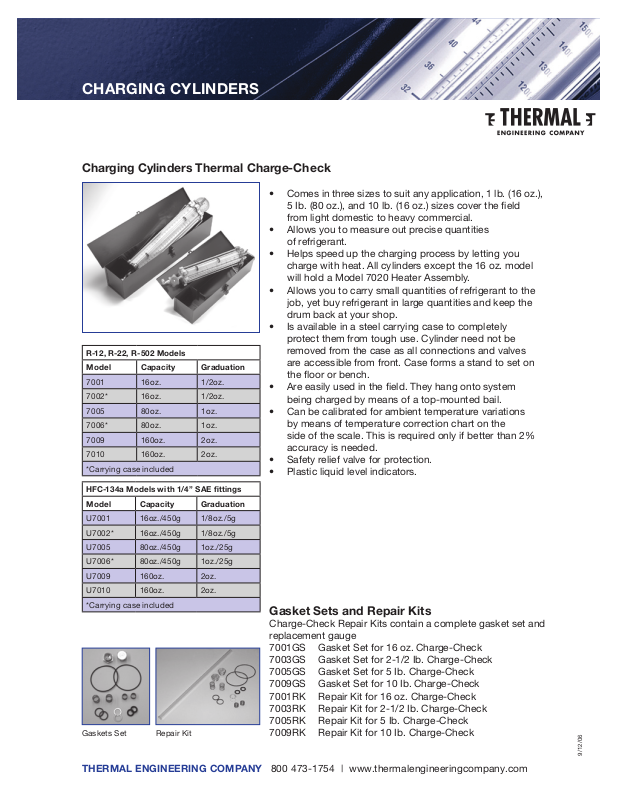

CHARGING CYLINDERS

Charging Cylinders Thermal Charge-Check

• Comes in three sizes to suit any application, 1 lb. (16 oz.),
5 Ib. (80 oz.), and 10 lb. (16 oz.) sizes cover the field
from light domestic to heavy commercial.

• Allows you to measure out precise quantities
of refrigerant.

• Helps speed up the charging process by letting you
charge with heat. All cylinders except the 16 oz. model
will hold a Model 7020 Heater Assembly.

• Allows you to carry small quantities of refrigerant to the
job, yet buy refrigerant in large quantities and keep the
drum back at your shop.

• Is available in a steel carrying case to completely
protect them from tough use. Cylinder need not be

R-12, R-22, R-502 Models

Model Capacity Graduation

7001 16oz. 1/2oz.

7002* 16oz. 1/2oz.

7005 80oz. 1oz.

7006* 80oz. 1oz.

7009 160oz. 2oz.

7010 160oz. 2oz.

*Carrying case included

HFC-134a Models with 1/4” SAE fittings

Model Capacity Graduation

U7001 16oz./450g 1/8oz./5g

U7002* 16oz./450g 1/8oz./5g

U7005 80oz./450g 1oz./25g

U7006* 80oz./450g 1oz./25g

U7009 160oz. 2oz.

U7010 160oz. 2oz.

*Carrying case included

Gaskets Set Repair Kit

removed from the case as all connections and valves
are accessible from front. Case forms a stand to set on
the floor or bench.

• Are easily used in the field. They hang onto system
being charged by means of a top-mounted bail.

• Can be calibrated for ambient temperature variations
by means of temperature correction chart on the
side of the scale. This is required only if better than 2%
accuracy is needed.

• Safety relief valve for protection.

• Plastic liquid level indicators.

Gasket Sets and Repair Kits

Charge-Check Repair Kits contain a complete gasket set and
replacement gauge
7001GS Gasket Set for 16 oz. Charge-Check
7003GS Gasket Set for 2-1/2 Ib. Charge-Check
7005GS Gasket Set for 5 Ib. Charge-Check
7009GS Gasket Set for 10 Ib. Charge-Check
7001RK Repair Kit for 16 oz. Charge-Check
7003RK Repair Kit for 2-1/2 Ib. Charge-Check
7005RK Repair Kit for 5 Ib. Charge-Check
7009RK Repair Kit for 10 Ib. Charge-Check

THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com

9/12/06

CHARGING CYLINDERS, continued

OPTIONAL ACCESSORIES FOR THE CHARG-CHECK SERIES

Carrying Cases for the Charg-Check Charging Cylinders

An ideal way to protect the Charg-Check cylinder from various damage including
a broken sight glass. The carrying cases are constructed of 20 gauge steel and
supplied with a durable powder coat finish. Optional accessories for the Charg­Check Series.

Model Dimensions Used with

7007 4.25” W x 16.75”H x 3.625” D 7001/U7001

7008 4.75” W x 23.5” H x 5” D 7005/U7005

7013 6” W x 25” H x 7” D 7009/U7009

Model 7020 120 Volt Heater Assembly

Model 7024 240 Volt Heater Assembly

Model 7025 Valve Core Depressor
