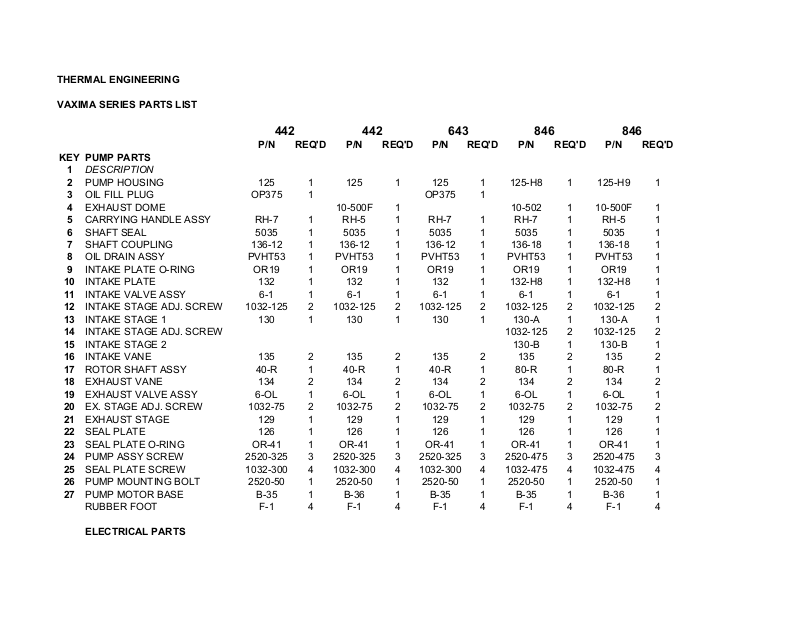

THERMAL ENGINEERING
V
T
AXIMA SERIES PARTS LIS
442 442 846 846643
P/N REQ'D P/N REQ'D P/N REQ'D P/N REQ'D P/N REQ'D
KEY PUMP PARTS
1 DESCRIPTION
2 PUMP HOUSING 125 1 125 1 125 1 125-H8 1 125-H9 1
3 OIL FILL PLUG OP375 1 OP375 1
4 EXHAUST DOME 10-500F 1 10-502 1 10-500F 1
5 CARRYING HANDLE ASSY RH-7 1 RH-5 1 RH-7 1 RH-7 1 RH-5 1
6 SHAFT SEAL 5035 1 5035 1 5035 1 5035 1 5035 1
7 SHAFT COUPLING 136-12 1 136-12 1 136-12 1 136-18 1 136-18 1
8 OIL DRAIN ASSY PVHT53 1 PVHT53 1 PVHT53 1 PVHT53 1 PVHT53 1
9 INTAKE PLATE O-RING OR19 1 OR19 1 OR19 1 OR19 1 OR19 1
10 INTAKE PLATE 132 1 132 1 132 1 132-H8 1 132-H8 1
11 INTAKE VALVE ASSY 6-1 1 6-1 1 6-1 1 6-1 1 6-1 1
12 INTAKE STAGE ADJ. SCREW 1032-125 2 1032-125 2 1032-125 2 1032-125 2 1032-125 2
13 INTAKE STAGE 1 130 1 130 1 130 1 130-A 1 130-A 1
14 INTAKE STAGE ADJ. SCREW 1032-125 2 1032-125 2
15 INTAKE STAGE 2 130-B 1 130-B 1
16 INTAKE VANE 135 2 135 2 135 2 135 2 135 2
17 ROTOR SHAFT ASSY 40-R 1 40-R 1 40-R 1 80-R 1 80-R 1
18 EXHAUST VANE 134 2 134 2 134 2 134 2 134 2
19 EXHAUST VALVE ASSY 6-OL 1 6-OL 1 6-OL 1 6-OL 1 6-OL 1
20 EX. STAGE ADJ. SCREW 1032-75 2 1032-75 2 1032-75 2 1032-75 2 1032-75 2
21 EXHAUST STAGE 129 1 129 1 129 1 129 1 129 1
22 SEAL PLATE 126 1 126 1 126 1 126 1 126 1
23 SEAL PLATE O-RING OR-41 1 OR-41 1 OR-41 1 OR-41 1 OR-41 1
24 PUMP ASSY SCREW 2520-325 3 2520-325 3 2520-325 3 2520-475 3 2520-475 3
25 SEAL PLATE SCREW 1032-300 4 1032-300 4 1032-300 4 1032-475 4 1032-475 4
26 PUMP MOUNTING BOLT 2520-50 1 2520-50 1 2520-50 1 2520-50 1 2520-50 1
27 PUMP MOTOR BASE B-35 1 B-36 1 B-35 1 B-35 1 B-36 1
RUBBER FOOT F-1 4 F-1 4 F-1 4 F-1 4 F-1 4
ELECTRICAL PARTS
THERMAL ENGINEERING
V
T
S
AXIMA SERIES PARTS LIS
442 442 846 846643
P/N REQ'D P/N REQ'D P/N REQ'D P/N REQ'D P/N REQ'D
28 DESCRIPTION
28 MOTOR: B202 115V/60HZ 7385 1 7385SPL 1 7385 1 4324 1 4324 1
MOTOR: 115/230V, 50/60HZ 4325 1 4325 1 4325 1 4325 1 4325 1
ELECTRIC CORD 115V/60 EC-3 1 EC-3 1 EC-3 1 EC-3 1 EC-3 1
ELECTRIC CORD "CE" EC-E 1 EC-E 1 EC-E 1 EC-E 1 EC-E 1
MOTOR SWITCH 115V C-02 1 C-02 1 C-02 1 C-02 1 C-02 1
MOTOR SWITCH 230V C-01 1 C-01 1 C-01 1 C-01 1 C-01 1
WIRING LEADS 115V WLV 1 WLV 1 WLV 1 WLV 1 WLV 1
WIRING LEADS 230V WHV 2 WHV 2 WHV 2 WHV 2 WHV 2
MOTOR SWITCH BOX "CE" 124 1 124 1 124 1 124 1 124 1
POWER CORD RESTRAINT 3772 1 3772 1 3772 1 3772 1 3772 1
29 INTAKE PART
30 INTAKE FITTING (Hose Barb) 10-0B 1 10-0B 1 10-0B 1 10-0B 1 10-0B 1
31 INTAKE FITTING (Air Cond.) 10-TF 1 10-TF 1 10-TF 1 10-TF 1 10-TF 1
32 INTAKE CAP, 1/4" FLARE 250CC 1 250CC 1 250CC 1 250CC 1 250CC 1
33 INTAKE CAP, 3/8" FLARE 375C 1 375C 1 375C 1 375C 1 375C 1
34 INTAKE FITTING (Automotive) 134-TF 1 134-TF 1 134-TF 1 134-TF 1 134-TF 1
35 INTAKE CAP, 1/2" ACME 134C 1 134C 1 134C 1 134C 1 134C 1
36 INTAKE CAPE, 1/4" FLARE 250C 1 250C 1 250C 1 250C 1 250C 1
INTAKE FLOAT (All) B-375 1 B-375 1 B-375 1 B-375 1 B-375 1
PUMPHEAD ASSY
SERVICE KIT RKD-11 1 RKD-11 1 RKD-11 1 RKD-13 1 RKD-13 1
