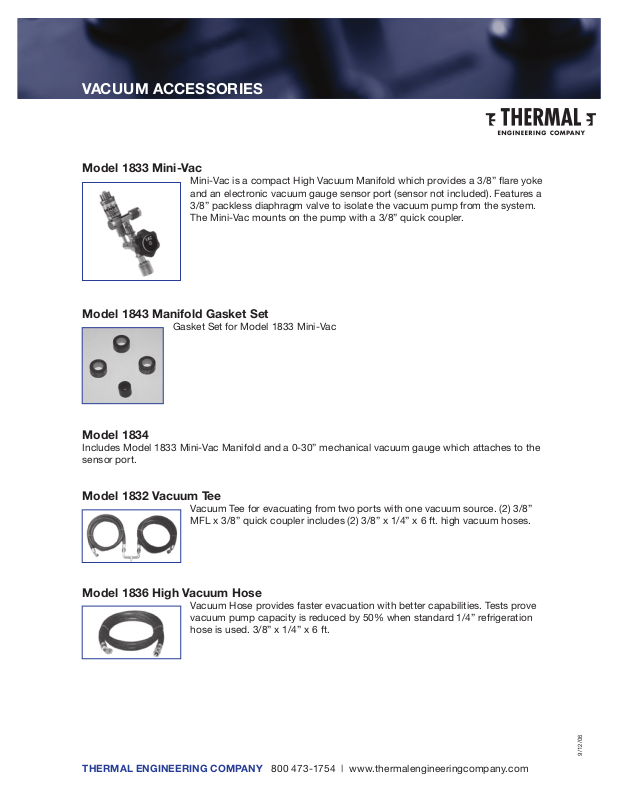

VACUUM ACCESSORIES

Model 1833 Mini-Vac

Mini-Vac is a compact High Vacuum Manifold which provides a 3/8” flare yoke
and an electronic vacuum gauge sensor port (sensor not included). Features a
3/8” packless diaphragm valve to isolate the vacuum pump from the system.
The Mini-Vac mounts on the pump with a 3/8” quick coupler.

Model 1843 Manifold Gasket Set

Gasket Set for Model 1833 Mini-Vac

Model 1834

Includes Model 1833 Mini-Vac Manifold and a 0-30” mechanical vacuum gauge which attaches to the
sensor port.

Model 1832 Vacuum Tee

Vacuum Tee for evacuating from two ports with one vacuum source. (2) 3/8”
MFL x 3/8” quick coupler includes (2) 3/8” x 1/4” x 6 ft. high vacuum hoses.

Model 1836 High Vacuum Hose

Vacuum Hose provides faster evacuation with better capabilities. Tests prove
vacuum pump capacity is reduced by 50% when standard 1/4” refrigeration
hose is used. 3/8” x 1/4” x 6 ft.

THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com

9/12/06

VACUUM ACCESSORIES

Model 5000 and 5000-Q Super-X Premium Vacuum Pump Oil

Airserco Super-X Vacuum Pump Oil keeps any high vacuum pump at maximum
performance. No pump can deliver a lower pressure than its sealing oil’s vapor
pressure. This oil must have the viscosity to lubricate and seal clearances in the
pump’s moving parts at the extreme temperatures developed during continuous
use. Super-X oil is a premium quality mineral oil formulated to tolerate exposure
to vacuums of 5 microns. Super-X oil resists the formation of deposits and
maintains its original lubricating properties over a long life. Super-X offers very
high vacuums, excellent lubrication, and long oil life. Available in 1 gallon plastic
containers, 4 per case, or 1 qt. bottles, 12 per case.

Super-X Oil Typical Characteristics
Gravity, API: 29.2
Viscosity: SUS at 100°F 335
Flash Point: 450°F
Pressure, microns, Hg, max: 5

Model 4036 and 4036-Q Liqui-Vac

• Sets up quickly

• Seals to 1 Micron

• Remains flexible

• Ready to use

A real time-saver in servicing cooling systems, Liqui-Vac is the only liquid sealant
with the capacity of sealing high vacuum connections. It will positively seal high
vacuum leaks around threads, through flared connections, face joints, wherever
metal joins metal. Airserco Liqui-Vac sets up quickly, but remains flexible for easy
disconnection. Liqui-Vac is resistant to most solvents, can seal to 1 micron, and
withstands temperatures from -100°F to +325°F. Available in 4 oz. brush-in-cap
cans, 12 per case, or in 1 qt. cans.
