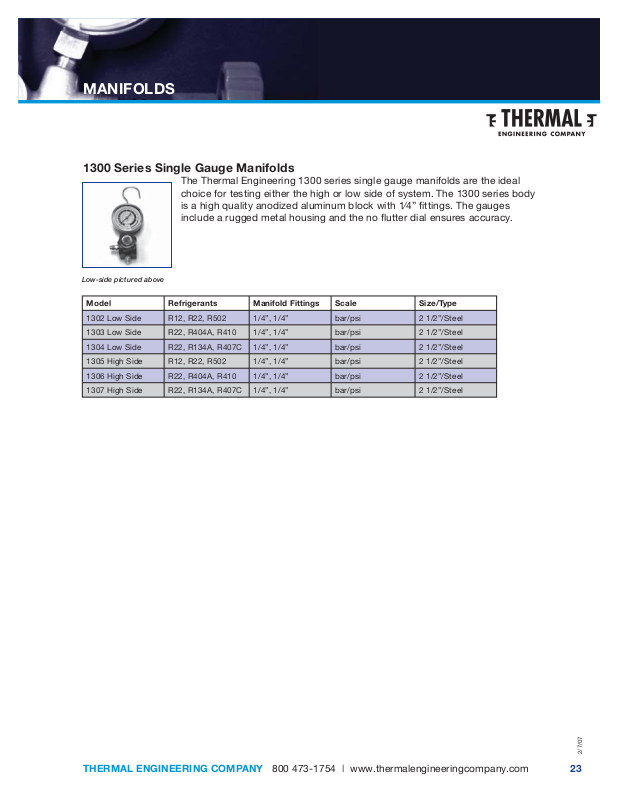

MANIFOLDS
1300 Series Single Gauge Manifolds
The Thermal Engineering 1300 series single gauge manifolds are the ideal
choice for testing either the high or low side of system. The 1300 series body
is a high quality anodized aluminum block with 1⁄4” fittings. The gauges
include a rugged metal housing and the no flutter dial ensures accuracy.
Low-side pictured above
Model Refrigerants Manifold Fittings Scale Size/Type
1302 Low Side R12, R22, R502 1/4”, 1/4” bar/psi 2 1/2”/Steel
1303 Low Side R22, R404A, R410 1/4”, 1/4” bar/psi 2 1/2”/Steel
1304 Low Side R22, R134A, R407C 1/4”, 1/4” bar/psi 2 1/2”/Steel
1305 High Side R12, R22, R502 1/4”, 1/4” bar/psi 2 1/2”/Steel
1306 High Side R22, R404A, R410 1/4”, 1/4” bar/psi 2 1/2”/Steel
1307 High Side R22, R134A, R407C 1/4”, 1/4” bar/psi 2 1/2”/Steel
THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com
2/7/07
23
MANIFOLDS, continued
1400 Series Brass Manifolds
The Thermal Engineering 1400 series manifolds are the ideal choice for the
discriminating service engineer. The 1400 series body is forged brass with full
size porting for maximum flow. The gauges include a rugged metal housing
and the no flutter dial ensures accuracy. With large, easy-to-grip knobs, built
in sight glass, purge valve, and 1⁄4” hose hangers, the 1400 series allows the
service engineer to “get the job done right”.
Features
• Forged brass body with sight glass and hanger
• Rugged metal housing with no flutter gauge
• Easy to grip knobs
• Purge valve with brass cap
• 1⁄4” fittings and hose holders
• Double o-ring piston valve system (pictured left)
Model Refrigerants Manifold & Hose
Holder Fittings
1400 R12, R22, R502 1/4”, 1/4” bar/psi 2 1/2”/Steel
1400-36 R12, R22, R502 with 30” Hose Set 1/4”, 1/4” 36”-RYB, 3 pack bar/psi 2 1/2”/Steel
1400-60 R12, R22, R502 with 60” Hose Set 1/4”, 1/4” 60”-RYB, 3 pack bar/psi 2 1/2”/Steel
1401 R22, R404A, R410 1/4”, 1/4” bar/psi 2 1/2”/Steel
1401-36 R22, R404A, R410 with 30” Hose Set 1/4”, 1/4” 36”-RYB, 3 pack bar/psi 2 1/2”/Steel
1401-60 R22, R404A, R410 with 60” Hose Set 1/4”, 1/4” 60”-RYB, 3 pack bar/psi 2 1/2”/Steel
1402 R22, R134A, R407C 1/4”, 1/4” bar/psi 2 1/2”/Steel
1402-36 R22, R134A, R407C with 30” Hose Set 1/4”, 1/4” 36”-RYB, 3 pack bar/psi 2 1/2”/Steel
1402-60 R22, R134A, R407C with 60” Hose Set 1/4”, 1/4” 60”-RYB, 3 pack bar/psi 2 1/2”/Steel
Custom gauge and hose lengths available upon request
Hoses Scale Size/Type
THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com
2/7/07
24
MANIFOLDS, continued
2400 Series 4-Valve Aluminum Manifolds
The Thermal Engineering 2400 series manifolds are the ideal choice for
the service engineer looking to evacuate and charge his system without
the inconvenience of disconnecting a hose. The 2400 series consists of
a high quality anodized aluminum block body with built in sight glass and
the diaphragm design allows for ease of opening and closing. The gauges
include a rugged metal housing and the no flutter dial ensures accuracy.
With large, easy-to-grip knobs, built in sight glass, and 3/8” vacuum fitting,
the 2400 series allows the service engineer to “get the job done right”.
Features
• Anodized aluminum block body with sight glass and hanger
• Rugged metal housing with no flutter gauge
• Easy to grip knobs
• 1⁄4” fittings and a 3/8” vacuum fitting
• Diaphragm design for easy open/close
Model Refrigerants Manifold & Hose
Holder Fittings
2401 R12, R22, R502 (3) 1/4”, (1) 3/8” bar/psi 2 1/2”/Steel
2401-60 R12, R22, R502 with 60” RYB
Hose Set & 3/8 VAC
2402 R22, R404A, R410 (3) 1/4”, (1) 3/8” bar/psi 2 1/2”/Steel
2402-60 R22, R404A, R410 with 60” RYB
Hose Set & 3/8 VAC
2403 R22, R134A, R407C (3) 1/4”, (1) 3/8” bar/psi 2 1/2”/Steel
2403-60 R22, R134A, R407C with 60” RYB
Hose Set & 3/8 VAC
Custom gauge and hose lengths available upon request
(3) 1/4”, (1) 3/8” 60”-1/4” RYB
(3) 1/4”, (1) 3/8” 60”-1/4” RYB
(3) 1/4”, (1) 3/8” 60”-1/4” RYB
Hoses Scale Size/Type
bar/psi 2 1/2”/Steel
60”-3/8” VAC
bar/psi 2 1/2”/Steel
60”-3/8” VAC
bar/psi 2 1/2”/Steel
60”-3/8” VAC
THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com
2/7/07
25
