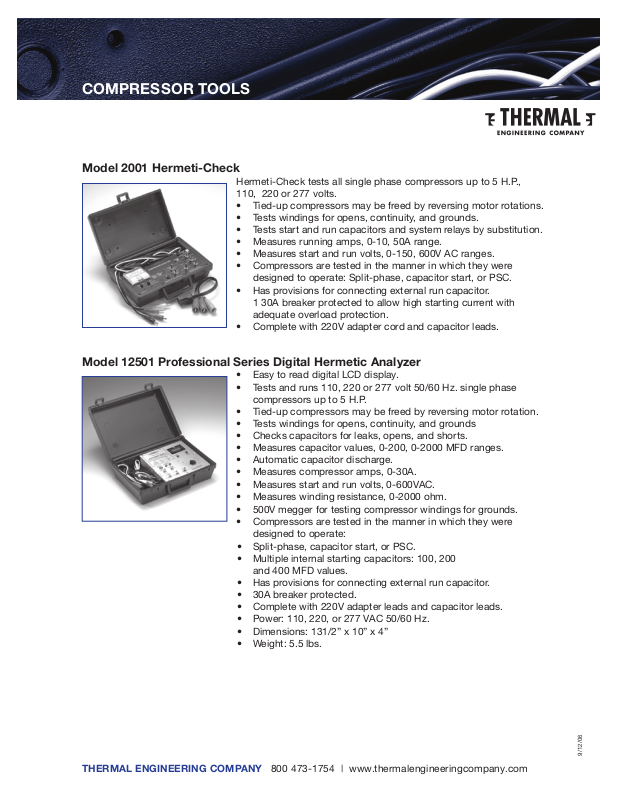

COMPRESSOR TOOLS

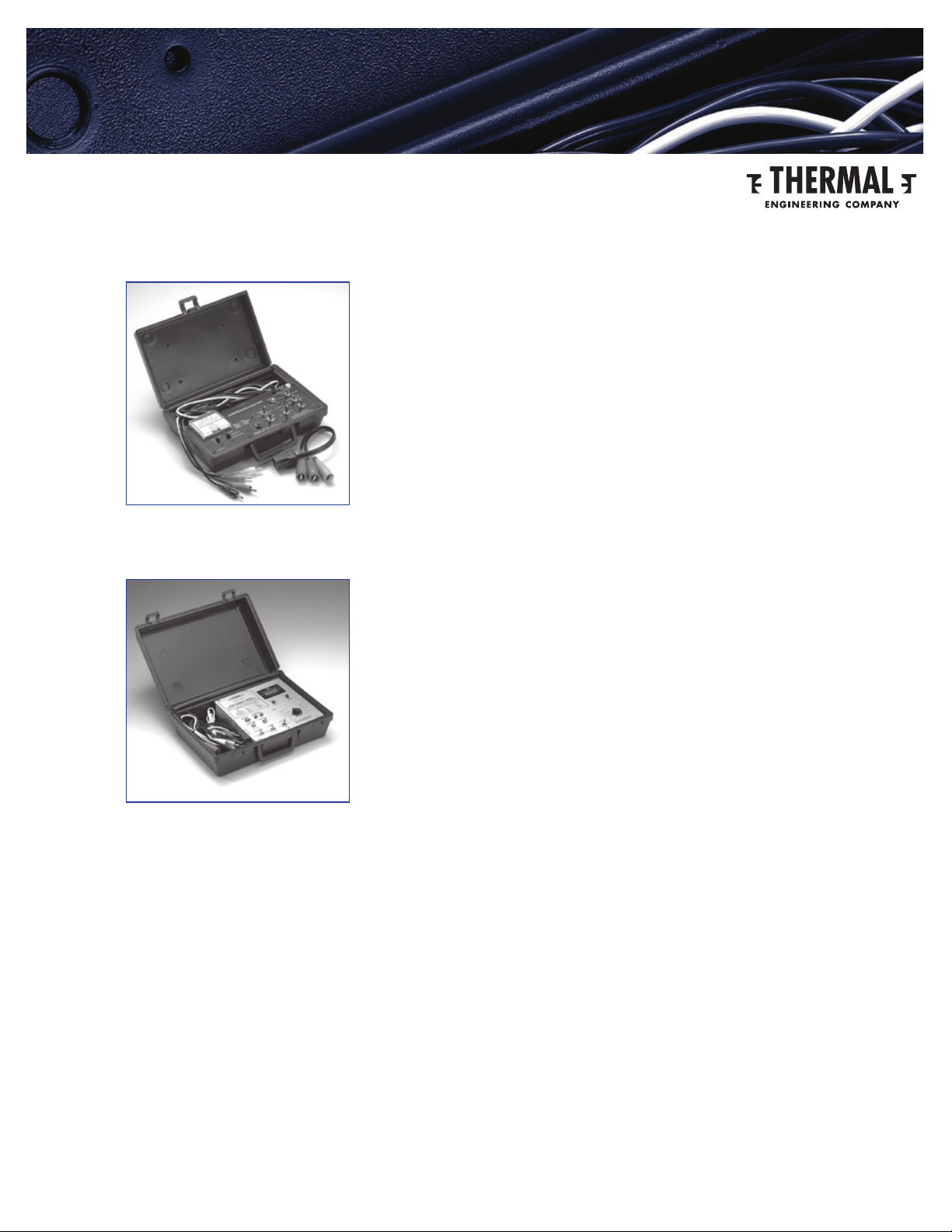

Model 2001 Hermeti-Check
Hermeti-Check tests all single phase compressors up to 5 H.P.,
110, 220 or 277 volts.
• Tied-up compressors may be freed by reversing motor rotations.
• Tests windings for opens, continuity, and grounds.
• Tests start and run capacitors and system relays by substitution.
• Measures running amps, 0-10, 50A range.
• Measures start and run volts, 0-150, 600V AC ranges.
• Compressors are tested in the manner in which they were
designed to operate: Split-phase, capacitor start, or PSC.
• Has provisions for connecting external run capacitor.
1 30A breaker protected to allow high starting current with
adequate overload protection.
• Complete with 220V adapter cord and capacitor leads.
Model 12501 Professional Series Digital Hermetic Analyzer
• Easy to read digital LCD display.
• Tests and runs 110, 220 or 277 volt 50/60 Hz. single phase
compressors up to 5 H.P.
• Tied-up compressors may be freed by reversing motor rotation.
• Tests windings for opens, continuity, and grounds
• Checks capacitors for leaks, opens, and shorts.
• Measures capacitor values, 0-200, 0-2000 MFD ranges.
• Automatic capacitor discharge.
• Measures compressor amps, 0-30A.
• Measures start and run volts, 0-600VAC.
• Measures winding resistance, 0-2000 ohm.
• 500V megger for testing compressor windings for grounds.
• Compressors are tested in the manner in which they were
designed to operate:
• Split-phase, capacitor start, or PSC.
• Multiple internal starting capacitors: 100, 200
and 400 MFD values.
• Has provisions for connecting external run capacitor.
• 30A breaker protected.
• Complete with 220V adapter leads and capacitor leads.
• Power: 110, 220, or 277 VAC 50/60 Hz.
• Dimensions: 131/2” x 10” x 4”
• Weight: 5.5 lbs.
THERMAL ENGINEERING COMPANY 800 473-1754 | www.thermalengineeringcompany.com
9/12/06
COMPRESSOR TOOLS, continued

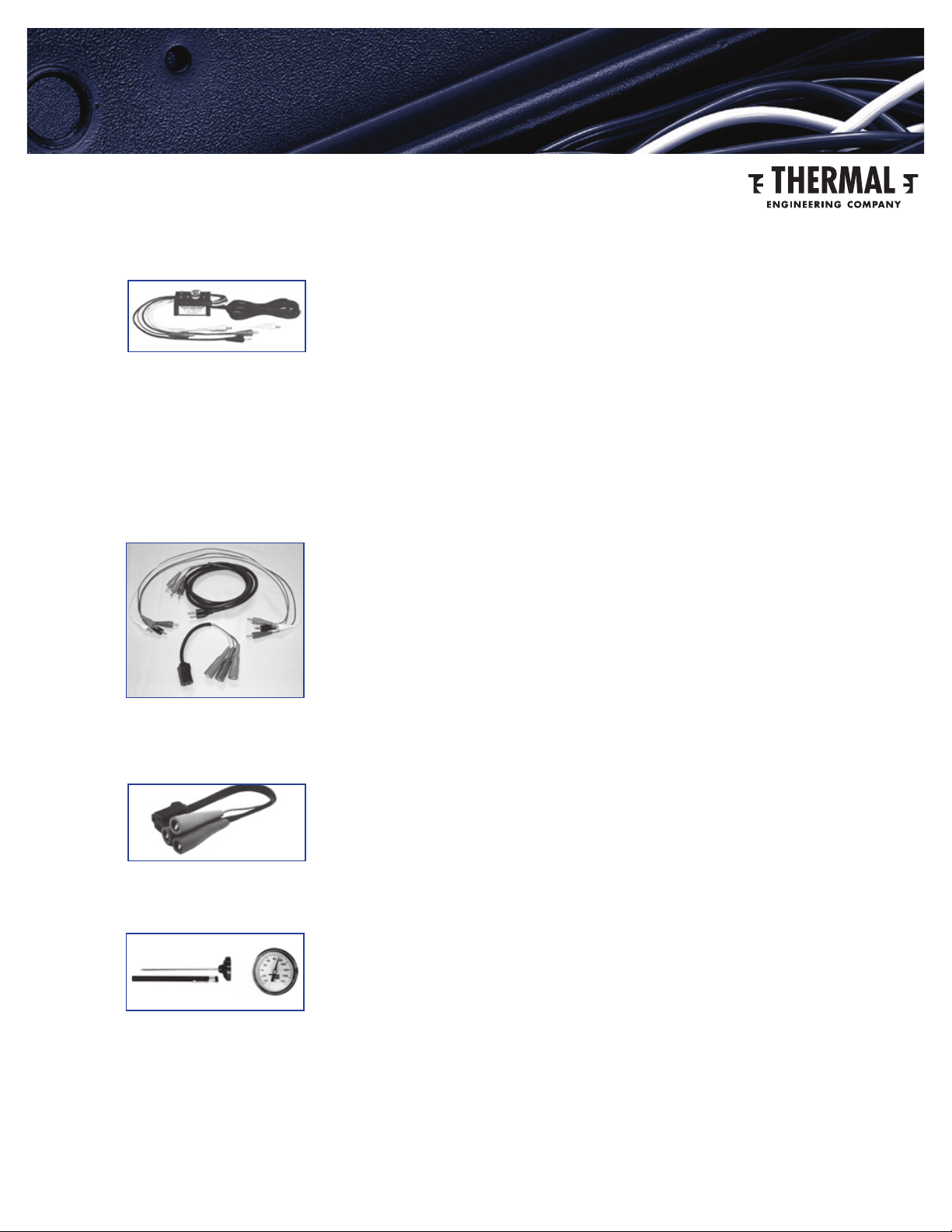

Model 2601 Quick-Start
Quick-Start starts all single phase compressors up to 5 H.P. 110, 200,
277V AC. A trouble-shooting aid for determining whether fault lies
with compressor or component parts. Fusetron protects against shorts
and overloads, but allows high starting load. Capacitor leads provide
means of starting split phase, capacitor start, or permanent split
capacitor compressors.
Model 2602 Combination
Model 2602 is a combination Quick-Start and Test Lead Kit.
Model 2605 Test Lead Kit
Test Lead Kit consists of 4 leads 30” long with insulated test clips in each
end for temporarily connecting relays, capacitors, etc., into a system for
test purposes. Also has a 6 ft. heavy duty power cord with a male pIug
on one end and Insulated test clips on the other, and a 12” power cord
with a female socket on one end and Insulated clips on the other.
Model 2136 Adapter Cord
Provides a 12” 3-wire grounded power cord with standard female plug
on one end and insulated clips on the other end. This cord is supplied as
standard equipment with Models 2001, 2605, and 12501.
Thermal Pocket Thermometers
Thermal pocket thermometers feature stainless steel construction, 1” dial
face, and are field recalibratable. Complete with case, pocket clip, and
thermometer holder.
Model 1670 0° to 220°F
Model 1680 -20° to 100°C
