THERMAL DYNAMICS Ultra-Cut / XT-300 Troubleshooting instruction

TECHNICAL
BULLETIN

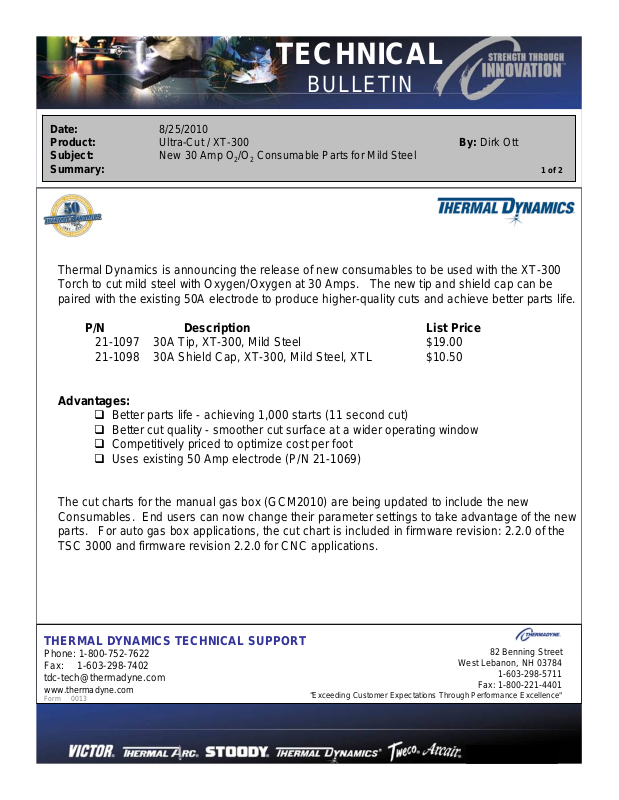

Date: 8/25/2010 Product: Ultra-Cut / XT-300 By: Dirk Ott Subject: New 30 Amp O Summary:
Thermal Dynamics is announcing the release of new consumables to be used with the XT-300 Torch to cut mild steel with Oxygen/Oxygen at 30 Amps. The new tip and shield cap can be paired with the existing 50A electrode to produce higher-quality cuts and achieve better parts life.
P/N Description List Price
21-1097 30A Tip, XT-300, Mild Steel $19.00 21-1098 30A Shield Cap, XT-300, Mild Steel, XTL $10.50
Consumable Parts for Mild Steel
2/O2
1 of 2
Advantages:
Better parts life - achieving 1,000 starts (11 second cut)Better cut quality - smoother cut surface at a wider operating windowCompetitively priced to optimize cost per footUses existing 50 Amp electrode (P/N 21-1069)
The cut charts for the manual gas box (GCM2010) are being updated to include the new Consumables. End users can now change their parameter settings to take advantage of the new parts. For auto gas box applications, the cut chart is included in firmware revision: 2.2.0 of the TSC 3000 and firmware revision 2.2.0 for CNC applications.
THERMAL DYNAMICS TECHNICAL SUPPORT
Phone: 1-800-752-7622 Fax: 1-603-298-7402 tdc-tech@thermadyne.com
www.thermadyne.com
Form 0013
West Lebanon, NH 03784
“Exceeding Customer Expectations Through Performance Excellence"
82 Benning Street
1-603-298-5711
Fax: 1-800-221-4401
TECHNICAL
BULLETIN
Date: 8/25/2010 Product: Ultra-Cut / XT-300 By: Dirk Ott Subject: New 30 Amp O Summary:
Information about the new 30 Amp consumables will be inserted into existing packaging to help foster awareness.
Consumable Parts for Mild Steel
2/O2
2 of 2
Note: The new tip and shield cap are not compatible with older-style tips and shields.
We will continue to provide the existing parts for the foreseeable future (to be used on HD 3070).
