Thermal Arc ARC MASTER 175 TE Operating Manual

50
60

Hz

Art # A-08667

ARC MASTER

®

INVERTER ARC WELDER

175 TE

Operating Manual

Revision: AC Issue Date: December 20, 2010 Manual No.: 0-5116
Operating Features:

WE APPRECIATE YOUR BUSINESS!

Congratulations on your new Thermal Arc product. We are proud
to have you as our customer and will strive to provide you with
the best service and reliability in the industry. This product
is backed by our extensive warranty and world-wide service
network. To locate your nearest distributor or service agency call
[phone], or visit us on the web at www.Thermalarc.com.

This Operating Manual has been designed to instruct you on the
correct use and operation of your Thermal Arc product. Your
satisfaction with this product and its safe operation is our ultimate
concern. Therefore please take the time to read the entire manual,
especially the Safety Precautions. They will help you to avoid potential
hazards that may exist when working with this product.

YOU ARE IN GOOD COMPANY!

The Brand of Choice for Contractors and Fabricators Worldwide.

Thermal Arc is a Global Brand of Arc Welding Products for Thermadyne
Industries Inc. We manufacture and supply to major welding industry
sectors worldwide including; Manufacturing, Construction, Mining,
Automotive, Aerospace, Engineering, Rural and DIY/Hobbyist.

We distinguish ourselves from our competition through market­leading, dependable products that have stood the test of time. We
pride ourselves on technical innovation, competitive prices, excellent
delivery, superior customer service and technical support, together
with excellence in sales and marketing expertise.

Above all, we are committed to develop technologically advanced
products to achieve a safer working environment within the welding
industry.

!

WARNINGS

Read and understand this entire manual and your employer’s safety practices before installing,
operating, or servicing the equipment.

While the information contained in this manual represents the Manufacturer’s best judgement, the Manufacturer
assumes no liability for its use.

Operating Manual Number 0-5116 for:
Arc Master 175 TE TIG/STICK Package System Part No. W1003003
Arc Master 175 TE Power Source Part No. W1003002

Published by:
Thermadyne Europe
Europa Building
Chorley Industrial Park
Chorley, Lancaster,
England, PR6 7BX

www.thermalarc.com

Copyright

©

2009 by

Thermadyne Industries Inc.

®

All rights reserved.

Reproduction of this work, in whole or in part, without written permission of the publisher is prohibited.

The publisher does not assume and hereby disclaims any liability to any party for any loss or damage caused
by any error or omission in this Manual, whether such error results from negligence, accident, or any other
cause.

Publication Date: February 17, 2009
Revision Date: December 20, 2010

Record the following information for Warranty purposes:

Where Purchased: ____________________________________

Purchase Date: ____________________________________

Equipment Serial #: ____________________________________

i

TABLE OF CONTENTS

SECTION 1:SAFETY INSTRUCTIONS AND WARNINGS ................................................ 1-1

1.01 Arc Welding Hazards .......................................................................................

1-1

1.02 Principal Safety Standards ..............................................................................

1-4

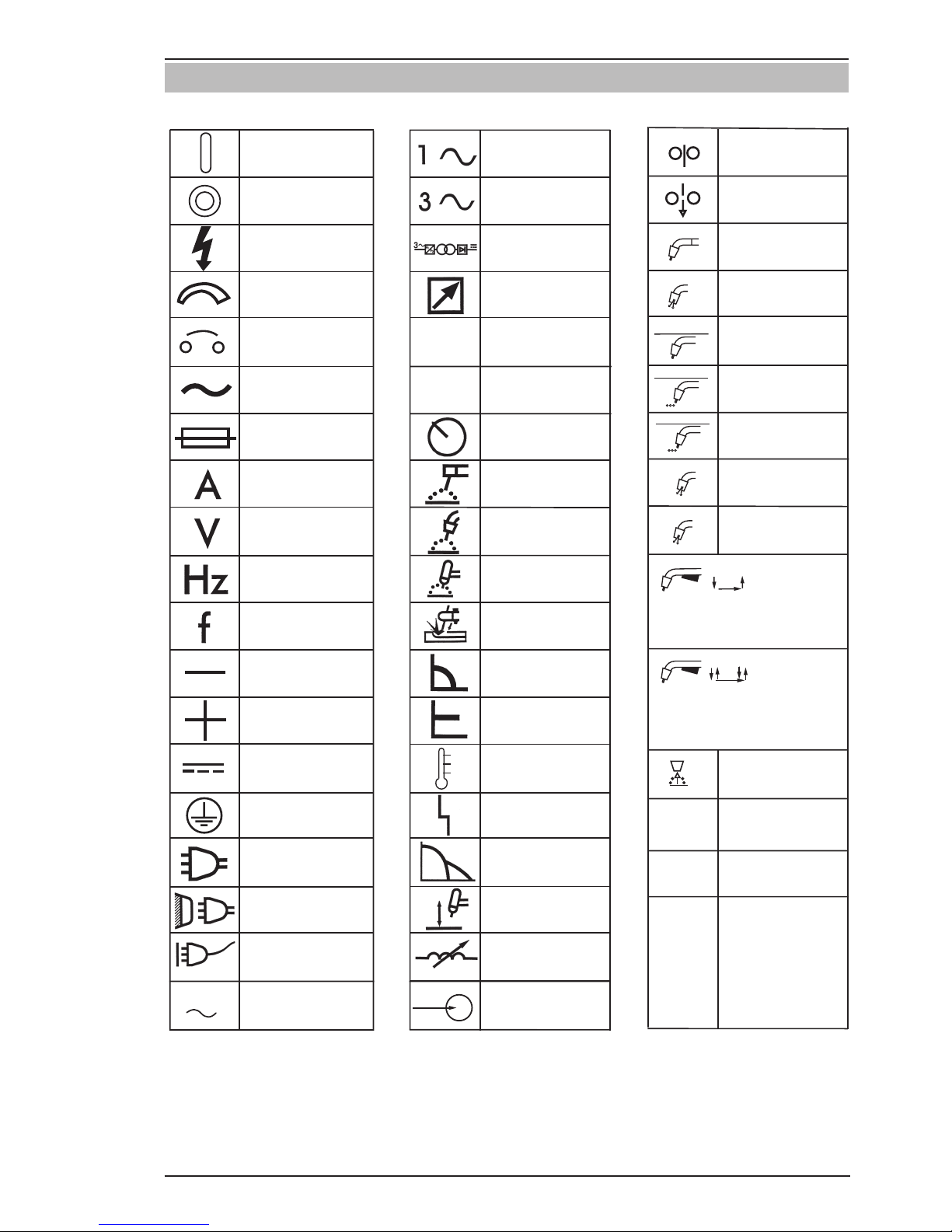

1.03 Symbol Chart ..................................................................................................

1-5

1.04 Precautions De Securite En Soudage A L’arc ..................................................

1-6

1.05 Dangers relatifs au soudage à l’arc .................................................................

1-6

1.06 Principales Normes De Securite .....................................................................

1-9

1.07 Graphique de Symbole ..................................................................................

1-10

1.08 Declaration Of Conformity ............................................................................

1-11

SECTION 2:INTRODUCTION ............................................................................... 2-1

2.01 How to Use This Manual .................................................................................

2-1

2.02 Equipment Identification .................................................................................

2-1

2.03 Receipt of Equipment ......................................................................................

2-1

2.04 Description .....................................................................................................

2-1

2.05 Packaged Items ..............................................................................................

2-1

2.06 Transportation Methods ..................................................................................

2-2

2.07 Duty Cycle .......................................................................................................

2-2

2.08 User Responsibility .........................................................................................

2-2

2.09 Specifications .................................................................................................

2-3

SECTION 3:INSTALLATION ............................................................................... 3-1

3.01 Environment ...................................................................................................

3-1

3.02 Location ..........................................................................................................

3-1

3.03 Electrical Input Connections ...........................................................................

3-1

3.04 High Frequency Introduction ..........................................................................

3-3

3.05 High Frequency Interference ...........................................................................

3-3

3.06 Electromagnetic Compatibility ........................................................................

3-3

3.07 Setup for Welding ...........................................................................................

3-4

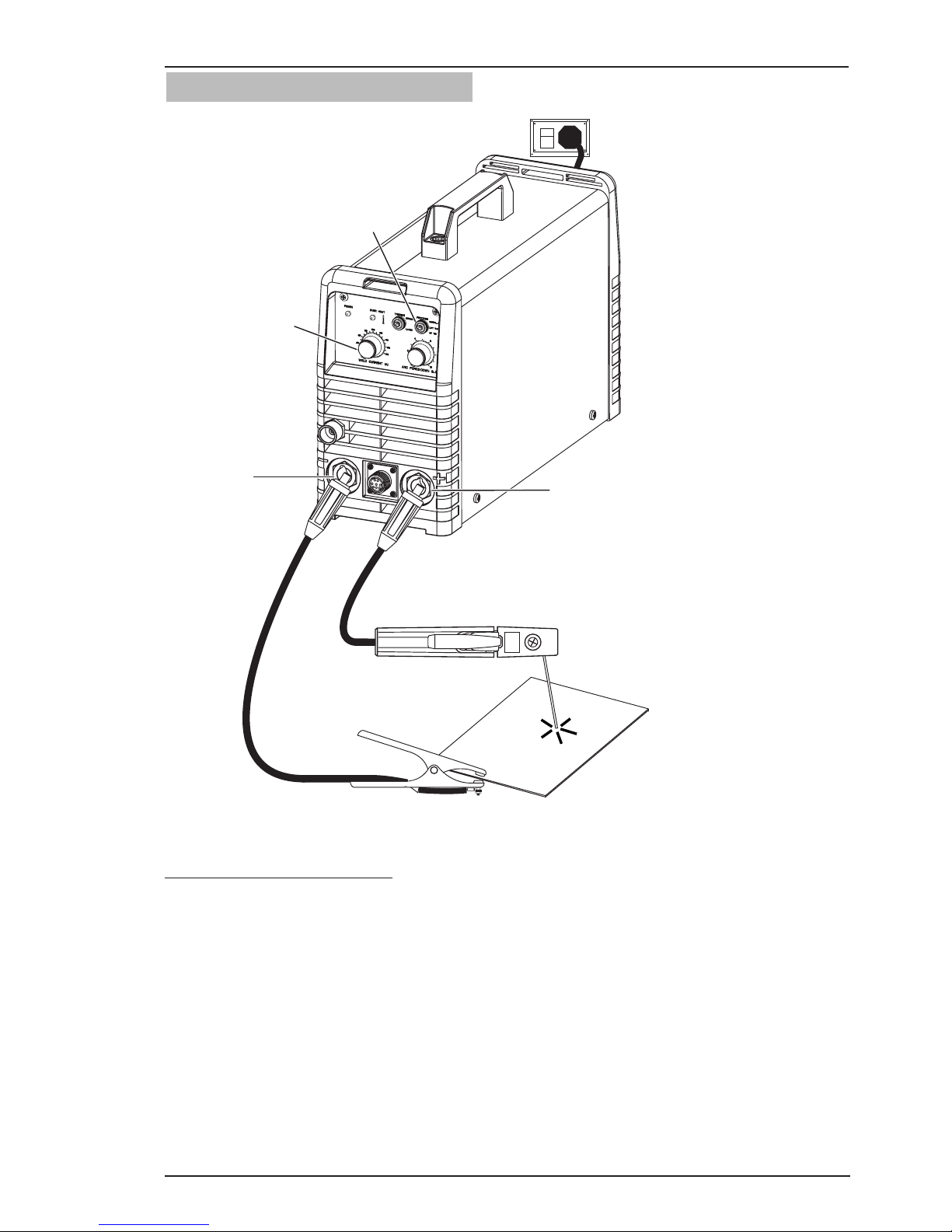

3.08 Manual Arc (STICK) Setup ..............................................................................

3-5

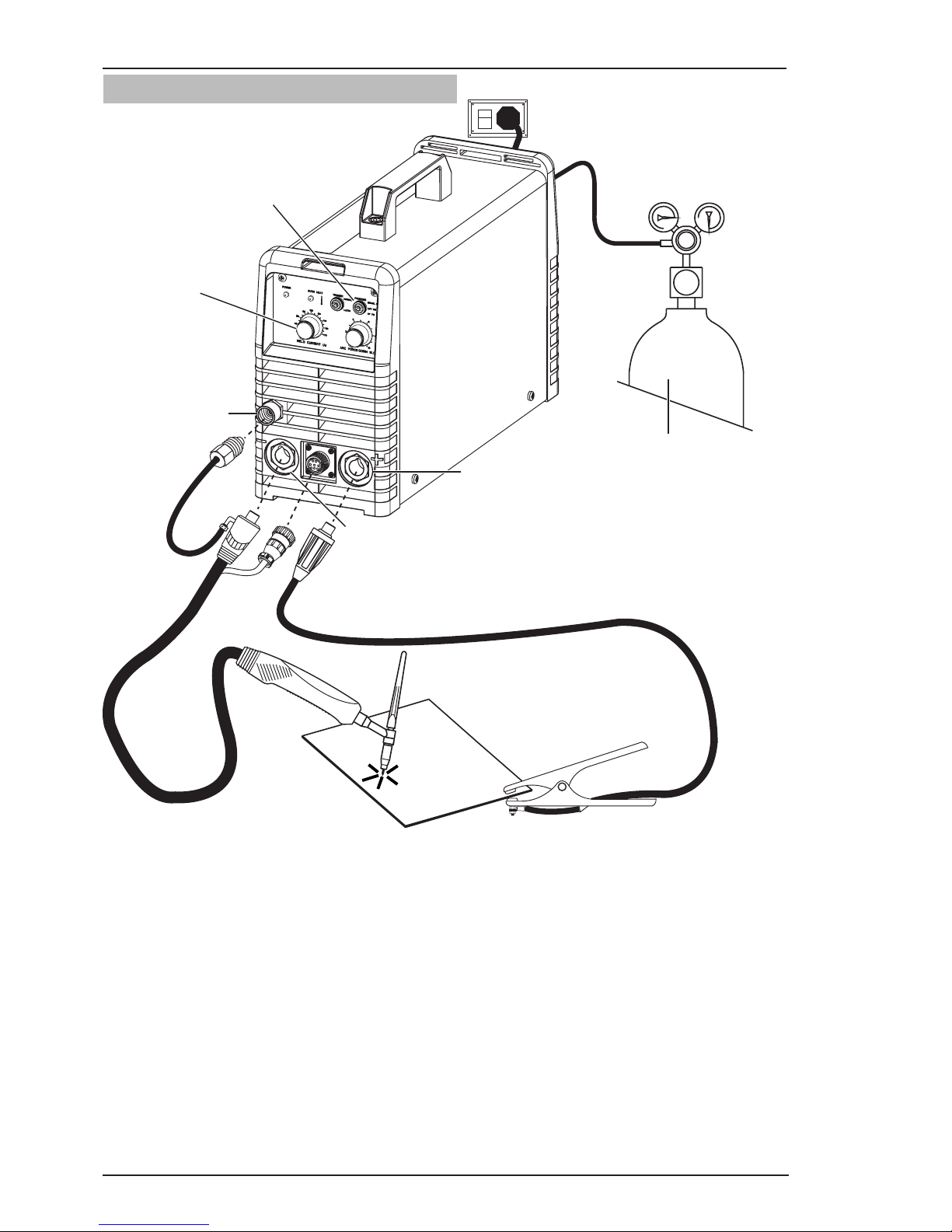

3.09 HF TIG/Lift TIG (GTAW) Setup ........................................................................

3-6

TABLE OF CONTENTS

SECTION 4:OPERATION ................................................................................... 4-1

4.01 General Safety Precautions .............................................................................

4-1

4.02 Overview .........................................................................................................

4-1

4.03 Front Panel .....................................................................................................

4-2

4.04 SMAW Electrode Polarity ................................................................................

4-4

4.05 Effects of Stick Welding Various Materials ......................................................

4-4

4.06 GTAW Electrode Polarity .................................................................................

4-5

4.07 Guide for Selecting Filler Wire ........................................................................

4-5

4.08 Tungsten Electrode Current

Ranges ............................................................... 4-5

4.09 Shielding Gas Selection ..................................................................................

4-5

4.10 Tungsten Electrode Types ...............................................................................

4-5

4.11 TIG Welding Parameters for Steel ...................................................................

4-6

4.12 Arc Welding Practice .......................................................................................

4-6

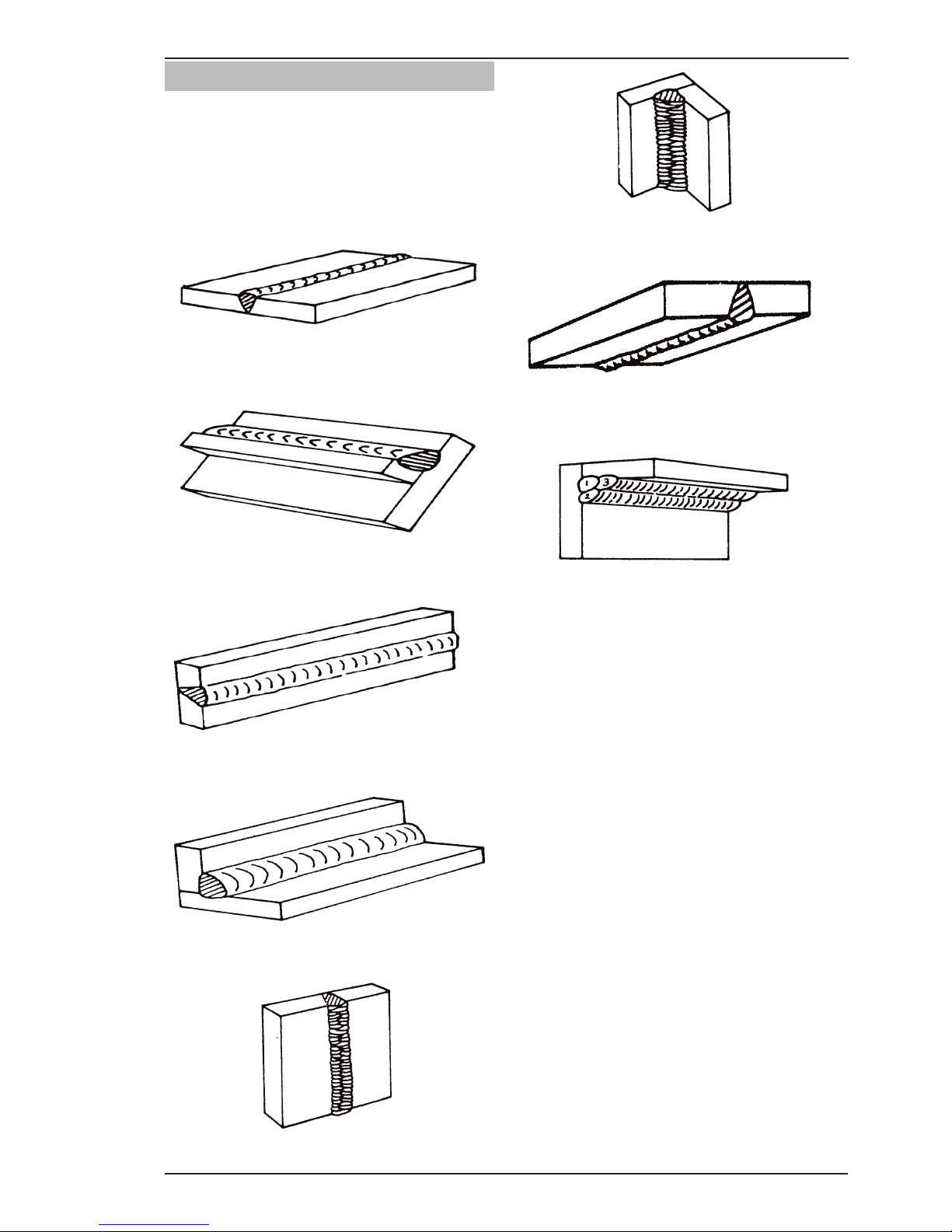

4.13 Welding Position .............................................................................................

4-7

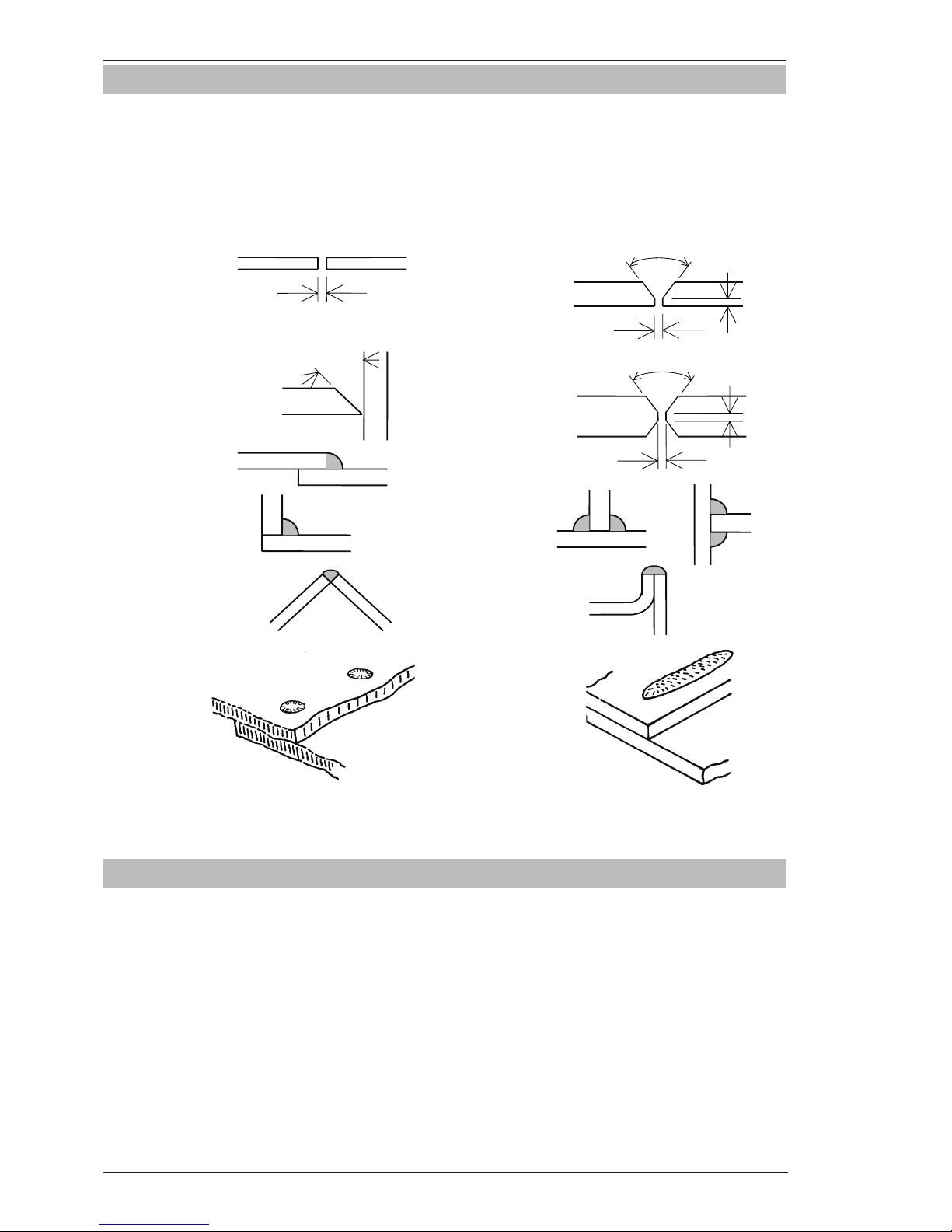

4.14 Joint Preparations ...........................................................................................

4-8

4.15 Arc Welding Technique ...................................................................................

4-8

4.16 The Welder ......................................................................................................

4-9

4.17 Striking the Arc ...............................................................................................

4-9

4.18 Arc Length ......................................................................................................

4-9

4.19 Rate of Travel ..................................................................................................

4-9

4.20 Making Welded Joints .....................................................................................

4-9

4.21 Distortion ......................................................................................................

4-11

4.22 The Cause of Distortion ................................................................................

4-11

4.23 Overcoming Distortion Effects ......................................................................

4-11

SECTION 5:SERVICE ....................................................................................... 5-1

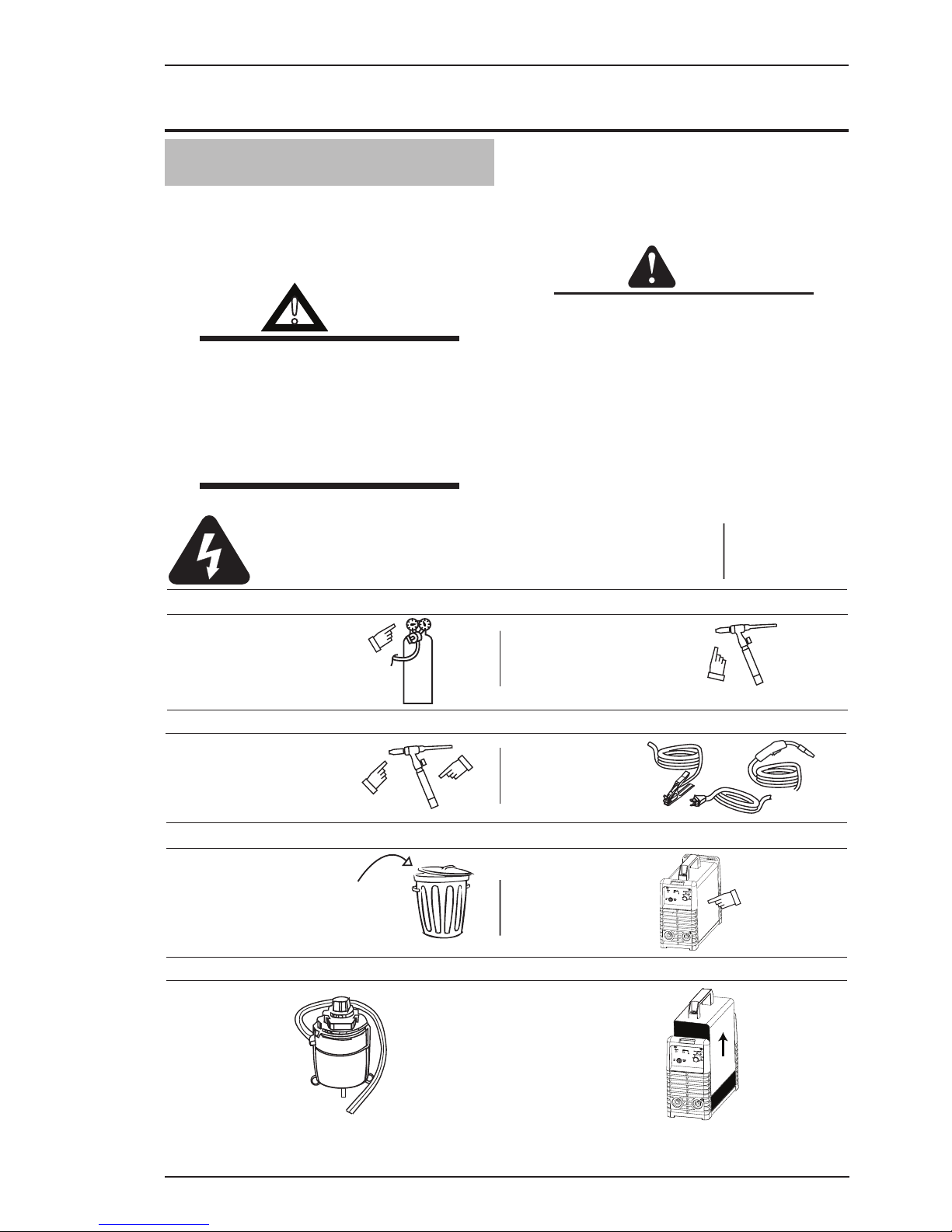

5.01 Routine Maintenance and

Inspection .............................................................. 5-1

5.02 STICK Welding Problems ................................................................................

5-2

5.03 TIG Welding Problems ...................................................................................

5-3

5.04 Power Source Problems .................................................................................

5-4

APPENDIX 1: REPLACEMENT PARTS .................................................................... A-1

APPENDIX 2: OPTIONS AND ACCESSORIES ............................................................ A-2

LIMITED WARRANTY & WARRANTY SCHEDULE

Manual 0-5116 1-1 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

1.01 Arc Welding Hazards

WARNING

ELECTRIC SHOCK can kill.

Touching live electrical parts can cause fatal shocks
or severe burns. The electrode and work circuit
is electrically live whenever the output is on. The
input power circuit and machine internal circuits
are also live when power is on. In semiautomatic
or automatic wire welding, the wire, wire reel, drive
roll housing, and all metal parts touching the weld­ing wire are electrically live. Incorrectly installed or
improperly grounded equipment is a hazard.

1. Do not touch live electrical parts.

2. Wear dry, hole-free insulating gloves and body protection.

3. Insulate yourself from work and ground using dry insulating
mats or covers.

4. Disconnect input power or stop engine before installing or
servicing this equipment. Lock input power disconnect switch
open, or remove line fuses so power cannot be turned on
accidentally.

5. Properly install and ground this equipment according to its
Owner’s Manual and national, state, and local codes.

6. Turn off all equipment when not in use. Disconnect power to
equipment if it will be left unattended or out of service.

7. Use fully insulated electrode holders. Never dip holder in water
to cool it or lay it down on the ground or the work surface.
Do not touch holders connected to two welding machines
at the same time or touch other people with the holder or
electrode.

8. Do not use worn, damaged, undersized, or poorly spliced
cables.

9. Do not wrap cables around your body.

10. Ground the workpiece to a good electrical (earth) ground.

11. Do not touch electrode while in contact with the work (ground)
circuit.

12. Use only well-maintained equipment. Repair or replace
damaged parts at once.

13. In confined spaces or damp locations, do not use a welder
with AC output unless it is equipped with a voltage reducer.
Use equipment with DC output.

14. Wear a safety harness to prevent falling if working above floor
level.

15. Keep all panels and covers securely in place.

WARNING

ARC RAYS can burn eyes and skin; NOISE can
damage hearing. Arc rays from the welding process
produce intense heat and strong ultraviolet rays that
can burn eyes and skin. Noise from some processes
can damage hearing.

1. Wear a welding helmet fitted with a proper shade of filter (see
ANSI Z49.1 listed in Safety Standards) to protect your face
and eyes when welding or watching.

2. Wear approved safety glasses. Side shields recommended.

3. Use protective screens or barriers to protect others from flash
and glare; warn others not to watch the arc.

4. Wear protective clothing made from durable, flame-resistant
material (wool and leather) and foot protection.

5. Use approved ear plugs or ear muffs if noise level is high.

SECTION 1:

SAFETY INSTRUCTIONS AND WARNINGS

!

WARNING

PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS
KEEP AWAY UNTIL CONSULTING YOUR DOCTOR. DO NOT LOSE THESE INSTRUCTIONS. READ OPERATING/INSTRUCTION MANUAL
BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT.

Welding products and welding processes can cause serious injury or death, or damage to other equipment or property, if the operator
does not strictly observe all safety rules and take precautionary actions.

Safe practices have developed from past experience in the use of welding and cutting. These practices must be learned through study
and training before using this equipment. Some of these practices apply to equipment connected to power lines; other practices apply

to engine driven equipment. Anyone not having extensive training in welding and cutting practices should not attempt to weld.

Safe practices are outlined in the American National Standard Z49.1 entitled: SAFETY IN WELDING AND CUTTING. This publication
and other guides to what you should learn before operating this equipment are listed at the end of these safety precautions. HAVE ALL

INSTALLATION, OPERATION, MAINTENANCE, AND REPAIR WORK PERFORMED ONLY BY QUALIFIED PEOPLE.

Safety Instruction 1-2 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

WARNING

FUMES AND GASES can be hazardous to your
health.

Welding produces fumes and gases. Breathing
these fumes and gases can be hazardous to your
health.

1. Keep your head out of the fumes. Do not breathe the
fumes.

2. If inside, ventilate the area and/or use exhaust at the arc to
remove welding fumes and gases.

3. If ventilation is poor, use an appro ve d air-s upplied
respirator.

4. Read the Material Safety Data Sheets (MSDSs) and the
manufacturer’s instruction for metals, consumables,
coatings, and cleaners.

5. Work in a confined space only if it is well ventilated, or while
wearing an air-supplied respirator. Shielding gases used for
welding can displace air causing injury or death. Be sure the
breathing air is safe.

6. Do not weld in locations near degreasing, cleaning, or
spraying operations. The heat and rays of the arc can react
with vapours to form highly toxic and irritating gases.

7. Do not weld on coated metals, such as galvanized, lead, or
cadmium plated steel, unless the coating is removed from
the weld area, the area is well ventilated, and if necessary,
while wearing an air-supplied respirator. The coatings and any
metals containing these elements can give off toxic fumes if
welded.

WARNING

WELDING can cause fire or explosion.

Sparks and spatter fly off from the welding arc.
The flying sparks and hot metal, weld spatter, hot
workpiece, and hot equipment can cause fires and
burns. Accidental contact of electrode or welding
wire to metal objects can cause sparks, overheating,
or fire.

1. Protect yourself and others from flying sparks and hot
metal.

2. Do not weld where flying sparks can strike flammable
material.

3. Remove all flammables within 35’ (10.7m) of the welding
arc. If this is not possible, tightly cover them with approved
covers.

4. Be alert that welding sparks and hot materials from welding
can easily go through small cracks and openings to adjacent
areas.

5. Watch for fire, and keep a fire extinguisher nearby.

6. Be aware that welding on a ceiling, floor, bulkhead, or partition
can cause fire on the hidden side.

7. Do not weld on closed containers such as tanks or drums.

8. Connect work cable to the work as close to the welding area
as practical to prevent welding current from travelling long,
possibly unknown paths and causing electric shock and fire
hazards.

9. Do not use welder to thaw frozen pipes.

Eye protection filter shade selector for welding or cutting

(goggles or helmet), from AWS/ANSI Z49.1:1999

Welding or

Cutting Operation

Electrode Size Metal Thickness

or Welding Current

Filter

Shade No.

Welding or Cutting

Operation

Electrode Size Metal

Thickness or Welding Current

Filter

Shade No.

Torch Soldering All 2 Gas Tungsten Arc Welding

Torch Brazing All 3 or 4 Light Under 50 Amp 10

Oxygen Cutting Medium 50 to 150 Amp 12

Light Under 1" (25mm) 3 or 4 Heavy 150 to 500 Amp 14

Medium 1" (25mm) – 6" (150mm) 4 or 5 Atomic Hydrogen Welding All 12

Heavy Over 6" (150mm) 5 or 6 Carbon Arc Welding All 14

Gas Welding Carbon Arc Gouging

Light Under 1/8 " (3mm) 4 or 5 Light 12

Medium 1/8" (3mm) – 1/2" (12mm) 5 or 6 Heavy 14

Heavy Over 1/2" (12mm) 6 or 8 Plasma Arc Welding

Shielded Metal-Arc Welding (Stick) Electrodes Light Under 20 Amp 6 to 8

Light Under 5/32" (4mm) 10 Light 20 to 100 Amp 10

Medium Under 5/32" (4mm) - ¼" (6.4mm) 12 Medium 100 to 400 Amp 12

Heavy Over ¼" (6.4mm) 14 Heavy 400 to 800 Amp 14

Gas Metal Arc Welding Plasma Arc Cutting

Light Under 60 Amp 7 Light Under 300 Amp 9

Light 60 to 160 Amp 11 Medium 300 to 400 Amp 12

Medium 160 to 250 Amp 12 Heavy 400 to 800 Amp 14

Heavy 250 to 500 Amp 14

Manual 0-5116 1-3 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

10. Remove stick electrode from holder or cut off welding wire
at contact tip when not in use.

WARNING

FLYING SPARKS AND HOT METAL can cause
injury.

Chipping and grinding cause flying metal. As welds
cool, they can throw off slag.

1. Wear approved face shield or safety goggles. Side shields
recommended.

2. Wear proper body protection to protect skin.

WARNING

CYLINDERS can explode if damaged.

Shielding gas cylinders contain gas under high
pressure. If damaged, a cylinder can explode.
Since gas cylinders are normally part of the welding
process, be sure to treat them carefully.

1. Protect compressed gas cylinders from excessive heat,
mechanical shocks, and arcs.

2. Install and secure cylinders in an upright position by chaining
them to a stationary support or equipment cylinder rack to
prevent falling or tipping.

3. Keep cylinders away from any welding or other electrical
circuits.

4. Never allow a welding electrode to touch any cylinder.

5. Use only correct shielding gas cylinders, regulators, hoses,
and fittings designed for the specific application; maintain
them and associated parts in good condition.

6. Turn face away from valve outlet when opening cylinder
valve.

7. Keep protective cap in place over valve except when cylinder
is in use or connected for use.

8. Read and follow instructions on compressed gas cylinders,
associated equipment, and CGA publication P-1 listed in
Safety Standards.

!

WARNING

Engines can be dangerous.

WARNING

ENGINE EXHAUST GASES can kill.

Engines produce harmful exhaust gases.

1. Use equipment outside in open, well-ventilated areas.

2. If used in a closed area, vent engine exhaust outside and away
from any building air intakes.

WARNING

ENGINE FUEL can cause fire or explosion.

Engine fuel is highly flammable.

1. Stop engine before checking or adding fuel.

2. Do not add fuel while smoking or if unit is near any sparks
or open flames.

3. Allow engine to cool before fuelling. If possible, check and
add fuel to cold engine before beginning job.

4. Do not overfill tank — allow room for fuel to expand.

5. Do not spill fuel. If fuel is spilled, clean up before starting
engine.

WARNING

MOVING PARTS can cause injury.

Moving parts, such as fans, rotors, and belts can cut fingers and
hands and catch loose clothing.

1. Keep all doors, panels, covers, and guards closed and
securely in place.

2. Stop engine before installing or connecting unit.

3. Have only qualified people remove guards or covers for
maintenance and troubleshooting as necessary.

4. To prevent accidental starti ng during servicing,
disconnect negative (-) battery cable from battery.

5. Keep hands, hair, loose clothing, and tools away from
moving parts.

6. Reinstall panels or guards and close doors when
servicing is finished and before starting engine.

WARNING

SPARKS can cause BATTERY GASES TO EXPLODE;
BATTERY ACID can burn eyes and skin.

Batteries contain acid and generate explosive gases.

1. Always wear a face shield when working on a battery.

2. Stop engine before disconnecting or connecting battery
cables.

3. Do not allow tools to cause sparks when working on a
battery.

4. Do not use welder to charge batteries or jump start
vehicles.

5. Observe correct polarity (+ and –) on batteries.

WARNING

STEAM AND PRESSURIZED HOT COOLANT can
burn face, eyes, and skin.

Safety Instruction 1-4 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

The coolant in the radiator can be very hot and
under pressure.

1. Do not remove radiator cap when engine is hot. Allow engine
to cool.

2. Wear gloves and put a rag over cap area when removing
cap.

3. Allow pressure to escape before completely removing cap.

!

WARNING

This product, when used for welding or cutting,
produces fumes or gases which contain chemicals
know to the State of California to cause birth defects
and, in some cases, cancer. (California Health &
Safety code Sec. 25249.5 et seq.)

NOTE

Considerations About Welding And The Effects of
Low Frequency Electric and Magnetic Fields

The following is a quotation from the General Conclusions Section
of the U.S. Congress, Office of Technology Assessment, Biological
Effects of Power Frequency Electric & Magnetic Fields - Back­ground Paper, OTA-BP-E-63 (Washington, DC: U.S. Government
Printing Office, May 1989): “...there is now a very large volume
of scientific findings based on experiments at the cellular level
and from studies with animals and people which clearly establish
that low frequency magnetic fields and interact with, and produce
changes in, biological systems. While most of this work is of
very high quality, the results are complex. Current scientific
understanding does not yet allow us to interpret the evidence
in a single coherent framework. Even more frustrating, it does
not yet allow us to draw definite conclusions about questions of
possible risk or to offer clear science-based advice on strategies
to minimize or avoid potential risks.”

To reduce magnetic fields in the workplace, use the following
procedures.

1. Keep cables close together by twisting or taping them.

2. Arrange cables to one side and away from the
operator.

3. Do not coil or drape cable around the body.

4. Keep welding power source and cables as far away from
body as practical.

ABOUT PACEMAKERS:

The above procedures are among those also
normally recommended for pacemaker wearers.
Consult your doctor for complete information.

LEAD WARNING

This product contains chemicals, including lead,
or otherwise produces chemicals known to the
State of California to cause cancer, birth defects
and other reproductive harm. Wash hands after
handling. (California Health & Safety Code §

25249.5 et seq.)

1.02 Principal Safety Standards

Safety in Welding and Cutting, ANSI Standard Z49.1, from
American Welding Society, 550 N.W. LeJeune Rd., Miami, FL

33126.

Safety and Health Standards , OSHA 29 CFR 1910, from
Superintendent of Documents, U.S. Government Printing Office,
Washington, D.C. 20402.

Recommended Safe Practices for the Preparation for Welding
and Cutting of Containers That Have Held Hazardous Substances,
American Welding Society Standard AWS F4.1, from American
Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126.

National Electrical Code, NFPA Standard 70, from National Fire
Protection Association, Batterymarch Park, Quincy, MA 02269.

Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet
P-1, from Compressed Gas Association, 1235 Jefferson Davis
Highway, Suite 501, Arlington, VA 22202.

Code for Safety in Welding and Cutting, CSA Standard W117.2,
from Canadian Standards Association, Standards Sales, 178
Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.

Safe Practices for Occupation and Educational Eye and Face
Protection, ANSI Standard Z87.1, from American National
Standards Institute, 1430 Broadway, New York, NY 10018.

Cutting and Welding Processes, NFPA Standard 51B, from
National Fire Protection Association, Batterymarch Park, Quincy,
MA 02269.

Manual 0-5116 1-5 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

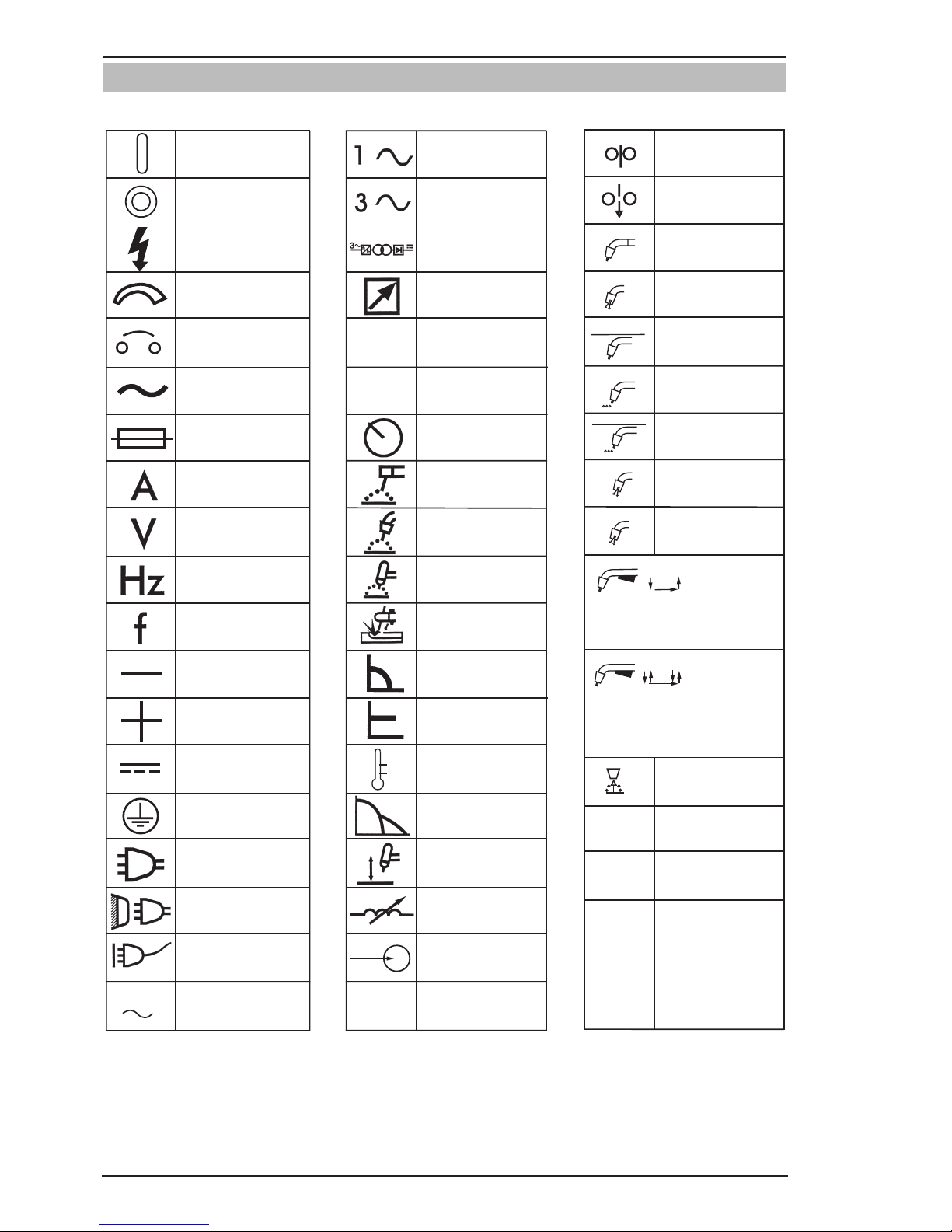

1.03 Symbol Chart

Note that only some of these symbols will appear on your model.

Gas Tungsten Arc
Welding (GTAW)

Air Carbon Arc
Cutting (CAC-A)

Constant Current

Constant Voltage
Or Constant Potential

High Temperature

Fault Indication

Arc Force

Touch Start (GTAW)

Variable Inductance

Voltage Input

Single Phase

Three Phase

Three Phase Static
Frequency Converter­Transformer-Rectifier

Dangerous Voltage

Off

On

Panel/Local

Shielded Metal
Arc Welding (SMAW)

Gas Metal Arc
Welding (GMAW)

Increase/Decrease

Circuit Breaker

AC Auxiliary Power

Remote

Duty Cycle

Percentage

Amperage

Voltage

Hertz (cycles/sec)

Frequency

Negative

Positive

Direct Current (DC)

Protective Earth
(Ground)

Line

Line Connection

Auxiliary Power

Receptacle Rating­Auxiliary Power

Art # A-04130

115V 15A

t

t1

t2

%

X

IPM

MPM

t

V

Fuse

Wire Feed Function

Wire Feed Towards
Workpiece With
Output Voltage Off.

Preflow Time

Postflow Time

Spot Time

Spot Weld Mode

Continuous Weld
Mode

Press to initiate wirefeed and
welding, release to stop.

Purging Of Gas

Inches Per Minute

Meters Per Minute

Welding Gun

Burnback Time

Press and hold for preflow, release
to start arc. Press to stop arc, and
hold for preflow.

4 Step Trigger
Operation

2 Step Trigger
Operation

Safety Instruction 1-6 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

1.04 Precautions De Securite En Soudage A L’arc

!

MISE EN GARDE

LE SOUDAGE A L’ARC EST DANGEREUX

PROTEGEZ-VOUS, AINSI QUE LES AUTRES, CONTRE LES BLESSURES GRAVES POSSIBLES OU LA MORT. NE LAISSEZ PAS LES
ENFANTS S’APPROCHER, NI LES PORTEURS DE STIMULATEUR CARDIAQUE (A MOINS QU’ILS N’AIENT CONSULTE UN MEDECIN).
CONSERVEZ CES INSTRUCTIONS. LISEZ LE MANUEL D’OPERATION OU LES INSTRUCTIONS AVANT D’INSTALLER, UTILISER OU
ENTRETENIR CET EQUIPEMENT.

Les produits et procédés de soudage peuvent sauser des blessures graves ou la mort, de même que des dommages au reste du matériel
et à la propriété, si l’utilisateur n’adhère pas strictement à toutes les règles de sécurité et ne prend pas les précautions nécessaires.

En soudage et coupage, des pratiques sécuritaires se sont développées suite à l’expérience passée. Ces pratiques doivent être ap­prises par étude ou entraînement avant d’utiliser l’equipement. Toute personne n’ayant pas suivi un entraînement intensif en soudage
et coupage ne devrait pas tenter de souder. Certaines pratiques concernent les équipements raccordés aux lignes d’alimentation alors
que d’autres s’adressent aux groupes électrogènes.

La norme Z49.1 de l’American National Standard, intitulée “SAFETY IN WELDING AND CUTTING” présente les pratiques sécuritaires
à suivre. Ce document ainsi que d’autres guides que vous devriez connaître avant d’utiliser cet équipement sont présentés à la fin de
ces instructions de sécurité.

SEULES DES PERSONNES QUALIFIEES DOIVENT FAIRE DES TRAVAUX D’INSTALLATION, DE REPARATION, D’ENTRETIEN ET
D’ESSAI.

7. N’utilisez que des porte-électrodes bien isolés. Ne jamais
plonger les porte-électrodes dans l’eau pour les refroidir.
Ne jamais les laisser traîner par terre ou sur les pièces à
souder. Ne touchez pas aux porte-électrodes raccordés à
deux sources de courant en même temps. Ne jamais toucher
quelqu’un d’autre avec l’électrode ou le porte-électrode.

8. N’utilisez pas de câbles électriques usés, endommagés, mal
épissés ou de section trop petite.

9. N’enroulez pas de câbles électriques autour de votre corps.

10. N’utilisez qu’une bonne prise de masse pour la mise à la terre
de la pièce à souder.

11. Ne touchez pas à l’électrode lorsqu’en contact avec le circuit
de soudage (terre).

12. N’utilisez que des équipements en bon état. Réparez ou
remplacez aussitôt les pièces endommagées.

13. Dans des espaces confinés ou mouillés, n’utilisez pas de
source de courant alternatif, à moins qu’il soit muni d’un
réducteur de tension. Utilisez plutôt une source de courant
continu.

14. Portez un harnais de sécurité si vous travaillez en hauteur.

15. Fermez solidement tous les panneaux et les capots.

AVERTISSEMENT

LE RAYONNEMENT DE L’ARC PEUT BRÛLER LES
YEUX ET LA PEAU; LE BRUIT PEUT ENDOMMAGER
L’OUIE.

L’arc de soudage produit une chaleur et des rayons
ultraviolets intenses, susceptibles de brûler les yeux
et la peau. Le bruit causé par certains procédés peut
endommager l’ouïe.

1.05 Dangers relatifs au soudage à
l’arc

AVERTISSEMENT

L’ELECTROCUTION PEUT ETRE MORTELLE.

Une décharge électrique peut tuer ou brûler
gravement. L’électrode et le circuit de soud­age sont sous tension dès la mise en circuit. Le
circuit d’alimentation et les circuits internes de
l’équipement sont aussi sous tension dès la mise
en marche. En soudage automatique ou semi­automatique avec fil, ce dernier, le rouleau ou la
bobine de fil, le logement des galets d’entrainement
et toutes les pièces métalliques en contact avec le
fil de soudage sont sous tension. Un équipement
inadéquatement installé ou inadéquatement mis à
la terre est dangereux.

1. Ne touchez pas à des pièces sous tension.

2. Portez des gants et des vêtements isolants, secs et non

troués.

3 Isolez-vous de la pièce à souder et de la mise à la terre au

moyen de tapis isolants ou autres.

4. Déconnectez la prise d’alimentation de l’équipement ou ar

­rêtez le moteur avant de l’installer ou d’en faire l’entretien.
Bloquez le commutateur en circuit ouvert ou enlevez les
fusibles de l’alimentation afin d’éviter une mise en marche
accidentelle.

5. Veuillez à installer cet équipement et à le mettre à la terre selon
le manuel d’utilisation et les codes nationaux, provinciaux et
locaux applicables.

6. Arrêtez tout équipement après usage. Coupez l’alimentation
de l’équipement s’il est hors d’usage ou inutilisé.

Manual 0-5116 1-7 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

1. Portez une casque de soudeur avec filtre oculaire de nuance
appropriée (consultez la norme ANSI Z49 indiquée ci-après)
pour vous protéger le visage et les yeux lorsque vous soudez
ou que vous observez l’exécution d’une soudure.

2. Portez des lunettes de sécurité approuvées. Des écrans
latéraux sont recommandés.

3. Entourez l’aire de soudage de rideaux ou de cloisons pour
protéger les autres des coups d’arc ou de l’éblouissement;
avertissez les observateurs de ne pas regarder l’arc.

4. Portez des vêtements en matériaux ignifuges et durables
(laine et cuir) et des chaussures de sécurité.

5. Portez un casque antibruit ou des bouchons d’oreille ap

-

prouvés lorsque le niveau de bruit est élevé.

AVERTISSEMENT

LES VAPEURS ET LES FUMEES SONT DANGERE­USES POUR LA SANTE.

Le soudage dégage des vapeurs et des fumées
dangereuses à respirer.

1. Eloignez la tête des fumées pour éviter de les respirer.

2. A l’intérieur, assurez-vous que l’aire de soudage est bien
ventilée ou que les fumées et les vapeurs sont aspirées à
l’arc.

3. Si la ventilation est inadequate, portez un respirateur à ad

-

duction d’air approuvé.

4. Lisez les fiches signalétiques et les consignes du fabricant
relatives aux métaux, aux produits consummables, aux
revêtements et aux produits nettoyants.

5. Ne travaillez dans un espace confiné que s’il est bien ventilé;
sinon, portez un respirateur à adduction d’air. Les gaz pro­tecteurs de soudage peuvent déplacer l’oxygène de l’air et
ainsi causer des malaises ou la mort. Assurez-vous que l’air
est propre à la respiration.

6. Ne soudez pas à proximité d’opérations de dégraissage, de
nettoyage ou de pulvérisation. La chaleur et les rayons de l’arc
peuvent réagir avec des vapeurs et former des gaz hautement
toxiques et irritants.

7. Ne soudez des tôles galvanisées ou plaquées au plomb ou
au cadmium que si les zones à souder ont été grattées à
fond, que si l’espace est bien ventilé; si nécessaire portez
un respirateur à adduction d’air. Car ces revêtements et tout
métal qui contient ces éléments peuvent dégager des fumées
toxiques au moment du soudage.

AVERTISSEMENT

LE SOUDAGE PEUT CAUSER UN INCENDIE OU
UNE EXPLOSION

L’arc produit des étincellies et des projections. Les
particules volantes, le métal chaud, les projections
de soudure et l’équipement surchauffé peuvent
causer un incendie et des brûlures. Le contact ac­cidentel de l’électrode ou du fil-électrode avec un
objet métallique peut provoquer des étincelles, un
échauffement ou un incendie.

SELECTION DES NUANCES DE FILTRES OCULAIRS POUR LA PROTECTION

DES YEUX EN COUPAGE ET SOUDAGE (selon AWS á 8.2-73)

Opération de

coupage ou soudage

Dimension d'électrode
ou Epiasseur de métal

ou Intensité de courant

Nuance
de filtre

oculaire

Opération de coupage

ou soudage

Dimension d'électrode

ou Epiasseur de métal

ou Intensité de courant

Nuance
de filtre

oculaire

Brassage tendre au
chalumeau

toutes conditions 2

Soudage á l'arc sous gaz
avec fil plein (GMAW)

Brassage fort au
chalumeau

toutes conditions 3 ou 4 métaux non-ferreux toutes conditions 11

Oxycoupage métaux ferreux toutes conditions 12

mince moins de 1 po. (25 mm) 2 ou 3

Soudage á l'arc sous gaz avec
électrode de tungstène (GTAW)

toutes conditions 12

moyen de 1 á 6 po. (25 á 150 mm) 4 ou 5

Soudage á l'hydrogène
atomique (AHW)

toutes conditions 12

épais plus de 6 po. (150 mm) 5 ou 6

Soudage á l'arc avec
électrode de carbone (CAW)

toutes conditions 12

Soudage aux gaz Soudage á l'arc Plasma (PAW) toutes dimensions 12

mince moins de 1/8 po. (3 mm) 4 ou 5

Gougeage Air-Arc avec
électrode de carbone

moyen de 1/8 á 1/2 po. (3 á 12 mm) 5 ou 6 mince 12

épais plus de 1/2 po. (12 mm) 6 ou 8 épais 14

Soudage á l'arc avec elec­trode enrobees (SMAW)

moins de 5/32 po. (4 mm) 10

Coupage á l'arc Plasma (PAC)

5/32 á 1/4 po. (4 á 6.4 mm) 12 mince moins de 300 amperès 9

plus de 1/4 po. (6.4 mm) 14 moyen de 300 á 400 amperès 12

épais plus de 400 amperès 14

Safety Instruction 1-8 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

1. Protégez-vous, ainsi que les autres, contre les étincelles et
du métal chaud.

2. Ne soudez pas dans un endroit où des particules volantes
ou des projections peuvent atteindre des matériaux inflam­mables.

3. Enlevez toutes matières inflammables dans un rayon de 10,
7 mètres autour de l’arc, ou couvrez-les soigneusement avec
des bâches approuvées.

4. Méfiez-vous des projections brulantes de soudage suscep

­tibles de pénétrer dans des aires adjacentes par de petites
ouvertures ou fissures.

5. Méfiez-vous des incendies et gardez un extincteur à portée
de la main.

6. N’oubliez pas qu’une soudure réalisée sur un plafond, un
plancher, une cloison ou une paroi peut enflammer l’autre
côté.

7. Ne soudez pas un récipient fermé, tel un réservoir ou un
baril.

8. Connectez le câble de soudage le plus près possible de la
zone de soudage pour empêcher le courant de suivre un long
parcours inconnu, et prévenir ainsi les risques d’électrocution
et d’incendie.

9. Ne dégelez pas les tuyaux avec un source de courant.

10. Otez l’électrode du porte-électrode ou coupez le fil au tube­contact lorsqu’inutilisé après le soudage.

11. Portez des vêtements protecteurs non huileux, tels des gants
en cuir, une chemise épaisse, un pantalon revers, des bottines
de sécurité et un casque.

AVERTISSEMENT

LES ETINCELLES ET LES PROJECTIONS BRULAN­TES PEUVENT CAUSER DES BLESSURES.

Le piquage et le meulage produisent des particules
métalliques volantes. En refroidissant, la soudure
peut projeter du éclats de laitier.

1. Portez un écran facial ou des lunettes protectrices ap

-

prouvées. Des écrans latéraux sont recommandés.

2. Portez des vêtements appropriés pour protéger la
peau.

AVERTISSEMENT

LES BOUTEILLES ENDOMMAGEES PEUVENT
EXPLOSER

Les bouteilles contiennent des gaz protecteurs
sous haute pression. Des bouteilles endommagées
peuvent exploser. Comme les bouteilles font nor­malement partie du procédé de soudage, traitez-les
avec soin.

1. Protégez les bouteilles de gaz comprimé contre les sources
de chaleur intense, les chocs et les arcs de soudage.

2. Enchainez verticalement les bouteilles à un support ou à un
cadre fixe pour les empêcher de tomber ou d’être renver­sées.

3. Eloignez les bouteilles de tout circuit électrique ou de tout
soudage.

4. Empêchez tout contact entre une bouteille et une électrode
de soudage.

5. N’utilisez que des bouteilles de gaz protecteur, des déten

­deurs, des boyauxs et des raccords conçus pour chaque ap­plication spécifique; ces équipements et les pièces connexes
doivent être maintenus en bon état.

6. Ne placez pas le visage face à l’ouverture du robinet de la
bouteille lors de son ouverture.

7. Laissez en place le chapeau de bouteille sauf si en utilisation
ou lorsque raccordé pour utilisation.

8. Lisez et respectez les consignes relatives aux bouteilles de
gaz comprimé et aux équipements connexes, ainsi que la
publication P-1 de la CGA, identifiée dans la liste de docu­ments ci-dessous.

AVERTISSEMENT

LES MOTEURS PEUVENT ETRE DANGEREUX

LES GAZ D’ECHAPPEMENT DES MOTEURS PEU­VENT ETRE MORTELS.

Les moteurs produisent des gaz d’échappement nocifs.

1. Utilisez l’équipement à l’extérieur dans des aires ouvertes et
bien ventilées.

2. Si vous utilisez ces équipements dans un endroit confiné, les
fumées d’échappement doivent être envoyées à l’extérieur,
loin des prises d’air du bâtiment.

AVERTISSEMENT

LE CARBURANT PEUR CAUSER UN INCENDIE OU
UNE EXPLOSION.

Le carburant est hautement inflammable.

1. Arr ête z le m oteu r av a nt d e vér ifie r le nive au e
carburant ou de faire le plein.

2. Ne faites pas le plein en fumant ou proche d’une source
d’étincelles ou d’une flamme nue.

3. Si c’est possible, laissez le moteur refroidir avant de faire
le plein de carburant ou d’en vérifier le niveau au début du
soudage.

4. Ne faites pas le plein de carburant à ras bord: prévoyez de
l’espace pour son expansion.

5. Faites attention de ne pas renverser de carburant. Nettoyez
tout carburant renversé avant de faire démarrer le moteur.

AVERTISSEMENT

DES PIECES EN MOUVEMENT PEUVENT CAUSER
DES BLESSURES.

Des pièces en mouvement, tels des ventilateurs,
des rotors et des courroies peuvent couper doigts
et mains, ou accrocher des vêtements amples.

Manual 0-5116 1-9 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

1. Assurez-vous que les portes, les panneaux, les capots et les
protecteurs soient bien fermés.

2. Avant d’installer ou de connecter un système, arrêtez le
moteur.

3. Seules des personnes qualifiées doivent démonter des pro

­tecteurs ou des capots pour faire l’entretien ou le dépannage
nécessaire.

4. Pour empêcher un démarrage accidentel pendant l’entretien,
débranchez le câble d’accumulateur à la borne négative.

5. N’approchez pas les mains ou les cheveux de pièces en
mouvement; elles peuvent aussi accrocher des vêtements
amples et des outils.

6. Réinstallez les capots ou les protecteurs et fermez les portes
après des travaux d’entretien et avant de faire démarrer le
moteur.

AVERTISSEMENT

DES ETINCELLES PEUVENT FAIRE EXPLOSER
UN ACCUMULATEUR; L’ELECTROLYTE D’UN AC­CUMU-LATEUR PEUT BRULER LA PEAU ET LES
YEUX.

Les accumulateurs contiennent de l’électrolyte acide
et dégagent des vapeurs explosives.

1. Portez toujours un écran facial en travaillant sur un accumu­lateur.

2. Arrêtez le moteur avant de connecter ou de déconnecter des
câbles d’accumulateur.

3. N’utilisez que des outils anti-étincelles pour travailler sur un
accumulateur.

4. N’utilisez pas une source de courant de soudage pour
charger un accumulateur ou survolter momentanément un
véhicule.

5. Utilisez la polarité correcte (+ et –) de l’accumulateur.

AVERTISSEMENT

LA VAPEUR ET LE LIQUIDE DE REFROIDISSEMENT
BRULANT SOUS PRESSION PEUVENT BRULER LA
PEAU ET LES YEUX.

Le liquide de refroidissement d’un radiateur peut
être brûlant et sous pression.

1. N’ôtez pas le bouchon de radiateur tant que le moteur n’est
pas refroidi.

2. Mettez des gants et posez un torchon sur le bouchon pour
l’ôter.

3. Laissez la pression s’échapper avant d’ôter complètement le
bouchon.

PLOMB AVERTISSEMENT

Ce produit contient des produits chimiques, comme
le plomb, ou engendre des produits chimiques,
reconnus par l’état de Californie comme pouvant
être à l’origine de cancer, de malformations fœtales
ou d’autres problèmes de reproduction. Il faut se
laver les mains après toute manipulation. (Code
de Californie de la sécurité et santé, paragraphe

25249.5 et suivants)

1.06 Principales Normes De Securite

Safety in Welding and Cutting, norme ANSI Z49.1, American
Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33128.

Safety and Health Standards, OSHA 29 CFR 1910, Superintendent
of Documents, U.S. Government Printing Office, Washington,
D.C. 20402.

Recommended Safe Practices for the Preparation for Welding
and Cutting of Containers That Have Held Hazardous Substances,
norme AWS F4.1, American Welding Society, 550 N.W. LeJeune
Rd., Miami, FL 33128.

National Electrical Code, norme 70 NFPA, National Fire Protection
Association, Batterymarch Park, Quincy, MA 02269.

Safe Handling of Compressed Gases in Cylinders, document P­1, Compressed Gas Association, 1235 Jefferson Davis Highway,
Suite 501, Arlington, VA 22202.

Code for Safety in Welding and Cutting, norme CSA W117.2
Association canadienne de normalisation, Standards Sales, 276
Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.

Safety Instruction 1-10 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

1.07 Graphique de Symbole

Seulement certains de ces symboles apparaîtront sur votre modèle.

Soudage á L’arc Avec
Electrode Non Fusible
(GTAW)

Decoupe Arc Carbone
(CAC-A)

Courant Constant

Tension Constante
Ou Potentiel Constant

Haute Température

Force d'Arc

Amorçage de L’arc au
Contact (GTAW)

Inductance Variable

Tension

Mono Phasé

Trois Phasé

Tri-Phase Statique

Fréquence Convertisseur
Transformateur-Redresseur

Tension dangereuse

Hors Tension

Sous Tension

Panneau/Local

Soudage Arc Electrique
Avec Electrode Enrobé
(SMAW)

Soudage á L’arc Avec
Fil Electrodes Fusible
(GMAW)

Augmentez/Diminuer

Disjoncteur

Source AC Auxiliaire

Distant

Facteur de Marche

Pourcentage

Intensité de Courant

Tension

Hertz (cycles/sec)

Fréquence

Négatif

Positif

Courant Continue (DC)

Terre de Protection

Ligne

Connexion de la Ligne

Source Auxiliaire

Classement de Prise­Source Auxiliaire

Art # A-07639

115V 15A

t

t1

t2

%

X

IPM

MPM

t

Fusible

Déroulement du Fil

Alimentation du Fil Vers
la Pièce de Fabrication
Hors Tension

Durée de Pré-Dèbit

Durée de Post-Dèbit

Duréc du Pulse

Soudure Par Point

Appuyez pour dèruarer
l’alimentation du fils et la soudure,
le relâcher pour arrêter.

Purge Du Gaz

Mode Continu de
Soudure

Pouces Par Minute

Mètres Par Minute

Torch de Soudage

Probléme de Terre

Maintenez appuyez pour pré-dèbit,
relailez pour initier l'arc. Appuyez
pour arrêter l'arc, et mainteuir pour
pré-dèbit.

Détente à 4-Temps

Détente à 2-Temps

V

Manual 0-5116 1-11 Safety Instruction

SAFETY INSTRUCTION ARC MASTER 175TE

1.08 Declaration Of Conformity

Manufacturer: Thermadyne Corporation
Address: 82 Benning Street
West Lebanon, New Hampshire 03784
USA

The equipment described in this manual conforms to all applicable aspects and regulations of the ‘Low Voltage Directive’ (European
Council Directive 73/23/EEC as amended by Council Directive 93/68/EEC) and to the National legislation for the enforcement of this
Directive.

The equipment described in this manual conforms to all applicable aspects and regulations of the “EMC Directive” (European Council
Directive 89/336/EEC) and to the National legislation for the enforcement of this Directive.

Serial numbers are unique with each individual piece of equipment and details description, parts used to manufacture a unit and date
of manufacture.

National Standard and Technical Specifications

The product is designed and manufactured to a number of standards and technical requirements. Among them are:

• CENELEC EN50199 EMC Product Standard for Arc Welding Equipment.

• ISO/IEC 60974-1 (BS 638-PT10) (EN 60 974-1) (EN50192) (EN50078) applicable to welding equipment and associated
accessories.

• For environments with increased hazard of electrical shock, Power Supplies bearing the S mark conform to EN50192 when
used in conjunction with hand torches with exposed cutting tips, if equipped with properly installed standoff guides.

• Extensive product design verification is conducted at the manufacturing facility as part of the routine design and manufacturing
process. This is to ensure the product is safe, when used according to instructions in this manual and related industry standards,
and performs as specified. Rigorous testing is incorporated into the manufacturing process to ensure the manufactured product
meets or exceeds all design specifications.

Thermadyne has been manufacturing products for more than 30 years, and will continue to achieve excellence in our area of
manufacture.

Manufacturers responsible representative:

Steve Ward
Operations Director
Thermadyne Europe
Europa Building
Chorley N Industrial Park
Chorley, Lancashire,
England PR6 7BX

Safety Instruction 1-12 Manual 0-5116

ARC MASTER 175 TE SAFETY INSTRUCTIONS

INTRODUCTION ARC MASTER 175 TE

Manual 0-5116 2-1 Introduction

SECTION 2:

INTRODUCTION

2.01 How to Use This Manual

This Operating Manual applies the part numbers
listed on page i. If none are underlined, they are all
covered by this manual. To ensure safe operation,
read the entire manual, including the chapter on safety
instructions and warnings. Throughout this manual,
the word WARNING, CAUTION and NOTE may appear.
Pay particular attention to the information provided
under these headings. These special annotations are
easily recognized as follows:

!

WARNING

Gives information regarding possible
personal injury. Warnings will be enclosed
in a box such as this.

CAUTION

Refers to possible equipment damage.
Cautions will be shown in bold type.

NOTE

Offers helpful information concerning
certain operating procedures. Notes will
be shown in italics.

2.02 Equipment Identification

The unit’s identification number (specification or part
number), model, and serial number usually appear
on a nameplate attached to the machine. Equipment
which does not have a nameplate attached to the
machine is identified only by the specification or part
number printed on the shipping container. Record
these numbers for future reference.

2.03 Receipt of Equipment

When you receive the equipment, check it against the
invoice to make sure it is complete and inspect the
equipment for possible damage due to shipping. If
there is any damage, notify the carrier immediately to
file a claim. Furnish complete information concerning
damage claims or shipping errors to the location
in your area listed in the inside back cover of this
manual. Include all equipment identification numbers
as described above along with a full description of the
parts in error.

2.04 Description

ArcMaster 175 TE

This compact heavy duty, inverter welding machine
has infinitely adjustable welding current from 5 to
175 amps. It runs standard general purpose .098"
(2.5mm) electrodes for light gauge work, generally
less than .118" (3.0mm) thick, and 1/8" (3.2mm) or
.157" (4.0mm) electrodes for heavier material. The
unit also has a lift TIG and HF TIG function that offers
stable TIG welding characteristics when used with a
suitable TIG torch and shielding gas.

2.05 Packaged Items

• 175 TE Inverter Power Source

• Electrode Holder with 5m Lead (16mm

2

)

• Work Clamp with 5m Lead (16mm

2

)

• TIG Torch

• TIG Torch Accessories

• Plastic Tool Case

• Operating Manual

ARCMASTER 175 TE INTRODUCTION

InIntroduction 2-2 Manual 0-5116

2.06 Transportation Methods

CAUTION

ELEC TRIC SHOCK can kill. DO NOT
TOUCH live electric parts. Disconnect

input power conductors from de-energized
supply line before moving the welding
power source.

!

WARNING

FALLING EQUIPMENT can cause serious
personal injury and equipment damage.

Lift unit with handle on top of case. Use handcart or
similar device of adequate capacity. If using a fork
lift vehicle, place secure unit on a proper skid before
transporting.

2.07 Duty Cycle

The rated duty cycle of a Welding Power Source,
is a statement of the time it may be operated at its
rated welding current output without exceeding the
temperature limits of the insulation of the component
parts. To explain the 10 minute duty cycle period
the following example is used. Suppose a Welding
Power Source is designed to operate at a 20% duty
cycle, 175 amperes at 26.8 volts. This means that
it has been designed and built to provide the rated
amperage (175A) for 2 minutes, i.e. arc welding time,
out of every 10 minute period (20% of 10 minutes
is 2 minutes). During the other 8 minutes of the 10
minute period the Welding Power Source must idle
and allowed to cool.

2.08 User Responsibility

Thi s e qui p m e nt w i l l per f orm a s p er th e
informationcontained herein when installed, operated,
maintaineand repaired in accordance with the
instructions provided. This equipment must be
checked periodically. Defective equipment (including
welding leads) should not be used. Parts that
are broken, missing, plainly worn, distorted or
contaminated, should be replaced immediately.
Should such repairs or replacements become
necessary, it is recommended that such repairs
be carried out by appropriately qualified persons
approved by Thermal Arc. Advice in this regard can
be obtained by contacting accredited Thermal Arc
Distributor.

This equipment or any of its parts should not be altered
from standard specification without prior written
approval of Thermal Arc. The user of this equipment
shall have the sole responsibility for any malfunction
which results from improper use or unauthorised
modification from standard specification, faulty
maintenance, damage or improper repair by anyone
other than appropriately qualified persons approved
by Thermal Arc.

INTRODUCTION ARC MASTER 175 TE

Manual 0-5116 2-3 Introduction

∆ The recommended motor start fuse or thermal circuit breaker size is 40 amp. An individual branch
circuit capable of carrying 40 amperes and protected by fuses or circuit breaker is recommended for
this application. Fuse size is based on not more than 200 percent of the rated input amperage of the
welding power source (Based on Article 630, National Electrical Code).

Thermal Arc continuously strives to produce the best product possible and therefore reserves the right to change,
improve or revise the specifications or design of this or any product without prior notice. Such updates or changes do
not entitle the buyer of equipment previously sold or shipped to the corresponding changes, updates, improvements or
replacement of such items.

The values specified in the table above are optimal values, your values may differ. Individual equipment may differ from
the above specifications due to in part, but not exclusively, to any one or more of the following; variations or changes in
manufactured components, installation location and conditions and local power grid supply conditions.

2.09 Specifications

W1003002

5 - 175 Amps

Nominal DC Open Circuit Voltage (OCV) 65
Welding Output, 104ºF ( 40ºC), 10 min.

175A @ 20%, 27.0V

(quoted figures refer to SMAW output)

110A @ 60%, 24.4V

80A @ 100%, 23.2V
Rated Input Current (A) for STICK Welding 40 Amps

IȠ = 175A @ 27V

Rated Input Current (A) for TIG Welding 24 Amps

IȠ = 175A @ 17V

Rated Output for STICK Welding 175A @ 20%, 27V

Rated Output for TIG Welding 175A @ 20%, 17V

Duty Cycle (%) 20% @ 175

Welder Type Inverter Power Source with High Frequency

Output Terminal Type Dinse™ 50

Number of Phases Single Phase

Nominal Supply Voltage 230V

Nominal Supply Frequency 50/60 Hz

Effective Input Current (l1eff) 17.9 Amps

Maximum Input Current (l1 max) Δ 40 Amps

Single Phase Generator Requirements 10 KVA

Protection Class IP23S

Standard(s) IEC 60974-1

Cooling Method Fan Cooled

Welding Power Source Mass 16.53lb (7.5kg)

H 13.0" x W5.1" x D 10.0"

(H 330mm x W 130mm x D 255mm)

Dimension Power Source (DxWxH)

Mains Power

Classification

Power Source Part Number

Welding Output

Dimensions and Weight

ARCMASTER 175 TE INTRODUCTION

InIntroduction 2-4 Manual 0-5116

INSTALLATION ARCMASTER 175 TE

Manual 0-5116 3-1 Installation

3.01 Environment

These units are designed for use in environments
with increased hazard of electric shock. Examples
of environments with increased hazard of electric
shock are:

A. In locations in which freedom of movement is

restricted, so that the operator is forced to perform
the work in a cramped (kneeling, sitting or lying)
position with physical contact with conductive
parts.

B. In locations which are fully or partially limited by

conductive elements, and in which there is a high
risk of unavoidable or accidental contact by the
operator.

C. In wet or damp hot locations where humidity

or perspiration considerably reduces the skin
resistance of the human body and the insulation
properties of accessories.

Environments with increased hazard of electric shock
do not include places where electrically conductive
parts in the near vicinity of the operator, which can
cause increased hazard, have been insulated.

3.02 Location

Be sure to locate the welder according to the following
guidelines:

• In areas, free from moisture and dust.

• Ambient temperature between 32°F to 104°F
(0°C to 40°C).

• In areas, free from oil, steam and corrosive
gases.

• In areas, not subjected to abnormal vibration or
shock.

• In areas, not exposed to direct sunlight or
rain.

• Place at a distance of 12” (300mm) or more
from walls or similar that could restrict natural
air flow for cooling

!

WARNING

Thermal Arc advises that this equipment
be electrically connected by a qualified
electrician.

3.03 Electrical Input Connections

!

WARNING

ELECTRIC SHOCK can kill; SIGNIFICANT
DC VOLTAGE is present after removal of
input power.

DO NOT TOUCH live electrical parts.

SHUT DOWN welding power source, disconnect input

power employing lockout/tagging procedures. Lock­out/tagging procedures consist of padlocking line
disconnect switch in open position, removing fuses
from fuse box, or shutting off and red-tagging circuit
breaker or other disconnecting device.

• Electrical Input Requirements

Operate the welding power source from a single-phase
50/60 Hz, AC power supply. The input voltage must
match one of the electrical input voltages shown on
the input data label on the unit nameplate. Contact the
local electric utility for information about the type of
electrical service available, how proper connections
should be made, and inspection required. The line
disconnect switch provides a safe and convenient
means to completely remove all electrical power
from the welding power supply whenever necessary
to inspect or service the unit.

Do not connect an input (WHITE or BLACK) conductor
to the ground terminal.

Do not connect the ground (GREEN) conductor to an
input line terminal.

SECTION 3:

INSTALLATION

ARCMASTER 175 TE INSTALLATION

Installation 3-2 Manual 0-5116

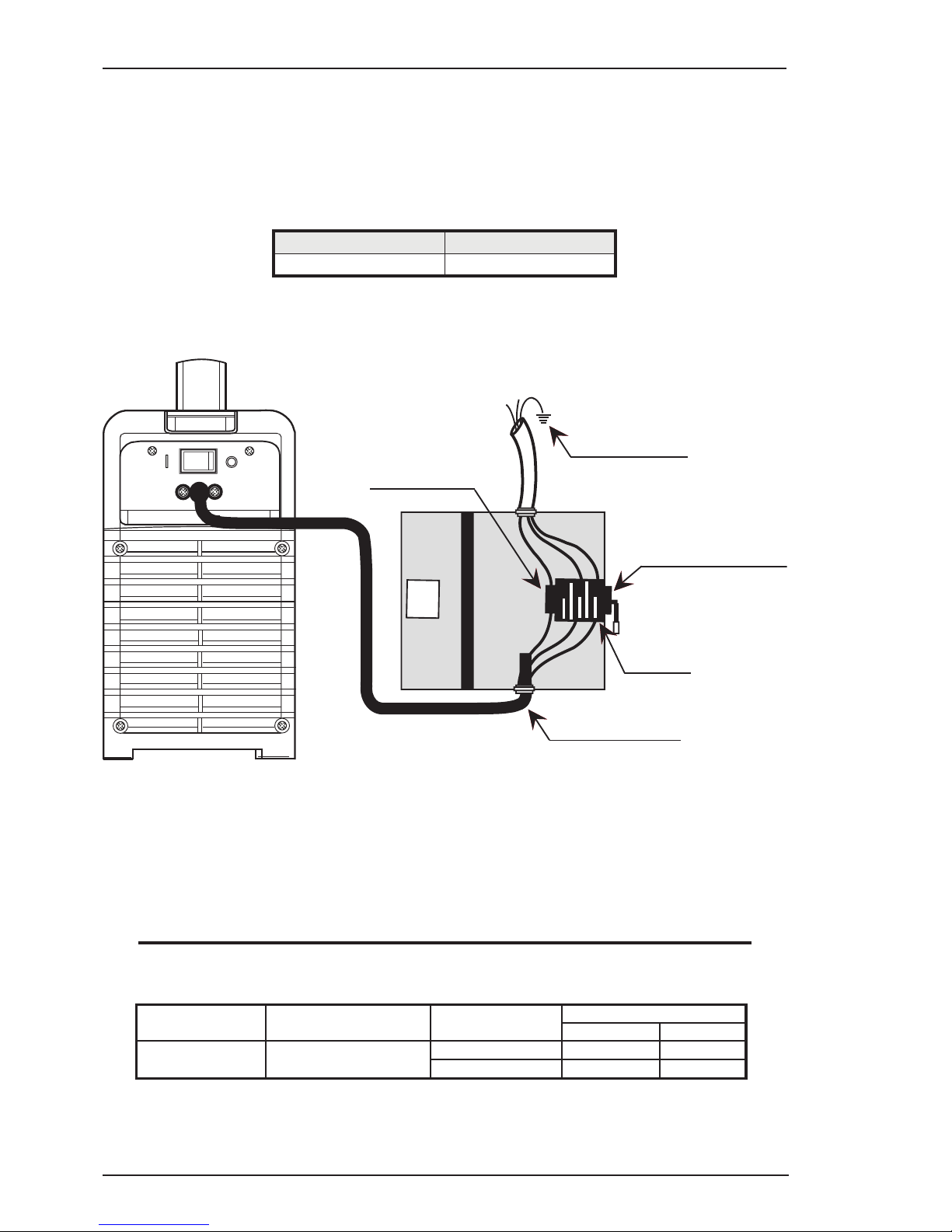

Refer to Figure 3-1:

1. Connect end of ground (GREEN or GREEN/YELLOW) conductor to a suitable ground. Use a grounding
method that complies with all applicable electrical codes.

2. Connect ends of line 1 (BLUE) and line 2 (BROWN) input conductors to a de-energized line disconnect
switch.

3. Use Table 3-1 as a guide to select line fuses for the disconnect switch.

Input Voltage Fuse Size

230V 40 Amps

Table 3-1: Electrical Connections

Fuse size is based on not more than 200 percent of the rated input amperage of the welding power source
(Based on Article 630, National Electrical Code).

Ground Terminal

Primary Power Cable

Line Fuse

Line Disconnect Switch

Ground Conductor

Art #: A-08462_AB

Figure 3-1: Electrical Input Connections

Input Power

Each unit incorporates an INRUSH circuit. When the MAIN CIRCUIT SWITCH is turned on, the inrush circuit
provides pre-charging for the input capacitors. A relay in the Power Control Assembly (PCA) will turn on after
the input capacitors have charged to operating voltage (after approximately 5 seconds)

NOTE

Damage to the PCA could occur if 265 VAC or higher is applied to the Primary Power Cable.

TIG

STICK

230V/25A 175A@20%

-

230V/40A -

175A@20%

Arc Master 175 TE 13 AWG (1.5mm2)

Model

Primary Supply Lead Size

(Factory Fitted)

Minimum Primary

Current Circuit Size

Current & Duty Cycle

Table 3-2: Primary Supply Lead

INSTALLATION ARCMASTER 175 TE

Manual 0-5116 3-3 Installation

3.04 High Frequency Introduction

The importance of correct installation of high frequency
welding equipment cannot be overemphasized.
Interference due to high frequency initiated or
stabilized arc is almost invariably traced to improper
installation. The following information is intended
as a guide for personnel installing high frequency
welding machines.

!

WARNING:

EXPLOSIVE The high frequency section
of this machine has an output similar to
a radio transmitter. The machine should
NOT be used in the vicinity of blasting
operations due to the danger of premature
firing.

!

WARNING:

COMPUTERS It is also possible that
operation close to computer installations
may cause computer malfunction.

3.05 High Frequency Interference

Interference may be transmitted by a high frequency
initiated or stabilized arc welding machine in the
following ways:

1. Direct Radiation:

Radiation from the machine
can occur if the case is metal and is not properly
grounded. It can occur through apertures such
as open access panels. The shielding of the high
frequency unit in the Power Source will prevent
direct radiation if the equipment is properly
grounded.

2. Transmission via the Supply Lead:

Without
adequate shielding and filtering, high frequency
energy may be fed to the wiring within the
installation (mains) by direct coupling. The
energy is then transmitted by both radiation and
conduction. Adequate shielding and filtering is
provided in the Power Source.

3. Radiation from Welding Leads:

Radiated
interference from welding leads, although
pronounced in the vicinity of the leads, diminishes
rapidly with distance. Keeping leads as short as
possible will minimize this type of interference.
Looping and suspending of leads should be
avoided where possible.

4. Re-radiation from Unearthed Metallic Objects:

A major factor contributing to interference is re­radiation from unearthed metallic objects close
to the welding leads. Effective grounding of such
objects will prevent re-radiation in most cases.

3.06 Electromagnetic Compatibility

!

WARNING

Extra precautions for Electromagnetic
Compatibility may be required when
this Welding Power Source is used in a
domestic situation.

A. Installation and Use - Users Responsibility

The user is responsible for installing and using the
welding equipment according to the manufacturer’s
instructions. If electromagnetic disturbances are
detected then it shall be the responsibility of the user
of the welding equipment to resolve the situation
with the technical assistance of the manufacturer. In
some cases this remedial action may be as simple as
earthing the welding circuit, see NOTE below. In other
cases it could involve constructing an electromagnetic
screen enclosing the Welding Power Source and the
work, complete with associated input filters. In all
cases, electromagnetic disturbances shall be reduced
to the point where they are no longer trouble-some.

NOTE

For 230 VAC operation, have a qualified
person install according to applicable
codes, and instructions.

NOTE

The welding circuit may or may not be
earthed for safety reasons. Changing the
earthing arrangements should only be
authorized by a person who is competent
to assess whether the changes will
increase the risk of injury, e.g. by allowing
parallel welding current return paths which
may damage the earth circuits of other
equipment. Further guidance is given
in IEC 974-13 Arc Welding Equipment ­Installation and use (under preparation).

B. Assessment of Area

Before installing welding equipment, the user shall
make an assessment of potential electromagnetic
problems in the surrounding area. The following shall
be taken into account.

ARCMASTER 175 TE INSTALLATION

Installation 3-4 Manual 0-5116

3.07 Setup for Welding

NOTE

Conventional operating procedures apply when using the Welding Power Source, i.e. connect
work lead directly to work piece and electrode lead is used to hold electrode. Wide safety margins
provided by the design ensure that the Welding Power Source will withstand short-term overload
without adverse effects. The welding current range values should be used as a guide only. Current
delivered to the arc is dependent on the welding arc voltage, and as welding arc voltage varies
between different classes of electrodes, welding current at any one setting would vary according to
the type of electrode in use. The operator should use the welding current range values as a guide
then fine tune the welding current to suit the application.

!

WARNING

Before connecting the work clamp to the work and inserting the electrode in the electrode holder
make sure the Primary power supply is switched off.

CAUTION

Remove any packaging material prior to use. Do not block the air vents at the front or rear of the
Welding Power Source.

INSTALLATION ARCMASTER 175 TE

Manual 0-5116 3-5 Installation

3.08 Manual Arc (STICK) Setup

Figure 3-2: Setup for Manual Arc (STICK) Welding

Manual Arc Sequence of Operation

1. Switch the ON/OFF Switch (located on the rear
panel) to OFF.

2. Connect the earth clamp lead to the Negative
Output Terminal and electrode holder lead to the
Positive Output Terminal. Consult the electrode
manufacture's packaging for the correct electrode
polarity.

3. Plug the Power Source in and switch the power
switch ON.

4. Set the Process Switch to Manual Arc.

5. Set the Weld Current control to the desired welding
current.

6. Switch the ON/OFF Switch (located on the rear
panel) to the ON position. This will immediately
energize the power supply up to the output
terminals and the electrode holder.

7. Commence welding. If necessary, readjust the
Weld Current control to obtain the welding
condition required.

8. After completion of welding the Power Source
should be left turned ON for 2 to 3 minutes.
This allows the fan to run and cool the internal
components.

9. Switch the ON/OFF Switch (located on the rear
panel) to the OFF position.

230V AC POWER SOURCE

Set Welding Current
as specified by the
Electrode Manufacturer.

Set Process Selection
Switch to Manual Arc.

Positive Output
Terminal
(Dinse™ 50)

Negative Output
Terminal
(Dinse™ 50)

Art # A-08668_AB

200A

ARCMASTER 175 TE INSTALLATION

Installation 3-6 Manual 0-5116

3.09 HF TIG/Lift TIG (GTAW) Setup

Figure 3-3: Setup for Lift TIG (GTAW) Welding

HF TIG/Lift TIG Sequence of Operation

1. Switch the ON/OFF Switch (located on the rear
panel) to OFF.

2. Connect the earth clamp to the Positive Output
Terminal, torch cable to the Negative Output
Terminal, 8 pin plug to the 8 pin socket and gas
hose to the output of an Argon regulator.

3. Plug the Power Source in and switch the power
switch ON.

4. Set the Process Selection Switch to HF TIG or LIFT
TIG.

5. Set the Weld Current control to the desired welding
current.

6. Switch the ON/OFF Switch to the ON position.

7. Depress the TIG torch trigger switch to commence
welding. If necessary, readjust the Weld Current
control to obtain the welding condition required.

8. After completion of welding the Power Source
should be left turned ON for 2 to 3 minutes.
This allows the fan to run and cool the internal
components.

9. Switch the ON/OFF Switch (located on the rear
panel) to the OFF position.

230V AC POWER SOURCE

Set Process Selection Switch
to HF TIG or LIFT TIG.

Positive Output
Terminal
(Dinse 50)

Negative Output
Terminal
(Dinse 50)

Set Welding Current
as specified by the
Electrode Manufacturer.

Secure the gas cylinder in an
upright position by chaining it
to a stationary support to
prevent falling or tipping.

Gas Outlet
5/8-18 UNF

Art # A-08669_AB

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-1 Operation

4.01 General Safety Precautions

Read and understand the safety instructions at the beginning of this manual prior to operating this machine.

!

WARNING:

Be sure to put on proper protective clothing and eye safeguards (welding coat, apron, gloves, and welding helmet,
with proper lenses installed). See Safety Instructions and Warnings chapter included in this manual. Neglect of these
precautions may result in personal injury.

!

WARNING:

Make all connections to the power source including electrode and work cables, as well as remote control cables, with
the power source turned off. These connections could be electrically live with the power switch ON.

4.02 Overview

Conventional operating procedures apply when using the Welding Power Source, i.e. connect work lead directly
to work piece and electrode lead is used to hold the electrode. The welding current range values should be
used as a guide only. Current delivered to the arc is dependent on the welding arc voltage, and as welding arc
voltage varies between different classes of electrode, welding current at any one setting would vary according
to the type of electrode in use. The operator should use the welding current range values as a guide then fine
tune the welding current to suit the specific application. Refer to the electrode manufacture's literature for
further information.

SECTION 4:

OPERATION

ARC MASTER 175 TE OPERATION

Operation 4-2 Manual 0-5116

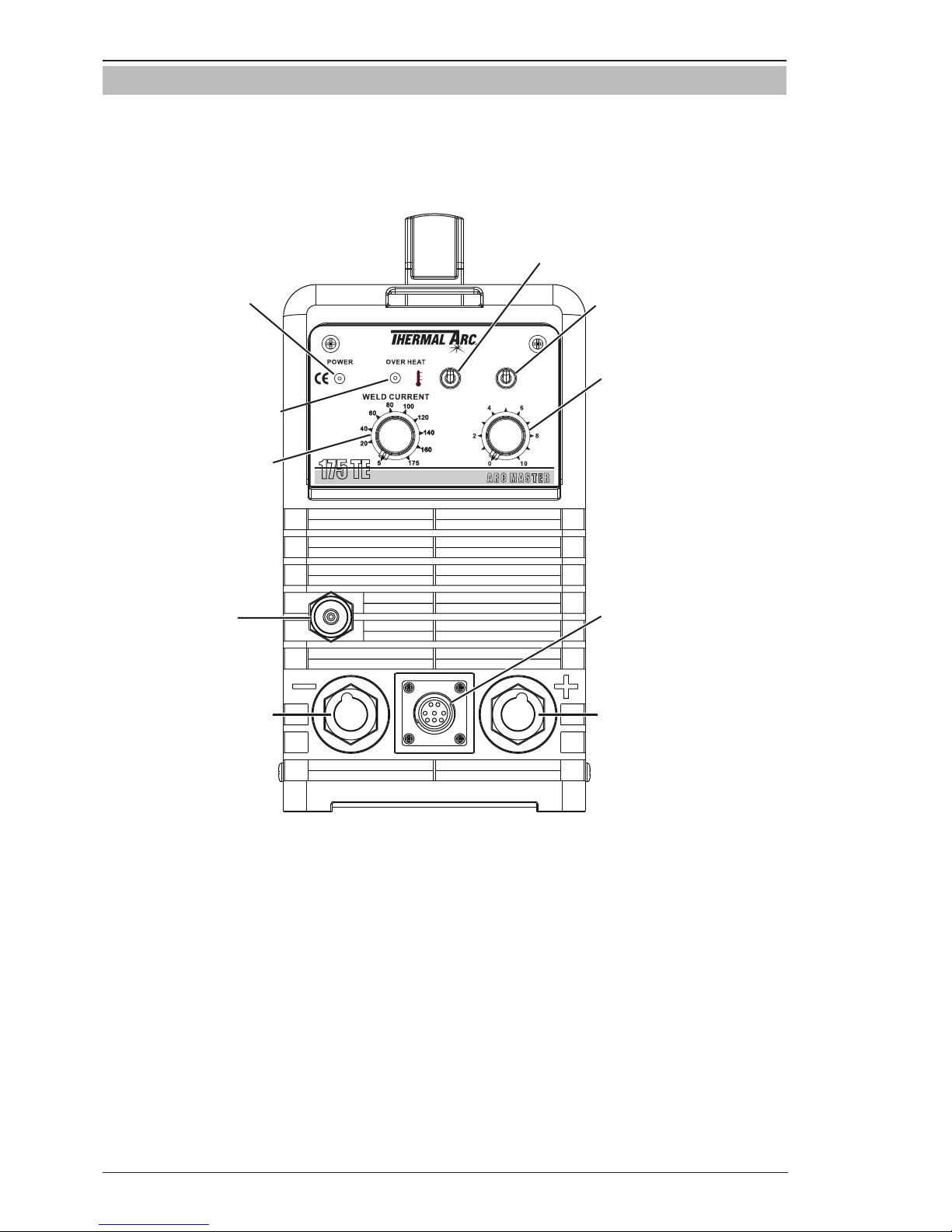

4.03 Front Panel

Front Panel

The welding power source is protected by a self re-setting thermostat. The indicator will illuminate if the duty
cycle of the power source has been exceeded. If the Over Heat light illuminates wait for the Over Heat light to
extinguish before resuming welding.

AA RR CC MM AA SS TT EE RR

175 TE

LIFT TI G

TRI GGER

LATCH

HF TIG

MANU ALA RC

NORM AL

PRO CESS

ARC F ORCE / DOW N SLO PE

(D) Process Selection Switch

(E) Welding Current
Control

Negative Output Terminal

Positive Output Terminal

(C) Trigger Mode Selection Switch

(G) Gas Outlet

Art # A-08670

(F) Arc Force/Down
Slope Control

(I) Torch Trigger Socket

(B) Over Heat Indicator

(A) Power On Indicator

Figure 4-1: 175 TE Control Panel

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-3 Operation

A. Power ON Indicator

The Power ON Indicator illuminates when the ON/OFF
switch is in the ON position and the correct mains
voltage is present.

B. Over Heat Indicator

The welding power source is protected by a self
resetting thermostat. The indicator will illuminate if the
duty cycle of the power source has been exceeded. If
the Over Heat light illuminates wait for the Over Heat
light to extinguish before resuming welding.

C. Trigger Mode Selection Switch (TIG Mode only)
Normal Mode

Press the TIG Torch Trigger Switch and hold depressed
to weld. Release the TIG Torch Trigger Switch to stop
welding. Downslope operates in TIG mode only. Whilst
welding if the TIG Torch Trigger Switch is released, the
welding current ramps down to zero current over a
defined period of time. The time period is determined
by the Downslope Control Knob (F).

Latch Mode

This mode of welding is mainly used for long weld
runs. The operator need only to press the TIG Torch
Trigger Switch to activate and then release the TIG
Torch Trigger Switch to continue to weld, then press
the TIG Torch Trigger Switch again and release the TIG
Torch Trigger Switch to stop welding. This eliminates
the need for the operator to depress the TIG Torch
Trigger Switch for the complete length of the weld.
Downslope operates in TIG Mode only. To activate the
Downslope function in Latch mode whilst welding, the
TIG Torch Trigger Switch must be depressed and held
which will ramp the Welding Current down to zero over
a defined period of time. The time period is determined
by the Downslope Control Knob (F). At any time whilst
welding if the TIG Torch Trigger Switch is depressed
and released the arc will extinguish immediately.

D. Process Selection Switch

Switches between Manual Arc, Lift TIG and HF TIG
modes. Refer to Section 3.08 Setup for Manual Arc
Welding and 3.09 Setup for TIG Welding.

E. Welding Current Control

The welding current is increased by turning the Weld
Current Control Knob clockwise or decreased by
turning the Weld Current Control Knob anticlockwise.
The welding current should be set according to the
specific application. Refer to application notes in this
section for further information.

F. Arc Force/Down Slope Control

Arc Force is effective when in Manual Arc Mode only.
Arc Force control provides an adjustable amount of

Arc Force (or “dig”) control. This feature can be
particularly beneficial in providing the operator the
ability to compensate for variability in joint fit-up
in certain situations with particular electrodes. In
general increasing the Arc Force control toward ‘10’
(maximum Arc Force) allows greater penetration
control to be achieved. Down Slope operates in TIG
mode only. It is used to set the time for weld current
to ramp down. Refer to Item C (Trigger Mode Selection
Switch) for further information regarding Downslope
operation.

G. Gas Outlet

The Gas Outlet is a 5/8-18 UNF female gas fitting and is
utilised for the connection of a suitable TIG Torch.

H. Post Gas Flow

Post Gas Flow is the time Gas flows after the arc
has extinguished. This is used to cool and reduce
oxidisation of the Tungsten Electrode. Post Gas Flow
time is proportional to the Welding Current. For
example if the Welding Current is set to 10 amps the
Post Gas Flow time will be approximately 3 +0/-1
seconds. For a Welding Current set to 175 Amps the
Post Gas Flow time will be approximately 6 +1/-0
seconds. The Post Gas Flow time cannot be adjusted
independently of the Welding Current.

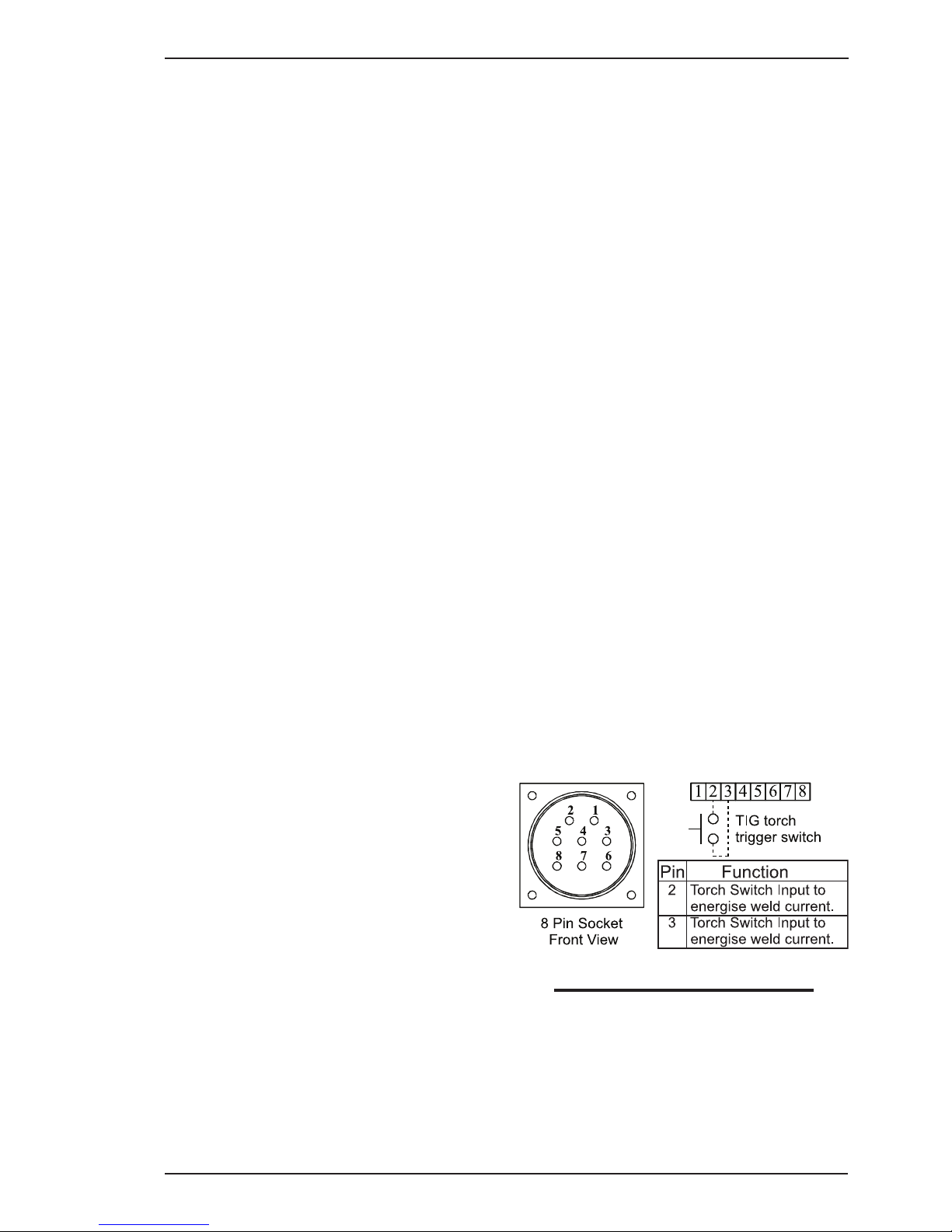

I. Torch Trigger Socket

The 8 pin Torch Trigger Socket is used to connect the
TIG Torch Trigger Switch to the welding Power Source.
To make connections, align keyway, insert plug, and
rotate threaded collar fully clockwise.

Art # A-08956

NOTE:

Remote Welding Current Control is not available
on this model.

J. ON/OFF Switch (located on rear panel not

shown)

This switch controls the Mains Supply Voltage to the
Power Source.

ARC MASTER 175 TE OPERATION

Operation 4-4 Manual 0-5116

Metal Being Joined Electrode

Comments

Mild Steel E6013

Ideal electrodes for all general purpose work,
features include outstanding operator ap­peal, easy arc starting, and low spatter.

Mild Steel E7014

All positional electrode for use on mild and
galvanized steel furniture, plates, fences,
gates, pipes and tanks, etc. Especially suit­able for vertical-down welding.

Cast Iron 99% Nickel

Suitable for joining all cast irons except white
cast iron.

Stainless Steel E318L-16

High corrosion resistance. Ideal for dairy
work etc.

Copper, Bronze, Brass, Etc. Bronze 5.7

ERCUSI-A

Easy to use electrode for marine fittings,
water taps and valves, water through floats
arms, etc. Also for joining copper to steel
and for bronze overlays on steel shafts.

High Alloy Steel, Dissimilar

Metals, Crack Resistance, All

Hard-To Weld jobs

E312-16

It will weld most problematic job such as springs,
shafts, broken joins, mild steel to stainless and
alloy steels. Not suitable for aluminium.

4.04 SMAW Electrode Polarity

Stick electrodes are generally connected to the "+"
Positive Output Terminal and the work lead to the
"−" Negative Output Terminal but if in doubt consult
the electrode manufacturer's literature for further
information.

4.05 Effects of Stick Welding Various
Materials

High Tensile and Alloy Steels

The two most prominent effects of welding these
steels are the formation of a hardened zone in the
weld area, and, if suitable precautions are not taken,
the occurrence in this zone of under-bead cracks.
Hardened zone and under-bead cracks in the weld
area may be reduced by using the correct electrodes,
preheating, using higher current settings, using
larger electrodes sizes, short runs for larger electrode
deposits or tempering in a furnace.

Manganese Steels

The effect on manganese steel of slow cooling from
high temperatures is to embrittle it. For this reason it
is absolutely essential to keep manganese steel cool

during welding by quenching after each weld or skip
welding to distribute the heat.

Cast Iron

Most types of cast iron, except white iron, are
weldable. White iron, because of its extreme
brittleness, generally cracks when attempts are made
to weld it. Trouble may also be experienced when
welding white-heart malleable, due to the porosity
caused by gas held in this type of iron.

Copper and Alloys

The most important factor is the high rate of heat
conductivity of copper, making pre-heating of heavy
sections necessary to give proper fusion of weld and
base metal.

Types of Electrodes

Arc Welding electrodes are classified into a number
of groups depending on their applications. There are
a great number of electrodes used for specialized
industrial purposes which are not of particular interest
for everyday general work. These include some low
hydrogen types for high tensile steel, cellulose types
for welding large diameter pipes, etc. The range of
electrodes dealt with in this publication will cover the

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-5 Operation

4.06 GTAW Electrode Polarity

Connect the TIG torch to the "-" Negative Output Terminal and the work lead to the "+" Positive Output Terminal
for direct current straight polarity. Direct current straight polarity is the most widely used polarity for DC TIG
welding. It allows limited wear of the electrode since 70% of the heat is concentrated at the work piece.

4.07 Guide for Selecting Filler Wire

Filler Wire Diameter DC Current (Amps)

.040” (1.0mm) 30-60
1/16” (1.6mm) 60-115

3/32” (2.4mm) 100-165

1/8” (3.2mm) 135-175

4.08 Tungsten Electrode Current Ranges

Electrode Diameter DC Current

.040” (1.0mm) 25 - 85
1/16” (1.6mm) 50 - 160

4.09 Shielding Gas Selection

Alloy Shielding Gas

Carbon Steel Welding Argon

Stainless Steel Welding Argon

Nickel Alloy Welding Argon

Copper Welding Argon

Titanium Welding Argon

4.10 Tungsten Electrode Types

Electrode Type

(Ground Finish)

Welding Application Features Colour

Code

Thoriated 2% DC welding of mild steel, stainless

steel and copper.

Excellent arc starting, long life, high
current carrying capacity.

Red

Ceriated 2% AC & DC welding of mild steel,

stainless steel, copper, aluminum,
magnesium and their alloys.

Longer life, more stable arc, easier
starting, wider current range,
narrower & more concentrated arc.

Grey

ARC MASTER 175 TE OPERATION

Operation 4-6 Manual 0-5116

4.11 TIG Welding Parameters for Steel

Base

Metal

DC Current Electrode

Diameter

Filler Rod

Diameter

Argon Gas
Flow Rate

Joint
Type

Mild

Steel

Stainless

Steel

0.040”

(1.0mm)

35-45 20-30 0.040”

(1.0mm)

1/16”

(1.6mm)

10 CFH

(5 LPM)

Butt/Corner

40-50 25-35 Lap/Filler

0.045” 45-55 30-45 0.040”
(1.0mm)

1/16”

(1.6mm)

13 CFH

(6 LPM)

Butt/Corner

50-60 35-50 Lap/Filler

1/16”

(1.6mm)

60-70 40-60 1/16”

(1.6mm)

1/16”

(1.6mm)

15 CFH

(7 LPM)

Butt/Corner

70-90 50-70 Lap/Filler

1/8”

(3.2mm)

80-100 65-85 1/16”

(1.16mm)

3/32”

(2.4mm)

15CFH

(7 LPM)

Butt/Corner

90-115 90-110 Lap/Filler

3/16”

(4.8mm)

115-135 100-125 3/32”

(2.4mm)

1/8”

(3.2mm)

21 CFH

(10 LPM)

Butt/Corner

140-165 125-150 Lap/Filler

1/4”

(6.4mm)

160-175 135-160 1/8”

(3.2mm)

5/32”

(4.0mm)

21 CFH

(10 LPM)

Butt/Corner

170-200 160-180 Lap/Filler

4.12 Arc Welding Practice

The techniques used for arc welding are almost identical regardless of what types of metals are being joined.
Naturally enough, different types of electrodes would be used for different metals as described in the preceding
section.

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-7 Operation

4.13 Welding Position

The electrodes dealt with in this publication can be
used in most positions, i.e. they are suitable for
welding in flat, horizontal, vertical and overhead
positions. Numerous applications call for welds to be
made in positions intermediate between these. Some
of the common types of welds are shown in Figures
4-2 through 4-9.

Art # A-07687

Figure 4-2: Flat position, down hand butt weld

Art # A-07688

Figure 4-3: Flat position, gravity fillet weld

Art # A-07689

Figure 4-4: Horizontal position, butt weld

Art # A-07690

Figure 4-5: Horizontal - Vertical (HV) position

Art A-07691

Figure 4-6: Vertical position, butt weld

Art # A-07692

Figure 4-7: Vertical position, fillet weld

Art# A-07693

Figure 4-8: Overhead position, butt weld

Art # A-07694

Figure 4-9: Overhead position, fillet weld

ARC MASTER 175 TE OPERATION

Operation 4-8 Manual 0-5116

4.14 Joint Preparations

In many cases, it will be possible to weld steel sections without any special preparation. For heavier sections
and for repair work on castings, etc., it will be necessary to cut or grind an angle between the pieces being
joined to ensure proper penetration of the weld metal and to produce sound joints.

In general, surfaces being welded should be clean and free of rust, scale, dirt, grease, etc. Slag should be
removed from oxy-cut surfaces. Typical joint designs are shown in Figure 4-10.

Gap varies from
1/16” (1.6mm) to 3/16” (4.8mm)
depending on plate thickness

Joint

Open Square Butt

1/16” (1.6mm) max

1/16” (1.6mm)

Single Vee Butt Joint

Not less than

70°

Double Vee Butt Joint

1/16” (1.6mm)

Lap Joint

Tee Joints

(Fillet both sides of the

joint)

Edge Joint

Fillet Joint

Corner Weld

Plug Weld Plug Weld

Not less than

70°

Single Vee Butt Joint

Not less than

45°

1/16” (1.6mm) max

Art # A-07695_AC

Figure 4-10: Typical joint designs for arc welding

4.15 Arc Welding Technique

A Word to Beginners

For those who have not yet done any welding, the simplest way to commence is to run beads on a piece of
scrap plate. Use mild steel plate about 1/4" (6.0mm) thick and a 1/8" (3.2mm) electrode. Clean any paint, loose
scale or grease off the plate and set it firmly on the work bench so that welding can be carried out in the down
hand position. Make sure that the work clamp is making good electrical contact with the work, either directly
or through the work table. For light gauge material, always clamp the work lead directly to the job, otherwise
a poor circuit will probably result.

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-9 Operation

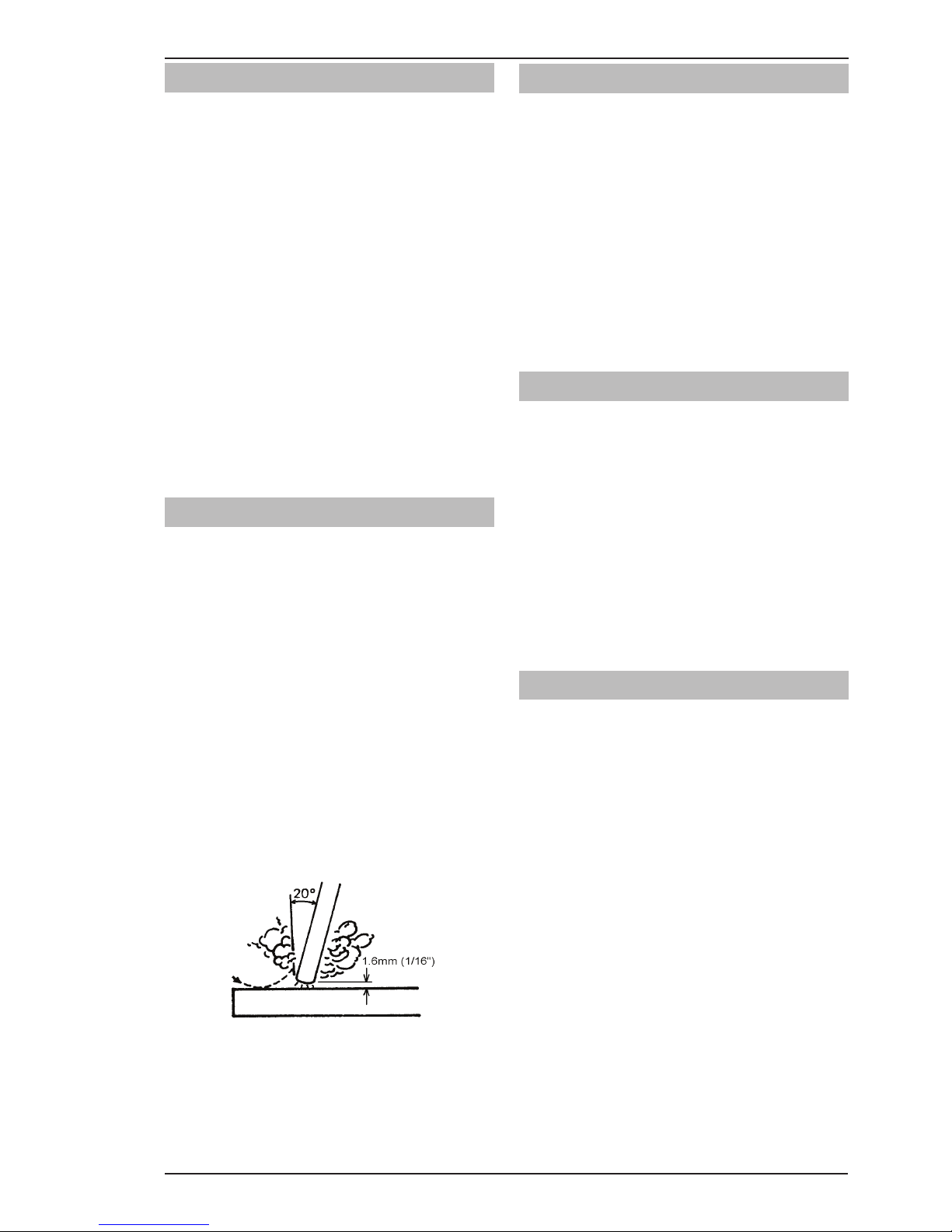

4.16 The Welder

Place yourself in a comfortable position before
beginning to weld. Get a seat of suitable height and
do as much work as possible sitting down. Do not
hold your body tense. A taut attitude of mind and a
tensed body will soon make you feel tired. Relax and
you will find that the job becomes much easier. You
can add much to your peace of mind by wearing a
leather apron and gauntlets. You won’t be worrying
then about being burnt or sparks setting alight to
your clothes.

Place the work so that the direction of welding is
across, rather than to or from, your body. The electrode
holder lead should be clear of any obstruction so that
you can move your arm freely along as the electrode
burns down. If the lead is slung over your shoulder,
it allows greater freedom of movement and takes a
lot of weight off your hand. Be sure the insulation on
your cable and electrode holder is not faulty, otherwise
you are risking an electric shock.

4.17 Striking the Arc

Practice this on a piece of scrap plate before going on
to more exacting work. You may at first experience
difficulty due to the tip of the electrode “sticking” to
the work piece. This is caused by making too heavy
a contact with the work and failing to withdraw
the electrode quickly enough. A low amperage will
accentuate it. This freezing-on of the tip may be
overcome by scratching the electrode along the plate
surface in the same way as a match is struck. As soon
as the arc is established, maintain a 1/16" (1.6mm)
to 1/8" (3.2mm) gap between the burning electrode
end and the parent metal. Draw the electrode slowly
along as it melts down.

Another difficulty you may meet is the tendency, after
the arc is struck, to withdraw the electrode so far
that the arc is broken again. A little practice will soon
remedy both of these faults.

Art # A-07696

Figure 4-11: Striking an arc

4.18 Arc Length

The securing of an arc length necessary to produce
a neat weld soon becomes almost automatic. You
will find that A very long arc produces a crackling or
spluttering noise and the weld metal comes across
in large, irregular blobs. The weld bead is flattened
and spatter increases. A short arc is essential if a
high quality weld is to be obtained although if it is
too short there is the danger of it being blanketed by
slag and the electrode tip being solidified in. If this
should happen, give the electrode a quick twist back
over the weld to detach it. Contact or “touch-weld”
electrodes such as E7014 do not stick in this way, and
make welding much easier.

4.19 Rate of Travel

After the arc is struck, your next concern is to maintain
it, and this requires moving the electrode tip towards
the molten pool at the same rate as it is melting away.
At the same time, the electrode has to move along the
plate to form a bead. The electrode is directed at the
weld pool at about 20° from the vertical. The rate of
travel has to be adjusted so that a well-formed bead
is produced.

If the travel is too fast, the bead will be narrow and
strung out and may even be broken up into individual
globules. If the travel is too slow, the weld metal piles
up and the bead will be too large.

4.20 Making Welded Joints

Having attained some skill in the handling of an
electrode, you will be ready to go on to make up
welded joints.

A. Butt Welds

Set up two plates with their edges parallel, as shown in
Figure 4-12, allowing 1/16" (1.6mm) to 3/32" (2.4mm)
gap between them and tack weld at both ends. This
is to prevent contraction stresses from the cooling
weld metal pulling the plates out of alignment. Plates
thicker than 1/4" (6.0mm) should have their mating
edges bevelled to form a 70° to 90° included angle.
This allows full penetration of the weld metal to the
root. Using a 1/8" (3.2mm) E7014 electrode at 120
amps, deposit a run of weld metal on the bottom of
the joint.

Do not weave the electrode, but maintain a steady
rate of travel along the joint sufficient to produce a
well-formed bead. At first you may notice a tendency
for undercut to form, but keeping the arc length short,
the angle of the electrode at about 20° from vertical,
and the rate of travel not too fast, will help eliminate
this. The electrode needs to be moved along fast

ARC MASTER 175 TE OPERATION

Operation 4-10 Manual 0-5116

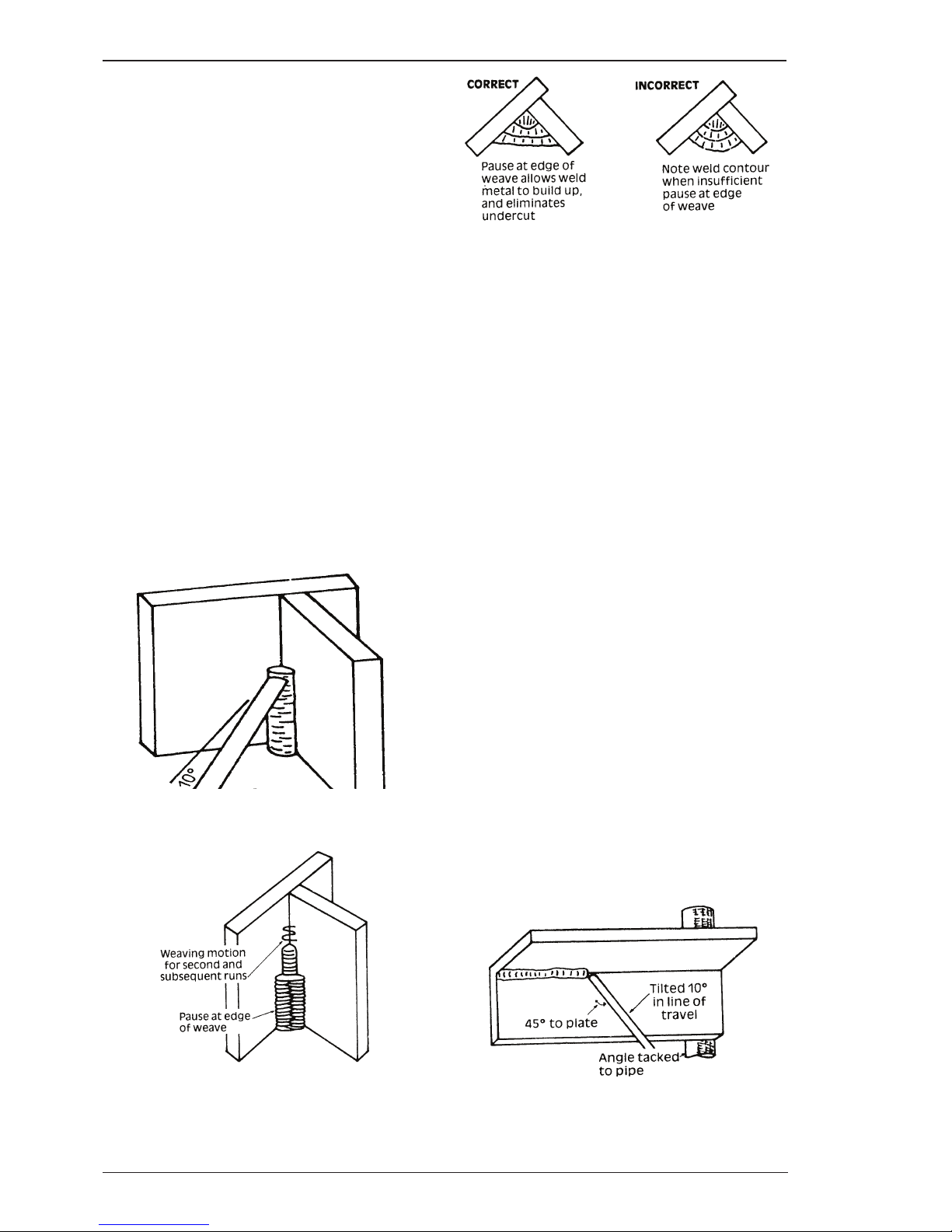

C. Vertical Welds

1. Vertical Up

Tack weld a three feet length of angle iron

to your work bench in an upright position.
Use a 1/8" (3.2mm) E7014 electrode and
set the current at 120 amps. Make yourself
comfortable on a seat in front of the job
and strike the arc in the corner of the fillet.
The electrode needs to be about 10° from
the horizontal to enable a good bead to be
deposited. Refer Figure 4-16. Use a short arc,
and do not attempt to weave on the first run.
When the first run has been completed de-slag
the weld deposit and begin the second run at
the bottom. This time a slight weaving motion
is necessary to cover the first run and obtain
good fusion at the edges. At the completion of
each side motion, pause for a moment to allow
weld metal to build up at the edges, otherwise
undercut will form and too much metal will
accumulate in the centre of the weld. Figure
4-17 illustrates multi-run technique and Figure
4-18 shows the effects of pausing at the edge
of weave and of weaving too rapidly.

Art # A-07701

Figure 4-16: Single run vertical fillet weld

Art # A-07702

Figure 4-17: Multi run vertical fillet weld

Art # A-07703

Figure 4-18: Examples of vertical fillet welds

2. Vertical Down

The E7014 electrode makes welding in this

position particularly easy. Use a 1/8" (3.2mm)
electrode at 120 amps. The tip of the electrode
is held in light contact with the work and the
speed of downward travel is regulated so that
the tip of the electrode just keeps ahead of the
slag. The electrode should point upwards at
an angle of about 45°.

3. Overhead Welds

Apart from the rather awkward position

necessary, overhead welding is not much
more difficult that down hand welding. Set
up a specimen for overhead welding by first
tacking a length of angle iron at right angles to
another piece of angle iron or a length of waste
pipe. Then tack this to the work bench or hold
in a vice so that the specimen is positioned in
the overhead position as shown in the sketch.
The electrode is held at 45° to the horizontal
and tilted 10° in the line of travel (Figure 4-

19). The tip of the electrode may be touched
lightly on the metal, which helps to give a
steady run. A weave technique is not advisable
for overhead fillet welds. Use a 1/8" (3.2mm)
E6012 electrode at 120 amps, and deposit the
first run by simply drawing the electrode along
at a steady rate. You will notice that the weld
deposit is rather convex, due to the effect of
gravity before the metal freezes.

Art # A-07704

Figure 4-19: Overhead fillet weld

OPERATION ARC MASTER 175 TE

Manual 0- 5116 4-11 Operation

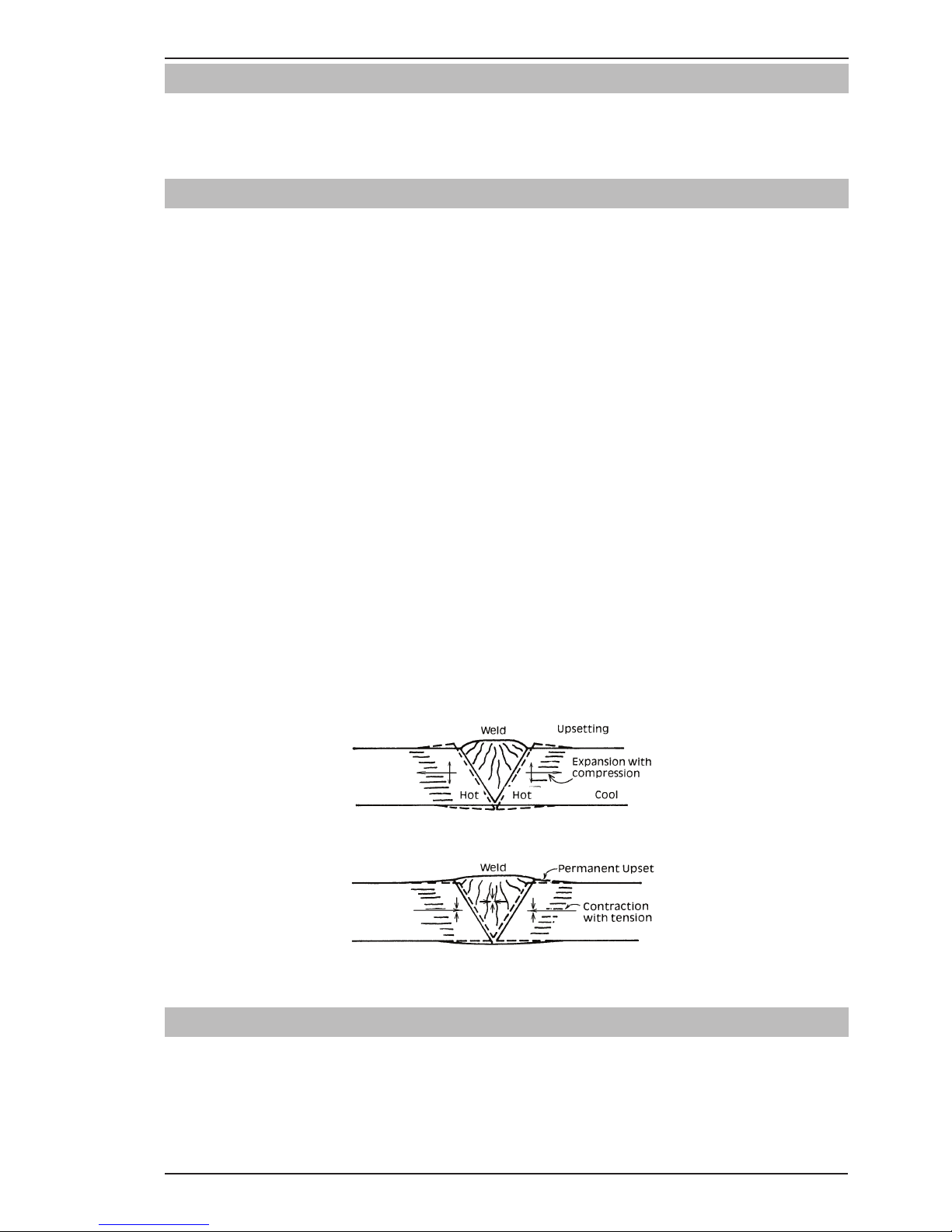

4.21 Distortion

Distortion in some degree is present in all forms of welding. In many cases it is so small that it is barely per­ceptible, but in other cases allowance has to be made before welding commences for the distortion that will
subsequently occur. The study of distortion is so complex that only a brief outline can be attempted here.

4.22 The Cause of Distortion

Distortion is cause by:

A. Contraction of Weld Metal:

Molten steel shrinks approximately 11% in volume on cooling to room temperature. This means that a cube
of molten metal would contract approximately 2.2% in each of its three dimensions. In a welded joint, the
metal becomes attached to the side of the joint and cannot contract freely. Therefore, cooling causes the weld
metal to flow plastically, that is, the weld itself has to stretch if it is to overcome the effect of shrinking volume
and still be attached to the edge of the joint. If the restraint is excessive, e.g. a heavy section of plate, then
the weld metal may crack. Even in cases where the weld metal does not crack, there will still remain stresses
“locked-up” in the structure. If the joint material is relatively weak, for example, a butt joint in 5/64" (2.0mm)
sheet, the contracting weld metal may cause the sheet to become distorted.

B. Expansion and Contraction of Parent Metal in the Fusion Zone:

While welding is proceeding, a relatively small volume of the adjacent plate material is heated to a very high
temperature and attempts to expand in all directions. It is able to do his freely at right angles to the surface of
the plate (i.e., “through the weld”), but when it attempts to expand “across the weld” or “along the weld”, it
meets considerable resistance, and to fulfil the desire for continued expansion, it has to deform plastically, that
is, the metal adjacent to the weld is at a high temperature and hence rather soft, and, by expanding, pushes
against the cooler, harder metal further away, and tends to bulge (or is “upset”). When the weld area begins
to cool, the “upset” metal attempts to contract as much as it expanded, but, because it has been “upset”, it
does not resume its former shape, and the contraction of the new shape exerts a strong pull on adjacent metal.
Several things can then happen.

The metal in the weld area is stretched (plastic deformation), the job may be pulled out of shape by the powerful
contraction stresses (distortion), or the weld may crack, in any case, there will remain “locked-up” stresses
in the job. Figures 4-20 and 4- 21 illustrate how distortion is created.

Art # A-07705

Figure 4-20: Parent metal expansion

Art # A-07706

Figure 4-21: Parent metal contraction

4.23 Overcoming Distortion Effects

There are several methods of minimizing distortion effects.

A. Peening

This is done by hammering the weld while it is still hot. The weld metal is flattened slightly and because of
this the tensile stresses are reduced a little. The effect of peening is relatively shallow, and is not advisable
on the last layer.

ARC MASTER 175 TE OPERATION

Operation 4-12 Manual 0-5116

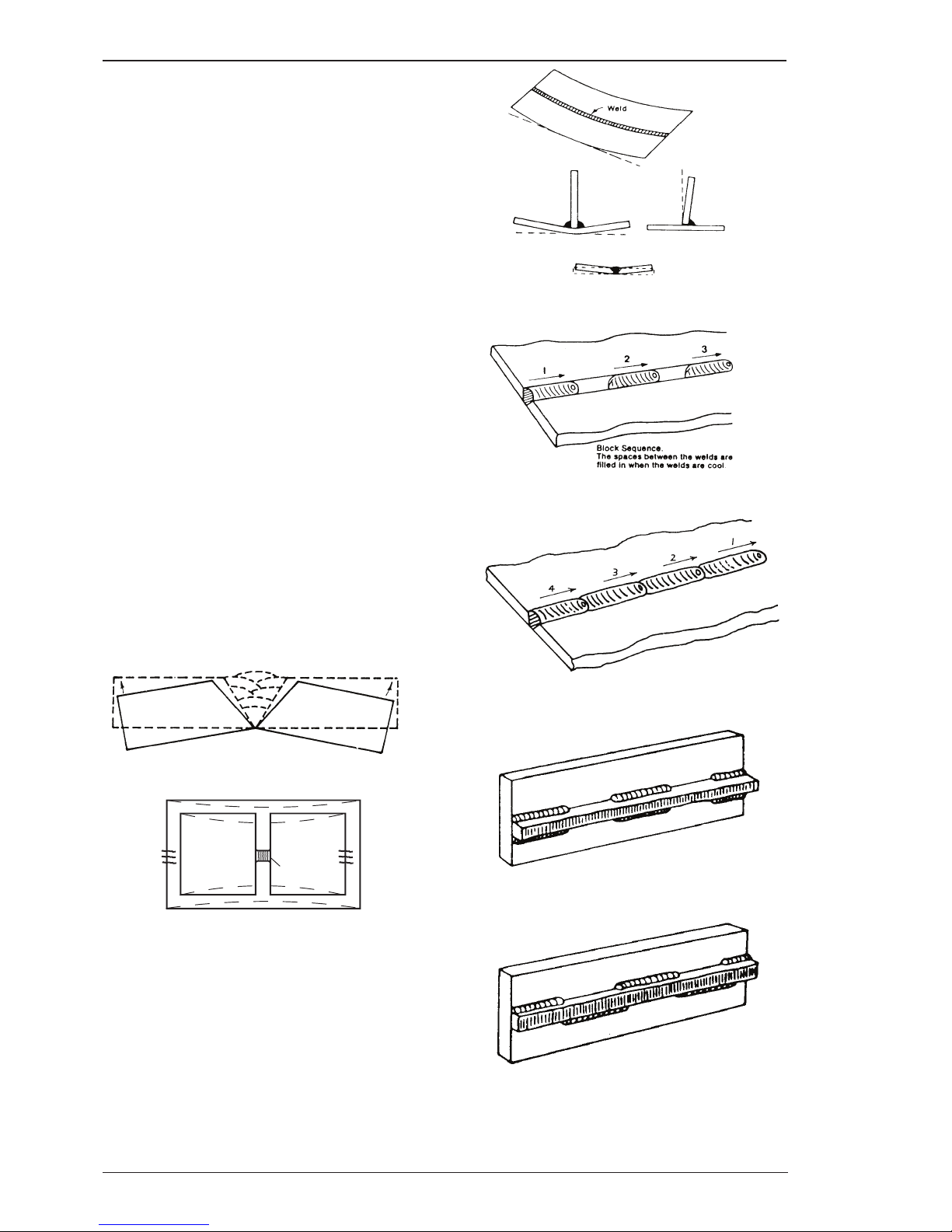

B. Distribution of Stresses

Distortion may be reduced by selecting a welding
sequence which will distribute the stresses suitably
so that they tend to cancel each other out. See Figures
4-25 through 4-28 for various weld sequences.
Choice of a suitable weld sequence is probably the
most effective method of overcoming distortion,
although an unsuitable sequence may exaggerate it.
Simultaneous welding of both sides of a joint by two
welders is often successful in eliminating distortion.

C. Restraint of Parts

Forcible restraint of the components being welded is
often used to prevent distortion. Jigs, positions, and
tack welds are methods employed with this in view.

D. Presetting

It is possible in some cases to tell from past experience
or to find by trial and error (or less frequently, to
calculate) how much distortion will take place in a
given welded structure. By correct pre-setting of the
components to be welded, constructional stresses
can be made to pull the parts into correct alignment.
A simple example is shown in Figure 4-22.

E. Preheating

Suitable preheating of parts of the structure other
than the area to be welded can be sometimes used
to reduce distortion. Figure 4-23 shows a simple
application. By removing the heating source from B
and C as soon as welding is completed, the sections
B and C will contract at a similar rate, thus reducing

distortion.

Art # A-07707

Figure 4-22: Principle of presetting

Art # A-07708

B

PreheatPreheat

Dotted lines show effect if no preheat is used

Weld

C

Figure 4-23: Reduction of distortion by preheating

Art # A-07709

Figure 4-24: Examples of distortion

Art # A-07710

Figure 4-25: Welding sequence

Art # A-07711

Figure 4-26: Step back sequence

Art # A-07712

Figure 4-27: Chain intermittent welding

Art # A-07713

Figure 4-28: Staggered intermittent welding

SERVICE ARC MASTER 175 TE

Manual 0-5116 5-1 Service

5.01 ROUTINE MAINTENANCE AND
INSPECTION

The only routine maintenance required for the power
supply is a thorough cleaning and inspection, with the
frequency depending on the usage and the operating
environment.

!

WARNING

There are extremely dangerous voltages
and power levels present inside this
product. Disconnect primary power at the
source before opening the enclosure. Wait
at least two minutes before opening the
enclosure to allow the primary capacitors
to discharge.

SECTION 5:

SERVICE

To clean the unit, open the enclosure and use a
vacuum cleaner to remove any accumulated dirt
and dust. The unit should also be wiped clean, if
necessary; with solvents that are recommended for
cleaning electrical apparatus.

CAUTION

Do not blow air into the power supply
during cleaning. Blowing air into the unit
can cause metal particles to interfere with
sensitive electrical components and cause
damage to the unit.

Warning!
Disconnect input power before maintaining.

Each Use

Visual check of
regulator and pressure

Visual check of torch
Consumable parts

Weekly

Visually inspect
the torch body
and consumables

Visually inspect the
cables and leads.
Replace as needed

3 Months

Clean
exterior
of power supply

6 Months

Replace all
broken parts

Bring the unit to an authorized
Thermal Arc Service Centre
to remove any accumulated dirt
and dust from the interior.
This may need to be done more
frequently under exceptionally
dirty conditions.

Maintain more often
if used under severe
conditions

Art # A-08549_AC

ARC MASTER 175 TE SERVICE

Service 5-2 Manual 0-5116

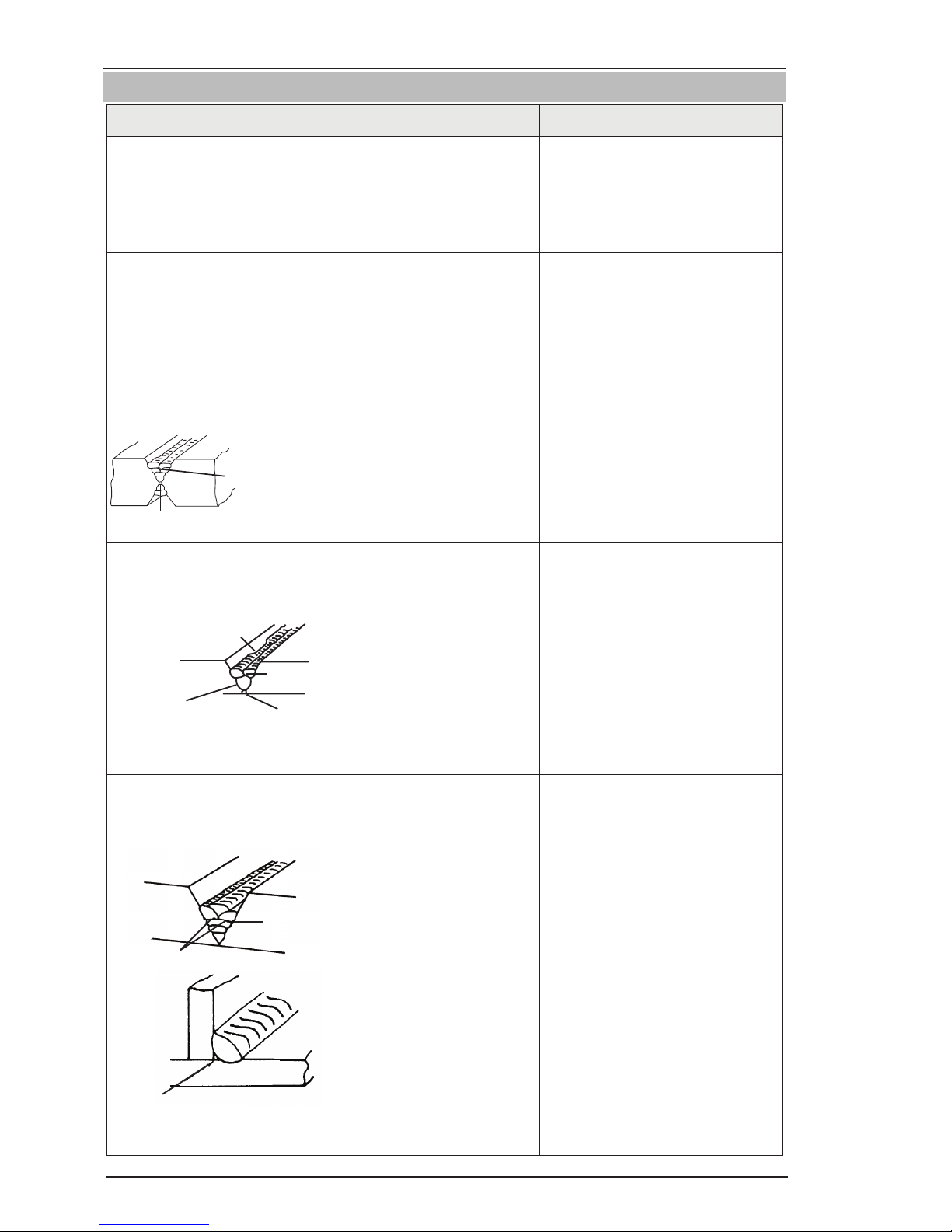

5.02 STICK WELDING PROBLEMS

Description Possible Cause Remedy

1. Gas pockets or voids in weld
metal (Porosity).

A. Electrodes are damp.

B. Weldi ng current is too

high.

C. Surface impurities such as

oil, grease, paint, etc.

A. Dry electrodes before use.

B. Reduce welding current.

C. Clean joint before welding

2. C rack occu rring in weld
metal soon after solidification
commences.

A. Rigidity of joint.

B. Insufficient throat thickness.

C. Cooling rate is too high.

A. Redesign to relieve weld joint

of severe stresses or use crack
resistance electrodes.

B. Travel slightly slower to allow

greater build up in throat.

C. Preheat plate and cool slowly.

3.

A gap is left by failure of the weld
metal to fill the root of the weld.

Insufficient Gap

Incorrect Sequence

Art # A-05866_AC

A. Welding current is too low.

B. Electrode too large for joint.

C. Insufficient gap.

D. Incorrect sequence.

A. Increase welding current

B. Use smaller diameter electrode.

C. Allow wider gap.

D. Use correct build-up sequence.

4. Portions of the weld run do
not fuse to the surface of the
metal or edge of the joint

Art # A-05867_AC

Lack of
inter-run fusion

Lack of side fusion,
scale dirt, small electrode,
amperage too low

Lack of root fusion

Lack of fusion caused by dirt,
electrode angle incorrect,
rate of travel too high

A. Small electrodes used on

heavy cold plate.

B. Welding current is too low.

C. Wrong electrode angle.

D. Travel speed of electrode is

too high.

E. Scale or dirt on joint sur-

face.

A. Use larger electrodes and pre-heat

the plate.

B. Increase welding current

C. Adjust angle so the welding arc

is directed more into the base
metal

D. Reduce travel speed of elect-

rode

E. Clean surface before welding.

5. Non-metallic particles are
trapped in the weld metal
(slag inclusion).

Not cleaned,
or incorrect
electrode

Slag
trapped in
undercut

Slag trapped in root

Art # A-05868_AB

A. Non - m e t a l l ic p a rticles

may be trapped in under­cut fr om prev ious run.

B. Joint preparation too res-

tricted.

C. Irregular deposits allow slag

to be trapped.

D. Lack of penetration with

slag trapped beneath weld
bead.

E. Rust or mill scale is pre-

venting full fusion.

F. Wrong electrode for position

in which welding is done.

A. If bad undercut is present, clean

slag out and cover with a run from
a smaller diameter electrode.

B. Allow for adequate penetration and

room for cleaning out the slag.

C. If very bad, chip or grind out

irregularities.

D. Use smal l er elect r ode with

sufficient current to give adequate
penetration. Use suitable tools to
remove all slag from corners.

E. C l ean jo int be f ore we lding.

F. Use electrodes designed for

position in which welding is done,
otherwise proper control of slag is
difficult.

SERVICE ARC MASTER 175 TE

Manual 0-5116 5-3 Service

5.03 TIG WELDING PROBLEMS

Weld quality is dependent on the selection of the correct consumables, maintenance of equipment and proper
welding technique

Description Possible Cause Remedy

1. Excessive beard build-up or
poor penetration or poor fusion
at edges of weld.

Welding current is too low Increase weld current and/or

change joint preparation.

2. Weld bead too wide and flat or
undercut at edges of weld or
excessive burn through.

Welding current is too high. Decrease welding current.

3. Weld bead too small or insuf­ficient penetration or ripples in
bead are widely spaced apart.

Travel speed too fast. Reduce travel speed.

4. Weld bead too wide or excessive
bead build up or excessive
penetration in butt joint.

Travel speed is too slow. Increase travel speed.

5. Uneven leg length in fil let
joint.

Wrong placement of filler rod. Re-position filler rod.

6. Electrode melts when arc is
struck.

Electrode is connected to the

“+” Positive Output Terminal.

Connect the electrode to the

“-“ Negative Output Terminal.

7. Dirty weld pool. A. El e ct r o de c on ta m i na te d

through contact with work
piece or filler rod material.

B. Gas contaminated with air.

A. C l e an the ele c t ro de b y

grinding contaminates off.

B. Check gas lines for cuts and

loose fitting or change gas
cylinder.

8. Poor weld finish. Inadequate shielding gas. Increase gas flow or check gas

line for problems

9. A rc f l u tt e r s d u r ing T IG

welding.

Tungsten electrode is too large

for the welding current.

Select the right size electrode.

Refer to section Tungsten Elec­trode Current Ranges.

10. Welding arc cannot be esta-

blished.

A. Work clamp is not connected

to the work piece or the work/
torch leads are not connected to
the correct welding terminals.

B. Torch lead is disconnected.

C. Gas flow incorrectly set, cyl-

inder empty or the torch valve
is off.

A. Connect the work clamp to

the work piece or connect
the work/torch leads to the
correct welding terminals.

B. Connect it to the “-“ Negative

Output Terminal.

C. Select the right flow rate,

change cylinder or turn torch
valve on.

11. Electrode melts or oxidizes

when an arc is struck.

A. No gas is flowing to welding

region.
B. Torch is clogged with dust.
C. Gas hose is cut.
D. Gas passage contains impuri-

ties.

E. Gas regulator turned off.
F. Torch valve is turned off.
G. The electrode is too small for

the welding current.

A. Check the gas lines for kinks

or breaks or cylinder contains

gas.
B. Clean torch.
C. Replace gas hose.
D. D isconnect gas hose from

torch then raise gas pressure

and blow out impurities.
E. Turn on.
F. Turn on.
G. Increase electrode diameter or

reduce the welding current.

ARC MASTER 175 TE SERVICE

Service 5-4 Manual 0-5116

TIG Welding Problems Continued

Description Possible Cause Remedy

12. Arc start is not smooth. A. Tungsten electrode is too large
for the welding cur-rent.

B. The wrong electrode is being

used for the welding job.

C. Gas flow rate is too high.

D. Incorrect shield gas is being

used.

E. Poor work clamp connection to

work piece.

A. Refer to section Tungsten Electrode

Current Ranges for the correct size.

B. Refer to section Tungsten Electrode

Types for the correct electrode type.

C. Select the correct flow rate for the

welding job.
D. Use 100% argon for TIG welding.
E. Improve connection to work piece.

!

WARNING

There are extremely dangerous voltages and power levels present inside this product. Do not attempt
to repair unless you are an Accredited Thermal Arc Service Agent and you have had training in power
measurements and troubleshooting techniques. If major complex subassemblies are faulty, then the
Welding Power Source must be returned to an Accredited Thermal Arc Service Agent for repair.

5.04 POWER SOURCE PROBLEMS

Description Possible Cause Remedy

A. The Primary supply voltage has not

been switched O

N.

A. Switch ON the Primary supply voltage.

B. The Welding Power Source switch is

switched O

FF.

B. Switch ON the Welding Power Source.

C. Loose connections internally. C. Have an Accredited Thermal Arc

Service Provider repair the connection.

2. Maximum output welding
current cannot be achieved
with nominal Mains volta

g

e.

Have an Accredited Thermal Arc
Service Provider inspect then repair the
welder.

3. Welding current reduces
when welding.

Ensure that the work lead has a positive
electrical connection to the work piece.

4. TIG electrode melts when arc
is struck.

Connect the TIG torch to the (-) VE
terminal.

5. Arc flutters during TIG
weldin

g

.

Select the correct size of tungsten
electrode.

A. Process selection switch is set to

Manual Arc or Lift TIG Mode.

A. Set process Selection Switch to HF TIG

Mode.

B. Torch Trigger Switch lead is

disconnected or switch/lead is fault

y

.

B. Reconnect or repair TIG torch trigger

switch/lead.

C. High Frequency Spark Gap too wide or

short circuited.

C. Have an Accredited Thermal Arc

Service Provider adjust spark gap to be

0.5 – 0.6mm.

A. Gas Regulator is turned off. A. Turn Gas Regulator on.

B. Gas Hose is cut. B. Replace Gas Hose.
C. Gas passage contains impurities. C. Disconnect Gas Hose from the rear of

the power source then raise the gas

p

ressure and blow out impurities.

D. Torch Trigger Switch lead is

disconnected or switch/lead is faulty.

D. Reconnect or repair TIG torch trigger

switch/lead.

7. No Gas Flow when the TIG
Torch Trigger Switch is
depressed.

Defective control circuit.

Poor work lead connection to the work
piece.

TIG torch is connected to the (+) VE
terminal.
Tungsten electrode is too large for the
welding current.

The welding arc cannot be
established.

No High Frequency is
produced.

1.

6.

APPENDIX ARC MASTER 175 TE

Manual 0-5116 A-1 Appendix

APPENDIX 1: REPLACEMENT PARTS

Description Part No.
Cooling Fan AM 175TE W7003009
Rectifier,700V,50A, AM175TE W7003010
Current Sensor AM 175TE W7003013
Output Terminal AM 175TE W7003020
PCB Control AM 175TE W7003029
PCB Power AM 175TE W7003030
PCB Front Panel AM 175TE W7003031
Inductor AM 175TE W7003032
Gas Solenoid AM 175TE W7003033
H.F. Points AM 175TE W7003034
Gas Outlet AM 175TE W7003035
Control Socket 8 pin AM 175TE W7003036

ARC MASTER 175 TE APPENDIX

Appendix A-2 Manual 0-5116

APPENDIX 2: OPTIONS AND ACCESSORIES

Part No. Description

W4012700 Torch TIG,17,10ft,50mm Dinse
W7003038 TIG Torch Repair Kit, AM 175TE
W4012800 Case Toolbox,175TE with labels fitted
W4011900 Claret Helmet,Variable shade 9-13 Auto-Darkening
W4012000 Black w/Graphics Helmet,Variable shade 9-13 Auto-Darkening

NOTES

NOTES

NOTES

In accordance with the warranty periods stated below, Thermadyne guarantees the proposed product to be
free from defects in material or workmanship when operated in accordance with the written instructions as
defined in this operating manual.

Thermadyne welding products are manufactured for use by commercial and industrial users and trained per­sonnel with experience in the use and maintenance of electrical welding and cutting equipment.

Thermadyne will repair or replace, at its discretion, any warranted parts or components that fail due to defects
in material or workmanship within the warranty period. The warranty period begins on the date of sale to the
end user.

Welding Equipment - Limited Warranty Period
Product Period
ArcMaster 175 TE 2 Years
TIG Torch, Electrode holder and work lead 30 Days

If warranty is being sought Thermadyne must be notified in writing within 30 days of the failure and at such
time we will make arrangements to fulfil the warranty claim. Please contact your Thermadyne product supplier
for the warranty repair procedure.

Thermadyne warranty will not apply to:

• Equipment that has been modified by any other party other than Thermadyne’s own service personnel
or with prior written consent obtained from Thermadyne service department (UK).

• Equipment that has been used beyond the specifications established in the operating manual.

• Installation not in accordance with the installation/operating manual.

• Any product that has been subjected to abuse, misuse, negligence, accident, improper care and/or
maintenance including lack of lubrication, maintenance and protection, will be refused warranty.

• Failure to clean and maintain the machine as set forth in the operating, installation or service manual.

Within this operating manual are details regarding the maintenance necessary to ensure trouble free operation.
This manual also offers basic troubleshooting, operational and technical details including application usage.

Using this manual correctly will ensure the quickest time possible for resolving any technical questions, ap­plication issues or defects with your Thermadyne product.

You may also wish to visit our web site www.thermadyne.com select your product class and then select lit­erature. Here you will find documentation including:

• Operator manuals

• Service manuals

• Product guides

Alternatively please contact your Thermadyne distributor and speak with a technical representative.

NOTE

Warranty repairs must be performed by either a Thermadyne Service Centre, a Thermadyne dis­tributor or an Authorised Service Agent approved by the Company.

LIMITED WARRANTY & WARRANTY SCHEDULE

W O RL D H E AD QU AR TE RS : 160 52 Sw in gl ey R id ge Roa d, Sui te 30 0 • S t . Lo ui s, Mis so ur i 6 301 7 U .S. A.

A Global Cutting & Welding Market Leader

™

Customer Care UK: [phone] / Fax: [phone]

Customer Care Italy [phone] / Fax: [phone]

www.thermadyne.com

Denton, TX USA
U.S. Customer Care

Ph: 1-800-426-1888 (tollfree)
Fax: [phone] (tollfree)

International Customer Care

Ph: 1-940-381-1212
Fax: [phone]

Miami, FL USA
Sales Office, Latin America

Ph: 1-954-727-8371
Fax: [phone]

Oakville, Ontario, Canada
Canada Customer Care

Ph: 1-905-827-4515
Fax: [phone] (tollfree)

Chorley, United Kingdom
Customer Care

Ph: [phone]
Fax: [phone]

Milan, Italy
Customer Care

Ph: [phone]
Fax: [phone]

Cikarang, Indonesia
Customer Care

Ph: 6221-8990-6095
Fax: [phone]

Rawang, Malaysia
Customer Care

Ph: [phone]
Fax: [phone]

Melbourne, Australia
Australia Customer Care

Ph: 1300-654-674 (tollfree)
Ph: 61-3-9474-7400
Fax: [phone]

International

Ph: 61-3-9474-7508
Fax: [phone]

Shanghai, China
Sales Office

Ph: [phone]
Fax: [phone]

Singapore
Sales Office

Ph: [phone]
Fax: [phone]

Form No. 0-5183 (12/17/2010) © 2010 Thermadyne Industries, Inc. www.thermadyne.com Printed in U.S.A.

THE AMERICAS EUROPE ASIA/PACIFIC
