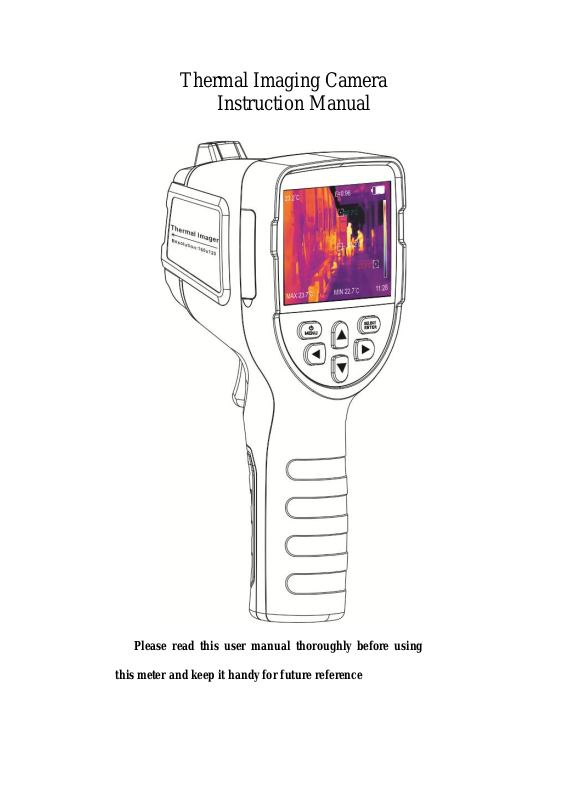

Thermal Imaging Camera
Instruction Manual
Please read this user manual thoroughly before using
this meter and keep it handy for future reference
Contents
1.Safety instruction ................................................... 1
2.Preliminary knowledge of thermal imager ........... 7
3.Overview ............................................................... 8
4.Cleaning of the products ........................................ 9
5.Use Type C USB cable to charge: ........................ 11
6、Specifications ................................................... 12
7.Panel description ................................................. 14

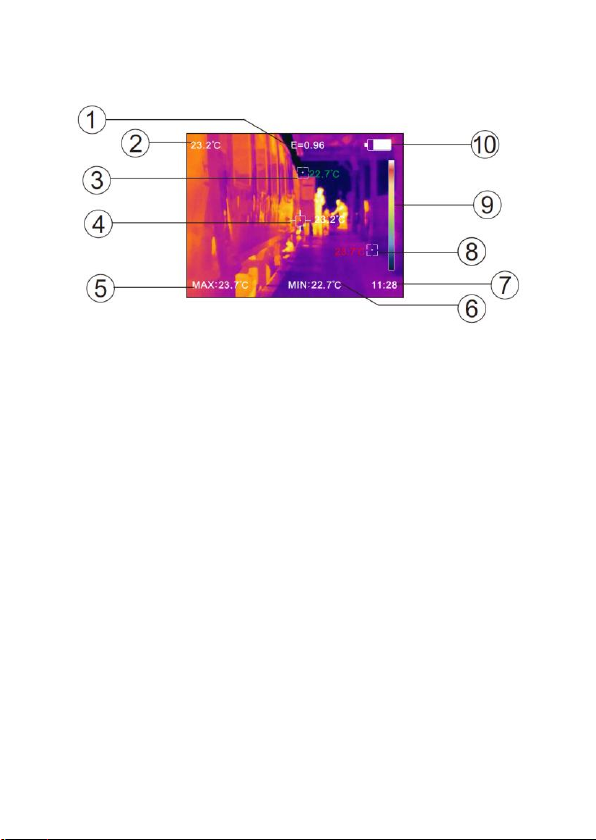

8、Display description ........................................... 15
9.Initial operation ................................................... 17
10.Introduction of the menu ................................ 19
11.Troubleshooting ................................................. 32
12. Accessories ....................................................... 33
1.Safety instruction
Please ensure that you have read and understood the safety
precautions described in the following text before using the
product so that you can operate it correctly.
The safety precautions described in the following text guides
you to operate the product and its accessories correctly and
safely to avoid damage and loss to you,other people and the
device.
CAUTIONS:
Please observe the following guide in order not to damage the
product:
Don’t assemble or dismantle the product without
permission.
The product is a type of super precise equipment.
Don’t try to dismantle, assemble or remodel any part of
the product.
Repair of the product should be made by technical
personnel designated by the distributors or agents.
Avoid damage to probe of the product
Note: don’t put the product close to strong heat source directly
(such as electric iron).
Otherwise, it may damage the probe of the product.
1
If do not use the product for a long time, please put it in
a cool and dry environment.
If the product with battery is stored for a long time,
please charge it regularly, otherwise the power will be
exhausted and the battery life will be shortened.
Product hum
When the product works, there is light sound of clicking
every several seconds.
This is normal phenomenon that the lens captures
images.
WARNINGS
The warning describes the acts that may cause harm to
users.
Please observe the following operation in order to avoid
electric shock or personal injury.
Warning: Don’t aim the laser pointer at human or
animal's eyes.
The laser given out by the laser pointer may harm the
vision.
If the product case is damaged, don’t use it
continuously.
During the process of use, if the product is found with
2
smoke, spark and the burnt smell, please stop using at
once.In case of such condition, the product power
supply should be powered off first.
After the smoke and peculiar smell disappears
completely, please contact the local distributors or
agents.
Do not use abrasive, isopropanol or gaseous organic
solvent to clean the product shell.
Such operation may damage the housing of the product.
Don’t remodel the adapter and the data line.
Otherwise, such remodeling may cause short circuit or
fire.
Don’t weld the battery without permission.
Such operation may damage the battery and result in leakage
and explosion of the battery.
Avoid that the battery is impacted (such as collusion
and falling, etc).
Such condition may damage the battery case or result in that
the battery leakage or explode.
Please pull off the adapter on the power socket when
charging is not made.
The adapter may get overheated if it is connected with
power supply for a long time.
3
This may cause overheating, deformation and fire.
When the plug of the adapter or wire is damaged,
stop using immediately.
Don’t change the battery unless the plug of the charger is
inserted into the socket completely.
Please ensure that the plug of the adapter is inserted
into the specified power socket.
The adapter plug may be different due to the regions.
Please make confirmation whether the specification of
the adapter is consist with the specification of electric
appliances in your region.
Otherwise, this may cause overheating of the equipment,
electric shock, fire, chemical leakage inside the battery,
explosion and other serious consequences.
Do not touch the electric wire with wet hands.
It is possible to cause electric shock when touching the
electric wire with wet hands.
When pulling out the electric wire, hold the electric wire
head rightly to pull out the wire.
Don’t pull off the electric wire directly.
Otherwise,the electric wire may be broken, causing
electric shock and fire.
Forbid dip the product into water or caught in rain.
If the case contact with any liquid, please wipe it dry
4
immediately.
If water or other liquid enters the inside of the
instrument, please power off the power supply at once.
Continuous use may result in product damage.
Clean the dust on the adapter plug and the data line.
When it is exposed to dusty and dump environment for a
long time, the dirt surrounding the electric equipment
will accumulate moisture.
This may cause short circuit and fire.
Please use the original adapter of the company to
charge the product.
The use of non-original power supply accessories may
cause equipment overheating, electric shot, fire, and
leakage of chemicals inside the battery, explosion and
other serious consequences
The product temperature may increase after a long time
of charging.
You may feel scorching heat when the hands touch the
sensors.
Avoid that the product is impacted (such as collision
and falling, etc).
Such operation may cause the product to be damaged.
Please avoid such operation.
Long-time storage and regular charging.
5
The product should be placed at a cool and dry
environment if it not used for a long time.
If the product installed with battery is stored for a long
time, charging should be made regularly.
Otherwise, the battery will run out and the service life
will be shortened.
Problem caused by water condensation
Don’t bring the instrument into low temperature
environment from high temperature environment in a
short time or from low temperature environment to high
temperature environment.
This may result in that the inside of the instrument and
appearance to be water condensation.
In such condition, the instrument should be placed into
portable box or plastic bag.
Before use, make it restore in the environmental temperature
then take it out to use.
If the product has water condensation inside, please
power it off immediately.
Otherwise, the instrument may be damaged.
Operation is not allowed unless the water condensation
disappears.
6
2.Preliminary knowledge of thermal imager
For a long time, infrared thermal imaging detection
technology has become an important means to ensure
Industrial safety in developed countries.
The application field includes electric power, metallurgy,
petro-chemistry, machinery,coal, traffic, fire control and
national defense, etc.
It can not only carries out real-time detection at high
voltage, high current and high speed operation to
perform real-time detection for production and
instrument but also need not power off the power supply,
stop the machine or stop the production to find the
potential problems and prevent occurrence of
malfunction.
The “non contact” modern detection technology is safe,
reliable and quick.
It is a type of technical revolution compared with
traditional contact detection method.
The infrared thermal imaging technology is widely
used in the following fields:
The inspection of electric equipment, lines of
transmission and transformers;
Search of concealed fire source in fire control;
7
Personnel search and rescue and commanding at fire
site;
Make analysis of the leakage position and heat loss of
thermal pipeline and heating equipment;
Determine the position of heating failure of the
operation train;
Analysis of rationality of wire of microelectronic
industry;
Night monitoring of security departments.
3.Overview
This product is an infrared camera that integrates
surface temperature measurement and real-time thermal
image.
The traditional inferred thermometer needs to measure
every component one by one while it is not necessary
for infrared imaging camera, thus saving time.
The potential problems may be displayed on color
display screen clearly.
Moreover, the central point measurement cursor is used
to locate quickly and accurately to measure the
temperature of the target object.
In order to increase the differentiation, the product is
8
provided with a visible light camera.
The thermal images and visible images are stored in the
device and can be read through USB or stored in a
computer to generate a report or for print.
With small volume, the product is easy to operate and
has strong function.
It is the ideal selection for electric power, electronic
manufacturing,industrial inspection and other fields.
The following major functions increase the product’s
accuracy and usability:

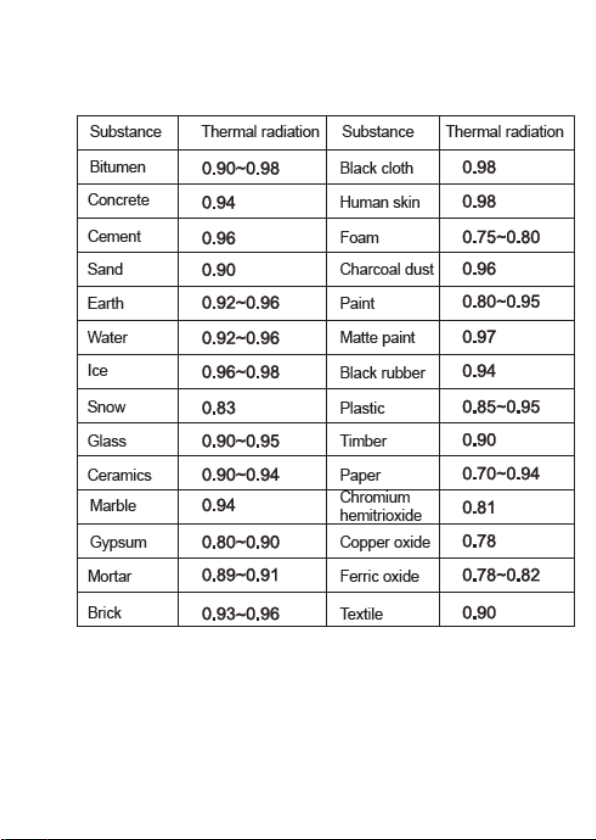

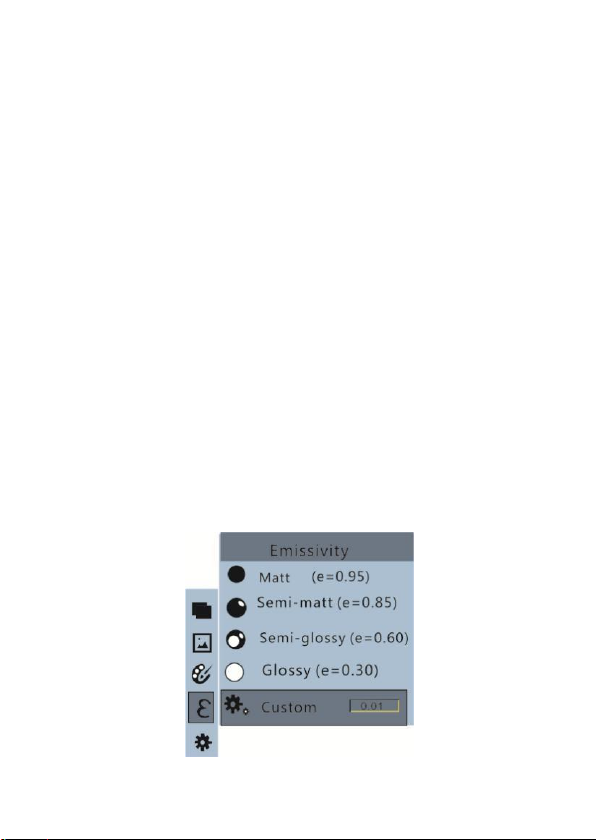

The radiation coefficient may be adjusted to increase the
measurement accuracy of objects with half reflection
surface.
The highest temperature and lowest temperature cursor
may guide the users to the areas with highest and lowest
temperature of the thermal images.

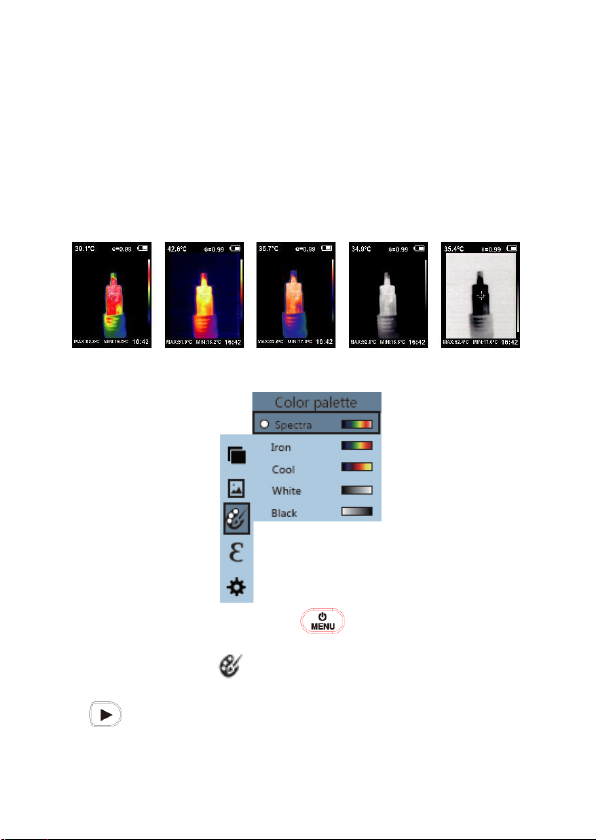

The selectable color palette
4.Cleaning of the products
Please use damp cloth or weak soap to clean the
enclosure of the device.
Don’t use abradant, isopropanol or solvent to clean.
Lens and screen should be cleaned by professional
9
optical lens cleaner
Lens maintenance
Prevent damage of the infrared lens
Clean the infrared lens carefully.
The lens is provided with refined anti-reflection coating.
Don’t clean with force to prevent damage of the
anti-reflection coating.
Please use cleaning solution for lens maintenance such
as alcohol-containing commercial lens cleaning solution,
alcohol or isopropanol as well as a piece of lint free
cloth or paper tissue.
The compressed air tank may be used to remove the
loose particles.
Clean the lens:
The compressed air tank or dry nitrogen ion gun (if
applicable) may be used to blow the loose particles on
the lens surface.
Dip the lint free cloth in alcohol.
Squeeze the excessive alcohol in the cloth or apply the
lint free cloth on dry cloth lightly.
Wipe the lens surface by making circular motion.
Then discard the cloth.
If it is necessary to repeat above step, please use new
cloth to dip with the cleaning solution to wipe.
10
5.Use Type C USB cable to charge:
The product has built-in chargeable 18650 lithium
batteries.
When the battery level is low, the top right of the screen
will display Please charge in time through Type
C interface.
The top right of the screen will display “ ” when
charging.
The icon “ ” displays when the battery is fully
charged.
Pull off the USB line after fully charging.
To make the lithium ion battery can play the perfect
performance:
Don’t place the battery on the charger exceeding
24 hours.
The thermal imaging device should be charged
for two hours at least every three months so as
to extend the battery life as long as possible
Don’t try to charge the battery in extremely cold
environment.
11
6、Specifications
Infrared image
resolution
160×120
220×160
320×240
Infrared image
resolution
300,000 pixel
Display screen
3.5” TFT color display
LCD resolution
320×240
Field angle
35°×26°
Shortest focus length
0.15m
Thermal sensitivity
0.07℃
Temperature
range
-20 to 450℃/
-4 to 842℉
-20 to 300℃/
-4 to 572℉
Accuracy
±2% or reading ±2 ℃/3.6℉
Emissivity
Adjustable from 0.01 to 1.00
Frame rate of thermal
images
9Hz
Wavelength coverage
8μm to 14μm
Focus mode
Fixed
Color palette
Rainbow, iron oxide red, cold
color,black & white, white & black
Storage capacity
Built-in 3G (above 20 thousand
12
image stored)
File format
JPG
USB
Type-C
Battery
18650 battery（Size:∮18.5×69mm）
Working time
2-3 hours
Automatic power-off
Selectable: 5 minutes/20 minutes/ not
power off automatically
Language,
English、Chinese、Italian、German
size
221×96×88mm
Weight
374g
Work temperature
0℃ to 45℃/ 32 to 113℉
Storage temperature
-20℃ to 60℃/ -4 to 140℉
Relative humidity
＜85%RH
Note: Adjustment may be required when you move the
thermal imager between environments with large ambient
temperature differences
13

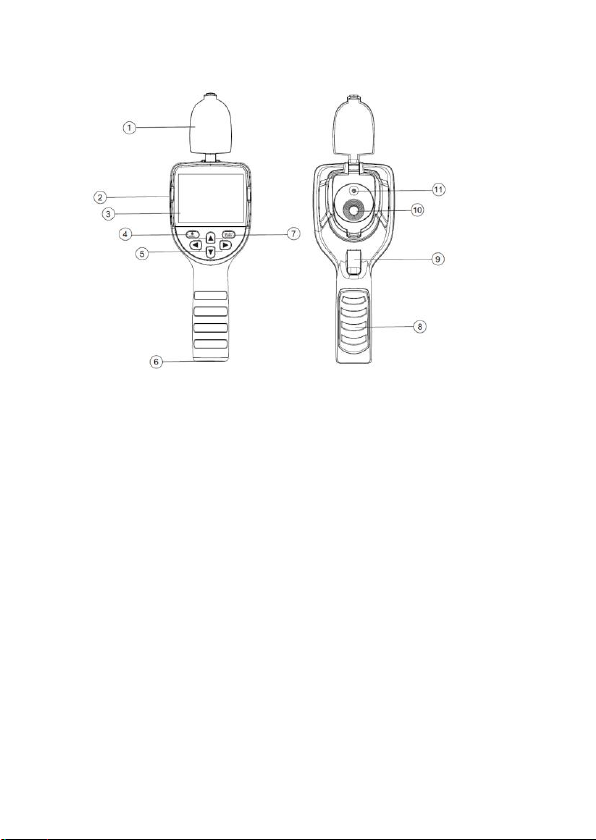

7.Panel description
① Len cap ( please open the cap in use)
② TYEP-C interface
③ LCD display
④ Power / Menu Key
⑤ Up/Down/Left/Right Key
⑥ Nut for tripod
⑦ SELECT Button
⑧ Battery cover
⑨ Trigger（Picture capture key）
⑩ Infrared imaging sensor
⑪ Visible light camera
14
8、Display description
① Current emissivity
② Central point temperature
③ The lowest temperature cursor
④ Temperature cursor at central point
⑤ Maximum value
⑥ Minimum value
⑦ Time
⑧ The highest temperature cursor
⑨ Color code
⑩ Battery icon
1. Color code: used to mark the color corresponding to the
relative temperature from low to high in the field of version.
2. The central point temperature cursor: used to indicate
the central position in the screen area.
15
The cursor color displays white.
The temperature value is displayed top left corner of the
screen.
3. The highest temperature cursor: used to indicate the
highest temperature position in the screen area.
It will move with the movement of the highest temperature.
The cursor displays red.
The temperature value is displayed at the bottom of left
screen.
4. The lowest temperature cursor: used to indicate the
lowest temperature position in the screen area.
It will move with the movement of the lowest temperature.
The cursor displays green.
The temperature value is displayed at the center of bottom
screen.
16
9.Initial operation
Power on/off
Keep pressing“ ” for more than 3 seconds to power or
off the meter
LCD screen display
After turning on the power, open the lens protection cover,the
screen shows the thermal imaging status.
Note: Time adjustment may be required when you move the
camera between environments with widely varying ambient
temperatures
Witching between infrared thermal image and visible
press “ ” or “ ” key to switch the degree of fusion
between inferred thermal images and visible images (the
degree of fusion is 0%, 25%, 50%, 75% and 100%).
Image capture
Press the trigger button one time, when the capture is
successful, the screen will display “Save photo” .
If “yes” is selected,please press “ ” key or Trigger to
save the image.
If “no” is selected, press “ ” key to “no”, then
press“ ” key or Trigger determine not to save the
image.
17
The function to hide highest/lowest temperature
column at the screen bottom
Under the operation after normal start up, press “ ” key
and the screen bottom will display highest/lowest temperature
column.
Press “ ” can also hide it.
Image output
The saved images through capture may be checked and
outputby connecting with a computer through Micro USB.
Read images
Power the meter on, open the USB protective cover, use USB
line to connect the USB port and the computer to read the
images or save it into computers.
The supported operating system through verification includes:
winxp, win7, win 8, win10, Apple system.
It is suggested to use the USB cable comes with the meter or
USB cable with high quality.
Note: When connecting with a computer, pull off the data line
after selecting “pop out device safely” to avoid causing file
system damage and other problems.
If “unable to save” and other problems occur, you may find
the hard disc in the computer and fix it.
18
10.Introduction of the menu
Press“ ”button the menu bar appears on the left, they
are“Image registration ” “Images” “Color palette”
“Eimissivity”“Settings”
10.1“Image registration” Introduction
10.1.1 Description of image registration
Image registration makes it easier for users to understand the
infrared images by using aligned visible images and infrared
images.
The use of image overlapping can capture the visible image of
every infrared image so as to display the temperature
distribution in the target region correctly and share with other
people more effectively.
10.1.2. Application of Image registration
Press the “ ” button to enter the main menu, and select
“ ”(Image registration) in the main menu.
Press the “ ” button to enter the image registration
adjustment mode.Press the navigation keys (up, down, left
and right buttons) to perform the visible image shift operation.
Press the “ ” button to exit the image blending mode
(Note: If there is no operation for more than 6 seconds, the
image blending mode will be automatically exited).
19
10.2 Introduction to “image” sub-menu

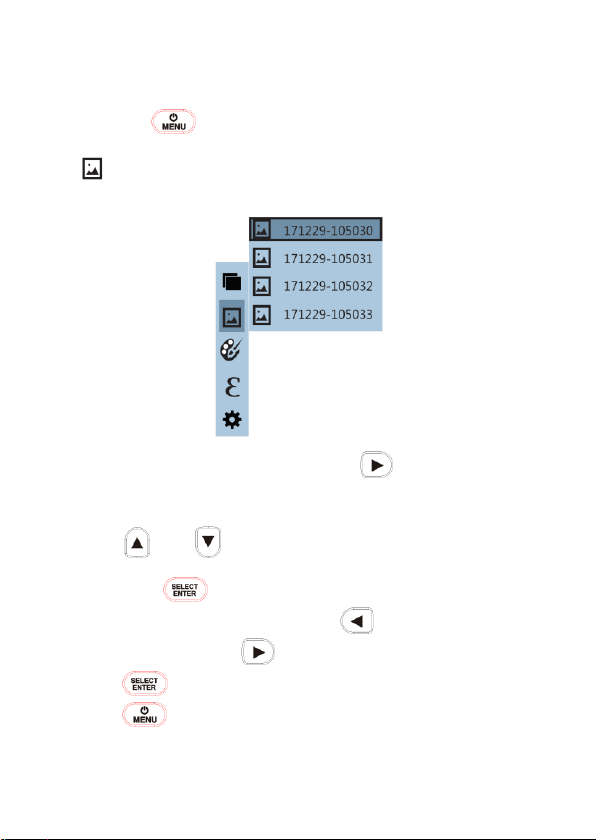

10.2.1View image
Press the “ ” button to enter the main menu, and select
“ ”(Image) in the main menu.
As shown in the figure, then press“ ” button to enter
image list.
Press “ ”or “ ” key in navigation to select the image.
Then press “ ” key to view image.
When viewing the images, press “ ” key to view the
previous image, Press “ ” to view the next image.
Press “ ” key to return.
Press “ ” key to exit from the menu.
20
10.2.2. Delete images
When viewing the images, if pressing “ ” key, the screen
will show the prompt of “Delete photo？”
If “yes” is selected at the moment, press “ ” key to
determine to delete the image.
If “no” is selected, press “ ” key to “No” and press
“ ” key to determine not to delete the image.
10.3 Introduction of “color palette” sub-menu
10.3.1 Color Palette Description
The menu of color can change the false color of infrared
thermal image.
Some color palette are better suited for specific applications
and can be set as needed.
There are 5 color palettes : rainbow, iron red, cool, white hot
and black hot.
These palettes are most userful for high thermal contrast and
provide additional color contrast between high and low
temperatures.
Suitable selection of color palette displays the details of the
target objective better. Rainbow, iron oxide red and cold color
palettes focus on display of color.
Such color palettes are very suitable for high heat contrast and
are used to improve the color contrast between high
21
temperature and low temperature.
While the black & white and white & black color palettes
provide even linear color.
The following is the image of the same object with selection
of different color palettes.
Rainbow Iron Cold White Black
10.3.2 Application of color paletter
As shown in the figure, press “ ” key to enter the main
menu and select “ ” (color palette) option and press
“ ” button to enter the color palette list.
22
Press “ ” and “ ” keys in navigation to select the color
palette.
Then press “ ” key to select the color palette.
Press “ ” to return.
Press “ ” key to exit from the menu.
10.4 Introduction of “emissivity” sub-menu
10.4.1 Emissivity description
The emissivity of the product can be adjusted from 0.01 to
1.00 with the default value of 0.95.
Many common objects and materials (such as timber, water,
skin and textile fabric) can reflect the heat energy effectively.
So it is easy to obtain relatively correct measurement value.
The emissivity is usually set as 0.95 when the coarse objects
that are easy to give out energy.
For semi-matte objects that give out less energy, the
emissivity is usually about 0.85 and the emissivity of
semi-gloss objects is 0.6.
The shiny objects are divided into materials with low radiation
coefficient.
The emissivity is usually set as 0.3 at the time of measurement.
Correct setting of the value of emissivity is very important for
you to carry out the most correct temperature measurement.
The surface emissivity will produce giant impact on surface
23
temperature measured by the product. Understanding the
surface emissivity will enable you to obtain correct
temperature measurement result.
10.4.2 Emissivity setting
The product is provided with four types of object
measurement modes:
Coarse object (0.95)
Semi-matte object (0.85)
Semi-shiny object (0.60)
Shiny object (0.30)
According to the characteristics of the measured objects, users
may set the emissivity value through the “self-define” option
(please refer to the table of “emissivity of common
materials”).
The operating step is as the following:
24
As shown in the figure, press “ ” key to enter the main
menu and select “ ”(emissivity) option and press “ ”
button to enter the emissivity list.
Press “ ” and “ ” keys in navigation key to select the
emissivity.
Then press “ ” key to determine selection of the
emissivity.
Press “ ” key again to return.
If you select "self-defined" emissivity, press the " "
button to enter the editing state.
Press “ ” / “ ” keys to select the number to be
changed, press “ ” “ ” keys to change the value.
After themodification is completed, press “ ” to
confirm, then press “ ” to return.
Press “ ” button to exits the menu.
25
10.4.3 The emissivity value of common materials
26

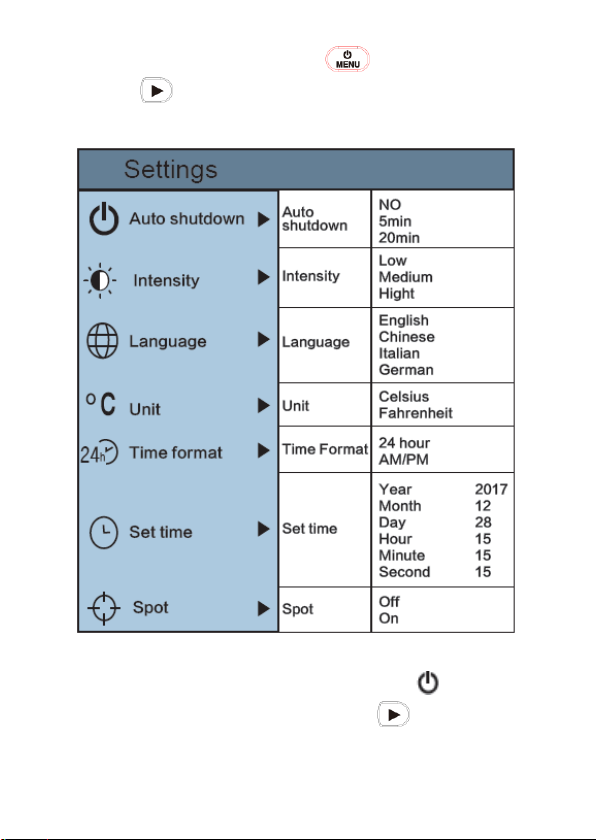

10.5”(setting) option in the main“ ”.
Press “ ” button to enter the “setting” sub-menu.
10.5.1 Auto shutdown setting
After entering the "Settings" sub-menu, select " "
(automatic shutdown), press navigation “ ” button
enters the auto power off setting.
Can be set not to automatically shut down or 5 minutes or 20
27
minutes to turn off automatically. press “ ” to confirm,
then press“ ” to return.
Press “ ” button to exits the menu

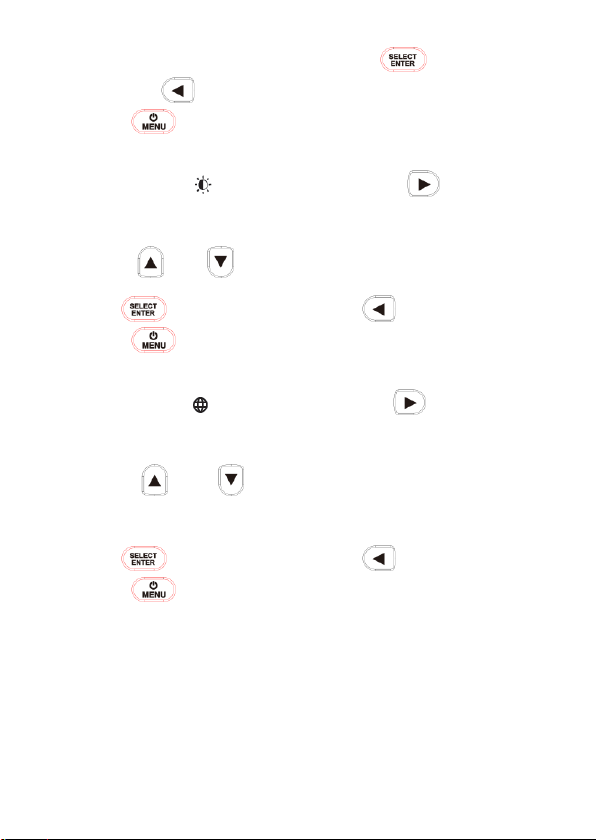

10.5.2 Brightness Setting
After selecting “ ” (brightness), press the “ ” button
in the navigation key to enter the brightness setting.
Press “ ” “ ” to set low or medium or bright.
press “ ” to confirm, then press“ ” to return.
Press “ ” button to exits the menu.
10.5.3 Language settings
After selecting “ ” (language), press the “ ” button in
the navigation key to enter the language setting.
Press “ ” “ ” to set English, Chinese, Italian,
German..
press “ ” to confirm, then press“ ” to return.
Press “ ” button to exits the menu.
28
10.5.4 Unit setting
After selecting “ ” (Unit), press the “ ” button in the
navigation key to enter the unit setting.
Press “ ” “ ” to set Celsius and Farenheit. press
“ ” to confirm, then press“ ” to return.
Press “ ” button to exits the menu.
10.5.5 Time format setting
After selecting “ ” (Time Format), press the “ ”
button in the navigation key to enter the time format setting.
Press “ ” “ ” to set 24 hours or 12 hours (AM/PM).
press “ ” to confirm, then press“ ” to return. Press
“ ” button to exits the menu.
29

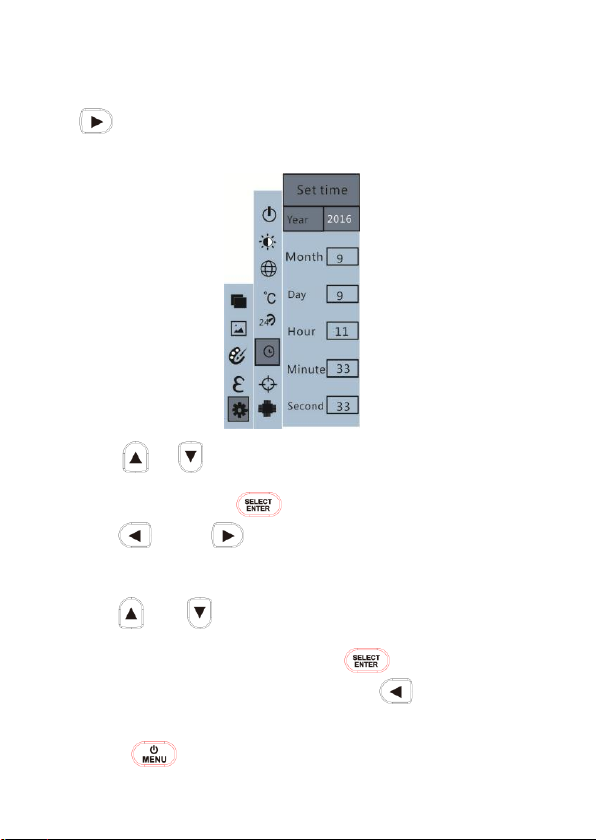

10.5.6 Set time
As shown in the figure, after selecting “ ” (set time), press
“ ” in the navigation key to enter the setting time.
Press “ ”/“ ” to select year/month/day/hour/minute.
After selecting, press “ ” key to enter the edit state.
Press“ ” and “ ” keys to select the figure to be
changed.
Press“ ” /“ ” key to change the value.
After completing the change, press “ ” to enter.
After the time setting is completed, press “ ” key to
return.
Press “ ” exit from the menu.
30

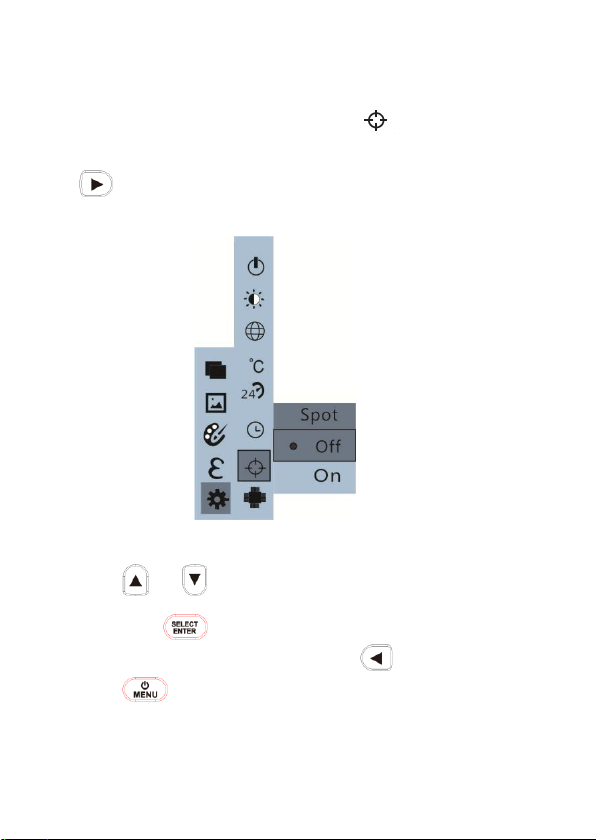

10.5.7 Enable/disable of the highest and lowest
temperature cursor
As shown in the figure, after selecting “ ” (cold hotspot),
press the
“ ” button in the navigation key to enter the cold hotspot
setting.
Press “ ” /“ ” key to select “on” or “off” the option.
Then press “ ” key to determine selection.
After the setting is completed,press “ ” key to return.
Press “ ” key to exit from the menu.
31
11.Troubleshooting
Failure phenomenon
Failure cause
Solution
The thermal imaging
device cannot start
The battery is not
installed
Install the battery
The power of the
battery is used up
Replace with new
battery or charge it
The thermal imaging
device powers off
automatically
The power of the
battery is used up
Replace with new
battery or charge it
The time set for
automatic power off
is due
Restart or change
the time for auto
power off after
restarting (refer to
5.1)
No thermal images
The lens cover is not
opened
Open the lens cover
If you encounter with any problem when using the thermal
image device, please use the following table for repair.If the
problems are not solved, please cut off the power supply and
contact with the manufacturer.
32
12. Accessories

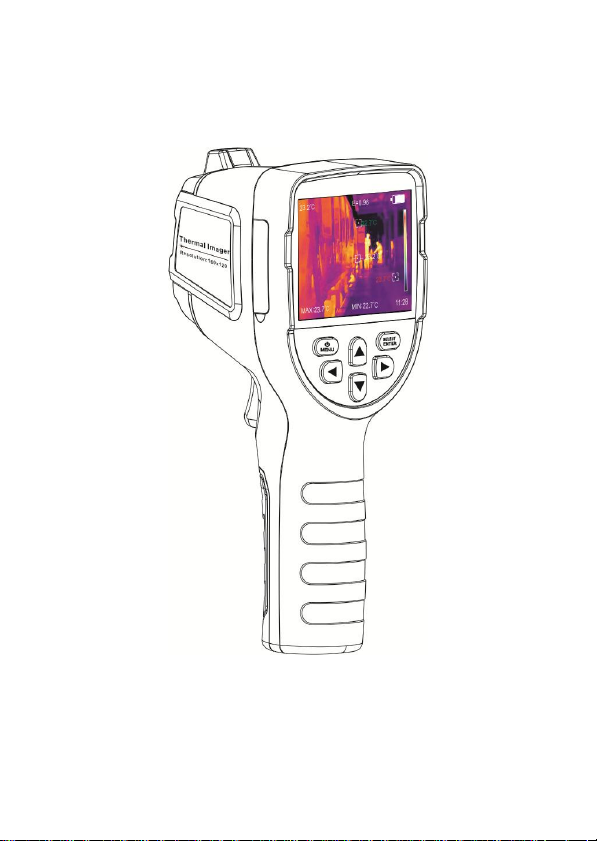

1) Thermal imager
2) Type-C USB Cable
3) Adaptor
4) User’s Manual
5) Canvas bag
6) Gift box
33
Loading...
