Match Lit Unit Includes: Pan, Burner , Gas Orifice, Gas Hoses, Key Valve, Key ,
110v Ignition Unit Includes: Pan, Burner , Gas Orifice, Gas Hoses, Key Valve, Key , Plug & Play Electronic Valve, Pilot Igniter .
C

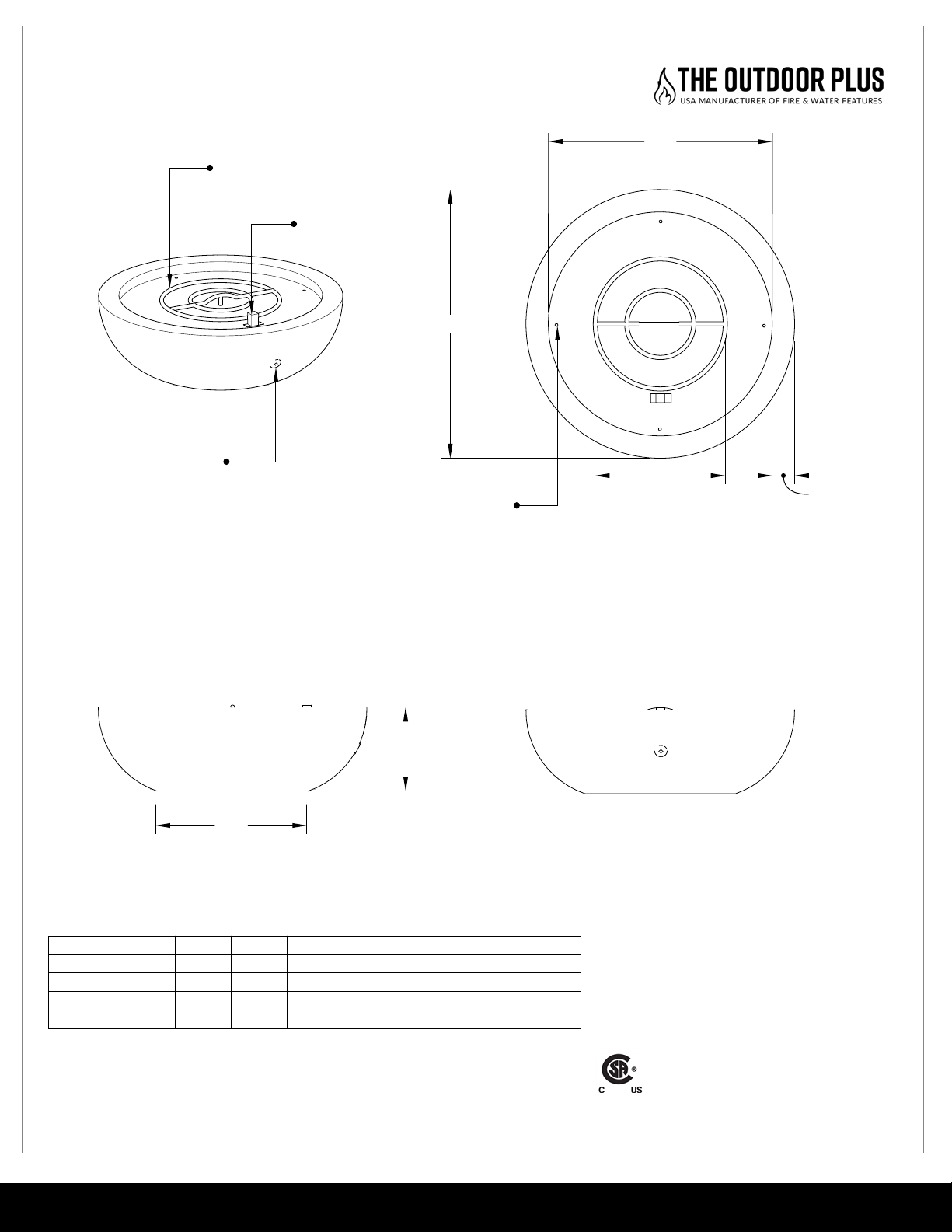

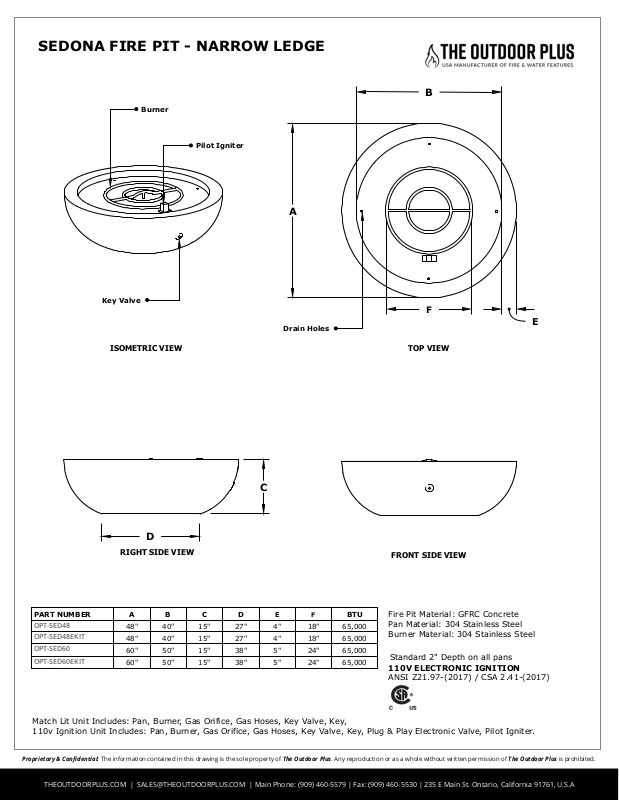

ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW
PART NUMBER
A
B
C
D
E
F
BTU
OPT-SED48
48"
40"
15"
27"4"18"
65,000
OPT-SED48EKIT
48"
40"
15"
27"4"18"
65,000
OPT-SED60
60"
50"
15"
38"5"24"
65,000
OPT-SED60EKIT
60"
50"
15"
38"5"24"
65,000
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
A
B
F
D
Burner
Pilot Igniter
Key Valve
Drain Holes
E
Standard 2" Depth on all pans
SEDONA FIRE PIT - NARROW LEDGE
