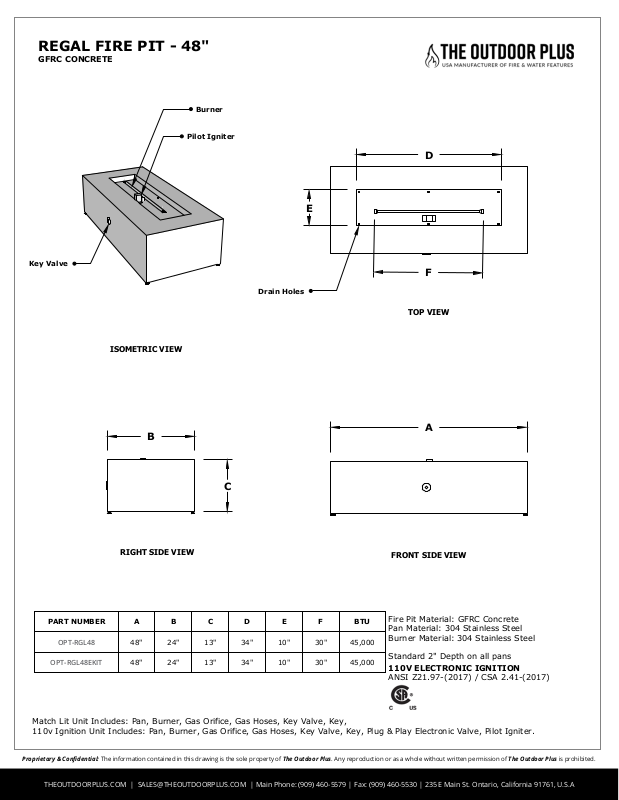

Page 1
ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW
PART NUMBER
ABCDEFBTU
OPT-RGL48
48"
24"
13"
34"
10"
30"
45,000
OPT-RGL48EKIT
48"
24"
13"
34"
10"
30"
45,000
REGAL FIRE PIT - 48"
GFRC CONCRETE
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
CBAED
F
Standard 2" Depth on all pans
Burner
Pilot Igniter
Drain Holes
Key Valve
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
THEOUTDOORPLUS.COM | [email protected] | Main Phone: (909) 460-5579 | Fax: (909) 460-5530 | 235 E Main St. Ontario, California 91761, U.S.A
Page 2
ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW
PART NUMBER
ABCDEFBTU
OPT-RGL54
54"
24"
13"
40"
10"
30"
65,000
OPT-RGL54EKIT
54"
24"
13"
40"
10"
30"
65,000
REGAL FIRE PIT - 54"
GFRC CONCRETE
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
CBAED
F
Standard 2" Depth on all pans
Burner
Pilot Igniter
Drain Holes
Key Valve
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
THEOUTDOORPLUS.COM | [email protected] | Main Phone: (909) 460-5579 | Fax: (909) 460-5530 | 235 E Main St. Ontario, California 91761, U.S.A
Page 3
ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW
PART NUMBER
ABCDEFBTU
OPT-RGL60
60"
24"
13"
48"
10"
30"
65,000
OPT-RGL60EKIT
60"
24"
13"
48"
10"
30"
65,000
REGAL FIRE PIT - 60"
GFRC CONCRETE
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
CBAED
F
Standard 2" Depth on all pans
Burner
Pilot Igniter
Drain Holes
Key Valve
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
THEOUTDOORPLUS.COM | [email protected] | Main Phone: (909) 460-5579 | Fax: (909) 460-5530 | 235 E Main St. Ontario, California 91761, U.S.A
