Page 1
ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
BOTTOM VIEW
COPPER
CORTEN STEEL
STAINLESS STEEL
POWDER COATED
ABCDEFBTU
OPT-3030SQCPR
OPT-3030SQCS
OPT-3030SQSS
OPT-30PCSQ
30"
24"
26"
24"
18"8"65,000
OPT-3636SQCPR
OPT-3636SQCS
OPT-3636SQSS
OPT-36PCSQ
36"
24"
32"
30"
24"
12"
65,000
OPT-4242SQCPR
OPT-4242SQCS
OPT-4242SQSS
OPT-42PCSQ
42"
24"
38"
36"
30"
12"
65,000
OPT-4848SQCPR
OPT-4848SQCS
OPT-4848SQSS
OPT-48PCSQ
48"
24"
44"
42"
36"
18"
65,000
OPT-6060SQCPR
OPT-6060SQCS
OPT-6060SQSS
OPT-60PCSQ
60"
24"
56"
54"
48"
18"
65,000
OPT-3030SQCPREKIT
OPT-3030SQCSEKIT
OPT-3030SQSSEKIT
OPT-30PCSQEKIT
30"
24"
26"
24"
18"8"65,000
OPT-3636SQCPREKIT
OPT-3636SQCSEKIT
OPT-3636SQSSEKIT
OPT-36PCSQEKIT
36"
24"
32"
30"
24"
12"
65,000
OPT-4242SQCPREKIT
OPT-4242SQCSEKIT
OPT-4242SQSSEKIT
OPT-42PCSQEKIT
42"
24"
38"
36"
30"
12"
65,000
OPT-4848SQCPREKIT
OPT-4848SQCSEKIT
OPT-4848SQSSEKIT
OPT-48PCSQEKIT
48"
24"
44"
42"
36"
18"
65,000
OPT-6060SQCPREKIT
OPT-6060SQCSEKIT
OPT-6060SQSSEKIT
OPT-60PCSQEKIT
60"
24"
56"
54"
48"
18"
65,000

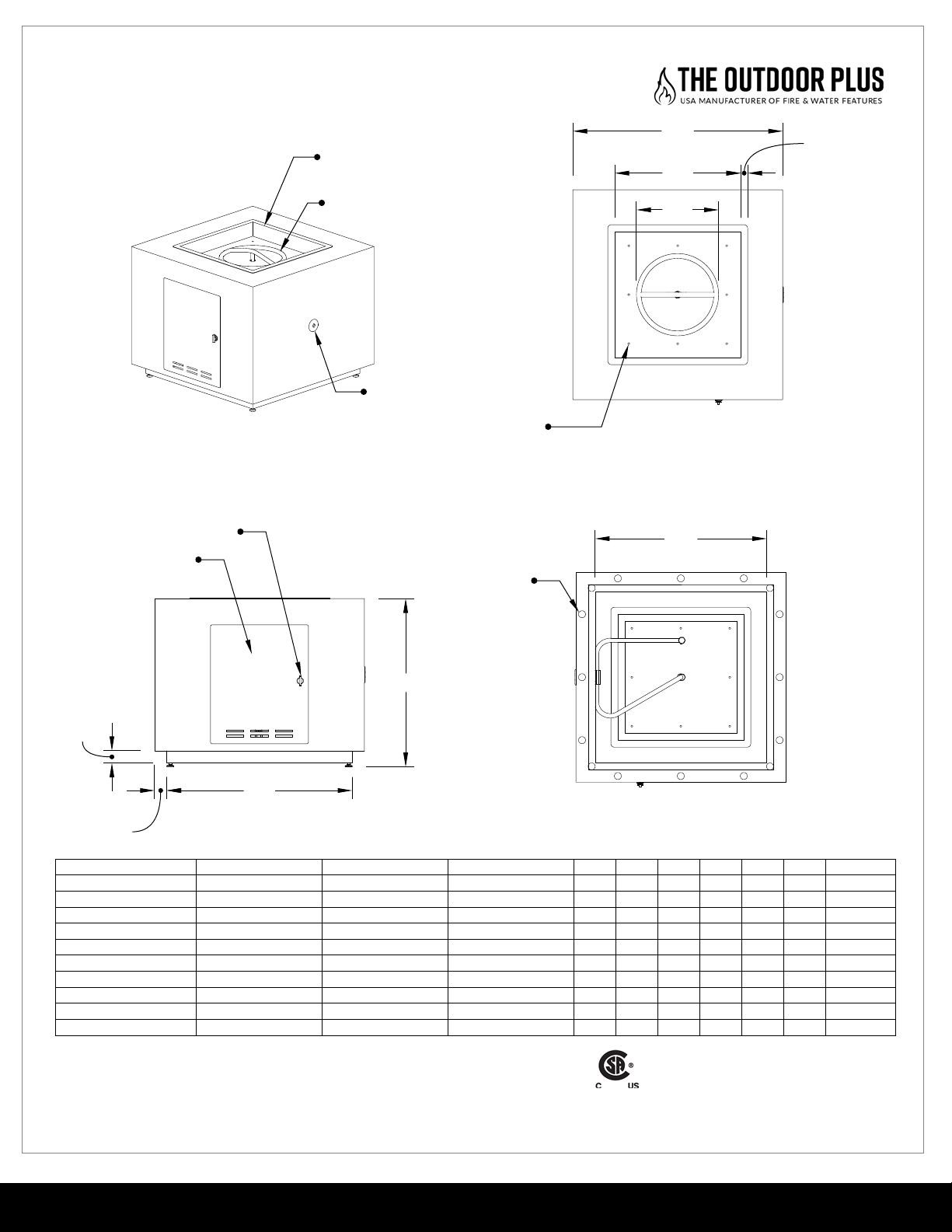

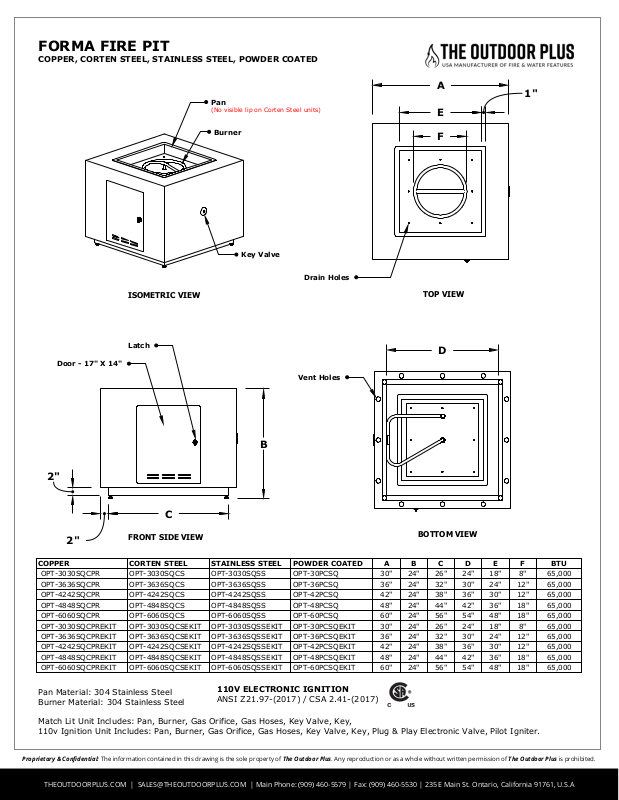

FORMA FIRE PIT
COPPER, CORTEN STEEL, STAINLESS STEEL, POWDER COATED
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
Burner
Pan
(No visible lip on Corten Steel units)
AE1"DB2"2"
Vent Holes
Drain Holes
C
Door - 17" X 14"
Latch
Key Valve
F
