ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW

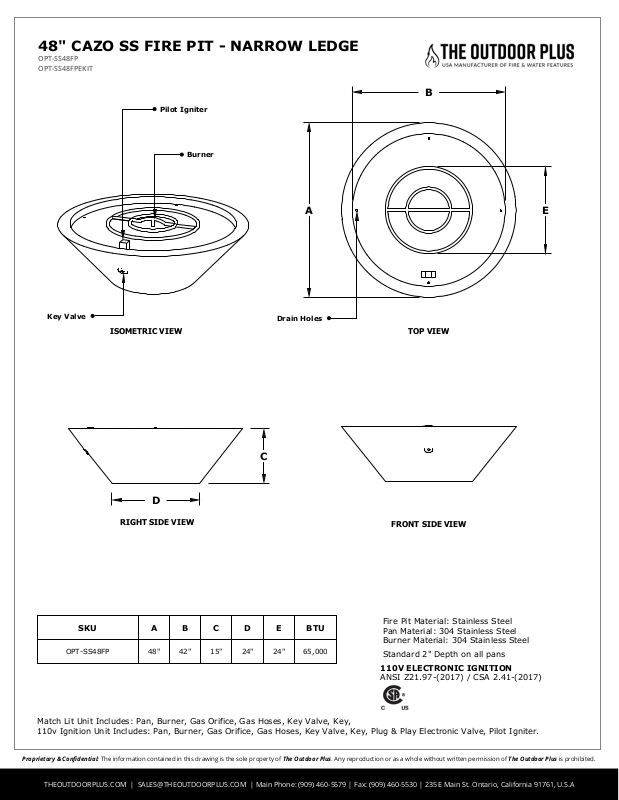

48" CAZO SS FIRE PIT - NARROW LEDGE
OPT-SS48FP
OPT-SS48FPEKIT
Fire Pit Material: Stainless Steel
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
Standard 2" Depth on all pans
ABE
C
Pilot Igniter
Burner
Key Valve
Drain Holes
D
SKU
ABCDE
BTU
OPT-SS48FP
48"
42"
15"
24"
24"
65,000
