Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION CERTIFICATION
ANSI Z21.97-(2017) / CSA 2.41-(2017)

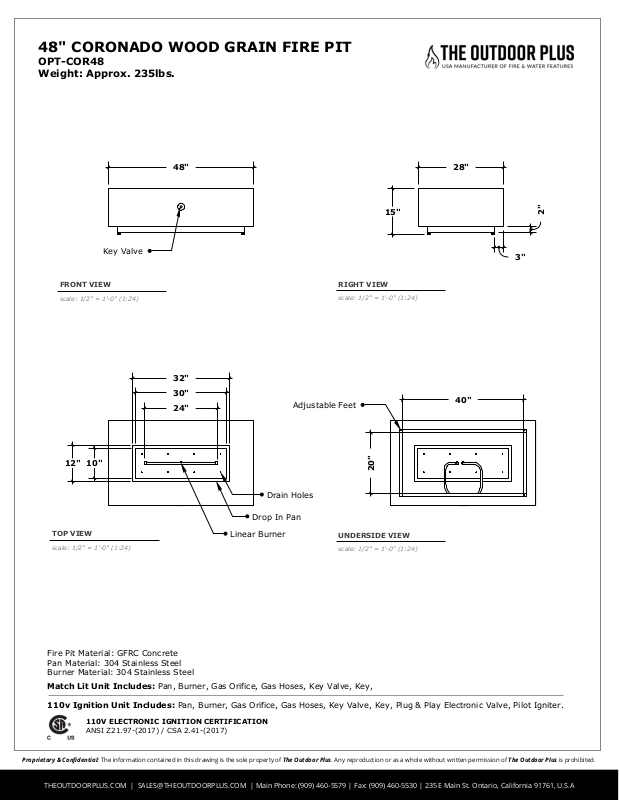

48" CORONADO WOOD GRAIN FIRE PIT
OPT-COR48
Weight: Approx. 235lbs.
FRONT VIEW
scale: 1/2" = 1'-0" (1:24)
TOP VIEW
scale: 1/2" = 1'-0" (1:24)
UNDERSIDE VIEW
scale: 1/2" = 1'-0" (1:24)
RIGHT VIEW
scale: 1/2" = 1'-0" (1:24)
Key Valve
Adjustable Feet
2"
3"
48"
28"
15"
30"
24"
32"
10"
12"
20"
40"
Drain Holes
Drop In Pan
Linear Burner
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
THEOUTDOORPLUS.COM | [email protected] | Main Phone: (909) 460-5579 | Fax: (909) 460-5530 | 235 E Main St. Ontario, California 91761, U.S.A
