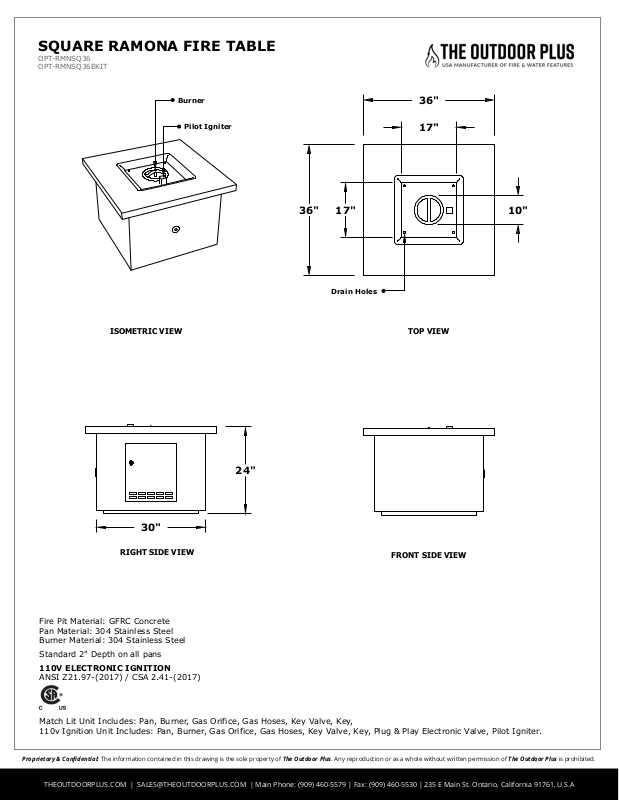

ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW
SQUARE RAMONA FIRE TABLE
OPT-RMNSQ36
OPT-RMNSQ36EKIT
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner , Gas Orifice, Gas Hoses, Key Valve, Key ,
110v Ignition Unit Includes: Pan, Burner , Gas Orifice, Gas Hoses, Key Valve, Key , Plug & Play Electronic Valve, Pilot Igniter .
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
Standard 2" Depth on all pans
36"
36"
17"
17"
Burner
Pilot Igniter
Drain Holes
10"
24"
30"
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus . Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
