ISOMETRIC VIEW
TOP VIEW
FRONT SIDE VIEW
RIGHT SIDE VIEW

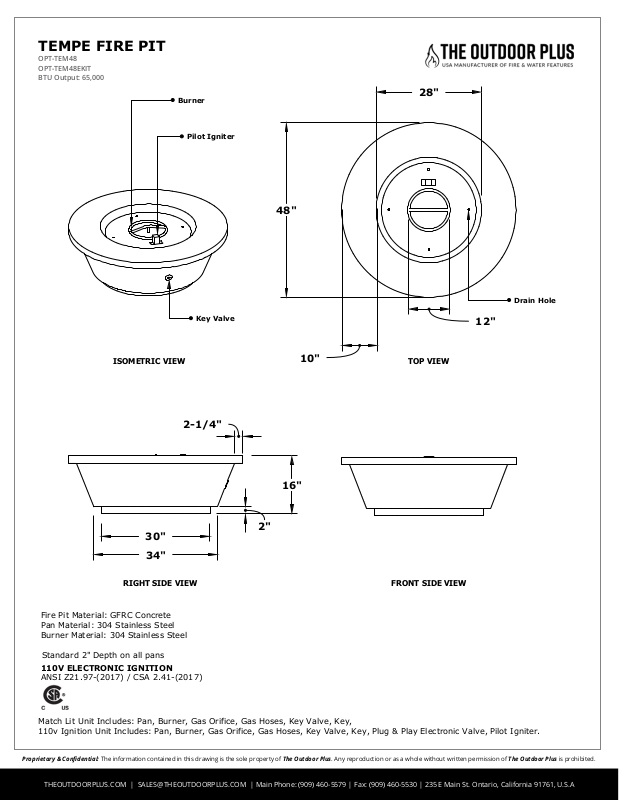

TEMPE FIRE PIT
OPT-TEM48
OPT-TEM48EKIT
BTU Output: 65,000
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key,
110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
48"
28"
10"
12"
16"2"2-1/4"
34"
30"
Burner
Pilot Igniter
Key Valve
Drain Hole
Standard 2" Depth on all pans
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
