Themis RES-22DCX Installation Manual

Download

I n s t a l l a t i o n

M a n u a l

RES-22DCX

2RU 19” Rack-Mount Rugged Enterprise Server

Two Dual-Core Xeon CPUs / Up to 2.33 GHz

RES-22DCX

Tw o D u a l - C o re X e o n C P U Pl a t f o rm

RES-22DCX

Tw o D u a l - C o re X e o n C P U Pl a t f o rm

RES-22DCX

Tw o D u a l - C o re X e o n C P U Pl a t f o rm

RES-22DCX

Tw o D u a l - C o re X e o n C P U Pl a t f o rm

RES-22DCX

Tw o D u a l - C o re X e o n C P U Pl a t f o rm

RES-22DCX Installation Manual

Version 1.2— March 2008

Themis Computer—Americas and Pacific Rim 47200 Bayside Parkway Fremont, CA 94538 Phone (510) 252-0870 Fax (510) 490-5529 World Wide Web http://www.themis.com

Themis Computer—Rest of World 5 Rue Irene Joliot-Curie 38320 Eybens, France Phone +33 476 14 77 80 Fax +33 476 14 77 89

photocopy, microfilm, retrieval system, or by any other means now known or hereafter invented without the prior written permission of Themis Computer.

The information in this publication has been carefully checked and is believed to be accurate. However, Themis Computer assumes no responsibility for inaccuracies. Themis Computer retains the right to make changes to this publication at any time without prior notice. Themis Computer does not assume any liability arising from the application or use of this publicat ion or the product(s) described herein.

RESTRICTED RIGHTS LEGEND: Use, duplication, or disclosure by the United States Government is subject to the restrictions set forth in DFARS 252.227-7013 (c)(1)(ii) and FAR 52.227-19.

TRADEMARKS and SERVICEMARKS

Themis Intel Xeon Red Hat Linux

All other trademarks, servicemarks, or registered trademarks used in this publication are the property of their respective owners.

is a registered trademark of Themis Computer, Inc.

is a registered trademark of Intel Corporation.

™

is a trademark of Intel Corporation.

is a registered trademark of Red Hat, Inc.

is a registered trademark of Linus Torvalds.

North America, South America, and Pacific Rim

RES-22DCX Installation Manual, Version 1.2

March 2008 Part Number: 114532-024

Themis Customer Support

Telephone: 510-252-0870

Fax: 510-490-5529

E-mail: support@themis.com

Web Site: http://www.themis.com

RES-22DCX Installation Manual

Version Revision History

Ve rs ion 1 .2......................................................................................... March 2008

• Modified Table 1-1, page 1-4, to include DC power supplies.

• Modified

• Added a section (German) on Safety Instructions before the Table of Contents.

• Assorted minor edits and changes throughout the manual.

Table 1-2, page 1-11, to define Overheat/Fan Fail LED function.

Ve rs ion 1 .1..................................................................................... February 2008

• Added a section (English) on Safet y Instructions before the Table of Contents.

Ve rs ion 1 .0............................................................................................. July 2007

Themis Computer

iii

RES-22DCX Installation Manual

Safety Instructions

To maximize user safety and ensure correct device operation, all instructions contained in this section should be read carefully.

Caution: It is important that the user observe all warnings and instructions that are on the device and contained in this manual.

• The device must be used in accordance with the instructions for use.

• Electrical installations in the room must correspond to the requirements of respective regulations.

• Take care that there are no cables, particularly mains cables, in areas where persons can trip over them.

• Do not use a mains connection in sockets shared by a number of other power consumers. Do not use an extension cable.

• Only use the mains cable supplied.

• The unit is completely disconnected from the power source only when the power cord is disconnected from the power source. Therefore the power cord and its connectors must always remain easily accessible.

• Do not set up the device in the proximity of heat sources or in a damp location. Make sure the device has adequate ventilation.

• All plugs on the connection cables must be screwed or locked to the chassis housing.

• The device is designed to be used in horizontal position only.

• The device is no longer safe to operate when — the device has visible damage or — the device no longer functions.

• In these cases, the device must be shut down and secured against unintentional operation.

• Repairs may only be carried out by a person authorized by Themis Computer.

Themis Computer

• The device may only be opened for the installation and removal of extension (PCI) cards, memory modules, hard-disk drives, fan housings, power supplies (RES-22 and RES-32 systems only), and the lithium battery—all in accordance with the instructions given in this manual.

• If extensions are made to the device, the legal stipulations and the device specifications must be observed.

• The device must be switched off when removing the top cover; for example, before installing extension (PCI) cards.

Operation of Laser Source Devices

DVD/CD-ROM drives contain laser light-emitting diodes (classified in accordance with IEC 825-1:1993: LASER CLASS 1) and, therefore, must not be opened.

RES-22DCX Installation Manual

If the enclosure of such a drive is opened, invisible laser radiation is emitted. Do not allow yourself to be exposed to this radiation.

The laser system meets the code of Federal Regulations 21 CFR,1040 for the USA and Canadian Radiation Emitting Devices Act, REDR C 1370.

Electrostatic Discharge (ESD)

A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro-circuitry. Proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions:

1. Transport boards in static-safe containers such as boxes or bags.

2. Keep electrostatic-sensitive parts in their containers until they arrive at static-

free stations.

3. Always be properly grounded when touching a sensitive board, component, or

assembly.

4. Store electrostatic-sensitive boards in protective packaging or on conductive

foam.

Themis Computer

RES-22DCX Installation Manual

Grounding Methods

Guard against electrostatic damage at workstations by following these steps:

1. Cover workstations with approved anti-static material. Provide a wrist strap

connected to a work surface and properly grounded tools and equipment.

2. Use anti-static mats, heel straps, or air ionizers to give added protection.

3. Handle electrostatic-sensitive components, boards, and assemblies by the case

or the PCB edge.

4. Avoid contact with pins, leads, or circuitry.

5. Turn off power and input signals before inserting and removing connectors or

test equipment.

6. Keep the work area free of non-conductive materials such as ordinary plastic as-

sembly aids and Styrofoam.

7. Use field service tools, such as cutters, screwdrivers, and vacuums that are con-

ductive.

8. Always place drives and boards PCB-assembly-side down on the foam.

Instructions for the Lithium Battery

RES systems are equipped with a lithium battery installed on the motherboard. To replace this battery, please observe the instructions that are described in this manual.

Warning: There is a danger of explosion when the wrong type of battery is used as a replacement.

Themis Computer

RES-22DCX Betriebshandbuch

Auszug aus RES-22DCX Betriebshandbuch:

Sicherheitshinweise

Hersteller: Themis Computer

47200 Bayside Parkway Fremont, CA 94538, U.S.A. Tel.-Nr. 001-510-252-0870 Fax-Nr. 001-510-490-5529

Allgemeine Bezeichnung: Rechner-Arbeitsplatz

Handelsname/Typenbezeichnung: RES-22DCX (Rugged Enterprise Server)

Deutsche Version Nr. 01/2008 vom 20.03.2008

Themis Computer

vii

RES-22DCX Betriebshandbuch

Sicherheitshinweise

Lesen Sie im Interesse Ihrer eigenen Sicherheit und des bestimmungsgemäßen Gebrauchs diesen Abschnitt sorgfältig durch.

Achtung: Die Warnungen und Hinweise auf dem Gerät und in dieser Anleitung sind unbedingt zu beachten.

• Das Gerät darf nur entsprechend der Gebrauchsanweisung verwendet wer-

den.

• Die elektrische Installation im Raum muss den geltenden V orschrif ten ent spre-

chen.

• Kabel (insbesondere Netzkabel) dürfen nicht in Bereichen verlegt werden, in

denen Personen darüber stolpern können.

• Für den Netzanschluss dürfen keine Verteilerdosen benutzt werden, an die

noch andere Stromverbraucher angeschlossen sind. Verwenden Sie keine Verlängerungskabel.

• Verwenden Sie nur das mitgelieferte Netzkabel.

• Die vollständige Trennung de s Gerätes von der Netzsp a nnung ist nur gewä hr-

leistet, wenn das Netzkabel vom Netz getrennt wird. Aus diesem Grund muss das Netzkabel samt seinen Anschlüssen jederzeit leicht zugänglich sein.

• Das Gerät darf nicht in der Nähe von Wärmequellen oder an einem feuchten

Ort aufgestellt werden. Achten Sie auf eine ausreichende Belüftung des Gerätes.

• Alle Stecker an den Verbindungskabeln müssen am Gehäuse festgeschraubt

oder festgeklemmt sein.

• Das Gerät darf nur in horizontaler Lage betrieben werden.

• Die Betriebssicherheit des Gerätes ist nicht mehr gewährleistet, wenn

— das Gerät sichtbare Beschädigungen aufweist oder — das Gerät nicht mehr funktioniert.

• In diesen Fällen muss das Gerät ausgeschaltet und gegen unbeabsichtigte

Inbetriebnahme gesichert werden.

viii

Themis Computer

• Reparaturen dürfen nur von Beauftragten der Firma Themis Computer durch-

geführt werden.

• Das Öffnen des Gerätes ist nur zulässig für den Ein- und Ausbau von Erweit-

erungskarten (PCI), Speichermodulen, Festplatten, Lüftergehäusen, Netzteilen (nur RES-22- und RES-32-Systeme) und der Lithiumbatterie – entsprechend den Anweisungen in dieser Anleitung.

• Bei einer Erweiterung des Gerätes sind die gesetzlichen Bestimmungen und

die Gerätespezifikationen zu beachten.

• Vor Abnehmen des Deckels, z.B. für den Einbau von Erweiterungskarten

(PCI), erst das Gerät ausschalten.

Betrieb von Lasergeräten

DVD/CD-ROM-Laufwerke enthalten Laserdioden (Klassifizierung gemäß IEC 825-1:1993: LASERKLASSE 1) und dürfen deshalb nicht geöffnet werden.

RES-22DCX Betriebshandbuch

Beim Öffnen des Laufwerkgehäuses tritt unsichtbare Laserstrahlung aus. Setzen Sie sich dieser Strahlung keinesfalls aus.

Das Lasersystem erfüllt die Anforderungen des Code of Federal Regulations 21 CFR,1040 (für die USA) und des Canadian Radiation Emitting Devices Act, REDR C 1370 (für Kanada).

Elektrostatische Entladung (ESD)

Eine plötzliche elektrostatische Entladung kann empfindliche Geräte oder Mikroschaltungen zerstören. Dem ist durch ordnungsgemäße Verpackung und Erdung unbedingt vorzubeugen. Die folgenden Vorsichtsmaßnahmen sind jederzeit zu beachten:

1. Transportieren Sie Platinen in elektrostatisch sicheren Behältern oder Taschen.

2. Belassen Sie elektrostatisch empfindliche Bauteile bis zum Eintreffen an einem

antistatischen Ort in ihrem Behälter.

3. Achten Sie beim Berühren empfindlicher Platinen, Bauteile oder Baugruppen

stets auf eine gute Eigenerdung.

4. Lagern Sie elektrostatisch empfindliche Platinen in Schutzverpackungen oder

auf leitfähigem Schaumstoff.

Themis Computer

RES-22DCX Betriebshandbuch

Erdungsmethoden

Die folgenden Maßnahmen schützen vor elektrostatischen Schäden am Arbeitsplatz:

1. Legen Sie am Arbeitsplatz geeignete Antistatikmatten aus. Tragen Sie ein Er-

dungsarmband, das mit dem Arbeitsplatz verbunden ist, und verwenden Sie nur ausreichend geerdete Arbeitsmittel.

2. Verwenden Sie als zusätzlichen Schutz geeignete Antistatikfußmatten, Fersen-

bänder oder Luftionisatoren.

3. Fassen Sie elektrostatisch empfindliche Bauteile, Platinen und Baugruppen nur

am Gehäuse oder am Rand an.

4. Vermeiden Sie den Kontakt mit Stiften, Leitungen und Leiterbahnen.

5. Schalten Sie vor dem Anschließen und T rennen von Steckverbindern oder Prüf-

geräten alle Spannungs- und Signalquellen aus.

6. Verwenden Sie am Arbeitsplatz keine nichtleitenden Materialien, wie

gewöhnliche Kunststoffmontagehilfen oder Styropor.

7. Benutzen Sie leitende Werkzeuge (z.B. Messer, Schraubendreher und Staub-

sauger).

8. Legen Sie Laufwerke und Platinen immer mit der Bauteilseite nach unten auf

die Schaumstoffunterlage.

Hinweise zur Lithiumbatterie

Auf dem Motherboard von RES-Systemen befindet sich eine Lithiumbatterie. Beim Wechseln dieser Batterie sind die entsprechenden Hinweise in dieser Anleitung zu beachten.

Vorsicht: Beim Einbau einer Ersatzbatterie des falschen Typs besteht Explosionsgefahr.

Themis Computer

Table of Contents

Safety Instructions ................................................................................................................ iv

Sicherheitshinweise ............................................................................................................. viii

Preface ................................................................................................................................xxiii

1. Overview and Specifications ........................................................................................ 1-1

1.1 Overview ................................................................................................................ 1-1

1.1.1 Special Features ......................................................................................... 1-7

1.1.1.1 Recovery from AC Power Loss ..................................................1-7

1.1.1.2 Voltage Monitors ........................................................................ 1-7

1.1.1.3 Fan Status Monitor ...................................................................... 1-7

1.1.1.4 Environmental Temperature Control ..........................................1-7

1.1.1.5 CPU Fan Auto-Off in Sleep (Doze) Mode ................................. 1-7

1.1.1.6 CPU Overheat LED and Control ................................................ 1-8

1.1.1.7 IPMI Module Support ................................................................. 1-8

1.1.1.8 System Resource Alert (optional) ............................................... 1-8

1.2 Chipset Overview ................................................................................................ 1-13

1.3 Specifications ....................................................................................................... 1-16

Themis Computer

1.1.2 ACPI Features ............................................................................................ 1-8

1.1.2.1 Suspend-State Indicator .............................................................. 1-9

1.1.2.2 Main Switch Override ................................................................. 1-9

1.1.2.3 External Modem Ring-On .......................................................... 1-9

1.1.2.4 Wake-On-LAN (WOL) ............................................................... 1-9

1.1.3 System LEDs and I/O Connectors ........................................................... 1-10

1.2.1 The Intel 5000X Memory Controller Hub (MCH) .................................. 1-13

1.2.2 The Intel 6321 ESB I/O Controller Hub (ICH) ....................................... 1-14

1.2.3 The Intel 6700 PCI-X 64-bit Hub (PXH-V) ............................................ 1-14

1.2.4 Super I/O Controller ................................................................................ 1-14

1.3.1 General ..................................................................................................... 1-16

1.3.2 Electrical .................................................................................................. 1-17

1.3.2.1 System Power ........................................................................... 1-17

1.3.2.2 Output Voltage .......................................................................... 1-17

RES-22-DCX Installation Manual

1.3.3 Environmental .......................................................................................... 1-17

1.3.3.1 Shock ........................................................................................ 1-17

1.3.3.2 Electrostatic Discharge ............................................................. 1-18

1.3.3.3 Noise Level ...............................................................................1-18

1.4 Packaging and Shipping ....................................................................................... 1-19

1.4.1 Accessory Kit ........................................................................................... 1-19

1.4.2 Rack-Mount Slides (Optional) ................................................................. 1-20

2. Installation and Operation ........................................................................................... 2-1

2.1 Installation Procedures ........................................................................................... 2-1

2.1.1 Remove Protective Top Cover ................................................................... 2-1

2.1.2 Memory Modules ....................................................................................... 2-3

2.1.2.1 Installation ..................................................................................2-4

2.1.3 SCSI/SATA II Hard-Disk Drive ................................................................ 2-6

2.1.3.1 Opening the RES-22DCX Front Bezel

(required for Disk Drive access) ................................................. 2-6

2.1.3.2 Disk-Drive Removal ................................................................... 2-7

2.1.3.3 Disk-Drive Installation ............................................................... 2-8

2.1.4 PCI Cards ................................................................................................... 2-9

2.1.4.1 Installation ................................................................................2-11

2.1.5 Removable 60-mm Fan Housing ............................................................. 2-13

2.1.5.1 Removing the 60-mm Fan Housing .......................................... 2-13

2.1.5.2 Installing a 60-mm Fan Housing .............................................. 2-14

2.1.6 Power Supply ........................................................................................... 2-15

2.1.6.1 Removing a Power Supply ....................................................... 2-15

2.1.6.2 Installing a Power Supply .........................................................2-16

2.1.7 Lithium Battery ........................................................................................ 2-17

2.1.7.1 Removing the Lithium Battery ................................................. 2-17

2.1.7.2 Installing a Lithium Battery ...................................................... 2-17

2.2 Rack Mounts ........................................................................................................2-18

2.2.1 Mounting Brackets ................................................................................... 2-18

2.2.2 Rack-Mount Slides (Optional) ................................................................. 2-18

2.3 Operation ............................................................................................................. 2-19

2.3.1 Plugging in and Securing the AC Power Cords ....................................... 2-19

2.3.2 Turning the System On ............................................................................2-21

2.3.3 Getting Started ......................................................................................... 2-22

2.3.3.1 Configuration ............................................................................ 2-22

2.3.3.2 Linux Installation ...................................................................... 2-22

xii

Themis Computer

Table of Contents

2.3.4 Turning the System Off ........................................................................... 2-22

Appendix A. Connector Pinouts ...................................................................................... A-1

A.1 PS/2 Keyboard and Mouse ................................................................................... A-1

A.2 USB Ports ............................................................................................................. A-2

A.3 Serial Ports ............................................................................................................ A-3

A.4 Parallel Port ........................................................................................................... A-4

A.5 Gigabit Ethernet LAN Port ................................................................................... A-5

A.6 Audio Ports ........................................................................................................... A-5

Appendix B. Rack-Mount Slide Installation ...................................................................B-1

Appendix C. BIOS Setup Utility ......................................................................................C-1

C.1 Introduction ............................................................................................................C-1

C.1.1 System BIOS ..............................................................................................C-1

C.1.2 How To Change the Configuration Data ...................................................C-2

C.1.3 Starting the Setup Utility ...........................................................................C-2

C.2 Running Setup .......................................................................................................C-2

C.3 Main BIOS Setup ...................................................................................................C-3

C.3.1 Main Setup Features ..................................................................................C-4

C.3.1.1 System Time ...............................................................................C-4

C.3.1.2 System Date ................................................................................C-4

C.3.1.3 BIOS Date ...................................................................................C-4

C.3.1.4 Legacy Diskette A ......................................................................C-4

C.3.1.5 Type ............................................................................................C-4

C.3.1.6 Multi-Sector Transfer .................................................................C-6

C.3.1.7 LBA Mode Control .....................................................................C-6

C.3.1.8 32 Bit I/O ....................................................................................C-6

C.3.1.9 Transfer Mode .............................................................................C-6

C.3.1.10 Ultra DMA Mode ........................................................................C-6

C.3.1.11 Parallel ATA ...............................................................................C-6

C.3.1.12 Serial ATA ..................................................................................C-6

C.3.1.13 Native Mode Operation ..............................................................C-6

C.3.1.14 SATA Controller Mode ..............................................................C-6

C.3.1.15 Serial ATA (SATA) RAID Enable .............................................C-7

C.3.1.16 ICH RAID Code Base .................................................................C-7

Themis Computer

xiii

RES-22-DCX Installation Manual

C.3.1.17 SATA AHCI ...............................................................................C-7

C.3.1.18 System Memory ..........................................................................C-7

C.3.1.19 Extended Memory .......................................................................C-7

C.4 Advanced Setup .....................................................................................................C-8

C.4.1 Boot Features .............................................................................................C-8

C.4.1.1 Quick Boot Mode ........................................................................C-8

C.4.1.2 Quiet Boot ...................................................................................C-9

C.4.1.3 ACPI Mode .................................................................................C-9

C.4.1.4 ACPI Sleep Mode .......................................................................C-9

C.4.1.5 Power Button Behavior ...............................................................C-9

C.4.1.6 Resume On Modem Ring ...........................................................C-9

C.4.1.7 Power Loss Control ....................................................................C-9

C.4.1.8 Watch Dog ..................................................................................C-9

C.4.1.9 Summary Screen .........................................................................C-9

C.4.2 Memory Cache .........................................................................................C-10

C.4.2.1 Cache System BIOS Area .........................................................C-10

C.4.2.2 Cache Video BIOS Area ...........................................................C-10

C.4.2.3 Cache Base 0-512K ..................................................................C-10

C.4.2.4 Cache Base 512K-640K ............................................................C-10

C.4.2.5 Cache Extended Memory ..........................................................C-11

C.4.2.6 Discrete MTRR Allocation .......................................................C-11

C.4.3 PCI Configuration ....................................................................................C-11

C.4.3.1 Onboard GLAN1/Onboard GLAN2 (Gigabit-LAN)

C.4.3.2 Onboard SCSI OPROM Configure ...........................................C-11

C.4.3.3 PCI Parity Error Forwarding .....................................................C-11

C.4.3.4 Reset Configuration Data ..........................................................C-12

C.4.3.5 Frequency for PCI-X#1, PCI-X#2-#3 .......................................C-12

OPROM Configure ...................................................................C-11

C.4.4 Slot#1 PCI-X 100 MHz ZCR, Slot#2 PCI-X 133MHz, Slot#3 PCI-X

133MHz, Slot#4 PCI-Exp x4, Slot#5 PCI-33MHz,

and Slot#6 PCI-Exp x16 ..........................................................................C-12

C.4.4.1 Option ROM Scan ....................................................................C-12

C.4.4.2 Enable Master ...........................................................................C-12

C.4.4.3 Latency Timer ...........................................................................C-12

C.4.4.4 Large Disk Access Mode ..........................................................C-12

C.4.5 Advanced Chipset Control .......................................................................C-13

C.4.5.1 SERR Signal Condition ............................................................C-13

C.4.5.2 4GB PCI Hole Granularity .......................................................C-13

xiv

Themis Computer

Table of Contents

C.4.5.3 Memory Branch Mode ..............................................................C-13

C.4.5.4 Branch 0 Rank Sparing .............................................................C-13

C.4.5.5 Branch 1 Rank Sparing .............................................................C-13

C.4.5.6 Enhanced x8 Detection .............................................................C-14

C.4.5.7 Crystal Beach Features .............................................................C-14

C.4.5.8 Route Port 80h Cycles ..............................................................C-14

C.4.5.9 Clock Spectrum Feature ............................................................C-14

C.4.5.10 Enabling Multi-Media Timer ....................................................C-14

C.4.5.11 USB Function ...........................................................................C-14

C.4.5.12 Legacy USB Support ................................................................C-14

C.4.6 Advanced Processor Options ...................................................................C-15

C.4.6.1 CPU Speed ................................................................................C-15

C.4.6.2 Frequency Ratio (Only when supported by the CPU) ..............C-15

C.4.6.3 Hyper-Threading (Only when supported by the CPU) .............C-15

C.4.6.4 Core-Multi-Processing

(Only when supported by the CPU) ..........................................C-15

C.4.6.5 Machine Checking (Only when supported by the CPU) ..........C-15

C.4.6.6 Thermal Management 2

(Only when supported by the CPU) ..........................................C-15

C.4.6.7 C1 Enhanced Mode (Only when supported by the CPU) .........C-15

C.4.6.8 No Execute Mode Memory Protection

(Only when supported by the CPU and the OS) .......................C-16

C.4.6.9 Adjacent Cache Line Prefetch

(Only when supported by the CPU) ..........................................C-16

C.4.6.10 Hardware Prefetch (Only when supported by the CPU) ...........C-16

C.4.6.11 PECI Absent Alarm (Only when supported by the CPU) ........C-16

C.4.6.12 Intel Virtualization Technology

(Only when supported by the CPU) ..........................................C-16

C.4.6.13 Intel EIST Support (Only when supported by the CPU) ..........C-17

C.4.7 I/O Device Configuration ........................................................................C-17

C.4.7.1 KBC Clock Input ......................................................................C-17

C.4.7.2 Serial Port A ..............................................................................C-17

C.4.7.3 Base I/O Address ......................................................................C-17

C.4.7.4 Interrupt ....................................................................................C-17

C.4.7.5 Serial Port B ..............................................................................C-17

C.4.7.6 Mode .........................................................................................C-17

C.4.7.7 Base I/O Address ......................................................................C-18

C.4.7.8 Interrupt ....................................................................................C-18

C.4.7.9 Parallel Port ...............................................................................C-18

Themis Computer

RES-22-DCX Installation Manual

C.4.7.10 Base I/O Address ......................................................................C-18

C.4.7.11 Interrupt ....................................................................................C-18

C.4.7.12 Mode .........................................................................................C-18

C.4.7.13 DMA Channel ...........................................................................C-18

C.4.7.14 Floppy Disk Controller .............................................................C-18

C.4.7.15 Base I/O Address ......................................................................C-18

C.4.8 DMI Event Logging .................................................................................C-19

C.4.8.1 Event Log Validity ....................................................................C-19

C.4.8.2 Event Log Capacity ..................................................................C-19

C.4.8.3 View DMI Event Log ...............................................................C-19

C.4.8.4 Event Logging ...........................................................................C-19

C.4.8.5 ECC Event Logging ..................................................................C-19

C.4.8.6 Mark DMI Events as Read ........................................................C-19

C.4.8.7 Clear All DMI Event Logs ........................................................C-19

C.4.9 Console Redirection .................................................................................C-19

C.4.9.1 COM Port Address ....................................................................C-19

C.4.9.2 BAUD Rate ...............................................................................C-20

C.4.9.3 Console Type ............................................................................C-20

C.4.9.4 Flow Control .............................................................................C-20

C.4.9.5 Console Connection ..................................................................C-20

C.4.9.6 Continue CR after POST ..........................................................C-20

C.4.10 Hardware Monitor Logic [Alternative 1] .................................................C-20

C.4.10.1 CPU Temperature Threshold ....................................................C-20

C.4.10.2 Fan Speed Control Modes .........................................................C-21

C.4.10.3 Voltage Monitoring ................................................................... C-21

xvi

C.4.11 Hardware Monitor Logic [Alternative 2] .................................................C-22

C.4.11.1 CPU Temperature Threshold ....................................................C-22

C.4.11.2 Fan Speed Control Modes .........................................................C-22

C.4.11.3 Voltage Monitoring ................................................................... C-23

C.4.12 Hardware Monitor Logic [Alternative 3] .................................................C-23

C.4.12.1 CPU Temperature Threshold ....................................................C-23

C.4.12.2 Temperature Monitoring ...........................................................C-23

C.4.12.3 Fan Speed Control Modes .........................................................C-24

C.4.12.4 Voltage Monitoring ................................................................... C-24

C.4.13 IPMI (Only when an IPMI card is installed in the system.) ...................C-25

C.4.13.1 IPMI Specification Version ......................................................C-25

C.4.13.2 Firmware Version .....................................................................C-25

C.4.13.3 System Event Logging ..............................................................C-25

Themis Computer

Table of Contents

C.4.13.4 Clear System Event Logging ....................................................C-26

C.4.13.5 Existing Event Log Number .....................................................C-26

C.4.13.6 Event Log Control ....................................................................C-26

C.4.13.7 BIOS POST Watch Dog ...........................................................C-26

C.4.13.8 OS Boot Watch Dog .................................................................C-26

C.4.13.9 Timer for Loading OS (Minutes) ..............................................C-26

C.4.13.10Time Out Option ......................................................................C-26

C.4.14 System Event Log/System Event Log (List Mode) .................................C-27

C.4.15 Realtime Sensor Data ...............................................................................C-28

C.5 Security Settings ..................................................................................................C-29

C.5.1 Supervisor Password Is: ...........................................................................C-29

C.5.2 User Password Is: .....................................................................................C-29

C.5.3 Set Supervisor Password ..........................................................................C-30

C.5.4 Set User Password ...................................................................................C-30

C.5.5 Password on Boot ....................................................................................C-30

C.6 Boot Settings ........................................................................................................C-31

C.6.1 Boot Priority Order/Excluded from Boot Orders ....................................C-31

C.7 Exit .......................................................................................................................C-32

C.7.1 Exit Saving Changes ................................................................................C-32

C.7.2 Exit Discarding Changes .........................................................................C-32

C.7.3 Load Setup Defaults .................................................................................C-33

C.7.4 Discard Changes ......................................................................................C-33

C.7.5 Save Changes ...........................................................................................C-33

C.8 BIOS POST Messages .........................................................................................C-34

Appendix D. Red Hat Enterprise Linux Installation .................................................... D-1

D.1 Introduction ........................................................................................................... D-1

D.2 Installation ............................................................................................................ D-1

D.2.1 BIOS Configuration .................................................................................. D-1

D.2.2 Installing from CD-ROM .......................................................................... D-1

D.2.2.1 Language Selection .................................................................... D-2

D.2.2.2 Keyboard Selection .................................................................... D-3

D.2.2.3 Select Disk Partitioning Setup ................................................... D-3

D.2.2.4 Automatic Partitioning ............................................................... D-5

D.2.2.5 Partitioning Your System ........................................................... D-6

D.2.2.6 Adding Partitions ....................................................................... D-7

Themis Computer

xvii

RES-22-DCX Installation Manual

D.2.2.7 Boot Loader Configuration ........................................................ D-9

D.2.2.8 Advanced Boot Loader Configuration ..................................... D-10

D.2.2.9 Network Configuration ............................................................ D-11

D.2.2.10 Firewall Configuration ............................................................. D-13

D.2.2.11 Time Zone Configuration ........................................................ D-14

D.2.2.12 Set Root Password ................................................................... D-15

D.2.2.13 Package Group Selection ......................................................... D-16

D.2.2.14 Preparing to Install ................................................................... D-18

D.2.2.15 Installing Packages .................................................................. D-18

D.2.2.16 Installation Complete ............................................................... D-19

Index ................................................................................................................Index-1

Reader Comment Card

xviii

Themis Computer

Table of Contents

List of Figures

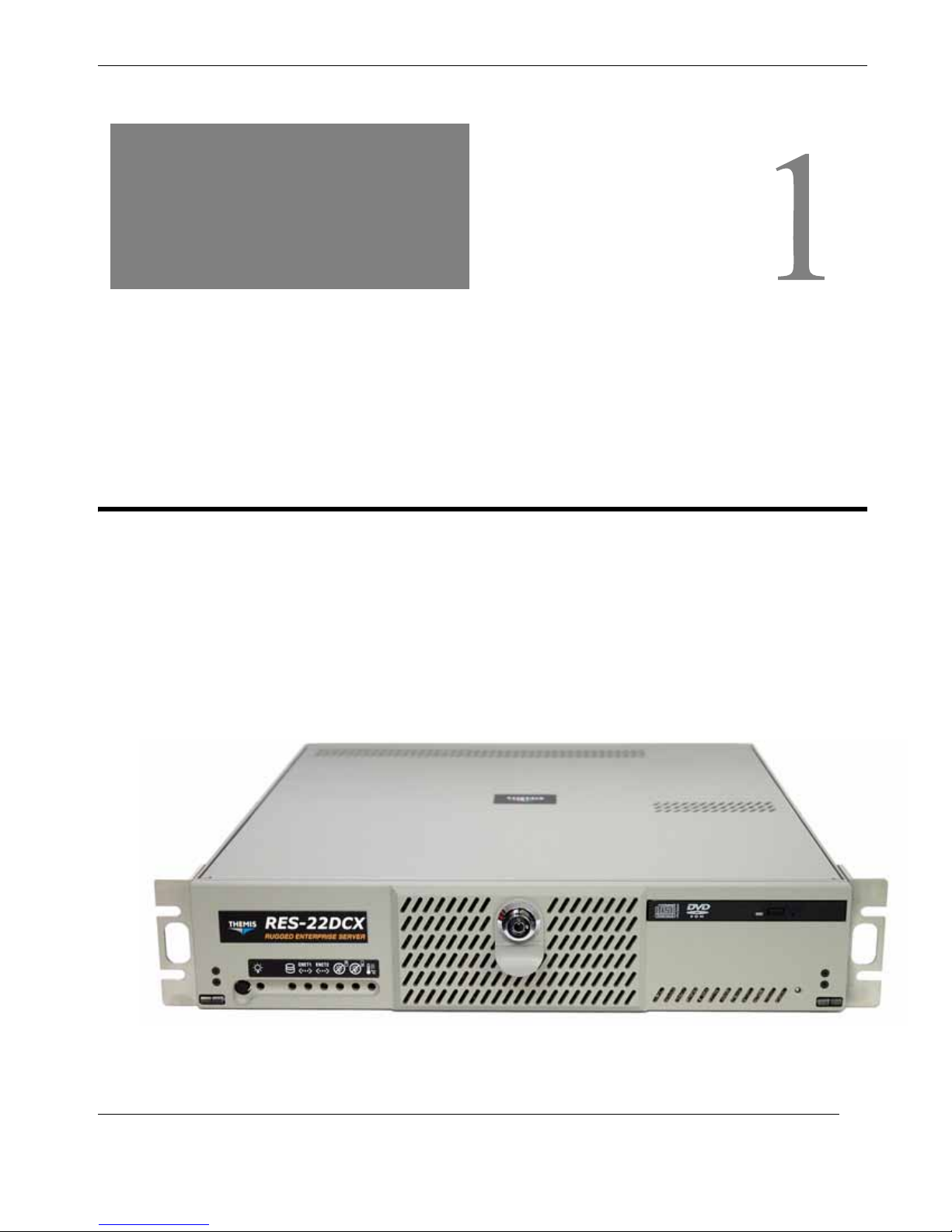

Figure 1-1 RES-22DCX (with Rack Mounts)................................................................... 1-1

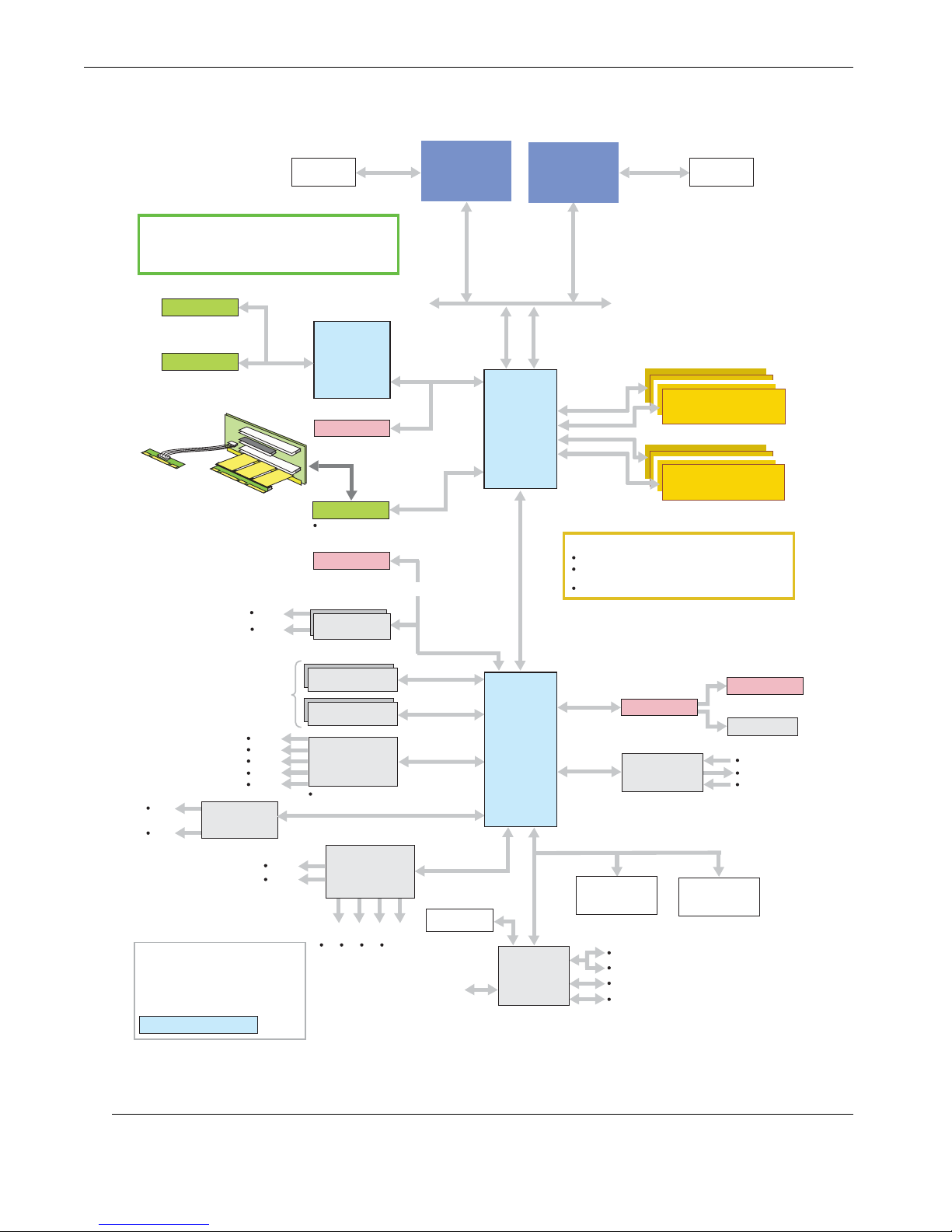

Figure 1-2 RES-22DCX System Block Diagram.............................................................. 1-2

Figure 1-3 External Features of the RES-22DCX (Front and Rear) ................................. 1-3

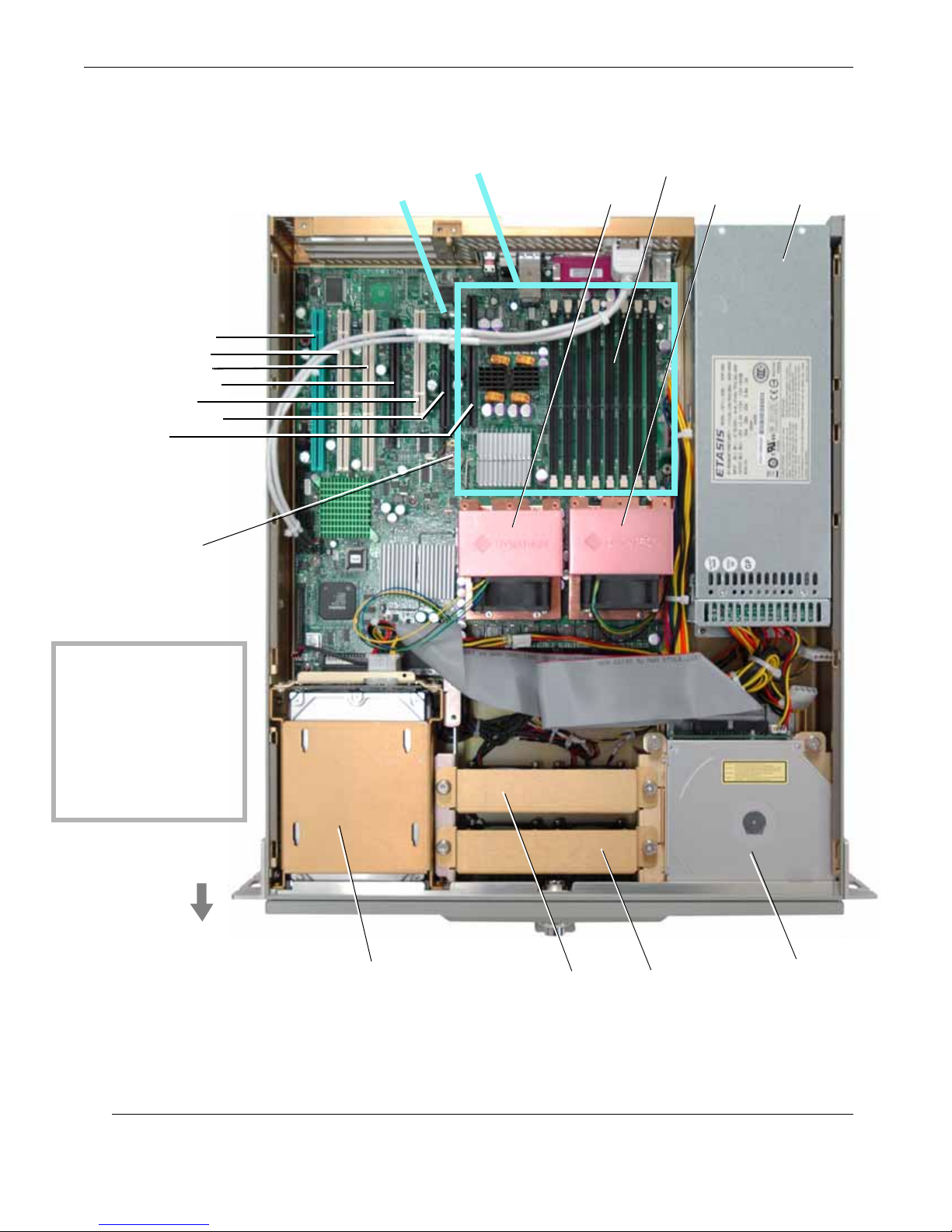

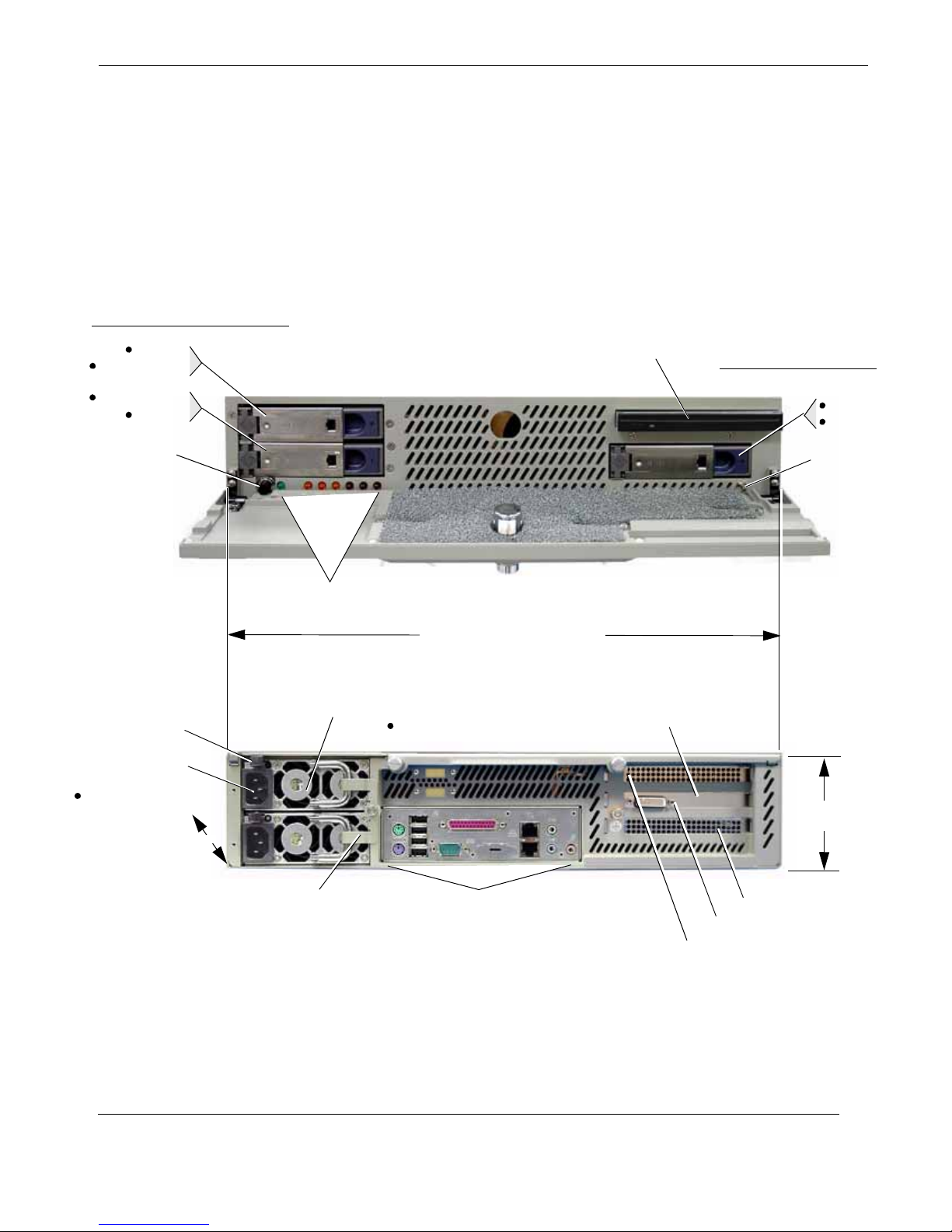

Figure 1-4 Major Components of the RES-22DCX (Open Top View)............................. 1-6

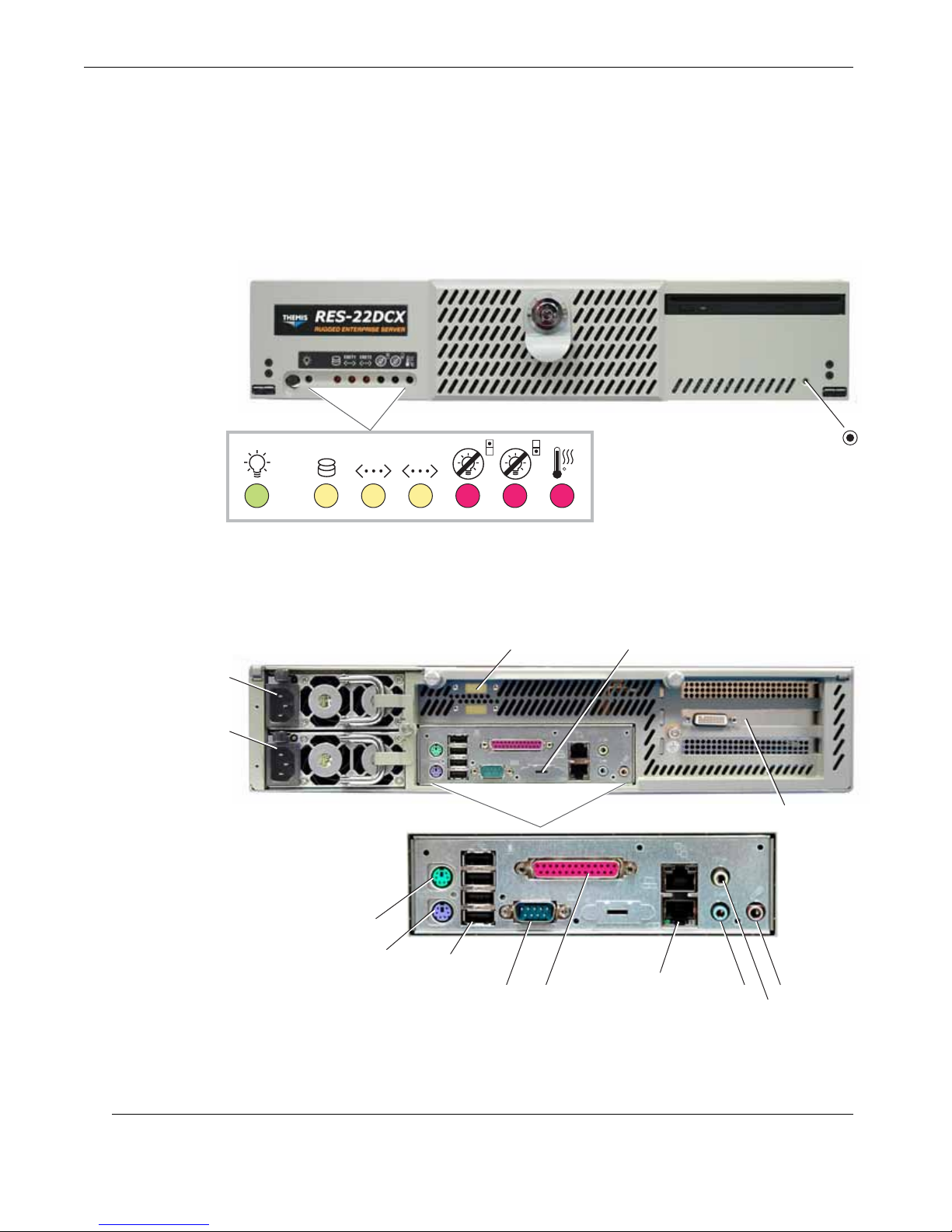

Figure 1-5 RES-22DCX System LEDs and I/O Connectors........................................... 1-10

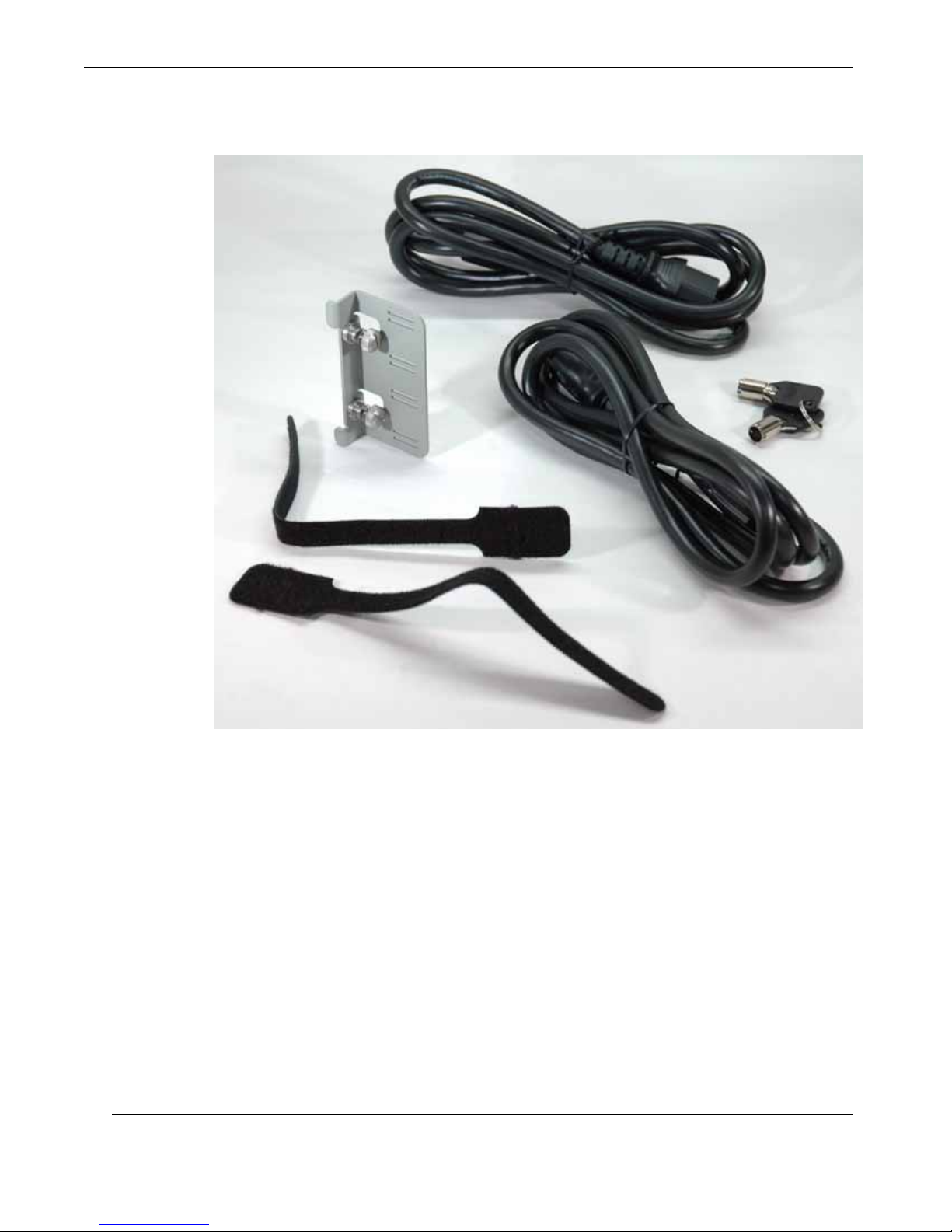

Figure 1-6 RES-22DCX Accessory Kit........................................................................... 1-20

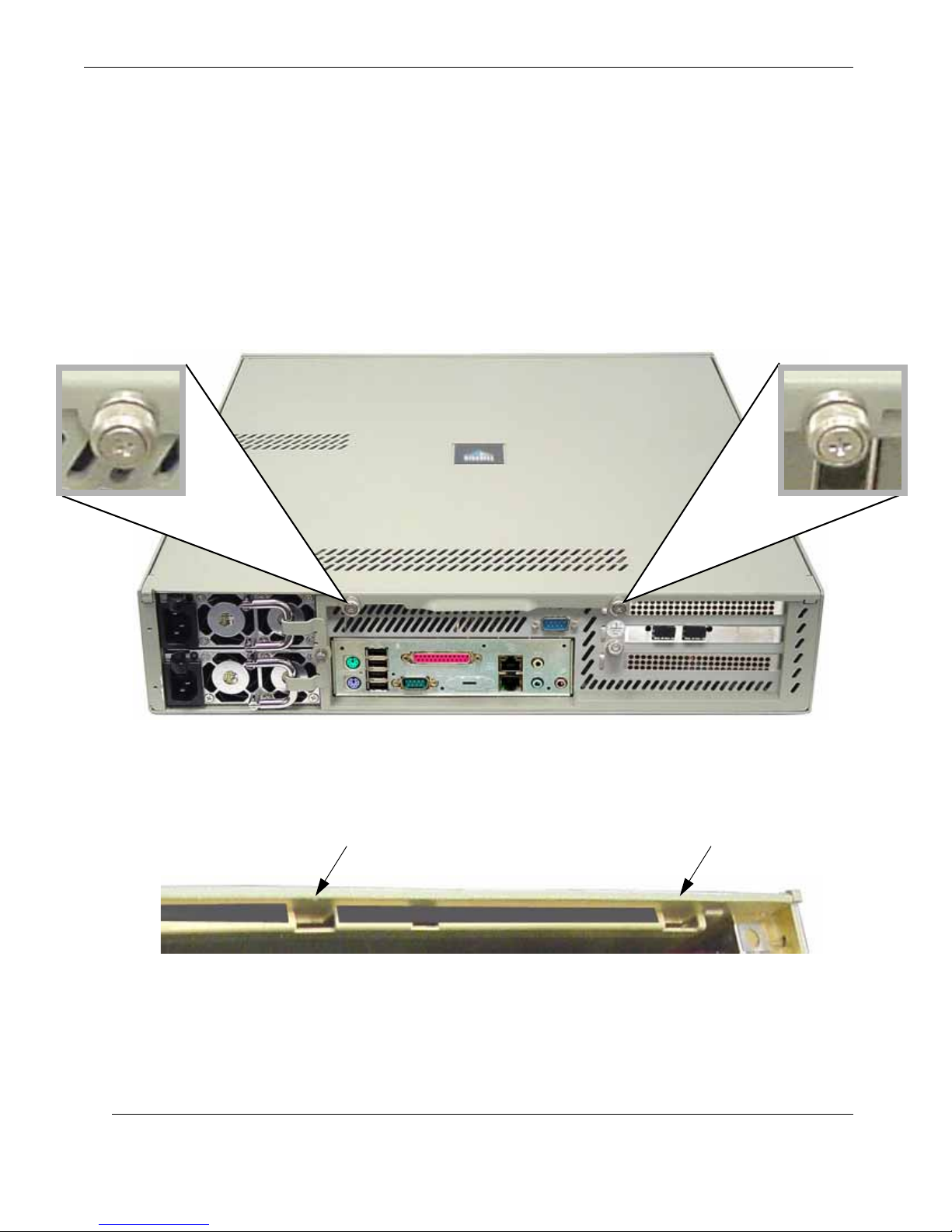

Figure 2-1 Remove the RES-22DCX Protective Access Cover........................................ 2-2

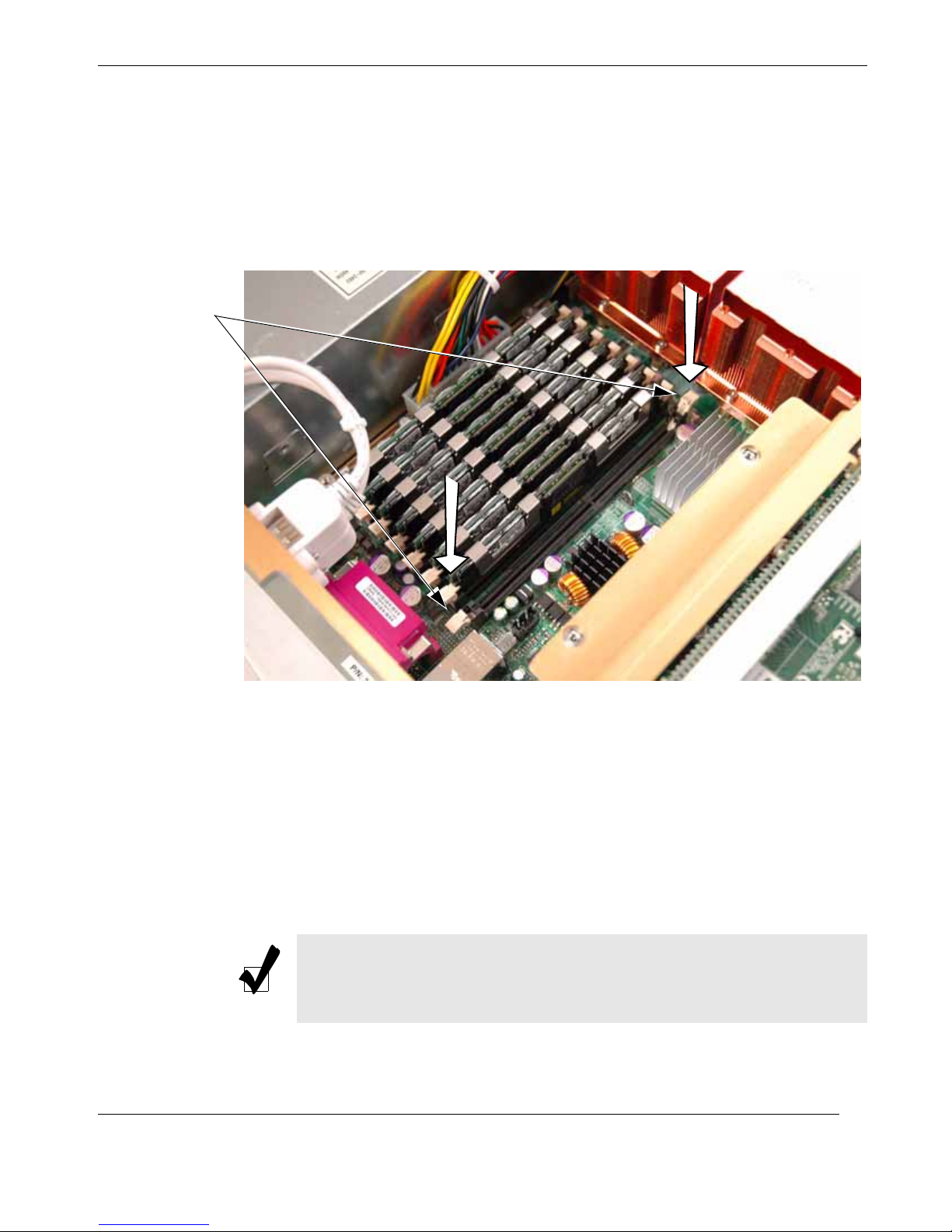

Figure 2-2 Memory Module Slot Location........................................................................ 2-4

Figure 2-3 Memory Module Removal............................................................................... 2-5

Figure 2-4 Pushbutton Lock on the RES-22DCX Front Bezel Cover............................... 2-6

Figure 2-5 RES-22DCX Hard-Disk Drive Removal......................................................... 2-7

Figure 2-6 PCI Riser Card in Slot 6 .................................................................................. 2-9

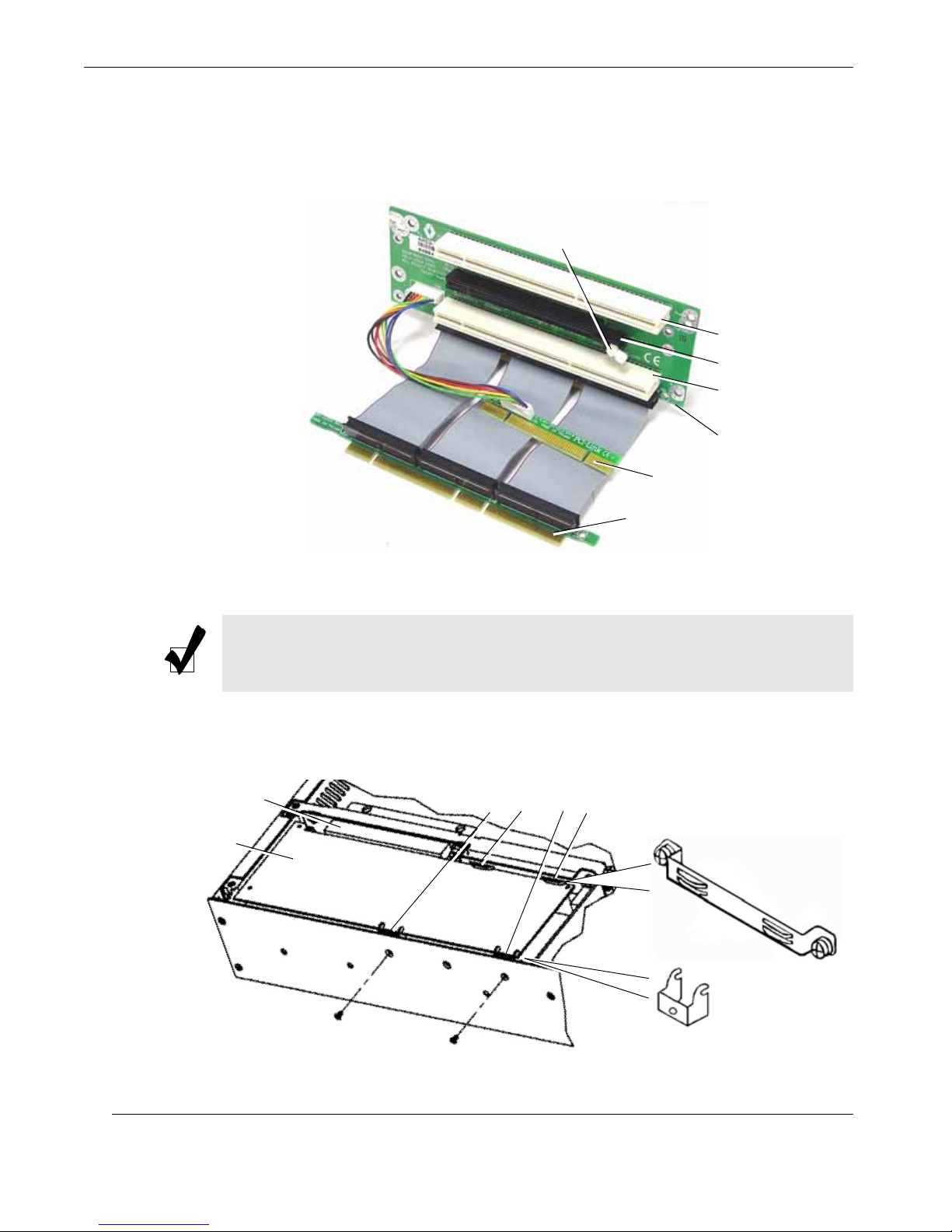

Figure 2-7 The RES-22DCX PCI Riser Card.................................................................. 2-10

Figure 2-8 PCI Card Retainers are Installed to Hold Long PCI Cards............................ 2-10

Figure 2-9 PCI Card Installation ..................................................................................... 2-12

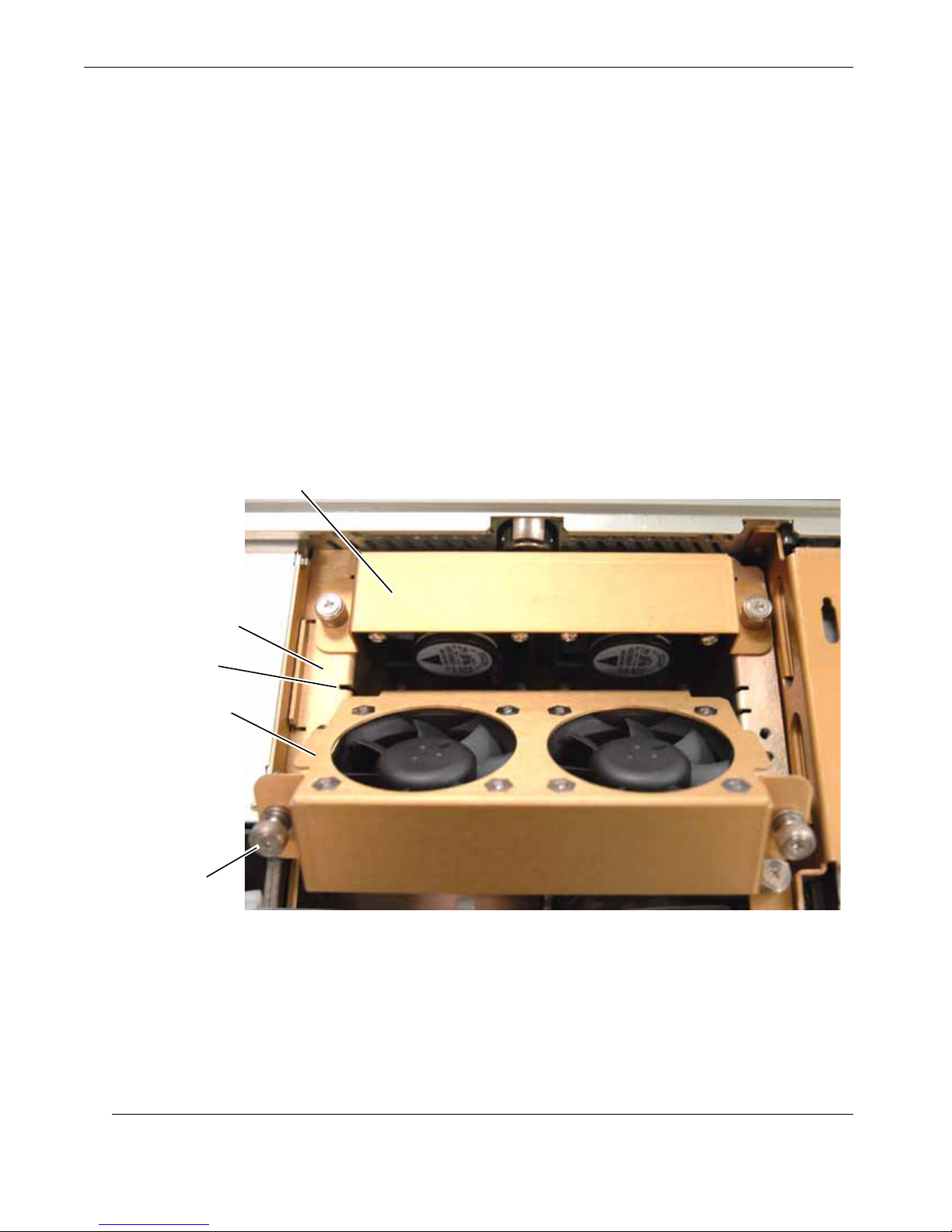

Figure 2-10 The RES-22DCX Front and Rear 60-mm Fan Housings .............................. 2-13

Figure 2-11 Rear 60-mm Fan Housing Partially Removed............................................... 2-14

Figure 2-12 The RES-22DCX Power Supply Locking Mechanism.................................. 2-15

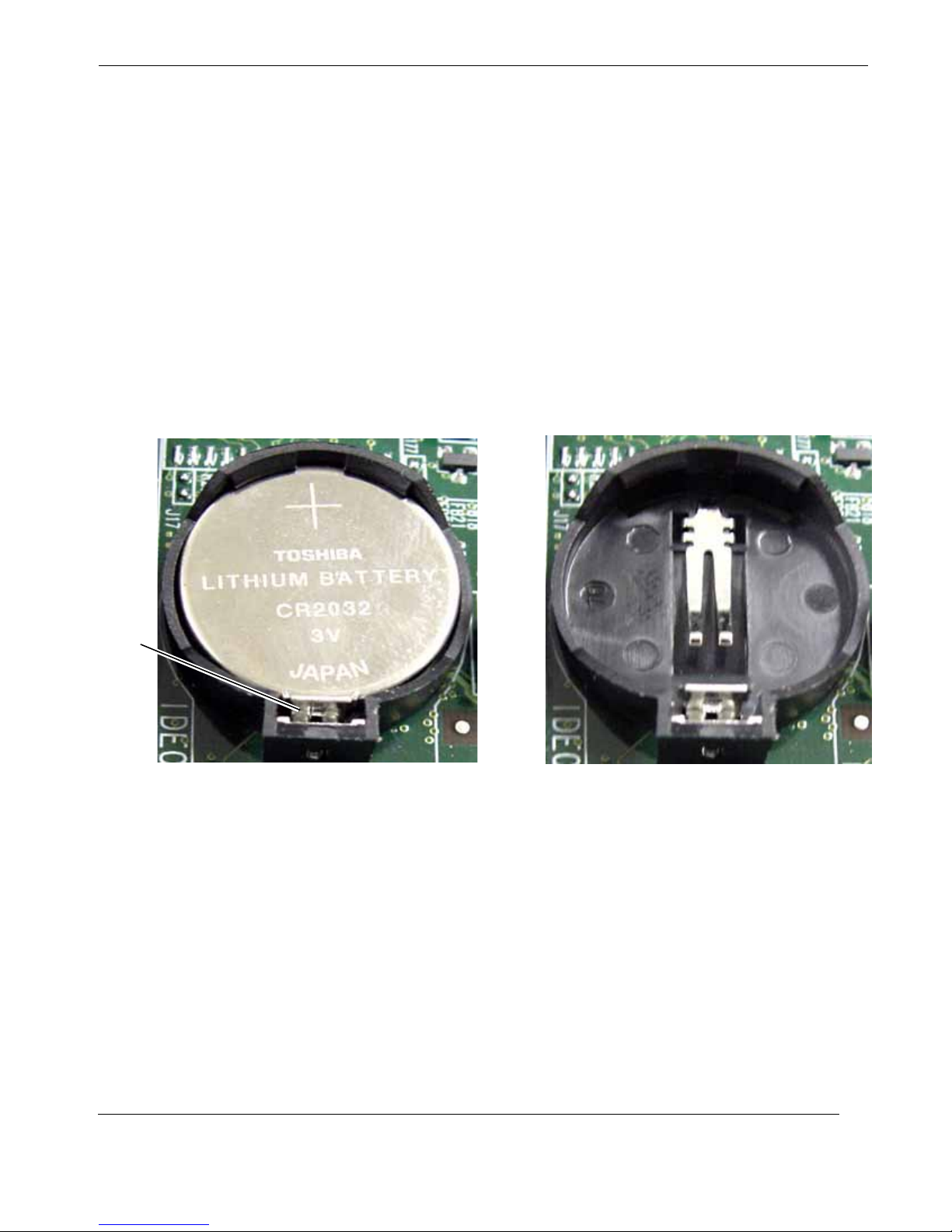

Figure 2-13 The RES-22DCX Lithium Battery and Socket.............................................. 2-17

Figure 2-14 Rack-Mount Bracket with (A) and without a Handle (B) ............................. 2-18

Figure 2-15 AC Power Socket and LED on the RES-22DCX Rear.................................. 2-19

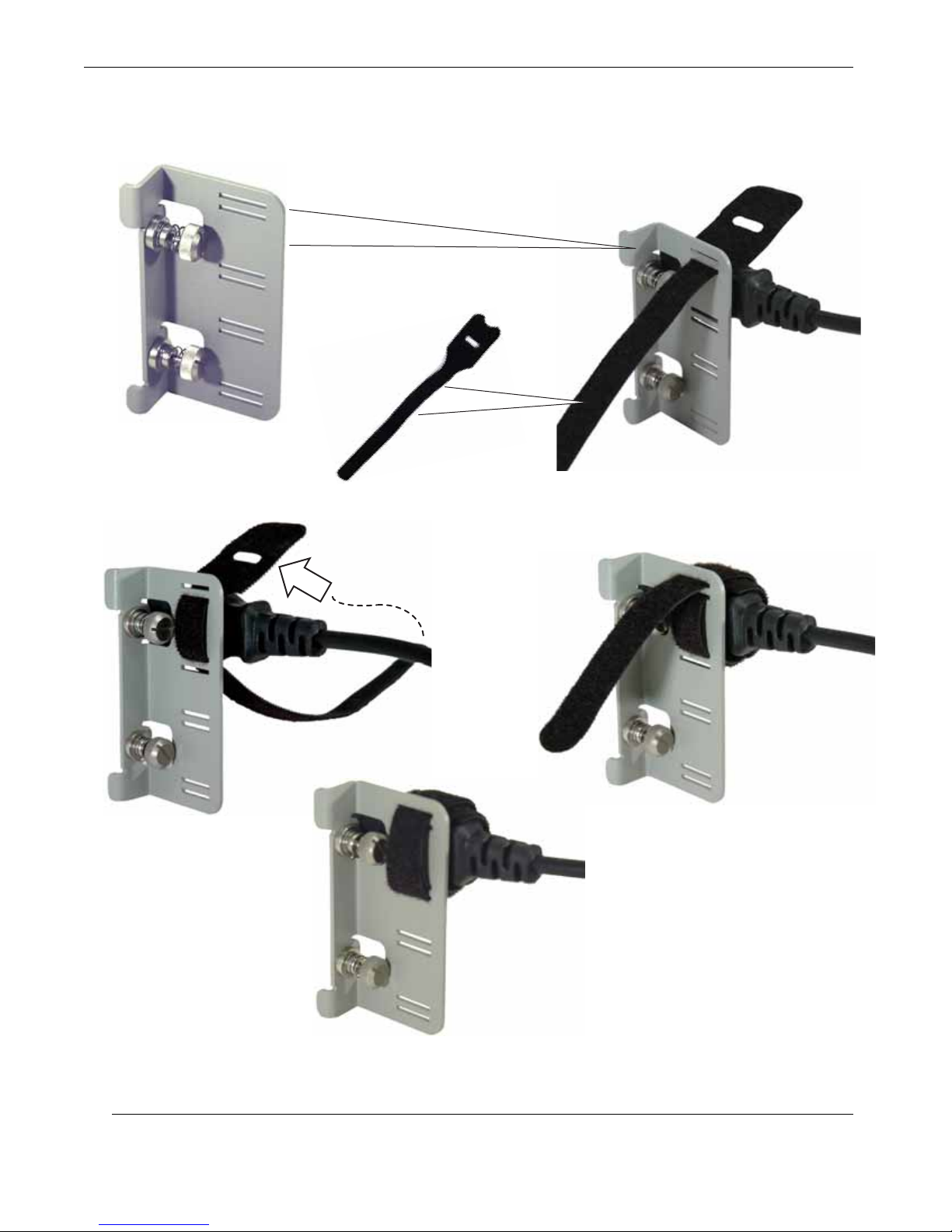

Figure 2-16 Secure all Power Cords with Bracket and Velcro Strap................................ 2-20

Figure 2-17 System Power Button and LED on the RES-22DCX Front .......................... 2-21

Figure 2-18 System Power Button and LED on the RES-22DCX Front .......................... 2-21

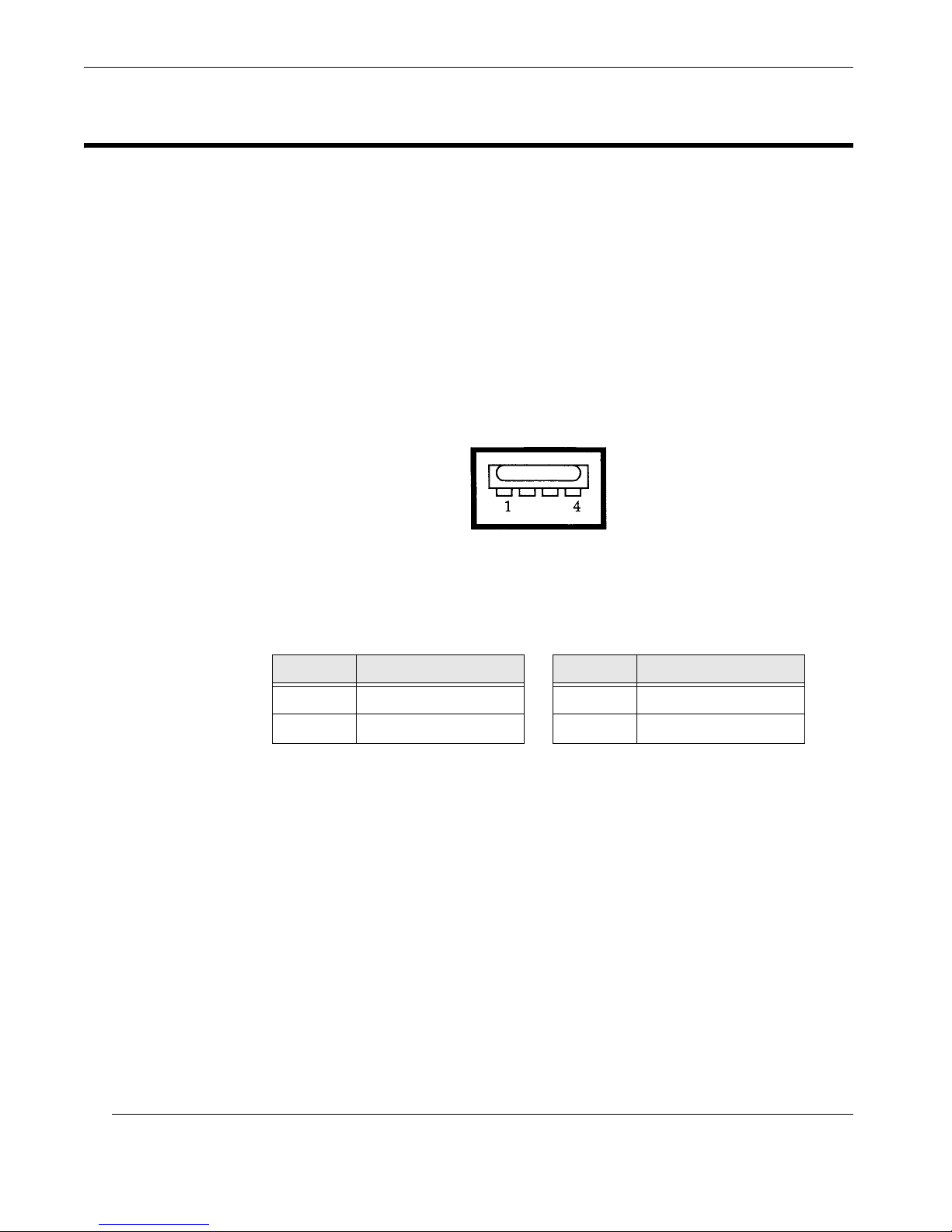

Figure A-1 USB Connector............................................................................................... A-2

Figure A-2 DB9 Serial Connector..................................................................................... A-3

Themis Computer

xix

RES-22DCX Installation Manual

Figure A-3 DB25 Parallel Connector................................................................................ A-4

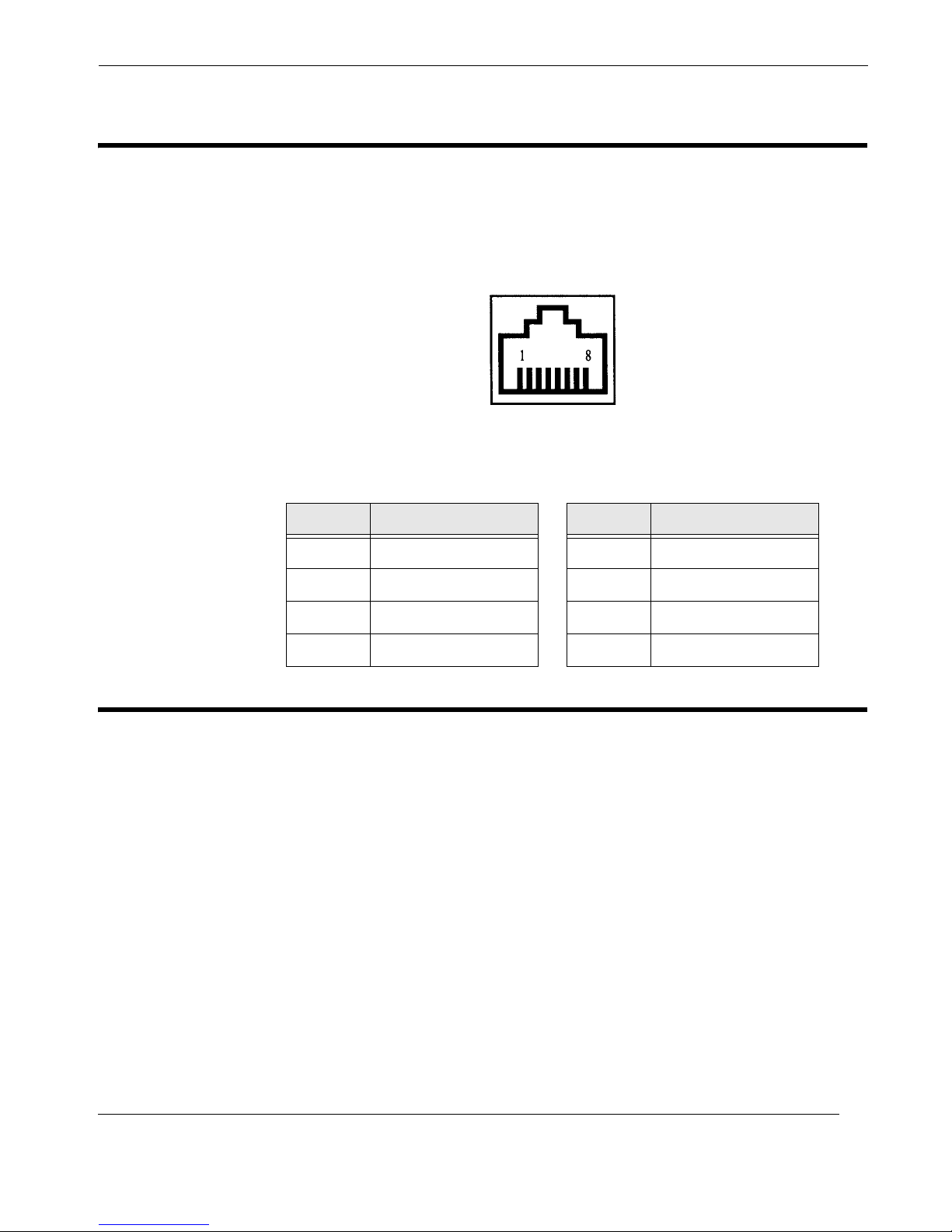

Figure A-4 Gigabit Ethernet Connector, Type RJ45......................................................... A-5

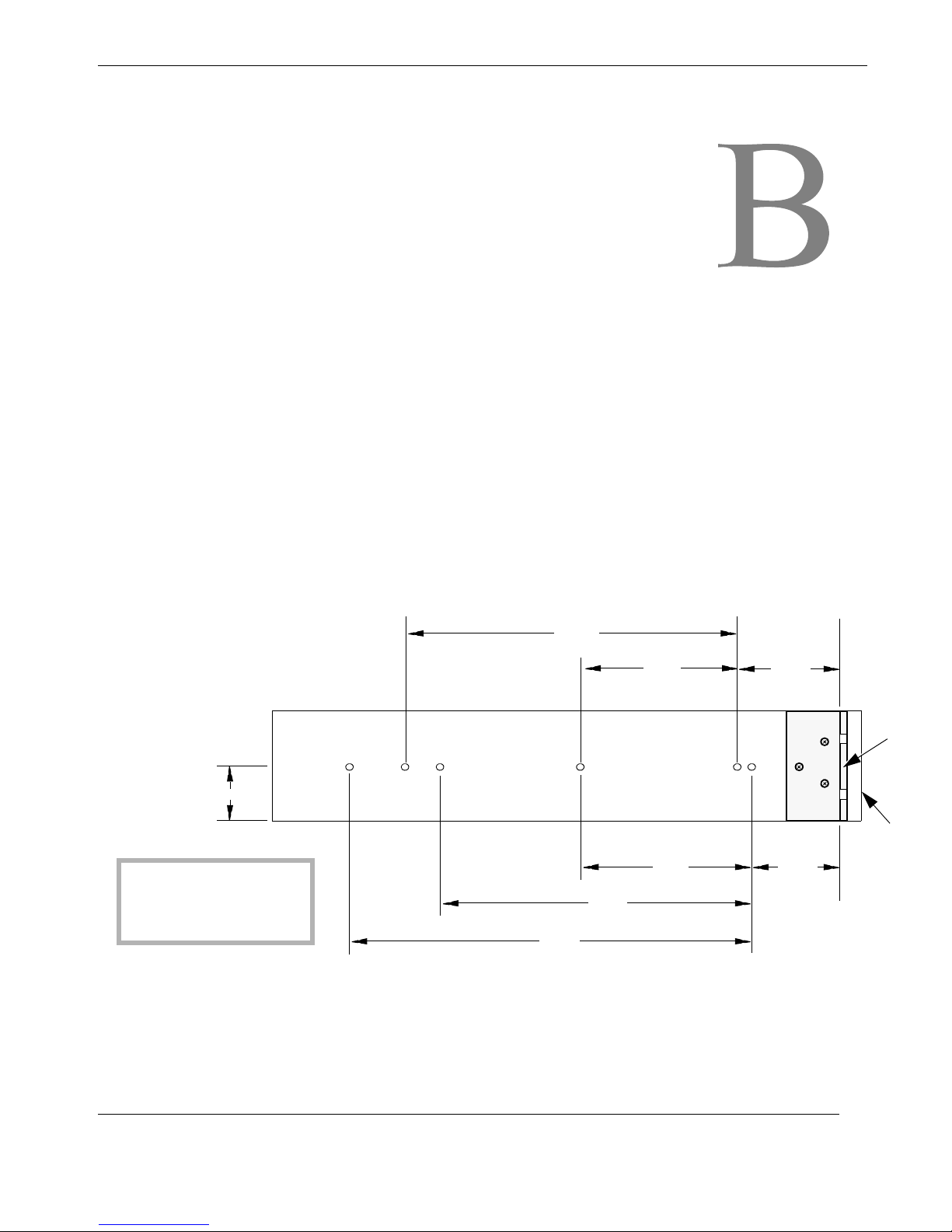

Figure B-1 Screw Locations for Rack-Mount Slides ......................................................... B-1

Figure B-2 RES-22DCX Rack-Mount Slide Installation................................................... B-3

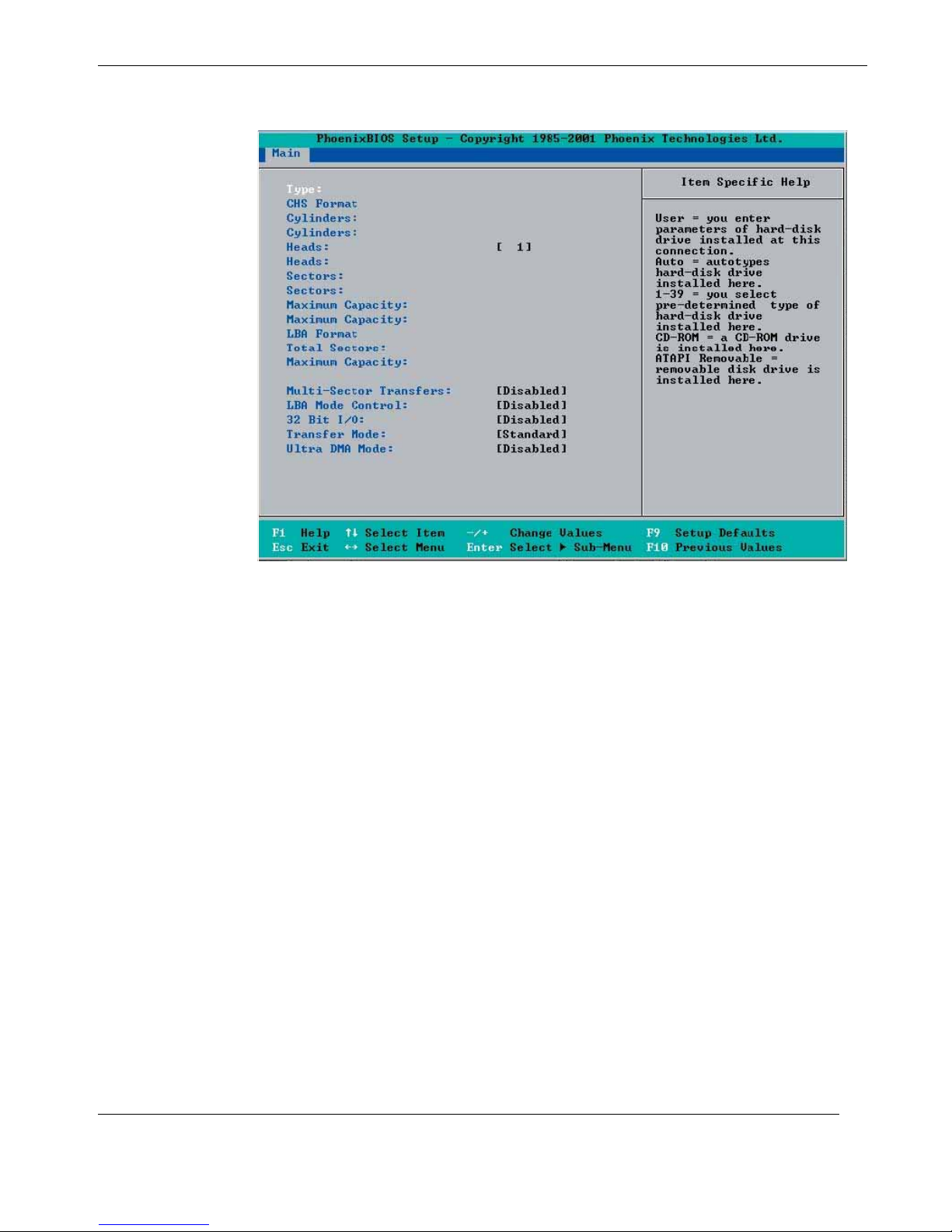

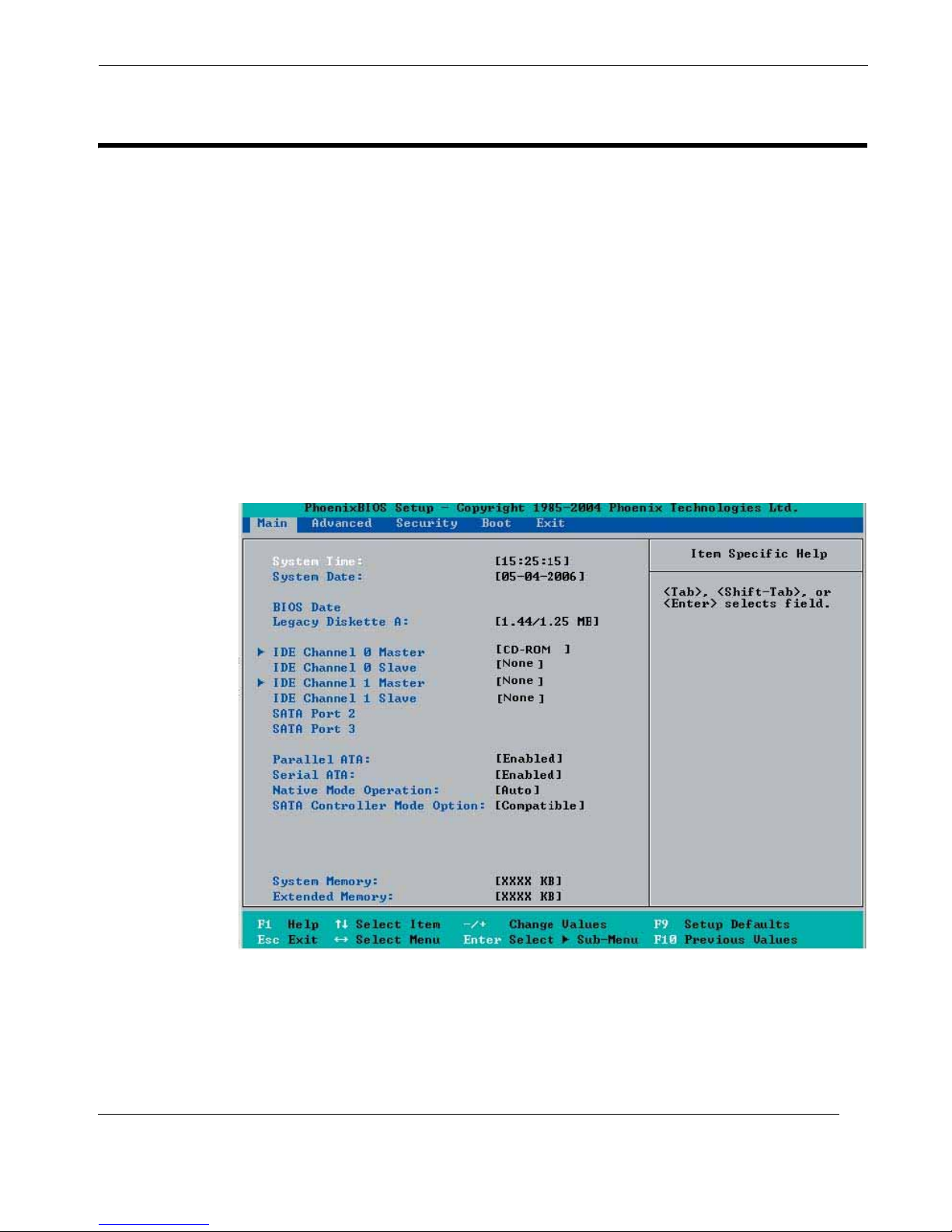

Figure C-1 The Main BIOS Setup Menu ........................................................................... C-3

Figure C-2 The Main BIOS Setup Submenu ..................................................................... C-5

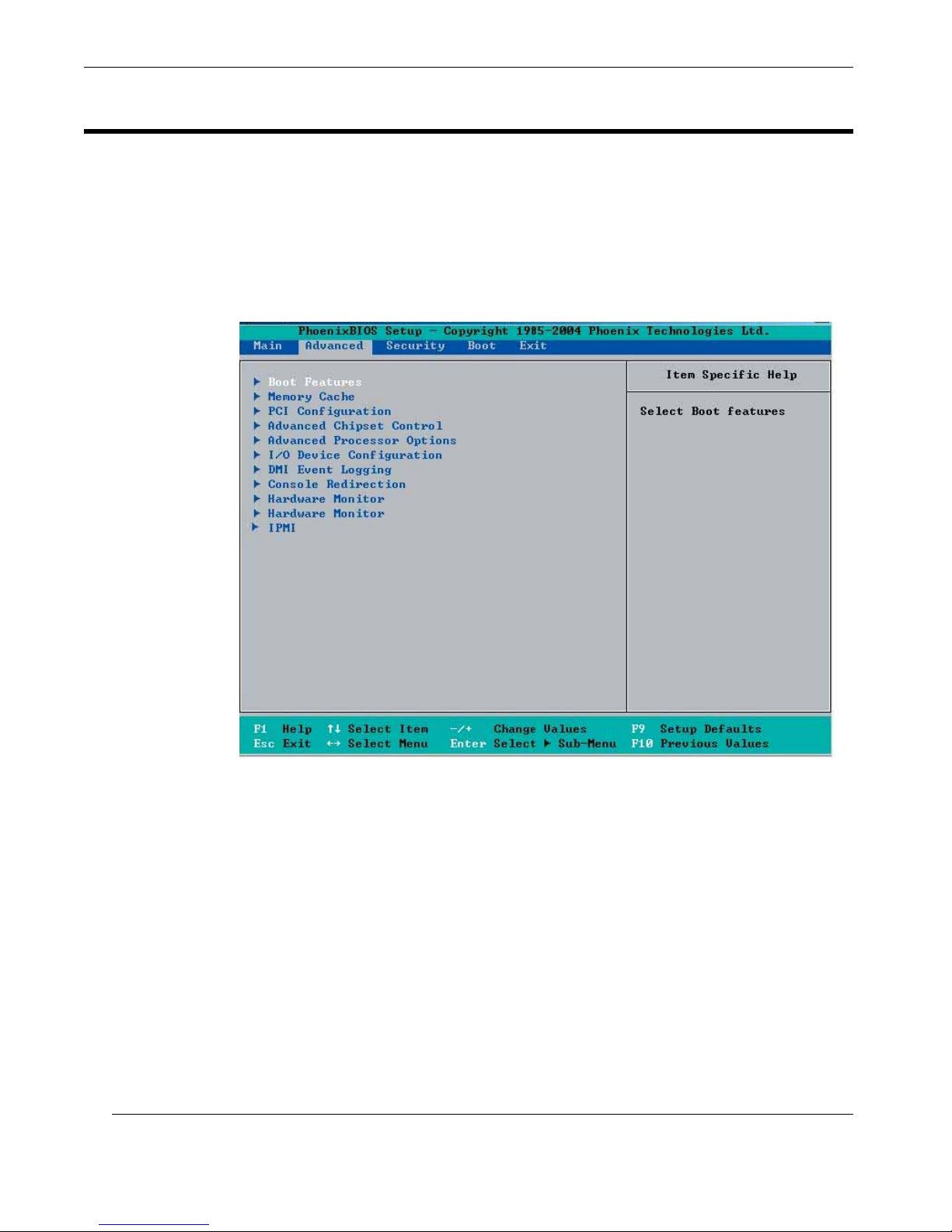

Figure C-3 The Advanced BIOS Setup Menu ................................................................... C-8

Figure C-4 The Advanced BIOS Setup IPMI Submenu .................................................. C-25

Figure C-5 The System Event Log Submenu................................................................... C-27

Figure C-6 The Realtime Sensor Data Submenu ............................................................. C-28

Figure C-7 The BIOS Setup Security Submenu............................................................... C-29

Figure C-8 The BIOS Setup Boot Submenu.................................................................... C-31

Figure C-9 The BIOS Setup Exit Submenu ..................................................................... C-32

Figure D-1 Language Selection......................................................................................... D-2

Figure D-2 Keyboard Selection......................................................................................... D-3

Figure D-3 Disk Partitioning............................................................................................. D-4

Figure D-4 Automatic Partitioning.................................................................................... D-5

Figure D-5 Disk Setup....................................................................................................... D-7

Figure D-6 Add Partition................................................................................................... D-7

Figure D-7 Boot Loader Configuration............................................................................. D-9

Figure D-8 Advanced Boot Loader Configuration.......................................................... D-10

Figure D-9 Network Configuration................................................................................. D-11

Figure D-10 Editing a Network Device............................................................................. D-12

Figure D-11 Firewall Configuration.................................................................................. D-13

Figure D-12 Time Zone Configuration ............................................................................. D-14

Figure D-13 Set Root Password ........................................................................................ D-15

Figure D-14 Package Installation Defaults........................................................................ D-16

Figure D-15 Package Group Selection.............................................................................. D-17

Figure D-16 Package Group Details.................................................................................. D-18

Themis Computer

Table of Contents

List of Tables

Table 1-1 Major Features of the RES-22DCX................................................................ 1-4

Table 1-2 System LEDs ................................................................................................ 1-11

Table 1-3 I/O Connectors.............................................................................................. 1-12

Table 1-4 RES-22DCX General Specifications............................................................ 1-16

Table 1-5 RES-22DCX Electrical Specifications ......................................................... 1-17

Table 1-6 Typical Noise Levels of the RES-22DCX.................................................... 1-18

Table 2-1 RES-22DCX Memory Modules...................................................................... 2-3

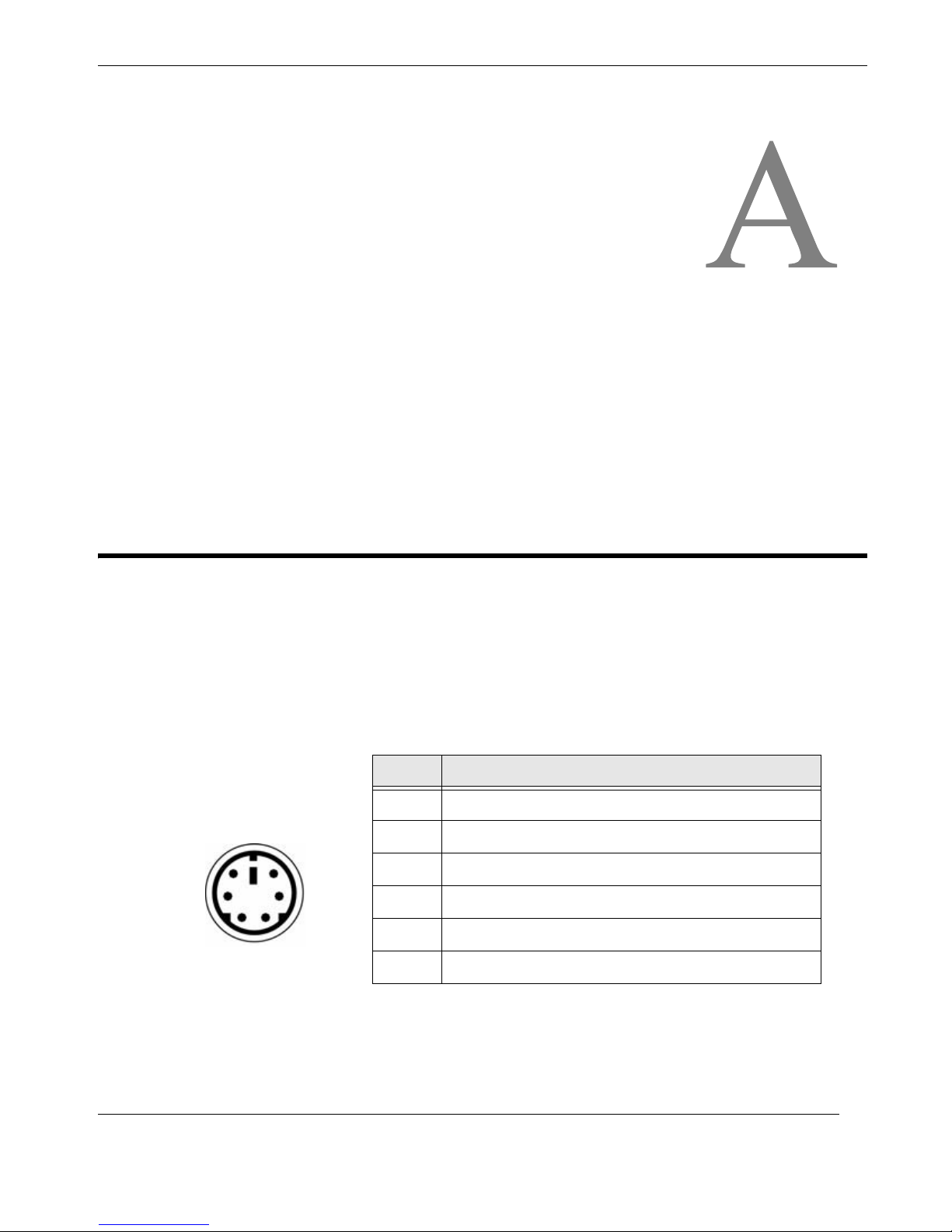

Table A-1 PS/2 Keyboard/Mouse Pinouts...................................................................... A-1

Table A-2 USB Connector Pinouts................................................................................. A-2

Table A-3 DB9 Serial Connector Pinout ........................................................................ A-3

Table A-4 Parallel Port Connector Pinout ...................................................................... A-4

Table A-5 RJ45 Gigabit Ethernet Pinouts....................................................................... A-5

Themis Computer

xxi

RES-22DCX Installation Manual

xxii

Themis Computer

Preface

This document, entitled RES-22DCX Installation Guide, provides instructions on how to install, configure, power up, boot, and perform diagnostics on the Themis Rugged Enterprise Server RES-22DCX (see photo below), which is based on two dual-core 64-bit Intel® Xeon enced system administrator with a knowledge of both networking and high-speed server systems.

CPUs. These instructions are intended for an experi-

Themis Computer

Rugged Enterprise Server Model RES-22DCX

xxiii

RES-22DCX Installation Manual

The 2RU-high (3.5”) RES-22DCX has been designed to fit into a standard 19” rack and is provided with rack-mount brackets without handles. Optional rack-mount brackets with handles and optional rack-mount slides are also available. The RES22DCX is rugged enough to withstand extreme shock (up to 25G), temperature (up to 50°C), and EMI such as that associated with such demanding markets as the military, aerospace, and telecommunications industries.

The two dual-core Intel Xeon CPUs operate up to 2.33 GHz (with a 1333-MHz front-side system bus) and support up to 32 GigaBytes of DDR2 ECC FB-DIMM memory modules. The RES-22DCX is based on the functionality and capability of the Intel 5000X (Greencreek) chipset, which consists of the following three devices:

An overview of RES-22DCX design and specifications is given in Chapter 1, "Overview and Specifications", of this manual.

• Intel 5000X Memory Controller Hub (MCH)

• Intel 6700PXH 64-bit PCI-X Hub (PXH-V)

• Intel 6321 ESB2 (Enterprise South Bridge 2) I/O Controller Hub (ICH)

Website Information

Themis Computer corporate and product information may be accessed on the World Wide Web by browsing the website http://www.themis.com.

Your Comments are Welcome

We are interested in improving our documentation and welcome your comments and suggestions. You can email your comments to us at docfeedback@themis.com. Please include the document part number in the subject line of your email.

xxiv

Themis Computer

Preface

Notes, Cautions, Warnings, and Sidebars

The following icons and formatted text are included in this document for the reasons described:

Note: A note provides additional information concerning the procedure or action being described.

Caution: A caution describes a procedure or action that may result in injury to the operator or equipment. This may involve—but is not restricted to—heavy equipment or sharp objects. T o reduce the risk, follow the instructions accompanying this symbol.

Warning: A warning describes a procedure or action that may cause injury to the operator or equipment as a result of hazardous voltages. To reduce the risk of electrical shock and danger, follow the instructions accompanying this symbol.

Sidebar: A “sidebar” adds detail to the section within which it is placed, but is not absolutely vital to the description or procedure of the section.

Themis Computer

xxv

RES-22DCX Installation Manual

xxvi

Themis Computer

General Section

1.1 Overview

The RES-22DCX (see Figure 1-1 and Figure 1-2, page 1-2) is a rack-mounted sys- tem designed specifically for above-average shock and vibe environments. The RES-22DCX supports single or dual Intel® 771-pin LGA XeonTM 64-bit dual-core processors (each up to 2.33 GHz with a 1333-MHz system bus), and contains a combination of computer- and graphics-intensive and diverse-I/O capabilities, ideal for a variety of military/aerospace and commercial telecommunications applications.

Chapter

1RES-22DCX

Overview and Specifications

Themis Computer

Figure 1-1. RES-22DCX (with Rack Mounts)

1-1

RES-22DCX Installation Manual

PCI Riser Card

The PCI Riser Card is installed into Slot 6 with connecting cables installed into Slot 2 and Slot 3. Slot 1, Slot 4, Slot 5, and the SIMLP Slot 7 are not used in the RES-22DCX.

J13

3.3V

Slot 2

PCI-X

64 Bit

J14

3.3V

Slot 3

64 Bit

PCI Riser Card

Plug into PCI Slot 2

PCI-X

Plug into PCI Slot 3

133-MHz

PCI-X Bus

6700 PCI-X

64-bit Hub

(PXH-V)

Slot 4

PCI-Express

Slot 6

PCI-Express

Graphics Support

Slot 1

ZCR

PCI-X

64 Bit

On-Board

Headers

Controller Ports

On-Board Headers

Rear I/O Panel

LAN 1

LAN 2

Gigabit LAN

Ethernet

Note

* ZCR = Zero-Channel RAID

SCSI A

SCSI B

Dual-Channel

(IDE 1, IDE 2)

SATA 0 SATA 1 SATA 2 SATA 3 SATA 4

USB 4

USB 5

On-Board Headers

Dual-Channel Ultra320 SCSI

Primary M/S IDE

Secondary M/S IDE

Dual Serial ATA

Controller

ACH5R

RAID 0/1/5/10 Support

USB 2.0 Ports

0, 1, 2, 3 (Rear Panel)

USB 0

Rear I/O Panel

** VRM = Voltage Regulator Module

*** ESB = Enterprise South Bridge

**** FBD = Fully Buffered DIMM

Intel 5000X chipset

32 / 64 bit

Xeon CPU 2

Up to 2.33 GHz

Dual 771-pin LGA Sockets

Front-Side Bus 667 / 1066 / 1333 MHz

Intel

PCI-Express (A)

NOT USED

J17

2 GB/sec

Intel

5000X

Memory

Controller

Hub

Xeon CPU 1

PCI-E x4

Channel 0

Channel 1

Channel 2

Channel 3

(MCH)

Plug in

J15

J12

3.3V

NOT USED

Adaptec 7902

4 GB/sec

PCI-X Bus

100-MHz

x16

PCI-Express (B, C)

ATA / 100

Exp. Bus

Hub

Intel 6321

Memory

Supports 512-MB, 1-GB, 2-GB, or 4-GB Modules DDR2 667/533-MHz buffered (registered) ECC SDRAM

72-bit, 240-pin gold-plated DIMMs supported

1.8-volt memory voltage / 1.5-volt AMB

33-MHz

PCI-Bus

ESB2***

SATA

3.0 Gb/s

4, 5 (On Board)

I/O Controller

Hub

(ICH)

LPC Bus

USB 2.0

Baseboard

Management

H/W Monitor

USB 1

USB 2

USB 3

Super I/O

Floppy Disk-Drive (2.88 MB)

Controller

32 / 64 bit

VRM**VRM**

Up to 2.33 GHz

512-MB, 1-GB, 2-GB, 4-GB Modules

2-Channel ECC

DDR2-667/533 FBD****

Up to a total of

Up to a total of 12 GB

32 GB

Eight 240-pin DIMM Sockets

Slot 7

Slot 5

SIM LP IPMI

PCI

NOT USED

32 Bit

Audio Interface

(AC97)

System Power

Rear I/O Panel

Audio Line In

Audio Line Out

Microphone In

FWH

Rear I/O Panel

PS/2 Mouse (6-pin DIN)

PS/2 Keyboard (6-pin DIN)

Dual Serial Ports, COM1/COM2 (1 Mb/sec)

Parallel Port (EPP/ECP/SPP/BPP)

Bank 1A

Bank 1B

Bank 2A

Bank 2B

Bank 3A

Bank 3B

Bank 4A

Bank 4B

NOT USED

1-2

Figure 1-2. RES-22DCX System Block Diagram

Themis Computer

The RES-22DCX is designed within a 2RU-high (3.5”) form-factor 20” (50.8 cm) deep and 17” (43.2 cm) wide (which, with mounting brackets, fits a 19”-wide rack)— see Figure 1-3. Usable I/O expansion through three PCI slots mounted on a PCI Riser Card inserted into Slot 6 includes one PCI-Express (x16) slot and two 64-bit, 100/133 MHz PCI-X slots.

2 Hard-Disk Drives (SCSI or SATA II)

SCSI ID 1

SATA II ID 0 (Boot)

SCSI ID 0 (Boot)

SATA ID 1

Front View (Bezel Open)

CD-RW/DVD-ROM Combo Slimline Drive

Overview and Specifications

Overview

1 Hard-Disk Drive (Optional)

SCSI ID 2 SATA II ID 2

System Power

On/Off Switch

Power Supply

Latch Lock

AC Power Socket

(3-prong NEMA 15)

Power Cord Bracket is Removed

20” (50.8 cm) deep

Power Supply Retainer Bracket

Front LED Indicator Panel

(see Figure 1-5)

Power Supply with Twin-Fan Air Exhaust

Rear I/O Panel (see Figure 1-5)

17” (42.7 cm), 19” with Rack Mounts

1 of 2

Rear View

Reset Switch

Optional Graphics CardExample:

3.5”

(2RU)

PCI-X Slot, 64-bit, 100/133-MHz

PCI-Express (x16) slot

PCI-X Slot, 64-bit, 100/133-MHz

Figure 1-3. External Features of the RES-22DCX (Front and Rear)

Themis Computer

1-3

RES-22DCX Installation Manual

The RES-22DCX front panel houses three removable hard-disk drive bays (two on the left and one on the right), either Ultra320 SCSI or SATA II. Hard-disk drive requirements should be ordered at the time of purchase.

Also included on the front panel is a combination CD-RW/DVD-ROM Slimline drive, a reset switch, and the system power button and LEDs (see Figure 1-5 on page 1-10). The rear panel contains I/O faceplates for three PCI cards (graphics, NIC, etc.), two AC power supplies with latch locks and power-cord sockets, and all I/O connectors (Figure 1-5).

Major features of the RES-22DCX are described in Table 1-1. Major internal com- ponents can be seen in the open top view (cover removed) of Figure 1-4 on page 1-6.

Feature Details

Table 1-1. Major Features of the RES-22DCX

Processor (CPU)

Chipset

Memory

Expansion slots

Peripheral Support

Integrated SCSI

(no external I/O)

z Two dual-core Intel 771-pin Xeon CPUs @ up to 2.33 GHz z 2-MB or 4-MB L2 cache (per core) z 667/1066/1333 MHz front-side system bus speed z On-board Voltage-Regulator Module

z Intel 5000X chipset:

— Memory Controller Hub (MCH) — 6700 PCI-X Hub (PXH-V) — Enterprise SouthBridge 6321 I/O Controller Hub (ICH)

z Eight 240-pin DIMM sockets supporting up to 32 GB of registered ECC

DDR2 FBD 667/533 SDRAM

The following 3 PCI slots are horizontally located on a PCI Riser Card installed in slot 6:

z Upper Slot: One PCI-X (64-bit, 100/133-MHz) slot z Middle Slot: One PCI-Express (x16 @4-GB/sec) slot z Lower Slot: One PCI-X (64-bit, 100/133-MHz) slot

z Three removable Ultra320 SCSI or SATA II hard-disk drives z 1 combination CD-RW/DVD-ROM slimline (IDE) drive

z Dual-channel Ultra320 support for internal SCSI hard-disk drives thro ugh

cabled on-board headers (system default)

Serial ATA

(no external I/O)

1-4

z Dual-channel support for internal SA TA II drives through cabled on-board

headers

Themis Computer

Table 1-1. Major Features of the RES-22DCX (Continued)

Feature Details

Overview and Specifications

Overview

Integrated I/O

Operating temperature Shock endurance Dimensions

z 2 serial ports (9-pin)—COM1 (standard) and COM2 (optional) z 1 parallel port (25-pin, EPP/ECP/SPP/BPP) z 6 USB 2.0 ports (4 from rear I/O panel, 2 from on-board headers z 1 PS/2 keyboard port (DIN-6) and 1 PS/2 mouse port (DIN-6) z 1 Intel 82563 Gigabit Ethernet controller (1 or 2 LAN ports, LAN1/LAN2) z 1 audio line in, 1 audio line out, 1 audio microphone in z 1 Adaptec 7902 Ultra 320 zero-channel SCSI RAID controller

z 0°C to 50°C z 25G @ 40-msec duration z 3.5” (2RU) high, 17” (43.2 cm) wide (19”/48.3 cm with mounting brackets),

20” (50.8 cm) deep

Rack-mount brackets and slides

Dual power supplies

a—The two on-board USB headers are brought out to the rear of the chassis above the I/O Panel (see Figure 1-3, page 1-3,

and Figure 1-5, page 1-10). Those who wish to customize USB ports should contact a local Themis sales office or info@themis.com.

z Choice of rack-mount brackets with handles (optional) or without handles z Optional rack-mount slides

z AC: 460 watts each, auto-ranging (100–240 volts) z DC: 300 watts each (18–36 volts) z Load-sharing N+1 redundant, hot-pluggable z Filtered, fuse-protected AC sockets

)

Themis Computer

1-5

RES-22DCX Installation Manual

PCI Slot 1

(64-bit/100-MHz PCI-X)* (64-bit/133-MHz PCI-X)

(64-bit/133-MHz PCI-X)

3 4

(4-GB/s x4 PCI-express)*

(32-bit/33-MHz PCI)* (2-GB/s x16 PCI-express)

6 7

(SIM LP IPMI)*

* These slots are not used

in the RES-22DCX.

Lithium Battery

CPU/Memory Retainer Bracket (not shown)

PCI Riser Card in Slot 6 (not shown)

DIMM Memory Modules (8)

CPU 2 (with Fan) CPU 1 (with Fan)

Power Supply (2)

Note on PCI-Slot Availability

Because of the 2RU height restriction of the RES-22DCX, PCI cards must be installed in the horizontal position through the use of a PCI Riser Card.

As a result, only 3 PCI cards can be installed:

• 1 PCI-Express card

• 2 PCI-X cards (64-bit)

See Chapter 2 for more details.

Front

SCSI/SATA-II Disk-Drive (2) Housing

Dual 60-mm Fan Assembly (Two required)

CD/DVD Combo-Drive Housing

Figure 1-4. Major Components of the RES-22DCX (Open Top View)

1-6

Themis Computer

1.1.1 Special Features

1.1.1.1 Recovery from AC Power Loss

The BIOS setup can be configured to allow the system, whenever AC power is lost,

• to remain off (in which case, the power switch must be activated by the user) or

• return to a power-on state automatically when power is restored.

The system default is “Always On”.

1.1.1.2 Voltage Monitors

A built-in voltage monitor continually scans multiple voltages (CPU cores, chipset voltage, +3.3V, +5V, +12V, –12V, and +5V standby) on the motherboard. If a voltage becomes unstable, it issues a warning or sends an error message to the screen. Voltage thresholds can be adjusted through the PC health-monitor utility to define the sensitivity of the voltage monitor.

Overview and Specifications

Overview

1.1.1.3 Fan Status Monitor

The RES-22DCX has ten cooling fans—two 60-mm fans within each fan assembly at the front of the system, one on each CPU, and two within each power supply. The PC health-monitor utility can be used to check the RPM status of cooling fans. The onboard CPU and chassis fans are controlled by Thermal Management via BIOS.

1.1.1.4 Environmental Temperature Control

The thermal-control sensor monitors CPU temperature in real time and will activate the thermal fan when CPU temperature exceeds a user-defined threshold. Overheat circuitry operates independently from the CPU, and can continue to monitor overheat conditions even when the CPU is in sleep mode.

Once the thermal sensor detects a CPU temperature that is above the set threshold, it automatically turns on the thermal control fan to prevent overheat damage to the CPU. In addition, onboard chassis thermal circuitry can monitor overall system temperature and alert users when chassis temperature exceeds a user-defined threshold.

1.1.1.5 CPU Fan Auto-Off in Sleep (Doze) Mode

The CPU fan activates when power is turned on, and continues to operate when the system enters Standby mode. In Sleep mode, the CPU will not run at full power, generating less heat. Sleep settings are made through the PC health-monitor utility.

Themis Computer

1-7

RES-22DCX Installation Manual

1.1.1.6 CPU Overheat LED and Control

This feature is enabled by the user through the CPU overheat warning function in the BIOS. With it, the user can define an overheat temperature that, when exceeded, activates the overheat fan and the Overheat warning LED.

1.1.1.7 IPMI Module Support

The RES-22DCX motherboard contains a special SIM Low Profile IPMI 2.0 slot (see Figure 1-4) to install an optional Intelligent Platform Management Interface (IPMI) module. This invaluable health-monitoring tool provides full SNMP (including SNMP trap), some power cycle functions (reboot and graceful shutdown), and the ability to control other servers. [This module must be installed at the factory.]

Detailed information on IPMI may be obtained from the following website:

http://www.intel.com/design/servers/ipmi/.

1.1.1.8 System Resource Alert (optional)

Available only through Supero Doctor III in the Windows OS environment or Supero Doctor II in Linux (an optional third-party product), this feature is used to notify the user of certain system events. For example, if the system is running low on virtual memory and there is insufficient hard disk-drive space for saving the data, an alert will be issued warning of the potential problem.

1.1.2 ACPI Features

Advanced Configuration and Power Interface (ACPI) defines a flexible and abstract hardware interface that provides a standard method of integrating power management features throughout the system. This includes the hardware, the operating system, and the application software. As a result, the system can automatically turn peripherals (CD-ROMs, NICs, hard-disk drives, and printers, for example) on or off. This includes any consumer devices that may be connected to the system (VCRs, TVs, telephones, and stereo systems, for example).

In addition to providing operating-system power management, ACPI offers a generic system event mechanism for Plug and Play and an operating-system-independent interface for configuration control. Plug-and-Play BIOS data structures are leveraged, while the implementation is processor-architecture-independent and compatible with both Windows 2000 and Windows NT 5.0.

1-8

Themis Computer

1.1.2.1 Suspend-State Indicator

When the CPU enters a suspend state, the Power LED will start blinking to indicate that the CPU is in suspend mode. Pressing any key on the keyboard will awaken the CPU, at which time the power LED will stop blinking and remain on.

1.1.2.2 Main Switch Override

ATX 2.01 (or higher)-compliant power supply only. If enabled in the system setup, the RES-22DCX power button on the front of the unit functions as a suspend button to make the system enter a SoftOff state. The monitor is suspended, and the hard drive will spin down. Pressing the power button again will cause the system to awaken.

During the SoftOff state, the ATX power supply provides only enough power to keep the minimum required circuitry alive. If you want to turn the power off completely, in the event of a system malfunction, for example, depress and hold the power button for four (4) seconds. The system will turn off completely with no power to the motherboard provided. This option can be set in the Power section of the BIOS setup routine.

Overview and Specifications

Overview

1.1.2.3 External Modem Ring-On

ATX 2.01 (or higher)-compliant power supply only. When the system is in the

SoftOff state, it can be awakened by the ringing of an external modem. This feature can only be provided if “External Modem Ring-On” is included in the installed modem card and the corresponding setting is enabled in the system BIOS settings.

1.1.2.4 Wake-On-LAN (WOL)

ATX 2.01-compliant (or higher) power supply only. The Wake-On-LAN utility enables a management application to remotely power up a computer that has been powered off. This allows remote PC setup, updates and access tracking to occur after hours and on weekends, so that daily LAN traffic is kept to a minimum and users are uninterrupted. The serverboard employs a 3-pin header (JWOL) to connect to the 3-pin header of any Network Interface Card (NIC) with WOL capability. Wake-On-LAN must be enabled in BIOS.

Themis Computer

1-9

RES-22DCX Installation Manual

1.1.3 System LEDs and I/O Connectors

All RES-22DCX system LEDs are located on the front panel (see Figure 1-5A); all I/O connectors are located on the rear panel (see Figure 1-5B). LEDs are described in Table 1-2 on page 1-11; connectors are described in Table 1-3, page 1-12.

Supply

Upper Powe r

Front Panel (Bezel Cover Closed and Locked)

ENET1 ENET2

Powe r Powe r

Drives

Rear Panel

NIC1 NIC2Hard-Disk

Fail

(PS1)

Optional USB Ports (2) Optional Serial Port (COM2)

Powe r

Fail

(PS2)

Reset

Switch

LEDs

Overheat

1-10

Lower

Powe r

Supply

I/O Connectors

PS/2 Mouse

PS/2 Keyboard

USB0 (top) USB1 USB2 USB3 (bottom)

COM1

Por t

Parallel

Por t

LAN Port 1 (top)

LAN Port 2

(Gigabit Ethernet)

Figure 1-5. RES-22DCX System LEDs and I/O Connectors

Optional Graphics Card Example:

Audio

MICLine In

Line Out

Themis Computer

Overview and Specifications

ENET

Table 1-2. System LEDs

Symbol LED Description

Overview

ENET1

Power

Hard Disk Drive (HDD)

NIC1

(Gb Ethernet) z Indicates network activity on LAN 1.

NIC2 (Gb Ethernet)

Power Fail

(Upper Power Supply)

Power Fail

(Lower Power Supply)

Overheat/Fan Fail —Normally OFF —RED light when tem-

perature limits are exceeded

z Indicates that the system is turned on.

z Indicates SCSI/SATA II hard-drive activity.

z Indicates network activity on LAN 2.

z Warns that there is a failure in the upper power

supply.

z Warns that there is a fa ilure in the lower power

supply.

z Warns that the system is exceeding specified

temperature parameters. The CPU overheat warning function must be enabled in the BIOS, thus allowing the user to define an overheat temperature, which—when exceeded—triggers the overheat warning LED.

Themis Computer

Symbol Rear Panel LED(s) Description

Each Ethernet port contains two LEDs:

z The color of the left LED (when facing the port)

indicates the LAN connection speed:

N/A LAN1 and LAN2

- Off = 10 MHz

- Green = 100 MHz

- Amber = 1 GHz

z The right LED, when lit, indicates LAN activity.

a—NIC = Network Interface Controller.

1-11

RES-22DCX Installation Manual

Connector Description

Table 1-3. I/O Connectors

PS/2 Mouse PS/2 Keyboard

USB0 to USB3

Hi-Speed USB 2.0 Serial Ports

COM1/COM 2

Serial Port

Parallel Port

Ethernet LAN Ports

Line In / Line Out /

MIC

z 6-pin mini-DIN (female) connector to attach a PS/2 mouse device. z 6-pin mini-DIN (female) connector to attach a PS/2 keyboard device. z Four 4-pin USB connectors to attach serial devices to USB port 0

through port 3.

Note: Two additional USB ports can be accessed from the rear as an

option, and two more directly from the motherboard.

z One standard DB9 (male) connector on rear panel to attach a serial

device to COM1port An optional second serial port (COM2) can be ordered.

z DB25 (female) connector to attach a parallel port device. z Stand ard RJ45 connector to attach one or two gigabit Ethernet

line(s)—LAN1 and LAN2.

z One mini-jack to connect an audio line in, one mini-jack for an audio

line out, and one mini-jack for a microphone input cable.

1-12

Themis Computer

1.2 Chipset Overview

Built upon the functionality and the capability of the Intel 5000X chipset, the RES22DCX provides the performance and feature set required for dual processor-based servers, including optimal configuration options for communications, presentation, storage, computation or database applications. The 5000X chipset supports single or dual Xeon 64-bit dual-core processors with front-side bus speeds of up to 1.333 GHz. The Intel chipset consists of:

• the 5000X Memory Controller Hub (MCH),

• the Intel 6321 Enterprise South Bridge (ESB) I/O Controller Hub (ICH), and

• the 6700 PCI-X 64-bit hub (PXH-V).

In addition, a Super I/O Controller chip offers a range of functions to increase the I/O capability of the system.

Overview and Specifications

Chipset Overview

1.2.1 The Intel 5000X Memory Controller Hub (MCH)

The 5000X Memory Controller Hub (MCH) chipset is designed for symmetric multiprocessing across two independent front side bus interfaces. Each front side bus uses a 64-bit wide, 1.333 GHz data bus that transfers data at 10.7 GB/sec (for a total bandwidth of 21.3 GB/sec.)

The MCH provides four channels of Fully-Buffered DIMM (FB-DIMM) memory. Each of these channels can support up to four Dual Ranked FB-DIMM DDR2 DIMMs. FB-DIMM memory channels are organized in to two branches for support of RAID 1 (mirroring). The RES-22DCX MCH chipset connects up to 8 fully-buffered DIMM modules, providing a total of 32.0 GB/s for DDR2 667/533 memory. The MCH chipset also provides three x8 PCI-Express and one x4 ESI interface to the ESB2. In addition, the 5000X chipset offers a wide range of RAS features, including memory interface ECC, x4/x8 Single Device Data Correction, CRC, parity protection, memory mirroring and memory sparing.

The Xeon dual-core processor is designed to be used in conjunction with the 5000X chipset, and provides the following features:

• L1 Cache Size: Instruction Cache (32KB/16KB), Data Cache (32KB/24KB)

• L2 Cache Size: 4MB/2MB (per core)

• Data Bus Transfer Rate: 8.5 GB/s

• Package: FC-LGA6/FC-LGA4, 771 Lands

Themis Computer

1-13

RES-22DCX Installation Manual

1.2.2 The Intel 6321 ESB I/O Controller Hub (ICH)

The Intel 6321 ESB I/O Controller Hub integrates an Ultra ATA 100 controller, six Serial ATA host controller ports, one EHCI host controller, and four UHCI host controllers supporting eight external USB 2.0 ports, LPC interface controller, flash BIOS interface controller, PCI interface controller, Azalia / AC’97 digital controller, integrated LAN controller, an ASF controller and a ESI for communication with the MCH.

The Intel 6321 ESB I/O Controller Hub component provides the data buffering and interface arbitration required to ensure that system interfaces operate efficiently and provide the bandwidth necessary to enable the system to obtain peak performance. The Intel 6321 ESB I/O Controller Hub elevates Serial ATA storage performance to

the next level with Intel® RAID. The ACPI compliant Intel 6321 ESB I/O Controller Hub platform can support the

Full-on, Stop Grant, Suspend to RAM, Suspend to Disk, and Soft-Off power management states. Through the use of the integrated LAN functions, the Intel 6321 ESB I/O Controller Hub also supports Alert Standard Format for remote management.

1.2.3 The Intel 6700 PCI-X 64-bit Hub (PXH-V)

The Intel 6700 PCI-X 64-bit hub (PXH-V) attaches directly to the MCH through a point-to-point PCI-Express x8 or x4 link for support of PCI and PCI-X interfaces on the platform. Each 6700PXH 64-bit PCI hub supports two bus segments that can be independently configured to operate in PCI (33 MHz of 66 MHz) or PCI-X mode (at 66, 100, or 133 MHz) for 32-bit or 64-bit PCI/PCI-X devices.

Each PCI/PCI-X interface integrates a PCI standard hot-plug controller. The hub supports multiple PCI-X slots and frequencies for the high-bandwidth I/O connectivity required for today’s server market.

1.2.4 Super I/O Controller

The Super I/O Controller chip disk-drive adapter functions include:

• a floppy disk drive controller (industry standard 82077/765 compatible)

• a data separator

• write pre-compensation circuitry

• decode logic

• data rate selection

1-14

Themis Computer

Overview and Specifications

Chipset Overview

• clock generator

• drive interface control logic

• interrupt and DMA logic The wide range of functions integrated onto the Super I/O greatly reduces the num-

ber of components required for interfacing with floppy disk drives. The Super I/O supports two 360K, 720K, 1.2M, 1.44M or 2.88M disk drives, and data-transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s.

It also provides two high-speed, 16550-compatible serial communication ports (UARTs), one of which supports serial infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. Both UARTs provide legacy speed with baud rates of up to 115.2 Kbps, as well as an advanced speed with baud rates of 250K, 500K, or 1 Mb/s (for higher speed modems).

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer Port (BPP), Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

Advanced Configuration and Power Interface (ACPI)-compliant functions support legacy and ACPI power management through an SMI or SCI function pin. An autopower-management feature reduces power consumption.

Themis Computer

1-15

RES-22DCX Installation Manual

1.3 Specifications

1.3.1 General

Table 1-4 lists general specifications for the RES-22DCX.

Table 1-4. RES-22DCX General Specifications

Parameter Description

Dimensions

Weight

19” Rack-Mountable

with Slide capability

Temperature

Operating: Non-Operating:

Relative Humidity

Operating: Non-Operating:

Maximum Wet Bulb

Operating: Non-Operating:

z 3.5” (2RU) high z 17” (43.2 cm) wide (19” rack-mountable) z 20” (50.8 cm) deep

z Under 37 pounds (16.8 kg), includes 3 full-length (up to 12.25”)

PCI cards, 1 CD-RW/DVD-ROM drive, 3 SCSI/SA T A II hard-disk drives, and 2 power supplies

z Add 8.8 pounds (4 kg) for the shipping container and two AC

power cords

z The manual and associated shipping paperwork weighs approx-

imately 1 lb (0.5 kg)

z Left and right rack-mount tabs (3 screws each) included with

chassis

z 0°C to +50°C z –40°C to +70°C

z 8% to 90% non-condensing z 5% to 95% non-condensing

z 27°C, non-condensing z 35°C, non-condensing

Altitude

Operating: Non-Operating

1-16

z 0 to 10,000 feet above sea level z 0 to 40,000 feet above sea level

Themis Computer

1.3.2 Electrical

Table 1-5 lists the electrical specifications for the RES-22DCX.

Parameter Description

Overview and Specifications

Specifications

Table 1-5. RES-22DCX Electrical Specifications

Input Power Input Current Input Frequency Input Voltage Input VA Rating BTU Rating Power Factor Input Leakage Plug Type

1.3.2.1 System Power

The RES-22DCX operates with two N+1 redundant power supplies of 460-watts capacity each that auto-range single-phase AC input from 100 to 240 VAC (47 to 63 Hertz) sources. Filtered and fused (internal) AC is supplied to each power supply from a rear-mounted power connection.

z 657 watts z 8 amperes (115V), 4 amperes (230V); 30 amperes peak z 47–63 Hertz z 100–240 VAC, internally fused z 660 VA z 1280 z 0.99 z 6 mA maximum @240 VAC z NEMA 5-15P

1.3.2.2 Output Voltage

The RES-22DCX power supply provides output voltages that are split between +3.3V, +5V, +5Vsb, +12V, and -12V rails.

1.3.3 Environmental

1.3.3.1 Shock

The RES-22DCX is designed to survive an elevated shock environment. All structural components are welded together, enabling the system to survive a maximum 3-axis shock load of 25G at 40-ms duration.

Themis Computer

1-17

RES-22DCX Installation Manual

1.3.3.2 Electrostatic Discharge

The RES-22DCX is designed to tolerate electrostatic pulses up to 15 kilovolts (KV) with no impact on system operation.

1.3.3.3 Noise Level

Typical noise levels emitted by the RES-22DCX are outlined in Table 1-6. The chassis is installed with two 60-mm fans per fan assembly (two assemblies per system are required).

Table 1-6. Typical Noise Levels of the RES-22DCX

Measured at: 1 Meter 2 Meters

Front 66.24 dB 57.57 dB Rear 61.53 dB 57.93 dB

1-18

Themis Computer

1.4 Packaging and Shipping

The RES-22DCX is packaged in a reusable shipping container. Approximate weight of an empty container and two AC power cords is 8.8 pounds (4 kg).

The approximate weight of a RES-22DCX (loaded with three hard-disk drives, three PCI cards, a CD-R W/DVD-ROM drive, and two power supplies) is under 37 pounds (16.8 kg).

The approximate weight of a manual and associated shipping paperwork is one pound (0.5 kg).

Therefore, both the shipping container and a fully installed RES-22DCX including power cords, manual, and associated paperwork, weigh under 47 pounds (21.3 kg).

1.4.1 Accessory Kit

Overview and Specifications

Packaging and Shipping

Each RES-22DCX is packaged with an Accessory Kit, consisting of the following items, shown in Figure 1-6 on page 1-20:

A. A Power-cord Retainer Bracket

B. Two AC Power Cords C. Two Front-Bezel Barrel Keys D. Two Power-cord Retainer Velcro Straps

When you unpack the RES-22DCX, please verify that all of these items are included. If any of these items are missing or not as pictured, please call Themis Technical Support at 510-252-0870, or send an email to support@themis.com.

To learn how to secure the AC power cords, using the power-cord retainer bracket and the velcro straps, refer to Section 2.3.1, “Plugging in and Securing the AC Power Cords,” on page 2-19.

Themis Computer

1-19

RES-22DCX Installation Manual

B(1)

B(2)

D(1)

D(2)

Figure 1-6. RES-22DCX Accessory Kit

1.4.2 Rack-Mount Slides (Optional)

Rack-Mount Slides can be mounted on each side of the RES-22DCX, for the purpose of sliding the unit in and out of a rack. Mounting slides are optional and can be ordered at the time of purchase.

To learn how to install rack-mount slides, refer to Appendix B, “Rack-Mount Slide Installation”, on page B-1.

1-20

Themis Computer

2RES-22DCX

Installation Section

This chapter describes:

• How to install a memory module, SCSI hard-disk drive, PCI card, 60-mm-fan housing, power supply, and lithium battery.

Chapter

Installation and Operation

• Rack-mount brackets

• How to turn the RES-22DCX on and off

2.1 Installation Procedures

Caution: Use industry-standard ESD grounding techniques when handling all components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Handle all IC cards by the front panel or edges only.

To install or replace a SCSI hard-disk drive or power supply, skip the next section and proceed directly to page 2-6 or page 2-15, respectively. Replacement of motherboard components require removal of the chassis protective cover.

2.1.1 Remove Protective Top Cover

To access a motherboard component, open the RES-22DCX as follows:

Themis Computer

2-1

RES-22DCX Installation Manual

1. Loosen the two captive Phillips screws holding the protective top access cover to the rear of the RES-22DCX chassis (see A, Figure 2-1).

2. Both the front and sides of the cover have flat hooks or tabs underneath that fit under slots on the chassis top edges (see B, Figur e 2-1). Remove the cover by sliding it toward the rear until it is free of these chassis slots.

3. Store the cover in a safe place until it is replaced.

Left-side top edge

. . . and slide the top cover toward the rear until the top hooks and tabs clear all chassis slots

2-2

Loosen the 2 captive access-cover screws . . .

Chassis slot Chassis slot

Figure 2-1.

Remove the RES-22DCX Protective Access Cover

Rear View

Themis Computer

4. Proceed to the appropriate section to install or replace a memory module (page 2-3), PCI card (page 2-9), 60-mm-fan housing (page 2-13), or lithium battery (page 2-17).

2.1.2 Memory Modules

The RES-22DCX supports up to eight registered ECC DDR2 Fully-buffered DIMM (FBD) Memory Modules (see Table 2-1), up to a total memory capacity of 32 GB (see Figure 2-2 on page 2-4).

Table 2-1. RES-22DCX Memory Modules

RES-22DCX

z Eight 240-pin DIMM Sockets DDR-667 PC2-5300 32 GB 2.67 GB/s

Installation and Operation

Installation Procedures

Memory

FBD Standard Capacity Speed

DDR-533 PC2-4200 32 GB 2.1 GB/s

Caution: Exercise extreme caution when installing or removing FBD Memory Modules to prevent any possible damage.

The dual-channel memory bus can support full-duplex memory bandwidth transfers of up to 3.2 GB/s. When installing memory, follow these rules:

• Two modules must be installed at a time, starting with DIMM 1A and 1B (Bank 1), then 2A and 2B (Bank 2), 3A and 3B (Bank 3), and finally 4A and 4B (Bank 4); see Figure 2-2 on page 2-4.

• It is strongly recommended that you do not mix memory modules of different speeds and sizes. If DIMMs of different speeds have been installed, verify that the BIOS setup is configured for the fastest speed of RAM used.

• Make sure that the correct type of SDRAM is being used (see Table 2-1). Other types of SDRAM are not supported.

Themis Computer

2-3

RES-22DCX Installation Manual

2.1.2.1 Installation

The following procedure explains how to install the DDR2 FBD Memory Modules.

1. Loosen the four captive screws securing the memory retainer bracket and remove the bracket (see A, Figure 2-2).

2. Determine the location of the slot into which the Memory Module will be installed (see B, Figure 2-2).

Front

Remove memory retainer bracket (4 screws)

DIMM 4B

DIMM 4A

Channel B

Bank 3

Channel A

Channel B

Channel A

Channel B

Bank 2

Bank 1

Bank 4

Channel A

Channel B

Channel A

2-4

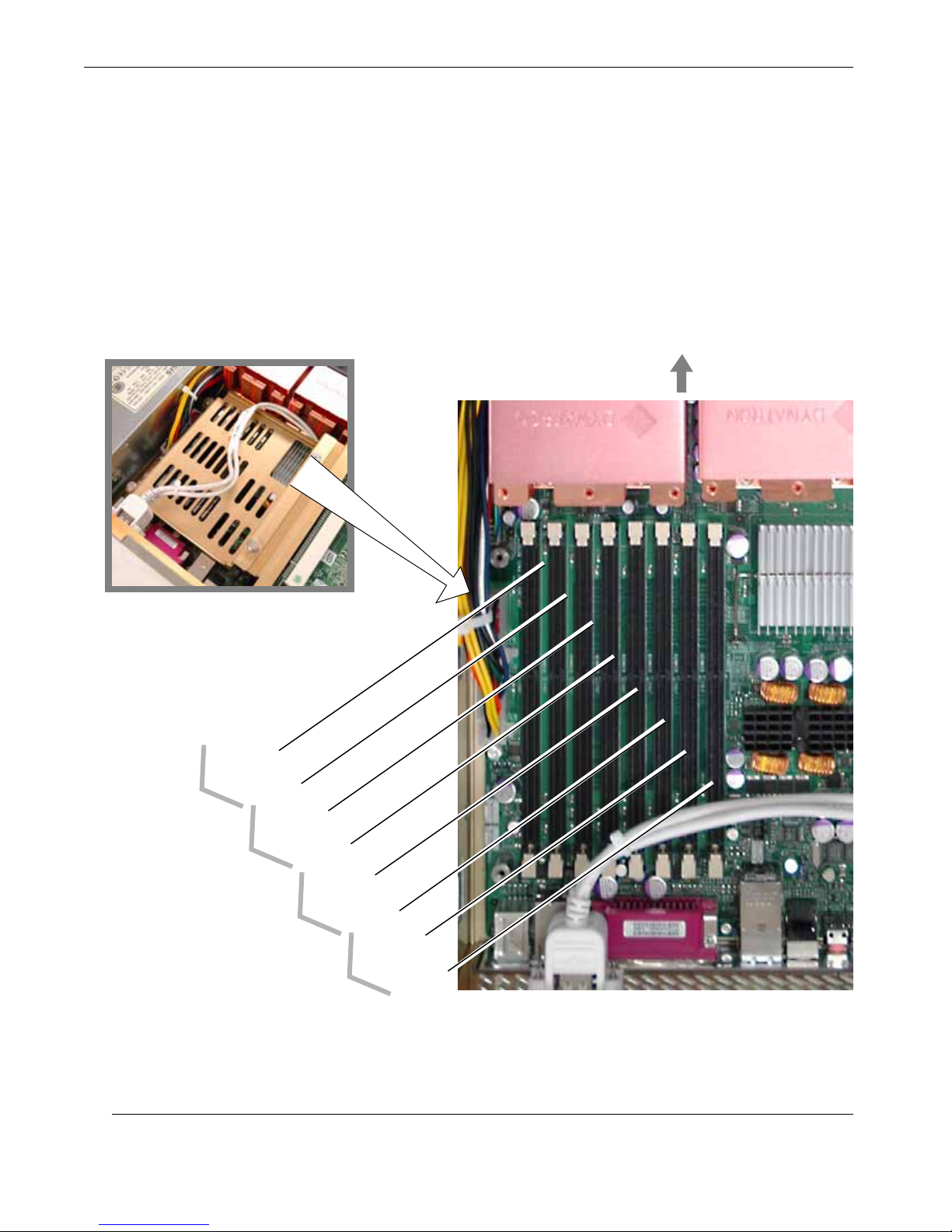

Figure 2-2.

Memory Module Slot Location

Themis Computer

Press latch downward & outward at each end

Installation and Operation

Installation Procedures

3. If a module is already seated in the slot you have selected for installation,

remove it by gently pressing down and outward on the latches at both ends of the slot (see Figure 2-3), then pulling the old module directly up from the slot until it is free of the connector.

Themis Computer

Figure 2-3. Memory Module Removal

4. Before inserting a new memory module into the vacant slot, make sure that

the two latches are pulled outward away from the center of the slot. With the latches in the outward position, gently insert the new module verti-

cally into its slot and press firmly downward until it snaps into place.

Note: Make sure the memory module has the proper orientation by aligning the alignment notch at the bottom edge with its counterpart ridge at the bottom of the slot.

2-5

RES-22DCX Installation Manual

2.1.3 SCSI/SATA II Hard-Disk Drive

Perform the following steps to remove and install a hard-disk drive, which may be either SCSI or SATA II.

Note: For SCSI drives, the lower left-hand removable disk drive (SCSI ID0) is designated as the boot drive. For SATA II drives, the upper left-hand removable disk drive (SATA II ID0) is designated as the boot drive.

The front bezel of the RES-22DCX must be unlocked and opened to access the SCSI/SATA II hard-disk drives.

2.1.3.1 Opening the RES-22DCX Front Bezel (required for Disk Drive access)

To access the removable hard-disk drives, you must first open the Front Bezel (see Figure 1-3, page 1-3). The pushbutton lock on the front of the RES-22DCX allows the bezel to open without a key (see Figure 2-4). To unlock the pushbutton lock, press the pushbutton and pull the bezel cover away from the chassis.

The accessory kit shipped with your RES-22DCX contains two barrel lock keys (see Figure 1-6 on page 1-20). This provides you the option of locking the front bezel.

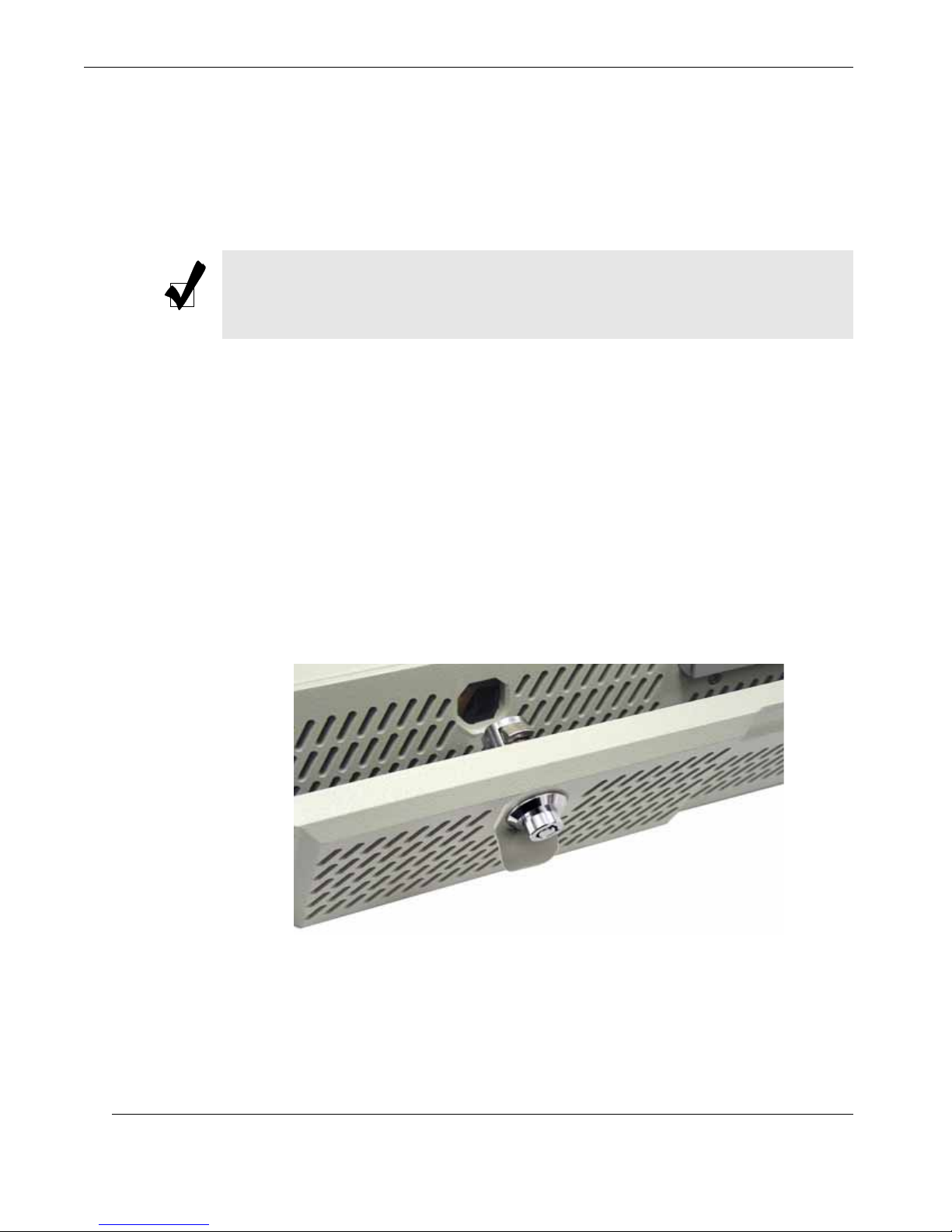

Figure 2-4.

After opening the front bezel cover, perform the following steps to remove and install a hard-disk drive.

2-6

Pushbutton Lock on the RES-22DCX Front Bezel Cover

Themis Computer

2.1.3.2 Disk-Drive Removal

To remove a hard-disk drive,

1. Make sure the system is powered off (see “Operation” on page 2-19).

2. Locate the drive to be removed (see A in Figure 2-5).

3. Place a finger into the latch lock and push to the right; this causes the drive latch handle to spring forward (see B) from the front surface of the drive.

Caution: When pulling the hard-disk drive from the chassis, hold it at the bottom to prevent it from falling and damaging the drive.

Installation and Operation

Installation Procedures

Locate the drive to be removed, . . .A

. . . push the latch lock to the side, . . .

. . . and pull drive out with the latch handle

Latch Lock

Latch Handle

Figure 2-5. RES-22DCX Hard-Disk Drive Removal

4. Carefully pull the latch handle (see C) until the drive has cleared the chassis. The drive will automatically disconnect from its backplane connector when pulled forward.

Themis Computer

2-7

RES-22DCX Installation Manual

2.1.3.3 Disk-Drive Installation

To install a hard-disk drive,

1. Make sure the latch handle of the drive to be installed is in the open position.

2. Properly orient the new drive and insert it into the vacant drive slot. If the

drive cannot be inserted into the slot, rotate it 180 degrees (it is impossible to install the drive incorrectly into its slot).

3. Push the drive toward the rear (DO NOT CLOSE the latch handle while push-

ing) until the drive is flush with the front of the chassis. The handle will swing closed when it comes into contact with the RES-22DCX chassis.

4. When the drive is fully inserted into its slot, push the latch handle closed until

the latch lock has snapped into the locked position.

Caution: When in the closed position, the latch handle secures the drive to the chassis. If the handle is closed before the drive is fully inserted, the latch mechanism may not fully engage to secure the drive.

2-8

Themis Computer

2.1.4 PCI Cards

Since the RES-22DCX is only 2RU (3.5”) high, PCI cards must be installed horizontally through the PCI Riser Card (see Figure 2-6), which supports a total of three PCI cards:

• Upper Slot: One PCI-X (64-bit, 100/133-MHz) card

• Middle Slot: One PCI-Express (x16) card

• Lower Slot: One PCI-X (64-bit, 100/133-MHz) card

Installation and Operation

Installation Procedures

Upper Slot (PCI-X, 64-bit, 100/133-MHz)

Middle Slot (PCI-Express, x16)

Lower Slot (PCI-X, 64-bit, 100/133-MHz)

PCI Slot

456

PCI Riser Card

Front View

Riser Card

Motherboard

PCI Riser Card

PCI-Riser-Card Bracket

Dual-Channel Long-PCI-Card Retainer

Themis Computer

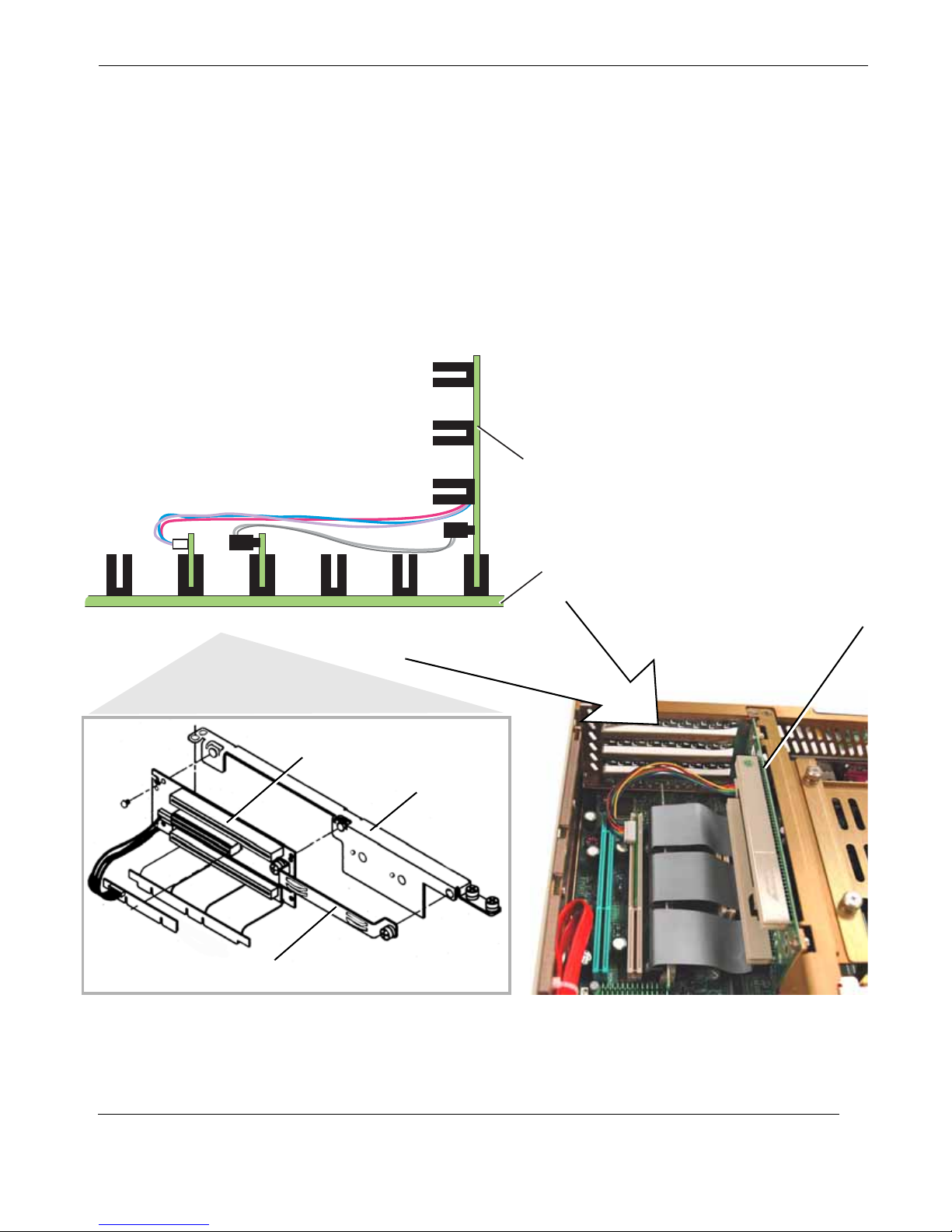

Figure 2-6.

PCI Riser Card in Slot 6

2-9

RES-22DCX Installation Manual

As shown in Figure 2-6 and Figure 2-7, the PCI Riser Card is installed in Slot 6 of the motherboard, with the longer connector plugged into Slot 3, and the shorter connector plugged into Slot 2.

3-Slot PCI Riser Card

PCI-Card Locking Lever

Plug Short Connector into Slot 2

PCI-X (64 bit, 100/133 MHz) (from Slot 2 and Slot 3)

PCI-Express (x16) (from Slot 6)

PCI-X (64 bit, 100/133 MHz) (from Slot 2 and Slot 3)

Plug Card into Slot 6

Note: When your RES-22DCX system is shipped, the PCI Riser Card and its two cable connectors will already be installed, along with PCI cards you have ordered.

To accommodate a long PCI card in the upper PCI Riser Card slot, card retainers will be installed within the chassis (see Figure 2-8).

Upper PCI Riser Card Slot

Long PCI Card

Plug Long Connector into Slot 3

Figure 2-7. The RES-22DCX PCI Riser Card

Card Retainers for Long PCI Card

Dual-Channel Retainer

•

Screw

Figure 2-8. PCI Card Retainers are Installed to Hold Long PCI Cards

2-10

Screw

1 of 2 Retainers

•

Themis Computer

2.1.4.1 Installation

Follow these steps to install a PCI card in the RES-22DCX system:

1. Make sure that the 2RU-high PCI Riser Card is firmly inserted into Slot 6 of the motherboard (see Figure 2-6), and that both cable connectors are installed in their respective slots (2 and 3).

2. Before any PCI card can be removed or installed, the PCI-card retainer bracket must be removed. Loosen the Phillips screw holding this retainer (see A, Figure 2-9 on page 2-12) and remove the retainer.

3. Locate the lowest PCI Riser Card slot within which a PCI card will be installed, then remove all PCI cards that are installed above it. If the slot is empty, remove the Phillips screw holding the blank I/O Panel.

4. Install the new PCI card in the lowest available slot (see B, Figure 2-9), se- curing its I/O faceplate with the Phillips screw removed in Step 3.

Installation and Operation

Installation Procedures

5. Continue installing PCI cards above the card installed in Step 4 until all cards have been installed (see C, Figure 2-9).

Caution: The middle slot of the PCI Riser Card contains a card-locking lever that pivots (counter-clockwise) to lock the PCI-Express card into place. Since some PCI card edges are fragile, firmly seat the card and be careful when locking it in place.

Note: If a long PCI card is being installed in the top slot of the PCI Riser Card, make sure that the card retainers have been installed to hold both (opposite) edges of the PCI card (see Figure 2-8). Card retainers rigidly hold the PCI card to prevent damage during a sudden shock to the system.

If you are installing a long PCI card in the top slot of the PCI Riser Card and retainers have not been installed on your RES-22DCX, call Themis Customer Service for instructions.

6. Replace the PCI-card retainer bracket and secure it with the Phillips-head screw previously removed (see D, Figure 2-9).

7. Attach any internal I/O cables to the installed PCI cards.

8. Carefully fold and tuck any exposed ribbon cables into the chassis.

Themis Computer

2-11

RES-22DCX Installation Manual

Loosen the Phillips screw holding the PCI-Card retainer bracket and remove the bracket and screw . . .

9. If you have no further internal installations to perform, close the RES-22DCX

chassis by refastening the top cover removed in Step 1 on page 2-2.

Last PCI Card

. . . and continue until all PCI Cards have been installed.

First PCI Card

. . . insert a PCI Card into the lowest available slot, . . .

PCI-Card Retainer Bracket

Replace the PCI-Card retainer bracket

2-12

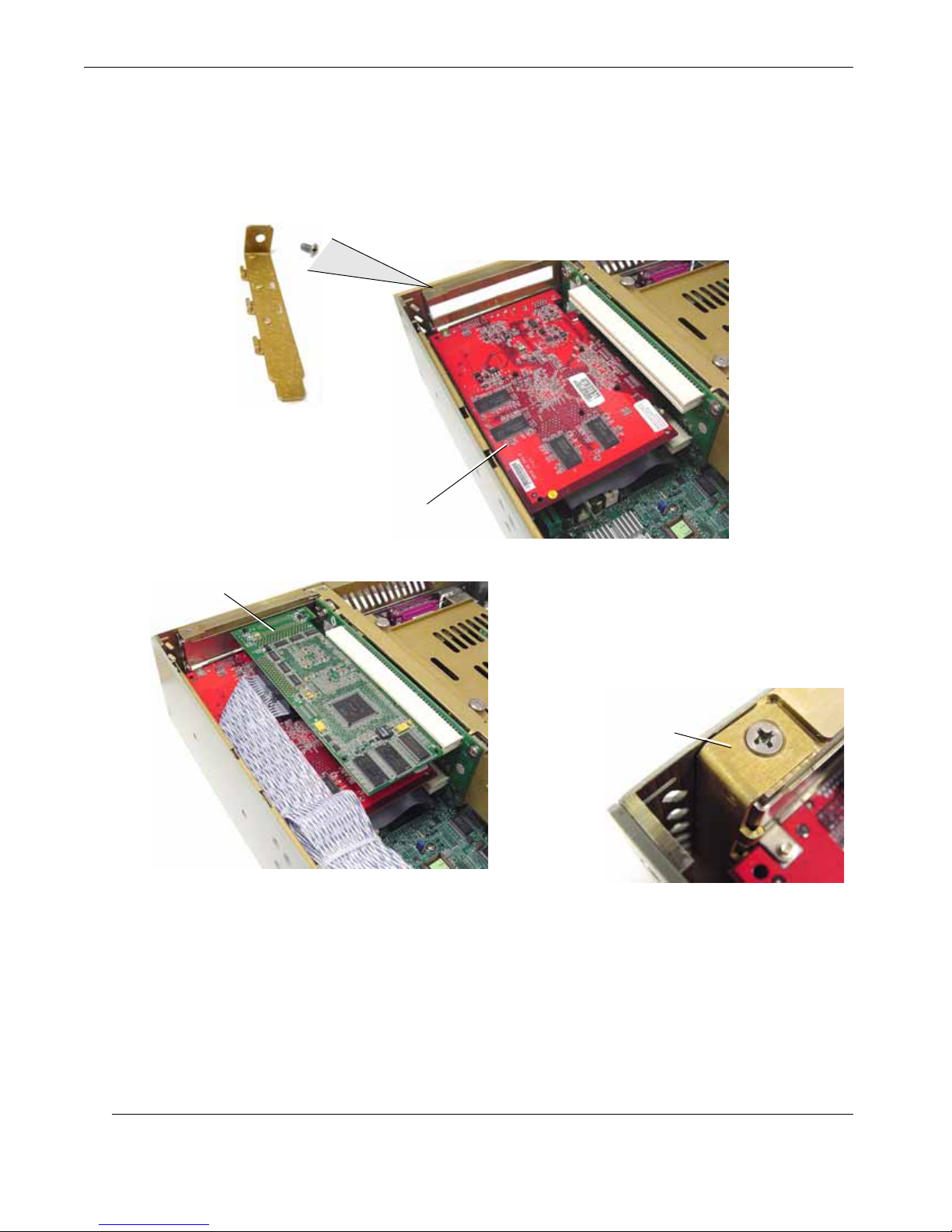

Figure 2-9.

PCI Card Installation

Themis Computer

2.1.5 Removable 60-mm Fan Housing

The RES-22DCX contains four high-speed 60-mm fans within two fan housings (two fans per housing). Both the front and rear fan housings (see Figure 2-10) are removable for replacement in the event of a fan failure.

2.1.5.1 Removing the 60-mm Fan Housing

Perform the following steps to remove a 60-mm Fan Housing:

1. Make sure the system is powered off (see “Operation” on page 2-19).

2. Select the 60-mm fan housing that you want to replace (see Figure 2-10) and,

with a Phillips screwdriver, loosen the two captive knurled screws (one at each end) until the housing is released from the chassis.

3. Four twisted wires form the cabling system of each housing. Carefully remove the 4-wire cable from its connector on the motherboard, remembering where each cable was attached.

Installation and Operation

Installation Procedures

4. The 60-mm fan housing can now be removed from the RES-22DCX chassis.

Front 60-mm-Fan Housing

Rear 60-mm Fan Housing

Knurled Phillips Screw

(2 for each Fan Housing)

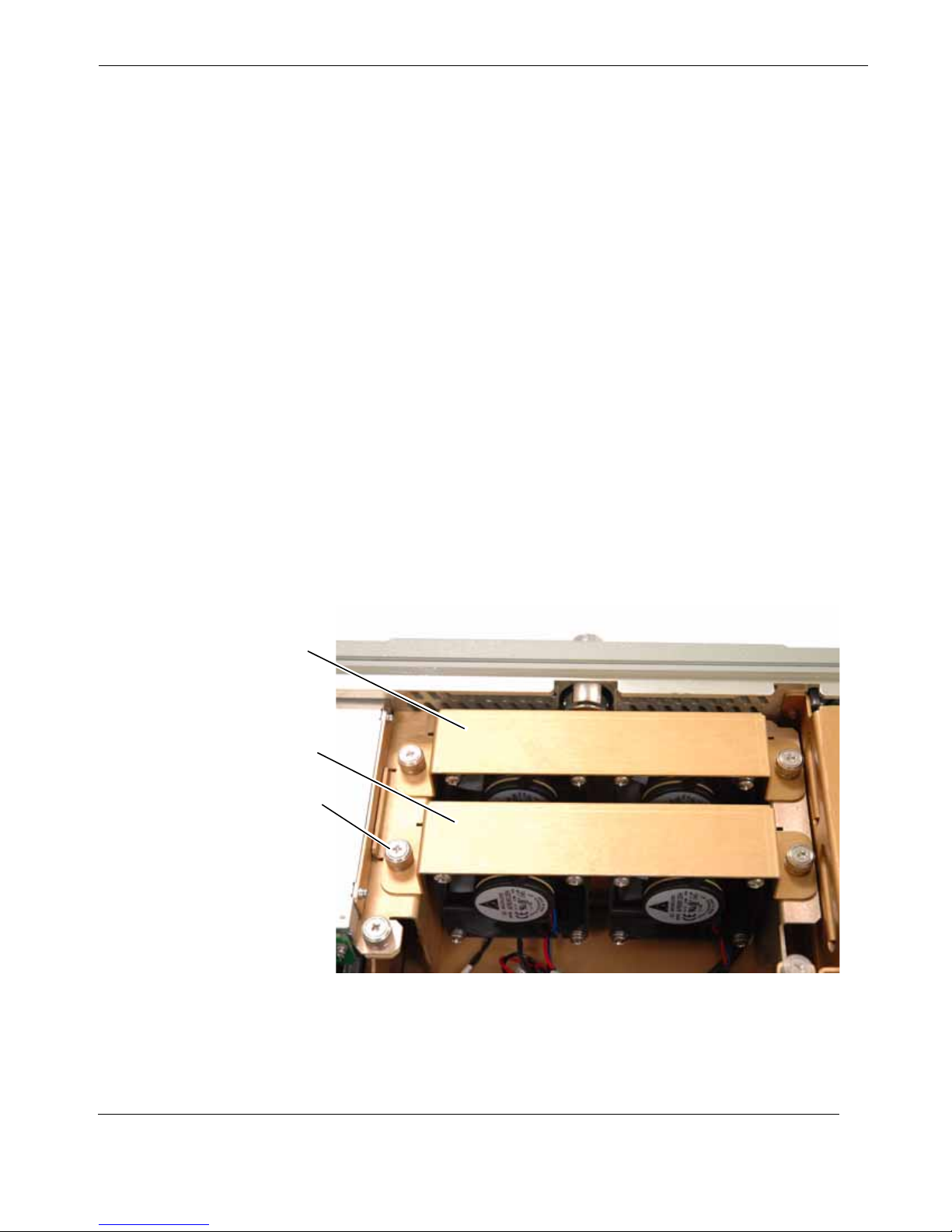

Figure 2-10. The RES-22DCX Front and Rear 60-mm Fan Housings

Themis Computer

2-13

RES-22DCX Installation Manual

2.1.5.2 Installing a 60-mm Fan Housing

Perform the following steps to install a 60-mm Fan Housing:

Front 60-mm-Fan Housing

1. Insert the replacement 60-mm fan housing into the slot formerly occupied by

the removed housing, aligning the key at each end of the new housing with the alignment slot (see Figure 2-11) in the fan-mounting bracket.

2. Connect the 4-wire cable from the new 60-mm fan housing to the mother-

board connectors from which the replaced housing cables were removed. Each cable connector is keyed to prevent incorrect cable insertion.

3. Tighten the two captive screws at each side with a Phillips screwdriver until

the 60-mm fan housing is firmly secured to the fan-mounting bracket.

Fan-Mounting Bracket

Alignment Slot

Rear 60-mm-Fan Housing

Alignment Key

Knurled Phillips Screw

Figure 2-11. Rear 60-mm Fan Housing Partially Removed

2-14

Themis Computer

2.1.6 Power Supply

Each 460-watt load-sharing (N+1 redundant) power supply can be hot-swapped while the system is still on and operational.

2.1.6.1 Removing a Power Supply

Perform the following steps to remove a power supply:

1. To remove a power supply, first loosen and remove the single captive screw holding the power supply handle retainer (see A, Figure 2-12).

2. Loosen and remove the two captive screws holding the power-cord bracket.

3. Hook your right index finger into the extraction handle and pull the locking

lever to the right with the right thumb (see B, Figure 2-12), freein g the power supply from being held within the chassis.

Installation and Operation

Installation Procedures

Captive

Screw (1 of 2)

Power-Cord

Bracket

4. Pull the power supply until it is free of the chassis.

Caution: When pulling the power supply from the chassis, hold it at the bottom to prevent it from falling and damaging the unit.

Push right to release power supply

Extraction Handle

Locking

Lever

Power Supply Handle Retainer

Captive Screw

Figure 2-12. The RES-22DCX Power Supply Locking Mechanism

Themis Computer

2-15

RES-22DCX Installation Manual

2.1.6.2 Installing a Power Supply

Perform the following steps to install a power supply:

1. Insert the replacement power supply into an empty slot with the extraction

handle facing to the right (see Figure 2-12).

2. Push the power supply carefully into its slot until it is firmly seated (a click

will be heard when the locking lever is securely fastened to the chassis).

3. Replace and tighten the captive screw that holds the power supply handle

retainer to the chassis (see Figure 2-12) to secure both power supply handles.

4. Secure the power-cord bracket removed in the previous section by refastening

the two captive screws to the chassis.

2-16

Themis Computer

2.1.7 Lithium Battery

2.1.7.1 Removing the Lithium Battery

Perform the following steps to remove the lithium battery:

1. Make sure the system is powered off (see “Operation” on page 2-19).

2. Locate the lithium battery socket (see Figure 1-4, page 1-6) and squeeze the latch (see A, Figure 2-13) together until the battery lifts out of its socket.

3. Remove the old battery and replace with a new battery (see next section).

Installation and Operation

Installation Procedures

Battery Latch

To release, squeeze the battery latch together . . .

. . . and remove the battery from its socket

Figure 2-13. The RES-22DCX Lithium Battery and Socket

2.1.7.2 Installing a Lithium Battery

Perform the following steps to insert a new lithium battery:

1. Tilt the replacement battery into the empty socket so that it is angled under the battery latch ((see B, Figure 2-13).

2. Carefully press down on the battery until it clicks firmly into place.

Themis Computer

2-17

RES-22DCX Installation Manual

2.2 Rack Mounts

2.2.1 Mounting Brackets

Two types of rack-mount brackets (flanges) can be ordered for the RES-22DCX to secure the chassis to the 19” rack: brackets with handles (see A, Figure 2-14), and brackets without handles (see B, Figure 2-14). The chassis contains three threaded screw holes on each side to accommodate #10-32 size screws (included with the bracket package).

Brackets with handles are used to pull the RES-22DCX from the rack when rackmount slides have been installed on the sides of the chassis (see following section).

Figure 2-14.

Rack-Mount Bracket with (A) and without a Handle (B)

2.2.2 Rack-Mount Slides (Optional)

Rack-Mount Slides can be mounted on each side of the RES-22DCX for the purpose of sliding the unit in and out of a rack. Mounting slides are optional and should be ordered at the time your system is purchased.

To learn how to install rack-mount slides, refer to Appendix B, “Rack-Mount Slide Installation”.

Caution: Any screws used to mount a slide to a RES-22DCX chassis must not exceed a length of 3/8” to prevent excessive penetration of the chassis.

2-18

Themis Computer

2.3 Operation

2.3.1 Plugging in and Securing the AC Power Cords

Before powering on the RES-22DCX, plug in and secure the AC power cords as follows:

1. If not already installed, secure the power-cord retainer bracket (see A, Figure 2-16 on page 2-20) to the rear corner of the chassis with the two captive screws.

2. On the rear of the RES-22DCX, plug an AC power cord (shipped with unit) into the AC power socket on each power supply (see Figure 2-15).

Installation and Operation

Operation

Locking Lever

AC Power Socket

Power-Cord Retainer Bracket

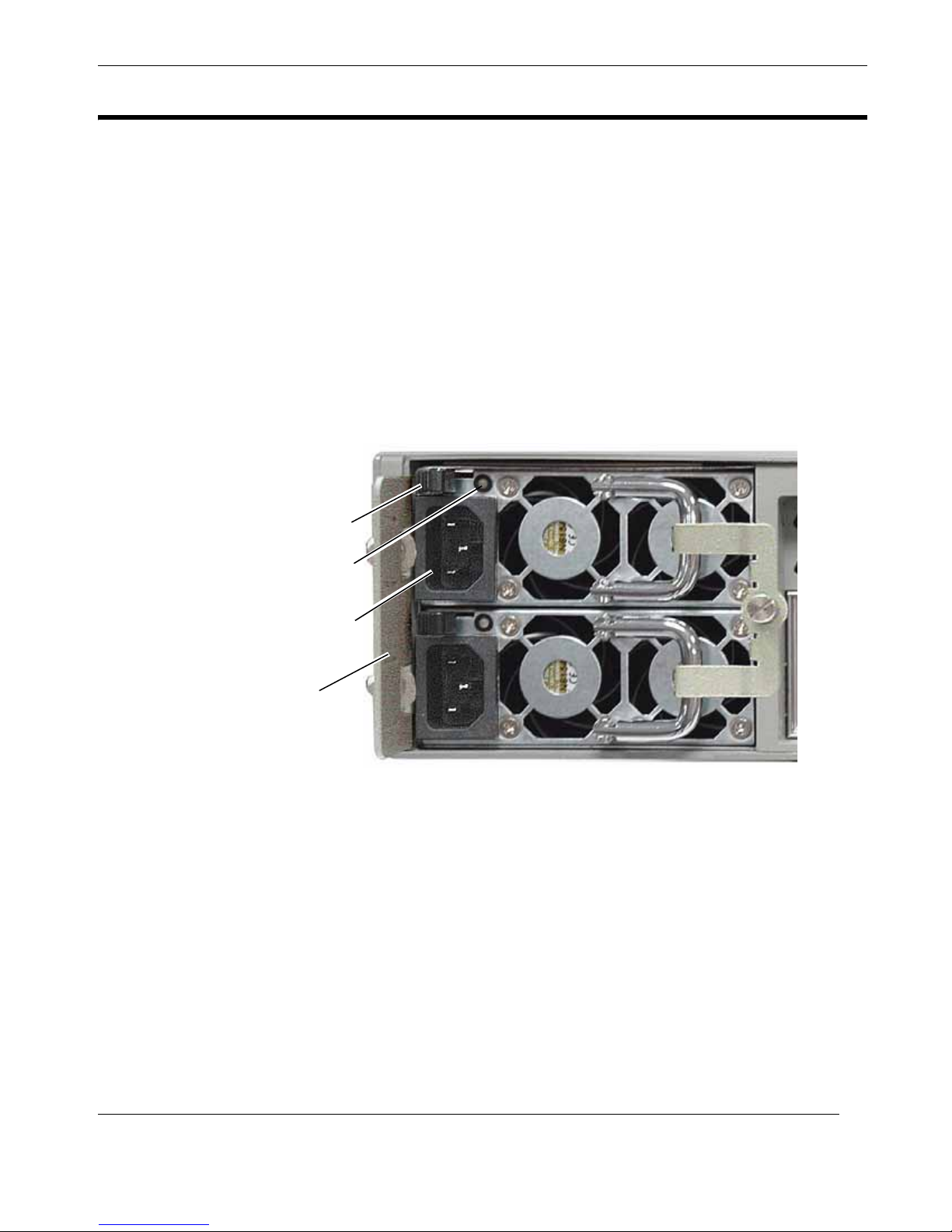

Figure 2-15. AC Power Socket and LED on the RES-22DCX Rear

3. Thread one velcro strap (see B, Figure 2-16), “fuzzy” side up, through the sec- ond slot down from the top of the power-cord bracket (see C, Figure 2-16).

4. Loop the velcro strap back through the third slot down from the top of the power-cord bracket (see D, Figure 2-16).

LED

5. Bring the narrow end of the velcro strap (now underneath the power-cord plug) up through the slit in the top of the strap, and back through the top slit on the power-cord bracket. Pull tightly (see E, Figure 2-16).

Themis Computer

2-19

RES-22DCX Installation Manual

Power-cord Bracket

Velcro Stap

Figure 2-16. Secure all Power Cords with Bracket and Velcro Strap

2-20

Themis Computer

Installation and Operation

Operation

6. Loop the velcro strap back through the fourth slot down from the top on the power-cord bracket. Pull tightly on the strap and fasten it to itself (see F, Fig- ure 2-16).

7. Using the bottom 4 slots on the power-cord bracket, repeat steps 3 through 6 to secure the lower AC power cord.

Figure 2-17 shows the two power cords secured in place on the rear of the RES-22DCX.

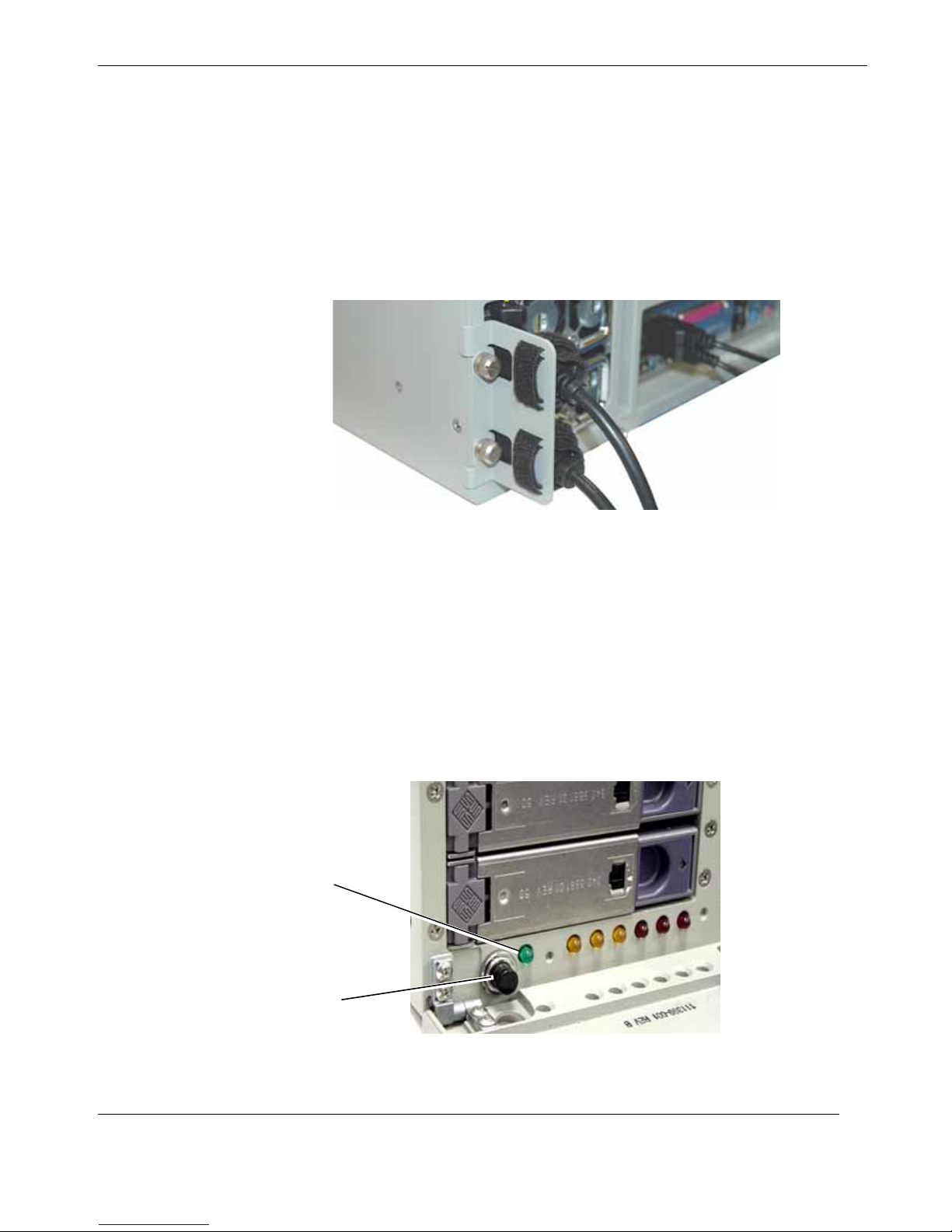

Figure 2-17. System Power Button and LED on the RES-22DCX Front

2.3.2 Turning the System On

1. Plug the AC power cord from each of the RES-22DCX power supplies into a “live” AC outlet.

The LED on each power supply will turn on when AC power is enabled.

2. On the front of the RES-22DCX push the system power on/off button (see Figure 2-18). This will cause the system POWER LED to light (green).

Power LED

System Power

On/Off Button

Figure 2-18. System Power Button and LED on the RES-22DCX Front

Themis Computer

2-21

RES-22DCX Installation Manual

2.3.3 Getting Started

2.3.3.1 Configuration

1. Make sure all SCSI/SATA II drives are installed (see “SCSI/SATA II Hard-

Disk Drive” on page 2-6). The lower (bottom) left drive will be automatically configured as SCSI ID0 (or SATA II ID1), the drive above that will be configured as SCSI ID1 (or SATA II ID0). Changes may be made through the BIOS.

2. Make sure that a graphics card is installed in middle slot of the Riser Card

(x16 PCI-express; see Figure 2-6) and connect a multiscan monitor to the SVGA or DVI connector.

3. Attach a PS/2 keyboard and mouse to the appropriate connectors on the rear I/O panel of the RES-22DCX (see B, Figure 1-5 on page 1-10)

4. Turn the system on (see previous section).

2.3.3.2 Linux Installation

The subject of installing the Linux operating system onto the RES-22DCX is detailed in Appendix D, “Red Hat Enterprise Linux Installation”.

2.3.4 Turning the System Off

Caution: Before turning your system off, make sure to save all open files, properly close applications, and broadcast a warning to all users on any active networks.

1. To turn the RES-22DCX power off, press and hold the system power on/off button (see Figure 2-18, page 2-21) for at least four (4) seconds. This will shut down the system and turn off the POWER LED.

As an alternative, a modern operating system (Windows 9x or newer and Linux, for example) can turn off the system after a graceful OS software shutdown.

2-22

Themis Computer

Appendix

Connector Pinouts

This appendix provides connector pinouts for all standard user I/O interfaces on the RES-22DCX.

A.1 PS/2 Keyboard and Mouse

The RES-22DCX provides a 6-pin female mini-DIN connector for the PS/2 keyboard, and another for the PS/2 mouse. Signals for both connectors are defined in Table A-1.

Table A-1. PS/2 Keyboard/Mouse Pinouts

Pin Signal Name

1 Keyboard/mouse data

2 N/C 3Ground 4Vcc 5 Keyboard/mouse clock 6 N/C

Themis Computer

A-1

RES-22DCX Installation Manual

A.2 USB Ports

The RES-22DCX supports four USB (Universal Serial Bus) port connectors (see Figure A-1), USB 0 through USB 3, on the rear I/O panel, and two optional USB ports mounted above the rear I/O panel. Two additional USB ports can be accessed directly from the system motherboard.

[Those who wish to customize USB ports should contact a local Themis sales office or info@themis.com.].

Pinouts are listed in Table A-2.

Figure A-1. USB Connector

Table A-2. USB Connector Pinouts

Pin Signal Name Pin Signal Name

1+5V 3PO+ 2PO– 4GND

A-2

Themis Computer

A.3 Serial Ports

The RES-22DCX supports two male DB9 serial port connectors on the rear I/O panel (see Figure A-2)—TTYA (COM1) and an optional TTYB (COM2). COM1 and COM2 pinouts are listed in Table A-3, page A-3.

Connector Pinouts

Serial Ports

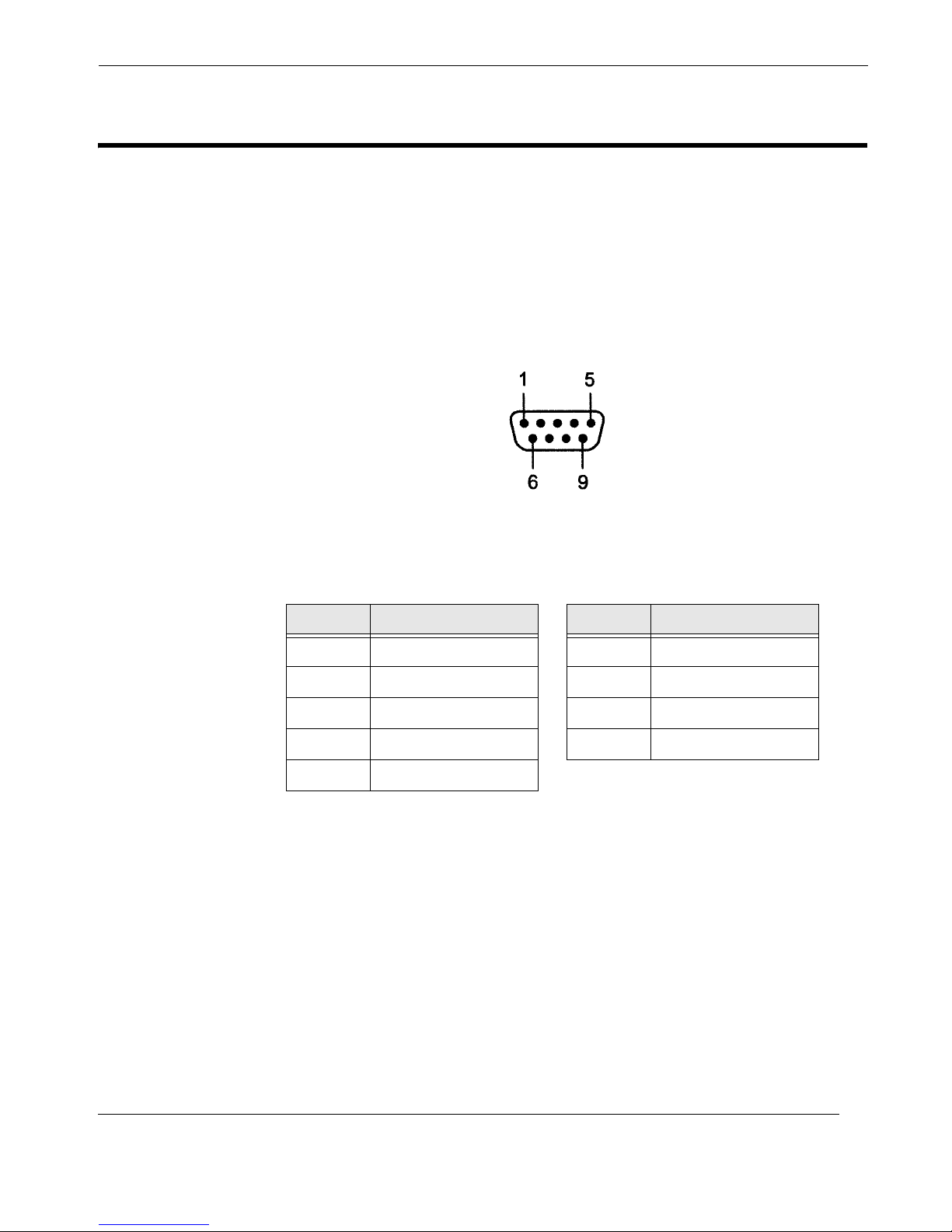

Figure A-2. DB9 Serial Connector

Table A-3. DB9 Serial Connector Pinout

Pin Signal Name Pin Signal Name

1DCD 6DSR 2RXD 7RTS 3TXD 8CTS 4DTR 9 RI 5GND

Themis Computer

A-3

RES-22DCX Installation Manual

A.4 Parallel Port

The RES-22DCX supports a single female DB25 parallel port connector (see Figure A-3). Pinouts are listed in Table A-4.

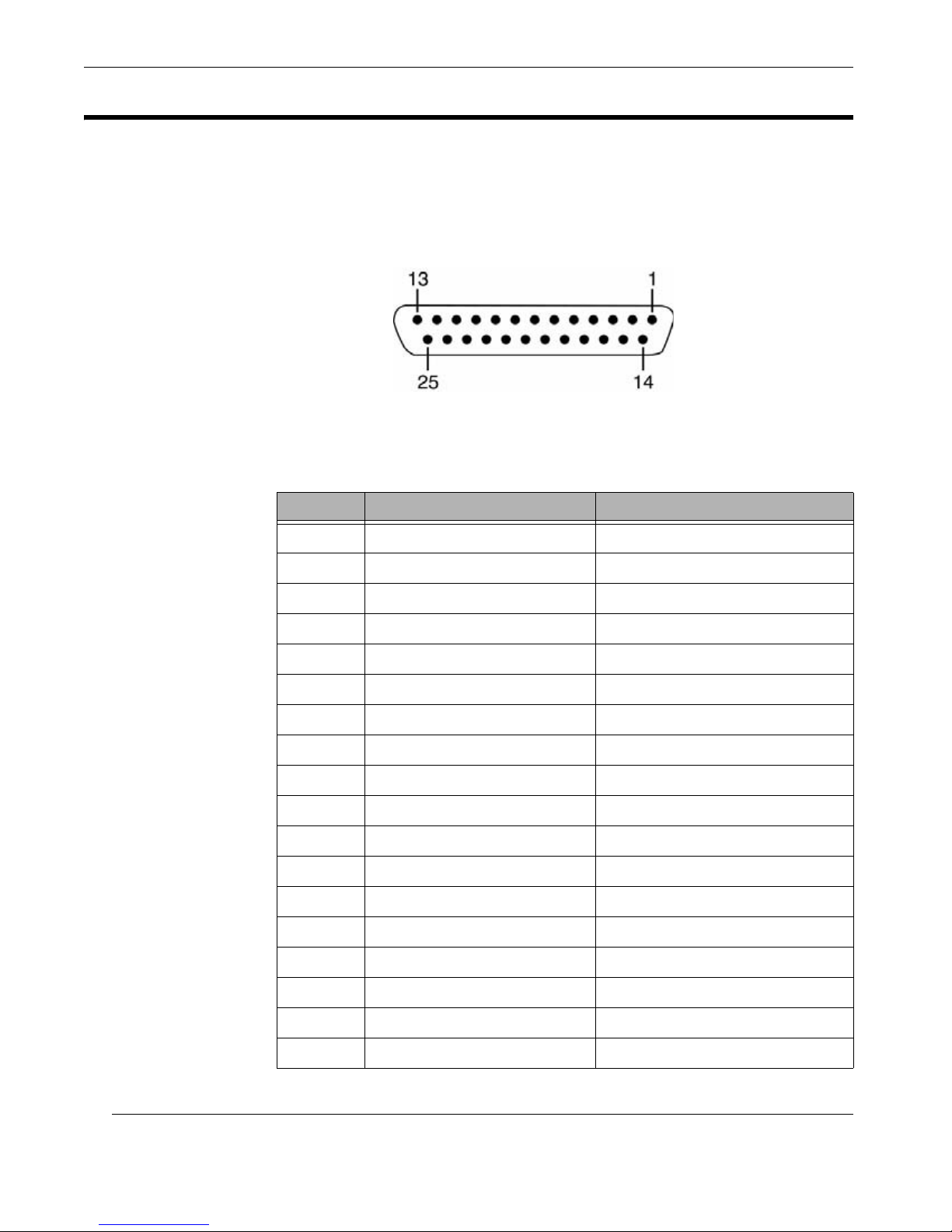

Figure A-3.

DB25 Parallel Connector

Table A-4. Parallel Port Connector Pinout

Pin Signal Description

1 PAR_DS_L_CONN Data S trobe Low

2 to 9 PP_DAT[0..7]_CONN Data0 Thru Data7

10 PAR_ACK_L_CONN Acknowledge Low 11 PAR_BUSY_CONN Busy 12 PAR_PE_CONN Parity Error 13 PAR_SELECT_L_CONN Select Low 14 PAR_AFXN_L_CONN Auto Feed Low 15 PAR_ERROR_L_CONN Error Low 16 PAR_INIT_L_CONN Initialize Low 17 PA R_IN_L_CONN Peripheral Input Low 18 Gnd Chassis ground 19 Gnd Chassis ground 20 Gnd Chassis ground 21 Gnd Chassis ground 22 Gnd Chassis ground 23 Gnd Signal ground 24 Gnd Write Data 25 Gnd Write Gate

A-4

Themis Computer

A.5 Gigabit Ethernet LAN Port

The RES-22DCX supports two RJ45 Gigabit Ethernet LAN port connectors—LAN1 and LAN2 (see Figure A-4). Pinouts are listed in Table A-5.

Connector Pinouts

Gigabit Ethernet LAN Port

Figure A-4.

Pin Signal Name Pin Signal Name

1 TRD0+ 5 TRD22TRD0- 6TRD13TRD1+ 7TRD3+ 4 TRD2+ 8 TRD3-

A.6 Audio Ports

The RES-22DCX supports three sub-miniature (3.5-mm diameter) audio ports:

• One Audio Line In

• One Audio Line Out

Gigabit Ethernet Connector, Type RJ45

Table A-5. RJ45 Gigabit Ethernet Pinouts

• One Microphone Line in

The microphone jack will support most types (dynamic, condenser, etc.) of microphones now on the market.

Themis Computer

A-5

RES-22DCX Installation Manual

A-6

Themis Computer

Appendix

Rack-Mount Slide Installation

An optional set of two rack-mount slides (left side and right side) is available for all RES-22 systems, and should be ordered at the time of purchase. The RES-22DCX chassis contains six threaded screw holes on each side to accommodate #8-32 size screws (included with the rack-mount slide kit); steel slides require four mounting holes, and aluminum slides require three mounting holes (see Figure B-1).

1.735”

Screw Hole Size

All holes = #8-32 Hole A = Steel Slides (18”) Hole B = Aluminum Slides (22”)

Figure B-1.

13.000”

6.000”

6.490”

12.380”

15.250”

Screw Locations for Rack-Mount Slides

2.575”

Mounting Bracket

AA/BAA

Bezel Cover

2.085”

Themis Computer

B-1

RES-22DCX Installation Manual

Dimensions of the screw-hole patterns on the sides of the RES-22DCX chassis for installing rack-mount slides are shown in Figure B-1. Holes for steel slides are marked “A”; holes for aluminum (Jonathan) slides are marked “B”. Note that one hole is shared by both steel and aluminum slides

Caution: Any screws used to mount a slide to a RES-22 chassis must not exceed a length of 3/8” to prevent excessive penetration of the chassis.

The rack-mount slide installation kit includes the following items:

a. Two inside slide sections

b. Two outside slide sections

c. Two front (short) slide brackets

d. Two rear (long) slide brackets

e. Assorted screws, washers, and nuts

Follow these steps to install a steel rack-mount slide to the RES-22DCX chassis:

1. Attach the inside slide section (see Figure B-2 on page B-3) to both sides of the RES-22DCX chassis using three or four #8-32 screws per side.

2. Measure the depth of the 19” equipment rack into which the RES-22DCX system will be installed (this can vary from 24” to 30”).

3. Using the depth of the equipment rack, adjust and attach the front and rear slide brackets to the outside slide section using the screws, washers, and nuts provided with the slide kit.

4. With all slide brackets securely attached to both the right and left outside slide sections, install both sections to the inside right and inside left of a 19” rack with two bolts per bracket, making sure there is adequate room for the 2RU height (3.5”) of a RES-22DCX system.

5. Carefully insert the RES-22DCX system into the 19” rack so that the inside slides on both sides of the chassis travel smoothly into the channels of the outside slide sections. Push the system into the rack until the mounting brackets on the front of the chassis are flush with the front of the rack.

6. Secure the RES-22DCX system to the 19” rack with two bolts on each side.

B-2

Themis Computer

Rack-Mount Slide Installation

B-3

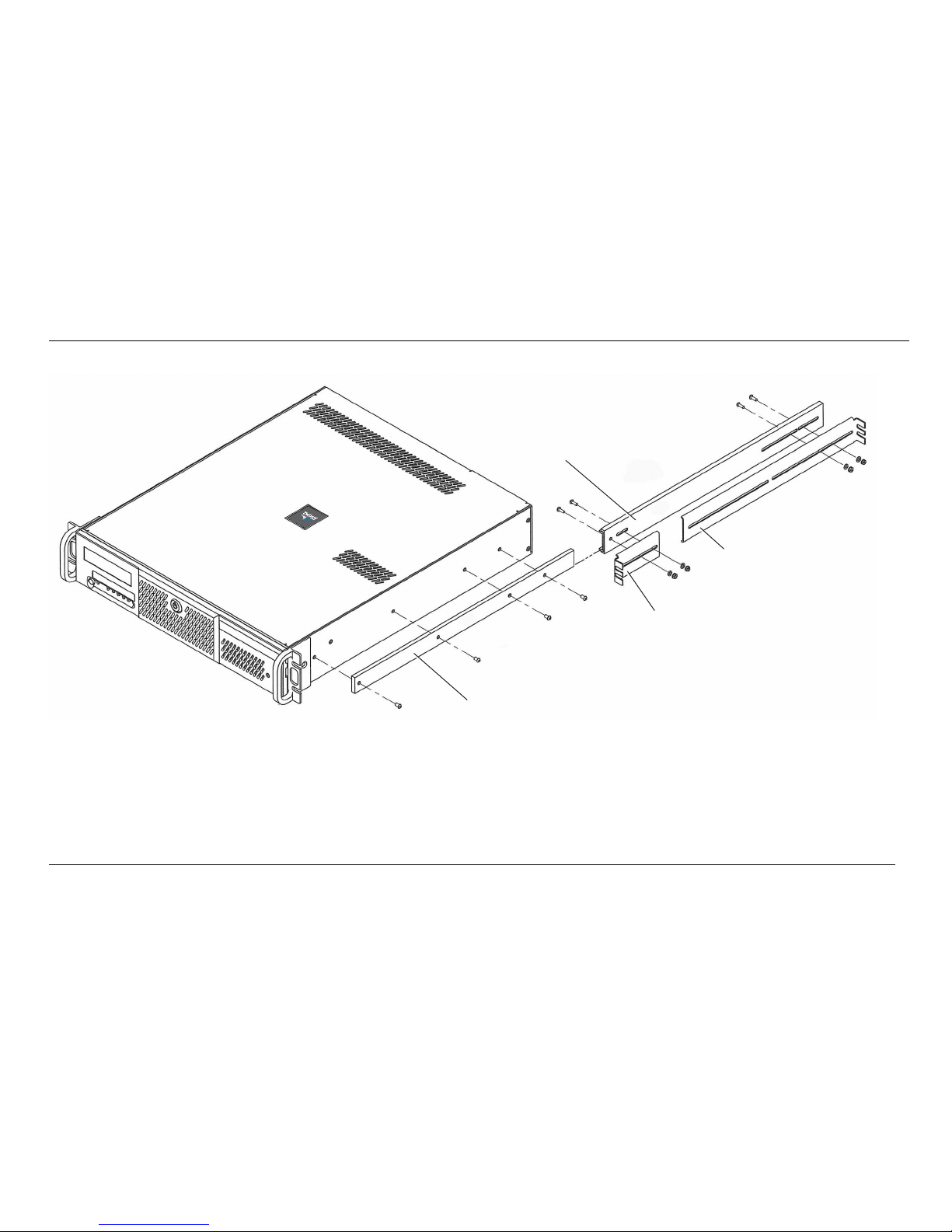

Figure B-1. RES-22DCX Rack-Mount Slide Installation

Attach the front (short) slide bracket to the outside slide section with screws,

Outside slide section

washers, and nuts (included in slide kit)

Attach the rear (long) slide bracket to the outside slide section with screws, washers, and nuts (included in slide kit)

Attach both inside slide sections to the left and right sides of the RES-22DCX chassis with #8-32 screws (included in slide kit)

Themis Computer

RES-22DCX Installation ManualBB

B-4

C.1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the RES-22DCX. The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy-disk-based program.

Appendix

BIOS Setup Utility

Note: Due to periodic changes to the BIOS, some settings may have been added or Deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of the SuperMicro web site http://www.supermicro.com for any changes to the BIOS that may not be reflected in this manual.

C.1.1 System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and PS/2® compatible computers. The Phoenix BIOS stores the system parameters, types of disk drives, video displays, etc. in the CMOS. The CMOS memory requires very little electrical power. When the computer is turned off, a backup battery provides power to the CMOS logic, enabling it to retain system parameters. Each time the computer is powered on the computer is configured with the values stored in the CMOS logic by the system BIOS, which gains control at boot up.

Themis Computer

C-1

RES-22DCX Installation Manual

C.1.2 How To Change the Configuration Data

The CMOS information that determines the system parameters may be changed by entering the BIOS Setup utility. This Setup utility can be accessed by pressing the <Delete> key at the appropriate time during system boot. (See following Section.)

C.1.3 Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the BIOS Setup utility. From the main menu, you can access the other setup screens, such as the Security and Power menus. Beginning with Section 4-3, detailed descriptions are given for each parameter setting in the Setup utility.

Warning: To prevent possible boot failure, do not shut down or reset the system while updating the BIOS.

C.2 Running Setup

Note: Default settings are shown in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing the appropriate text from the main BIOS Setup screen (see Figure C-1 on page C-3). The screen display is often all you need to understand how to set the options.

When the computer is first powered on, the Phoenix BIOS™ is immediately activated. While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears briefly at the bottom of the screen

during the POST (Power On Self-Test), press the <Delete> key to activate the main Setup menu:

Press the <Delete> key to enter Setup

C-2

Themis Computer

C.3 Main BIOS Setup

All the main Setup options are described in this section. The main BIOS Setup screen is displayed in Figure C-1.

Use the Up/Down arrow keys to move among the different settings in each menu. Use the Left/Right arrow keys to change the options for each setting.

The icon X indicates a submenu. With the item highlighted, press the <Enter> key to access the submenu.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in detail how to navigate through the menus.

C—BIOS Setup Utility

Main BIOS Setup

Themis Computer

Figure C-1. The Main BIOS Setup Menu

C-3

RES-22DCX Installation Manual

C.3.1 Main Setup Features

C.3.1.1 System Time

To set the system date and time, key in the correct information in the appropriate fields. Then press the <Enter> key to save the data.

C.3.1.2 System Date

Using the arrow keys, highlight the month, day, and year fields, and enter the correct data. Press the <Enter> key to save the data.

C.3.1.3 BIOS Date

The item displays the date that the BIOS was built.

C.3.1.4 Legacy Diskette A

This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are: Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in,

1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.

X IDE Channel 0 Master/Slave, IDE Channel 1 Mas-

ter/Slave, SATA Port2, SATA Port3

These settings allow the user to set the parameters of IDE Channel 0 Master/ Slave, IDE Channel 1 Master/Slave, SATA Port2, SATA Port3 slots. Hit <Enter> to activate the following sub-menu screen for detailed options of these items. Set the correct configurations accordingly. The items included in the submenu are shown in Figure C-2 on page C-5.

C.3.1.5 Type

Selects the type of IDE hard drive. The options are Auto, (which allows the BIOS to automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CDROM and ATAPI Removable. The option “User” will allow the user to enter the parameters of the HDD installed at this connection. The option “Auto” will allow the BIOS to automatically configure the parameters of the HDD installed at the connection. Choose the option 1-39 to select a predetermined HDD type. Select CDROM if a CDROM drive is installed. Select ATAPI if a removable disk drive is installed.

C-4

Themis Computer

C—BIOS Setup Utility

Main BIOS Setup

Figure C-2. The Main BIOS Setup Submenu

CHS Format

The following items will be displayed by the BIOS:

TYPE: This item displays the type of IDE or SATA drive. Cylinders: This item indicates the status of Cylinders. Headers: This item indicates the number of headers. Sectors: This item displays the number of sectors. Maximum Capacity: This item displays the maximum storage capacity of the sys-

tem.

LBA Format

The following items will be displayed by the BIOS: Total Sectors: This item displays the number of total sectors available in the LBA

Format. Maximum Capacity: This item displays the maximum capacity in the LBA For-

mat.

Themis Computer

C-5

RES-22DCX Installation Manual

C.3.1.6 Multi-Sector Transfer

This item allows the user to specify the number of sectors per block to be used in multi-sector transfer . The options are Disabled, 4 Sectors, 8 Sectors, and 16 Sectors.

C.3.1.7 LBA Mode Control

This item determines whether the Phoenix BIOS will access the IDE Channel 0 Master Device via the LBA mode. The options are Enabled and Disabled.

C.3.1.8 32 Bit I/O

This option allows the user to enable or disable the function of 32-bit data transfer.The options are Enabled and Disabled.

C.3.1.9 Transfer Mode

This option allows the user to set the transfer mode. The options are Standard, Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

C.3.1.10Ultra DMA Mode

This option allows the user to select Ultra DMA Mode. The options are Disabled, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

C.3.1.11Parallel ATA

This setting allows the user to enable or disable the function of Parallel ATA. The options are Disabled and Enabled.

C.3.1.12Serial ATA

This setting allows the user to enable or disable the function of Serial ATA. The options are Disabled and Enabled.

C.3.1.13Native Mode Operation

Select Serial ATA for SATA or select “Auto” (Native Mode) for ATA. The options are Serial ATA and Auto.

C.3.1.14SATA Controller Mode

Select Compatible to allow the SATA and PATA drives to be automaticallydetected and be placed in the Legacy Mode by the BIOS. Select Enhanced to allow

C-6

Themis Computer

the SATA and PATA drives to be to be automatically-detected and be placed in the Native IDE Mode.

Note: The Enhanced mode is supported by the Windows 2000 OS or a later version.

When the SATA Controller Mode is set to “Enhanced”, the following items will display:

C.3.1.15Serial ATA (SATA) RAID Enable

Select Enable to enable Serial ATA RAID Functions. (*For the Windows OS environment, use the RAID driver if this feature is set to Enabled. When this item is set to Enabled, the item: “ICH RAID Code Base” will be available for you to select either Intel or Adaptec Host RAID firmware to be activated. If this item is set to Dis-

abled, the item-SATA AHCI Enable will be available.) The options are Enabled and Disabled.

C—BIOS Setup Utility

Main BIOS Setup

C.3.1.16ICH RAID Code Base

Select Intel to enable Intel's SATA RAID firmware. Select Adaptec to use Adaptec's HostRAID firmware. The options are Intel and Adaptec.

C.3.1.17SATA AHCI

Select Enable to enable the function of Serial ATA Advanced Host Interface.

Caution: This feature is for advanced programmers only. The options are Enabled and Disabled.

C.3.1.18System Memory

This display informs you how much system memory is recognized as being present in the system.

C.3.1.19Extended Memory

This display informs you how much extended memory is recognized as being present in the system.

Themis Computer

C-7

RES-22DCX Installation Manual

C.4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the display shown in Figure C-3. The items with a triangle beside them have submenus that can be accessed by highlighting the item and pressing <Enter>.

C.4.1 X Boot Features

Access the Boot Features submenu to make changes to the following settings.

C.4.1.1 Quick Boot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine by skipping certain tests after the computer is turned on. The settings are Enabled and Disabled. If Disabled, the POST routine will run at normal speed.

C-8

Figure C-3. The Advanced BIOS Setup Menu

Themis Computer

C.4.1.2 Quiet Boot

This setting allows you to Enable or Disable the graphic logo screen during boot-up.

C.4.1.3 ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Configuration and Power Interface) power management on your system. The options are Yes and No.

C.4.1.4 ACPI Sleep Mode

Use the setting to determine if you want to employ ACPI (Advanced Configuration and Power Interface) power management on your system when the system goes into the sleep mode. The options are S1 and S3.

C—BIOS Setup Utility

Advanced Setup

C.4.1.5 Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user hits the power button. If set to 4-sec., the system will power off when the user presses the power button for 4 seconds or longer. The options are instant-of f and 4-sec override.

C.4.1.6 Resume On Modem Ring

Select On to “wake your system up” when an incoming call is received by your modem. The options are On and Off.

C.4.1.7 Power Loss Control

This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Stay Off, Power On, and Last State.

C.4.1.8 Watch Dog

If enabled, this option will automatically reset the system if the system is not active for more than 5 minutes. The options are Enabled and Disabled.

C.4.1.9 Summary Screen

This setting allows you to Enable or Disable the summary screen which displays the system configuration during bootup.

Themis Computer

C-9

RES-22DCX Installation Manual

C.4.2 X Memory Cache

C.4.2.1 Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a System BIOS buffer to allow the BIOS write (cache) its data into this reserved memory area. Select “Write Protect” to enable this function, and this area will be reserved for BIOS ROM access only. Select “Unchecked” to disable this function and make this area available for other devices.

C.4.2.2 Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a Video BIOS buffer to allow the BIOS write (cache) its data into this reserved memory area. Select “Write Protect” to enable the function and this area will be reserved for Video BIOS ROM access only. Select “Uncached” to disable this function and make this area available for other devices.

C.4.2.3 Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area: block 0512K to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or to be written into L1, L2 cache inside the CPU to speed up CPU operations. Select “Uncached” to disable this function. Select “Write Through” to allow data to be cached into the buffer and written into the system memory at the same time. Select “Write Prote ct” to prevent data from being written into the base memory area of Block 0-512K. Select “Write Back” to allow CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and Write Back.

C.4.2.4 Cache Base 512K-640K

If enabled, this feature will allow the data stored in the memory area: 512K-640K to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or written into L1, L2, L3 cache inside the CPU to speed up CPU operations. Select “Uncached” to disable this function. Select “Write Through” to allow data to be cached into the buffer and written into the system memory at the same time. Select “Write Protect” to prevent data from being written into the base memory area of Block 512K-640K. Select “Write Back” to allow CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and

Write Back.

C-10

Themis Computer

C.4.2.5 Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or written into L1, L2, L3 cache inside the CPU to speed up CPU operations.

Select “Uncached” to disable this function. Select “Write Through” to allow data to be cached into the buffer and written into the system memory at the same time. Select “Write Protect” to prevent data from being written into the base memory area of Block 0-512K. Select “Write Back” to allow CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and Write Back.

C.4.2.6 Discrete MTRR Allocation

If enabled, MTRRs (-Memory T ype Range Regis ters) are configured as distinct, separate units and cannot be overlapped. If enabled, the user can achieve better graphic effects when using a Linux graphic driver that requires the write-combining configuration with 4GB or more memory. The options are Enabled and Disabled.

C—BIOS Setup Utility

Advanced Setup

C.4.3 X PCI Configuration

Access the submenu to make changes to the following settings for PCI devices.

C.4.3.1 Onboard GLAN1/Onboard GLAN2 (Gigabit-LAN) OPROM Config-

ure

Enabling this option provides the capability to boot from GLAN. The options are Disabled and Enabled.

C.4.3.2 Onboard SCSI OPROM Configure

Enabling this option provides the capitally to boot from SCSI HDD. The options are Disabled and Enabled.

C.4.3.3 PCI Parity Error Forwarding

The feature allows SERR and PERR errors detected in PCI slots to be sent (forwarded) to the BIOS DMI Event Log for the user to review. The options are Enabled and Disabled.

Themis Computer

C-11

RES-22DCX Installation Manual

C.4.3.4 Reset Configuration Data

If set to Yes, this setting clears the Extended System Configuration Data- (ESCD) area. The options are Yes and No.

C.4.3.5 Frequency for PCI-X#1, PCI-X#2-#3

This option allows the user to change the bus frequency for the devices installed in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66 MHz, PCI-X 100 MHz, and PCI-X 133 MHz.

C.4.4 X Slot#1 PCI-X 100 MHz ZCR, Slot#2 PCI-X 133MHz,

Slot#3 PCI-X 133MHz, Slot#4 PCI-Exp x4, Slot#5 PCI33MHz, and Slot#6 PCI-Exp x16

Access this submenu for each of the settings to make changes to the following:

C.4.4.1 Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options are Enabled and Disabled.

C.4.4.2 Enable Master

This setting allows you to enable the selected device as the PCI bus master. The options are Enabled and Disabled.

C.4.4.3 Latency Timer

This setting allows you to set the clock rate for Bus Master. A high-priority, highthroughout device may benefit from a greater clock rate. The options are Default, 0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h. For Unix, Novelle and other Operating Systems, please select the option: other. If a drive fails after the installation of a new software, you might want to change this setting and try again. A different OS requires a different Bus Master clock rate.

C.4.4.4 Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options are

DOS or Other (for Unix, Novelle NetWare and other operating systems).

C-12

Themis Computer

C.4.5 X Advanced Chipset Control

Access the submenu to make changes to the following settings.

Caution: Be careful when changing the Advanced settings. Incorrect values entered may cause system malfunction. Also, a very high DRAM frequency or incorrect DRAM timing may cause system instability. When this occurs, revert to the default setting.

C.4.5.1 SERR Signal Condition

This setting specifies the ECC Error conditions that an SERR# is to be asserted. The options are None, Single Bit, Multiple Bit, and Both.

C.4.5.2 4GB PCI Hole Granularity

C—BIOS Setup Utility

Advanced Setup

This feature allows you to select the granularity of PCI hole for PCI slots. If MTRRs are not enough, this option may be used to reduce MTRR occupation. The options are: 256 MB, 512 MB, 1GB and 2GB.

C.4.5.3 Memory Branch Mode

This option determines how the two memory branches operate. System address space can either be interleaved between the two branches or Sequential from one branch to another. Mirror mode allows data correction by maintaining two copies of data in two branches. Single Channel 0 allows a single DIMM population during system manufacturing. The options are Interleave, Sequential, Mirroring, and Single Channel 0.

C.4.5.4 Branch 0 Rank Sparing

Select enable to enable the sparing feature for Branch 0 of memory bus. The options are Enabled and Disabled.

C.4.5.5 Branch 1 Rank Sparing

Select enable to enable the sparing feature for Branch 1 of memory bus. The options are Enabled and Disabled.

Themis Computer

C-13

RES-22DCX Installation Manual

C.4.5.6 Enhanced x8 Detection

Select Enabled to enable Enhanced x8 DRAM UC Error Detection. The options are Disabled and Enabled.

C.4.5.7 Crystal Beach Features

This feature cooperates with Intel I/O AT (Acceleration Technology) to accelerate the performance of TOE devices. The options are Enabled and Disabled.

Note: A TOE device is a specialized, dedicated processor that is installed on an add-on card or a network card to handle some or all packet processing of this addon card. For the RES-22DCX, the TOE device is built inside the ESB 2 SouthBridge chip.

C.4.5.8 Route Port 80h Cycles

This feature allows the user to decide which bus to send debug information to. The options are Disabled, PCI, and LPC.

C.4.5.9 Clock Spectrum Feature

If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused by the components and will attempt to decrease the interference whenever needed. The options are Enabled and Disabled.

C.4.5.10Enabling Multi-Media Timer

Select Yes to activate a set of timers that are alternative to the traditional 8254 timers for the OS use. The options are Yes and No.

C.4.5.11USB Function

Select Enabled to enable the function of USB devices specified. The settings are Enabled and Disabled.

C.4.5.12Legacy USB Support

This setting allows you to enable support for Legacy USB devices. The settings are

Enabled and Disabled.

C-14

Themis Computer

C.4.6 X Advanced Processor Options

Access the submenu to make changes to the following settings.

C.4.6.1 CPU Speed

This is a display that indicates the speed of the installed processor.

C.4.6.2 Frequency Ratio (Only when supported by the CPU)

The feature allows the user to set the internal frequency multiplier for the CPU. The options are: Default, x12, x13, x14, x15, x16, x17 and x18.

C.4.6.3 Hyper-Threading (Only when supported by the CPU)

Set to Enabled to use the Hyper-Threading Technology, which will result in increased CPU performance. The options are Disabled and Enabled.

C—BIOS Setup Utility

Advanced Setup

C.4.6.4 Core-Multi-Processing (Only when supported by the CPU)

Set to Enabled to use a processor's Second Core and beyond. (Please refer to Intel's web site for more information.) The options are Disabled and Enabled.

C.4.6.5 Machine Checking (Only when supported by the CPU)

Set to Enabled to activate the function of Machine Checking and allow the CPU to detect and report hardware (machine) errors via a set of model-specific registers (MSRs). The options are Disabled and Enabled.

C.4.6.6 Thermal Management 2 (Only when supported by the CPU)

Set to Enabled to use Thermal Management 2 (TM2), which will lower CPU voltage and frequency when the CPU temperature reaches a predefined overheat threshold. Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking to be regulated via CPU Internal Clock modulation when the CPU temperature reaches the overheat threshold.

C.4.6.7 C1 Enhanced Mode (Only when supported by the CPU)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency to prevent overheat. The options are Enabled and Disabled.

[Please refer to the Intel website for detailed information.]

Themis Computer

C-15

RES-22DCX Installation Manual

C.4.6.8 No Execute Mode Memory Protection (Only when supported by

the CPU and the OS)

Set to Enabled to enable Execute Disable Bit and allow the processor to classify areas in memory where an application code can execute and where it cannot, and thus preventing a worm or a virus from inserting and creating a flood of codes to overwhelm the processor or damage the system during an attack.

[This feature is available when your OS and your CPU support the function of Execute Disable Bit.]

The options are Disabled and Enabled. [For more information regarding hardware/software support for this function, please

refer to the Intel and Microsoft websites.]

C.4.6.9 Adjacent Cache Line Prefetch (Only when supported by the CPU)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The CPU fetches both cache lines for 128 bytes as comprised if Enabled. The options are Disabled and Enabled.

C.4.6.10Hardware Prefetch (Only when supported by the CPU)

Set to this option to enabled to enable the hardware components that are used in conjunction with software programs to prefetch data in order to shorten execution cycles and maximize data processing efficiency. The options are Disabled and Enabled.

C.4.6.11PECI Absent Alarm (Only when supported by the CPU)

If set to Enabled, the PECI Absent Alarm will be activated if the function of PECI (Platform Environment Control Interface) is not available for the onboard processes or for the motherboard. The options are Disabled and Enabled.

C.4.6.12Intel Virtualization Technology (Only when supported by the CPU)

Select Enabled to use the feature of Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple “virtual” systems in one physical computer. The options are Enabled and Disabled. (*Note: If there is any change to this setting, you will need to power off and restart the system for the change to take effect.) Please refer to Intel’s web site for detailed information.

C-16

Themis Computer

C.4.6.13Intel EIST Support (Only when supported by the CPU)

Select Enabled to use the Enhanced Intel SpeedStep Technology and allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation. The options are Enabled and Dis- abled.

[Please refer to the Intel website for detailed information.]

C.4.7 X I/O Device Configuration

Access the submenu to make changes to the following settings.

C.4.7.1 KBC Clock Input

This setting allows you to select clock frequency for KBC. The options are 6MHz, 8MHz, 12MHz, and 16MHz.

C—BIOS Setup Utility

Advanced Setup

C.4.7.2 Serial Port A

This setting allows you to assign control of serial port A. The options are Enabled (user defined), Disabled, and Auto (BIOS- or OS- controlled).

C.4.7.3 Base I/O Address

This setting allows you to select the base I/O address for serial port A. The options are 3F8, 2F8, 3E8, and 2E8.

C.4.7.4 Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port A. The options are IRQ3 and IRQ4.

C.4.7.5 Serial Port B

This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.

C.4.7.6 Mode

This setting allows you to set the type of device that will be connected to serial port B. The options are Normal and IR (for an infrared device).

Themis Computer

C-17

RES-22DCX Installation Manual

C.4.7.7 Base I/O Address

This setting allows you to select the base I/O address for serial port B. The options are 3F8, 2F8, 3E8 and 2E8.

C.4.7.8 Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port B. The options are IRQ3 and IRQ4.

C.4.7.9 Parallel Port

This setting allows you to assign control of the parallel port. The options are Enabled (user defined), Disabled and Auto (BIOS-or OS- controlled).

C.4.7.10Base I/O Address

Select the base I/O address for the parallel port. The options are 378, 278 and 3BC.

C.4.7.11Interrupt

This setting allows you to select the IRQ (interrupt request) for the parallel port. The options are IRQ5 and IRQ7.

C.4.7.12Mode

This feature allows you to specify the parallel port mode. The options are Output only, Bi-Directional, EPP and ECP.

C.4.7.13DMA Channel

This item allows you to specify the DMA channel for the parallel port. The options are DMA1 and DMA3.

C.4.7.14Floppy Disk Controller

This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled, and Auto (BIOS and OS controlled).

C.4.7.15Base I/O Address

This setting allows you to select the base I/O address for the parallel port. The options are Primary and Secondary.

C-18

Themis Computer

C.4.8 X DMI Event Logging

Access the submenu to make changes to the following settings.

C.4.8.1 Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

C.4.8.2 Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

C.4.8.3 View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

C.4.8.4 Event Logging

C—BIOS Setup Utility

Advanced Setup

This setting allows you to Enable or Disable event logging.

C.4.8.5 ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

C.4.8.6 Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

C.4.8.7 Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes and No.

C.4.9 X Console Redirection

Access the submenu to make changes to the following settings.

C.4.9.1 COM Port Address

This item allows you to specify to redirect the console to Onboard COM A or Onboard COM B. This setting can also be Disabled.

Themis Computer

C-19

RES-22DCX Installation Manual

C.4.9.2 BAUD Rate

This item allows you to select the BAUD rate for console redirection. The options are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K, and 115.2K.

C.4.9.3 Console Type

This item allows you to choose from the available options to select the console type for console redirection. The options are VT100, VT100,8bit, PC-ANSI, 7bit, PC ANSI, VT100+, and VT-UTF8.

C.4.9.4 Flow Control

This item allows you to choose from the available options to select the flow control for console redirection. The options are: None, XON/XOFF, and CTS/RTS.

C.4.9.5 Console Connection

This item allows you to choose select the console connection: either Direct or Via Modem.

C.4.9.6 Continue CR after POST

Choose whether to continue with console redirection after the POST routine. The options are On and Off.

C.4.10 X Hardware Monitor Logic [Alternative 1]

Note: The Phoenix BIOS will automatically detect the type of CPU(s) and hardware monitoring chip used on the motherboard and will display the Hardware Monitoring Screen accordingly . Your Hardware Monitoring Screen may look like the one shown on this page, on page C-22, or on page C-23, depending on the type of CPU(s) and HW Monitoring chip you are using.

C.4.10.1CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature threshold.

The options are 70oC, 75oC, 80oC, and 85oC.

C-20

Themis Computer

Themis RES-22DCX Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
