The Galley IWS-7-S-BA, IWS-7-S-GT, IWS-7-S-WH, IWS-7-S-GR Specifications Sheet

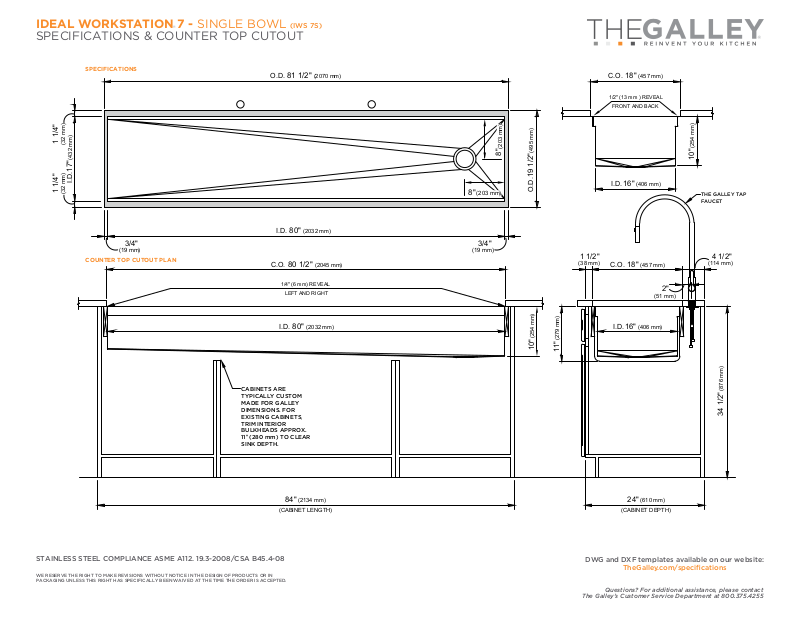

IDEAL WORKSTATION 7 - SINGLE BOWL (IWS 7S)
SPECIFICATIONS & COUNTER TOP CUTOUT
SPECIFICATIONS
1 1/4"
(32 mm)
(432 mm)
17"
I.D.
1 1/4"
(32 mm)
COUNTER TOP CUTOUT PLAN
3/4"
(19 mm)
81 1/2"
80"
80 1/2"
C.O.
1/4" (6 mm) REVEAL
LEFT AND RIGHT
80"
(2032 mm)I.D.
(2032 mm)I.D.
(2070 mm)O.D.
(2045 mm)
(203 mm)
8"
3/4"
(19 mm)
(203 mm)
8"
(495 mm)O.D.
19 1/2"
(254 mm)
10"
(279 mm)
11"
1 1/2"
(38 mm)
C.O.
(457 mm)
18"
1/2" (13 mm ) REVEAL
FRONT AND BACK
(406 mm)I.D.
16"
C.O.
(457 mm)
18"
(406 mm)I.D.
16"
2"
(51 mm)
(254 mm)
10"
THE GALLEY TAP
FAUCET
4 1/2"
(114 mm)
CABINETS ARE
TYPICALLY CUSTOM
MADE FOR GALLEY
DIMENSIONS. FOR
EXISTING CABINETS,
TRIM INTERIOR
BULKHEADS APPROX.
11
" (280 mm) TO CLEAR
SINK DEPTH.
STAINLESS STEEL COMPLIANCE ASME A112. 19.3-2008/CSA B45.4-08
WE RESERVE THE RIGHT TO MAKE REVISIONS WITHOUT NOTICE IN THE DESIGN OF PRODUCTS OR IN
PACKAGING UNLESS THIS RIGHT HAS SPECIFICALLY BEEN WAIVED AT THE TIME THE ORDER IS ACCEPTED.
(2134 mm)
84"
(CABINET LENGTH)
(876 mm)
34 1/2"
(610 mm)
24"
(CABINET DEPTH)
DWG and DXF templates available on our website:
TheGalley.com/specifications
Questions? For additional assistance, please contact
The Galley’s Customer Service Department at 800.375.4255
